Stylish Design and Premium Performance
®
Owner’s Manual
ATTENTION:
Please read the content
of you owners manual
before operating you
power chair.

Copyright©2003
Pride Mobility Products Corp.
Please read and follow all instructions in this owners manual before attempting to operate your power
chair for the first time. If there is anything in this manual you do not understand or if you require additional
assistance for set-up contact your authorized Pride provider.
Using your Pride product safely depends upon your diligence in following the warnings cautions and
instructions in this owners manual. Using your Pride product safely also depends upon your own good
judgement and/or common sense as well as that of your provider caregiver and/or healthcare professional.
Pride is not responsible for injuries and/or damage resulting from any persons failure to follow the warnings
cautions and instructions in this owners manual. Pride is not responsible for injuries and/or damage resulting
from any persons failure to exercise good judgement and/or common sense.
The symbols below are used throughout this owners manual to identify warnings and cautions. It is very
important for you to read and understand them completely.
WARNING! Failure to heed the warnings in this owners manual may result in personal injury.
CAU ION! Failure to heed the cautions in this owners manual may result in damage to your power
chair.
2Jet 12
SAFETY GUIDELINES
INFMANU1353

Jet12/RevC/Feb03 www.pridemobility.com 3
CONTENTS
I. INT ODUCTION ........................................................................................................................ 4
II. SAFETY ......................................................................................................................................... 6
III. EMI/ FI ........................................................................................................................................ 14
IV. ASSEMBLY ................................................................................................................................. 16
V. YOU JET 12 ............................................................................................................................ 19
VI. COMFO T ADJUSTMENTS................................................................................................ 23
VII. DISASSEMBLY ......................................................................................................................... 24
VIII.BATTE IES AND CHA GING ........................................................................................... 25
IX. OPE ATION ............................................................................................................................... 28
X. CA E AND MAINTENANCE ............................................................................................... 30
XI. WA ANTY ............................................................................................................................... 35

4 www.pridemobility.com Jet12/RevC/Feb03
I. INTRODUCTION
INT ODUCTION
Welcome to Pride Mobility Products Corporation (Pride). Congratulations on the purchase of your new
Pride Power Chair. The Pride Power Chair design combines the most advanced state-of-the-art components
with modern attractive styling. We are certain that the design features and trouble-free operation of your
new power chair will add convenience to your daily living.
At Pride your safety is important to us. Please read and follow all of the instructions in this manual before
you attempt to operate your power chair for the first time. These instructions were produced for your
benefit. Your understanding of these instructions is essential for the safe operation of your new power chair.
Pride is not liable for damage to property or personal injury arising out of unsafe use of a power chair. Pride
is also not liable for any property damage or personal injury arising out of the failure of any person and/or
user to following the instructions and recommendations set forth in this manual or any other instructions or
recommendations contained in other power chair related literature issued by Pride or contained on the
power chair itself.
This owners manual is compiled from the latest specifications and product information available at the
time of publication. We reserve the right to make changes as they become necessary. Any changes to our
products may cause slight variations between the illustrations and explanations in this manual and the
product you have purchased.
If you experience any problems with your power chair that you are unable to solve or if you do not feel
capable of safely following any of the instructions and/or recommendations as contained in this manual
please contact your authorized Pride provider for assistance.
Once you understand how to operate and take care of your power chair we are certain that it will give you
years of trouble-free service and enjoyment.
Information Exchange
We want to hear your questions comments and suggestions about this manual. We would also like to hear
about the safety and reliability of your new power chair and about the service you received from your
authorized Pride provider.
Please notify us of any change of address so we can keep you apprised of important information about
safety new products and new options that can increase your ability to use and enjoy your power chair.
Please feel free to contact us at the address below:
Pride Mobility Products Corporation
Attn: Customer Care Department
182 Susquehanna Avenue
Exeter PA 18643-2694
[e-mail]
800-424-8205

Jet12/RevC/Feb03 www.pridemobility.com 5
I. INTRODUCTION
Pride Owners Club
As an owner of a Pride product you are invited to register your products warranty and enroll in the Pride
Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting
Prides web site at www.pridemobility.com. As a registered member each time you visit our site you will
have access to the most interactive and honest educational venue available today for people with mobility
needs their families and friends.
From our home page select Owners Club to enter a page dedicated to current and potential Pride product
owners. You will gain access to interviews stories recreation ideas daily living tips product and funding
information and interactive message boards. These message boards invited you to communicate with other
Pride customers as well as Pride representatives who are available to assist you with any questions or
concerns you may have.
My Authorized Pride Provider Is:
Name:_______________________________________________________________________________
Address:_____________________________________________________________________________
Phone Number:________________________________________________________________________
Purchase Date:________________________________________________________________________
NOTE:If you ever lose or misplace your product registration card or your copy of this manual, contact
us and we will be glad to send you a new one immediately.

6 www.pridemobility.com Jet12/RevC/Feb03
II. SAFETY
SAFETY
WARNING! Do not operate your new power chair for the first time without completely
reading and understanding this owners manual.
Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides
an extensive variety of products to best fit the individual needs of the power chair user. Please be aware that
the final selection and purchasing decision regarding the type of power chair to be used is the responsibility
of the power chair user who is capable of making such a decision and his/her healthcare professional (i.e.
medical doctor physical therapist etc.).
The contents of this manual are based on the expectation that a mobility device expert has properly fitted
the power chair to the user and has assisted the prescribing healthcare professional and/or the authorized
Pride provider in the instruction process for the use of the product.
There are certain situations including some medical conditions where the power chair user will need to
practice operating the power chair in the presence of a trained attendant. A trained attendant can be defined
as a family member or care professional specially trained in assisting a power chair user in various daily
living activities.
As you begin using your power chair during daily activities you will probably encounter situations in
which you will need some practice. Simply take your time and you will soon be in full and confident
control as you maneuver through doorways on and off of elevators up and down ramps and over moderate
terrain.
Below are some precautions tips and other safety considerations that will help the user become accustomed
to operating the power chair safely.
Modifications
Pride has designed and engineered your power chair to provide maximum mobility and utility. A wide
range of accessories is available from your authorized Pride provider to further customize your power chair
to better suit your needs and/or preferences. However under no circumstances should you modify add
remove or disable any feature part or function of your power chair.
WARNING! Do not modify your power chair in any way not authorized by Pride. Unautho-
rized modifications may result in personal injury and/or damage to your power chair.
Pre-Ride Safety Check
Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety
check before each use to make sure your power chair operates smoothly and safely. See X. Care and
Maintenance.

Jet12/RevC/Feb03 www.pridemobility.com 7
II. SAFETY
Perform the following inspections prior to using your power chair:
nCheck for proper tire inflation. Maintain 30-35 psi in each tire (if equipped with pneumatic tires).
nCheck all electrical connections. Make sure they are tight and not corroded.
nCheck all controller connections to the electronics tray. Make sure they are secured properly.
nCheck the brakes. See X. Care and Maintenance.
nCheck battery charge. See VIII. Batteries and Charging.
NOTE: If you discover a problem, contact your authorized ride provider for assistance.
eight Limitations
Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this
limit.
WARNING! Exceeding the weight capacity voids your warranty and may result in personal
injury and/or damage to your power chair. Pride will not be held responsible for injuries
and/or property damage resulting from failure to observe weight limitations.
WARNING! Do not carry passengers on your power chair. Carrying passengers on your
power chair may result in personal injury and/or property damage.
Tire Inflation
If your power chair is equipped with pneumatic tires you should check or have the air pressure checked at
least once a week. Proper inflation pressures will prolong the life of your tires and help ensure the smooth
operation of your power chair.
WARNING! It is important that 30-35 psi tire pressure be maintained in pneumatic tires at
all times. Do not underinflate or overinflate your tires. Low pressure may result in loss of
control, and overinflated tires may burst. Failure to maintain 30-35 psi tire pressure in
pneumatic tires at all times may result in tire and/or wheel failure, causing serious per-
sonal injury and/or damage to your power chair.
WARNING! Inflate your power chair drive tires from a regulated air source with an avail-
able pressure gauge. Inflating your tires from an unregulated air source could overinflate
them, resulting in a burst tire and/or personal injury.
Incline Information
More and more buildings have ramps with specified degrees of inclination designed for easy and safe
access. Some ramps may have turning switchbacks (180-degree turns) that require you to have good cornering
skills on your power chair.
nProceed with extreme caution as you approach the downgrade of a ramp or other incline.
nTake wide swings with your power chairs front wheels around any tight corners. If you do that the
power chairs rear wheels will follow a wide arc not cut the corner short and not bump into or get hung
up on any railing corners.
nWhen driving down a ramp keep the power chairs speed adjustment set to the slowest speed setting to
ensure a safely controlled descent. See IX. Operation.
nAvoid sudden stops and starts.

8 www.pridemobility.com Jet12/RevC/Feb03
When climbing an incline try to keep your power chair moving. If you must stop start up again slowly and
then accelerate cautiously. When driving down an incline set your power chair to the slowest setting and
drive in the forward direction only. If your power chair starts to move down the incline faster than you
anticipated or desired allow it to come to a complete stop by releasing the joystick then push the joystick
forward slightly to ensure a safely controlled descent.
WARNING! When climbing an incline, do not zigzag or drive at an angle up the face of the
incline. Drive your power chair straight up the incline. his greatly reduces the possibil-
ity of a tip or a fall. Always exercise extreme caution when negotiating an incline.
WARNING! You should not travel up or down a potentially hazardous incline (i.e., areas
covered with snow, ice, cut grass, or wet leaves).
WARNING! When on any sort of an incline or decline, never place the power chair in
freewheel mode while seated on it or standing next to it. Doing so may result in personal
injury and/or damage to your power chair.
WARNING! Never travel down an incline backwards. his may result in personal injury.
WARNING! Even though your power chair is capable of climbing slopes greater than those
illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other
specifications presented in this manual. Doing so could cause instability in your power chair,
resulting in personal injury and/or damage to your power chair.
In compliance with the Americans with Disabilities Act of 1990 all handicap public access ramps are
required to have a maximum slope of 5°. Therefore Pride recommends that the maximum slope of an
incline you attempt to safely ascend or descend on your power chair does not exceed 5°. See figure 1.
WARNING! Any attempt to climb or descend a slope steeper than 5° may put your power
chair in an unstable position and cause it to flip, resulting in personal injury.
Braking Information
Your power chair is equipped with two powerful brake systems:
1. Regenerative  uses electricity to rapidly slow the vehicle when the joystick returns to the center/stop
position.
2. Disc Park Brake  activates mechanically after regenerative braking slows the vehicle to near stop or
when power is removed from the system for any reason.
II. SAFETY
Figure 1. Maximum Incline and Decline

Jet12/RevC/Feb03 www.pridemobility.com 9
Cornering Information
While your power chair is equipped with rear caster wheels in back and anti-tip wheels in front excessively
high cornering speeds can still create the possibility of tipping. Factors which affect the possibility of
tipping include but are not limited to: cornering speed steering angle (how sharply you are turning)
uneven road surfaces inclined road surfaces riding from an area of low traction to an area of high traction
(such as passing from a grassy area to a paved area  especially at high speed while turning) and abrupt
directional changes. High cornering speeds are not recommended. If you feel that you may tip over in a
corner reduce your speed and steering angle (i.e. lessen the sharpness of the turn) to prevent your power
chair from tipping.
WARNING! When cornering sharply, reduce your speed. his greatly reduces the possibil-
ity of a tip or fall. o avoid personal injury and/or property damage, always exercise
common sense when cornering.
Outdoor Driving Surfaces
Your power chair is designed to provide optimum stability under normal driving conditionsdry level
surfaces composed of concrete blacktop or asphalt. However Pride recognizes that there will be times
when you will encounter other surface types. For this reason your power chair is designed to perform
admirably on packed soil grass and gravel. Feel free to use your power chair safely on lawns and in park
areas.
nReduce your power chairs speed when driving on uneven terrain and/or soft surfaces.
nAvoid tall grass that can entangle the running gear.
nAvoid loosely packed gravel and sand.
nIf you feel unsure about a driving surface avoid that surface.
Freewheel Mode
Your power chair is equipped with a manual freewheel lever to allow for manual maneuverability by a
trained attendant. For more information about how to place your power chair into and out of freewheel
mode see IV. Your Jet 12.
WARNING! Do not use your power chair in freewheel mode without an attendant present.
Personal injury may result.
WARNING! Do not attempt to personally place your power chair in freewheel mode while
seated on it. Personal injury may result. Ask an attendant for assistance if necessary.
WARNING! Do not place your power chair in freewheel mode while on an incline. he
chair could roll uncontrollably on its own, causing personal injury.
Stationary Obstacles (Steps, Curbs, etc.)
Proceed with extreme caution when driving near raised surfaces unprotected ledges and/or drop-offs (curbs
porches stairs etc.). The correct method for approaching a curb is illustrated in figure 2.
II. SAFETY

10 www.pridemobility.com Jet12/RevC/Feb03
II. SAFETY
WARNING! Do not attempt to have your power chair climb or descend an obstacle that is
higher than two inches unless you have the assistance of an attendant.
WARNING! Do not attempt to have your power chair proceed backward down any step,
curb, or other obstacle. his may cause the power chair to tip and cause personal injury.
Public Streets and Roadways
WARNING! You should not operate your power chair on public streets and roadways. Be
aware that it may be difficult for traffic to see you when you are seated on your power
chair. Obey all local pedestrian traffic rules. Wait until your path is clear of traffic, and
then proceed with extreme caution.
Stairs and Escalators
Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator.
WARNING! Never use your power chair to negotiate steps or escalators. You may cause
injury to yourself and to others and/or damage your power chair.
Doors
nDetermine if the door opens toward or away from you.
nDrive your power chair gently and slowly forward to push the door open. Or drive your power chair
gently and slowly backward to pull the door open.
Figure 2. Curb Appoach (Correct and Incorrect)

Jet12/RevC/Feb03 www.pridemobility.com 11
II. SAFETY
Elevators
Modern elevators have a door edge safety mechanism that when pushed reopens the elevator door(s).
nIf you are in the doorway of an elevator when the door(s) begin to close push on the rubber door edge
or allow the rubber door edge to contact the power chair and the door will reopen.
nUse care that pocketbooks packages or power chair accessories do not become caught in elevator
doors.
EMI & RFI
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can
cause unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy
(EM). When EM adversely affects the operation of an electronic device it is called Electromagnetic
Interference (EMI) or Radio Frequency Interference (RFI). For more information see III. EMI/RFI.
Lift/Elevation Products
If you will be traveling with your power chair you may find it necessary to use a lift/elevation product to
aid in transportation. Pride recommends that you closely review the instructions specifications and safety
information set forth by the manufacturer of the lift/elevation product before using that product.
Motor Vehicle Transport
Currently there are no standards approved for tie-down systems in a moving vehicle of any type to transport
a person while seated in a power chair.
Transfers
Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant
or healthcare professional present while learning to properly transfer yourself.
To eliminate the possibility of injury Pride recommends that you or a trained attendant perform the following
tasks before attempting a transfer:
nTurn the power off. See IX. Operation.
nEnsure your power chair is not in freewheel mode. See IV. Your Jet 12.
nTurn both caster wheels toward the transfer destination to improve power chair stability during transfer.
nMake sure both armrests are flipped up or removed from your power chair.
nFlip the footrest up or move the leg rests aside; this will help to keep your feet from getting caught on
the footrest or the leg rests during the transfer.
nReduce the distance between your power chair and the object you are transferring onto.
WARNING! Before transferring, position yourself as far back as possible in the power
chair seat to prevent the power chair from tipping forward during transfer and causing
injury.
WARNING! Avoid using your armrests for weight bearing purposes. Such use may cause
the power chair to tip and cause personal injury.
WARNING! Avoid putting all of your weight on the footrest. Such use may cause the power
chair to tip and cause personal injury.

12 www.pridemobility.com Jet12/RevC/Feb03
II. SAFETY
Positioning Belts
Your authorized Pride provider therapist(s) and other healthcare professionals are responsible for
determining your requirement for a positioning belt in order to operate your power chair safely.
WARNING! If you require a positioning belt to safely operate your power chair, make sure
it is fastened securely. Serious personal injury may result if you fall from the power chair.
WARNING! he positioning belt is not designed for use as a seat belt in a motor vehicle.
Nor is your power chair suitable for use as a seat in any vehicle. Anyone traveling in a
vehicle should be properly belted into seats approved by the vehicle manufacturer.
WARNING! Do not sit on your power chair while it is in a moving vehicle. Personal injury
and/or property damage may result.
WARNING! Always be sure your power chair and its batteries are properly secured when
it is being transported. Failure to do so may result in personal injury and/or damage to
your power chair.
Inclement eather Precautions
WARNING! Pride recommends that you do not operate your power chair in icy or slippery
conditions or on salted surfaces (i.e., walks or roads). Such use may adversely affect the
performance and safety of your power chair, resulting in an accident and personal injury.
WARNING! Do not expose your power chair to any type of moisture at any time (rain,
snow, mist, or wash). Such exposure can damage your power chair. Never operate your
power chair if it has been exposed to moisture until it has dried thoroughly.
Reaching and Bending
Never reach lean or bend while driving your power chair. If it is absolutely necessary to reach lean or
bend while seated on your power chair it is important to maintain a stable center of gravity and keep the
power chair from tipping. Pride recommends that the power chair user determine his/her personal limitations
and practice bending and reaching in the presence of a qualified healthcare professional.
WARNING! Do not bend, lean, or reach for objects if you have to pick them up from the floor by
reaching down between your knees. Movements such as these may change your center of gravity
and the weight distribution of the power chair. his may cause your power chair to tip, possibly
resulting in personal injury. Keep your hands away from the tires when driving.
Batteries
In addition to following the warnings below be sure to comply with all other battery handling information.
For more information about your power chairs batteries see VIII. Batteries and Charging.

Jet12/RevC/Feb03 www.pridemobility.com 13
II. SAFETY
WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that
much weight, be sure to get help. Lifting beyond your capacity can result in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. Charging
a frozen battery may result in personal injury and/or damage to the battery.
Preventing Unintended movement
WARNING! If you anticipate being seated in a stationary position for an extended period of time,
turn off the power. his will prevent unexpected motion from inadvertent joystick contact. his
will also eliminate the possibility of unintended chair movement from electromagnetic (EM)
sources. Failure to do so may result in personal injury.
Prescription Drugs/Physical Limitations
Users must exercise care and common sense when operating a power chair. This includes awareness of
safety issues when taking prescribed or over-the-counter drugs or when the user has specific physical
limitations.
WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if
you have certain physical limitations. Some medications and limitations may impair your ability to
operate your power chair in a safe manner.
Alcohol
The power chair user must exercise care and common sense when operating his/her power chair. This
includes awareness of safety issues while under the influence of alcohol.
WARNING! Do not operate your power chair while you are under the influence of alcohol, as this
may impair your ability to operate your power chair in a safe manner.
Removable Parts
WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal
injury and/or damage to the power chair may result.

14 www.pridemobility.com Jet12/RevC/Feb03
EMI/ FI WA NINGS
Laboratory tests performed by the Food and Drug Administration (FDA) have shown that radio waves can
cause unintended motion of electric mobility vehicles. Radio waves are a form of electromagnetic energy
(EM). When this energy unintentionally affects the operation of an electronic device it is called
Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI).
WARNING! Radio waves may interfere with the control of power chairs.
F EQUENTLY ASKED QUESTIONS (FAQS)
The following FAQs summarize what you should know about EMI/RFI. Use this information to minimize
the risk that EMI/RFI may affect your power chair.
Where do radio waves come from?
Radio waves are emitted from the antennas of cellular phones mobile two-way radios walkie-talkies
radio stations TV stations amateur radio (HAM) transmitters wireless computer links microwave sources
and paging transmitters. Radio waves are a form of electromagnetic energy (EM). EM is more intense
closer to transmitting antennas which are sources of emission. The greater the transmission strength the
greater the concern to electric mobility vehicle users.
If my power chair is affected by EMI/RFI, what kind of motion should I e pect?
This is hard to predict. The effect may depend on a number of factors including:
nStrength of the radio waves
nConstruction of the electric mobility vehicle
nPosition of the power chair (whether it is on level ground or on a slope)
nWhether or not the electric mobility vehicle is in motion
Electric mobility vehicle motion caused by EMI/RFI can be erratic. The vehicle may move by itself or
come to a sudden stop. Furthermore it is possible for EMI/RFI to unexpectedly release the brakes on an
electric mobility vehicle. Some intense sources of EMI/RFI can even damage the control system of an
electric mobility vehicle.
Is there any way to know for sure whether radio waves are responsible for the unintended motion
of my power chair?
Unfortunately interference from radio wave sources may be difficult to recognize because the signals
from these sources are invisible and may be intermittent. However the FDA recommends that you report
all incidents of unintended motion or brake release to the electric mobility vehicle manufacturer and if
possible note whether there was a radio wave source nearby at the time of the incident.
Has anyone been hurt from erratic, unintended motion of electric mobility vehicles?
The FDA has reports of injuries that may have resulted from the uncontrolled motion of electric mobility
vehicles. However it is unclear how many of these incidents were actually caused by radio wave interference.
III. EMI/RFI

Jet12/RevC/Feb03 www.pridemobility.com 15
What is the FDA doing about the problem?
The FDA has written to electric mobility vehicle manufacturers and requested that they test their new
products to be sure that they provide a reasonable degree of immunity against EMI/RFI. The letter states
that electric mobility vehicles should have an immunity level of at least 20 V/m. This provides a reasonable
degree of protection against the common sources of EMI/RFI.
The FDA has also requested or recommended that:
nElectric mobility vehicle manufacturers clearly label new products with their immunity level or state
that the immunity level is not known.
nThe labeling or informational material supplied with new electric mobility vehicles must explain what
the immunity level means and warn users about the possibility of EMI/RFI and how to avoid it.
nElectric mobility vehicle manufacturers undertake an educational program to inform users and their
caregivers about the problems associated with EMI/RFI and about the actions they can take to minimize
the risk of EMI/RFI.
nWhile there is no exact way to tell if your electric mobility vehicle is totally safe from EMI/RFI an
immunity level of 20 V/m is generally achievable and useful. This product has been tested and passed
at an immunity level of 20 V/m.
What can I do to find out if my power chair is likely to be affected by EMI/RFI?
If you have owned your power chair for a long time and have not experienced unintended motion it is
unlikely that you will have problems in the future. However it is always possible that problems could arise
if your power chair is close to a source of radio waves. Therefore it is very important to be alert to this
possibility. Your power chair meets or exceeds an immunity level of at least 20 V/m.
What can I do to reduce the risk that my power chair could be affected by EMI/RFI?
Here are some precautions you can take:
nDo not turn on or use hand-held personal communications devices such as citizens band (CB) radios
and cellular phones while the power chair is on.
nBe aware of nearby transmitters such as radio or TV stations and hand-held or mobile two-way radios
and try not to come close to them. For example if you are in a power chair with an immunity level of 20
V/m you should remain at least three feet from a hand-held two-way radio and ten feet from a mobile
two-way radio.
nBe aware that adding accessories and/or components or modifying the power chair may make it more
susceptible to interference from radio wave sources.
What should I do i my power chair moves unexpectedly?
If unintended motion or brake release occurs turn the power chair off as soon as it is safe to do so. Call
Pride at 800-424-8205 to report the incident.
III. EMI/RFI
Are all electric mobility vehicles susceptible to EMI/RFI?
Each make and model differs in its ability to resist EMI/RFI. Each electric mobility vehicle has a particular
level of immunity to EMI/RFI. This immunity is measured in volts per meter (V/m). A higher immunity
level offers greater protection. In other words a power chair with a high immunity level is less likely to be
affected by a strong radio source than one with a low immunity level.

16 www.pridemobility.com Jet12/RevC/Feb03
POWER BASE
SEATBACK
BATTERY BOXES (2)
CONTROLLER BOX
FOOTRESTS (2)
PLACE SEAT BACK INTO
POWERBASE.

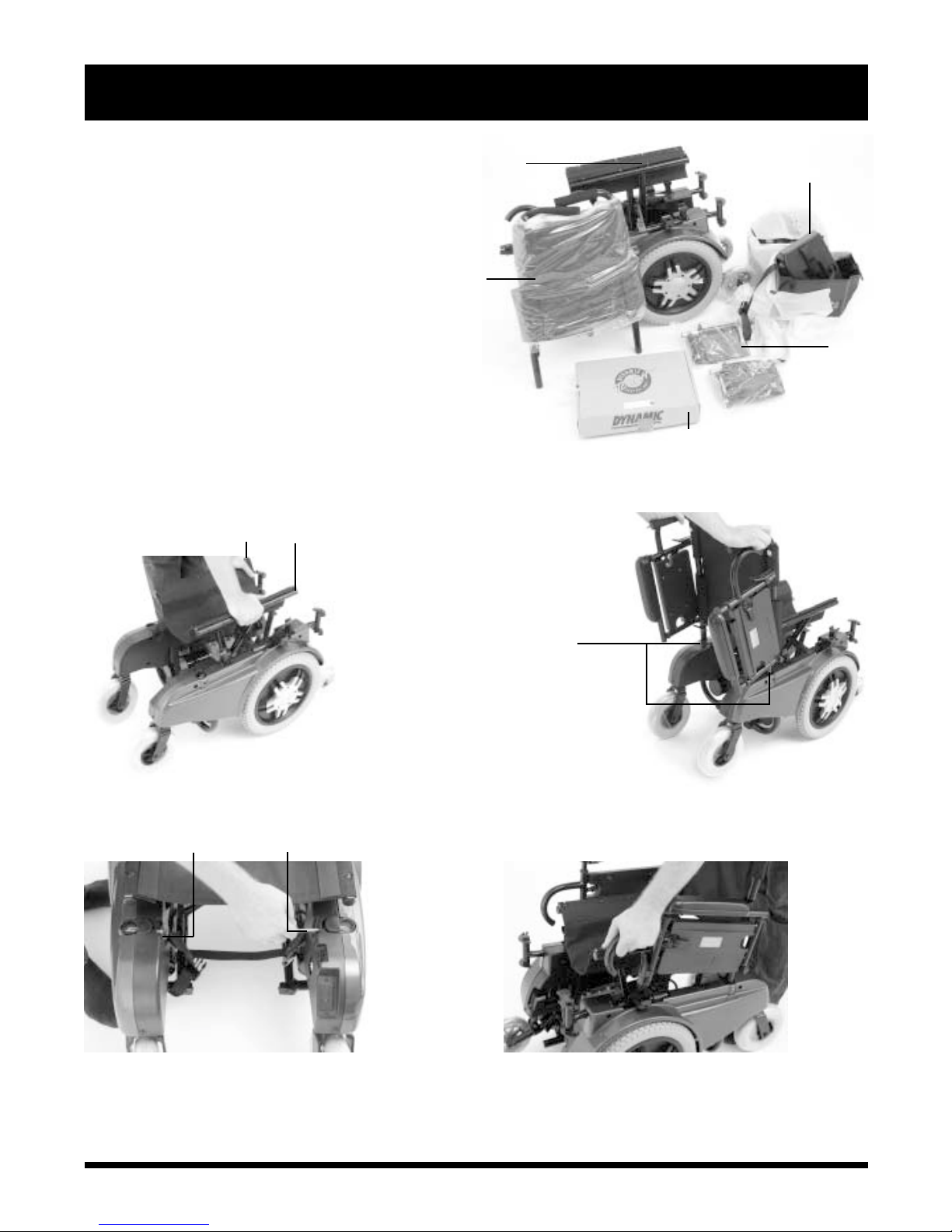

There are seven Jet 12 components: power
base; seatback; controller box; footrests (2);
battery boxes (2). See figure 3. If any of the
components are missing or damaged contact
your authorized Pride provider immediately.
To assemble your Jet 12, ollow these
instructions:
IV. ASSEMBLY
Figure 3. The Jet 12 Components
Figure 6. Install front and rear seatback pins
(seatback removed for clarity). Figure 7. Lock armrests.
PUSH DOWN SEAT RAILS TO
EXPAND POWERBASE.
FRONT SEATBACK PINS
Figure 4. Press down on seat rails to open
powerbase partially. Figure 5. Install seatback into rear seat
holes on powerbase.

Jet12/RevC/Feb03 www.pridemobility.com 17
IV. ASSEMBLY
Figure 8. Press down on seat rails until they
lock to expand base completely. Figure 9. Rotate frame lock down until it locks into place.
Figure 11. Install batteries into battery boxes.
Figure 12. Install front battery box. Secure with strap. Figure 13. Connect front battery box to base.
Figure 10. Battery Boxes
FRAME LOCK
REAR BATTERY BOX FRONT BATTERY BOX

18 www.pridemobility.com Jet12/RevC/Feb03
IV. ASSEMBLY
Figure 18. Install controller into armrest.
Secure with thumbscrew.
Figure 16. Install footrests Figure 17. Install controller decal.
Figure 14. Install rear battery box. Figure 15. Connect rear battery box to frame.
Figure 19. Plug in 9-pin
controller connector. Figure 20. Plug in charger connector.
THUMBSCREW

Jet12/RevC/Feb03 www.pridemobility.com 19
POWER BASE
ASSEMBLY
SEAT ASSEMBLY
V. YOUR JET 12
YOU JET 12
Your Jet 12 is a folding power chair that has four main components: the seat assembly the power base
assembly and two battery cases. The standard seat is a sling seat with a sling back. The power base assembly
is the heart of the Jet 12. The power base assembly includes two motor/brake assemblies two anti-tip assemblies
with anti-tip wheels two drive wheels a caster assembly with two rear caster wheels two batteries and
electronic connectors. You can remove the battery cases and fold the Jet 12 for quick and easy transport.
See figure 21 below and figures 2225.
Figure 21. Your Jet 12
REAR CASTER WHEEL
CONTROLLER
ANTI-TIP WHEELS
ARMRESTS
BODY SHROUD
SWING-AWAY FOOTRESTS
MANUAL FREEWHEEL
LEVERS
SEATBACK
DRIVE WHEEL
FRONT BATTERY CASE
RIGHT MOTOR BRAKE ASSEMBLY
JOYSTICK

20 www.pridemobility.com Jet12/RevC/Feb03
V. YOUR JET 12
Specifications
Suspension: Limited
Drive Wheels: 14 in., solid tires
Rear Casters: 8 in., solid, rear articulating
Anti-tip: 6 in., solid, front mounted
Maximum Speed: 3.75 mph
Brakes: Electronic regenerative, “Intelligent Braking”
Ground Clearance: 2.5 in.
Turning Radius: 20 in.
Overall Size: Length: 44.5 in.
Width: 24.5 in.
Seating Options: Sling Back and Sling Seat
Drivetrain: Two-motor, mid-wheel
Batteries: Two 12-volt, NF-22 batteries
Range: Up to 25 miles per full charge
Battery Charger: On-board 4-amp
Motor Controller: Dynamic DL-50
Weight Capacity: 250 lbs.
Jet 12 Weights: Base: 77 lbs.
Batteries: 24 lbs. each
Total: 125 lbs.
Warranties: Five-year limited warranty on frame
Two-year warranty on drivetrain
One-year warranty on electronics
ELECT ICAL CONNECTO S AND COMPONENTS
Your Jet 12 has four main electrical connectors; 9-pin controller connector charger connector front battery
box connector and rear battery box connector. See figures 2225. The 9-pin controller connector charger
connector and rear battery box connector are located above the right caster wheel. The front battery box
connector is located above the right freewheel lever. Additional electrical components include the main
circuit breaker the battery charger the ammeter and the charger circuit fuse. The main circuit breaker is
located on the front battery box. The battery charger is mounted inside the rear battery box.
9-pin Controller Connector: This is where the controller connects to the motors motor brakes and
batteries.
Battery Box Connectors: This is where the battery boxes connect to the power base. There are front and
rear battery connectors.
Main Circuit Breaker: The main circuit breaker is a safety feature built into your Jet 12. It is located on
the front battery box. When the batteries and the motors are heavily strained (e.g. from excessive loads)
the main circuit breaker will trip to prevent damage to the motors and the electronics. If the circuit breaker
trips allow the Jet 12 to rest for approximately one minute. Then push in the circuit breaker button turn
on the controller power and continue normal operation. If the main circuit breaker continues to trip repeatedly
contact your authorized Pride provider.
