Pro-Form SPORT E2.0 User manual

Serial
Number
Decal
Model No. PFEL02921-INT.0
Serial No.
Write the serial number in the space
above for reference.
iconeurope.com
USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness, Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The
Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS
is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL ..............................................................14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MAINTENANCE AND TROUBLESHOOTING ....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately. Use only manufacturer-
supplied parts.
9. Keep children under age 16 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 250 lbs. (113 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical. Before mounting or dismounting,
bring the pedals to a stop with the pedal
on the mounting or dismounting side in its
lowest position.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
Upper Body Arm
Pedal Disc
*Water bottle is not included
Pedal
Wheel
Console
Water Bottle Holder*
Thank you for selecting the new PROFORM®
SPORT E2.0 elliptical. The SPORT E2.0 elliptical
provides a selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Leveling Foot
Handlebar
BEFORE YOU BEGIN
Length: 4 ft. 6 in. (137 cm)
Width: 2 ft. 2 in. (66 cm)
Weight: 93 lbs. (42 kg)

5
M8 x 77mm Bolt (79)–2 M10 x 20mm
Screw (40)–6
M6 Bolt Set (25)–2 M8 x 41mm Bolt (50)–6
M10 x 68mm Screw (34)–4 M10 x 77mm Bolt (7)–1
M10 Locknut
(33)–1
M8 Jam Nut
(38)–8 M10 x 28mm
Washer (83)–2
M8 Washer
(55)–2 M10 Curved
Washer (88)–1
M8 x 10mm
Screw (27)–6
M8 x 25mm
Screw (56)–2
M4 x 16mm
Screw (52)–6
M6 x 8mm
Set Screw
(84)–2
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left and right parts are marked “L” or “Left” and
“R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
2. Identify the Front Stabilizer (63), and orient it
as indicated by the sticker. Make sure that the
large holes (A) in the Front Stabilizer are fac-
ing the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (63) to the
Frame with two M10 x 68mm Screws (34).
63
34
A
1
2
1
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)

7
3. Orient the Rear Stabilizer (9) as indicated by the
sticker.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (9) to the Frame
with two M10 x 68mm Screws (34).
34
9
1
3
4
4. Orient the Upright (2) and the Top Shield (41)
as shown. Slide the Top Shield upward onto the
Upright. Do not remove the wire tie (B) from
the Upright.
Next, slide the Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 20mm
Screws (40), an M10 x 77mm Bolt (7), an M10
Curved Washer (88), and an M10 Locknut
(33); do not tighten the Screws and the
Locknut yet.
2
41
33
88 7
1
40
40
40
B

8
5
5. See the inset drawing. Locate the wire tie (B) in
the lower end of the Upright (2). Tie the wire tie
to the Main Wire (73). Next, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
Tip: To prevent the Main Wire (73) from fall-
ing into the Upright (2), secure the Main Wire
with the wire tie (B).
Next, slide the Top Shield (41) downward to the
Frame (1); do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Tip: While inserting the M8 x 77mm Bolts (79),
avoid damaging the Main Wire (73) inside the
Upright (2).
Attach the Left and Right Handlebars (85, 86) to
the Upright (2) with two M8 x 77mm Bolts (79)
and two M8 Jam Nuts (38).
6
85
38
38
86 79
73
2
2
1
73
73
C
B
41

9
7. While a second person holds the Console (23)
near the Upright (2), plug the Main Wire (73) into
the receptacle (C) on the Console. Tip: The wire
connector should slide in easily and snap
into place with an audible click. If it does not,
turn the connector and try again.
7
2
23
C
73
8
8. Insert the excess wire into the Upright (2).
Tip: Avoid pinching the Main Wire (73). Attach
the Console (23) to the Upright (2) with four
M4 x 16mm Screws (52); start all the Screws,
and then tighten them.
23
Avoid pinching
the Main Wire (73)
52
2
73

10
9
8
6
5
42
42
38
38
50
50
5
9. Identify the Right Upper Body Arm (8).
Slide an Upper Body Arm Cover (42) upward
onto the Right Upper Body Arm (8).
Next, insert the Right Upper Body Arm (8) into
an Upper Body Leg (5).
Tip: Have a second person hold the Upper
Body Arm Cover (42) while you perform this
action:
Attach the Right Upper Body Arm (8) to the
Upper Body Leg (5) with three M8 x 41mm Bolts
(50) and three M8 Jam Nuts (38). Make sure
that the Jam Nuts are inside the hexagonal
holes (D).
Assemble the Left Upper Body Arm (6) and
the other Upper Body Leg (5) in the same
way.
D
Grease
26
69
69
2
10
10. Insert the Pivot Axle (26) into the Upright (2), and
center the Pivot Axle.
Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to both ends of the Pivot Axle (26).
Then, slide a Pivot Spacer (69) onto each side of
the Pivot Axle (26).

11
8
6
26
47
55
42
56
56
46
11
11. Orient an Upper Body Arm Spacer (47) as
shown, and slide it onto the right side of the
Pivot Axle (26).
Next, slide the Right Upper Body Arm (8) onto
the right side of the Pivot Axle (26).
Repeat these actions on the other side of the
elliptical.
Next, tighten an M8 x 25mm Screw (56) with an
M8 Washer (55) into each end of the Pivot Axle
(26) at the same time.
Next, slide the right Upper Body Arm Cover
(42) upward. Then, press the tabs on an Axle
Cap (46) into the Upper Body Arm Spacer (47).
Repeat this action on the other side of the
elliptical.
Then, slide the Upper Body Arm Cover (42)
downward to cover the M8 x 41mm Bolts (not
shown). Repeat this action on the other side
of the elliptical.
12. Identify the Right Pedal (14) and the Right Pedal
Arm (12).
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 10mm Screws (27);
start all the Screws, and then tighten them.
Attach the Left Pedal (13) to the Left Pedal
Arm (11) in the same way.
12
12
14
27
13
11

12
13
14
13. Orient a Crank Arm Stud (32) as shown, and
tighten it firmly into the Right Crank Arm (80).
IMPORTANT: Make sure that the Crank Arm
Stud is firmly tightened.
Then, tighten an M6 x 8mm Set Screw (84) into
the Right Crank Arm (80) and the Crank Arm
Stud (32).
Repeat this step on the other side of the
elliptical.
14. Apply a small amount of grease to the axle on
the right Crank Arm Stud (32).
Slide the Right Pedal Arm (12) onto the axle on
the right Crank Arm Stud (32).
Next, slide an M10 x 28mm Washer (83) onto an
M10 x 20mm Screw (40), and tighten the Screw
into the axle.
Then, press a Pedal Arm Cap (74) into the Right
Pedal Arm (12).
Repeat this step on the other side of the
elliptical. 74
40
83
12
84
32
80
32
Grease

13
15
15. See assembly steps 4 and 5. Tighten the
M10 x 20mm Screws (40) and the M10 Locknut
(33). Then, press the Top Shield (41) into place.
Next, apply a small amount of grease to an M6
Bolt Set (25).
Hold the end of the Right Pedal Arm (12) inside
the bracket on the right Upper Body Leg (5).
Attach the right Upper Body Leg (5) to the Right
Pedal Arm (12) with the M6 Bolt Set (25).
Repeat this step on the other side of the
elliptical.
5
25
12
41
25
Grease
16
75
16. Plug the Power Adapter (75) into the receptacle
on the front of the elliptical.
Note: To plug the Power Adapter (75) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 14.
17. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat
beneath the elliptical to protect the floor.

14
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you plug in the power adapter (A).
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power
adapter (A) into
the receptacle on
the front of the
elliptical. Then,
plug the power
adapter into an
appropriate outlet
that is properly
installed in accor-
dance with all local codes and ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright (B), and place one foot against one of
the front wheels (C). Next, pull on the upright and have
a second person lift the rear stabilizer (D) until the ellip-
tical will roll on the wheels. Carefully move the elliptical
to the desired location, and then lower it to the floor.

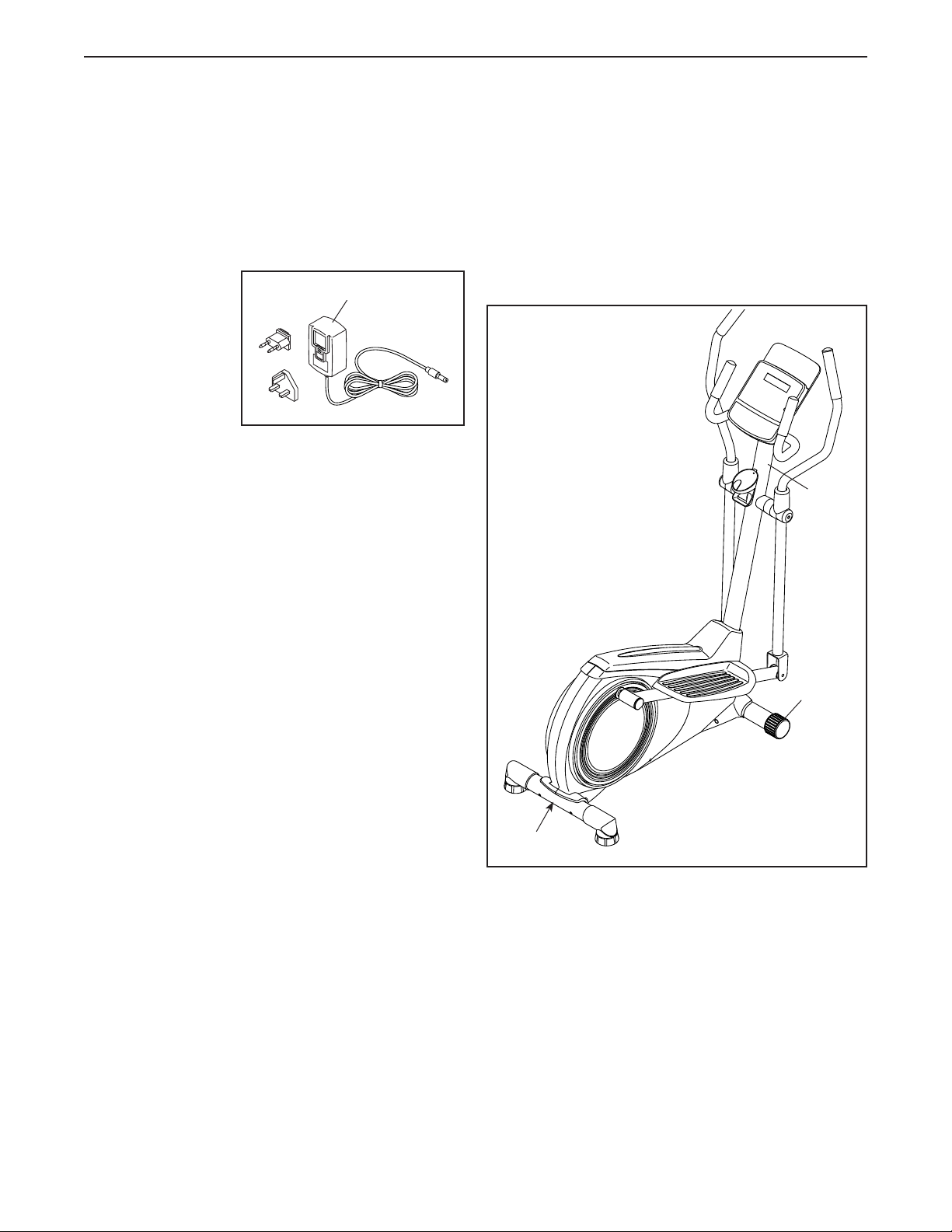

A
C
B
D
HOW TO USE THE ELLIPTICAL

15
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars (E) or the
upper body arms (F) and step onto the pedal (G) that is
in the lowest position. Then, step onto the other pedal.
Push the pedals (G) until they begin to move with a
continuous motion. Note: The pedal discs can turn
in either direction. It is recommended that you
move the pedal discs in the direction shown by the
arrow; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical, wait until the pedals (G)
come to a complete stop. Note: The elliptical does
not have a free wheel; the pedals will continue to
move until the flywheel stops. When the pedals are
stationary, step off the higher pedal first. Then, step off
the lower pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your floor
during use, turn
one or both of the
leveling feet (H)
beneath the rear
stabilizer until the
rocking motion is
eliminated.
G
F
E
H
H

16
HOW TO USE THE CONSOLE
Fletch
ELPF02921
PFEL02921
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using a compatible heart rate monitor.
See page 20 for information about ordering an
optional heart rate monitor.
You can also use the console sound system while you
exercise.
The console also offers unlimited iFit workouts when
you download the iFit app to your smart device and
connect it to the console.
With the iFit app, you can access a large and varied
library of iFit video workouts, create your own work-
outs, track your workout results, and access many
other features.
Each iFit workout automatically changes the resistance
of the pedals as an iFit coach guides you through an
immersive and effective video workout.
To use the manual mode, see page 17. To use an
iFit workout, see page 19. To connect your heart
rate monitor to the console, see page 20. To
change console settings, see page 21.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance in
standard or metric units. To change the unit of mea-
surement, press the Std/Metric button repeatedly.

17
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected automatically.
3. Change the resistance of the pedals as desired.
Begin pedaling to start the manual mode.
As you pedal, you can change the resistance of the
pedals. To change the resistance, press one of the
numbered Silent Magnetic Resistance buttons or
press the Silent Magnetic Resistance increase and
decrease buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Distance (MI or KM)—The distance that you have
pedaled in miles or kilometers. To change the unit
of measurement, press the Std/Metric button.
Pace—Your pedaling speed in minutes per mile
or minutes per kilometer. To change the unit of
measurement, press the Std/Metric button.
Pulse (BPM and heart symbol)—Your heart rate
when you use a compatible heart rate monitor (see
step 5).
Resistance (RESIST)—The resistance level of the
pedals.
RPM—Your pedaling speed in revolutions per
minute (RPM).
Speed (MPH or KPH)—Your pedaling speed in
miles per hour or kilometers per hour. To change
the unit of measurement, press the Std/Metric
button.
Time—The elapsed time.
Press the Display but-
ton (A) repeatedly to
view the desired work-
out information in the
display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (B); the scan indicator (D) and the word
SCAN will turn on in the display.
To manually advance the scan cycle, press the
Scan button repeatedly.
To turn off the scan mode, press the Display
button; the scan indicator and the word SCAN will
turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
A
BC
D

18
To customize the scan mode, first press the
Display button repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the Add/
Remove button (C)
to add or remove that
workout information
from the scan cycle.
When workout infor-
mation is added, its
indicator will turn on
in the display. When workout information is
removed, its indicator will turn off.
Then, press the Scan button to turn on the scan
mode.
Note: The console will show your heart rate in the
scan cycle automatically whenever it detects a
pulse from a heart rate monitor.
To pause the console, simply stop pedaling. When
the console is paused, the time will flash in the
display. To continue your workout, simply resume
pedaling.
Note: The console can show speed and distance
in standard or metric units of measurement.
To change the unit of measurement, press the
Std/Metric button.
5. Wear a compatible heart rate monitor and
measure your heart rate if desired.
You can wear a compatible heart rate monitor to
measure your heart rate. Note: The console is
compatible with all Bluetooth®Smart heart rate
monitors.
A compatible heart rate monitor is included with
some models. If a heart rate monitor is included,
see THE HEART RATE MONITOR in this manual
to learn how to use it.
If this model does not include a compatible
heart rate monitor, see page 20 for informa-
tion about ordering one.
To connect a compatible heart rate monitor to the
console, press the iFit Sync button on the console;
the console pairing number will appear in the dis-
play. When a connection is established, the LED on
the console will flash red twice. When your heart-
beat is detected, your heart rate will be shown.
See HOW TO CONNECT YOUR HEART RATE
MONITOR TO THE CONSOLE on page 20 for
more information.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, the
console will pause and the time will flash in the
display. To resume your workout, simply resume
pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
Note: The console features a demo mode,
designed to be used if the elliptical is displayed in
a store. If the demo mode is turned on, the con-
sole will not turn off and the display will not be
reset when you nish exercising. To turn off the
demo mode, see HOW TO CHANGE CONSOLE
SETTINGS on page 21.
A
BC

19
HOW TO USE AN IFIT WORKOUT
The console offers access to a large and varied library
of iFit workouts when you download the iFit app to your
smart device and connect it to the console.
Note: The console supports Bluetooth connections to
smart devices via the iFit app and to compatible heart
rate monitors. Other Bluetooth connections are not
supported.
1. Download and install the iFit app on your smart
device.
On your iOS®or Android™ smart device, open the
App Store℠ or the Google Play™ store, search
for the free iFit app, and then install the app on
your smart device. Make sure that the Bluetooth
option is enabled on your smart device.
Then, open the iFit app and follow the instructions
to set up an iFit account and customize settings.
Take time to explore the iFit app and learn about its
features and settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your smart device to the console, you must
connect your heart rate monitor before you
connect your smart device. See HOW TO
CONNECT YOUR HEART RATE MONITOR TO
THE CONSOLE on page 20.
3. Connect your smart device to the console.
Press the iFit Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit app to con-
nect your smart device to the console.
When a connection is established, the LED on the
console will turn solid blue.
4. Select an iFit workout.
In the iFit app, touch the buttons at the bottom of
the screen to select either the main menu (Home
button) or the workout library (Browse button).
To select a workout from the main menu or the
workout library, simply touch the desired workout
button on the screen. Slide or flick the screen to
scroll upward or downward if necessary.
When you select a workout, the screen will show
an overview of the workout that includes details
such as the duration and distance of the workout
and the approximate number of calories you will
burn during the workout.
5. Start the workout.
Touch Start Workout to start the workout.
During some workouts, an iFit coach will guide you
through a video workout. Touch the sound button
(music notes symbol) to select music, trainer voice,
and volume options for the workout.
During some workouts, the screen will show a map
of the route and a marker indicating your prog-
ress. Touch the buttons on the screen to select the
desired map options.
If the resistance setting for the current segment of
the workout is too high or too low, you can manu-
ally override the setting by pressing the Silent
Magnetic Resistance buttons on the console.
IMPORTANT: When the current segment ends,
the resistance will automatically adjust to the
resistance setting programmed for the next
segment.

20
Note: The calorie goal shown in the workout
description is an estimate of the number of
calories that you will burn during the workout.
The actual number of calories that you burn
will depend on various factors, such as your
weight. In addition, if you manually change the
resistance level during the workout, the number
of calories you burn will be affected.
To pause the workout, simply touch the screen
or stop pedaling. To continue the workout, simply
resume pedaling.
To end the workout, touch the screen to pause the
workout, and then follow the prompts on the screen
to end the workout and return to the main menu.
When the workout ends, a workout summary will
appear on the screen. If desired, you can select
options such as adding the workout to your sched-
ule or adding the workout to your favorites list.
Then, touch Save Workout to return to the main
menu.
6. Disconnect your smart device from the
console.
To disconnect your smart device from the console,
first select the disconnect option in the iFit app.
Then, press and hold the iFit Sync button on the
console until the LED on the console turns solid
green.
Note: All Bluetooth connections between the
console and other devices (including any smart
devices, heart rate monitors, and so forth) will be
disconnected.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, the
console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all Bluetooth Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate monitor to
the console, press the iFit Sync button on the console;
the console pairing number will appear in the display.
When a connection is established, the LED on the
console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFit Sync button on the console until
the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any smart devices, heart
rate monitors, and so forth) will be disconnected.
THE OPTIONAL HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional heart rate monitor will enable
you to continuously monitor your heart rate while you
exercise, helping you to reach your personal fitness
goals. To purchase an optional heart rate monitor,
please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
