INSTALLATION GUIDE
TT53FC11
TRUNK TRAY
2011-2017
CHEVY CAPRICE
pro-gard.com
800.480.6680

THESE COMPONENTS ARE REQUIRED
TO INSTALL THE PRO-GARD TRUNK TRAY SYSTEM
pro-gard.com
800.480.6680 2
I. Refer to the diagram on the last page of these instructions to verify all parts were received.
II. The following tools will be required to complete the installation.
Electric Drill
#2 Phillips Screwdriver bit for drill
#2 Phillips Screwdriver
7/16” socket with 3/8” drive and handle
III. Rear Support Assembly
A. Install “3TT5311-06” rear mounting tabs into the factory access holes (the closest to the back
of the seat) and center the rear mounting tabs within the access opening.
B. Install “3TT5311-04” rear mounting bracket to the rear mounting tabs as shown in
FIG. 1 with four 1/4” split lock washers and four 1/4 - 20 x 1” (3x122) bolts to the rear
mounting tabs.
C. Install “3TT5311-05” rear lower bracket to the “3TT5311-04” rear mounting bracket as
shown in FIG 2.
TT53C11
1
1
2
2
3
3
4
4
A A
B B
C C
D D
1
1
2
2
3
3
4
4
A A
B B
C C
D D

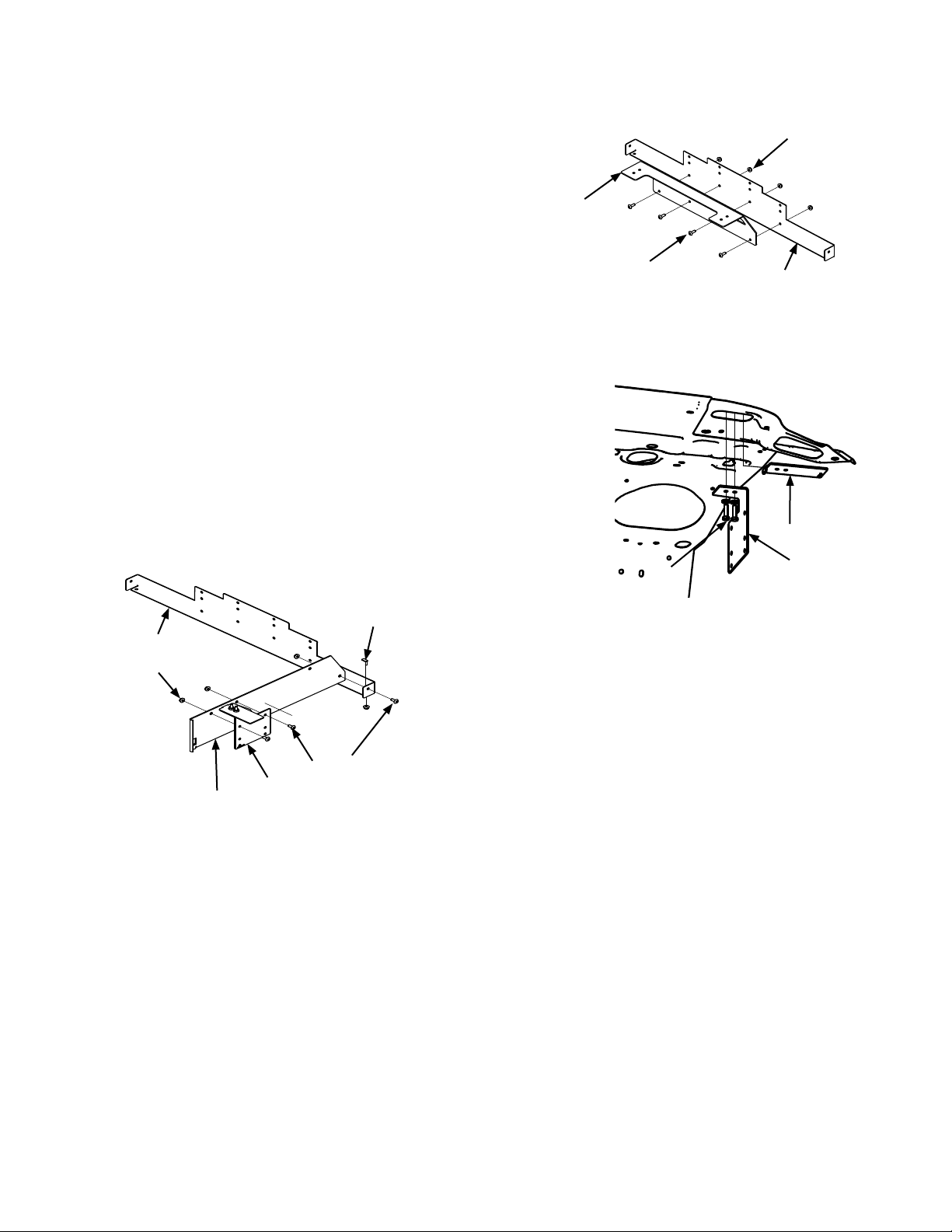

FIG. 1
View: Looking from the rear
3TT5311-04
3x122 (4)
3TT5311-07 (2)
OEM REAR MOUNT HOLES

D. Attach the parts with four 1/4-20 X 3/4 (3X05)
phillip screws and four 1/4-20 whiz nuts (3X16).
Note: The rear lower bracket is adjustable as shown
in FIG. 2 with a one, two or three inch drop.
IV. Front & Side Suppot Assembly
A. Install “3TT5311-07” front mounting tabs into the factory access holes and face the tab
downward. The tab should be towards the center of the car pushed all the way against
the edge of the sheetmetal.
B. Install “3TT5311-02P” passenger side front bracket to the
front mounting tabs as shown in FIG. 3. Using two
1/4-20 x 1” (3X122) bolts and two 1/4” split lock
washers.
Note: Dont tighten the two bolts (3X122) completely just
snug them so you can align the Trunk Tray Side, Pass.
C. Install “3TT5311-08P” Tray Hanger Pass. to the
“3TT5311-02P” pass. side front bracket. Using
two 1/4-20 X 5/8” (3X03)phillip screws and two
1/4-20 whiz nuts (3X16).The Tray Hanger Pass.
will also bolt to the “3TT5311-05” rear lower bracket.
Using one 1/4-20 X 5/8” phillip screw (3X03) and one
1/4-20 whiz nut (3X16). Also using a 1/4-20
weld stud and a 1/4-20 whiz nut (3X16).
Note: The pass. side front bracket also has a one, two or three
inch drop.
*** Make sure once all the parts are hung then go back and tighten the two 1/4-20 X 1” (3X122)
bolts that were left snug for alignment purposes.
D. Repeat steps A - C for driver side.
V. Trunk Tray
A. Slide trunk tray into tracks on side rails and push in until tray latches lock. Tray can be
installed either with the sides up to form a tray or with the sides down to form a shelf.
pro-gard.com
800.480.66803
FIG. 2
1
1
2
2
3
3
4
4
A A
B B
C C
D D
1
1
2
2
3
3
4
4
A A
B B
C C
D D
FIG. 3
PASENGER SIDE SHOWN
1
1
2
2
3
3
4
4
A A
B B
C C
D D
FIG. 4
3TT5311-02P
3TT5311-07
3X122 (2)
3TT5311-05
3TT5311-04
3X16 (4)
3X05 (4)
3TT5311-05
1/4-20 WELD STUD
3TT5311-08P
3TT5311-02P
3X03 (3)
3X16 (4)
