USER MANUAL
ROTARY TEDDER
PRONAR PWP460
TRANSLATION OF ORIGINAL INSTRUCTION
REVISION 1B-08-2016 PUBLICATION NUMBER 533N-00000000-UM

ROTARY TEDDER
PRONAR PWP460
MACHINE IDENTIFICATION
SYMBOL/TYPE:
SERIAL NUMBER:

INTRODUCTION
The information contained in the publication is current at the date of publication. As a result of
improvements, some sizes and illustrations contained in this publication may not correspond
with the actual state of the machine delivered to the user. The manufacturer reserves the right
to introduce constructional changes in the machines manufactured to facilitate operation and
improve the quality of their work, without making any current changes to this publication.
The User Manual is the basic part of the machine. Read the contents of this manual and follow
all the recommendations contained therein before using the machine. This will guarantee safe
operation and ensure trouble-free operation of the machine. The machine was constructed in
accordance with applicable standards, documents and current legal regulations.
The User Manual describes the basic principles of safe use and operation of the PWP460 rotary
tedder. If the information contained in the operating instructions does not turn out to be
comprehensible, please contact the sales office where the machine was purchased or to the
Manufacturer.
MANUFACTURER'S ADDRESS
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17- 210 Narew
CONTACT PHONE NUMBERS
[phone] [phone]
[phone] [phone]

SYMBOLS USED IN THE USER MANUAL
Information, descriptions of hazards and precautions as well as instructions and orders related
to safe use in the manual are marked with:
and preceded by the word „DANGER”. Failure to comply with these recommendations may
endanger the health or life of persons operating the machine or unauthorized bystanders.
Particularly important information and recommendations, the observance of which is absolutely
necessary, are highlighted in the text with a sign:
and preceded by the word „CAUTION”. Failure to comply with these recommendations creates
the risk of damage to the machine due to improper handling, adjustment or use.
In order to draw the user's attention to the necessity to perform periodic maintenance, the
content of the manual is marked with the following sign:
Additional instructions contained in the manual describe useful information on operating the
machine and are marked with a sign:
and preceded by the word „ADVICE”.
DESIGNATION OF DIRECTIONS IN THE MANUAL
Left side – the left hand side of the observer facing the machine in the forward direction.
Right side – the right hand side of the observer facing the machine in the forward direction.

TABLE OF CONTENTS
1 GENERAL INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.2 INTENDED USE 1.3
1.3 EQUIPMENT 1.5
1.4 TERMS OF WARRANTY 1.5
1.5 TRANSPORT 1.6
1.6 THREAT TO THE ENVIRONMENT 1.10
1.7 WITHDRAWAL FROM USE 1.10
2 SAFETY OF USE 2.1
2.1 GENERAL TERMS OF SAFETY 2.2
2.1.1 THE MACHINE USE 2.2
2.1.2 COUPLING AND UNCOUPLING OF THE MACHINE 2.3
2.1.3 THE HYDRAULIC SYSTEM 2.3
2.1.4 TRANSPORT PASSAGE 2.4
2.1.5 MAINTENANCE 2.5
2.1.6 ROTARY TEDDER OPERATION 2.7
2.1.7 OPERATION OF THE PTO 2.7
2.2 DESCRIPTION OF RESIDUAL RISK 2.9
2.3 INFORMATION AND WARNING STICKERS 2.10
3 CONSTRUCTION AND PRINCIPLE OF OPERATION 3.1
3.1 TECHNICAL CHARACTERISTICS 3.2
3.2 GENERAL CONSTRUCTION AND PRINCIPLE OF OPERATION 3.3
3.3 SUSPENSION SYSTEM 3.4
3.4 PRINCIPLE OF OPERATION 3.6

4 TERMS OF USE 4.1
4.1 PREPARATION TO WORK 4.2
4.2 COUPLING THE ROTARY TEDDER WITH THE AGRICULTURAL
TRACTOR 4.4
4.3 TRANSPORT PASSAGE 4.8
4.4 SETTING THE TEDDERS TO THE WORKING POSITION AND
WORK 4.11
4.4.1 SWITCHING THE TEDDER TO THE WORKING POSITION 4.11
4.4.2 ADJUSTMENT OF THE WORKING POSITION 4.14
4.4.3 TEDDER WORK 4.16
4.5 DISCONNECTING THE TEDDER FROM THE AGRICULTURAL
TRACTOR 4.19
5 TECHNICAL SUPPORT 5.1
5.1 TECHNICAL INSPECTION 5.2
5.2 INSPECTION AND REPLACEMENT OF THE SPRING FINGERS 5.3
5.3 OPERATION OF THE MAIN GEAR 5.4
5.4 HYDRAULIC SYSTEM OPERATION 5.6
5.5 LUBRICATION 5.8
5.6 SCREW CONNECTIONS TIGHTENING 5.11
5.7 STORAGE 5.12
5.8 FAULTS AND HOW TO REMOVE THEM 5.13

CHAPTER
1
GENERAL
INFORMATION

PRONAR PWP460 CHAPTER 1
1.2
1.1 IDENTIFICATION
FIGURE 1.1 Location of the nameplate.
The PWP460 rotary tedder is marked with a data plate located on the right side of the
machine supporting frame (FIGURE 1.1). When purchasing the machine, check that the
serial numbers on the machine match the number entered in the WARRANTY CARD, in the
sales documents and in the USER MANUAL.

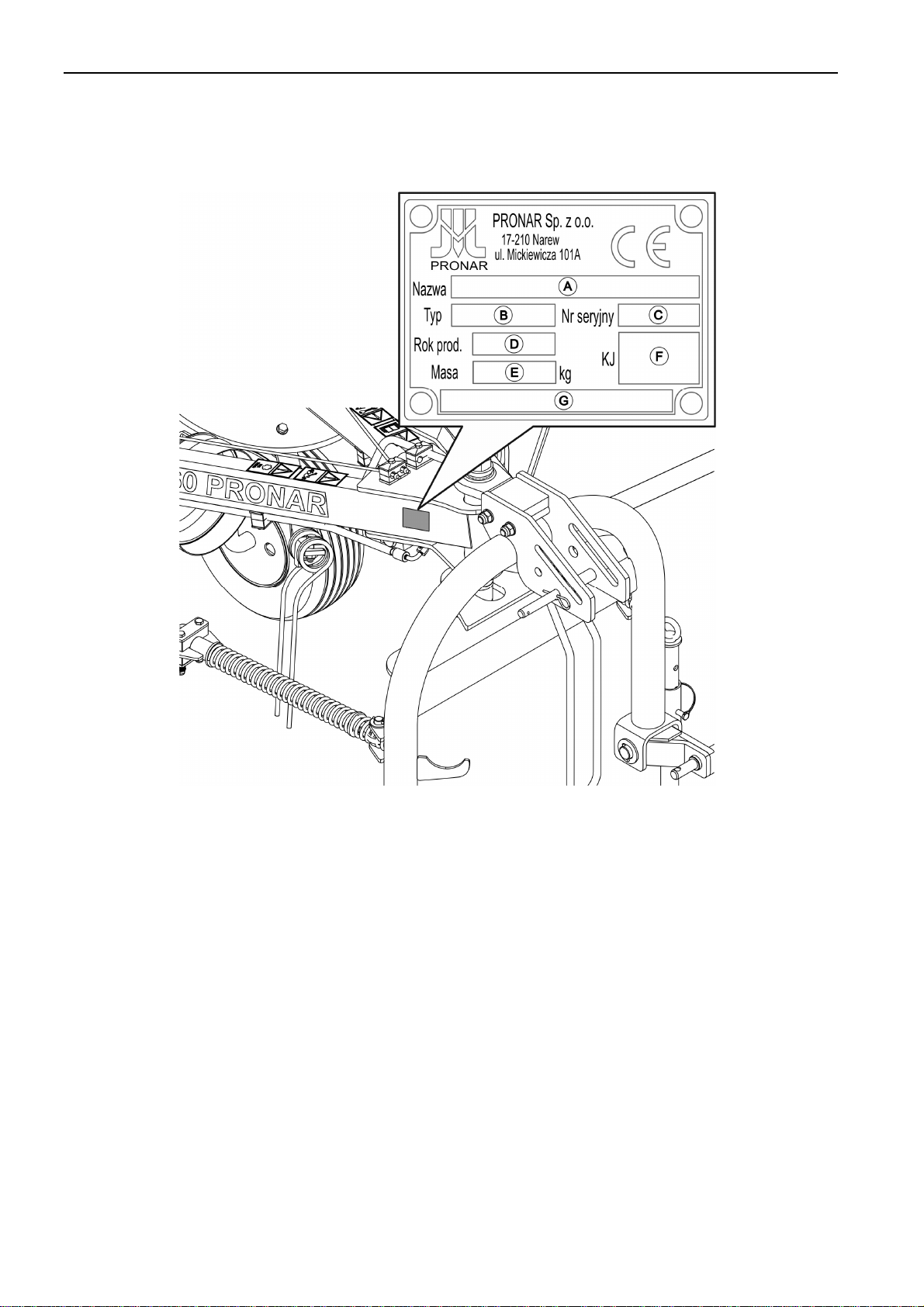

The meaning of the individual fields on the nameplate (FIGURE 1.1) is shown in the table
below:
A - machine name, B - machine type/symbol
C - serial number, D - production year,
E - total weight [kg], F - Quality Control mark,
G - machine name, continued

CHAPTER 1 PRONAR PWP460
1.3
1.2 INTENDED USE
PRONAR PWP460 rotary tedder was constructed in accordance with applicable safety
requirements and machine standards.
The rotary tedder is designed for agricultural work: tedding cut swaths (straw, grass, hay) on
non-stony grassland with an even surface. Any other use of the machine is prohibited.
Transportation of people, animals and other materials is forbidden and considered as not in
accordance with the intended use. When operating the machine, follow the road traffic
regulations and transport regulations in force in a given country, and any violation of these
regulations is treated by the Manufacturer as use contrary to its intended use.
CAUTION
The rotary tedder may not be used for purposes other than those for wh ch t s ntended
n part cular:
•transport people and an mals,
•to transport any mater als or tems.
Intended use includes all activities related to proper and safe operation and maintenance of
the machine. Therefore, the user is obliged to:
•get acquainted with the contents of the USER MANUAL and comply with its
recommendations,
•understand the principle of machine operation and the safe and proper operation,
•act in compliance with established maintenance and adjustment plans,
•act in compliance with general safety regulations during work,
•accident prevention,
•comply with road traffic regulations and transport regulations in force in the
country in which the machine is used,
•read the tractor operator's manual and the PTO shaft operator's manual and
observe the recommendations contained in these publications.

PRONAR PWP460 CHAPTER 1
1.4
TABLE 1.1 Agricultural tractor requirements.
CONTENT UNIT REQUIREMENTS
Agricultural tractor suspension
system (three-point mechanical
linkage)
Mechanical rear linkage, category I or
II acc. to ISO 730-1
Rear power take-off (PTO)
Type
Rotation speed
Number of splines on the shaft
PTO rotation direction
-
rpm
pc.
-
Type 1 (1 3/8”) acc. to ISO 730-1
540
6
as clockwise
Required hydraulic outputs of the
tractor - 1 double-acting section with floating
position
Other requirements
Minimal power requirement kW / KM 22 / 30
The machine may only be used by persons who:
•are familiar with the content of this publication and with the agricultural tractor
operator's manual,
•have been trained in the use of the rotary tedder and in work safety,
•have the required authorization to drive and are familiar with the traffic rules and
transport regulations.
Repairs related to the machine may be performed only by qualified personnel (during the
warranty period, all repairs must be performed at the warranty service indicated by the
Manufacturer). Maintenance and repair activities that can be performed by the user are
described in CHAPTER 5.
Unauthorized repairs and modifications to the tedder are forbidden and will be treated by the
Manufacturer as use contrary to the intended use.

CHAPTER 1 PRONAR PWP460
1.5
1.3 EQUIPMENT
TABLE 1.2 Equipment of the PRONAR PWP460 rotary tedder
EQUIPMENT STANDARD OPTIONAL
“User manual” •
“Warranty Card” •
PTO shaft •
Recommended PTO shafts:
•7102131CE007153 B&P,
•1620-6200-131-03 Weasler,
•T201310ENC12U34 Comer.
1.4 TERMS OF WARRANTY
"PRONAR "Sp. z o.o. in Narew guarantees the smooth operation of the machine when used
in accordance with the technical and operational conditions described in the USER MANUAL.
Defects revealed during the warranty period will be removed by the Warranty Service.
Deadline for completion of repairs is specified in the Warranty Card.
The warranty does not apply to parts and sub-assemblies of the machine, which are subject
to wear in normal operating conditions, regardless of the warranty period. The group of these
elements includes min. the following parts/components:
•tires,
•spring fingers,
•bearings.
The warranty services only apply to such cases as: mechanical damage not caused by the
fault of the user, factory defects of parts, etc.
In the event that damage occurs as a result of:
•mechanical damage caused by the user's fault, road accident,

PRONAR PWP460 CHAPTER 1
1.6
•from improper operation, adjustment and maintenance, use of the machine
contrary to its purpose,
•use of a damaged machine,
•repairs carried out by unauthorized persons, improper repairs,
•making arbitrary changes in the machine design,
the user loses the warranty.
ADVICE
You should requ re the seller to carefully f ll out the WARRANTY CARD and compla nt
coupons. The lack of e.g. date of sale or po nt of sale stamp exposes the user to not
accept any compla nts.
The user is obliged to immediately report all noticed defects in the paint coatings or traces of
corrosion, and order removal of defects regardless of whether the damage is covered by the
warranty or not. Detailed warranty conditions are given in the WARRANTY CARD attached to
the newly purchased machine.
Modifications to the machine without the written consent of the Manufacturer are prohibited.
In particular, welding, reaming, cutting and heating of the main machine components that
directly affect safety working with not permitted.
1.5 TRANSPORT
The rotary tedder is ready for sale completely assembled and does not require packing. Only
the machine's technical documentation and any additional equipment elements are packed.
CAUTION
When transport ng ndependently, the agr cultural tractor operator should read the
nstruct ons and follow the recommendat ons conta ned there n. When be ng transported
by road, the tedder must be attached to the platform of the means of transport n
accordance w th the safety requ rements dur ng transport. The dr ver of the car should
exerc se part cular caut on wh le dr v ng. Th s s due to the veh cle's centre of grav ty
sh ft ng upwards w th the loaded mach ne.
Delivery to the user is carried out by road transport or independent transport. It is allowed to
transport after connecting it to an agricultural tractor, provided that the tractor driver
acquaints himself with the tedder's instruction manual, especially with the safety information

CHAPTER 1 PRONAR PWP460
1.7
and the principles of connecting and transporting it on public roads. Driving of the tractor with
the rotary tedder connected is forbidden during the period of limited visibility.
When loading and unloading the tedder, comply with the general principles of workplace
health and safety for reloading work. Persons operating reloading equipment must have the
required permissions to use these devices.

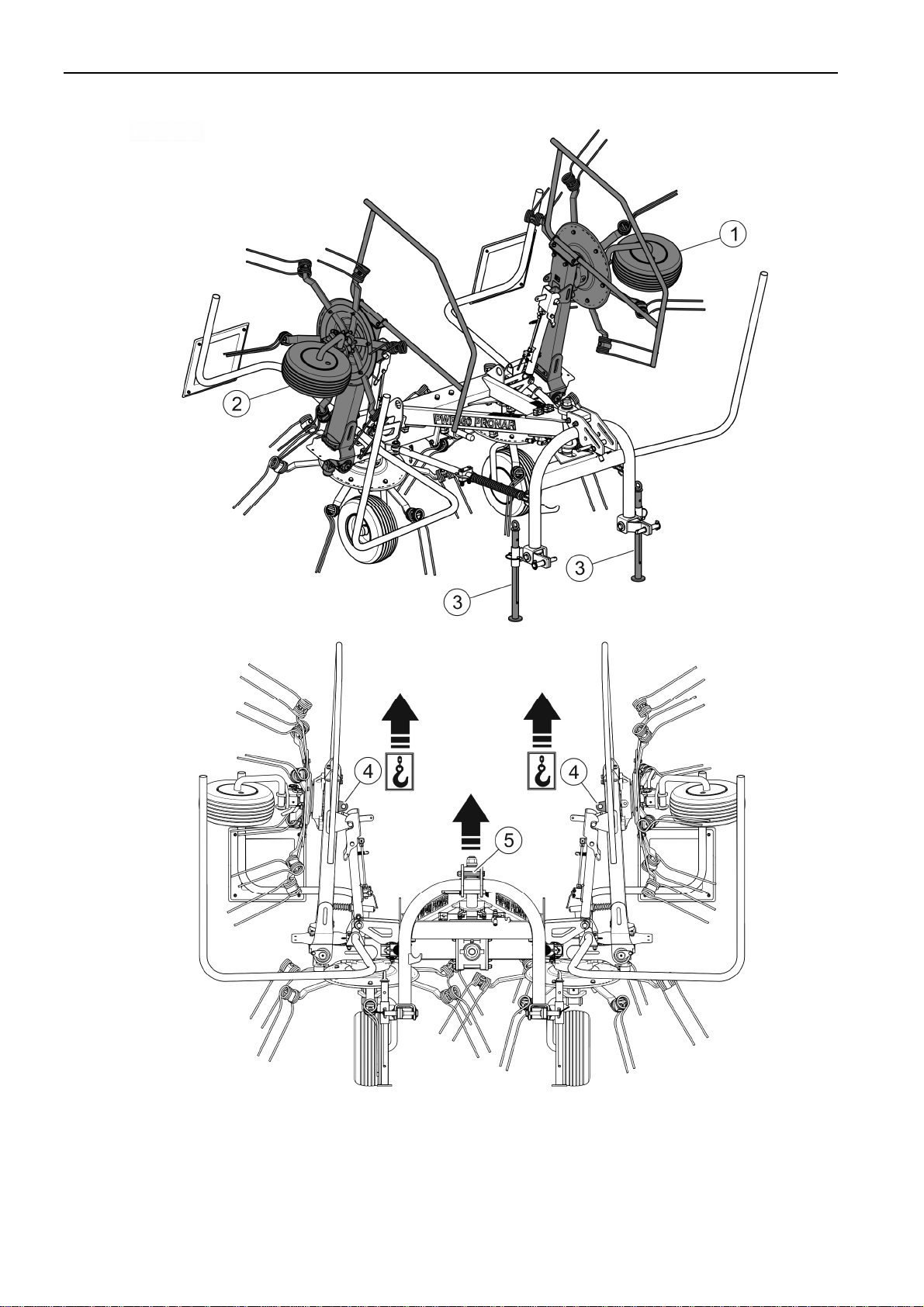

The tedder should be attached to the lifting equipment in places designed for this purpose
(FIGURE 1.2), i.e. to the transport eyes (4) and to the central connector pin (5). The fastening
points are marked with an information sticker. It is recommended that for the time of moving
and transporting the tedder is set to the transport position, i.e. the right (1) and left (2) tedder
module should be lifted up, and the supports (3) lowered downwards. (see "CHAPTER 4.3:
TRANSPORT RUN "). In the event that ropes or belts of reloading devices can catch on
protruding parts of the machine placed in the transport position, they must also be
dismantled. When lifting the tedder, be especially careful due to the possibility of tilting the
machine and the risk of injuries from protruding parts of the machine.
CAUTION
It s forb dden to attach sl ngs and any k nd of cargo secur ng elements to the hydraul c
cyl nders.
ADVICE
Dur ng load ng, the rotary tedder should be set n the transport pos t on. (FIGURE 1.2)

PRONAR PWP460 CHAPTER 1
1.8
FIGURE 1.2 Transport position and points of attachment of the rotary tedder during
loading.
(1) - right tedder module; (2) - left tedder module; (3) - supports; (4) - transport eye; (5) -
central connector mounting pin.

CHAPTER 1 PRONAR PWP460
1.9
The machine should be securely attached to the platform of the means of transport with the
use of belts or chains equipped with a tensioning mechanism. The securing measures must
have a valid safety certificate. Chocks or other elements without sharp edges should be
placed under the tedder wheels to prevent it from rolling. Chocks must be attached to the
vehicle's platform. Be especially careful when lifting the machine. During reloading work,
particular care should be taken not to damage the tedder's fittings and the paint coating.
CAUTION
Nobody s allowed to stay n the maneuver ng area when transferr ng the rotary tedder to
another means of transport.
FIGURE 1.3 Position of the center of gravity of the rotary tedder in the transport
position.
TABLE 1.3 Location of the center of gravity.
Dimensions (FIGURE
1.3) Unit PWP460
A mm 1210
B mm 1495
C mm 990

PRONAR PWP460 CHAPTER 1
1.10
1.6 THREAT TO THE ENVIRONMENT
A hydraulic oil leak is a direct threat to the natural environment because of its limited
biodegradability. When carrying out maintenance and repair work where there is a risk of
leakage of oil, this work should be carried out in rooms with an oil resistant surface. In the
event of oil leaking into the environment, first of all contain the source of the leak, and then
collect the leaked oil using available means. Collect oil residue with sorbents or mix the oil
with sand, sawdust or other absorbent materials. Collected oil contaminants should be stored
in an airtight and marked container, resistant to hydrocarbons, and then transferred to an oil
waste disposal point. The container should be kept away from heat sources, flammable
materials and food.
It is recommended to store the oil which has been used up or is unsuitable for further use due
to the loss of its properties in its original packaging in the same conditions as described
above.
1.7 WITHDRAWAL FROM USE
If the user decides to withdraw the machine from use, comply with the provisions in force in
the given country regarding withdrawal from use and recycling of machines withdrawn from
use.
Before dismantling the machine, the oil from the hydraulic system and gear must be
completely removed. The location of the drain plugs and the method of removing oil are
described in Chapter 5.
In the event of parts being replaced, worn or damaged parts should be taken to a recycling
centre. Used oil as well as rubber or plastic elements should be taken to plants dealing with
the utilization of this type of waste.
CAUTION
Dur ng d sassembly, use appropr ate tools and use personal protect ve equ pment, .e.
protect ve cloth ng, footwear, gloves, glasses, etc.
Avo d o l contact w th sk n. Do not allow used o l to sp ll.
