PRONAR T680 User manual

PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
tel.: [phone] [phone]
[phone] [phone]
fax: [phone] [phone]
www.pronar.pl
OPERATOR'S MANUAL
AGRICULTURAL TRAILER
PRONAR T680
TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
ISSUE 1A-03-2015 PUBLICATION NO 443N-00000000-UM

INTRODUCTION
Information contained herein is current at date of publication. As a result of improvements,
some numerical values and illustrations contained in this publication may not correspond to the
factual specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate operation and improve the quality
of their work, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine's documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures malfunction free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic safety rules and operation of agricultural trailer Pronar T680.
If the information contained in the Operator's Manual needs clarification then the user should
refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER”. Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
distinguished in the text by the sign:
and also preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked:
and also preceded by the word „TIP”.

DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.
REQUIRED SERVICE ACTIONS
Service actions described in the manual are marked: 
Result of service/adjustment actions or comments concerning the performance of actions are
marked: 

CONTENTS
1 BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 TRAILER IDENTIFICATION 1.2
1.1.2 AXLE IDENTIFICATION 1.3
1.1.3 LIST OF SERIAL NUMBERS 1.4
1.2 INTENDED USE 1.5
1.3 EQUIPMENT 1.9
1.4 TERMS & CONDITIONS OF WARRANTY 1.11
1.5 TRANSPORT 1.12
1.5.1 TRANSPORT ON VEHICLE. 1.12
1.5.2 INDEPENDENT TRANSPORT BY THE USER. 1.14
1.6 ENVIRONMENTAL HAZARDS 1.15
1.7 WITHDRAWAL FROM USE 1.16
2 SAFETY ADVICE 2.1
2.1 BASIC SAFETY RULES 2.2
2.1.1 USE OF TRAILER 2.2
2.1.2 HITCHING AND UNHITCHING FROM TRACTOR 2.3
2.1.3 HITCHING AND UNHITCHING THE SECOND TRAILER 2.3
2.1.4 HYDRAULIC AND PNEUMATIC SYSTEMS 2.4
2.1.5 LOADING AND UNLOADING 2.5
2.1.6 TRANSPORTING THE MACHINE 2.7
2.1.7 TYRES 2.11
2.1.8 MAINTENANCE 2.11
2.2 RESIDUAL RISK 2.14
2.3 INFORMATION AND WARNING DECALS 2.15

3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 TRAILER CONSTRUCTION 3.3
3.2.1 CHASSIS 3.3
3.2.2 LOAD BOX 3.5
3.2.3 MAIN BRAKE 3.7
3.2.4 HYDRAULIC TIPPING SYSTEM 3.14
3.2.5 HYDRAULIC WALL UNLOCKING SYSTEM 3.16
3.2.6 FEEDER UNIT 3.17
3.2.7 PARKING BRAKE 3.19
3.2.8 LIGHTING SYSTEM 3.20
4 PROPER USE 4.1
4.1 PREPARING FOR WORK BEFORE THE FIRST USE 4.2
4.1.1 CHECKING THE TRAILER AFTER DELIVERY 4.2
4.1.2 PREPARING THE TRAILER FOR THE FIRST HITCHING TO
TRACTOR 4.3
4.2 HITCHING AND UNHITCHING THE TRAILER FROM
TRACTOR 4.4
4.3 HITCHING AND UNHITCHING THE SECOND TRAILER 4.8
4.4 LOADING AND SECURING LOAD 4.10
4.4.1 GENERAL INFORMATION ABOUT LOADING 4.10
4.5 LOAD TRANSPORT 4.17
4.6 UNLOADING 4.20
4.7 PROPER USE AND MAINTENANCE OF TYRES 4.26
4.8 USING UNDERRUN PROTECTION DEVICES 4.27
5 MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2

5.2 MAINTENANCE OF BRAKES AND AXLES 5.2
5.2.1 PRELIMINARY INFORMATION 5.2
5.2.2 INITIAL INSPECTION OF AXLE BRAKES 5.3
5.2.3 CHECKING BRAKE SHOE LININGS FOR WEAR 5.3
5.2.4 CHECKING WHEEL AXLE BEARINGS FOR SLACKNESS 5.5
5.2.5 ADJUSTMENT OF PLAY OF WHEEL AXLE BEARINGS 5.7
5.2.6 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF
WHEEL NUT TIGHTENING 5.8
5.2.7 CHECKING AIR PRESSURE IN TYRES, EVALUATING
TECHNICAL CONDITION OF TYRES AND STEEL WHEELS 5.11
5.2.8 ADJUSTMENT OF MECHANICAL BRAKES 5.12
5.2.9 REPLACEMENT OF PARKING BRAKE CABLE AND
ADJUSTMENT OF CABLE TENSION. 5.16
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.19
5.3.1 PRELIMINARY INFORMATION 5.19
5.3.2 CHECKING AIR TIGHTNESS AND VISUAL INSPECTION OF
PNEUMATIC SYSTEM 5.20
5.3.3 CLEANING THE AIR FILTERS 5.21
5.3.4 DRAINING WATER FROM AIR TANK 5.23
5.3.5 CLEANING THE DRAIN VALVE 5.24
5.3.6 CLEANING AND MAINTAINING PNEUMATIC CONDUIT
CONNECTIONS AND PNEUMATIC SOCKETS 5.24
5.3.7 REPLACEMENT OF PNEUMATIC CONDUIT 5.25
5.4 HYDRAULIC SYSTEM MAINTENANCE 5.26
5.4.1 PRELIMINARY INFORMATION 5.26
5.4.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS 5.27
5.4.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC
COUPLERS AND SOCKETS. 5.27
5.4.4 REPLACEMENT OF HYDRAULIC CONDUITS 5.28
5.5 MAINTENANCE OF ELECTRICAL SYSTEM AND WARNING
ELEMENTS 5.28

5.6 TRAILER LUBRICATION 5.29
5.7 CONSUMABLES 5.34
5.7.1 HYDRAULIC OIL 5.34
5.7.2 LUBRICANTS 5.35
5.8 CLEANING THE TRAILER 5.35
5.9 STORAGE 5.37
5.10 TIGHTENING TORQUE FOR NUT AND BOLT
CONNECTIONS 5.38
5.11 INSTALLATION AND DISASSEMBLY OF THE FRAME AND
TARPAULIN COVER 5.39
5.12 INSTALLATION AND DISMOUNTING OF WALL
EXTENSIONS 5.42
5.13 ADJUSTMENT OF DRAWBAR POSITION 5.43
TROUBLESHOOTING 5.44

SECTION
1
BASIC INFORMATION

Pronar T680 SECTION 1
1.2
1.1 IDENTIFICATION
1.1.1 TRAILER IDENTIFICATION

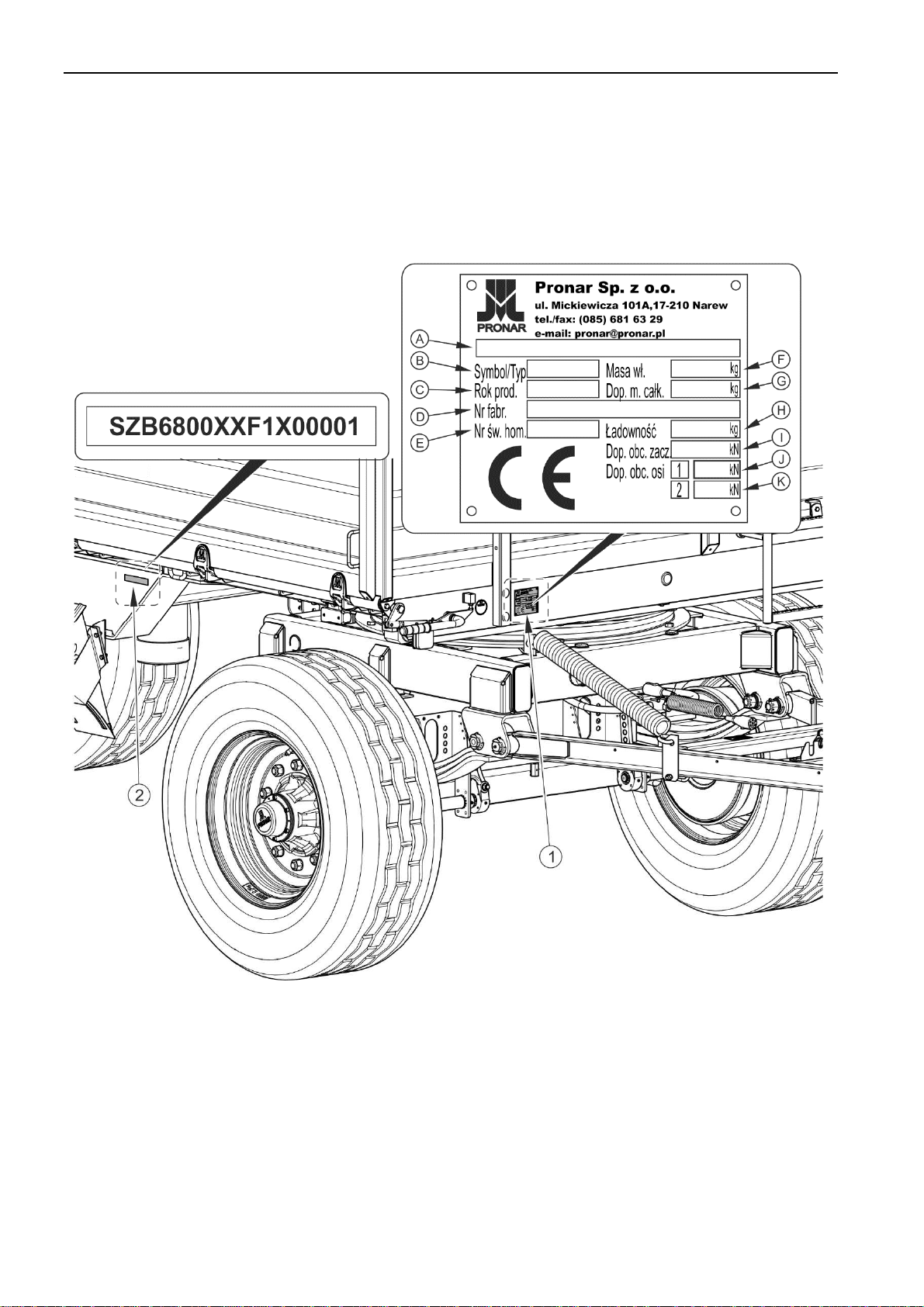

FIGURE 1.1 Location of the data plate and serial number
(1) data plate, (2) serial number
The trailer is marked with the data plate (1), and the serial number (2) located on a gold
painted rectangle. The serial number is located on the lower frame, on the right longitudinal
member of the trailer, the data plate is located on the front beam of the upper frame – figure
(1.1).

SECTION 1 Pronar T680
1.3
When buying the trailer check that the serial numbers on the machine agree with the number
written in the WARRANTY BOOK, in the sales documents and in the OPERATOR'S
MANUAL. The meanings of the individual fields found on the data plate are presented in the
table below:
TABLE 1.1 Markings on data plate
ITEM
MARKING
A General description and purpose
B Symbol / type of trailer
C Trailer's year of manufacture
D Seventeen digit vehicle identification number (VIN)
E Official certificate number
F Tare weight
G Maximum gross weight
H Carrying capacity
I Maximum hitch load (not applicable)
J Permissible front axle load
K Permissible rear axle load
1.1.2 AXLE IDENTIFICATION
The factory number of the axle shaft and its type are stamped onto the data plate (2) secured
to the axle shaft beam (1) – figure (1.2).

Pronar T680 SECTION 1
1.4
FIGURE 1.2 Location of the axle data plate
(1) axle, (2) data plate
1.1.3 LIST OF SERIAL NUMBERS
TIP
In the event of ordering a replacement part or in the case of the appearance of problems
it is often essential to give the factory n mbers of parts or the VIN n mber of the trailer,
therefore it is recommended that these n mbers are inscribed in the spaces below.
VIN
S Z B 6 8 0 X X X
FRONT AXLE FACTORY NUMBER AND TYPE
REAR AXLE FACTORY NUMBER AND TYPE

SECTION 1 Pronar T680
1.5
1.2 INTENDED USE
The trailer is designed for transport of harvested crops and agricultural products as well as
loose, bulk and long load materials at the farm and on public roads. It is acceptable to
transport construction materials, mineral fertilisers and other loads, if fulfilling conditions
indicated in section 4. Non-compliance with the recommendations concerning the carriage
and loading of goods described by the Manufacturer and the road transport regulations in
force in the country in which the trailer is used shall void the warranty and is regarded as the
use of the machine contrary to its intended purpose.
The trailer is not intended or designed for transporting people, animals or goods classified as
dangerous materials.
ATTENTION
The trailer m st not be sed for p rposes other than those for which it is intended. The
ser MUST NOT:
•transport people, animals, hazardo s materials, chemically aggressive loads
that will corrode the str ct ral elements of the trailer (ca sing corrosion of
steel, destr ction of paint coat, dissolving plastic elements and destr ction of
r bber elements etc.),
•transport incorrectly sec red load, which d ring travel may ca se
contamination of the road and nat ral environment,
•transport incorrectly sec red load, which d ring travel may change position
in load box or fall o t of the load box,
•transport loads, whose centre of gravity may destabilise the trailer,
•transport loads, which have neven load distrib tion and/or overload axles
and s spension elements.
The trailer is designed according to current safety requirements and engineering standards.
The brake system and the light and indicator system meet the requirements of road traffic
regulations. The maximum speed of the trailer on public roads in Poland is 30 km/h (pursuant
to Traffic Law Act of June 20th 1997, article 20). In the countries where the trailer is used, the
limits stipulated by the road traffic legislation in force in a given country must be observed.
The trailer speed must not, however, be greater than the maximum design speed of 40 km/h.

Pronar T680 SECTION 1
1.6
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. Due to the above, the user is obliged to:
•carefully read the OPERATOR'S MANUAL of the trailer and the WARRANTY
BOOK and conform with the recommendations contained in these documents,
•understand the trailer's operating principle and how to operate it safely and
correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the trailer is used,
•carefully read the Operator's Manual and comply with its recommendations,
•only hitch the trailer to an agricultural tractor, which fulfils all the requirements
made by the trailer's Manufacturer.
The trailer may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,
•have been trained in trailer operation and work safety,
•have the required authorisation to drive carrying vehicles and are familiar with the
road traffic regulations and transport regulations.

SECTION 1 Pronar T680
1.7
TABLE 1.2 Requirements for agricultural tractor
CONTENTS UNIT REQUIREMENTS
Brake system - sockets
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
Maximum system pressure
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / MPa
according to A DIN 74 294
according to ISO 1728
according to ISO 7421-1
5.8 -6.5 / 580 - 650
6.5/ 650
150 / 15
Hydraulic tipper system
Hydraulic oil
Maximum system pressure
Oil demand:
-
bar / MPa
l
L HL 32 Lotos
(1)
200 / 20
18
Electrical system
Electrical system voltage
Connection socket
Power supply of solenoid valve of
hydraulic brake system (option)
V
-
-
12
7-pole socket compliant with ISO 1724
3-pin socket
Required tractor hitch
Type - Manual or automatic upper transport
hitch compatible with the drawbar eye
acc. to DIN 74054.
Other requirements
Minimum tractor power kW / hp 80.3 / 109.2
(1)
– use of other oil is permitted on condition that it may be mixed with the oil in the trailer. Detailed
information can be found on the product information card.
TIP
Tractor req irements depend on trailer accessories.
In the event that the trailer shall be hitched to a second trailer it must fulfil the requirements
stipulated in table (1.3).

Pronar T680 SECTION 1
1.8
TABLE 1.3 Requirements for second trailer
CONTENTS UNIT REQUIREMENTS
Permissible gross weight of the
double-axle trailer kg 18 000
Brake system - connectors
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
Maximum system pressure
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / Mpa
according to A DIN 74 294
according to ISO 1728
according to ISO 7421-1
5.8 -6.5 / 580 – 650
6.5/ 650
150 / 15
Hydraulic tipper system
Hydraulic oil
Maximum system pressure
-
bar / MPa
L HL 32 Lotos
(1)
200 / 20
Electrical system
Electrical system voltage
Connection socket
V
-
12
7-pole socket compliant with ISO 1724
Trailer's drawbar
Diameter of drawbar eye mm 40
(1)
– use of other oil is permitted on condition that it may be mixed with the oil in the trailer. Detailed
information can be found on the product information card.

SECTION 1 Pronar T680
1.9
1.3 EQUIPMENT
TABLE 1.4 Trailer's equipment
EQUIPMENT
STANDARD
ADDITIONAL
OPTIONS
Operator`s Manual •
Warranty Book •
Double conduit pneumatic system •
Single conduit pneumatic system •
Double conduit pneumatic system with automatic regulator •
Hydraulic brake system •
Connection lead for the electrical system •
Wheel chocks •
Drawbar with hitching eye ∅40 mm •
Drawbar Y with hitching eye acc. to DIN 74054, ∅40 mm •
Drawbar with hitching eye ∅50 mm •
Automatic rear hitch •
Slow-moving vehicle warning sign •
Reflective warning triangle •
Rear chute •
Hopper system •
Front wheel mudguards •
Wheel mudguards according to 91/226/EEC Directive •

Pronar T680 SECTION 1
1.10
EQUIPMENT
STANDARD
ADDITIONAL
OPTIONS
Set of 800mm wall extensions instead of standard 600mm wall
extensions •
Set of walls 3 rear chute shafts or 2 rear chute shafts •
Set of 600 mm additional middle extensions •
Side under-run protective devices •
Frame with tarpaulin cover •
Fenced platform •
Toolbox •
Shock absorbing belts •
Hydraulic load box wall unlocking system •
Spare wheel winch •
Wall hanger •
Feeder unit •
Set of 600mm wall extensions with a window •
Set of 800mm wall extensions with a window •
Set of 600 mm middle wall extensions with a window •
Set of 600 mm or 800mm mesh wall extensions •
Set of uniform 800mm + 600mm walls and wall extensions (no side
middle stake) •
Sidewall pull-off mechanism
(1)
•
(1)
- Available in version with load box with uniform walls (no side middle stake)
