PRONAR T682/1 User manual

INTRODUCTION
Information in this document is current at date of publication. As a result of improvements, some
numerical values and illustrations contained in this publication may not correspond to the actual
specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate and improve the quality of
machine operation, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures failure-free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic principles of safe use and operation of agricultural trailers
Pronar T682 and Pronar T682/1
If the information in this Operator's Manual needs clarification, refer for assistance to the sale
point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER.” Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Vital information and instructions that must be observed are by the symbol:
and also preceded by the word "IMPORTANT". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked with the sign:
and also preceded by the word "TIP".

DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.
REQUIRED MAINTENANCE
Maintenance actions described in the manual are marked with the sign:
Result of maintenance/adjustment actions or comments concerning the performance of actions
are marked with the sign:

TABLE OF CONTENTS
1 BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 TRAILER IDENTIFICATION 1.2
1.1.2 AXLE IDENTIFICATION 1.3
1.1.3 LIST OF SERIAL NUMBERS 1.4
1.2 INTENDED USE 1.5
1.3 EQUIPMENT 1.8
1.4 TERMS & CONDITIONS OF WARRANTY 1.9
1.5 TRANSPORT 1.11
1.5.1 SHIPPING BY ROAD 1.11
1.5.2 INDEPENDENT SHIPPING BY THE USER 1.13
1.6 ENVIRONMENTAL RISK 1.14
1.7 WITHDRAWAL FROM USE 1.15
2 SAFETY ADVICE 2.1
2.1 SAFETY INFORMATION 2.2
2.1.1 BASIC SAFETY RULES 2.2
2.1.2 HITCHING AND UNHITCHING FROM TRACTOR 2.3
2.1.3 HYDRAULIC SYSTEM AND PNEUMATIC SYSTEM 2.4
2.1.4 LOADING AND UNLOADING 2.4
2.1.5 CLEANING, MAINTENANCE AND ADJUSTMENT 2.6
2.1.6 SAFE DRIVING 2.8
2.1.7 TYRES 2.11
2.1.8 OPERATING PTO SHAFT. 2.11
2.1.9 DESCRIPTION OF RESIDUAL RISK 2.13
2.2 INFORMATION AND WARNING DECALS 2.13

3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 TRAILER CONSTRUCTION 3.3
3.2.1 CHASSIS 3.3
3.2.2 LOAD BOX 3.5
3.2.3 ELECTRICAL SYSTEM 3.7
3.2.4 MAIN BRAKE 3.10
3.2.5 PARKING BRAKE 3.15
3.2.6 HYDRAULIC TIPPER SYSTEM 3.15
3.2.7 TAILGATE LIFTING HYDRAULIC SYSTEM 3.17
3.2.8 WHEEL LOCK HYDRAULIC SYSTEM 3.18
4 CORRECT USE 4.1
4.1 PREPARING THE TRAILER FOR WORK 4.2
4.1.1 PRELIMINARY INFORMATION 4.2
4.1.2 HAND-OVER AND INSPECTION OF THE MACHINE AFTER DELIVERY 4.2
4.1.3 PREPARE THE TRAILER FOR THE FIRST USE, TEST RUN OF THE
TRAILER 4.3
4.1.4 PREPARING THE TRAILER FOR NORMAL USE 4.4
4.2 HITCHING AND UNHITCHING THE TRAILER 4.5
4.3 LOADING AND SECURING LOAD 4.8
4.3.1 GENERAL INFORMATION ABOUT LOADING 4.8
4.4 TRANSPORT THE LOAD 4.15
4.5 UNLOADING 4.17
4.6 PROPER USE AND MAINTENANCE OF TYRES 4.20
5 MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2
5.2 SERVICING WHEEL AXLE 5.2
5.2.1 PRELIMINARY INFORMATION 5.2

5.2.2 CHECK WHEEL AXLE BEARINGS FOR SLACKNESS 5.3
5.2.3 ADJUST THE PLAY OF THE AXLE BEARINGS 5.5
5.2.4 INSTALL AND REMOVE WHEEL, INSPECT WHEEL NUT TIGHTNESS. 5.6
5.2.5 CHECK AIR PRESSURE IN TYRES, TECHNICAL CONDITION OF
TYRES AND STEEL RIMS 5.8
5.2.6 CHECK THICKNESS OF BRAKE SHOE LININGS 5.9
5.2.7 ADJUSTMENT OF MECHANICAL BRAKES 5.10
5.2.8 REPLACEMENT OF PARKING BRAKE CABLE AND ADJUSTMENT OF
CABLE TENSION. 5.15
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.17
5.3.1 PRELIMINARY INFORMATION 5.17
5.3.2 CHECK TIGHTNESS 5.17
5.3.3 INSPECTION OF THE SYSTEM 5.18
5.4 CLEANING THE AIR FILTERS 5.19
5.4.1 DRAIN WATER FROM AIR TANK 5.20
5.4.2 CLEAN THE DRAIN VALVES 5.21
5.4.3 CLEANING AND MAINTAINING PNEUMATIC CONDUIT
CONNECTIONS AND PNEUMATIC SOCKETS 5.21
5.5 HYDRAULIC SYSTEM MAINTENANCE 5.22
5.5.1 PRELIMINARY INFORMATION 5.22
5.5.2 CHECK HYDRAULIC SYSTEM TIGHTNESS 5.22
5.5.3 CHECK TECHNICAL CONDITION OF HYDRAULIC COUPLERS AND
SOCKETS. 5.23
5.5.4 REPLACE HYDRAULIC LINES 5.24
5.6 LUBRICATION 5.24
5.6.1 CONSUMABLES 5.29
5.7 TRAILER CLEANING 5.30
5.8 STORAGE 5.32
5.9 INSPECTION OF TIGHTENING TORQUE OF NUT AND BOLT
CONNECTIONS 5.32

5.9.1 AXLES 5.32
5.9.2 DRAWBAR 5.33
5.9.3 SUSPENSION 5.34
5.9.4 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.36
5.10 ADJUSTMENT OF DRAWBAR POSITION 5.37
5.11 MAINTENANCE OF SUSPENSION SYSTEM 5.39
5.12 TROUBLESHOOTING 5.39
5.12.1 TROUBLESHOOTING 5.39

SECTION
1
BASIC INFORMATION

Pronar T682, Pronar T682/1 SECTION 1
1.2
1.1 IDENTIFICATION
1.1.1 TRAILER IDENTIFICATION

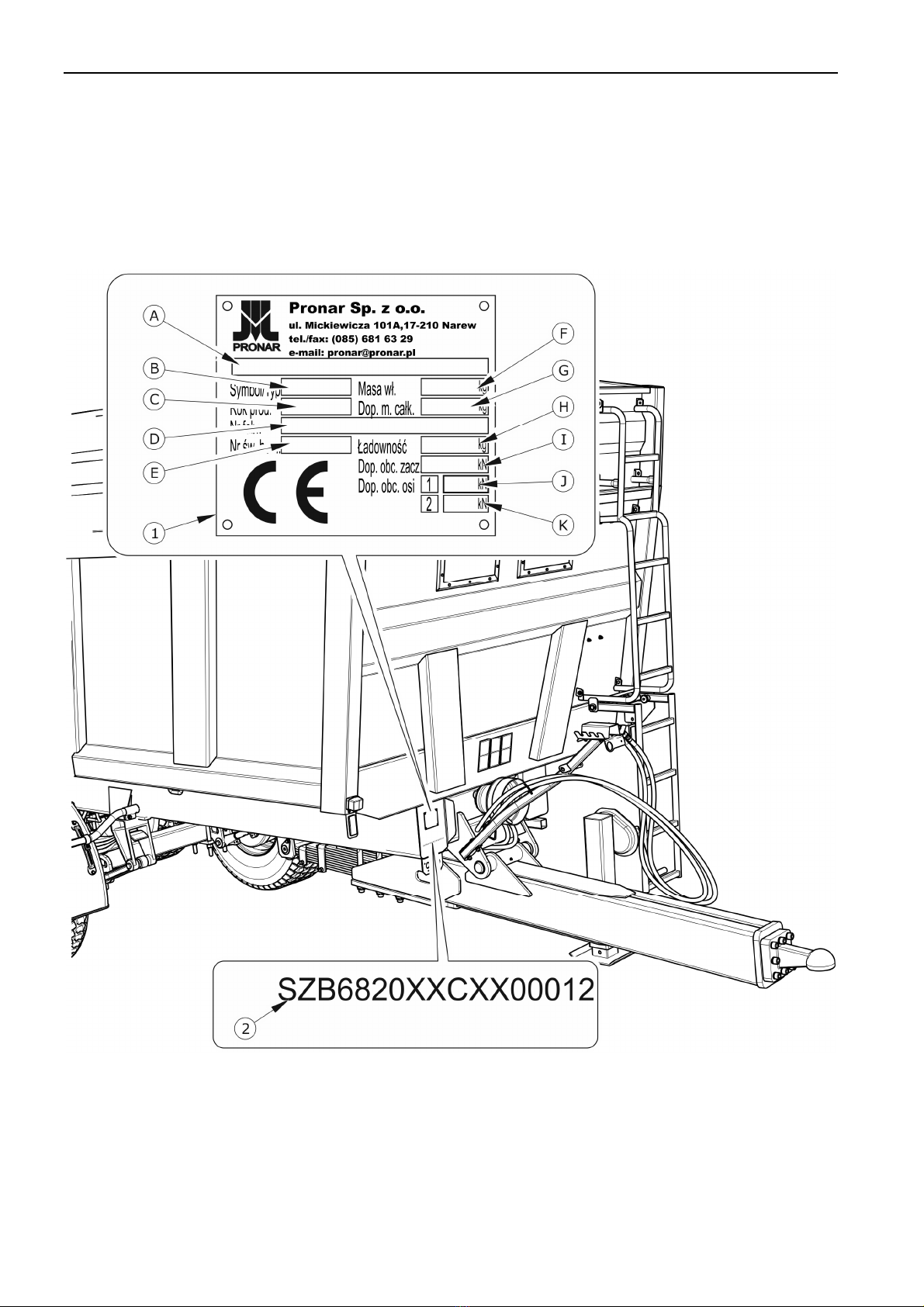

FIGURE 1.1 Location of the nameplate and vehicle identification number (VIN)
(1) nameplate, (2) example of vehicle identification number

SECTION 1 Pronar T682, Pronar T682/1
1.3
The trailer is marked with a nameplate (1) and a Vehicle Identification Number (2). The VIN
and the nameplate are located on the plug of the right longitudinal member of the
frame figure (1.1). When purchasing the machine make sure that the numbers on the
machine agree with the numbers stated in the WARRANTY BOOK and in the sales
documents. The meaning of the items on the nameplate is shown in the table below.
TABLE 1.1 Markings on nameplate
ITEM MARKING
A General description and purpose
B Symbol /Machine type
C Year of manufacture
D Seventeen digit vehicle identification number (VIN)
E Official certificate number
F Machine tare weight
G Maximum gross weight
H Carrying capacity
I Permissible hitching system load
J Permissible axle load
K Permissible axle load
1.1.2 AXLE IDENTIFICATION
The serial number of the wheel axle and its type are stamped onto the nameplate (2) secured
to the wheel axle beam (1) – figure (1.2).

Pronar T682, Pronar T682/1 SECTION 1
1.4
FIGURE 1.2 Location of the axle nameplate
(1) nameplate, (2) wheel axle
1.1.3 LIST OF SERIAL NUMBERS
TABLE 1.2 List of serial numbers
VIN
S Z B 6 8 2 X X X
SERIAL NUMBER OF FRONT AXLE
SERIAL NUMBER OF CENTRAL AXLE
SERIAL NUMBER OF REAR AXLE

SECTION 1 Pronar T682, Pronar T682/1
1.5
TIP
In the event of ordering a replacement part or in the case of the appearance of
problems it is often essential to give the serial number of the agricultural trailer
or the serial number of the axle, therefore it is recommended that these
numbers are inscribed in the table (1.2).
1.2 INTENDED USE
The trailer is designed for transport of harvested crops and agricultural products as well as
loose, bulk and long load materials at the farm and on public roads. It is acceptable to
transport construction materials, mineral fertilisers and other loads, if fulfilling conditions
indicated in section 4. Non-compliance with the recommendations for the carriage and
loading of goods described by the Manufacturer and the road transport regulations in force in
the country in which the trailer is used shall void the warranty and is regarded as use of the
machine contrary to its intended purpose.
The trailer is not intended or designed for transporting people, animals or goods classified as
dangerous materials.
The machine can be aggregated with agricultural tractors only.
The trailer is designed and constructed according to current safety and engineering
standards. The brake system and the light and indicator system meet the requirements of
road traffic regulations. The maximum speed of the trailer on public roads in Poland is 30
km/h (pursuant to Traffic Law Act of June 20th 1997, article 20). In the countries where the
trailer is used, the limits stipulated by the road traffic legislation in force in a given country
must be observed. The trailer speed must not, however, be greater than the maximum design
speed of 40 km/h.

Pronar T682, Pronar T682/1 SECTION 1
1.6
IMPORTANT
The trailer must not be used for purposes other than those for which it is
intended. DO NOT:
•transport people, animals, hazardous materials, chemically
aggressive loads that will corrode the structural elements of the trailer
(causing corrosion of steel, destruction of paint coat, dissolving
plastic elements and destruction of rubber elements etc.),
•transport incorrectly secured load, which during travel may cause
contamination of the road and natural environment,
•transport incorrectly secured load, which during travel may change
position in load box or fall out of the load box,
•transport loads, whose centre of gravity may destabilise the trailer,
•transport loads, which have uneven load distribution and/or overload
axles and suspension elements.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. Due to the above, the user is obliged to:
•carefully read the OPERATOR'S MANUAL and the WARRANTY BOOK and
follow instructions in these documents,
•understand the trailer's operating principle and how to operate it safely and
correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the trailer is used,
•carefully read the Operator's Manual and comply with its recommendations,
•only hitch the trailer to an agricultural tractor which meets all the Manufacturer’s
requirements.

SECTION 1 Pronar T682, Pronar T682/1
1.7
The trailer may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,
•have been trained in trailer operation and work safety,
•have the required authorisation to drive carrier vehicles and are familiar with the
road traffic regulations and transport regulations.
TIP
Tractor requirements depend on trailer accessories.
TABLE 1.3 Requirements for agricultural tractor
CONTENTS UNIT REQUIREMENTS
System pressure rating
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
bar
bar
bar
5.8 – 6.5
6.5 - 7
150
Electrical system
Electrical system voltage
Connection socket
Solenoid valve power supply socket
V
-
-
12
7-pole
3-pole
Tractor hitches
Type of hitch
Minimum static vertical load capacity
-
kg
transport hooks (lower or upper
position)
3,000
Other requirements
Min. Tractor power (T682)
Minimum tractor power (T682/1)
KM / kW
KM / kW
182 / 133.8
182 / 133.8

Pronar T682, Pronar T682/1 SECTION 1
1.8
CONTENTS UNIT REQUIREMENTS
Turning interlock hydraulic system
Hydraulic oil
System pressure rating
Oil demand:
-
MPa
l
L HL 32 Lotos
16
5
PTO
PTO speed rpm 540
1.3 EQUIPMENT
TABLE 1.4 Equipment
EQUIPMENT
STANDARD
ADDITIONAL
OPTION
OPERATOR'S MANUAL, WARRANTY BOOK •
Rotating drawbar eye ∅50 •
Fixed drawbar eye ∅50 •
Fixed drawbar eye ∅40 •
Fixed ball drawbar ∅80 •
Spare wheel •
PTO shaft •
Turning interlock hydraulic system •
Double line pneumatic brake system •
2-line pneumatic brake system with ALB regulator •
Single line pneumatic brake system •
Hydraulic brake system •

SECTION 1 Pronar T682, Pronar T682/1
1.9
EQUIPMENT
STANDARD
ADDITIONAL
OPTION
Plastic mudguards (front and rear axle) •
Wheel chocks •
Automatic rear hitch •
Spare wheel •
Grain chute •
Chute •
580 mm extensions •
700 mm extensions •
TIP
Information concerning tyres is provided at the end of this manual in ANNEX A.
1.4 TERMS & CONDITIONS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. The repair
period is specified in the WARRANTY BOOK.
The warranty does not cover those parts and sub-assemblies of the machine which are
subject to wear in normal usage conditions, regardless of the warranty period.
Consumables include the following parts/sub-assemblies:
•drawbar hitching eye,
•pneumatic system connector filters,
•bulbs and LED lamps,

Pronar T682, Pronar T682/1 SECTION 1
1.10
•tyres,
•seals,
•bearings.
The warranty service only applies to such cases as: mechanical damage which is not the
user's fault, factory defects of parts, etc.
TIP
Demand that the seller carefully and accurately fills out the WARRANTY
BOOK and warranty repair coupons. A missing date of purchase or sale point
stamp may make the user ineligible for any warranty repair or refund.
In the event of damage arising from:
•mechanical damage which is the user's fault, damage caused by road accidents,
•inappropriate use, adjustment or maintenance, use of the machine for purposes
other than those for which it is intended,
•use of damaged machine,
•repairs carried out by unauthorised persons, repairs carried out improperly,
•making unauthorised alterations to machine design,
the user loses the warranty.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the warranty or not.
For detailed Terms & Conditions of Warranty, please refer to the WARRANTY BOOK
attached to each newly purchased machine.
Modifications of the machine without the written consent of the Manufacturer are prohibited.
In particular, do NOT weld, drill holes in, cut or heat the main structural elements of the
machine, which have a direct impact on the machine operation safety.
