PRONAR T683 User manual

PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, WOJ. PODLASKIE, POLAND
Phone.: [phone] [phone]
[phone] [phone]
Fax: [phone] [phone]
www.pronar.pl
OPERATOR'S MANUAL

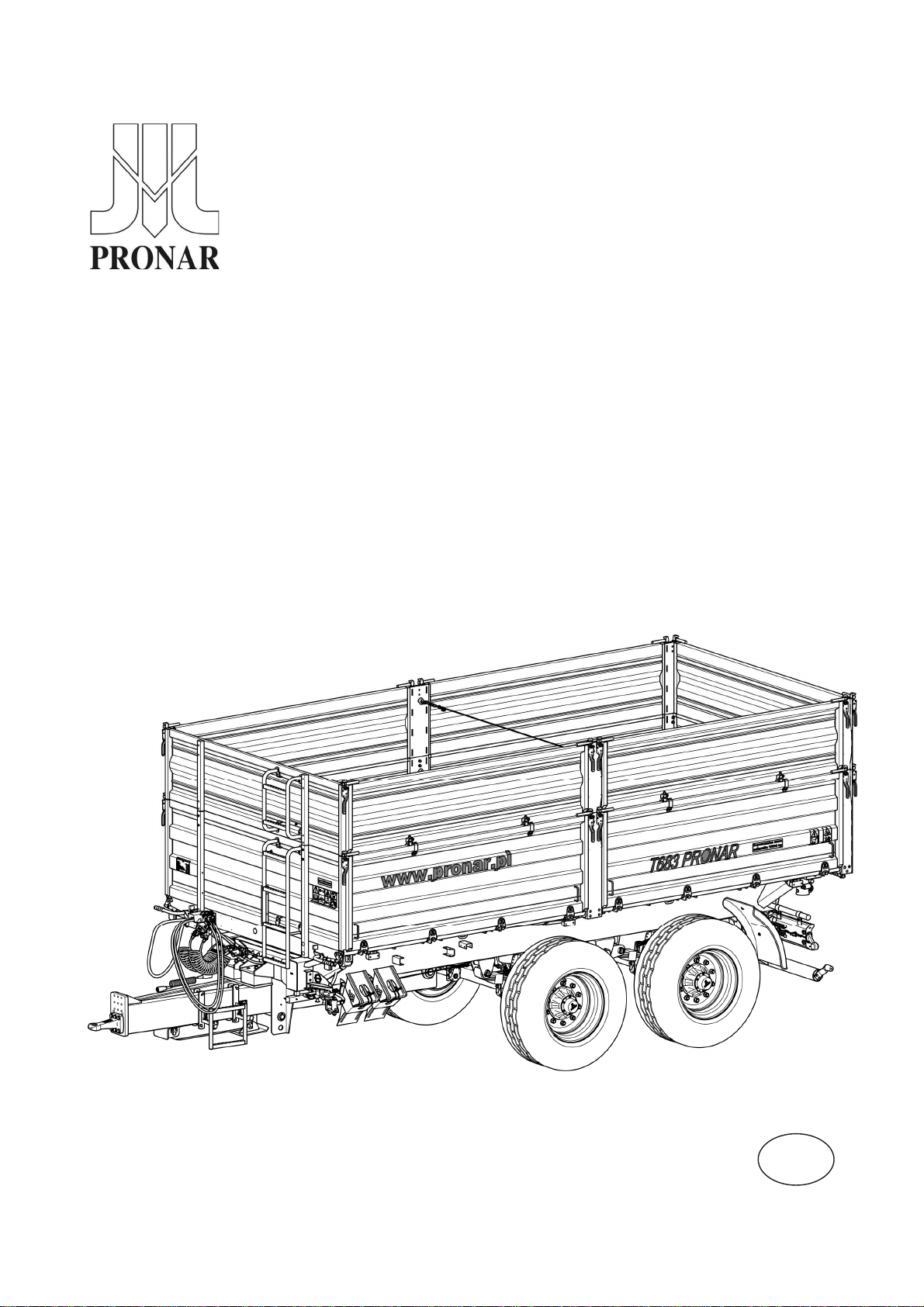

TRAILER
PRONAR T683
TRANSLATION OF THE ORIGINAL DOCUMENT
ISSUE 1A-03-2015 PUBLICATION NO. 511N-00000000-UM
EN

INTRODUCTION
Information contained herein is current as of the date of its publication. As a result of
improvements, some numerical values and illustrations contained in this publication may not
correspond to the factual specification of the machine delivered to the user. The manufacturer
reserves the right to introduce design changes in manufactured machines that facilitate
operation and improve the quality of their work, without making amendments to this Operator's
Manual.
This Operator's Manual is an integral part of the machine. Before using the machine, the user
must carefully read this Operator's Manual and observe all recommendations. This guarantees
safe operation and ensures malfunction-free work of the machine. The machine is designed to
meet obligatory standards, documents and legal regulations currently in force.
The manual describes the basic safety and operation rules of Pronar T683 trailer.
If the information contained in the Operator's Manual needs clarification, the user should refer
for assistance to the sale point where the machine was purchased or to the manufacturer.
MANUFACTURER'S ADDRESS
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew, Poland
PHONE NUMBERS
[phone] [phone]
[phone] [phone]

SYMBOLS USED IN THIS MANUAL
Information, descriptions of danger, precautions, recommendations and orders associated with
user safety instructions are indicated as follows:
and preceded by the word "DANGER". Failure to observe the instructions may endanger the
machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
indicated with the sign:
and preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform periodical maintenance, the
relevant section of the Operator's Manual is indicated with the sign:
Additional tips contained in this document refer to helpful information on the machine operation
and are indicated as follows:
and preceded by the word "TIP".

DETERMINING THE DIRECTIONS FOR THE MANUAL'S NEEDS
Left side — a left hand side of the person facing the machine's forward travel direction.
Right side — a right hand side of the person facing the machine's forward travel direction.
SCOPE OF OPERATION STEPS
Operation steps are indicated with the following sign: 
The result of an operation/adjustment task or any notes on execution of the tasks performed is
indicated with the sign 

TABLE OF CONTENTS
1 BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 TRAILER IDENTIFICATION 1.2
1.1.2 AXLE IDENTIFICATION 1.3
1.1.3 LIST OF FACTORY NUMBERS 1.4
1.2 PROPER USE 1.4
1.3 EQUIPMENT 1.8
1.4 TERMS & CONDITIONS OF WARRANTY 1.9
1.5 TRANSPORT 1.11
1.5.1 TRANSPORT ON VEHICLE. 1.11
1.5.2 INDEPENDENT TRANSPORT BY THE USER. 1.13
1.6 ENVIRONMENTAL HAZARDS 1.13
1.7 WITHDRAWAL FROM USE 1.14
2 SAFETY ADVICE 2.1
2.1 BASIC SAFETY RULES 2.2
2.1.1 USE OF TRAILER 2.2
2.1.2 HITCHING AND DISCONNECTING FROM TRACTOR 2.3
2.1.3 COUPLING AND UNCOUPLING SECOND TRAILER 2.3
2.1.4 HYDRAULIC AND PNEUMATIC SYSTEMS 2.4
2.1.5 LOADING AND UNLOADING 2.5
2.1.6 TRANSPORTING THE MACHINE 2.7
2.1.7 TYRES 2.10
2.1.8 MAINTENANCE 2.11
2.2 DESCRIPTION OF RESIDUAL RISK 2.13
2.3 INFORMATION AND WARNING DECALS 2.14

3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 TRAILER CONSTRUCTION 3.3
3.2.1 CHASSIS 3.3
3.2.2 LOAD BOX 3.5
3.2.3 MAIN BRAKE 3.8
3.2.4 HYDRAULIC TIPPING SYSTEM 3.16
3.2.5 SHEAR TYPE DRAWBAR SUPPORT HYDRAULIC SYSTEM 3.17
3.2.6 HYDRAULIC SIDE WALL UNLOCKING SYSTEM 3.19
3.2.7 FEEDER UNIT 3.20
3.2.8 PARKING BRAKE 3.22
3.2.9 LIGHTING SYSTEM 3.23
4 CORRECT USE 4.1
4.1 PREPARING FOR WORK BEFORE FIRST USE 4.2
4.1.1 CHECKING THE TRAILER AFTER DELIVERY 4.2
4.1.2 PREPARE A TRAILER FOR FIRST HITCHING TO TRACTOR 4.3
4.2 HITCHING AND DISCONNECTING THE TRAILER FROM
TRACTOR 4.5
4.3 COUPLING AND UNCOUPLING SECOND TRAILER 4.9
4.4 LOADING AND SECURING LOAD 4.11
4.4.1 GENERAL INFORMATION ABOUT LOADING 4.11
4.5 TRANSPORTING LOADS 4.19
4.6 UNLOADING 4.21
4.7 PROPER USE AND MAINTENANCE OF TYRES 4.27
4.8 USING UNDER-RUN PROTECTIVE DEVICES 4.28
5 MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2

5.2 SERVICING BRAKES AND AXLES 5.2
5.2.1 PRELIMINARY INFORMATION 5.2
5.2.2 CHECKING SLACKNESS OF WHEEL AXLE BEARINGS 5.3
5.2.3 ADJUSTMENT OF AXLE BEARING SLACKNESS 5.5
5.2.4 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF WHEEL
NUT TIGHTENING. 5.7
5.2.5 CHECKING AIR PRESSURE IN TYRES, EVALUATING TECHNICAL
CONDITION OF TYRES AND STEEL WHEELS 5.9
5.2.6 CHECKING THICKNESS OF BRAKE SHOE LININGS 5.10
5.2.7 ADJUSTMENT OF MECHANICAL BRAKES 5.11
5.2.8 REPLACEMENT OF PARKING BRAKE CABLE AND ADJUSTMENT OF
CABLE TENSION. 5.15
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.17
5.3.1 PRELIMINARY INFORMATION 5.17
5.3.2 CHECKING AIR TIGHTNESS AND VISUAL INSPECTION OF
PNEUMATIC SYSTEM 5.18
5.3.3 CLEANING THE AIR FILTERS 5.20
5.3.4 DRAINING WATER FROM AIR TANK 5.21
5.3.5 CLEANING DRAIN VALVE 5.22
5.3.6 CLEANING AND MAINTAINING PNEUMATIC CONDUIT CONNECTIONS
AND PNEUMATIC SOCKETS 5.23
5.3.7 REPLACEMENT OF THE PNEUMATIC CONDUIT 5.23
5.4 HYDRAULIC SYSTEM MAINTENANCE 5.24
5.4.1 PRELIMINARY INFORMATION 5.24
5.4.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS 5.25
5.4.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC CONNECTIONS
AND SOCKETS. 5.26
5.4.4 REPLACEMENT OF HYDRAULIC CONDUITS 5.26
5.5 MAINTENANCE OF ELECTRICAL SYSTEM AND WARNING
ELEMENTS 5.26
5.5.1 PRELIMINARY INFORMATION 5.26

5.6 TRAILER LUBRICATION 5.28
5.7 CONSUMABLES 5.33
5.7.1 HYDRAULIC OIL 5.33
5.7.2 LUBRICANTS 5.34
5.8 CLEANING TRAILER 5.34
5.9 STORAGE 5.36
5.10 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.36
5.11 INSTALLATION AND DISASSEMBLY OF THE FRAME AND
TARPAULIN COVER 5.38
5.12 INSTALLATION AND DISASSEMBLY OF WALL EXTENSIONS 5.40
5.13 DRAWBAR EYE ADJUSTMENT 5.40
5.14 TROUBLESHOOTING 5.41

SECTION
1
BASIC
INFORMATION

Pronar T683 SECTION 1
1.2
1.1 IDENTIFICATION
1.1.1 TRAILER IDENTIFICATION
FIGURE 1.1 Location of the data plate and serial number
(1) data plate, (2) serial number
The trailer is marked with the data plate (1), and the factory number (2) located on a gold
painted rectangle. The serial number and data plate are on the beam of the trailer's upper
frame (Fig. 1.1). When buying the trailer check that the serial numbers on the machine agree
with the number written in the WARRANTY BOOK, in the sales documents and in the

SECTION 1 Pronar T683
1.3
OPERATOR'S MANUAL. The meanings of the individual fields found on the data plate are
presented in the table below:
TABLE 1.1 Markings on data plate
ITEM
MARKING
A General description and purpose
B Symbol /Type
C Year of manufacture
D Seventeen digit vehicle identification number (VIN)
E Official certificate number
F Tare weight
G Maximum gross weight
H Carrying capacity
I Permissible hitching system loading
J Permissible axle 1 load
K Permissible axle 2 load
1.1.2 AXLE IDENTIFICATION
FIGURE 1.2 Location of the axle data plate
(1) wheel axle, (2) data plate

Pronar T683 SECTION 1
1.4
The factory number of the axle shaft and its type are stamped onto the data plate (2) secured
to the axle shaft beam (1) – figure (1.2).
1.1.3 LIST OF FACTORY NUMBERS
VIN
S Z B 6 8 3 0 0 0 X
FRONT AXLE FACTORY NUMBER
REAR AXLE FACTORY NUMBER
TIP
In the event of ordering a replacement part or in the case of the appearance of problems
it is often essential to give the factory n mbers of parts or the VIN n mber of the trailer,
therefore it is recommended that these n mbers are inscribed in the spaces below.
1.2 PROPER USE
The trailer is designed for transport of harvested crops and agricultural products (loose, bulk
and long materials, etc.) as well as loads on EUR-pallets and pallet boxes at the farm and on
public roads. It is acceptable to transport construction materials, mineral fertilisers and other
loads, if fulfilling conditions indicated in section 4. Non-compliance with the recommendations
of the carriage and loading of goods described by the Manufacturer and the road transport
regulations in force in the country in which the trailer is used, shall void the warranty and is
regarded as use of the machine not according to its intended purpose.
The trailer is not intended or designed for transporting people, animals or goods classified as
dangerous materials.
The trailer is constructed according to current safety requirements and engineering
standards. The brake system and the light and indicator system meet the requirements of
road traffic regulations. The maximum speed of the trailer on public roads in Poland is 30
km/h (pursuant to Traffic Law Act of June 20th 1997, article 20). In the countries where the

SECTION 1 Pronar T683
1.5
trailer is used, the limits stipulated by the road traffic legislation in force in a given country
must be observed. The trailer speed must not, however, be greater than the maximum design
speed of 40 km/h.
IMPORTANT
The trailer m st not be sed for p rposes other than those for which it is intended. The
ser MUST NOT:
•transport people, animals, hazardo s materials, chemically aggressive loads
that will corrode the constr ction elements of the trailer (ca sing corrosion of
steel, destr ction of paint coat, dissolving plastic elements and destr ction of
r bber elements etc.),
•transport incorrectly sec red load, which d ring travel may ca se
contamination of the road and nat ral environment,
•transport incorrectly sec red load, which d ring travel may change position
in load box or fall o t of the load box,
•transport loads, whose centre of gravity may destabilise the trailer,
•transport loads, which have neven load distrib tion and/or overload axles
and s spension elements.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. In connection with this the user is obliged to:
•carefully read the OPERATOR'S MANUALof the trailer and the WARRANTY
BOOK and conform with the recommendations contained in these documents,
•understand the trailer's operating principle and how to operate it safely and
correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the trailer is used,
•carefully read the Operator's Manual and comply with its recommendations,

Pronar T683 SECTION 1
1.6
•only hitch the trailer to an agricultural tractor, which fulfils all the requirements
made by the trailer's Manufacturer.
TABLE 1.2 Agricultural tractor's requirements
CONTENTS UNIT REQUIREMENTS
Brake system - sockets
Pneumatic system 1 conduit
Pneumatic system 2 conduit
Hydraulic system
Maximum system pressure
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / MPa
according to ISO 1728
according to ISO 1728
according to ISO 7421-1
5.8 / 580
6.5 / 800
150 / 15
Hydraulic tipper system
Hydraulic oil:
Maximum system pressure
Oil demand:
-
bar / MPa
l
L HL 32 Lotos
(1)
200 / 20
18
Electrical system
Electrical system voltage
Connection socket
V
-
12
7 polar compliant with ISO 1724
Required tractor hitch
Type of hitch
Drawbar eye load
-
-
kg
Hitch for single axle trailer
Upper transport hitch
2,000
Other requirements
Min. Tractor power kW /
Horsepower
76.4 / 104
(1)
– use of other oil is permitted, on condition that it may be mixed with the oil in the trailer. Detailed
information may be found on the product information card.
The trailer may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,

SECTION 1 Pronar T683
1.7
•have been trained in trailer operation and safe operation,
•have the required authorisation to drive and are familiar with the road traffic
regulations and transport regulations.
TIP
Tractor req irements depend on trailer accessories.
In the event that the trailer shall be hitched to a second trailer it must fulfil the requirements
stipulated in table (1.3).
TABLE 1.3 Requirements for second trailer
CONTENTS UNIT REQUIREMENTS
Maximum gross weight kg 18,000
Brake system - connectors
Pneumatic system 1 conduit
Pneumatic system 2 conduit
Hydraulic system
Maximum system pressure
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / MPa
connector compliant with ISO 1728
connector compliant with ISO 1728
connector compliant with ISO 7421-1
5.8 / 580
6.5 / 800
150 / 15
Hydraulic tipper system
Hydraulic oil:
Maximum system pressure
-
bar / MPa
L HL 32 Lotos
(1)
160 / 16
Electrical system
Electrical system voltage
Connection socket
V
-
12
7 polar compliant with ISO 1724
Drawbar of trailer
Diameter of drawbar shaft mm 40
(1)
– use of other oil is permitted, on condition that it may be mixed with the oil in the trailer. Detailed
information may be found on the product information card.

Pronar T683 SECTION 1
1.8
TABLE 1.4 Recommended types of pallets
PALLET NAME - TYPE LENGTH
[MM]
WIDTH
[MM]
HEIGHT
[MM]
EUR-pallet – standard 1 200 800 144
EUR-pallet – ½ 800 600 144
EUR-pallet – extended 1 200 1 200 144
1.3 EQUIPMENT
TABLE 1.5 Trailer optional equipment
EQUIPMENT
STANDARD
ADDITIONAL
Operator's Manual •
Warranty book •
Pneumatic system 2 conduit •
Rear hitch, •
Slow-moving vehicle warning sign •
Warning reflective triangle •
Set of walls (800 mm) •
Set of wall extensions (600 mm) •
Set of additional wall extensions (600 mm)
(1)
•
Frame with tarpaulin cover and fenced platform •
Hand brake •
Wheel chocks •

SECTION 1 Pronar T683
1.9
EQUIPMENT
STANDARD
ADDITIONAL
Clamping cable with cable extraction mechanism •
Chute •
Connection lead for the electrical system •
Wheel Fenders •
Side under-run protective devices •
Spare wheel •
Hydraulic support •
(1)
– only in configuration 800 + 600 + 600
Some standard equipment elements, which were listed in table (1.4), may not be present in
the delivered trailer. This allows the possibility of ordering new machines with a different set
of optional equipment, replacing standard equipment.
Information concerning tires is provided at the end of this publication in ANNEX A.
1.4 TERMS & CONDITIONS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. The repair
period is specified in the WARRANTY BOOK.
The warranty does not apply to those parts and sub-assemblies of the machine, which are
subject to wear in normal usage conditions, regardless of the warranty period. Consumables
include the following parts/sub-assemblies:
•drawbar hitching eye,
•pneumatic system connector filters,
•tyres,

Pronar T683 SECTION 1
1.10
•brake shoes,
•bulbs and LED lamps,
•seals,
•bearings.
The warranty service only applies to factory defects and mechanical damage that is not due
to the user's fault.
In the event of damage arising from:
•mechanical damage which is the user's fault, caused by road accidents,
•by inappropriate use, adjustment or maintenance, use of the trailer for purposes
other than those for which it is intended,
•use of damaged machine,
•repairs carried out by unauthorised persons, improperly carried out repairs,
•making unauthorised alterations to machine design,
the user will lose the right to warranty service.
TIP
Demand that the seller caref lly and precisely fills o t the Warranty Book and warranty
repair co pons. A missing date of p rchase or sale point stamp, may make the ser
ineligible for any warranty repair or ref nd.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the warranty or not.
For detailed Terms & Conditions of Warranty, please refer to the WARRANTY BOOK
attached to each machine.
Modification of the trailer without the written consent of the Manufacturer is forbidden. In
particular, do NOT weld, drill holes in, cut or heat the main structural elements of the
machine, which have a direct impact on the machine operation safety.
