PRONAR T023 User manual

INTRODUCTION
Information contained herein is current at date of publication. As a result of improvements,
some numerical values and illustrations contained in this publication may not correspond to the
factual specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate operation and improve the quality
of their work, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine's documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures failure-free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic safety rules and operation of PRONAR T023 and PRONAR
T023M agricultural trailers.
If the information stated in the Operator's Manual needs clarification then the user should refer
for assistance to the sale point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER”. Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
distinguished in the text by the sign:
and also preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked:
and also preceded by the word "TIP".

DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.
REQUIRED MAINTENANCE ACTIONS
Maintenance actions described in the manual are marked with the sign: 
Result of maintenance/adjustment actions or comments concerning the performance of actions
are marked with the sign: 

TABLE OF CONTENTS
1BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 TRAILER IDENTIFICATION 1.2
1.1.2 AXLE IDENTIFICATION 1.3
1.1.3 LIST OF SERIAL NUMBERS 1.4
1.2 PROPER USE 1.5
1.3 EQUIPMENT 1.7
1.4 TERMS & CONDITIONS OF WARRANTY 1.9
1.5 TRANSPORT 1.10
1.5.1 TRANSPORT ON VEHICLE 1.10
1.5.2 INDEPENDENT TRANSPORT BY THE USER 1.12
1.6 ENVIRONMENTAL HAZARDS 1.13
1.7 WITHDRAWAL FROM USE 1.14
2SAFETY ADVICE 2.1
2.1 SAFETY INFORMATION 2.2
2.1.1 BASIC SAFETY RULES 2.2
2.1.2 DRIVING ON PUBLIC ROADS 2.6
2.1.3 DESCRIPTION OF RESIDUAL RISK 2.7
2.2 INFORMATION AND WARNING DECALS 2.8
3DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 TRAILER CONSTRUCTION 3.3
3.2.1 CHASSIS 3.3
3.2.2 SIDE UNDER-RUN PROTECTION DEVICES 3.5

3.2.3 MAIN BRAKE 3.6
3.2.4 PARKING BRAKE 3.11
3.2.5 ELECTRIC LIGHTING SYSTEM 3.11
3.2.6 SPARE WHEEL WINCH 3.14
4CORRECT USE 4.1
4.1 PREPARING THE TRAILER FOR WORK 4.2
4.1.1 PRELIMINARY INFORMATION 4.2
4.1.2 HAND-OVER AND INSPECTION OF THE MACHINE AFTER
DELIVERY 4.2
4.1.3 PREPARING THE TRAILER FOR THE FIRST USE, TEST RUN
OF THE TRAILER 4.3
4.1.4 PREPARING THE TRAILER FOR NORMAL USE 4.4
4.2 HITCHING AND UNHITCHING THE TRAILER 4.5
4.3 LOADING AND SECURING LOAD 4.8
4.3.1 GENERAL INFORMATION ABOUT LOADING 4.8
4.3.2 SECURING LOAD 4.9
4.3.3 TENSIONER OPERATION 4.10
4.4 TRANSPORTING LOADS 4.10
4.5 UNLOADING 4.12
4.6 PROPER USE AND MAINTENANCE OF TYRES 4.12
5MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2
5.2 MAINTENANCE OF WHEEL AXLE 5.2
5.2.1 PRELIMINARY INFORMATION 5.2
5.2.2 CHECKING SLACKNESS OF WHEEL AXLE BEARINGS 5.3
5.2.3 ADJUSTMENT OF SLACKNESS OF WHEEL AXLE BEARINGS 5.5
5.2.4 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF
WHEEL NUT TIGHTENING. 5.6

5.2.5 CHECKING AIR PRESSURE IN TYRES EVALUATING
TECHNICAL CONDITION OF TYRES AND STEEL WHEELS 5.8
5.2.6 CHECKING THICKNESS OF BRAKE SHOE LININGS 5.9
5.2.7 MECHANICAL BRAKES ADJUSTMENT 5.10
5.2.8 CHANGE OF PARKING BRAKE CABLE AND ADJUSTMENT OF
CABLE TENSION. 5.15
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.17
5.3.1 PRELIMINARY INFORMATION 5.17
5.3.2 CHECKING TIGHTNESS 5.17
5.3.3 INSPECTION OF THE SYSTEM 5.19
5.4 CLEANING THE AIR FILTERS 5.19
5.4.1 DRAINING WATER FROM AIR TANK 5.20
5.4.2 CLEANING DRAIN VALVE 5.21
5.4.3 CLEANING AND MAINTAINING PNEUMATIC CONDUIT
CONNECTIONS AND PNEUMATIC SOCKETS 5.22
5.5 HYDRAULIC SYSTEM MAINTENANCE 5.23
5.5.1 PRELIMINARY INFORMATION 5.23
5.5.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS 5.23
5.5.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC
CONNECTIONS AND SOCKETS. 5.24
5.5.4 REPLACEMENT OF HYDRAULIC CONDUITS 5.24
5.6 LUBRICATION 5.24
5.6.1 CONSUMABLES 5.28
5.7 TRAILER CLEANING 5.29
5.8 STORAGE 5.31
5.9 INSPECTION OF TIGHTENING TORQUE OF NUT AND BOLT
CONNECTIONS 5.32
5.9.1 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.32
5.10 ADJUSTMENT OF DRAWBAR POSITION 5.33
5.11 TROUBLESHOOTING 5.34
5.11.1 TROUBLESHOOTING 5.34

SECTION
1
BASIC INFORMATION

PRONAR T023, PRONAR T023M SECTION 1
1.2
1.1 IDENTIFICATION
1.1.1 TRAILER IDENTIFICATION
FIGURE 1.1 Location of the data plate and vehicle identification number (VIN)
(1) data plate, (2) example of vehicle identification number (VIN)
Pronar T023 and Pronar T023M agricultural trailers are marked with the data plate (1) and
vehicle identification number (VIN) (2). The serial number and data plate are located in the
central part of the frame front beam – figure (1.1). When buying the agricultural trailer check
that the serial numbers on the machine agree with the number written in the WARRANTY

SECTION 1 PRONAR T023, PRONAR T023M
1.3
BOOK and in the sales documents. The meanings of the individual fields found on the data
plate are presented in the table below:
TABLE 1.1 Markings on data plate
ITEM
MARKING
A General description and purpose
B Symbol /Machine type
C Year of manufacture
D Seventeen digit vehicle identification number (VIN)
E Official certificate number
F Machine tare weight
G Maximum gross weight
H Carrying capacity
I Permissible hitching system loading
J Permissible front axle load
K Permissible rear axle load
1.1.2 AXLE IDENTIFICATION
The serial number of the axle shaft and its type are stamped onto the data plate (1) secured
to the axle shaft beam (2) – figure (1.2).

PRONAR T023, PRONAR T023M SECTION 1
1.4

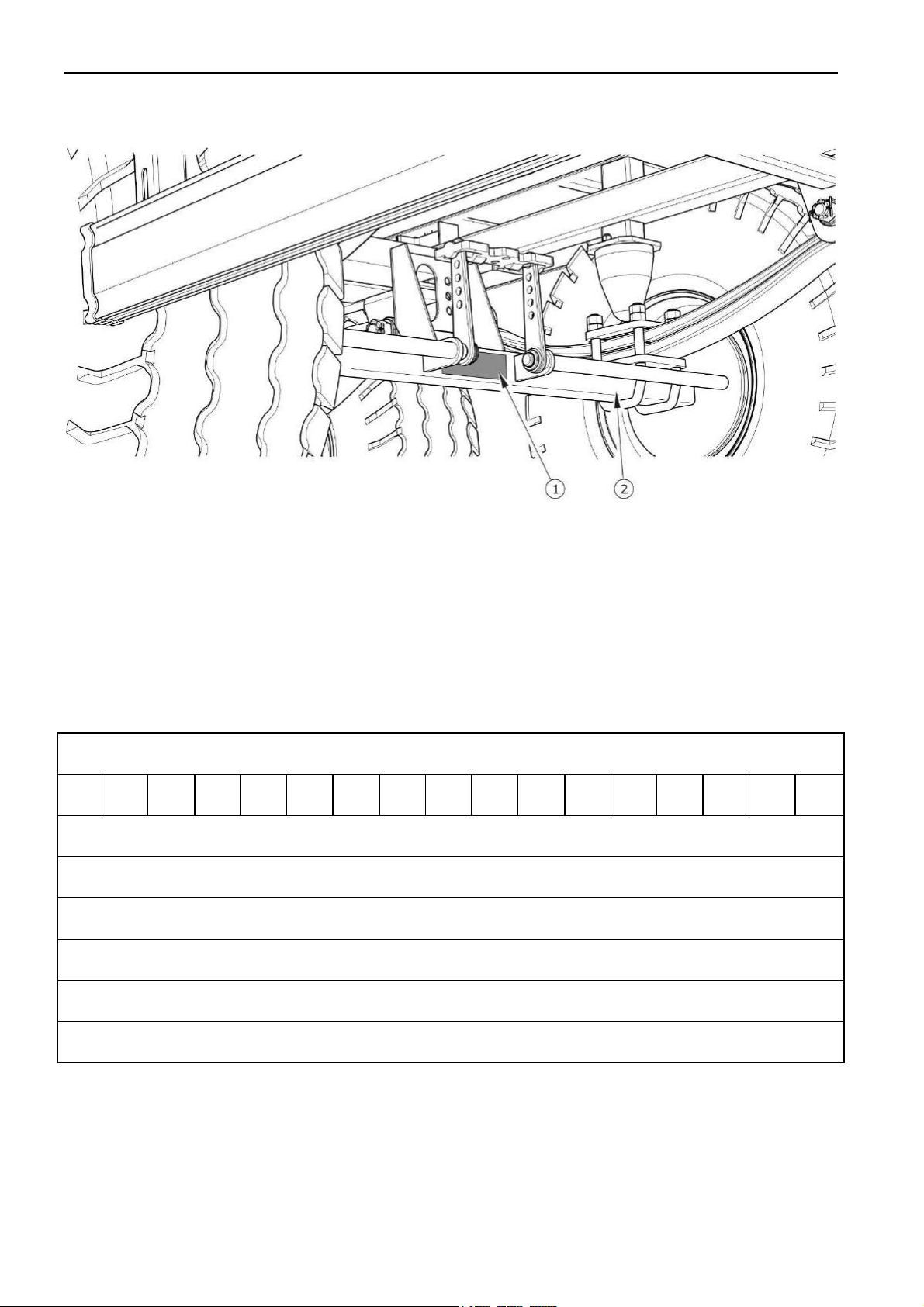

FIGURE 1.2 Location of the axle data plate
(1) data plate, (2) wheel axle
1.1.3LIST OF SERIAL NUMBERS
TABLE 1.2 List of serial numbers
VIN
S Z B 0 2 3 0 X X
SERIAL NUMBER OF FRONT AXLE
SERIAL NUMBER OF CENTRAL AXLE
SERIAL NUMBER OF REAR AXLE

SECTION 1 PRONAR T023, PRONAR T023M
1.5
TIP
In the event of ordering a replacement part or in the case of the appearance of
problems it is often essential to give the serial number of the agricultural trailer
or the serial number of the axles, therefore it is recommended that these
numbers are inscribed in the table (1.2).
1.2 PROPER USE
The trailer is designed for transport of harvested crops and agricultural products in the form
of pressed bales or blocks, at the farm and on public roads. The machine is also designed for
transporting harvested crops and agricultural products on EUR-pallets and in pallet boxes.
TABLE 1.3 Recommended types of pallets
PALLET NAME - TYPE LENGTH
[MM]
WIDTH
[MM]
HEIGHT
[MM]
EUR-pallet – standard 1,200 800 144
EUR-pallet – 1/2 800 600 144
EUR-pallet – extended 1,200 1,200 144
ISO 1,200 1,000 144
The above-mentioned harvested crops and agricultural products may be transported
provided that the recommendations included in this manual, especially the recommendations
concerning protection of loads included in Section (4.3.2), are adhered to.
The trailer may only be hitched to the agricultural tractors which fulfil all the requirements
specified in table (1.4).
The brake system and the light and indicator system meet the requirements of road traffic
regulations. The maximum speed of the trailer on public roads is 30 km/h in Poland (pursuant
to Traffic Law Act of June 20th 1997, article 20). In the countries where the trailer is used, the
limits stipulated by the road traffic legislation in force in a given country must be observed.
The trailer speed must not, however, be greater than the maximum design speed of 40 km/h.

PRONAR T023, PRONAR T023M SECTION 1
1.6
DANGER
The trailer must not be used for purposes other than those for which it is
intended, in particular:
•for transporting people and animals,
•for transporting hazardous loads or loads which are not properly
secured against shifting or falling out,
•for transporting any materials other than those stipulated in the
manual.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. In connection with this the user is obliged to:
•carefully read the OPERATOR'S MANUAL and WARRANTY BOOK and conform
with the recommendations contained in these documents,
•understand the machine's operating principle and how to operate it safely and
correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the machine is used,
•carefully read the Operator's Manual and comply with its recommendations,
•only hitch the trailer to an agricultural tractor, which fulfils all the requirements
made by the trailer's Manufacturer.
The machine may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,
•have been trained in trailer operation and safe operation,
•have the required authorisation to drive and are familiar with the road traffic
regulations and transport regulations.

SECTION 1 PRONAR T023, PRONAR T023M
1.7
TABLE 1.4 Agricultural tractor's requirements
CONTENTS UNIT REQUIREMENTS
Brake system connection sockets
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
Pressure rating of the system
Single conduit pneumatic system
Double conduit pneumatic system
Hydraulic system
-
-
-
bar
bar
bar
according to A DIN 74 294
according to ISO 1728
according to ISO 7421-1
5.8 – 6.5
5.8
150
Electrical system
Electrical system voltage
Connection socket
V
-
12
7 polar compliant with ISO 1724
Tractor hitches
Type of hitch - upper transport hitch
Other requirements
Min. tractor power hp / /kW 83.2 / 61
1.3 EQUIPMENT
TIP
Information concerning tyres is provided at the end of this manual in ANNEX A.

PRONAR T023, PRONAR T023M SECTION 1
1.8
TABLE 1.5 Equipment
EQUIPMENT
STANDARD
ADDITIONAL
OPTION
OPERATOR'S MANUAL, WARRANTY BOOK •
Drawbar with hitching eye ∅40 •
Double conduit pneumatic brake system •
Single conduit pneumatic brake system •
Double conduit pneumatic brake system with ALB regulator •
Hydraulic brake system •
Toolbox •
Rear hitch •
Folding resistance ladders (for mounting with a linking chain) (1) •
Folding resistance ladders (for mounting with a linking cable) (2) •
Fixed resistance ladders (for mounting with a linking chain)(1) •
Belt winders (1) •
Adjustable rear frame extending load area •
Spare wheel winch with spare wheel •
Mudguards (front and rear) •
Side under-run protection devices •
Linking chain (1) •
Rear hitch •
Slow-moving vehicle warning sign •
Warning reflective triangle •
(1) – the equipment only for T023M trailer, (2) – the equipment only for T023 trailer

SECTION 1 PRONAR T023, PRONAR T023M
1.9
1.4 TERMS & CONDITIONS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. The repair
period is specified in the WARRANTY BOOK.
TIP
Demand that the seller carefully and precisely fills out the WARRANTY BOOK
and warranty repair coupons. A missing date of purchase or sale point stamp,
may make the user ineligible for any warranty repair or refund.
The warranty does not apply to those parts and sub-assemblies of the machine, which are
subject to wear in normal usage conditions, regardless of the warranty period. Consumables
include the following parts/sub-assemblies:
•drawbar hitching eye,
•pneumatic system connector filters,
•tyres,
•seals,
•bearings,
•bulbs and LED lamps,
•brake shoes.
The warranty service only applies to factory defects and mechanical damage that is not due
to the user's fault.
In the event of damage arising from:
•mechanical damage which is the user's fault, caused by road accidents,
•inappropriate use, adjustment or maintenance, use of the machine for purposes
other than those for which it is intended,
•use of damaged machine,
•repairs carried out by unauthorised persons, improperly carried out repairs,

PRONAR T023, PRONAR T023M SECTION 1
1.10
•making unauthorised alterations to machine design,
the user will lose the right to warranty service.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the warranty or not.
For detailed Terms & Conditions of Warranty, please refer to the WARRANTY BOOK
attached to each machine.
Modification of the machine without the written consent of the Manufacturer is forbidden. In
particular, do NOT weld, drill holes in, cut or heat the main structural elements of the
machine, which have a direct impact on the machine operation safety.
1.5 TRANSPORT
The machine is prepared for sale completely assembled and does not require packing.
Packing is only required for the machine's technical documentation and any extra fittings. The
agricultural trailer is delivered to the user either transported on a vehicle or, after being
attached to a tractor, independently (towing with a tractor).
1.5.1 TRANSPORT ON VEHICLE
Loading and unloading of the agricultural trailer from vehicle shall be conducted using loading
ramp with the aid of agricultural tractor, overhead crane or hoisting crane. During work
adhere to the general principles of Health and Safety at Work applicable to reloading work.
Persons operating reloading equipment must have the qualifications required to operate
these machines.
IMPORTANT!
Do not attach or hitch the trailer by drawbar eye, under-run protection devices,
mudguard brackets or other structural elements that are not sufficiently strong
to withstand operations of this type.
Lifting equipment used for transporting the machine must be attached only to the fixed
structural elements of the machine. These elements are, first of all: frame, transport catches
and axle.
The trailer should be attached firmly to the platform of the vehicle using straps or chains fitted
with a tightening mechanism. In order to attach the machine in a proper manner, use

SECTION 1 PRONAR T023, PRONAR T023M
1.11
transport lugs (1) – figure (1.3) and fasten axles, lower longitudinal members of the frame
and possibly structural elements of the rotating frame.
FIGURE 1.3 Transport lugs
(1) transport lug, (2) lower longitudinal member
Chocks, wooden blocks or other objects without sharp edges should be placed under the
wheels of the trailer to prevent it from rolling. Wheel blocks must be nailed to the vehicle load
platform planks or secured in another manner preventing their movement.
Use certified and technically reliable securing measures. Worn straps, cracked securing
catches, bent or corroded hooks as well as other damage may disqualify use of the given
element from use. Carefully read the information stated in the Operator's Manual for the
given securing measure. The number of securing elements (cables, straps, chains and stays
etc.) and the force necessary for their tensioning depends on a number of things, including
weight of the machine, the construction of vehicle carrying it, speed of travel and other
conditions. For this reason it is impossible to define the securing plan precisely.
A correctly secured machine does not change its position with regard to the transporting
vehicle. The securing elements must be selected according to the guidelines of the
Manufacturer of these elements. In case of doubt apply a greater number of securing straps

PRONAR T023, PRONAR T023M SECTION 1
1.12
in order to immobilise the machine. If necessary, sharp edges of trailer should be protected at
the same time protecting the securing straps from breaking during transport.
DANGER
Incorrect application of securing measures may cause an accident.
During reloading work, particular care should be taken not to damage parts of the machine's
fittings or the paint coating. The tare weight of the agricultural trailer is given in table (3.1).
IMPORTANT!
When being road transported on a motor vehicle the trailer must be mounted
on the vehicle's platform in accordance with the transport safety requirements
and the regulations.
Driver of the vehicle should be particularly careful during travel. Centre of
gravity of the vehicle transporting the machine is shifted upwards, which poses
a threat to stability of the vehicle and transported machine.
Use only certified and technically reliable securing measures. Carefully read
the manufacturer's instructions for the securing measures.
1.5.2INDEPENDENT TRANSPORT BY THE USER
In the event of independent transport by the user, carefully read THE OPERATOR'S
MANUAL and follow its recommendations. Independent transport involves towing the
machine with own agricultural tractor to destination. During transport adjust travel speed to
the prevailing road conditions, but do not exceed the maximum design speed.
IMPORTANT!
Before transporting independently, the tractor driver must carefully read this
Operator's Manual and observe its recommendations.
