PRONAR T683 User manual

PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone: [phone] [phone]
[phone] [phone]
fax: [phone] [phone]
www.pronar.pl
OPERATOR'S MANUAL
AGRICULTURAL TRAILER
PRONAR T683
TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
ISSUE 3B-01-2010 PUBLICATION NO 77N-00000000-UM

INTRODUCTION
Information contained herein is current at date of publication. As a result of improvements,
some numerical values and illustrations contained in this publication may not correspond to the
factual specification of the machine supplied to the user. The manufacturer reserves the right to
introduce design changes in machines produced that facilitate operation and improve the quality
of their work, without making minor amendments to this Operator's Manual.
This Operator's Manual is an integral part of the machine's documentation. Before using the
machine, the user must carefully read this Operator's Manual and observe all
recommendations. This guarantees safe operation and ensures malfunction free work of the
machine. The machine is designed to meet obligatory standards, documents and legal
regulations currently in force.
The manual describes the basic safety rules and operation of agricultural trailer Pronar T683.
If the information contained in the Operator's Manual needs clarification then the user should
refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
MANUFACTURER'S ADDRESS:
PRONAR Sp. z o.o.
ul. Mickiewicza 101A
17-210 Narew
CONTACT TELEPHONES
[phone] [phone]
[phone] [phone]

SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
Information, descriptions of danger and precautions and also recommendations and prohibitions
associated with user safety instructions are marked:
and also preceded by the word "DANGER”. Failure to observe the instructions may endanger
the machine operator's or other person's health or life.
Particularly important information and instructions, the observance of which is essential, are
distinguished in the text by the sign:
and also preceded by the word "ATTENTION". Failure to observe the instructions may lead to
damage to the machine as a result of improper operation, adjustment or use.
In order to focus the user's attention on the need to perform maintenance, the relevant section
of the Operator's Manual is marked with the pictogram:
Additional tips and advice for machine operation are marked:
and also preceded by the word „TIP”.

DIRECTIONS USED IN THIS OPERATOR'S MANUAL
Left side – side to the left hand of the operator facing in the direction of machine's forward
travel.
Right side – side to the right hand of the operator facing in the direction of machine's forward
travel.
REQUIRED SERVICE ACTIONS
Service actions described in the manual are marked: 
Result of service/adjustment actions or comments concerning the performance of actions are
marked: 

TABLE OF CONTENTS
1 BASIC INFORMATION 1.1
1.1 IDENTIFICATION 1.2
1.1.1 TRAILER IDENTIFICATION 1.2
1.1.2 AXLE IDENTIFICATION 1.3
1.1.3 LIST OF FACTORY NUMBERS 1.4
1.2 PROPER USE 1.4
1.3 OPTIONAL EQUIPMENT 1.8
1.4 WARRANTY TERMS 1.9
1.5 TRANSPORT 1.10
1.5.1 TRANSPORT ON VEHICLE. 1.10
1.5.2 INDEPENDENT TRANSPORT BY THE USER. 1.12
1.6 ENVIRONMENTAL HAZARDS 1.12
1.7 WITHDRAWAL FROM USE 1.13
2 SAFETY ADVICE 2.1
2.1 BASIC SAFETY RULES 2.2
2.1.1 USE OF TRAILER 2.2
2.1.2 HITCHING AND DISCONNECTING FROM TRACTOR 2.3
2.1.3 COUPLING AND UNCOUPLING SECOND TRAILER 2.4
2.1.4 HYDRAULIC AND PNEUMATIC SYSTEMS 2.4
2.1.5 LOADING AND UNLOADING 2.5
2.1.6 TRANSPORTING THE MACHINE 2.7
2.1.7 TYRES 2.10
2.1.8 MAINTENANCE 2.10
2.2 DESCRIPTION OF MINIMAL RISK 2.13
2.3 INFORMATION AND WARNING DECALS 2.14

3 DESIGN AND OPERATION 3.1
3.1 TECHNICAL SPECIFICATION 3.2
3.2 TRAILER CONSTRUCTION 3.3
3.2.1 CHASSIS 3.3
3.2.2 LOAD BOX 3.5
3.2.3 MAIN BRAKE 3.8
3.2.4 HYDRAULIC TIPPER SYSTEM 3.13
3.2.5 SHEAR TYPE DRAWBAR SUPPORT HYDRAULIC SYSTEM 3.15
3.2.6 SIDE WALL OPENING HYDRAULIC SYSTEM 3.16
3.2.7 PARKING BRAKE 3.17
3.2.8 LIGHTING SYSTEM 3.18
4 CORRECT USE 4.1
4.1 PREPARING FOR WORK BEFORE FIRST USE 4.2
4.1.1 CHECKING THE TRAILER AFTER DELIVERY 4.2
4.1.2 PREPARE A TRAILER FOR FIRST HITCHING TO TRACTOR 4.3
4.2 HITCHING AND DISCONNECTING FROM TRACTOR 4.4
4.3 COUPLING AND UNCOUPLING SECOND TRAILER 4.9
4.4 LOADING AND SECURING LOAD 4.11
4.4.1 GENERAL INFORMATION CONCERNING LOAD 4.12
4.5 TRANSPORTING LOADS 4.19
4.6 UNLOADING 4.22
4.7 PROPER USE AND MAINTENANCE OF TYRES 4.26
4.8 USING UNDER-RUN PROTECTIVE DEVICES 4.28
5 MAINTENANCE 5.1
5.1 PRELIMINARY INFORMATION 5.2
5.2 SERVICING BRAKES AND AXLES 5.2
5.2.1 PRELIMINARY INFORMATION 5.2

5.2.2 INITIAL INSPECTION OF AXLE BRAKES, 5.3
5.2.3 CHECK WHEEL AXLE BEARINGS FOR LOOSENESS 5.4
5.2.4 ADJUSTMENT OF WHEEL AXLE BEARINGS LOOSENESS 5.6
5.2.5 MOUNTING AND DISMOUNTING WHEEL, INSPECTION OF WHEEL
NUT TIGHTENING. 5.7
5.2.6 CHECK AIR PRESSURE, EVALUATE TECHNICAL CONDITION OF
WHEELS AND TYRES 5.10
5.2.7 MECHANICAL BRAKES ADJUSTMENT 5.11
5.2.8 CHANGE OF PARKING BRAKE CABLES AND ADJUSTMENT OF CABLE
TENSION. 5.12
5.3 PNEUMATIC SYSTEM MAINTENANCE 5.14
5.3.1 PRELIMINARY INFORMATION 5.14
5.3.2 INSPECTING AND CHECKING AIR TIGHTNESS OF PNEUMATIC
SYSTEM. 5.15
5.3.3 CLEANING THE AIR FILTERS 5.16
5.3.4 DRAINING WATER FROM AIR TANK 5.18
5.3.5 CLEANING DRAIN VALVE 5.19
5.3.6 CLEANING AND MAINTAINING PNEUMATIC LINE CONNECTIONS AND
PNEUMATIC SOCKETS 5.19
5.4 HYDRAULIC SYSTEM MAINTENANCE 5.20
5.4.1 PRELIMINARY INFORMATION 5.20
5.4.2 CHECKING HYDRAULIC SYSTEM TIGHTNESS 5.21
5.4.3 CHECKING TECHNICAL CONDITION OF HYDRAULIC CONNECTIONS
AND SOCKETS. 5.21
5.4.4 CHANGE OF HYDRAULIC LINES 5.22
5.5 OPERATION OF ELECTRICAL SYSTEM AND WARNING
ELEMENTS 5.22
5.5.1 PRELIMINARY INFORMATION 5.22
5.5.2 CHANGE BULBS 5.23
5.6 TRAILER LUBRICATION 5.24
5.7 CONSUMABLES 5.29

5.7.1 HYDRAULIC OIL 5.29
5.7.2 LUBRICANTS 5.30
5.8 CLEANING TRAILER 5.30
5.9 STORAGE 5.32
5.10 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.33
5.11 INSTALLATION AND DISASSEMBLY OF EXTENSION WALLS 5.34
5.12 ADJUSTMENT OF DRAWBAR POSITION 5.35
5.13 TROUBLESHOOTING 5.36

SECTION
1
BASIC INFORMATION

Pronar T683 SECTION 1
1.2
1.1 IDENTIFICATION
1.1.1 TRAILER IDENTIFICATION

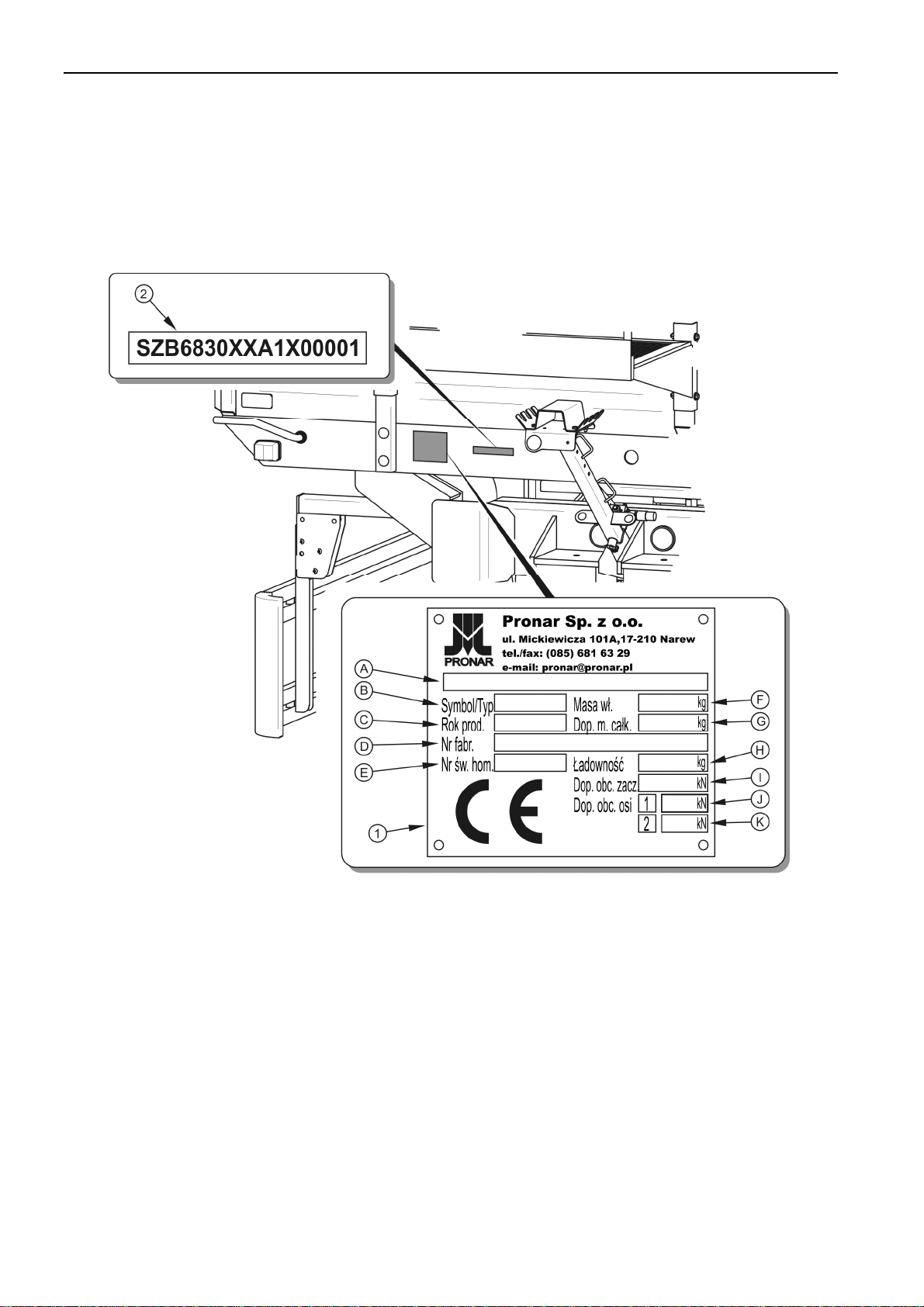

FIG. 1.1 Location of the data plate and serial number
(1) data plate, (2) serial number
The trailer is marked with the data plate (1), and the factory number (2) located on a gold
painted rectangle. The serial number and data plate are on the beam of the trailer's upper
frame (Fig. 1.1). When buying the trailer check that the serial numbers on the machine agree
with the number written in the WARRANTY BOOK, in the sales documents and in the
OPERATOR'S MANUAL. The meanings of the individual fields found on the data plate are
presented in the table below:

SECTION 1 Pronar T683
1.3
TAB. 1.1 Markings on data plate
ITEM
MARKING
A General description and purpose
B Symbol /Type
C Year of manufacture
D Seventeen digit vehicle identification number (VIN)
E Official certificate number
F Tare weight
G Maximum gross weight
H Carrying capacity
I Permissible hitching system loading
J Permissible axle 1 load
K Permissible axle 2 load
1.1.2 AXLE IDENTIFICATION

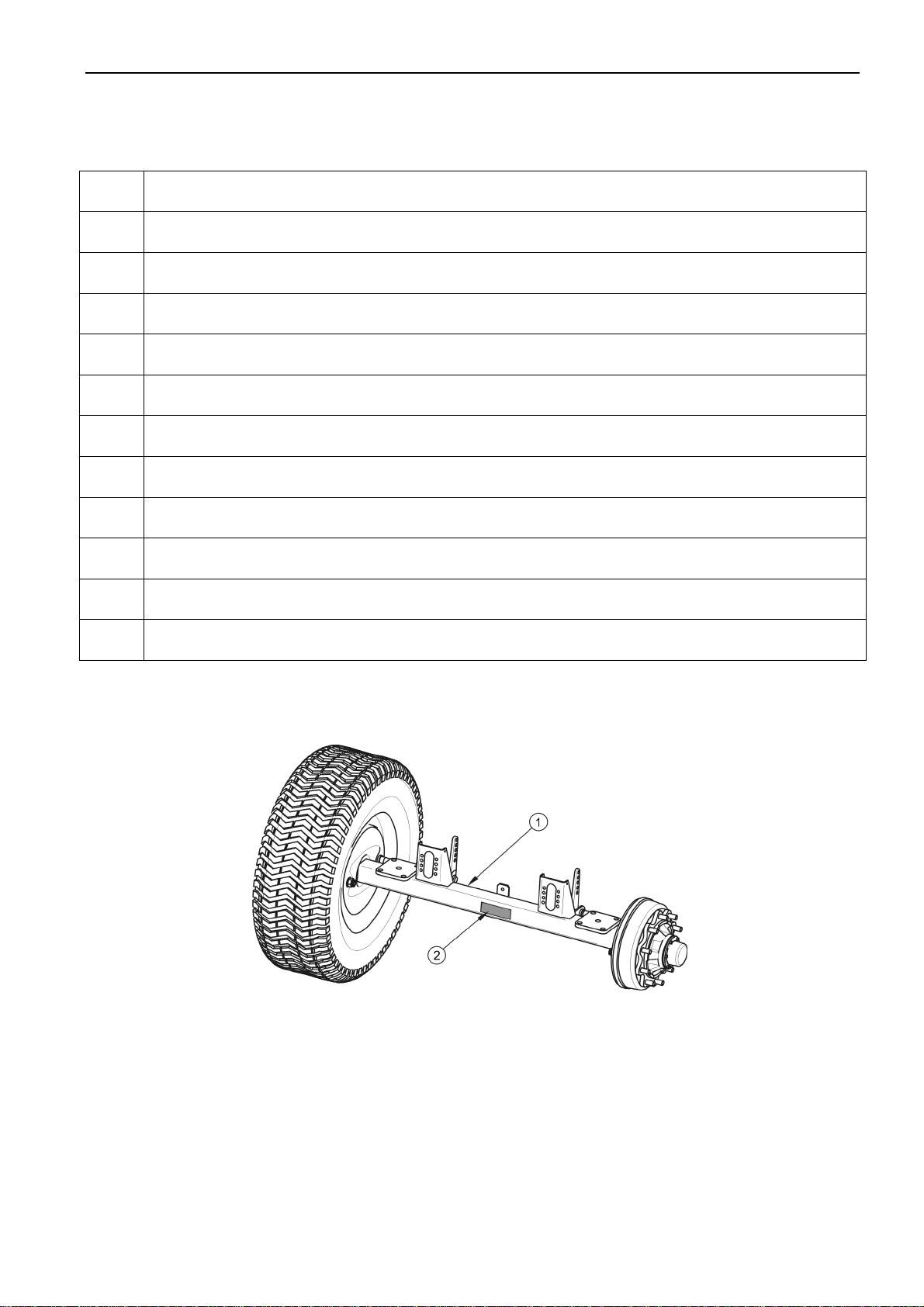

FIG. 1.2 Location of the axle data plate
(1) wheel axle, (2) data plate
The factory number of the axle shaft and its type are stamped onto the data plate (2) secured
to the axle shaft beam (1) – figure (1.2).

Pronar T683 SECTION 1
1.4
1.1.3 LIST OF FACTORY NUMBERS
VIN
S Z B 6 830 0 0 X
FRONT AXLE FACTORY NUMBER
REAR AXLE FACTORY NUMBER
TIP
In the event of ordering a replacement part or in the case of the appearance of problems
it is often essential to give the factory n mbers of parts or the VIN n mber of the trailer,
therefore it is recommended that these n mbers are inscribed in the spaces below.
1.2 PROPER USE
The trailer is designed for transport of harvested crops and agricultural products as well as
loose and bulk materials at the farm and on public roads. It is acceptable to transport
construction materials, mineral fertilisers and other loads, if fulfilling conditions indicated in
section 4. Non-compliance with the recommendations of the carriage and loading of goods
described by the Manufacturer and the road transport regulations in force in the country in
which the trailer is used, shall void the guarantee and is regarded as use of the machine not
according to its intended purpose.
The trailer is not intended or designed for transporting people, animals or goods classified as
dangerous materials.
The trailer is constructed according to current safety requirements and engineering
standards. The brake system and the light and indicator system meet the requirements of
road traffic regulations. The maximum speed of the trailer on public roads is 30 km/h in
Poland (pursuant to Road Traffic Act of June 20th 1997, article 20). In the countries where
the trailer is used, the limits stipulated by the road traffic legislation in force in a given country
must be observed. The trailer speed must not, however, be greater than the maximum design
speed of 40 km/h.

SECTION 1 Pronar T683
1.5
IMPORTANT!
The trailer m st not be sed for p rposes other than those for which it is intended. The
ser MUST NOT:
•transport people, animals, hazardo s materials, chemically aggressive loads
that will corrode the constr ction elements of the trailer (ca sing corrosion of
steel, destr ction of paint coat, dissolving plastic elements and destr ction of
r bber elements etc.),
•transport incorrectly sec red load, which d ring travel may ca se
contamination of the road and nat ral environment,
•transport incorrectly sec red load, which d ring travel may change position
in load box or fall o t of the load box,
•transport loads, whose centre of gravity may destabilise the trailer,
•transport loads, which have neven load distrib tion and/or overload axles
and s spension elements.
Using it as intended also involves all actions connected with the safe and proper operation
and maintenance of the machine. In connection with this the user is obliged to:
•carefully read the OPERATOR'S MANUAL of the trailer and the WARRANTY
BOOK and conform with the recommendations contained in these documents,
•understand the trailer's operating principle and how to operate it safely and
correctly,
•adhere to the established maintenance and adjustment plans,
•comply with general safety regulations while working,
•prevent accidents,
•comply with the road traffic regulations and transport regulations in force in a
given country, in which the trailer is used,
•carefully read the Operator's Manual and comply with its recommendations,
•only hitch the trailer to an agricultural tractor, which fulfils all the requirements
made by the trailer's Manufacturer.

Pronar T683 SECTION 1
1.6
The trailer may only be used by persons, who:
•are familiar with the contents of this publication and with the contents of the
agricultural tractor Operator's Manual,
•have been trained in trailer operation and safe operation,
•have the required authorisation to drive and are familiar with the road traffic
regulations and transport regulations.
TAB. 1.2 Agricultural tractor's requirements
CONTENTS UNIT REQUIREMENTS
Brake system - sockets
Pneumatic system 1 line
Pneumatic system 2 line
Hydraulic system
Maximum system pressure
Pneumatic system 1 line
Pneumatic system 2 line
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / MPa
according to ISO 1728
according to ISO 1728
according to ISO 7421-1
5.8 / 580
6.5 / 800
150/ 15
Hydraulic tipper system
Hydraulic oil
Maximum system pressure
Oil demand:
-
bar / MPa
l
L HL 32 Lotos
(1)
200 / 20
18
Electrical system
Electrical system voltage
Attachment socket
V
-
12
7 polar compliant with ISO 1724
Required tractor hitch
Type of hitch
-
-
Hitch for single axle trailer
Upper transport hitch
Other requirements
Min. Tractor power kW /
Horsepower
76.4 / 104
(1)
– use of other oil is permitted, on condition that it may be mixed with the oil in the trailer. Detailed
information may be found on the product information card.

SECTION 1 Pronar T683
1.7
TIP
Tractor req irements depend on trailer accessories.
In the event that the trailer shall be hitched to a second trailer it must fulfil the requirements
stipulated in table (1.3).
TAB. 1.3 Requirements for second trailer
CONTENTS UNIT REQUIREMENTS
Maximum gross weight kg 18 000
Brake system - connectors
Pneumatic system 1 line
Pneumatic system 2 line
Hydraulic system
Maximum system pressure
Pneumatic system 1 line
Pneumatic system 2 line
Hydraulic system
-
-
-
bar / kPa
bar / kPa
bar / MPa
connector compliant with ISO 1728
connector compliant with ISO 1728
connector compliant with ISO 7421-1
5.8 / 580
6.5 / 800
150 / 15
Hydraulic tipper system
Hydraulic oil
Maximum system pressure
-
bar / MPa
L HL 32 Lotos
(1)
160 / 16
Electrical system
Electrical system voltage
Attachment socket
V
-
12
7 polar compliant with ISO 1724
Draw bar of trailer
Diameter of drawbar shaft mm 40
(1)
– use of other oil is permitted, on condition that it may be mixed with the oil in the trailer. Detailed
information may be found on the product information card.

Pronar T683 SECTION 1
1.8
1.3 OPTIONAL EQUIPMENT
TAB. 1.4 Trailer optional equipment
EQUIPMENT
STANDARD
ADDITIONAL
Operator's Manual •
Warranty Book •
Pneumatic system 1 line •
Rear hitch, •
Slow-moving vehicle warning sign •
Warning reflective triangle •
Set of 600 mm wall extensions •
Set of 600
mm wall extensions (1)
•
Frame with tarpaulin cover and fenced platform •
Hand brake •
Wheel chocks •
Clamping cable with cable extraction mechanism •
Chute •
Connection lead for the electrical system •
Wheel Fenders •
Side under-run protective devices •
Spare wheel •
(1)
– only in configuration 800 + 600 + 600

SECTION 1 Pronar T683
1.9
Some standard equipment elements, which were listed in table (1.4), may not be present in
the delivered trailer. This allows the possibility of ordering new machines with a different set
of optional equipment, replacing standard equipment.
Information concerning tyres is provided at the end of this publication in ANNEX A.
1.4 WARRANTY TERMS
PRONAR Sp. z o.o., Narew guarantees the reliable operation of the machine when it is used
according to its intended purpose as described in the OPERATOR'S MANUAL. The repair
period is specified in the WARRANTY BOOK.
The guarantee does not apply to those parts and sub-assemblies of the machine, which are
subject to wear in normal usage conditions, regardless of the warranty period. Consumables
include the following parts/sub-assemblies:
•drawbar hitching eye,
•pneumatic system connector filters,
•tyres,
•brake shoes,
•bulbs and LED lamps,
•seals,
•bearings.
The warranty service only applies to such cases as: mechanical damage, which is not the
user's fault, factory defects of parts, etc.
In the event of damage arising from:
•mechanical damage which is the user's fault, caused by road accidents,
•by inappropriate use, adjustment or maintenance, use of the trailer for purposes
other than those for which it is intended,
•use of damaged machine,
•repairs carried out by unauthorised persons, improperly carried out repairs,
•making unauthorised alterations to machine design,

Pronar T683 SECTION 1
1.10
the user will lose the right to warranty service.
TIP
Demand that the seller caref lly and precisely fills o t the Warranty Book and g arantee
repair co pons. A missing date of p rchase or sale point stamp, may make the ser
ineligible for any warranty repair or ref nd.
The user is obliged to report immediately on noticing any wear in the paint coating or traces
of corrosion, and to have the faults rectified whether they are covered by the guarantee or
not. Detailed guarantee regulations are contained in the WARRANTY BOOK attached to
each machine.
Modification of the trailer without the written consent of the Manufacturer is forbidden. In
particular, do NOT weld, drill holes in, cut or heat the main structural elements of the
machine, which have a direct impact on the machine operation safety.
1.5 TRANSPORT
The trailer is ready for sale completely assembled and does not require packing. Packing is
only required for the machine's technical documentation and any extra fittings. The trailer is
delivered to the user either transported on a vehicle or, after being attached to a tractor,
independently (trailer towed with a tractor).
1.5.1 TRANSPORT ON VEHICLE.
Loading and unloading of trailer from vehicle shall be conducted using loading ramp with the
aid of an agricultural tractor. During work adhere to the general principles of Health and
Safety at Work applicable to reloading work. Persons operating reloading equipment must
have the qualifications required to operate these machines. The trailer must be properly
connected with the tractor according to the requirements in this Operators Manual. The trailer
brake system must be started in checked before driving off or onto ramp.
The trailer should be attached firmly to the platform of the vehicle using straps or chains fitted
with a tightening mechanism. Securing elements should be attached to permanent structural
elements of the trailer (longitudinal members, crossbars etc.). Use certified and technically
reliable securing measures. Worn straps, cracked securing catches, bent or corroded as well
