Puretec FilterWall IM2 Series User manual

IM2 Series System User Guide
MAINS WATER
FilterWall

2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
What's Inside
AS3497
Licence No. WM 74617
Pro-Switch Pty Ltd
What's Inside
Important Information.....................................................................................................................................3
Preparing Your System ...................................................................................................................................4
Installation Requirements ............................................................................................................................5
Installation Record ............................................................................................................................................5
Fig. 1 - Parts Diagram, Enclosure .............................................................................................................6
Fig. 2 - Parts Diagram, Filter Assembly ................................................................................................7
Builder Plans ........................................................................................................................................................8
Installation - Enclosure ...............................................................................................................................26
Installation - Filter Assembly ...................................................................................................................26
Installation - Filter Cartridges .................................................................................................................27
Cartridge Replacement ................................................................................................................................28
Warranty...............................................................................................................................................................30

3Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Use Guidelines
• Use for mains water supply only.
• Do not expose the system to temperatures
below 0°C, protect from freezing.
• The system must installed according to local
plumbing codes on the cold water line only.
• This system requires regular replacement of the filter cartridges to maintain
proper operation. Varying chlorine, sediment, or organic substance levels may
affect the replacement frequency.
• Be sure to change the filter cartridges every 6 - 12 months, or whenever you
detect a change in taste, odour or a decrease in flow.
• Minimum operating pressure: 200 kPa
• Maximum operating pressure: 875 kPa
Note: Where line pressure exceeds 500 kPa, an approved pressure limiting
device must be installed to comply with Australian & New Zealand Plumb-
ing Standards. A 500 kPa pressure limiting device has been included in the
FilterWall system.
• Maximum operating temperature: 52°C
• Nominal flow rate: 55 Lpm
Caution: Do not use water that is microbiologically unsafe
or of unknown water quality without adequate disinfection
before the system.
Installation Note: A water filter system/tap, like any product, has a limited life
and may eventually fail. Also sometimes failure happens early due to unforeseen
circumstances. To avoid possible property damage, this product should be
regularly examined for leakage and/or deterioration and replaced when necessary.
A drain pan, plumbed to an appropriate drain or outfitted with a leak detector,
should be used in those applications where any leakage could cause property
damage, and/or the water supply should be turned off if no one is home/present.
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY
OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED
WARRANTY COVERAGE.
IMPORTANT INFORMATION!
Important Information
DO NOT
DO NOT USE
LIQUID SEALANTS.
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.
SURGE PROTECTION
REQUIRED /
NO EXTENSION CORDS.

4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Preparing Your System
Preparing Your System
Thank you for purchasing a Puretec quality product. Puretec systems are designed to
run economically for many years, dependent on the initial installation and periodical
maintenance.
Please read all instructions carefully as failures caused by incorrect installation or
operation are not covered by warranty.
On removing your system from its carton, you should check all the components to ensure
all are present and have not been damaged in transportation.
Remove all the packing materials prior to use.
As a responsible manufacturer we care about the environment. We urge you to follow the
correct disposal procedure for your product and packaging materials and the disposal of
any material according to local laws and regulations.
Depending on your model, you should have the following;
• FilterWall System Enclosure & Filter Assembly (pre-assembled with bypass)
• User Guide
• Spanner
• Set of Keys (for latches)

5Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Parts Diagram
Installation Requirements
• Suitable installation position on the housing frame between studs and joints (refer
to the Builder Plans section and identify the installation option type).
• Connect to the cold water line only (20 mm copper or PEX).
• Ensure supply pressure is between 200 - 875 kPa
Note: Where line pressure exceeds 500 kPa, an approved pressure limiting device
must be installed to comply with Australian & New Zealand Plumbing Standards. A
500 kPa pressure limiting device has been included in the FilterWall system.
• Select a suitable inlet connector 20 mm BSPF (not supplied)
• Select a suitable outlet connector 20 mm BSPF (not supplied)
Product Information
Model Number:
Serial / Batch Number:
Purchased from:
Date of Installation:
Installer / Plumber Details:
Installation Record
For future reference, fill in the following data:

6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Parts Diagram

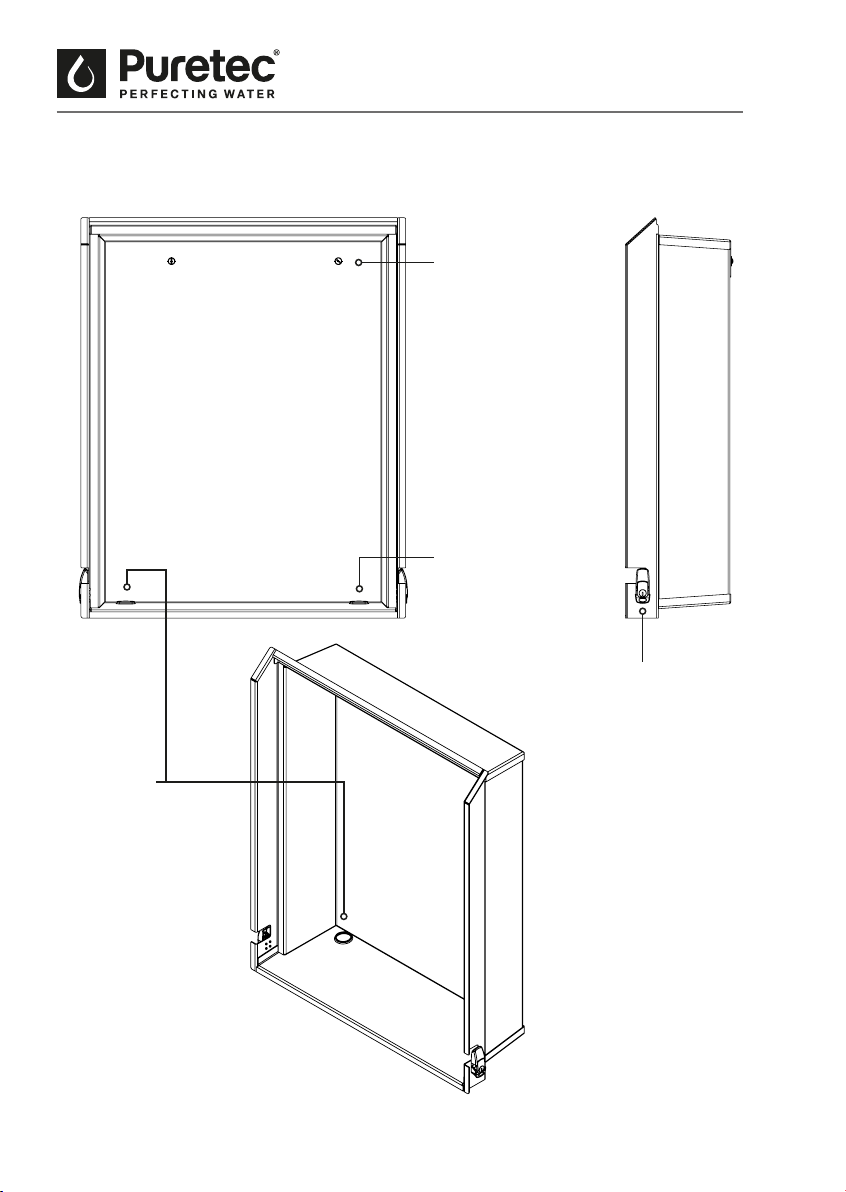

Fig. 1 - Parts Diagram, Enclosure
Filter Assembly
Mounting
Studs
Inlet Entry
Protrusion
Outlet Entry
Protrusion
Lockable
Latch

7Copyright © Puretec Pty Ltd 2023 FilterWall User Guide

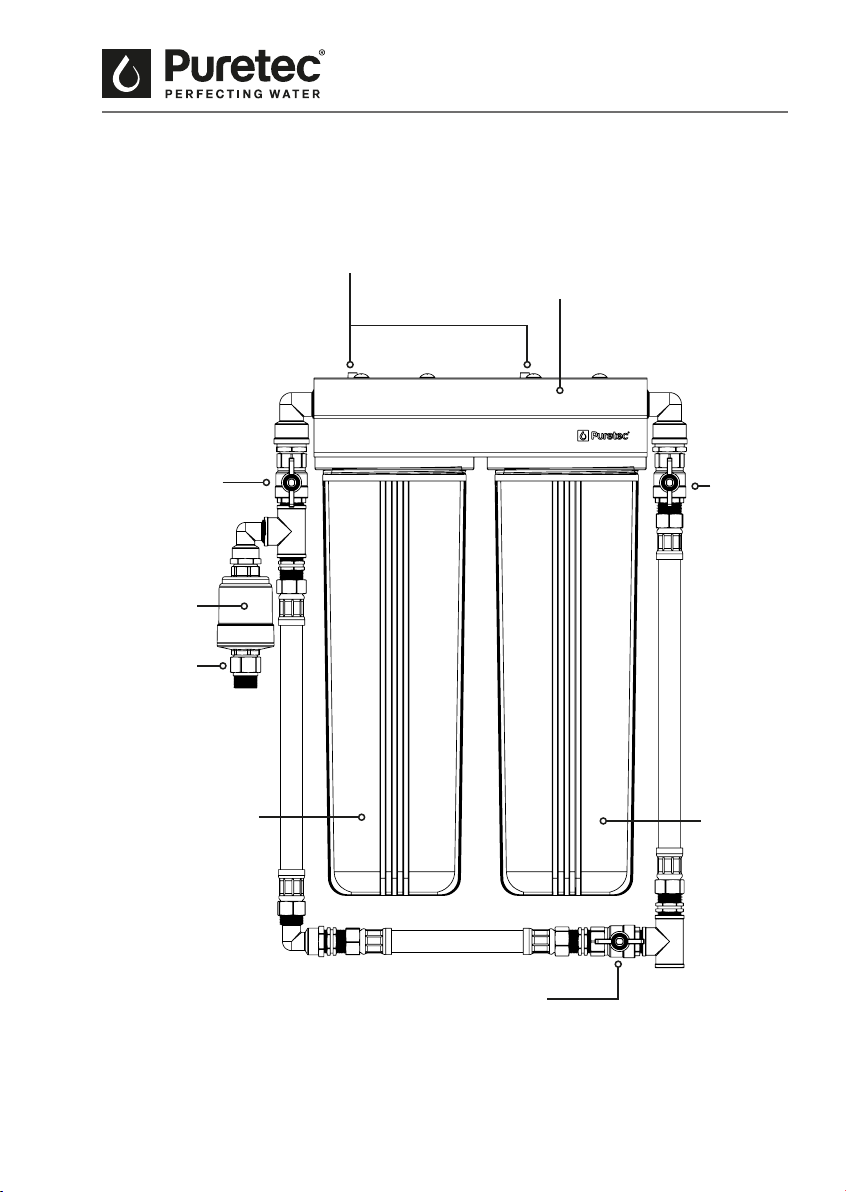

Fig. 2 - Parts Diagram, Filter Assembly
Brass Adaptor
3/4" F x 3/4" M
Water
Inlet
Water
Outlet
Pressure
Limiting Valve
& Non-Return
Inlet Shut
Off Valve
Housing Head
Pressure Relief
Buttons
Housing Bowl
with Sediment
Cartridge
Housing Bowl
with Carbon
Block Cartridge
Outlet Shut
Off Valve
Bypass Shut Off
Valve
(closed during
normal use)
Parts Diagram

8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
610
Stud Spacing
WALL CUTOUT ELEVATION
When mounted to the housing the
brick ties have a 4° angle.
Housing
Brick Tie
784764
Brick
Wall Opening
Rivet
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
A
TOP VIEW
DETAIL A
Brick Tie
Brick
Mortar
605
Wall Opening
Suggested Height
206
Fig. 3 - Builder Plans for 70mm Rendered Brick, Brick Tie
Builder Plans
610
Stud Spacing
WALL CUTOUT ELEVATION
When mounted to the housing the
brick ties have a 4° angle.
Housing
Brick Tie
784764
Brick
Wall Opening
Rivet
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
A
TOP VIEW
DETAIL A
Brick Tie
Brick
Mortar
605
Wall Opening
Suggested Height
206

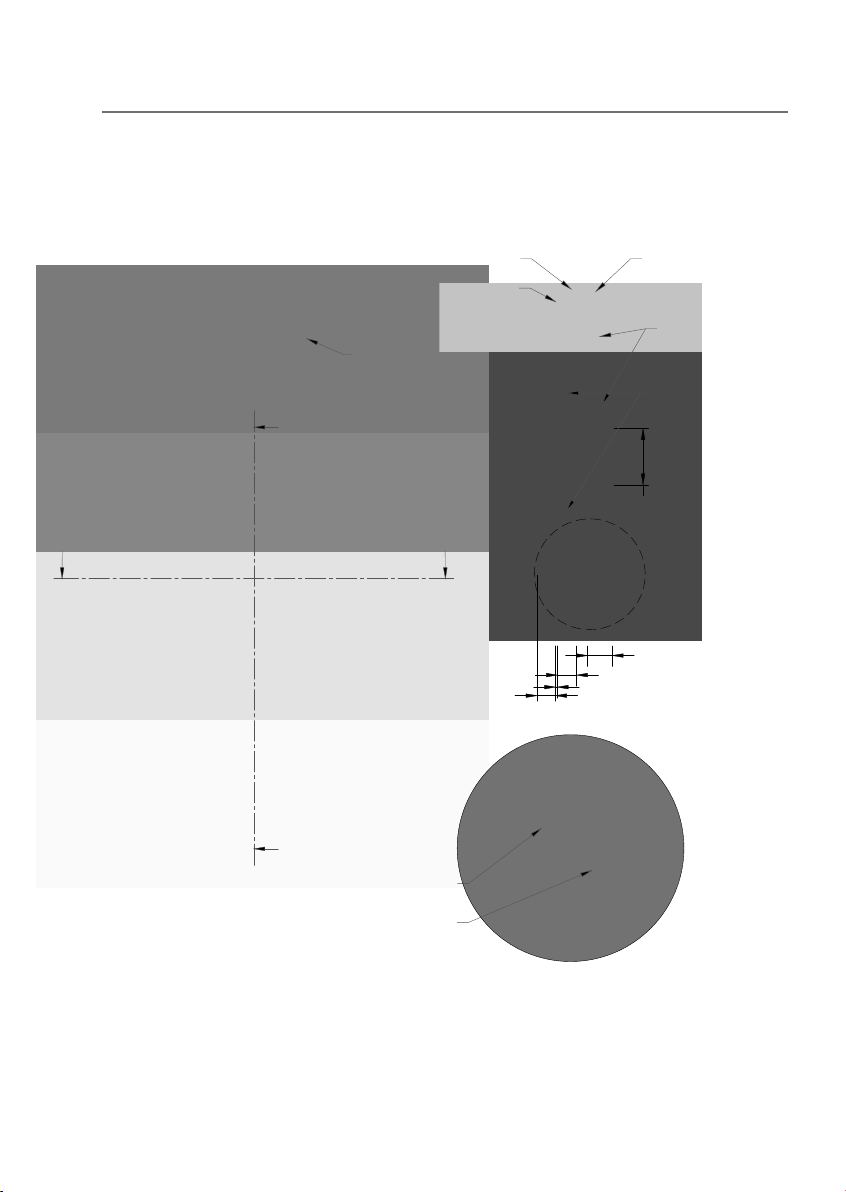

9Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.
A
B
B
SECTION A-A
ELEVATION
Sealant rround the FilterWall.
204
68
Rendered Wall
Brick Stud
Packing Shims
(not supplied)
4 x Med duty brick ties
pop riveted to the housing.
SECTION B-B
PEX or Copper Tubing
(not supplied)
B
DETAIL B
6mm Rendered Wall
70mm Brick
90mm Stud
Noggin 4x
A
Builder Plans

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.
610
Stud Spacing
WALL CUTOUT ELEVATION
784764
Wall Opening
TOP VIEW
605
Wall OpeningSuggested Height
206
A
SECTION A-A
ELEVATION
Fig. 4 - Builder Plans for 70mm Rendered Brick, Timber Fasteners
Builder Plans

11Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Builder Plans
204
68
Rendered Wall
Brick Stud
Noggin 4x
Packing Shims
(not supplied)
Min 4 x M6 x 30mm
Timber Fasteners
(not supplied)
SECTION B-B
PEX or Copper Tubing
(not supplied)
A
DETAIL A
6mm Rendered Wall
70mm Brick
90mm Stud
AA
B
B
SECTION A-A
ELEVATION
Sealant around the FilterWall.

12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Fig. 5 - Builder Plans for 110mm Rendered Brick, Brick Tie
Builder Plans
Stud Spacing (centre)
SECTION A-A
WALL CUTOUT ELEVATION
When mounted to housing the
brick ties have a 4˚angle.
Housing
Brick Tie
Brick
Wall Opening
Rivet
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
A
TOP VIEW
DETAIL A
Brick Tie
Brick
Mortar
600
605
784
764
Wall OpeningSuggested Height
A
B
B
ELEVATION

13Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.

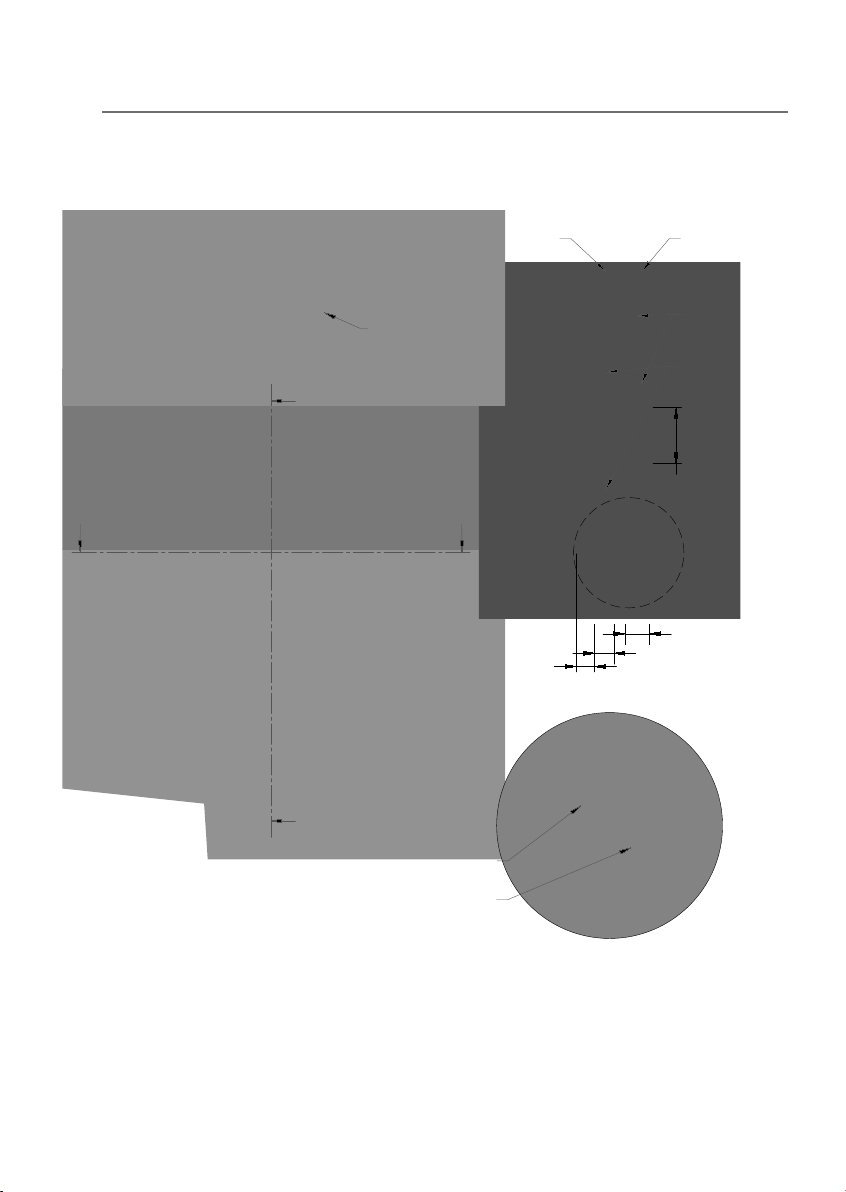

Builder Plans
454
Rendered Wall
Brick Stud
Packing Shims
(not supplied)
4 x Med duty brick
ties pop riveted to
housing.
SECTION A-A
SECTION B-B
PEX or Copper Tubing
(not supplied)
B
DETAIL B
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
Noggin
68 6
11034 90
Sealant around the FilterWall.
AA
B
B
ELEVATION

14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.
Fig. 6 - Builder Plans for 110mm Rendered Brick, Timber Fasteners
Builder Plans
Stud Spacing (centre)
SECTION A-A
WALL CUTOUT ELEVATION
Wall Opening
TOP VIEW
600
605
784764
Wall openingSuggested Height
240
A
ELEVATION
Stud Spacing (centre)
WALL CUTOUT ELEVATION
Wall Opening
TOP VIEW
600
605
784764
Wall openingSuggested Height
240

15Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Builder Plans
454
Rendered Wall
Brick Stud
Packing Shims
(not supplied)
Min 4 x M6 x 30mm
Timber Fasteners
(not supplied)
SECTION A-A
SECTION B-B
PEX or Copper Tubing
(not supplied)
A
DETAIL A
Noggin 2x
68 6mm Rendered Wall
110mm Brick
90mm Stud
Sealant around the FilterWall.
AA
B
B
ELEVATION

16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023

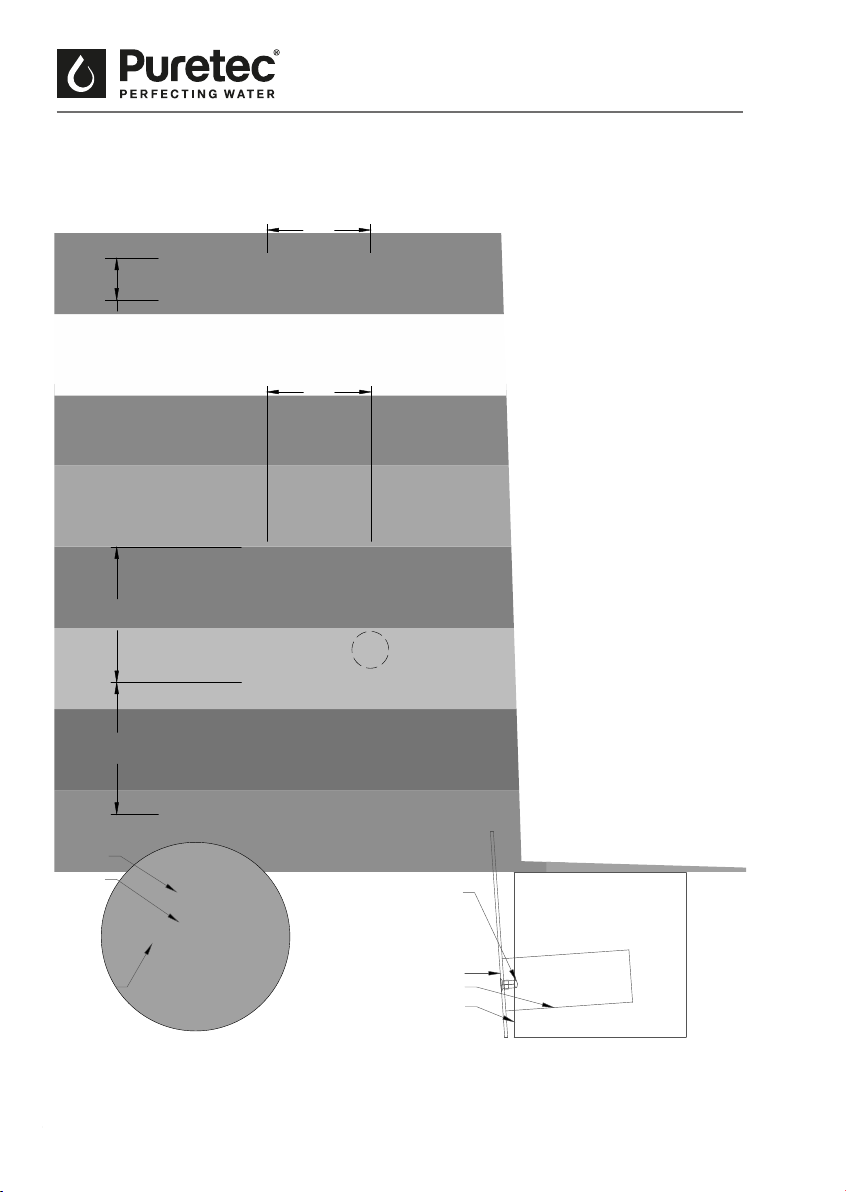

Fig. 7 - Builder Plans for 70mm Brick, Brick Tie
Builder Plans
610
A
B
B
Stud Spacing
SECTION A-A
ELEVATION
WALL CUTOUT ELEVATION
When mounted to the housing
the brick ties have a 4° angle.
Housing
Brick Tie
784764
Brick
Wall Opening
Rivet
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
A
TOP VIEW
DETAIL A
Brick tie
Brick
Mortar
605
Wall OpeningSuggested Height
200

17Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.
Builder Plans
S.M.
204
68
Brick Stud
Noggin 4x
Packing Shims
(not supplied)
4 x Med duty brick ties
pop riveted to the housing.
AA
B
B
SECTION A-A
ELEVATION
SECTION B-B
PEX or Copper Tubing
(not supplied)
B
DETAIL B
70mm Brick
90mm Stud
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
Sealant around the filterwall

18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Note: All dimensions are shown in millimetres.
Disclaimer: Example installation shown, individual requirements may vary.
Ensure Australian Building Standards are met during installation.
Fig. 8 - Builder Plans for 70mm Brick, Timber Fastener
Builder Plans
610
A
Stud Spacing
SECTION A-A
ELEVATION
WALL CUTOUT ELEVATION
784
764
Wall Opening
TOP VIEW
605
Wall OpeningSuggested Height
200
610
Stud Spacing
WALL CUTOUT ELEVATION
784764
Wall Opening
TOP VIEW
605
Wall OpeningSuggested Height
200

19Copyright © Puretec Pty Ltd 2023 FilterWall User Guide
Builder Plans
204
68
Brick Stud
Noggin 4x
Packing Shims
(not supplied)
Min 4 x M6 x 30mm
Timber Fasteners
(not supplied)
AA
B
B
SECTION A-A
ELEVATION
SECTION B-B
PEX or Copper Tubing
(not supplied)
A
DETAIL A
70mm Brick
90mm Stud
Sealant around the FilterWall.

20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Fig. 9 - Builder Plans for 110mm Brick, Brick Tie
Builder Plans
Stud Spacing (centre)
SECTION A-A
ELEVATION
WALL CUTOUT ELEVATION
When mounted to the housing
the brick ties have a 4° angle.
Housing
Brick Tie
PEX or Copper Tubing
Brick
Wall Opening
Rivet
BRICK TIE MOUNTING TO HOUSING (TOP VIEW)
A
TOP VIEW
DETAIL A
Brick Tie
Brick
Mortar
600
605
784
764
Wall OpeningSuggested Height
240
A
B
B
