Purkeys DIRECT PLUS Setup guide

A MISSION CRITICAL ELECTRONICS BRAN
D
DIRECT™PLUS
DIAGNOSTIC GUIDE
300-48 R1.01

1
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
CONTENTS
Cover Assembly..................................................................................................2
Interior Light Module (optional) .....................................................................2
Connections Inside Nosebox............................................................................3
Connections Outside Nosebox.........................................................................3
Wire Diagram .....................................................................................................4
Basic Troubleshooting .......................................................................................4
No Lights on Face of the Nosebox..........................................................4
Batteries Not Being Charged ...................................................................6
Interior Lights Not Working (if installed)...........................................11
Limited Commercial Warranty Policy...........................................................13

2
COVER ASSEMBLY
INTERIOR LIGHT MODULE (OPTIONAL)

3
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE

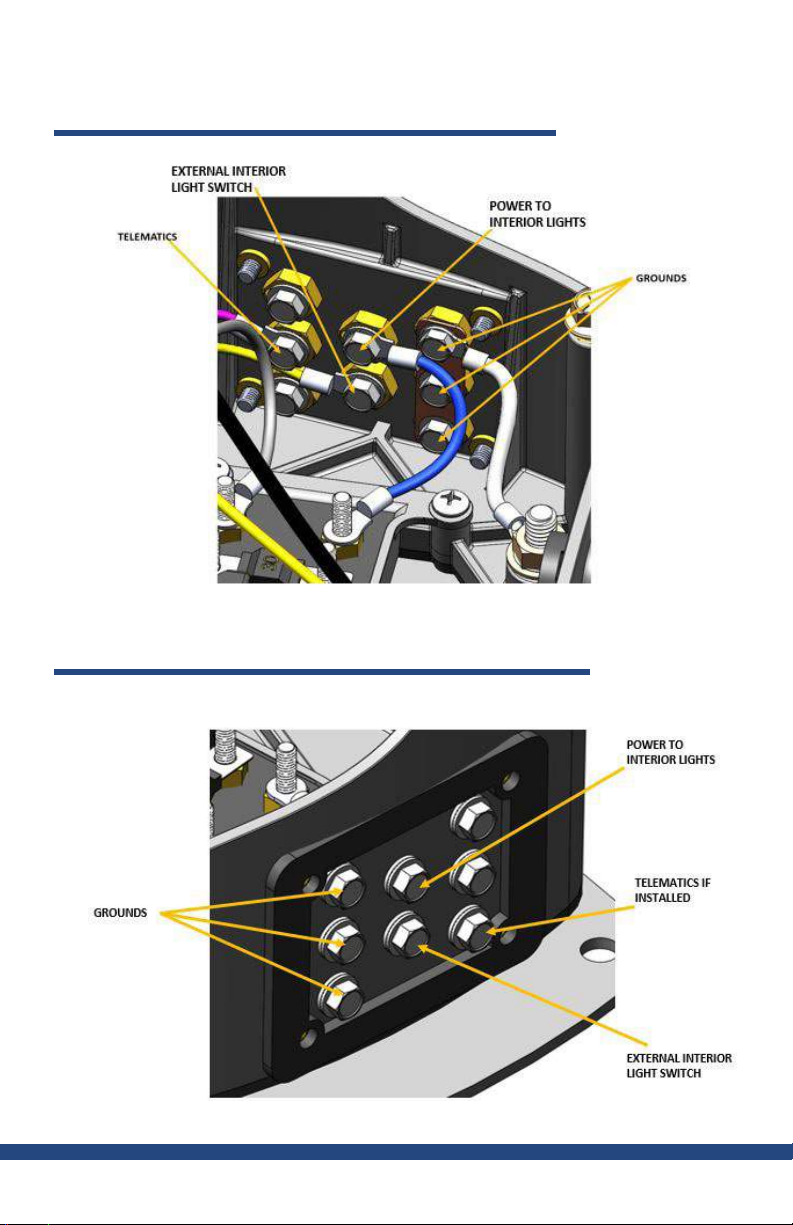

CONNECTIONS INSIDE NOSEBOX
CONNECTIONS OUTSIDE NOSEBOX

4
Step 1: Make sure that connections
are tight and inspect wiring for
defects.
BASIC TROUBLESHOOTING
Step 2: Check the 2 amp fuse in
the battery box at the DC/DC
converter.
• If blown , replace
• If good, proceed

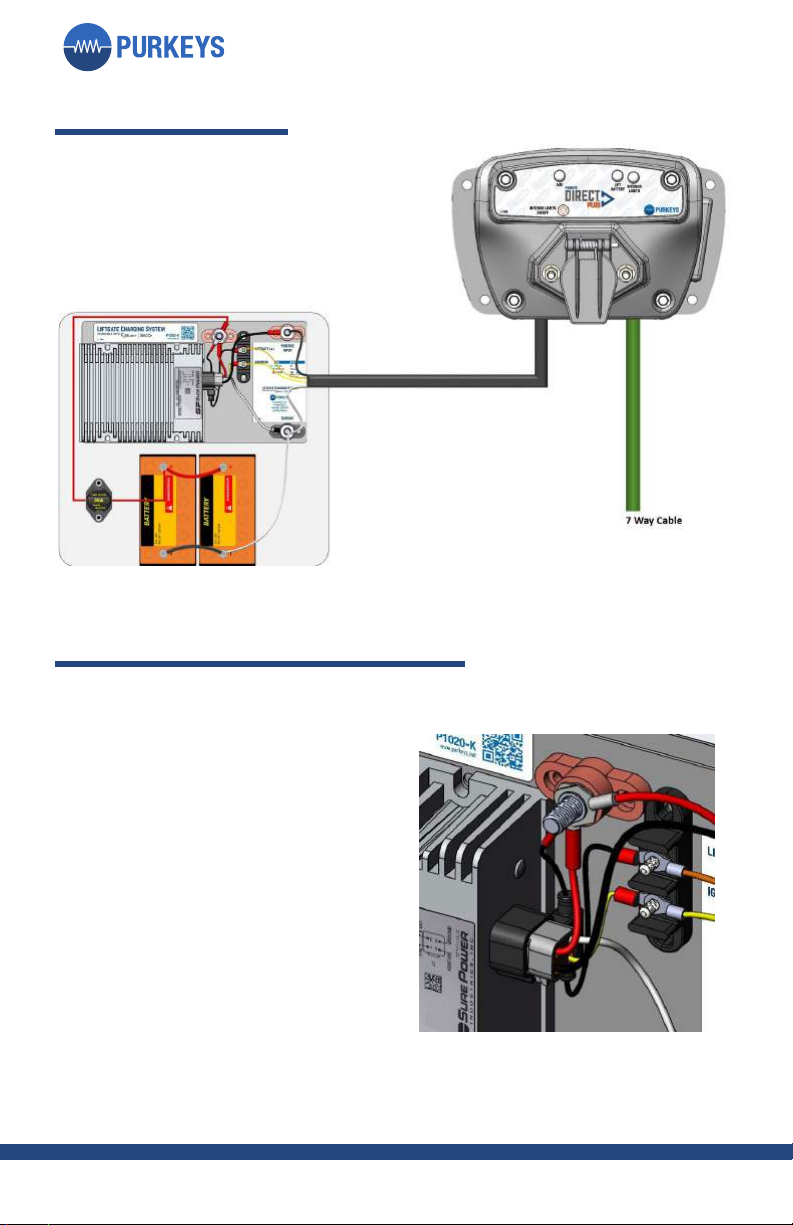

WIRE DIAGRAM
NO LIGHTS ON FACE OF THE NOSEBOX

5
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE

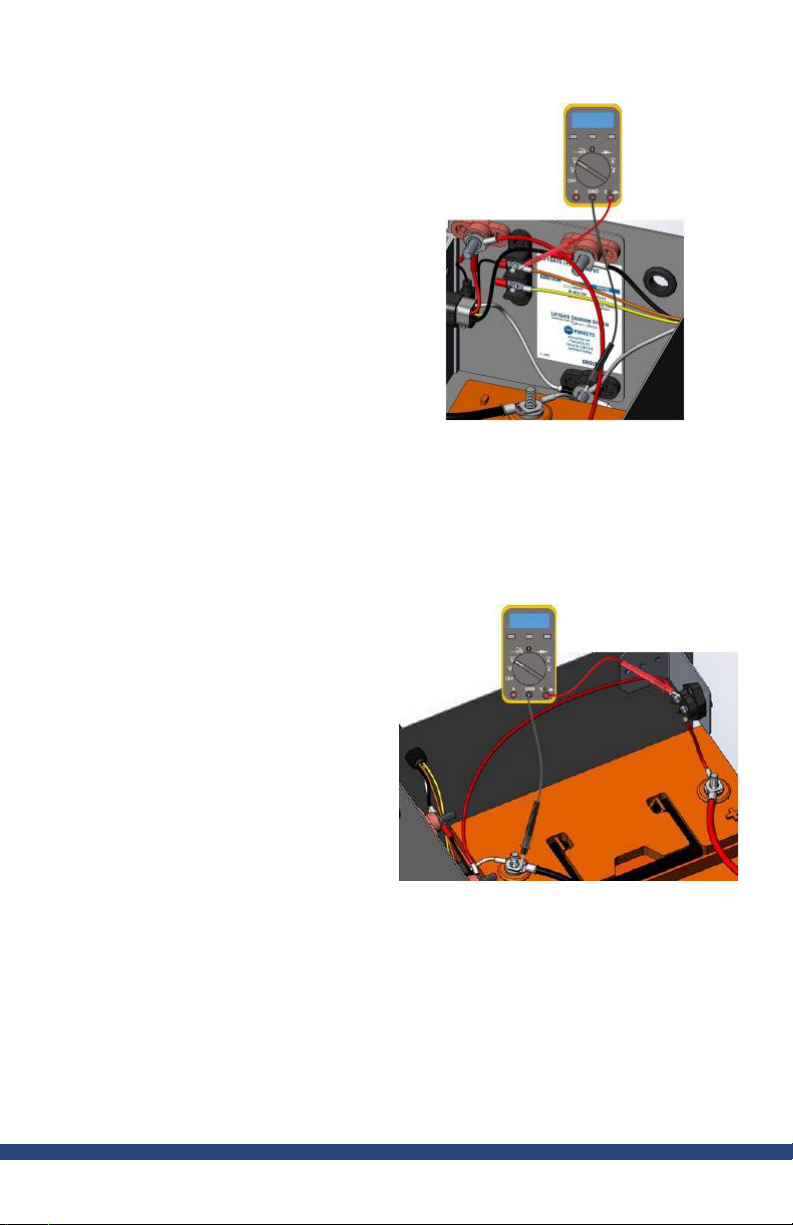

Step 3: Using a voltmeter, measure
the voltage at the 2-pin terminal
strip on the DC/DC converter
charging plate:
• Place the positive lead on the
ligate batt+ stud.
• Place the negative lead on the
ground stud.
• If there is a battery voltage
reading, skip to step 5.
• If no voltage is shown, proceed
to step 4.
Step 4: Check the 30 amp circuit
breaker using a voltmeter:
• Place the positive lead on
the circuit breaker stud that
connects to the red junction
stud closest to the DC/DC
converter on the plate.
• Place the negative lead on the
negative post of the battery.
• If there is a battery voltage
reading, proceed to the next
step.
• If no voltage is shown, reset the
circuit breaker.
• If there is still no voltage, check
wiring for defects.
• If no defects are found, replace
the circuit breaker

6
BATTERIES NOT BEING CHARGED
Step 1: Connect the tractor 7-way
cable to the trailer and start the
tractor.
• Place the voltmeter positive
lead on the stud labeled
positive input.
• Place the negative lead on the
negative battery post.
• If there is a voltage reading,
proceed to the next step.
• If there is no voltage reading,
skip to step 8.
Step 5: On the front of the trailer,
remove the hardware holding the
cover assembly to the nosebox
base.
• Place the voltmeter positive
lead where the orange wire is
connected.
• Place the negative lead where
the white wire is connected.
• Check the battery voltage
reading.
• If there is a battery voltage
reading, replace the cover
assembly on the base.
• If there is no voltage reading,
inspect the wiring for defects
and repair any issues.

7
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE
Step 2: Next:
• Place the voltmeter positive
lead on the yellow wire stud
labeled ignition.
• Place the negative lead on the
negative battery post.
• Battery voltage should read
approximately 10-13 volts.
Step 3: Unplug the 4-pin connector
from the DC/DC converter.
• Place the voltmeter positive
lead in pin #1 (12v + input).
• Place the negative lead in pin
#3 (ground).
Readings should be approximately
the tractor voltage:
• If yes, go to the next step.
• If no, inspect the wiring and
plug.
Step 4: Next:
• Place the voltmeter negative
lead in pin #3 (ground).
• Place the positive lead in pin #4
(ignition).
Reading should be approximately
10-13 volts.
• If yes, go to the next step.
• If no, inspect the wiring and
plug.

8
Step 5: Next:
• Place the voltmeter negative
lead on the negative battery
post.
• Place the positive lead on the
red junction stud closest to the
converter.
Reading should be 13+ volts.
• If yes, proceed to the next step.
• If no, replace the wiring from
the converter to the converter
plug.
Step 6: Next:
• Place the voltmeter negative
lead on the negative battery
post.
• Place the positive lead on the
circuit breaker post away from
the battery.
Reading should be 13+ volts.
• If yes, proceed to the next step.
• If no, inspect the wiring
between the junction stud and
the circuit breaker and repair
any issues.

9
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE
Step 7: Next:
• Place the voltmeter negative
lead on the negative battery
post.
• Place the positive lead on the
circuit breaker closest to the
battery post.
Readings should be 13+ volts.
• If yes, the system is working as
designed. Verify that the boost
converter LED is green.
• If no, reset the circuit breaker.
• If the circuit breaker will not
reset, replace it.
Step 8: On the front of the trailer,
remove the hardware holding the
cover assembly to the nosebox
base.
• Place the voltmeter positive
lead where the black wire is
connected.
• Place the negative lead where
the white wire is connected.
• If there is a voltage reading,
inspect the wiring between
the battery box and the cover
assembly.
• If there is no voltage reading,
check the 30 amp fuse and
replace if blown.

10
Step 9: Next:
• Place the voltmeter positive
lead where the blue wire is
connected.
• Place the negative lead where
the white wire is connected.
Should read tractor voltage.
• If there is a voltage reading,
inspect the wire for defects and
replace if necessary.
• If there is no voltage reading,
check the ground fuse and
replace if blown. If it’s not
blown, replace the cover
assembly.
Step 10: Next:
• Place the voltmeter positive
lead where the yellow wire is
connected.
• Place the negative lead where
the white wire is connected.
Reading should be 10-13 volts.
• If there is a voltage reading,
inspect the wiring for defects
and replace if necessary.
• If there is no voltage reading,
replace the cover assembly.

11
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE
INTERIOR LIGHTS NOT WORKING (IF INSTALLED)
Step 1: Check for voltage at the
interior light module:
• Place the voltmeter positive
lead on the blue wire.
• Place the negative lead on the
ligate negative battery post.
• ere should be a power source
voltage reading aer closing the
interior light switch.
• If there is a voltage reading,
inspect the wiring between the
module and the interior lights.
Replace if necessary.
• If there is no voltage reading,
check the 30 amp fuse. Replace
if blown, if not blown, proceed
to the next step.
Step 2: Next:
• Place the voltmeter positive
lead on the 30 amp fuse on the
module.
• Place the negative lead on the
ligate negative battery post.
Should read power source voltage.
• If yes, proceed to the next step.
• If no, inspect the jumper
between the cover assembly
and the module. Replace if
necessary.

12
Step 3: Next:
• Place the voltmeter positive
lead on the 30 amp fuse on the
module.
• Place the negative lead on the
gray wire stud on the cover
assembly.
• e voltage should read 0 or a
very low voltage.
• Press the interior light switch.
• e voltage should read 10-14
volts.
• If voltage still reads 0 volts,
check for a blown fuse.
• If the fuse checks good, the
module is deemed defective.
Proceed to the next step to
conrm.
Step 4: To conrm the issue is the
module and not the switch on
cover assembly:
• Using a jumper, jump between
the light control stud on the
cover assembly and the ligate
battery negative.
• If the interior light module is
good, the interior lights should
come on while the jumper is in
place.
• Remove the jumper and the
interior lights will shut o.
• If the interior lights do not
come on, replace the module.

13
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
DIRECT PLUS DIAGNOSTIC GUIDE
