Q-See QR4714 User manual
4 CH. H.264 NETWORK DVR
RETRACTABLE 7” LCD MONITOR
User Manual
MODEL QR4714
Thank you for purchasing this Q-See product.
Every effort has been made to make this DVR simple to assemble
and use. However, if you should run into any difculties during its
installation or operation, we are here for you.
CUSTOMER SERVICE
Phone: 877-998-3440 x 538
Email:[email protected]
Live Chat at www.q-see.com
TECH SUPPORT
Phone: 877-998-3440 x 539
Email:[email protected]
Live Chat at www.q-see.com
ADDRESS
Q-See Products
Digital Peripheral Solutions, Inc.
8015 E. Crystal Drive
Anaheim, CA 92807
FAX
714-998-3509
WEBSITE
http://www.Q-See.com
WARNING!
TABLE OF CONTENTS
CONTENTS
BOX CONTENTS 8
FOR YOUR SAFETY 9
GETTING TO KNOW THE QR4174 10
10
10
11
11
DVR FEATURES 12
12
12
INSTALLING THE DVR 13
13
13
13
13
STARTING THE DVR 14
14
14
15
Video Loss: 15
Alarm Sounds: 15
15
CONFIGURING THE DVR 16
16
17
17
18
Set Camera Name and Position 18
Enable Live Viewing 18
Enable Auto-Sequence18
20
Turn Camera Recording On/Off 20
Select Resolution 20
Quality 20
Audio 21
File Size 21
Customizing Record Mode21
22
DHCP 22
PPPoE 22
Static 22
DDNS Setup 23
Port Forwarding 24
Pop-Ups & ActiveX Controls25
Accessing the DVR from a Remote Computer26
Troubleshooting 26
27
Setting The Date/Time27
Password 28
Video Setup 29
Language 29
Info 30
System Maintenance30
30
HDD Management 30
Set Alarm 32
Motion Detect 35
PTZ Setup 36
Mobile Setup 37
OPERATING THE DVR 46
46
46
46
General 46
Cruise Setup 47
48
49
50
Multimedia Player Menu51
53
53
NET-VIEW PROGRAM 53
54
54
Live 54
Replay 54
Setup 55
Logging Out of Net-Viewer 59
60
SPECIFICATIONS 61
APPENDIX 62
62
Primary Settings 62
Advanced Settings 62
Netword Settings 63
Network Functions 63
Auxiliary Functions 63
Menu Button 63
Basic Settings 63
64
TROUBLESHOOTING 65
SYSTEM CONNECTIONS 66
Q-SEE PRODUCT WARRANTY 67
INSTALLATION MADE EASY
BOX CONTENTS
QSDR74RTS DVR
w/Built-in 7” LCD Display Screen
Power Supply For DVR
Software CD
Quick Start Guide
User Manual (this manual)
Ethernet Cable
USB Mouse
BNC– RCA Cable
Remote Control
FOR YOUR SAFETY
To prevent damage to your Q-See product or injury to yourself or to others, read the
following safety precautions in their entirety before installing or using this equipment.
Keep these safety instructions where all those who use the product will read them.
GETTING TO KNOW THE QR4174
1. Enter/Exit Display Screen
2. 7” LCD Screen for Monitoring
3. Show Menu
4. Scroll Down in Menu
5. Scroll Up in Menu
6. Numeric Keys and Channel Select
7. View All Channels
8. Menu/Escape/Left
9. Enter or Exit PTZ
10. Up Button
11. Power LED
12. IR Receiver
13. Hard Drive LED
14. Down Button
15. Select/Edit/Right
16. Reverse/PTZ Focus
17. Pause/Auto Sequence
18. Play
19. Forward
20. Stop Recording
21. Record
1. Video Input 1 - 4
2. Video Output
3. Audio Inputs
4. Audio Outputs
5. Ethernet Port
6. POWER Switch
7. Mouse Port
8. USB Port
9. RS-485/ SENSOR/ ALARM Block
10. DC Power Input Port
FRONT PANEL
REAR PANEL
1 2 3 4 5 6 7 89 10 11
14 15 16 17 18 19 20 21
12 13
1 2 3 4 5 6
789 10
1. Left Click
(DVR MENU IN UNLOCK MODE)
A. Edit your record settings
B. Playback recorded files
C. Access a pull-down menu
D. Control color and volume settings
E. Choose your system’s language settings
F. Double clicking the left key of your mouse
maximizes the screen view
2. Right Click
(DVR MENU IN LIVE DISPLAY MODE)
A. Exit system programming and configuration mode
B. Close all configuration menu dialog boxes
3. Drag Mouse
(DVR MENU IN LIVE DISPLAY MODE)
A. In Motion Set mode, sliding the mouse will select the area of motion you wish to choose
B. In Color Set mode, sliding the mouse allows you to access and adjust the color control
bar and the volume control bar

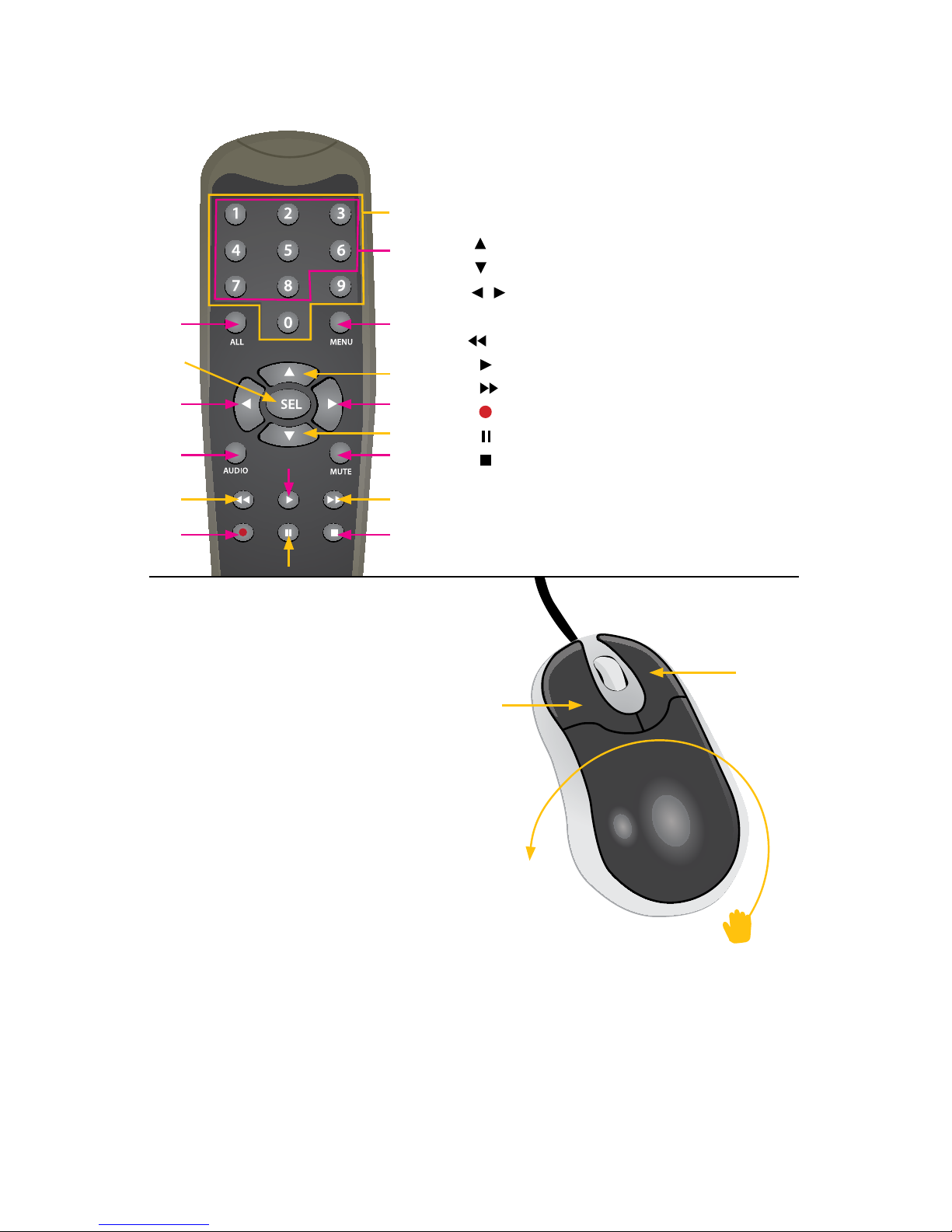

REMOTE CONTROL
MOUSE
1. Numeric Keys
2. Channel Select (1-8)
3. “ALL” Preview All Channels
4. “MENU” Enter/Exit Main Menu
5. Up Key
6. Down Key
7. / Left/Right Key
8. SEL Select Key/ Edit Key
9. Rewind
10. Play Recorded Events
11. Forward
12. Manual Recording
13. Pause/Frame Play
14. Manually Stop Recording or Playback
15. “AUDIO” Play Audio from Selected Camera
16. “MUTE” Mute Audio
1
2
4
5
7
6
16
11
14
10
13
3
1
7
15
9
12
1
3
2
DVR FEATURES
FUNCTIONS
Supports Real-Time Surveillance via Monitor
DVR Saves Real-Time Recording of Image Files to HDD
Supports DVR Backup of Recorded Image Files via USB Flash Drive and Hard
Drive
Supports DVR single CH and Multiple CH Playback of Recorded Files
Supports Remote Surveillance by Multiple Users Simultaneously
Supports HDD & video input alarm management and external alarm signal
inputs
Support for Faster Menu Navigation.
Supports PTZ camera operations through RS-485.
OTHER FEATURES
• H.264 Video Compression Format; Supports CIF, D1 and HD1 Resolution
• ADPCM Audio Compression Format
• Windows Graphics Interface
• BNC Video Out Port
• Supports Remote Live Viewing Via 3G Mobile Networks
• Email Notication Alerts when Motion is Detected by System
• Triplex Technology allows for Simultaneous Recording, Playback and
Internet Transmission
• Supports USB Mouse and IR Remote Control Operation
• Rear USB 2.0 Ports For Back-Up, Upgrade and Mouse Operation
• Supports Double Encoded Bit Network Transmission
• Adjustable Video Package Time
• Multiple Alarm Record Mode
• Multiple Language OSD (On Screen Display)
• Supports Auto Maintenance
INSTALLING THE DVR
INSTALL THE HARD DRIVE
1. Use the provided key to open the DVR’s Hard Disk Drive (HDD) drawer illustration
2. Remove screws and carefully open the top cover of the DVR illustration
3. Firmly connect the DVR’s power cord into its corresponding receptacle on the hard
drive illustration
4. Securely insert the data cable into its matching port on hard drive illustration
5. Carefully replace the top cover of the DVR and re-attach screws
CONNECT DVR TO CAMERAS
1. Connect the camera cable to the Video Input port on the DVR illustration
2. Follow same procedure for each camera
3. To connect a PTZ speed dome to the DVR System, connect the PTZ Camera data
cables to your RS485 A & B ports. illustration See PAGEXXX for additional PTZ
Camera conguration instructions.
CONNECT DVR TO EXTERNAL MONITOR
Using the included BNC to RCA cable, connect the monitor to the Video Output port of
the DVR illustration
CONNECT POWER SUPPLY
1.
2.
WARNING!
WARNING!
SYSTEM INITIALIZATION
1. After connecting the power adapter, turn on the power button
2. The system will boot-up and launch a “System Initializing” message, as shown in image 1.
MAIN INTERFACE SCREEN
Once the system initialization process is complete, the system will enter the main interface
screen (as shown in ).
STARTING THE DVR
System Initializing...
TROBLESHOOTING

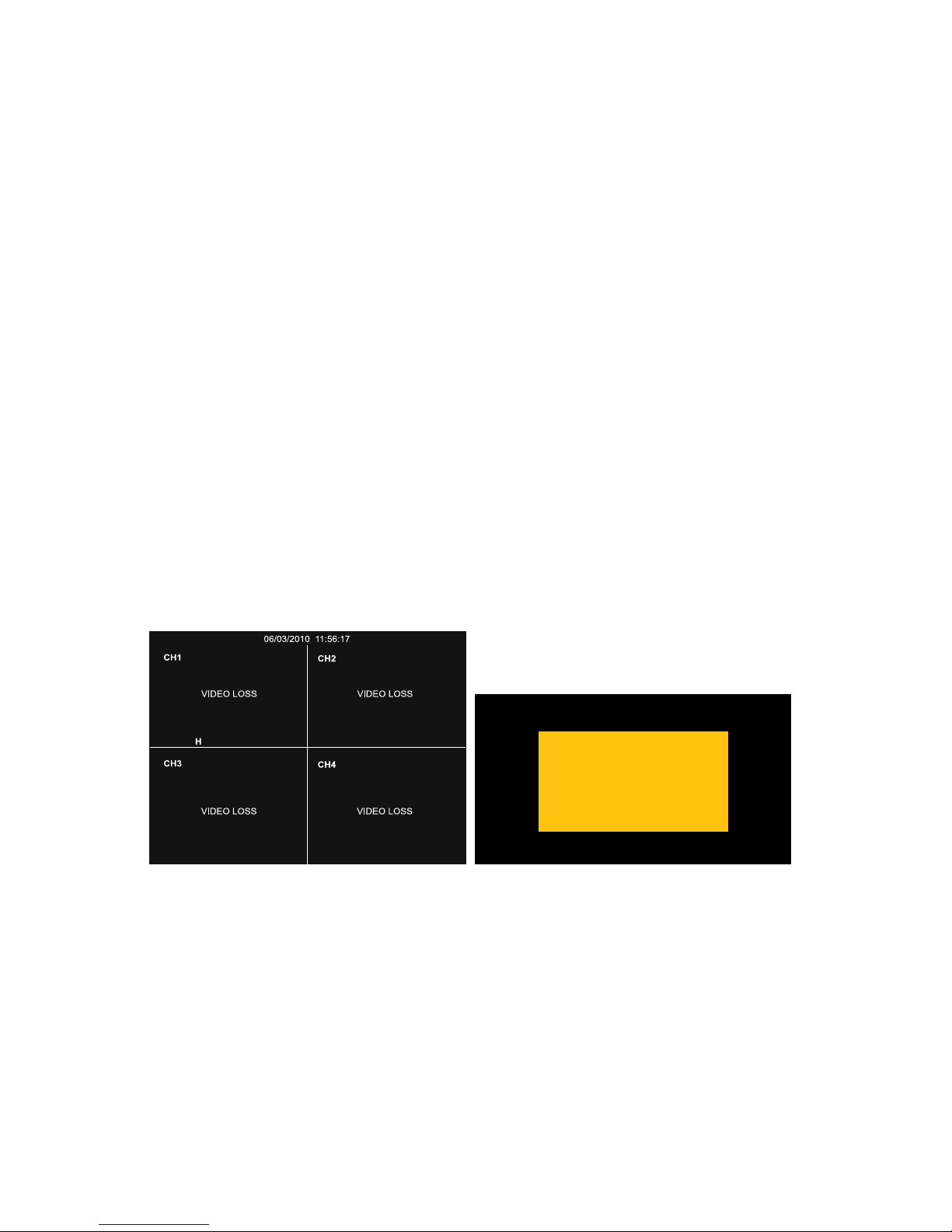

Video Loss:
If the system does not detect a video input, you will receive a “Video Loss” message for each
camera as depicted in . Once the cameras have been connected, the Main Interface
screen will display a live feed from each camera in its respective box as shown in .
Alarm Sounds:
If the rst box on the Main Interface screen displays an “H” and an alarm sounds, the DVR
does not detect a HDD. To turn the alarm off, navigate to [Device Management→Alarm setting].
Choose the “off” option next to “HDD loss, HDD space not enough and alarm output”. Return
to the section on installing the DVR and ensure the HDD is installed correctly.
CHANGE TO FULL SCREEN VIEW
To change to a full screen view on one of the cameras, from the Main Interface screen, posi-
tion the mouse over an image and double-click, as shown in .
Double-click again to return to the multi-camera view ().
CONFIGURING THE DVR
CAMERA
COLOR SET
DWELL TIME DISPLAY
SEARCH
PLAYBACK
DETAIL FILE FILE BACK-UP
LOG SEARCH
HDD MANAGEMENT
ALARM SETTING
PTZ SETTING
AREA SETTING
MOBILE
MOTION
TIME SETTING
USER PASSWORD
AUDIO/VIDEO SETTING
LANGUAGE SELECT
SYSTEM INFORMATION
SYSTEM MAINTENANCE
RECORDING
NETWORK
RECORD SEARCH
DEVICE MANAGEMENT
MAIN MENU
SYSTEM
DVR MENU OVERVIEW

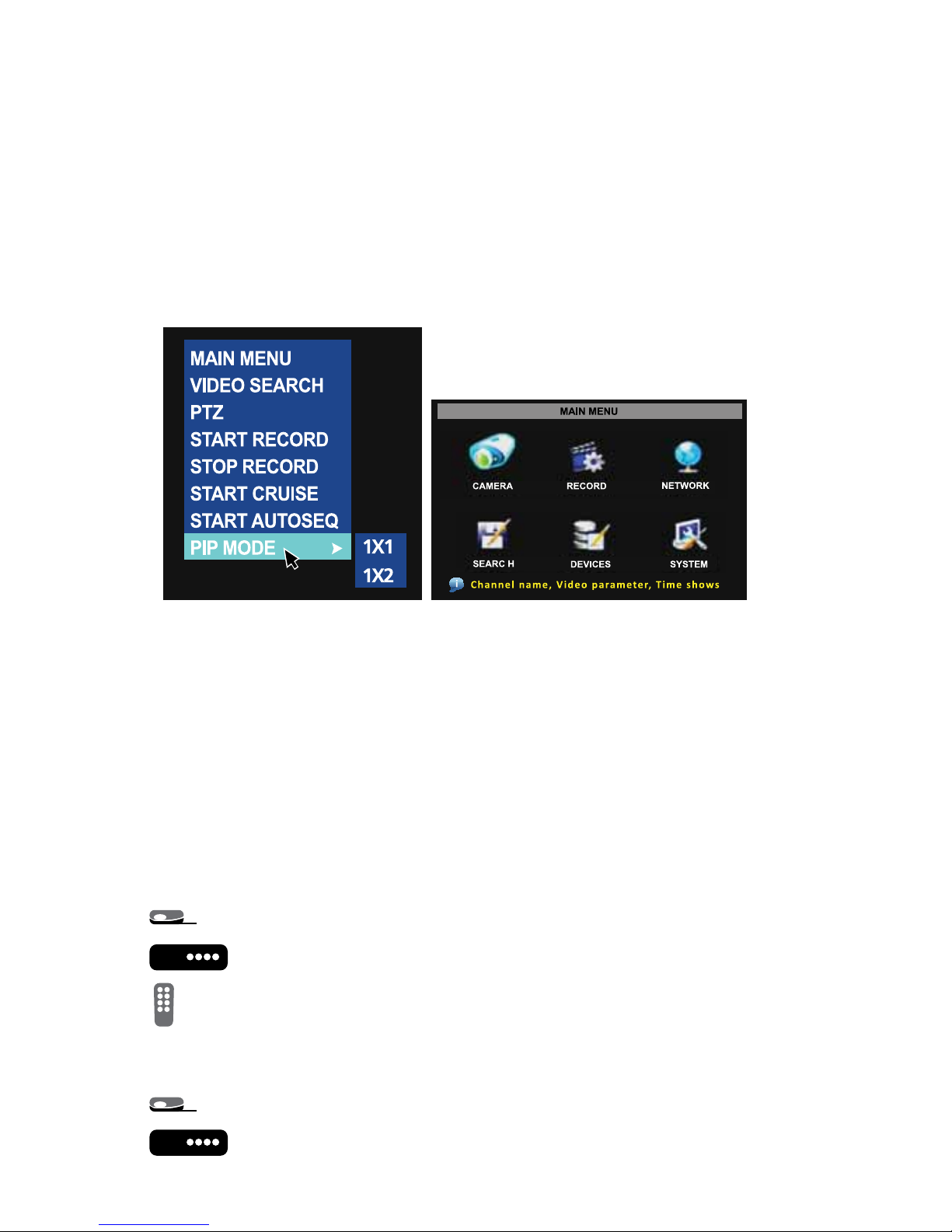

POP-UP MENU
From the MAIN INTERFACE screen,
right-click the mouse
To exit the pop-up menu and return to the MAIN INTERFACE screen, click on any area outside
of the pop-up menu
MAIN MENU
The Main Menu provides access to create management permissions, congure devices, cus-
tomize recording parameters, and set system functions (such as time, date and passwords).
The Main Menu also allows access to controls for the camera, network, HDD, alarm, PTZ, and
mobile phone.
To access the Main Menu () from the MAIN INTERFACE screen, right-click using the
mouse or select the Menu button on the front panel of the DVR.
To navigate within the Main Menu:
DRAG AND CLICK MOUSE
USE FWD AND REW BUTTONS ON DVR
USE FWD AND REW BUTTONS ON REMOTE
To return to the previous window within the Main Menu interface:
OPTION, RIGHT-CLICK “EXIT” WITH MOUSE
SELECT ESC BUTTON ON DVR

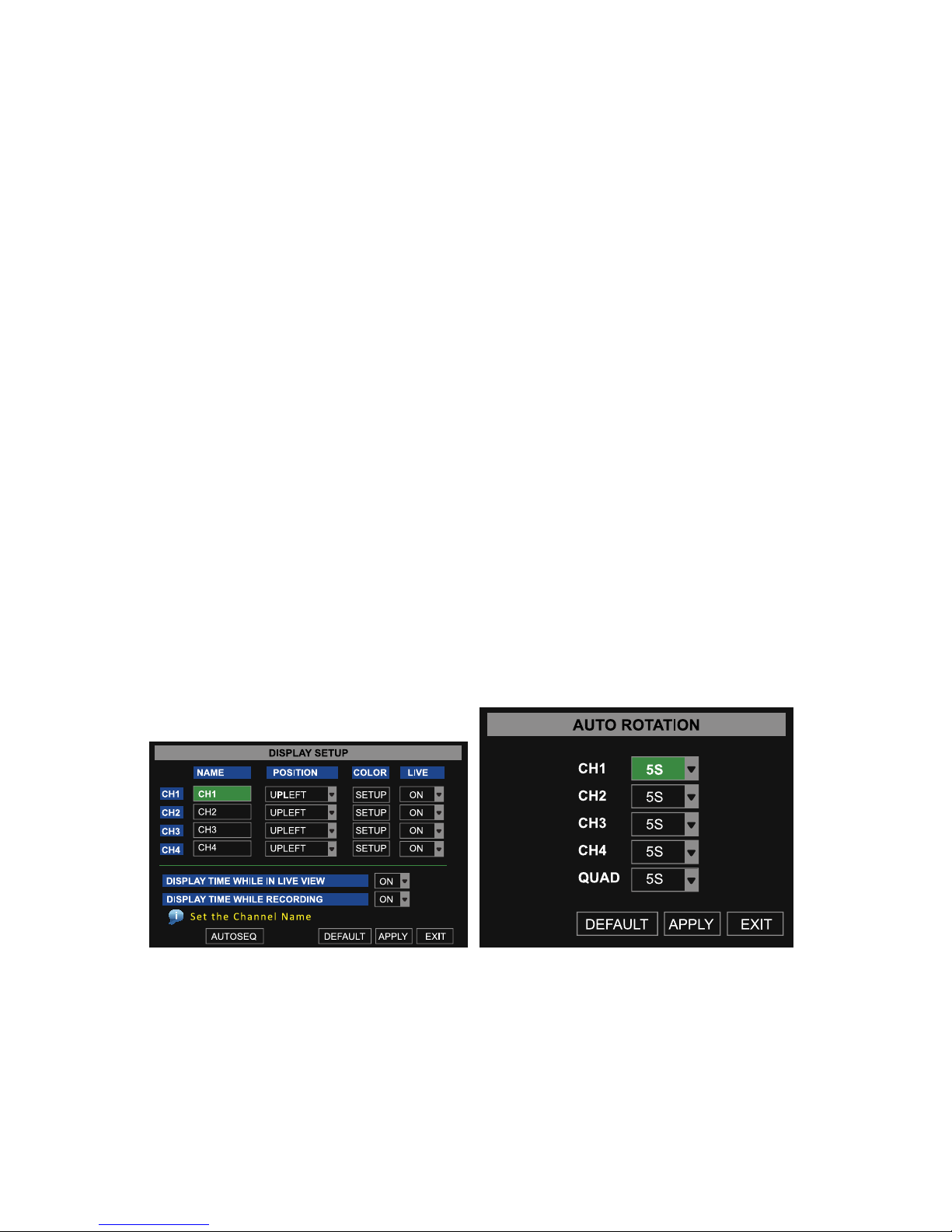

CAMERA SETUP
Set Camera Name and Position
To set up the display name and position for each camera, complete the following instructions:
1. From the Main Menu, select the camera icon
2. From the camera setup interface (), assign a name for each of camera, up to 8
characters long by highlighting the eld next to the channel under the NAME column.
To enter letters, left click the mouse in the eld to access the keyboard drop down.
3. To select the camera’s position on the screen, select the arrow under the POSITION
column and select preference
4. Complete steps 2 and 3, for each camera
Enable Live Viewing
From the camera setup interface (), enable live viewing for each camera.
1. From the Main Menu, select the camera icon
2. From the camera setup interface (), select the arrow under the LIVE column
and select preference from the drop down menu
3. Complete step 2, for each camera
Enable Auto-Sequence
To set the system to automatically rotate the screen view image for each camera:
1. From the camera setup interface, select the AUTOSEQ button
2. The AUTO ROTATION sub menu will appear ()
3. Select the amount of view time, from 0 to 10 seconds, for each camera from the drop-
down list.
4. To set the rotation time for all cameras to 5 seconds, select DEFAULT.
5. When nished selecting times, select APPLY and then EXIT to close the AUTO
ROTATION menu
Note: changes will only be saved, when you select APPLY before exiting

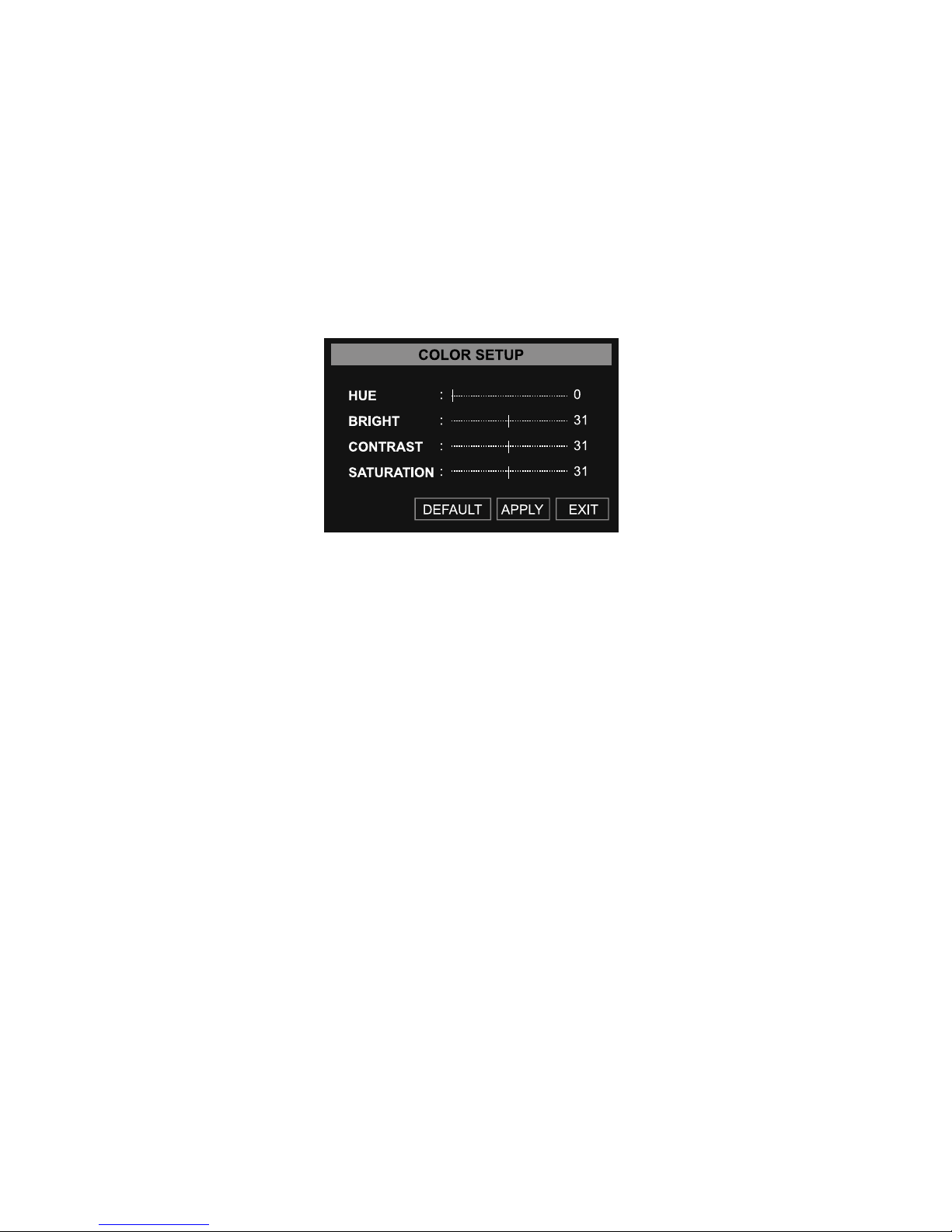

Setup Color Hue, Brightness, Contrast and Saturation
To adjust the image brightness, saturation, contrast and hue settings for each camera,
from the camera setup interface:
1. Under the COLOR column, select the SETUP button
2. The COLOR SETUP sub menu will appear ()
3. Make desired changes by sliding the vertical line along each axis
4. Select DEFAULT to reset all values to the original factory installed settings
5. To close the window without applying changes, select EXIT, before selecting APPLY
6. To save changes, select APPLY
7. A prompt will appear to save your settings, select OK in order for the changes to take
effect.
RECORD SETUP
From the Record Setup menu turn the recording status for each camera channel on and off,
set the recorded image quality, enable audio recording, schedule recording times and set
recording le sizes.
To set up the recording options on DVR
1. From the Main Interface screen, go to the Main Menu
2. Select the RECORD icon to open the RECORD SETUP menu ()
3. Select desired preferences or select DEFAULT to reset all values to the original factory
installed settings
4. To close the window without applying changes, select EXIT, before selecting APPLY
5. To save changes, select APPLY
6. A prompt will appear to save your settings, select OK in order for the changes to take
effect.
Turn Camera Recording On/Off
Select the arrow next to each camera from the top row labeled CHANNEL
Turn each camera to either ON or OFF
Select Resolution
Select D1, HD1 or CIF resolution option for each camera
Quality
Choose the quality of the recorded images for each camera (Best Good or Normal)
Table of contents
Other Q-See DVR manuals
Q-See
Q-See QC40108 User manual
Q-See
Q-See QSDR74RTB User manual
Q-See
Q-See QSTD2404 User manual
Q-See
Q-See QT504 User manual
Q-See
Q-See QSDR74RTS User manual
Q-See
Q-See QSTD2408 User manual
Q-See
Q-See QT SERIES User manual
Q-See
Q-See QSNDVR16M User manual
Q-See
Q-See QSDR74RTS User manual
Q-See
Q-See QSD9004CM User manual
Q-See
Q-See QSD6209C9--250 User manual
Q-See
Q-See QT426 User manual
Q-See
Q-See QT17DVR4C User manual
Q-See
Q-See QSD2308C8-250 User manual
Q-See
Q-See QT SERIES User manual
Q-See
Q-See H.264 NETWORK DVR User manual
Q-See
Q-See QT454 User manual
Q-See
Q-See Prosumer QT528 User manual
Q-See
Q-See QT17DVR4C User manual
Q-See
Q-See QSD9004 series User manual
