Qomo HiteVision QView QD700 User manual

PRECAUTIONS
Please follow these precautions:
To prevent fire or shock hazard, do not expose the unit to rain or
moisture.
To prevent electrical shock, do not open the cabinet. Refer to qualified
personnel for service only.
Do not use the unit continuously for more than 24 hours with camera
auto focus on. It may cause damage to the camera lens.
Be careful not to spill water or other liquids onto the unit, or allow
combustible or metallic objects to get inside the cabinet.
Unplug the visulizer from the wall outlet when it is not being
used for a long period of time.
Clean the cabinet with a soft cloth lightly moistened with a mild
detergent solution.
Clean the lens carefully with an air spray or soft dry cloth to avoid
scratching it.
When the lamps flash or become dark, they should be replaced with
new ones.
Avoid switching arm lights and back light frequently.
Remove the camera lens cap before power the unit on.
CONTACTS:
QOMO HITEVISION, LLC
Toll Free: 1-866-990QOMO
E-Mail: [email protected]
Web: www.qomo.com
1

CONTENTS:
PARTS IDENTIFICATION ........................................................................ 3
CONTROL PANEL ................................................................................... 3
BUTTON INSTRUCTION ......................................................................... 4
REMOTE CONTROL ............................................................................... 5
CONNECTIONS....................................................................................... 6
BASIC PREPARATIONS.......................................................................... 7
OUTPUT MODE AND VERTICAL FREQUENCY (60Hz) ........................11
PAL/NTSC VIDEO OUTPUTS.................................................................11

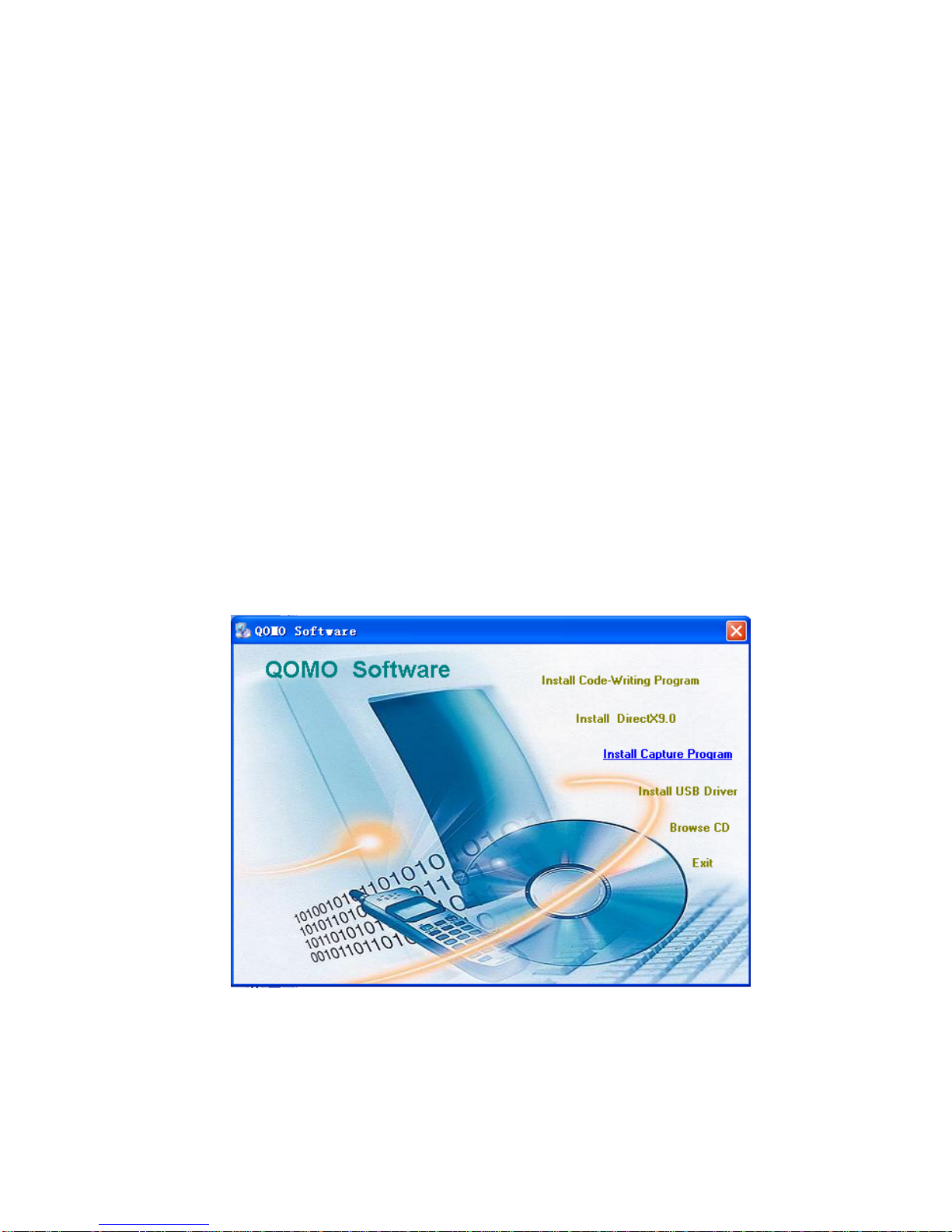

INSTALLING QOMO VISUALIZER SOFTWARE ....................................11
USB CAPTURE FOR MAC COMPUTER............................................... 13
WORKING ON THE STAGE .................................................................. 13
WORKING OUTSIDE THE STAGE........................................................ 13
LIGHT..................................................................................................... 14

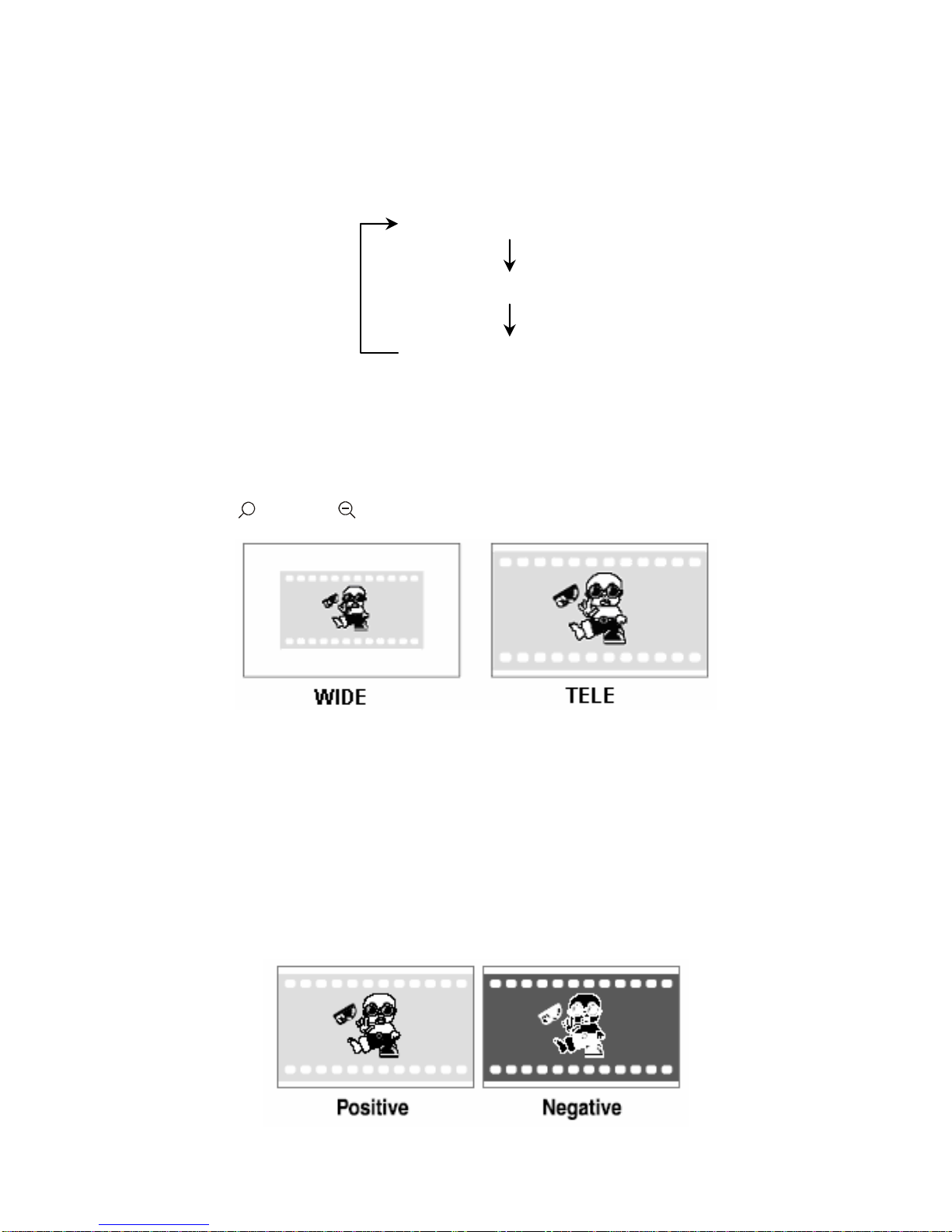

ADJUSTING IMAGE SIZE ..................................................................... 14
WORKING WITH NEGATIVES .............................................................. 14
FOCUSING ............................................................................................ 15
FREEZING IMAGE ................................................................................ 15
BRIGHTNESS ADJUSTMENT ............................................................... 15
WHITE BALANCE ADJUSTMENT ......................................................... 15
AUTO ADJUSTMENT ............................................................................ 15
TEXT/IMAGE MODE.............................................................................. 16
COLOR AND B&W MODE SWITCH ...................................................... 16
SWITCHABLE VIDEO INPUTS.............................................................. 16
SWITCHABLE RGB INPUTS ................................................................. 16
PROJECTOR ON/STANDBY ................................................................. 16
PROJECTOR INPUTS SELECTION...................................................... 17
IMAGE REVERSION.............................................................................. 17
IMAGE SPLIT......................................................................................... 17
DYNAMIC/STATIC MODE SWITCH....................................................... 17
TITLE FUNCTION.................................................................................. 18
IMAGE SAVE AND RECALL .................................................................. 18
INFRARED REMOTE CONTROL .......................................................... 18

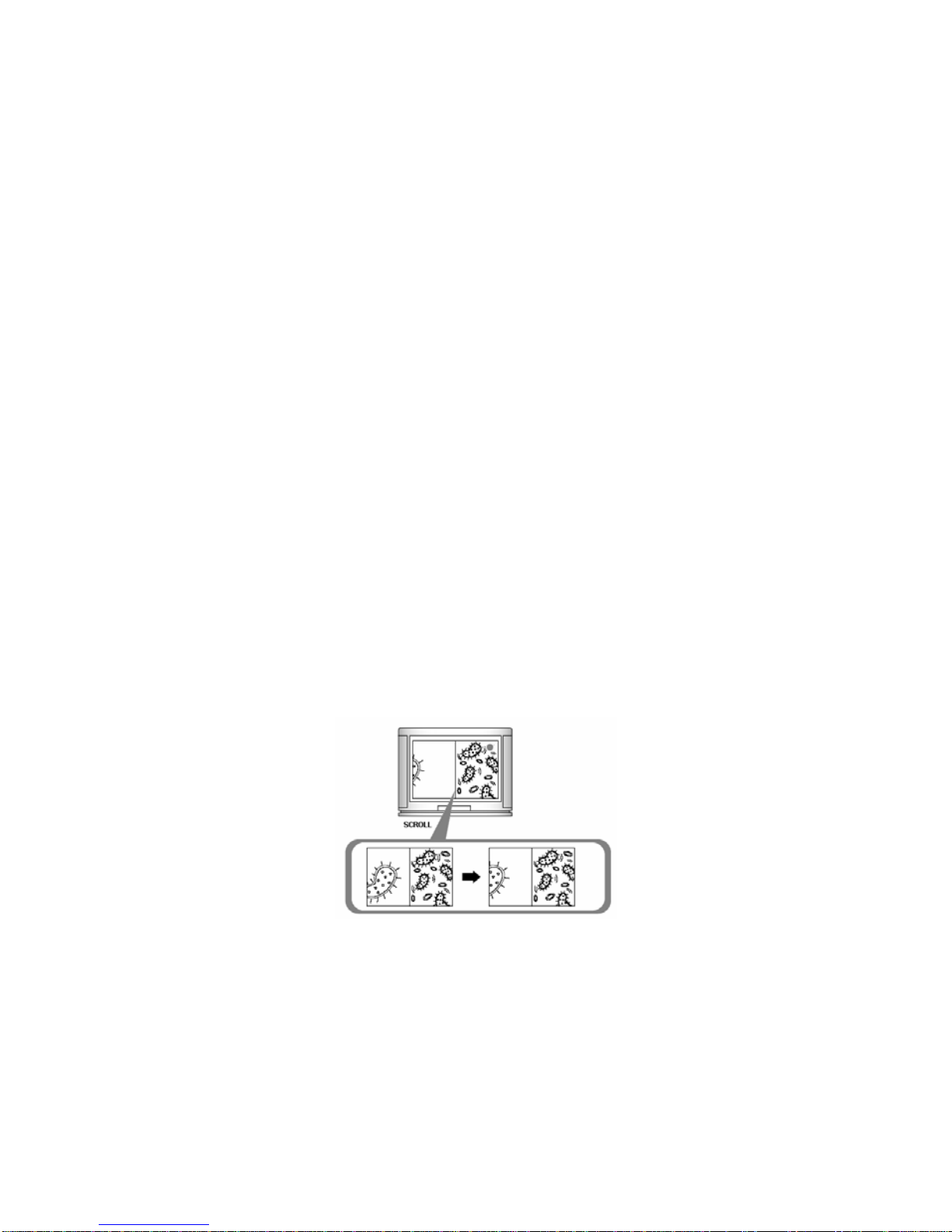

IMAGE SCROLLING.............................................................................. 18
2

USB PORT............................................................................................. 19
CONTROLLING THE VISUALIZER FROM A COMPUTER ................... 19

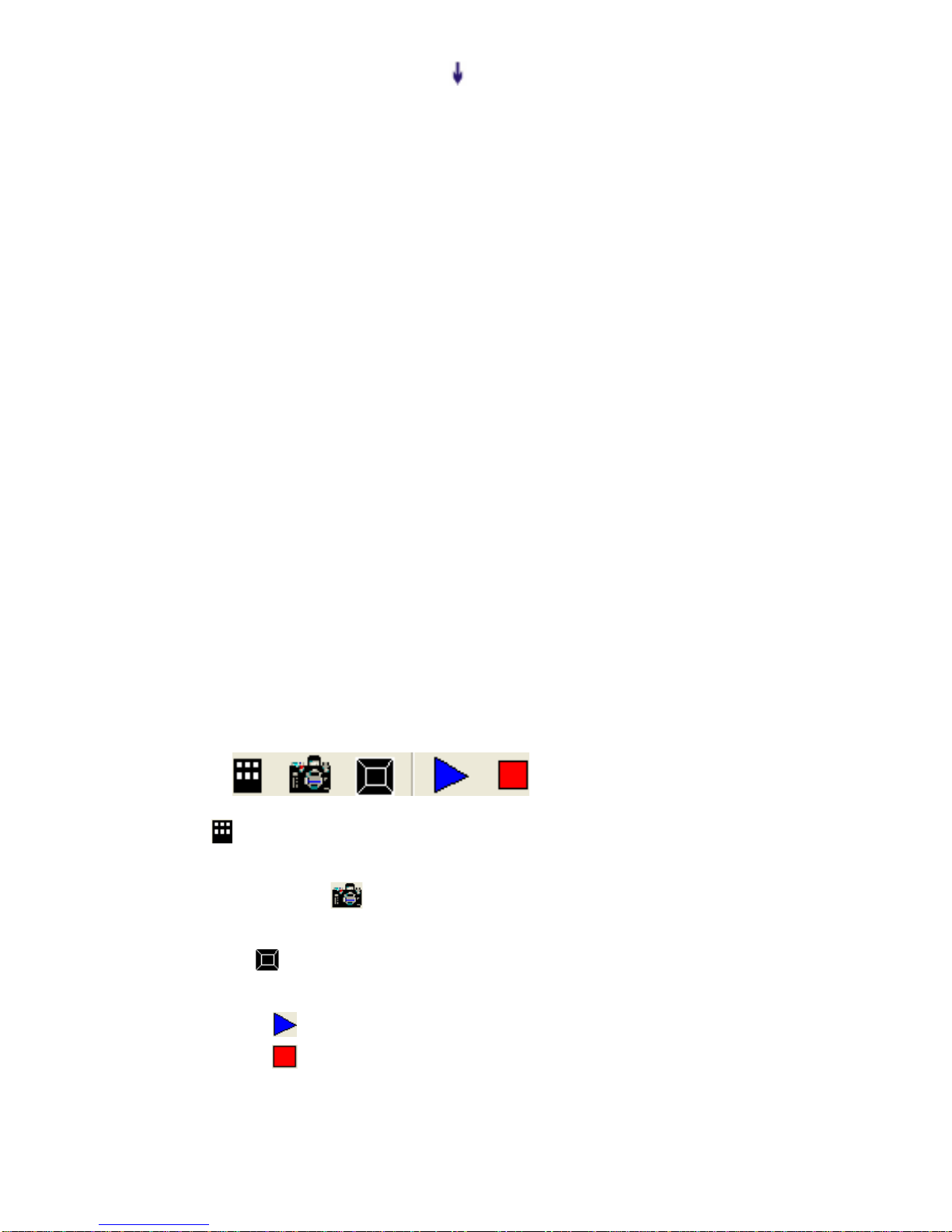

VIDEO DISPLAY AND CAPTURE.......................................................... 20
CONTROLLING PROJECTOR WITH VISUALIZER .............................. 20
FOLDING THE UNIT.............................................................................. 24
SPECIFICATIONS.................................................................................. 26
TECHNICAL SUPPORT......................................................................... 28

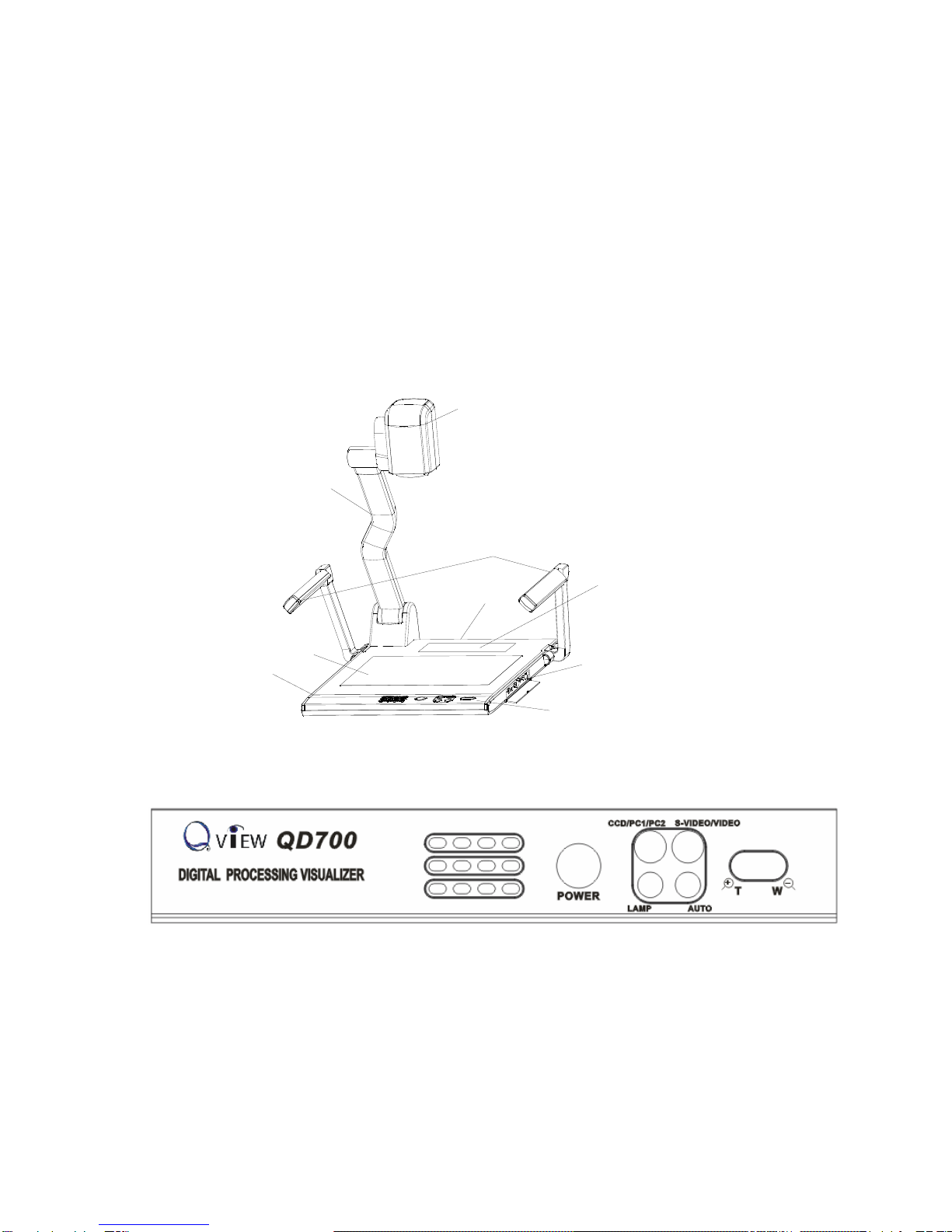

PARTS IDENTIFICATION
Arm lights
Camera
Camera stand
Back light
Remote control slot
Operation panel
Stage
Connectors
Connectors
Button instruction
CONTROL PANEL
POWER (Control the visualizer On/Off)
Mir (V-reverse the image)
Frz (Freeze the image)
Neg (Display film negatives)
Title (Freeze the top 1/8 of the screen)
D./S. (Switch between static mode and dynamic mode)
Far/Near (Focus far or near)
3

Split (Image Split function)
Ppw (Control the projector On/Standby)
Pin (Projector input signal selection)
/(Move the image up/down)
CCD/PC1/PC2 (CCD/RGB input signal selection)
S-VIDEO /VIDEO (Video input signal selection)
LAMP (Control the arm lights and back light)
AUTO (To auto adjust white balance and auto focus)
+
T/
W
(Increase and decrease the magnification)
Remarks: Frz, Title, D./S. and Split functions are only available on
PROJECTOR OUT port.
BUTTON INSTRUCTION
Button function instruction sheet
Button Instruction Fold/SetupInstructionIndicator Instruction
Fr ee ze the To p 1 /8 of the Scr ee n
Dynamic/Static Mode
Split Screen
Move Image Up
FreezeImage
Mi rr or Imag e
Projector Input Select
Projector Power
On/Standby
MoveImage Down
Ne gat ive /Posit ive
D./S.
Mir Title
Split
Ppw Pin
Frz Neg
Far
Focus Adjustment
Near
S-Vid eo/Vid eoCCD/PC1/PC2
Aut o A d ju st C olo r
Brightness and Foc us
POWER
Light Contro l
( Si de L i gh t s / B ac k L i gh t /L i g ht s O ff)
Press and H old Tw o Seconds
to Power Of f Visualizer
4

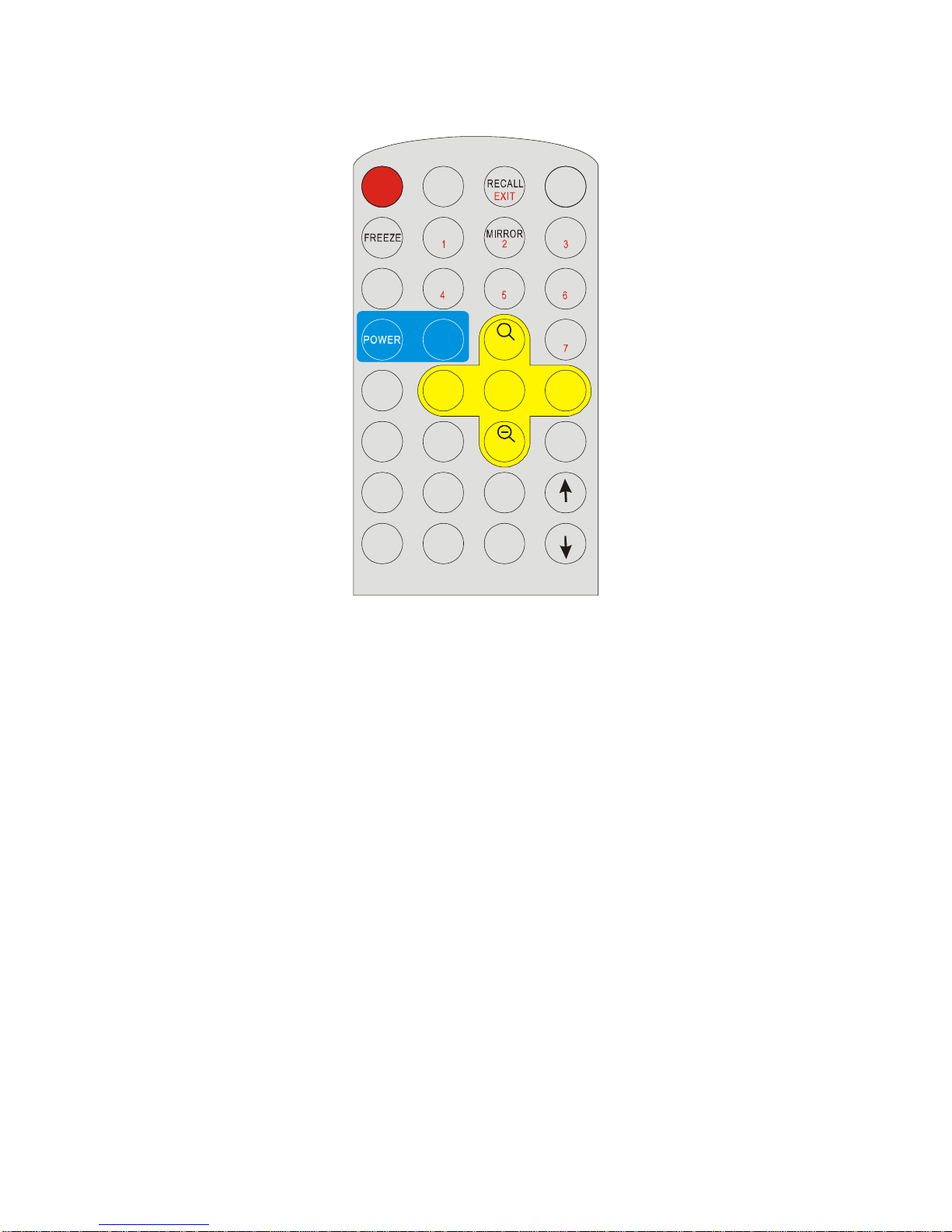

REMOTE CONTROL
LAMP
POWER
NEG SPLIT
XGA B&W TITLE
BLUE BRIGHT SCROLLRED
+
-
+
-
D./S.
TELE
TEXT
A
UTO NEAR
WIDE VIDEO
VOL+ FAR
CCD
PC1
PC2
VOL-
PROJECTOR
INPUT
+
-
+
SAVE
POWER (Control the visualizer On/Off)
SAVE (Save captured images)
RECALL (Display saved images)
EXIT (Exit RECALL mode)
LAMP (Control the arm lights and back light)
FREEZE (Freeze the image)
NEG (Display film negatives)
MIRROR (V-Reverse the image)
SPLIT (Image split function)
D./S. (Switch between static mode and dynamic mode)
XGA (Switch between XGA (1024 x 768) and SVGA (800 x 600) mode)
B&W (Switch between color mode and B&W mode)
TITLE (Freeze the top 1/8 of the screen)
PROJECTOR POWER (Control the projector On/Standby)
PROJECTOR INPUT (Projector input signal selection)
TEXT (Switch between image/text mode)
AUTO (To auto white balance and auto focus)
5

+
TELE/ IDE
W
(Increase and decrease the magnification)
FAR/NEAR (Focus near or far)
VOL+/VOL- (Increase or decrease the volume)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (Video input signal selection)
RED +/- (Increase/decrease the red hue)
BLUE +/- (Increase/decrease the blue hue)
BRIGHT +/- (Increase/decrease the brightness)
SCROLL /(Move the image up/down)
Remarks: FREEZE, TITLE, D./S. and SPLIT functions are only
available on PROJECTOR OUT port.
CONNECTIONS
#1 AUDIO OUT #2 VIDEO OUT #3 S-VIDEO OUT
#4 VIDEO AUDIO IN #5 VIDEO IN #6 S-VIDEO AUDIO IN
#7 S-VIDEO IN #8 PC AUDIO IN
USB
PROJECTOR MIC
VIDEO
OUT
AUDIO AUDIO
OUT
S-VIDEO
IN
VIDEO
RGB IN AUDIO IN RS232
Side Panel
#9 PROJECTOR Connector #10 COMPUTER OUT
#11 COMPUTER IN #12 POWER OUT/IN
#13 PROJECTOR RS232 Connector #14 MIC IN
#15 USB Connector #16 RGB IN
#17 RGB AUDIO IN #18 COMPUTER RS-232 Connector
8
PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
AUDIO IN
S-VIDEO
7
IN
AUDIO
18
6

BASIC PREPARATIONS
1. Use one hand holds the base of the visualizer, use the other hand
carefully lift up the camera stand of the unit.
2. Open the arm lights and rotate the camera head until they are in
proper positions.
Arm lights
3. Making connections:
Before making any connection, turn off all the power, including
power of the visualizer and the equipment to be connected.
Step 1: Connect power source.
First connect the power cord to the 12V IN connector.
Step 2: Connect to the projector.
7

Connect visualizer’s PROJECTOR port to the RGB IN port of the
projector port with the RGB cable provided together the visualizer.
Projector
RGB Input
Screen
RS232 Cable
Side Panel
MIC
PROJECTOR USB RGB IN AUDIO IN RS232
PROJECTOR
Rear Panel
S-VIDEO
OUT
AUDIO VIDEO
OUT
AUDIO
AUDIO VIDEO
IN
S-VIDEO
IN
AUDIO IN OUT -COMPUTER- IN OUT-12V- IN
If you need control a projector with the visualizer, please use the
projector RS232 cable (6-pin to 9-pin) to make the connection
between the projector and the visualizer. Some projector models may
require a converter cable in addition to this standard RS232 cable to
connect to the projector control port, for the pin locations and shape
of some projectors’ control port connector may be different from the
connector of a standard RS232 cable. After the visualizer is
connected to the projector, you can control projector’s power on,
standby and input selection with the visualizer. (For projectors other
than Hitachi, the Code Writing program that comes with the visualizer
is required for this function.)
Step 3: Connect to a desktop computer.
8

Note: You can connect a laptop computer to the RGB IN port of side
panel with a RGB cable.
Step 4: Connect to the first video equipment with S-Video input.
RS232
Cable
MIC
PROJECTOR
Computer
USB RGB IN AUDIO IN RS232
Side Panel
RGB Output
To the
Monitor
USB Connector
AUDIO IN
OUT
AUDIO VIDEO
OUT
VIDEOAUDIOS-VIDEO
IN
S-VIDEO
AUDIO
IN
PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Rear Panel
Output of the S-Video signal from the visualizer to the projector is
already done in the step 2, where the RGB cable comes out from the
visualizer and goes to the projector. After the connections as steps 2,
3, 4 are made, input signals from the computer、visualizer CCD and
S-Video are going to the RGB1 input on the projector and will be
displayed on the projector screen as RGB1. These signals can be
seen in turn when pressing “CCD/PC1/PC2” and “S-VIDEO/VIDEO”
on the control panel of the visualizer.
AUDIO
IN
S-VIDEO
OUTOUT
VIDEO AUDIO VIDEO
Video equipment
S-Video out
Audio out
Audio input
(or amplifier/speaker equipment)
Projector
S-Video Cable
S-VIDEO
AUDIO
IN
PROJECTOR
Rear Panel
AUDIO IN OUT-12V- IN
OUT -COMPUTER- IN
Remarks: RGB IN signal can not go to S-VIDEO OUT or VIDEO
OUT port to be displayed on the screen.
9

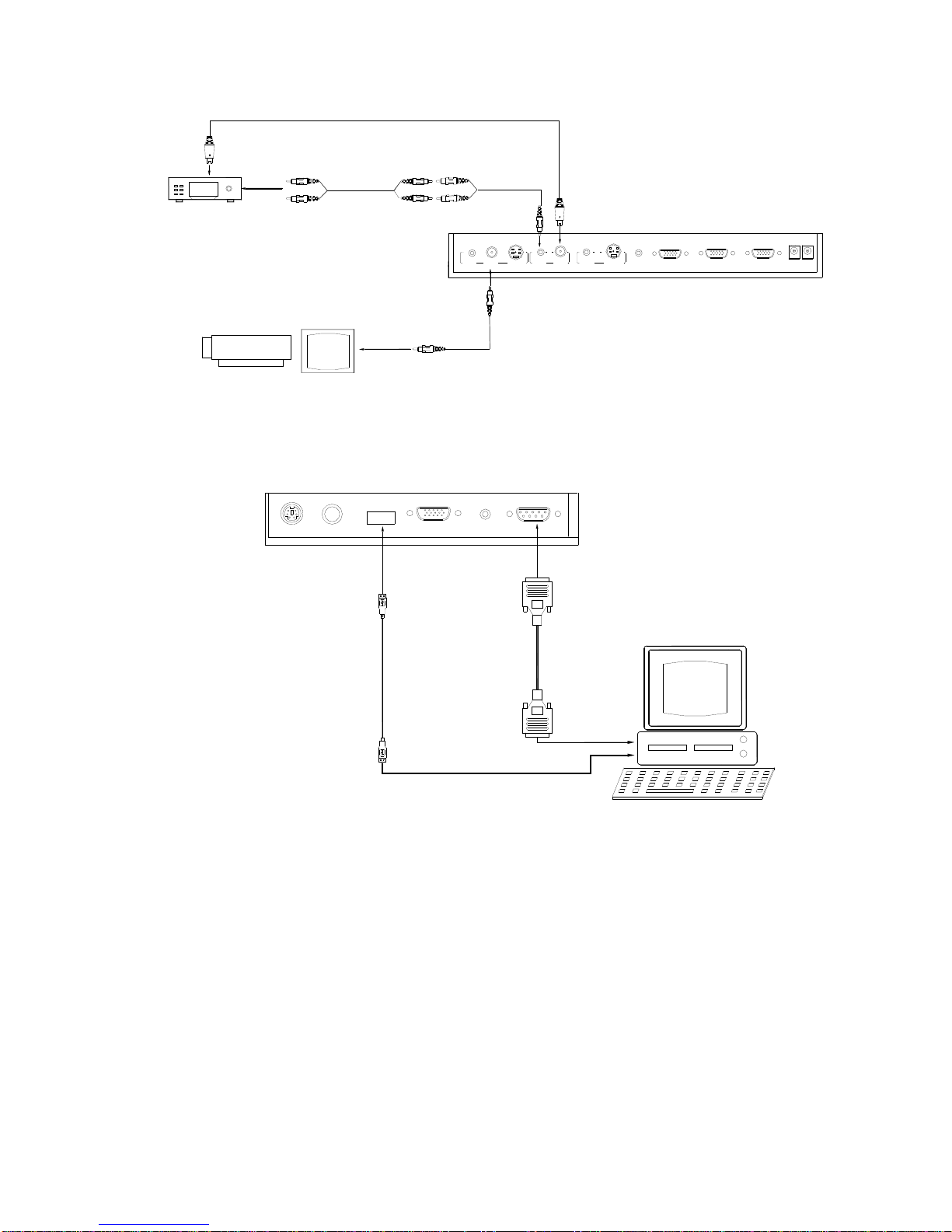

Step 5: Connect to the second video equipment with video input.
Step 6: Connections for external control from the computer.
Use the computer RS232 cable (9-pin to 9-pin) to make the
connections shown below to control the visualizer from an external
computer.
USB connection enables capturing still images / video streams from
the visualizer to the computer. Special software is required for this
operation.
4. Turn on the power by pressing the “POWER” button.
RS 232 connector
USB connector
of the computer
of the computer
USB cable
RS-232 cable
Side Panel
USB
PROJECTOR MIC RGB IN AUDIO IN RS232
Video in
Projector Color monitor
S-VIDEO
AUDIO
OUTOUT
AUDIO VIDEO S-VIDEO VIDEO
IN IN
AUDIO
Rear Panel
AUDIO IN PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Video equipment
Audio out
Video Cable
Video out
10
