RADWAG PUE HY10 User manual

2
NOVEMBER 2020

3
PRECAUTIONS
Prior to installation, use or maintenance activities, carefully read this user
manual. Use the PUE HY10 Indicator only as intended.
Prior to the first use, carefully read this user manual. Use the device only
as intended.
Protect the indicator against considerable temperature variation, solar and
UV radiation, substances causing chemical reactions.
Do not operate the touch panel using sharp-edged tools (knife,
screwdriver, etc.).
The indicator must not be operated in hazardous areas endangered with
explosion of gases, and in dusty environments.
If the platform is to be operated in a place characterized with conditions
that are difficult due to electrostatics (e.g. printing house, packing centre,
etc.), you must connect it to the earth wire. To enable this, the device
features functional earthing terminal, marked with symbol.
In case of damage, immediately unplug the device from the mains.
Indicators to be decommissioned must be decommissioned in accordance
with valid legal regulations.
Do not let battery discharge in case of prolonged storage of the device
in low temperature.
A worn out battery can be replaced only by the manufacturer or by
the authorized service.
Accumulators do not belong to regular household waste. The European
legislation requires discharged accumulators to be collected and disposed
separately from other communal waste with the aim of being recycled.
Symbols on batteries identify harmful compounds: Pb = lead,
Cd = cadmium, Hg = mercury. Dear user, you are obliged to dispose of the
worn out battery as regulated.
Wi-Fi ® is a registered trademark of Wi-Fi Alliance. The trademark used
in this document serves informative purposes, it does not stand for
compliance of any products with products certified by Wi-Fi® Alliance
organisation.

4
Contents
1. INTENDED USE .................................................................................................................................................5
2. WARRANTY CONDITIONS ...............................................................................................................................5
3. MAINTENANCE.................................................................................................................................................. 6
3.1. Cleaning Stainless Steel Components........................................................................................................6
3.2. Cleaning ABS Components.........................................................................................................................6
4. MECHANICAL DESIGN..................................................................................................................................... 6
4.1. Dimensions..................................................................................................................................................6
4.2. Connectors ..................................................................................................................................................7
4.3. Pins Assignment..........................................................................................................................................8
4.4. Inputs / Outputs ...........................................................................................................................................8
4.4.1. Technical Specifications................................................................................................................... 9
4.4.2. I/O Schematic Diagrams ..................................................................................................................9
4.5. Operation Panel.........................................................................................................................................10
4.6. Technical Specifications............................................................................................................................11
5. INDICATOR INSTALLATION ..........................................................................................................................12
5.1. Unpacking and Installation........................................................................................................................12
5.2. Start-Up .....................................................................................................................................................12
6. HOME SCREEN ...............................................................................................................................................12
6.1. Top Bar......................................................................................................................................................13
6.2. Workspace.................................................................................................................................................13
7. OPERATING THE MENU.................................................................................................................................14
7.1. Operation Panel.........................................................................................................................................14
7.2. Return to Weighing....................................................................................................................................15
8. INSTALLER INSTRUCTION............................................................................................................................15
8.1. Connecting Platform Equipped With 6-Wire Load Cells...........................................................................15
8.2. Connecting Platform Equipped With 4-Wire Load Cells...........................................................................16
8.3. Connecting Signal Cable's Shield With the Platform ................................................................................17
8.3.1. Checking Connection of Load Cell's Shield...................................................................................17
9. FACTORY SETUP............................................................................................................................................17
9.1. Factory Setup Access ...............................................................................................................................18
9.2. Global Parameters.....................................................................................................................................18
9.3. Factory Parameters...................................................................................................................................20
9.4. Metrological Data.......................................................................................................................................21
9.5. Factory Adjustment....................................................................................................................................22
9.5.1. External Adjustment .......................................................................................................................22
9.5.2. Start Mass Determination...............................................................................................................22
9.6. Linearity Correction ...................................................................................................................................23
9.6.1. Linearity Determination ..................................................................................................................23
9.6.2. Corrections .....................................................................................................................................23
9.6.3. Deleting Linearity............................................................................................................................24
9.7. Gravitational Correction.............................................................................................................................24
9.7.1. Entering the Gravitational Correction Value...................................................................................24
9.7.2. Gravitational Acceleration Method .................................................................................................25
9.7.3. Latitude Method..............................................................................................................................26
9.8. Declaring Verified Scale............................................................................................................................27
10. OPTIONAL EXTENSION MODULES............................................................................................................27
10.1. Additional 12IN/12OUT ...........................................................................................................................27
10.2. 4IN/4OUT Module ...................................................................................................................................29
10.3. AN Analog Output Module ......................................................................................................................30
10.4. Additional Platform Module, DP6 ............................................................................................................32
10.5. RS485 Module (309R).............................................................................................................................33
10.6. PROFIBUS module .................................................................................................................................33
10.7. PROFINET Module .................................................................................................................................34
10.8. Additional Modules Positioning...............................................................................................................35
10.9. Exclusions Regarding Installation of Additional Modules .......................................................................36
11. ANNEX A - Communication with Modules Taking Function of an Additional Weighing Platform...... 36
11.1. Communication with a Weighing Module Supporting 'Scale with NT Command' Protocol' ...................36
11.2. Communication with MW-01 Weighing Module......................................................................................38
11.3. Communication with HRP Weighing Module..........................................................................................42
12. DIAGRAMS OF CONNECTION CABLES.....................................................................................................47

5
1. INTENDED USE
PUE HY10 weighing indicator is a device intended to be a part of construction
of industrial scales based on load cells and electromagnetic modules.
The PUE HY10 is equipped with stainless steel housing of IP 68/69 ingress
protection. It can be operated in places where there is high humidity, its
operating temperature range is: -10°C - +40°C. Colour 10.1" capacitive screen
with touch panel enables intuitive operation, making use of keyboard
unnecessary.
Standard PUE HY10 indicator is equipped with 2 RS232, 2 USB, 4In/Out
connectors and Ethernet port. It can connect up to 6 weighing platforms
(2 x internal weighing module + 4 x external weighing module). It cooperates
with barcode scanners, receipt printers, label printers, RFID readers and PC
accessories (mouse, keyboard, USB flash drive).
2. WARRANTY CONDITIONS
A. RADWAG feels obliged to repair or exchange all elements that appear
to be faulty by production or by construction.
B. Defining defects of unclear origin and means of their elimination can only
be realized with assistance of the manufacturer and user
representatives.
C. RADWAG does not bear any responsibility for damage or losses
resulting from unauthorized or inadequate performing of production
or service processes.
D. The warranty does not cover:
mechanical damage caused by product exploitation other than
intended, damage of thermal and chemical origin, damage caused
by lightning, overvoltage in the power grid or other random event,
inappropriate cleaning habits.
E. Loss of warranty takes place if:
a repair is carried out outside RADWAG authorized service point,
service claims intrusion into mechanical or electronic construction
by unauthorized people,
other than original version of the operating system is installed,
the scale does not bear security seal stickers.
F. For detailed warranty conditions read the service card.
G. Contact with the central authorized service: [phone].

6
3.MAINTENANCE
3.1. Cleaning Stainless Steel Components
Avoid using cleansers containing any corrosive chemicals, e.g. bleach (with
chlorine). Do not use cleansers containing abrasive substances. Always
remove the dirt using microfiber cloth to avoid damage of protective coating.
Daily cleaning routine (removal of small stains):
1. Remove the dirt using cloth dipped in warm water.
2. For best results, add a little bit of dishwashing detergent.
3.2. Cleaning ABS Components
To clean dry surfaces and avoid smudging, use clean non-colouring cloths
made of cellulose or cotton. You can use a solution of water and detergent
(soap, dishwashing detergent, glass cleaner). Gently rub the cleaned surface
and let it dry. Repeat the cleaning process if necessary.
In the case of hard to remove contamination, e.g. residues of adhesive, rubber,
resin, polyurethane foam etc., you can use a special cleaning agents based on
a mixture of aliphatic hydrocarbons that do not dissolve plastics. Before using
the cleanser for all surfaces we recommend carrying out tests. Do not use
cleansers containing abrasive substances.
4. MECHANICAL DESIGN
4.1.Dimensions
PUE HY10 indicator, overall dimensions

7
4.2.Connectors
PUE HY10 indicator, connectors
1
Grounding terminal.
2
Power cord cable gland.
3
USB A connector.
4
USB M12 4P connector.
5
RS232(1) M12 8P connector.
6
Ethernet RJ45 connector.
7
4OUT M12 8P connector.
8
4IN M12 8P connector.
9
Platform 1 cable gland.
10
Platform 2 cable gland.
11
Spot intended for cable gland / additional equipment connector (Vk3, 12IN, PROFIBUS
IN) –mounted depending on indicator type, by default plugged.
12
Spot intended for cable gland / additional equipment connector (Vk2, 12OUT, PROFIBUS
OUT) –mounted depending on indicator type, by default plugged.

8
13
Spot intended for cable gland / additional equipment connector (Vk1, RS485, Analog
OUT) –mounted depending on indicator type, by default plugged.
14
RS232(3) M12 8P connector - optional.
15
RS232 (2) connector.
16
Power supply switch.
4.3.Pins Assignment
RS232
Pin1 –NC
Pin2 –RxD
Pin3 –TxD
Pin4 –NC
Pin5 –GND
Pin6 - +5VDC
Pin7 –GNDZ
Pin8 –24VDC
USB
Pin1 –Vcc
Pin2 –D-
Pin3 –D+
Pin4 –GND
PROFIBUS IN
(male)
Pin1 –NC
Pin2 –A
Pin3 –NC
Pin4 –B
Pin5 –NC
PROFIBUS OUT
(female)
Pin1 - +5V
Pin2 –A
Pin3 –GND
Pin4 –B
Pin5 –NC
4.4.Inputs / Outputs
Standard HY10 HRP terminal is equipped with 4 optoisolated inputs and
4 semiconductor outputs (solid-state relays)). The signals are fed through
M12 8P connectors.
4OUTPUTS
Pin1 –OUT1
Pin2 –OUT2
Pin3 –OUT3
Pin4 –OUT4
Pin5 –COM
Pin6 –24VDC
Pin7 –GND
Pin8 –NC

9
4INPUTS
Pin1 –IN1
Pin2 –IN2
Pin3 –IN3
Pin4 –IN4
Pin5 –COM
Pin6 –24VDC
Pin7 –GND
Pin8 –NC
4.4.1. Technical Specifications
Output parameters
Output quantity
4
Output type
Solid-state relay
Cable cross-section
0.14 - 0.5 mm2
Maximum output current
0.5 A DC
Maximum output voltage
30 VDC, AC
Input parameters
Input quantity
4
Input type
Optoisolated
Cable cross-section
0.14 - 0.5 mm2
Voltage range
5 - 24 VDC

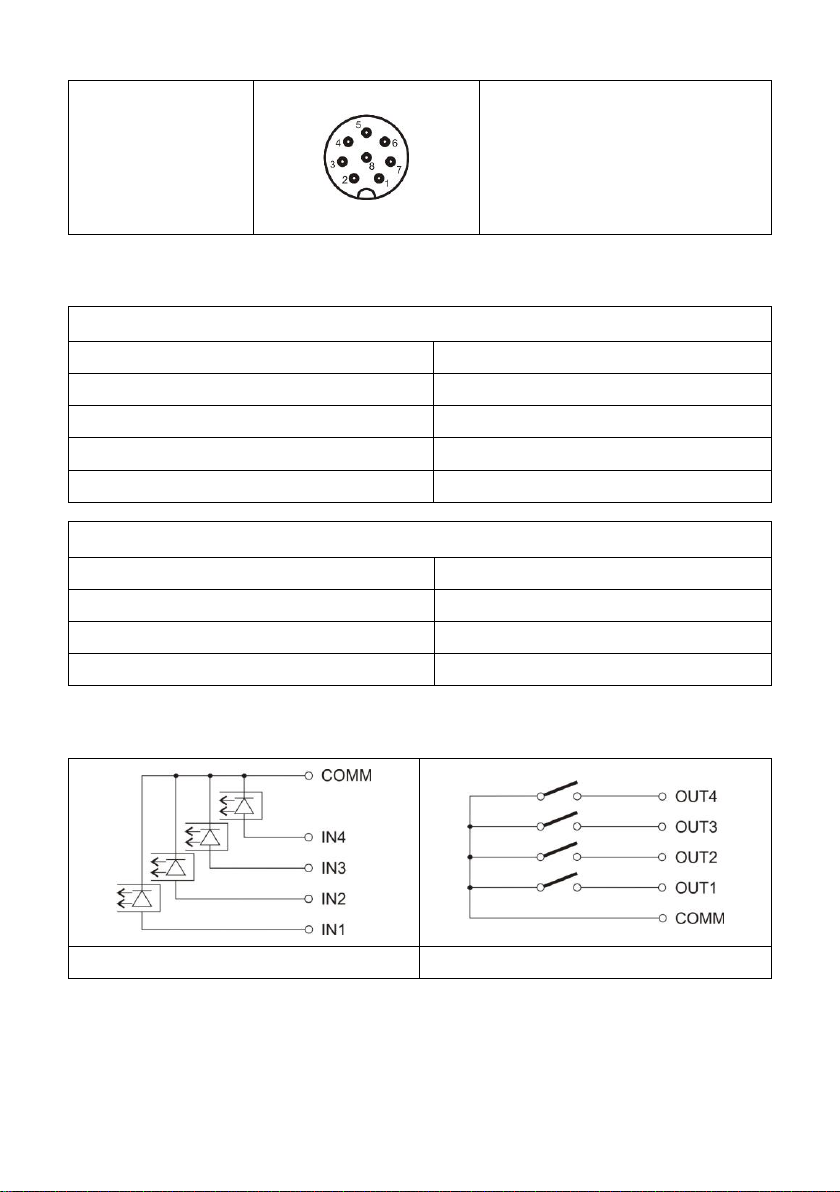

4.4.2. I/O Schematic Diagrams
4 inputs
4 outputs

10

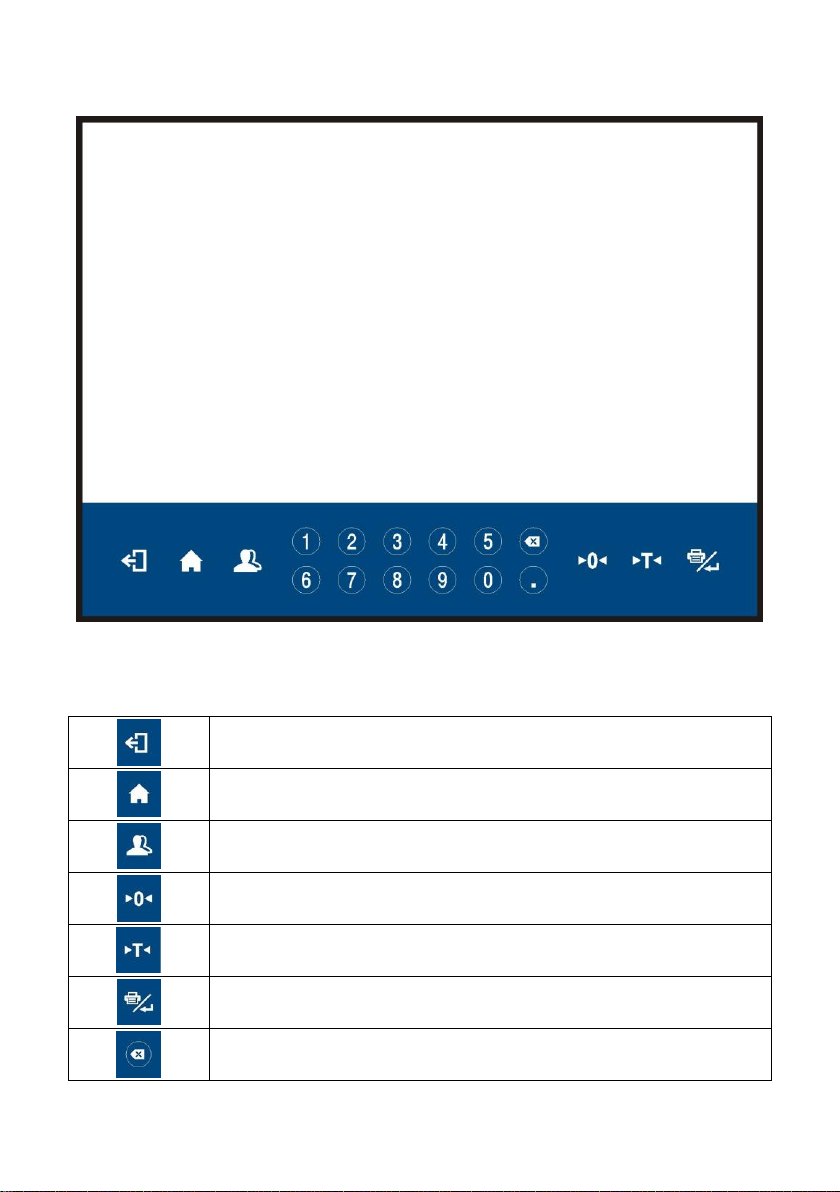

4.5.Operation Panel
PUE HY10 indicator, keypad
Keys
Press to go back
Press to enter the menu.

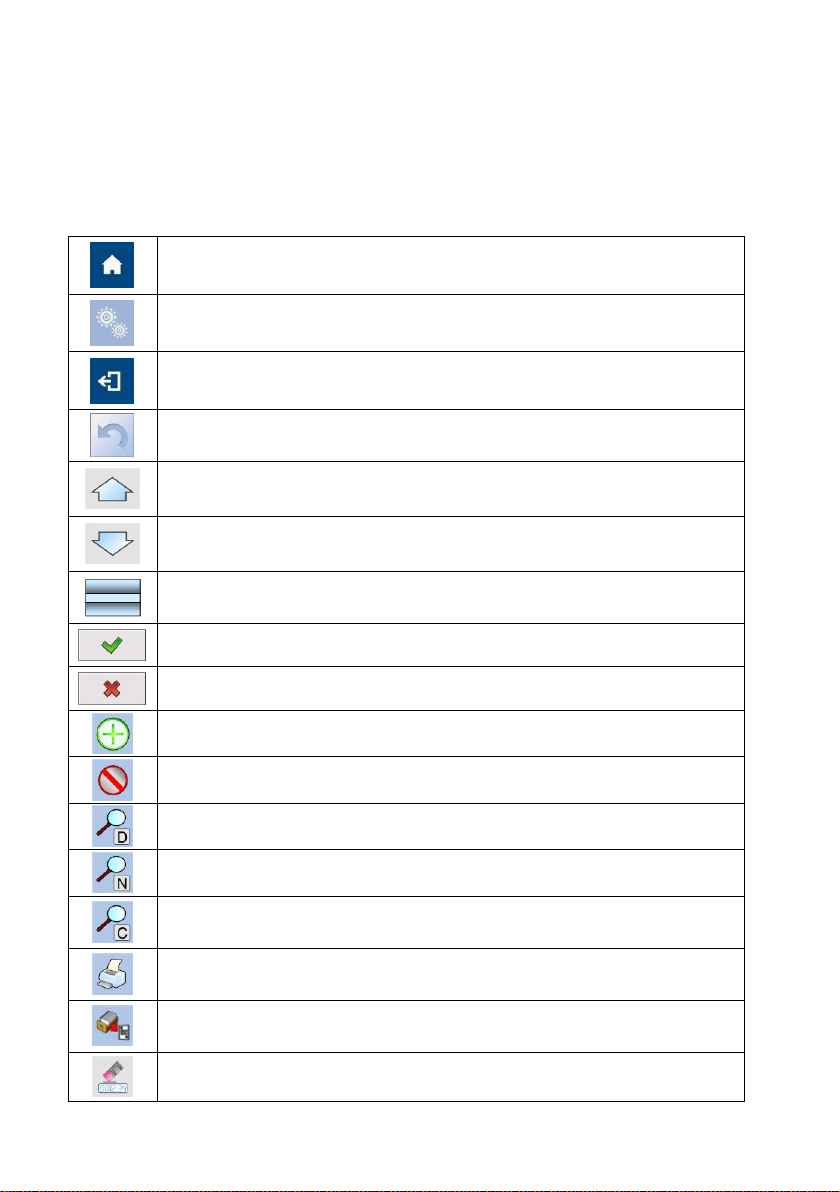

Press to go to the home screen.
Press to log in.
Press to zero the scale.
Press to tare the scale.
Press to send the weighing result to a printer or a computer.
Press to delete the last character.
