Raven SmarTrax User manual

SmarTrax™ Installation Manual
CaseIH STX 275-450 &
New Holland TJ 275-450

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be held responsible or liable for the effects of
atmospheric conditions and sunspot activity on the performance of our products.
Raven Industries cannot guarantee the accuracy, integrity, continuity, or
availability of the GPS signal from the U.S. Department of Defense/NAVSTAR
GPS satellites, the OmniSTAR correction service or the WAAS correction
service.
Raven Industries accepts no responsibility for the use of the signal for other than
the stated purpose. Raven Industries shall not be responsible or liable for
incidental or consequential damages or a loss of anticipated benefits or profits,
work stoppage or loss or impairment of data arising out of the use, or inability to
use, the SmarTrax or any of its components.
Disclaimer

Manual # 016-0190-004
1
C H A P T E R
1
INTRODUCTION
Congratulations on your purchase of the Raven SmarTrax system! This system is designed
to provide cutting-edge, hands-free steering of your machine via GPS coordinates.
CaseIH STX450 Tractor
New Holland TJ450 Tractor

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
2
Basic Kit
Contents
Below you will see the kit contents that you should have received with this SmarTrax
kit.
Quantity Item Description Part Number
1 YAW SENSOR 063-0172-684C
1 BRKT., MTG., SMARTRAXCONT., CASEIH SURVE
Y
107-0171-703
1 CABLE, 20', HYD/OVERRIDE, SMARTRAX, YAW S
E
115-0171-775
1 WELDMENT, BRACKET, HYD., BLOCK, NH TJ & C
A
116-0159-506
1 KIT, HYDRAULIC, SMARTRAX, CASEIH STX/QUAD
T
117-0194-004
1 SWITCH, PRESS., MICRO, H. D., 15-100 BAR ADJ., 422-0000-073
1 VALVE, HYD., CLOSED CENTER LS W/REIELF 334-0003-066
4 SCREW, 10-32 x 3/4", PHILLIPS, STAINLESS STEE
L
311-0007-037
4 BOLT, 5/16-18 x 7/8" HEXHEAD 311-0052-104
2 BOLT, HEX 1/2"-13 UNC x1 311-0058-095
2 BOLT, HEX, M8 x 35mm LONG 311-0070-020
2 NUT, 1/2"-16 312-1001-043
4 NUT, NYLOC, 10-32 312-4000-162
4 WASHER, LOCK, 5/16" 313-1000-019
2 WASHER, LOCK, SPLIT, 1/2" 313-1000-028
2 WASHER, FLAT, 1/2" 313-2300-017
1 MANUAL, INSTALLATION 016-0190-004
1 MANUAL, INSTALLATION, SMARTRAX 016-9001-021
1 LABEL, WARNING, TAMPERING 041-0159-689
1 BRKT., MTG., SMARTRAXCONT., CASE IH SURVE
Y
107-0171-703
3 FTG, ELBOW, 45° SWIVEL, -6 JIC M/F 333-0012-027
2 FTG, ADAPTER, SWIVELRUNTEE, -8 ORFS M/
M
333-0012-028
2 FTG, ADAPTER, SWIVEL RUN TEE, -12 ORFS M/ 333-0012-029
2 FTG. REDUCER, -12 ORFS (F) TO -8 ORFS (M) 333-0012-030
4 FTG., ADAPTER, SWIVEL RUN TEE, -10 ORFS
(M
333-0012-031
4 FTG., REDUCER, -10 ORFS (F) TO -8 ORFS (M) 333-0012-032
3 FTG, ELBOW, 90° SWIVEL, -6 JIC M/F 333-0012-042
1 FTG, ELBOW, 90° SWIVEL, -4 ORFS M/F 333-0012-065
1 FTG, ADAPTER, STR., -6 ORFS
(
M
)
TO -6 SAE O
-
333-0012-084
4HOSE, HYD., -6 JIC (F) TO -8 ORFS (F) 90°, 22" 214-1000-025
1HOSE, HYD., -6 JIC (F) TO -6 ORFS (F), 22" 214-1000-026

Manual # 016-0190-004
3
C H A P T E R
2
SAFETY
Important: Hydraulics are under pressure. Never attempt to
open or work on a hydraulic system with the equipment running.
Care should always be taken when first opening a system that
was previously pressurized.
When disconnecting the hydraulic hoses or when purging is required, be aware
that the hydraulic oil within the machine system may be extremely hot and under
high pressure. Caution must be exercised. Any work carried out on the hydraulic
system must be performed in accordance with the machine manufacturerer’s
approved maintenance instructions. Raven Industries recommends that appropri-
ate protective equipment be worn when working on the hydraulic system. Ob-
jects or materials that are able to bypass the machine’s hydraulic filtration system
will adversely reduce performance and possibly damage the hydraulic valves.
Do not reverse the power leads. Doing so will cause severe damage to the
equipement. Always check to make sure that the power leads are connected to
the right polarity as marked. Ensure that the power cable is the last cable to be
connected.
Hydraulic
Safety
Requirements
Electical
Safety
Requirements

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
4
We welcome your feedback about this manual. If you have any comments or
suggestions for improvement, please let us know by contacting our Customer
Support Center by any of the following methods:


Via phone: [phone]


Viamail:
Raven Industries
FlowControl Division
205 E. 6th St.
Sioux Falls, SD 57104


Via email: [email protected]
Contacting
Raven
Industries

Manual # 016-0190-004
5
Installing
Steering Assist
Valve Bank &
Steering
Override
Pressure
Switch
C H A P T E R
3
MOUNTING THE UNIVERSAL BRACKET AND VALVE
1. The SmarTrax Steering Assist Valve Bank and Steering Override
Pressure Switch are to be mounted on the supplied bracket.
2. The mounting point for the SteeringAssist Valve Bank & Steering
Override Pressure Switch is located between the front of the tractor
cab and engine bay, directly below the tractor Steering Control Unit
(SCU).
SteeringAssist Valve Bank mounting location for CASE STX275-450
Series tractors.
Tractor Engine
Cover
Smartrax Valve Ban
k
Mounting Location

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
6
Mountin
g
location for
Smartrax Valve Bank
SteeringAssist Valve Bank mounting location for New Holland
TJ275-450 Series tractors.
SteeringAssist Valve Bank Mounting Bracket mounting point

Manual # 016-0190-004
7
Steering Control
Unit(SCU)
Port LS
Port R
Port L
Port T
Port P
SCU ports before SmarTrax steering installation

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
8
Notes:

Manual # 016-0190-004
9
C H A P T E R
4
HYDRAULICS
1. TheTank hose (P/N 214-1000-025) should be the first hose to be
connected. The tank hose connectsto the Tport onthe SmarTrax
valve.
2. It then leads up towards the orbital where it will connect to the T port on
the orbital using a supplied tee connector and reducer.
Steering Assist
Valve Bank
Hose Routing
Port T on SCU
SuppliedTank
Hose
Supplied Tank hose connection to port T on SCU

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
10
3. To connect the supplied LS-Steer hose, you must first disconnect the
original tractor LS hose that connects between the orbital and the
tractor Priority Valve. Disconnect this original LS hose only from the
LS Port of the orbital.
4. Remove fitting from the LS PV port on the SmarTrax block and install the
suppliedfitting.
5. Connect the supplied LS-steer hose (P/N 214-1000-026) to the LS-Steer
port on the SmarTrax Valve. Connect the opposite end of the hose to the
Load Sense Port on the orbital.
6. Use the original LS hose (that was previously removed from the
orbital), to connect directly to the LS-PV port on the SmarTrax Valve.
7. The Left-Steer hose (P/N 214-1000-025) connects to the A port of the
SmarTrax Valve and leads up towards the orbital where it will connect to
the orbital’s left steer port using a supplied tee connector.
8. The Right-Steer hose (P/N 214-1000-025) connects to the B port of the
Valve Bank and leads up towards the orbital where it will connect to the
orbital’s right steer port using a supplied tee connector and reducer fitting.
LS Connection
Supplied LS-Steer hose connection to port LS on SCU

Manual # 016-0190-004
11
9. The supplied Pressure hose (P/N 214-1000-025) connects to the P
port of the SmarTrax Valve and leads up towards the orbital where it con
nects to the Pressure port on the orbital using a supplied tee connector and
reducer fitting.
PortPonSCU
Supplied
Pressure Hose
Supplied Pressure hose connection to port P on SCU
Connect the Pressure Switch directly to the PS port on the SmarTrax
Valve.

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
12

Manual # 016-0190-004
13
C H A P T E R
5
STEERING POSITION SENSOR
MountingtheYawSensor
InstallingtheRavenYawSensorisquickandeasy.Ravenrecommends that
youkeepthefollowingpointsinmindwhileinstallingthesensor:
• Thesensoris notweatherproof.Mount thesensorinside ofthe
machine’scabor driverscompartment.
• Mountthesensor toaflat surfaceparalleltotheground withthe
Ravenlogofacingup.Thefloorofthecabisgenerally ideal.
• Oncemounted,thesensorshouldremainfixedinrelation tothe
vehicle.Thesensor shouldnotbecome looseorrotatedue tomachine
vibrationormovement.
• Thesensorshouldalsobemountedina locationwhereit willnotbe
kickedorjarredduringnormalequipmentoperation.
• Thecabledoesnot need tobeorientedin any waytothedirection of
travelofthe vehicle.Mountthe sensortowith thecablerouted toavoid
trippinghazardsor damagingthe cableor yawsensor.

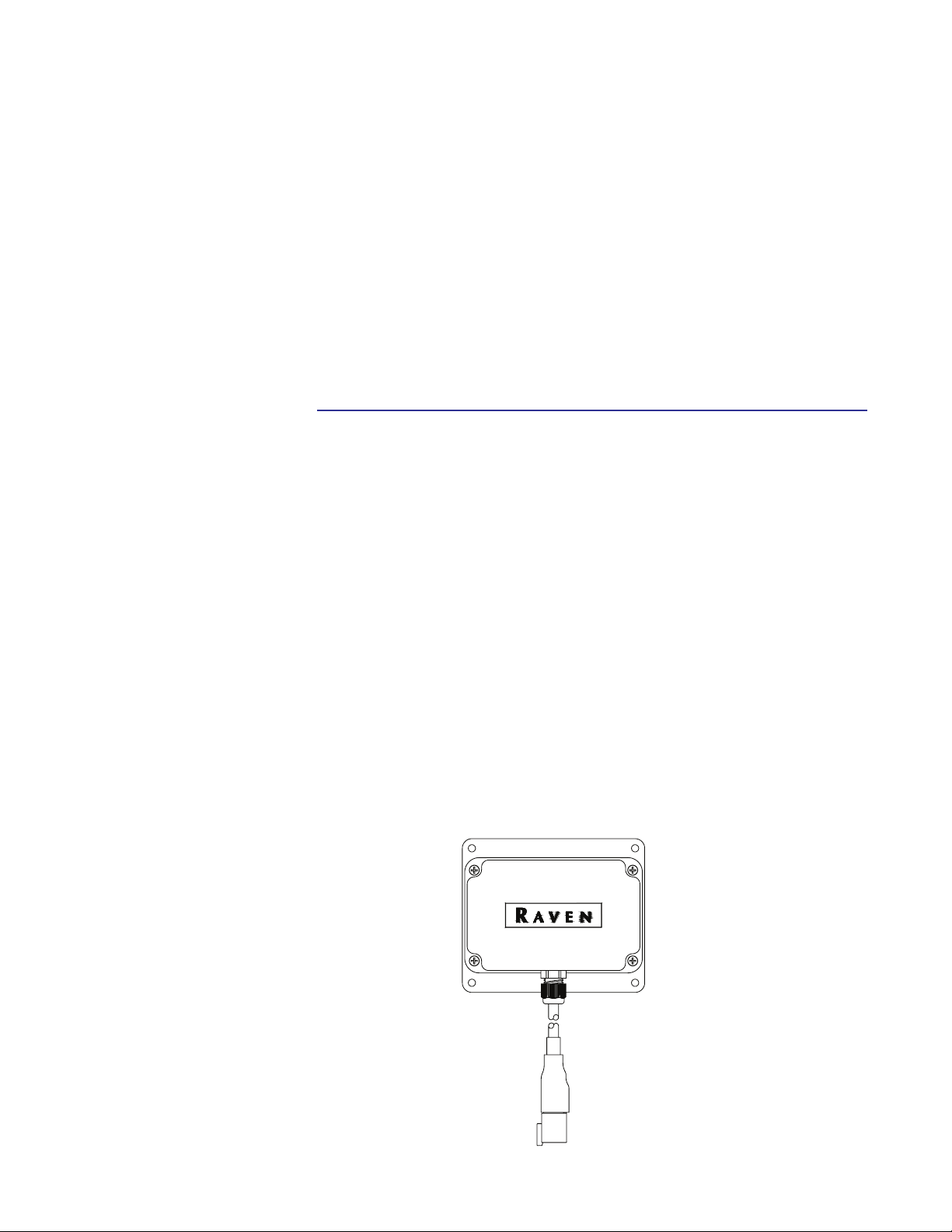

Yaw Sensor
Installation

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
14
Wiring
Connections
Attach the wiring harness to the SmarTrax valve coil, pressure switch, and SPS.
Route the harness into the cab, securing it away from moving parts and heat
sources. For more instructions, refer to the Universal Kit Manual. Be sure the
rubber gasket is installed on the pressure switch connection.
The supplied SmarTrax controller bracket can be used to mount the controller in
the cab. The bracket attaches to the right A post pillar using the mount located
behind the small cover piece.

Manual # 016-0190-004
15
After installing the SmarTrax on your machine, always follow these start-up
procedures.
Turn the wheels fully from side to side numerous times to remove air
from the hydraulic system.
Important: Time the wheels for a full left to right and
right to left time of approximately 8 - 10 seconds. Refer
to the Universal Kit Manual for additonal instructions on
this.
Adjust the pressure switch to the most responsive setting. Refer to the
Universal Kit Manual for instructions on this.
C H A P T E R
6
START-UP PROCEDURES

CaseIH STX275-450/New Holland TJ275-450 SmarTrax Installation Manual
16
Notes:

Raven Industries will not assume any expense or liability for repairs
made outside our facilities without written consent. Raven Industries
is not responsible for damage to any associated equipment or
products and will not be liable for loss of profit or other special
damages. The obligation of this warranty is in lieu of all other
warranties, expressed or implied, and no person or organization is
authorized to assume any liability for Raven Industries.
Damages caused by normal wear and tear, misuse, abuse, neglect,
accident, or improper installation and maintenance are not covered
by this warranty.
What Does this Warranty Cover?
How Long is the Coverage Period?
How Can I Get Service?
What Will Raven Industries Do?
What is not Covered by this Warranty?
Bring the defective part and proof of purchase to your Raven Dealer.
If your Dealer agrees with the warranty claim, the Dealer will send the
part and proof of purchase to their distributor or to Raven Industries
for final approval.
Upon confirmation of the warranty claim, Raven Industries will, at our
discretion, repair or replace the defective part and pay for return
freight.
RAVENINDUSTRIES
Limited Warranty
This warranty covers all defects in workmanship or materials in your
Raven Applied Technology Product under normal use, maintenance,
and service.
Raven Applied Technology Products are covered by this warranty for
12 months after the date of purchase. This warranty coverage applies
only to the original owner and is nontransferable.

Notice: This document and the information provided are the property of Raven Industries, Inc. and may only be used as authorized
by Raven Industries, Inc. All rights reserved under copyright laws.
CaseIH STX 275-450 & New Holland TJ 275-450
SmarTrax™ Installation Manual
(P/N 016-0190-004 Rev F 2/09)
Raven Industries Toll Free (U.S. and Canada): (800)-243-5435
Applied Technology Division or Outside the U.S. :1 605-575-0722
P.O. Box 5107 Fax: [phone]
Sioux Falls, SD 57117-5107 www.ravenprecision.com
[email protected]
