Raven TC1 User manual

Copyright 2019
TC1/HDU Installation
Manual for Buhler
Versatile Row Crop Steer-
Ready (MY2015 & Newer)
016-5031-103 Rev. B 11/2019 E33670

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-5031-103 Rev. B i
Chapter 1 Important Safety Information............................................................................. 1
Hydraulic Safety ...........................................................................................................................................................2
Electrical Safety ............................................................................................................................................................2
Chapter 2 Introduction............................................................................................................. 3
Updates ...........................................................................................................................................................................4
Preparing for Installation ..........................................................................................................................................4
Recommendations .................................................................................................................................................................4
Point of Reference ..................................................................................................................................................................5
Kit Contents ...................................................................................................................................................................5
Chapter 3 Cab Component Installation................................................................................ 7
Install the TC1 and HDU Nodes .............................................................................................................................7
Mount the TC1 and HDU Nodes ......................................................................................................................................7
Install the Node Harness ..........................................................................................................................................9
Bulkhead Connection ..........................................................................................................................................................10
Connect HDU and TC1 .......................................................................................................................................................11
Install the Foot Switch (Optional) ........................................................................................................................11
Route the foot switch cable connector to the node mounting location. .......................................................11
Install the Master Switch ........................................................................................................................................11
Install the Valve Harness ........................................................................................................................................ 12
System Diagrams ......................................................................................................................................................14

Table of Contents
ii TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)

CHAPTER
1
Important Safety Information: 1
CHAPTER1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the TC1™ system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the TC1 system components. Be sure to keep safety labels in good condition
and replace any missing or damaged labels. To obtain replacements for missing or damaged safety labels,
contact your local Raven dealer.
When operating the machine after installing TC1, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate TC1 or any agricultural equipment while under the influence of alcohol or an illegal substance.
• Remain in the operator position in the machine at all times when TC1 is engaged.
• Disable TC1 when exiting the operator seat and machine.
• Do not drive the machine with TC1 enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
TC1 when the safe working distance has diminished.
• Ensure TC1 is disabled prior to starting any maintenance work on TC1 or the machine.
• Do not use hands to check for leaks. Hydraulic fluid under pressure can penetrate the skin and cause serious
injury or death.
• When starting the machine for the first time after installing TC1, be sure that all persons stand clear in case a
hose has not been properly tightened.
• The machine must remain stationary and switched off during TC1 installation or maintenance.
NOTICE
WARNING

CHAPTER 1
2 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
HYDRAULIC SAFETY
• Raven Industries recommends that appropriate protective equipment be worn atall times when working on the
hydraulic system.
• Never attempt to open or work on a hydraulic system with the equipment running. Care should always be
taken when opening a system that has been previously pressurized.
• When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be
extremely hot and under high pressure. Caution must be exercised.
• Any work performed on the hydraulic system must be done in accordance with the machine manufacturer
approved maintenance instructions.
• When installing TC1 hydraulics or performing diagnostics, maintenance, or routine service, ensure that
precautions are taken to prevent any foreign material or contaminants from being introduced into the machine
hydraulic system. Objects or materials that are able to bypass the machine hydraulic filtration system will
reduce performance and possibly damage the TC1 valve.
ELECTRICAL SAFETY
• Always verify that the power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the equipment.
• Ensure that the power cable is the last cable to be connected.
CAUTION

CHAPTER
2
Introduction: 3
CHAPTER2 INTRODUCTION
This manual applies to the following machines. For future reference, write your serial number in the space below.
MAKE: Buhler Versatile
MODEL: Row Crop 265, 295, 315, 335, 365
YEAR: 2015 & Newer
FIGURE 1. Buhler Versatile Row Crop 365

CHAPTER 2
4 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
UPDATES
Software and manual updates are available on the Raven Applied Technology website.
http://www.ravenhelp.com
PREPARING FOR INSTALLATION
Before installing the TC1 system, park the machine where the ground is level, clean, and dry. Bleed pressure from
the hydraulic system and leave the machine turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.
• Ensure the machine hydraulic filters have been recently changed and there are no issues with the machine
hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic hoses, etc.).
• Ensure the machine hydraulic system is using fresh oil and debris is flushed from the hydraulic hoses, valves,
and filters.
Raven Industries recommends the following best practices when installing the TC1 system:
• Use part numbers to identify the parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
• Do not remove plastic caps from a part until it is necessary for installation.
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
-016-5031-103 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.

2
Introduction: 5
INTRODUCTION
KIT CONTENTS
This section contains a list of the components that are included in the TC1 kit. Beforebeginning the TC1 installation,
compare the items in the TC1 kit with the components on this list. If you have questions about the kit, contact your
Raven dealer.
FIGURE 2. TC1/HDU Kit for Versatile Row Crop (MY 2015 and Newer)
+
1

1

1

1

1

1

1

1

1
1

1

1

1
.
1

1

7+,6.,772&217$,17+()2//2:,1*,7(06/,67('%(/2:
(&8+<'5$8/,&'5,9(81,7+'8
(&8,627&/2:63(('67((5,1*
&$%/(+'8569(56$7,/(75$&7256
&$%/(+'89$/9(569(56$7,/(52:&52375$&7256
0
$66(0%/<0$67(56:,7&+56
%5$&.(77&+'89(56$7,/(52:&52375$&7256
&$%/(&$132:(55$9(1,62%8/.+($'729735(&(
3



(19(/23(3/$67,&
+286,1*52&.(56:,7&+%$6(
+286,1*52&.(56:,7&+&29(5
+(;%2/7',10;00
187/2&.1</21,16(57
6&5(:81&;3+,//,36


 47< 2


'(6&5,37,213$57
%2;6+,33,1*
6+((7:$55$17<+(/3










CHAPTER 2
6 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)

CHAPTER
3
Cab Component Installation: 7
CHAPTER3 CAB COMPONENT
INSTALLATION
INSTALL THE TC1 AND HDU NODES
MOUNT THE TC1 AND HDU NODES
1. Mount the TC1 (P/N 063-0174-070) and the HDU (P/N 063-0173-887) nodes to the cab bracket (P/N 107-0172-
648).
FIGURE 1. TC1 and HDU Node Mounting Bracket
2. Secure the nodes to the bracket using the supplied 1/4"-20 lock nuts.
HDU Node TC1 Node

CHAPTER 3
8 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)

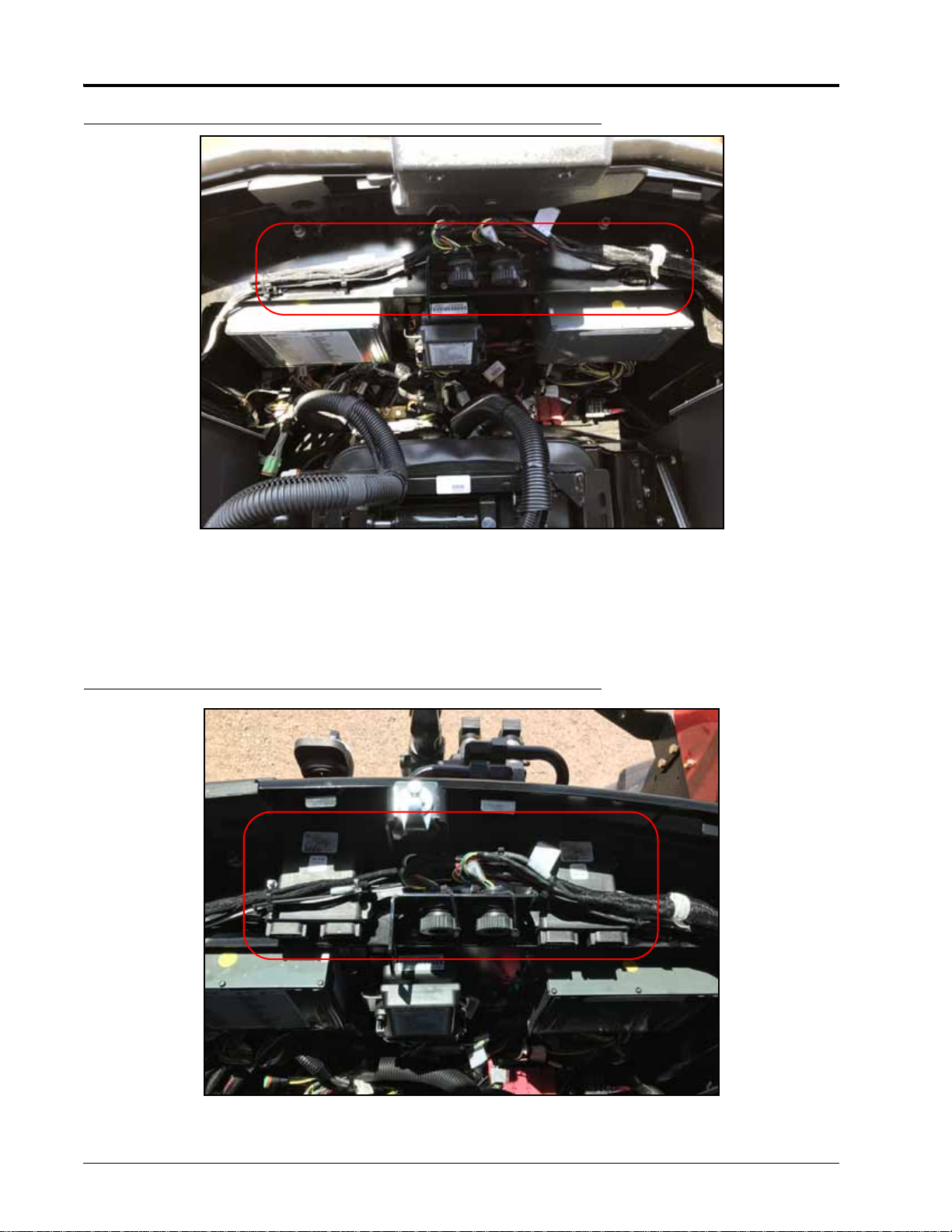

FIGURE 2. Node Mounting Location Before Installation
3. Remove the rear panel behind the operator seat.
4. Remove the two brass bolts securing the bracket with the 2 round connectors.
5. Place the node mounting bracket assembly under the panel latch bracket.
6. Secure with the supplied M6x20mm bolts.
FIGURE 3. Node Mounting Location After Installation

Cab Component Installation: 9
CAB COMPONENT INSTALLATION
INSTALL THE NODE HARNESS

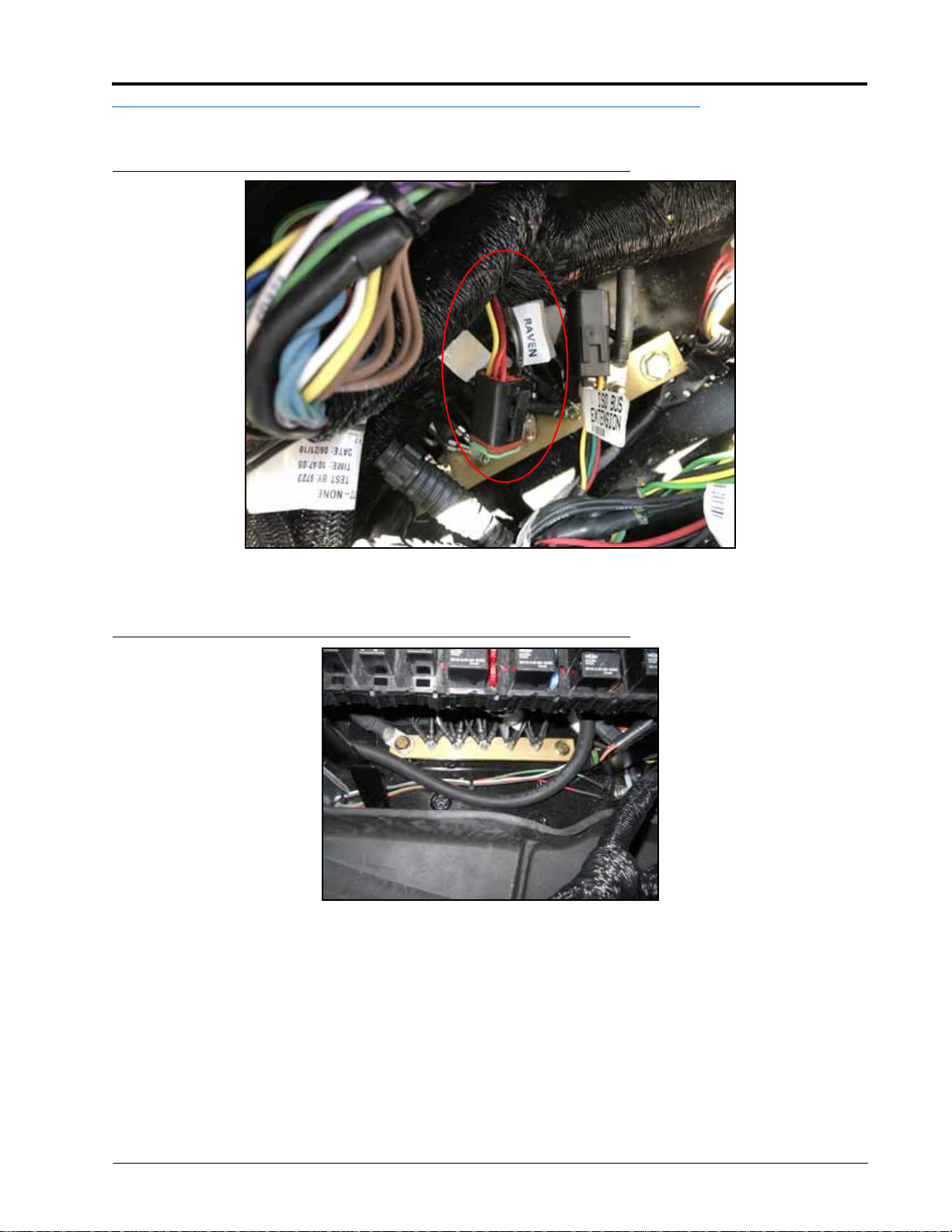

FIGURE 4. 6-Pin Deutsch Connector on Node Harness
1. Connect the PWR/ENABLE 6-pin Deutsch connector to the mating connector on the machine harness.
FIGURE 5. Machine Ground Bus Bar
2. Locate the machine ground bar on the right side of the compartment.
3. Install the two ground wires on the grounding bar.
4. Locate the fuse panel on the right side of the compartment.
5. Remove the bolt from the machine red battery cable.

CHAPTER 3
10 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
FIGURE 6. Positive Bus Bar
6. Install the one power wire from the node cable on the bolt.
NOTE: It may be necessary to cut the ring terminals from the power wires and crimp new ring terminals (P/N
405-0200-052 or 405-0200-053) on the end.
7. Reinstall the machine red battery cable on the bolt.
8. Reinstall the bolt in the fuse panel.
9. Loop and tie-off the REMOTE SWITCH cable connection, securing it with plastic cable ties as necessary.

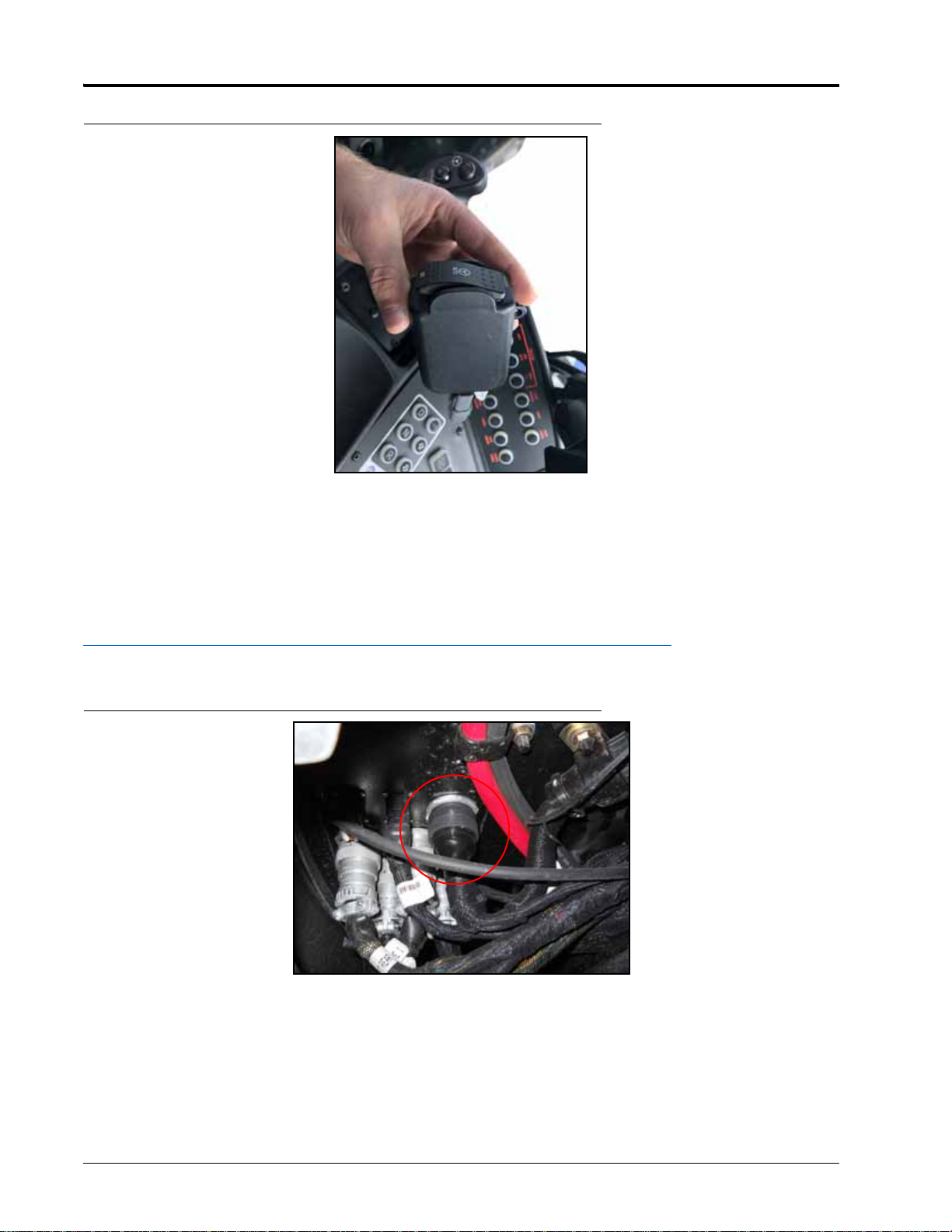

BULKHEAD CONNECTION
1. Remove machine bulkhead connector and insert round connector in the removed bulkhead location.
FIGURE 7. Bulkhead Connection

Cab Component Installation: 11
CAB COMPONENT INSTALLATION
CONNECT HDU AND TC1
1. Connect the 12-pin Deutsch connectors to the mating receptacles on the respective nodes.
NOTE: Nodes are keyed to prevent connecting matching colors to the wrong node.
2. Connect the steering lockout switch to master switch assembly (PN 063-0173-961).

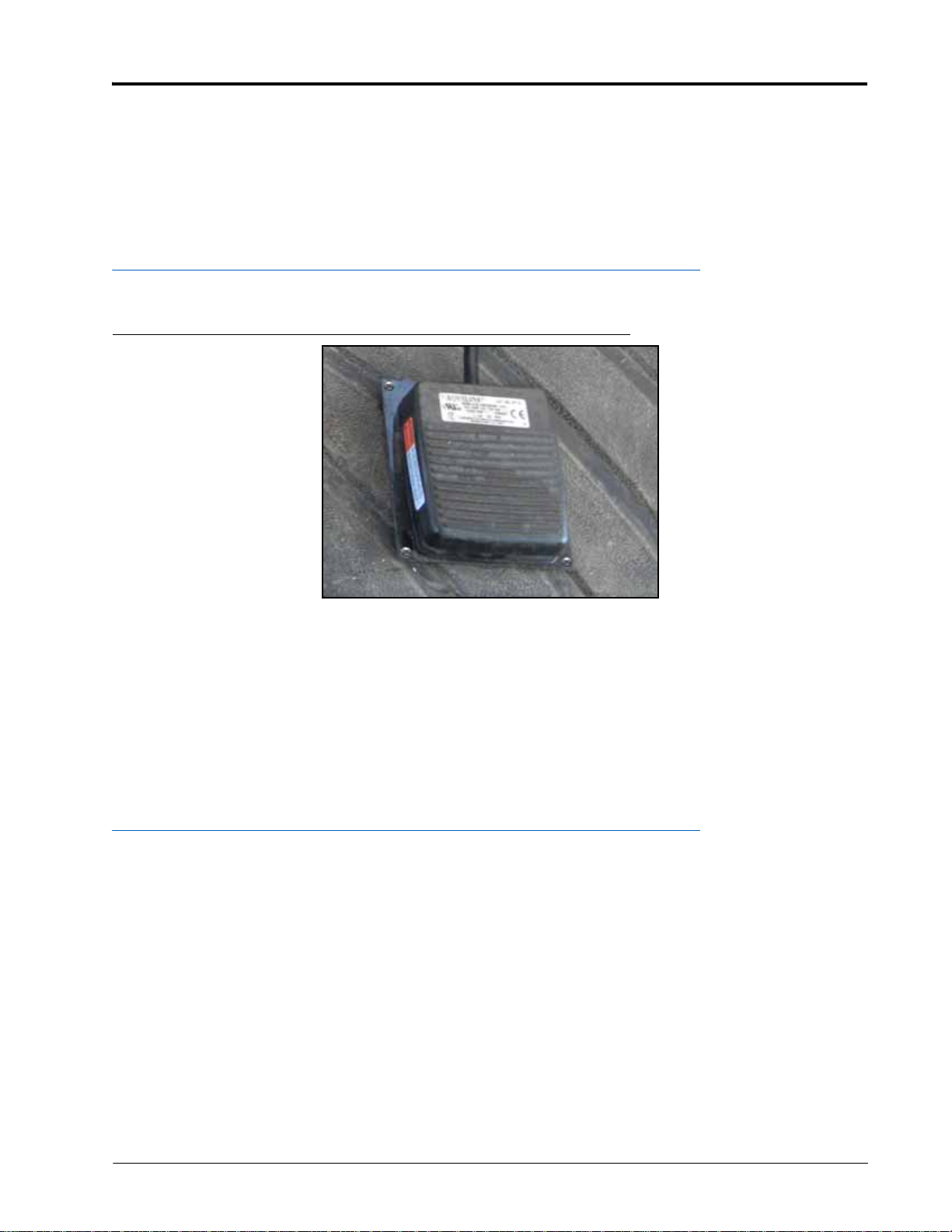

INSTALL THE FOOT SWITCH (OPTIONAL)
FIGURE 8. Foot Switch Installed
1. Select a suitable location for the foot switch (P/N 063-0172-470) to be installed.
NOTE: The foot switch should be installed in a location where the operator has easy access to it and is able
to fully press the pedal.
2. Using the holes in the foot switch as a template, drill holes in the floor of the cab.
3. Secure the foot switch to the floor by installing the supplied screws in each of the mounting holes.
4. Route the foot switch cable connector to the node mounting location.
INSTALL THE MASTER SWITCH
1. Use the provided hardware to install the Master Switch (P/N 063-0173-961) in the provided enclosure.

CHAPTER 3
12 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
FIGURE 9. Master Switch in Enclosure
2. Install the master switch in a convenient location using either self-tapping screws or double sided tape (not
provided).
3. Locate the 4-pin connector on the cab harness (P/N 115-4010-127) labeled “Steering Lockout Switch” and
connect it to the master switch.
INSTALL THE VALVE HARNESS
FIGURE 10. Valve Harness Secured to Bulkhead
1. Connect the round 21-pin connector on the valve harness (P/N 115-4001-159) to the mating bulkhead
connector under the machine cab.
2. Route the valve harness toward the existing valve located under the cab near the right wheel.

Cab Component Installation: 13
CAB COMPONENT INSTALLATION
FIGURE 11. TRANSDUCER and VALVE Connections
3. Connect the TRANSDUCER connector to the pressure transducer installed in Port PS of the valve.
4. Connect the VALVE connector to the open 4-pin Deutsch port on the PVES valve.
FIGURE 12. WAS Connection
5. Route the WAS connectors of the valve harness toward the front axle.
6. Disconnect the machine existing WAS connection.
7. Install the WAS connectors of the valve harness between the machine WAS connectors.
8. Use plastic cable ties to secure any excess cable away from moving parts and heat sources.
TRANSDUCER
Connection
(Transducer Not
Visible)
VALVE
Connection

CHAPTER 3
14 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
SYSTEM DIAGRAMS
FIGURE 13. Valve and Node Harness Wiring Diagram

Index
016-5031-103 Rev. B 15
C
Cab Component Installation
Installing the Foot Switch 11
Installing the Node 7
Installing the Node Harness 9
Installing the Valve Harness 12
System Diagrams 14
E
Electrical Safety 2
H
Hydraulic Safety 2
I
Important Safety Information
Electrical Safety 2
Hydraulic Safety 2
Introduction 3
Kit Contents 5
Preparing for Installation 4
Point of Reference 5
Recommendations 4
Updates 4
K
Kit Contents 5

Index
16 TC1/HDU Installation Manual for Buhler Versatile Row Crop Steer-Ready (MY2015 & Newer)
