VSN Installation Manual
for NH SP 310F / Miller
7310 Front Boom Sprayers
MY19+
016-2022-013 Rev. A 9/2020 E35424

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-2022-013 Rev. A i
Chapter 1 Important Safety Information............................................................................. 1
General ............................................................................................................................................................................2
Instructions for Wire Routing .................................................................................................................................2
Chapter 2 Introduction............................................................................................................. 5
Preparing for Installation ..........................................................................................................................................5
Prerequisites .............................................................................................................................................................................5
Recommendations .................................................................................................................................................................5
Point of Reference ..................................................................................................................................................................5
Updates ...........................................................................................................................................................................6
Kit Contents ...................................................................................................................................................................7
Chapter 3 Installation ............................................................................................................... 9

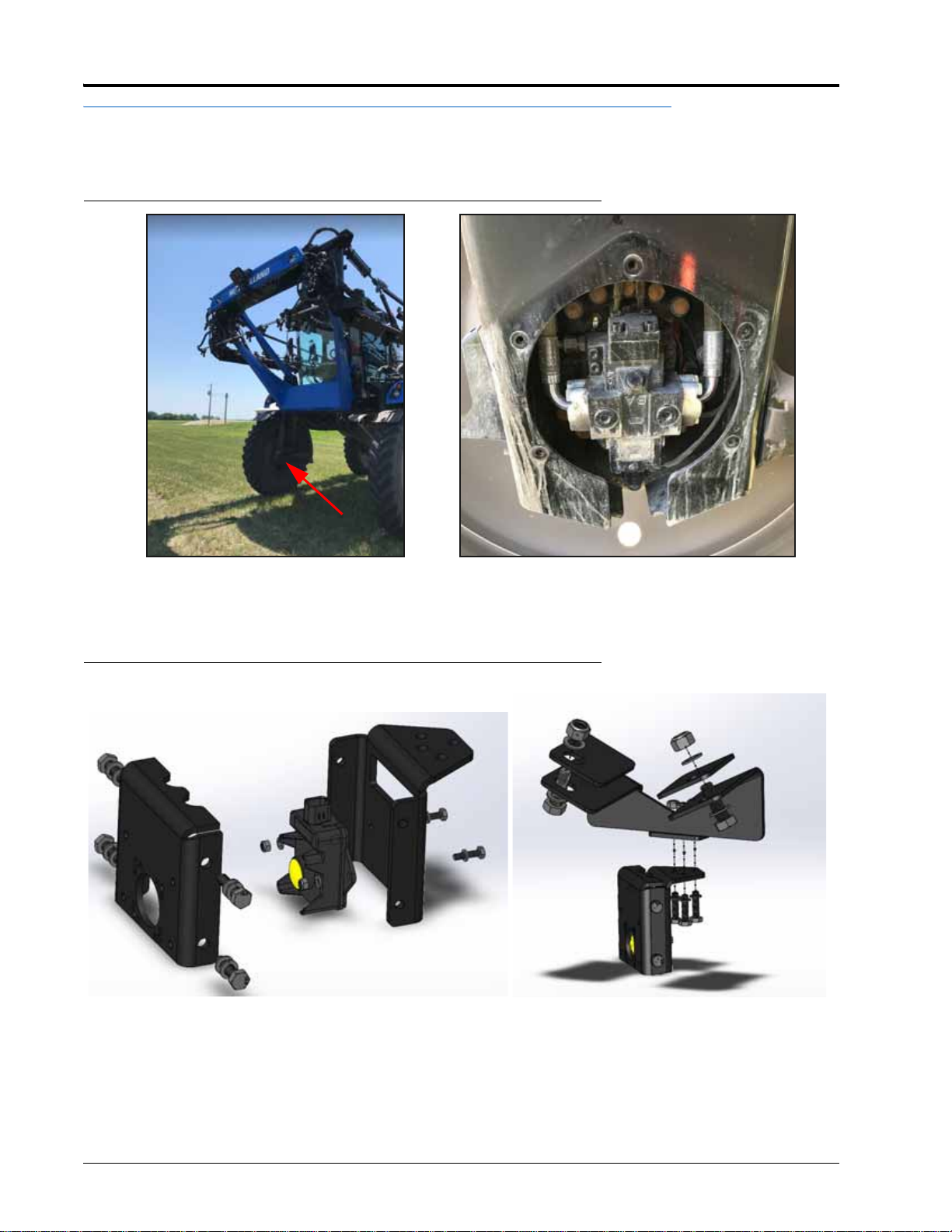

Mount VSN ....................................................................................................................................................................9
Install Radar ................................................................................................................................................................13
System Diagram ........................................................................................................................................................15

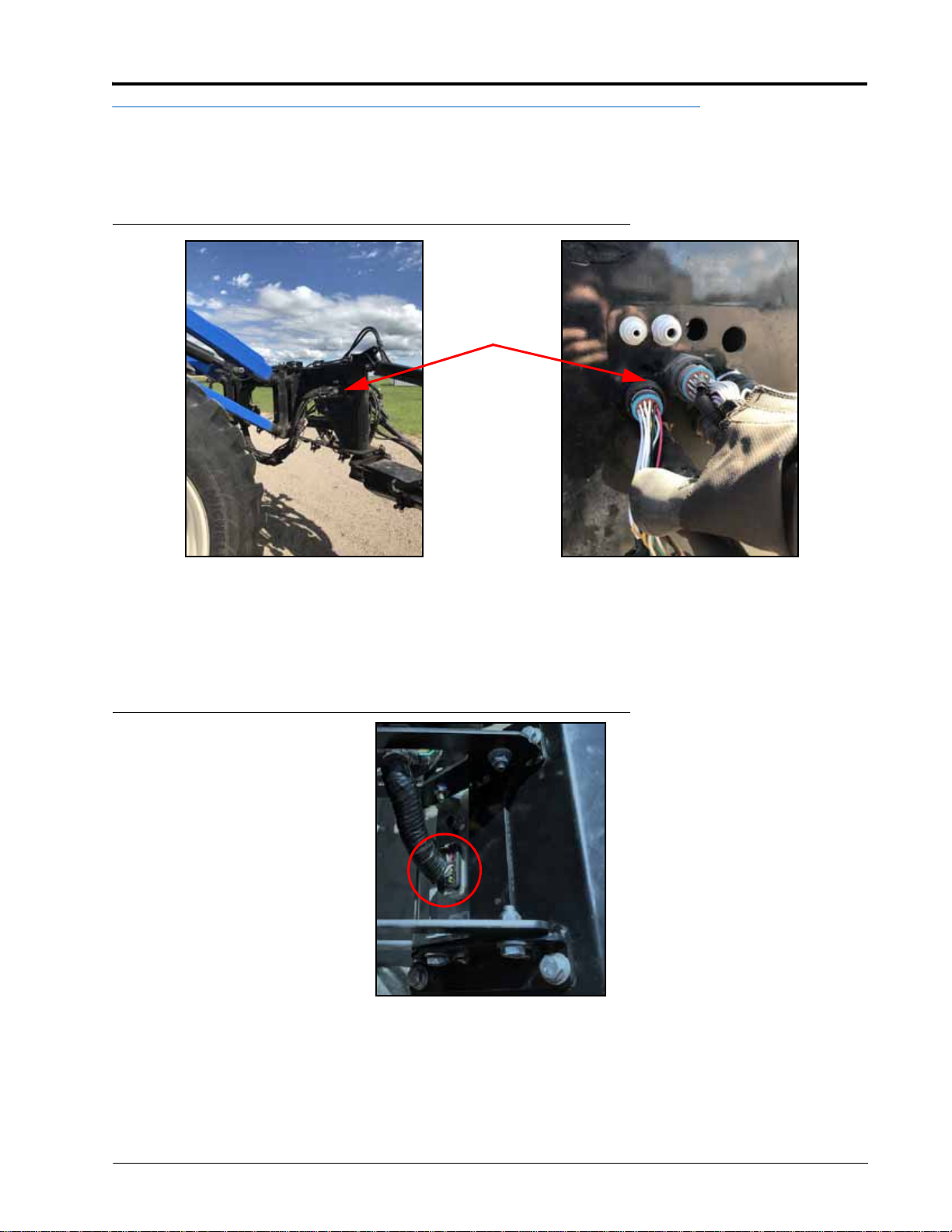

Route the Cables .......................................................................................................................................................16
Cabling and Connection ........................................................................................................................................17
Optional Ethernet Cable ....................................................................................................................................................17
Install Standalone Height Sensor (If Applicable) ..........................................................................................18

Table of Contents
ii VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+

CHAPTER
1
Important Safety Information: 1
CHAPTER 1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the VSN system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the VSN system components. Be sure to keep safety labels in good condition
and replace any missing or damaged labels. To obtain replacements for missing or damaged safety labels,
contact your local Raven dealer.
When operating the machine after installing VSN, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate VSN or any agricultural equipment while under the influence of alcohol or an illegal substance.
• Remain in the operator’s position or a safe working distance away from the booms at all times when VSN is
engaged.
• Disable VSN when exiting from the operator’s seat and machine.
• Do not drive the machine with VSN enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
VSN when the safe working distance has diminished.
• Ensure VSN is disabled prior to starting any maintenance work on VSN or the machine.
• The machine must remain stationary and switched off, with the booms unfolded and supported, during
installation or maintenance.
NOTICE
WARNING

CHAPTER 1
2 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
GENERAL
• Always verify that the power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the equipment.
• Ensure that the power cable is the last cable to be connected.
• A minimum of 12 VDC is required for system operation with a maximum of 15 VDC.
INSTRUCTIONS FOR WIRE ROUTING
The word “harness” is used to mean all electrical leads and cables, bundled and unbundled. When installing
harness, secure it at least every 30 cm (12in) to the frame. Follow existing harness as much as possible and use
these guidelines:
Harness should not contact or be attached to:
• Lines and hoses with high vibration forces or pressure spikes
• Lines and hoses carrying hot fluids beyond harness component specifications
Avoid contact with any sharp edge or abrading surfaces such as, but not limited to:
• Sheared or flame cut edges
• Edges of machined surfaces
• Fastener threads or cap screw heads
• Ends of adjustable hose clamps
• Wire exiting conduit without protection, either ends or side of conduit
• Hose and tube fittings
Routing should not allow harnesses to:
• Hang below the unit
• Have the potential to become damaged due to exposure to the exterior environment. (i.e. tree limbs, debris,
attachments)
• Be placed in areas of or in contact with machine components which develop temperatures higher than the
temperature rating of harness components
• Wiring should be protected or shielded if it needs to route near hot temperatures beyond harness component
specifications
Harnessing should not have sharp bends
Allow sufficient clearance from machine component operational zones such as:
• Drive shafts, universal joints and hitches (i.e. 3-point hitch)
• Pulleys, gears, sprockets
• Deflection and backlash of belts and chains
• Adjustment zones of adjustable brackets
CAUTION

Important Safety Information: Instructions for Wire Routing 3
IMPORTANT SAFETY INFORMATION
1
• Changes of position in RS1 HD and suspension systems
• Moving linkages, cylinders, articulation joints, attachments
• Ground engaging components
For harness sections that move during machine operation:
• Allow sufficient length for free movement without interference to prevent: pulling, pinching, catching or
rubbing, especially in articulation and pivot points
• Clamp harnesses securely to force controlled movement to occur in the desired harness section
• Avoid sharp twisting or flexing of harnesses in short distances
• Connectors and splices should not be located in harness sections that move
Protect harnesses from:
• Foreign objects such as rocks that may fall or be thrown by the unit
• Buildup of dirt, mud, snow, ice, submersion in water and oil
• Tree limbs, brush and debris
• Damage where service personnel or operators might step or use as a grab bar
• Damage when passing through metal structures
IMPORTANT:
•Avoid directly spraying electrical components and connections with high pressure water. High
pressure water sprays can penetrate seals and cause electrical components to corrode or
otherwise become damaged. When performing maintenance:
•Inspect all electrical components and connections for damage or corrosion. Repair or replace
components, connections, or cable as necessary.
•Ensure connections are clean, dry, and not damaged. Repair or replace components,
connections, or cable as necessary.
•Clean components or connections using low pressure water, pressurized air, or an aerosol
electrical component cleaning agent.
•Remove visible surface water from components, connections, or seals using pressurized air or an
aerosol electrical component cleaning agent. allow components to dry completely before
reconnecting cables.

CHAPTER 1
4 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+

CHAPTER
2
Introduction: Preparing for Installation 5
CHAPTER 2 INTRODUCTION
Congratulations on your purchase of the VSN system!
The following instructions are designed to assist with the proper installation of the VSN system. Refer to the VSN
Calibration & Operation Manual (P/N 016-2020-001) for assistance with calibrating and using the VSN system.
PREPARING FOR INSTALLATION
Before installing the VSN system, park the machine where the ground is level, clean, and dry. Turn off the machine
and leave it turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual to complete the installation process.
PREREQUISITES
The following components must be installed with the VSN system.
•RS1™
• Viper® 4 with ROS version 3.4 or newer
Follow the installation instructions provided with these components before installing VSN.
RECOMMENDATIONS
Raven Industries recommends the following best practices when installing or operating the VSN system for the
first time or at the start of the season:
• Install the VSN unit in the recommended location.
• Use part numbers to help identify parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

CHAPTER 2
6 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
UPDATES
Software and manual updates are available on the Raven Applied Technology website:
http://www.ravenprecision.com
At Raven Industries, we strive to make your experience with our products as rewarding as
possible. One way to improve this experience is to provide us with feedback on this manual.
Your feedback will help shape the future of our product documentation and the overall service we
provide. We appreciate the opportunity to see ourselves as our customers see us and are eager
to gather ideas on how we have been helping or how we can do better.
To serve you best, please send an email with the following information to
[e-mail]
-VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
-016-2022-013 Rev. A
-Any comments or feedback (include chapter or page numbers if applicable).
-Let us know how long have you been using this or other Raven products.
We will not share your email or any information you provide with anyone else. Your feedback is
valued and extremely important to us.
Thank you for your time.

2
Introduction: Kit Contents 7
INTRODUCTION
KIT CONTENTS
This section contains a list of the components that are included in the VSN kit. Before beginning the system
installation, compare the items in the kit with the components on this list. If you have questions about the kit,
contact your Raven dealer.
FIGURE 1. VSN Installation Kit for NH/Miller Front Boom Sprayers MY19+ (P/N 117-2022-013 Rev. A)
+
1

1

1

1

1

1

1

1

1

1
1

1
1
1
1
1
1
1
1
1
1
1

1
1
1
1
1
1
6+,(/''(%5,6961
%5$&.(7961%277201+0,//(5)5217%220635$<(5
6
%5$&.(796163$&(51+0,//(5)5217%220635$<(56
&$%/(961&$%
&$%/(9611+0,//(50<DQG1(:(5
:(/'0(17961&5$'/(02817*(1(5,&
:(/'0(1796102817






:(/'0(17961723%5$&.(71+0,//(5)5217%2206
3
(19(/23(3/$67,&
%2/70;00&/$669&2$7,1*
%2/70;00&/$669&2$7,1*
%2/70;&/$669&2$7,1*
1871</2&0&/$669&2$7,1*
1870&/$66&/$669&2$7,1*
*$6.(79,721,'[2'[7+.
:$6+(50&/$669&2$7,1*
:$6+(50&/$669&2$7,1*
:$6+(5/2&.0&/$669&2$7,1*


47<


'(6&5,37,213$57
%2;6+,33,1*
6+((7:$55$17<+(/3












CHAPTER 2
8 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
FIGURE 2. (Optional) Radar Row Guidance Kit for NH/Miller 310/7310 (P/N 117-2022-014 Rev. C)
H053-0159-180
N
063-0174-125
N
107-0172-690
N
N
107-0172-702
N
115-2020-019
N
107-0172-723
N
016-0171-649
N
116-0159-860
N
107-0172-721
N
107-0172-722
N
N
053-0159-074
N
311-4055-444N
N
311-4056-137N
N
311-4056-224N
N
312-6001-016N
N
312-6001-041N
N
312-6001-106N
N
313-6000-010N
N
313-6000-016N
N
313-6000-031N
N
313-6001-016N
N
311-4055-180N
N
313-6000-013N
N
313-6001-013N
8
20
8
8
8
8
8
2
4
1
2
1
2
2
2
QTY
1
2
DESCRIPTIONPART #
1
4
4
14
4
6
4
BOX, SHIPPING
RADAR, MULTI OBJECT DISTANCE SENSOR
BRACKET, MULTI OBJECT DISTANCE SENSOR, BASE
*REMOVED
BRACKET, SPACER, MULTI OBJECT DISTANCE SENSOR, NH/MIL
CABLE, FULL CANOPY, FRONT BOOM
BRACKET, NH/MILLER FRONT BOOM SMALL FRAME, MOUNT,
SHEET, WARRANTY/SHEET (016-2022-014)
WELDMENT, MULTI-OBJECT DISTANCE S(1SOR, COVER
SHIELD, PLASTIC MULTI-OBJECT DISTANCE SENSORBRACKET,
SHIELD, MULTI-OBJECT DISTANCE SENSOR
ENVELOPE, PLASTIC
HEX, BOLT, DIN 933, M20 X 2.5 X 55MM
HEX, BOLT, DIN 933, M6 X 1 X 25MM
HEX, BOLT, DIN 933, M10 X 1.5 X 30MM
HEX NUT, NYLOC, DIN 985, M6
HEX NUT, NYLOC, DIN 985, M10
HEX NUT, NYLOC, DIN 985, M20
WASHER, M6, STEEL, CLASS V
WASHER, M10, STEEL, CLASS V
WASHER, M20, STEEL, CLASS V
WASHER, SPRING LOCK, DIN 127-M10
BOLT, M8-1.25X25MM, CLASS V COATING
WASHER, M8, CLASS V COATING
WASHER, LOCK, M8, CLASS V COATING

CHAPTER
3
Installation: Mount VSN 9
CHAPTER 3 INSTALLATION
MOUNT VSN
1. Locate and tilt down the front plastic trim.
FIGURE 1. Frame
2. Locate the center trim bracket and the two bolts securing the bracket.
3. Remove the rubber socket from the steel bracket.
FIGURE 2. Two Bolts to be Removed
NOTE: Keep the rubber socket and bolt as they will be reinstalled on the new bracket.
Remove

CHAPTER 3
10 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
4. Install the previously removed rubber socket in the slotted hole on the rear bracket so the plastic trim piece is
secured as it was before removal.
FIGURE 3. Rubber Bumper Installed on Installed Bracket with Front Trim Secured
5. Secure the mounting bracket
FIGURE 4. Securing Bolts for Mounting Bracket
FIGURE 5. Mounting Bracket Installed
4x M8 Bolts
and Hardware
6x M8 Bolts
and Hardware
3X M10 Bolts
and Hardware
1x M8 or M10
Bolt and
Hardware
(Depends on
Machine)

Installation: Mount VSN 11
INSTALLATION
6. Tighten all bolts and ensure no hoses are rubbing on the new bracket.
FIGURE 6. Tightened Bolts and Hoses
7. Assemble the VSN subassembly as pictured in Figure 7, “VSN Subassembly,” below.
FIGURE 7. VSN Subassembly
8. Secure the VSN subassembly to the machine brackets with the included M8 hardware.
FIGURE 8. Installed VSN
M8 Hardware
(Bolt, Lock
Washer, Washer
Rubber Isolator) Rubber Isolator

CHAPTER 3
12 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
INSTALL RADAR
1. Remove the wheel motor covers on both front axles.
FIGURE 9. Removed Wheel Motor Covers
2. Install the spacers, brackets, and radar sensors to each side, orientating the sensors at a 45 degree angle
forward. The mounting holes will ensure the proper angle is achieved.
FIGURE 10. Lower Assembly and Small Frame Assembly
NOTE: Prior to installing the sensor cover, record the serial number and whether the sensor is installed on the
right or left side of the machine.
The sensor covers should be installed after the cabling is routed.
Lower Assembly Small Frame
Assembly

Installation: Install Radar 13
INSTALLATION
FIGURE 11. Bracket Loosely Installed
3. Make note of the serial number listed on the radar sensor.
FIGURE 12. Serial Number Location
NOTE: It is important to record the serial number. The radar device will be covered by a cover plate.

CHAPTER 3
14 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
SYSTEM DIAGRAM
FIGURE 13. VSN for NH/Miller Front Boom Sprayers MY 19+ (P/N 054-2022-013 Rev. B)

Installation: Route the Cables 15
INSTALLATION
ROUTE THE CABLES
1. Identify the VSN Visual Guidance cable (P/N 115-2020-018)
2. Disconnect the CM041 connection on the boom.
FIGURE 14. CM041 Connection
3. Tee in the 115-2020-018 cable into this connection by removing the factory connector nut and making the tee
connection on the front side of the center rack.
4. Route the VSN connector up and along the boom between the boom frame and front blue cover.
5. Plug the VSN connector into the VSN from below.
FIGURE 15. VSN Connection
6. Route the analog video cable down the lift arms, following hoses and ensuring plenty of slack in the cable near
the boom main frame.
7. Route the analog video cable under the cab to the preferred place to drill a hole in the floor of the cab.
NOTE: Failure to properly route cabling will result in premature cable wear in high-crop conditions.

CHAPTER 3
16 VSN Installation Manual for NH SP 310F / Miller 7310 Front Boom Sprayers MY19+
8. Safely and carefully drill a hole in the preferred location in the floor of the cab.
NOTE: Ensure there is enough slack in the cable to be routed next to the drilled hole in the floor of the cab.
Ensure the drilled hole does not interfere with other cables or electronics in the cab.
9. Connect the analog video end of the 115-2020-008 cable to port 6 on the Viper 4.
FIGURE 16. Viper 4 Connection
10. Route the bulkhead end of the cable through the hole in the floor and connect to the analog video breakout
previously routed on the 115-220-018 cable.
11. Connect the 115-2020-019 radar sensor cable to the 12-pin Aux Sensor connector on the 115-2020-018 cable.
12. Route the cable down the lift arms and first to the front right tire, making sure to follow hydraulic hoses to
account for suspension travel, steering movement, and change in width if applicable.
NOTE: Ensure proper cable routing by following hydraulic hoses and routing the cables through the
protective covering around the hydraulic hoses for maximum protection.
FIGURE 17. Proper and Improper Cable Routing
NOTE: Ensure the cable is routed away from hinge/pinch points under the machine bottom covers.
Proper Improper
