Razor Graffiti User manual

Owner’s Manual
Version: 2_09_10
NOTE: Manual illustrations are for demonstration purposes only. Illustrations
may not reflect exact appearance of actual product. Specifications subject to
change without notice.
Read and understand this entire manual before
allowing child to use this product!
For assistance contact Razor. DO NOT RETURN TO STORE.
Item Number:
Black 13010800
Blue 13010840
Purple 13010850
™
SCOOTER

AN IMPORTANT MESSAGE TO PARENTS: This manual contains
important information. For your child’s safety, it is your responsibility to
review this information with your child and make sure that your child
understands all warnings, cautions, instructions and safety topics. Razor USA
recommends that you periodically review and reinforce the information in this
manual with younger riders and that you are required to inspect and maintain
your child’s scooter to insure their safety.
NOTE: The age recommendation for the Graffiti™ scooter is higher than that
of a “basic” scooter because using the chalk device when riding may be more
complicated. Make sure your child is ready!
GENERAL WARNING: Scooter riding can be a hazardous activity.
Scooters can and are intended to move and it is therefore possible to get into
dangerous situations and/or lose control and/or fall. If such things occur you
can be seriously injured or die. LIKE ANY OTHER MOVING PRODUCT, USING
A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY
OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT
YOUR OWN RISK AND USE COMMON SENSE.
• Donotallowchildrenunderagesix(6)tousethescooter.Childrenunder
ageeight(8)shouldridewithadultsupervisionatalltimes.Allchildren
and preteens should ride with adult guidance at all times.
• Always pay attention to where you are going; do not allow use of the
chalk marking device to distract you from safe riding practices.
• Alwayswearsafetyequipmentsuchashelmet,kneepadsandelbow
pads. Always wear a helmet when riding your scooter and keep the chin-
strap securely buckled.
• Alwayswearshoes.
• Rideonsmooth,pavedsurfacesawayfrommotorvehicles.
• Avoidsharpbumps,drainagegrates,andsuddensurfacechanges.Scooter
may suddenly stop.
• Avoidstreetsandsurfaceswithwater,sand,gravel,dirt,leaves,andother
debris. Wet weather impairs traction, braking, and visibility.
• Donotrideatnight.
• Brakewillgethotfromcontinuoususe.Donottouchafterbraking.
• Avoidexcessivespeedassociatedwithdownhillrides.
• Adultsmustassistchildrenintheinitialadjustmentprocedurestounfold
scooter, adjust handlebar and steering to height, and finally to fold scooter.
• Obeyalllocaltrafcandscooteringlawsandregulations.
• Watchoutforpedestrians.
• Donotexceed143pounds(65kilograms)totalweightontheGrafti™
scooter.
• Riderweightdoesnotnecessarilymeanachild’ssizeisappropriatetot
or maintain control of the scooter.
• Aparent’sdecisiontoallowhisorherchildtoridethisproductshouldbe
based on the child’s maturity, skill and ability.
ACCEPTABLE RIDING PRACTICES AND CONDITIONS
Direct parental supervision is required. Scooters are meant to be used only
in controlled environments free of potential traffic hazards and not on public
streets. Do not allow your child to ride a scooter in any areas where vehicle
traffic is present. Child must maintain a hold on the handlebars at all times.
Never allow more than one child at a time to ride a scooter. Never use near
steps, sloped driveways, hills, roadways, alleys or swimming pool areas.
Keep fingers and other body parts away from the product when folding or
unfolding. Adults must not allow children to assist in folding or unfolding the
scooter.
Do not ride a scooter in wet weather. Scooters are intended for use on solid,
flat, clean and dry surfaces such as pavement or level ground without loose
debris such as rocks or gravel. Wet, slick or uneven and rough surfaces may
impair traction and contribute to possible accidents. Do not ride a scooter in
mud,ice,puddlesorwater.Avoidexcessivespeedsthatcanbeassociated
with downhill rides. Never risk damaging surfaces such as carpet or flooring
by use of a scooter indoors. Do not ride at night or when visibility is impaired.
When toggling the chalking mechanism from the OFF to ON position, avoid
sustained downward pressure against the lever mechanism. Sustained
downward pressure can cause the springs to rub directly on the ground.
Sustainedrubbing(20+minutes)willweardownthespringswhichcould
cause the springs to break.
CLEAN-UP AND CARE RELATED TO CHALK
ThechalkprovidedbyRazorwiththisproductisnon-toxic.Itisdesigned
and intended for use on hardened asphalt or concrete surfaces, and may be
washed off with water. Use of a brush or broom may assist in removal. Chalk
contains colorants which may cause stains to clothing or other household
items,andshouldnotbeusedonsurfaceslessthansixmonthsold.
PROPER RIDING ATTIRE
Always ensure child is wearing proper protective equipment such as an
approved safety helmet. A helmet may be legally required by local law
or regulation in your area. A child should always wear shoes, never ride
barefooted or in sandals, and keep shoelaces tied and out of the way of
the wheels.
FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS
FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK
AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION.
USE CAUTION.
WARNING: ALWAYS INSPECT SCOOTER PRIOR TO RIDING. Properly
inspecting and maintaining your scooter can reduce the risk of injury. Always
inspect your scooter before riding and regularly maintain it.
WARNING: CHECK LOCAL LAWS REGARDING SCOOTER USE. Check
local laws and regulations to see where and how you may use your Razor
scooter legally. In many states and local areas scooter riders are required
BY LAW to wear a helmet. Check local laws and regulations regarding laws
governing helmet use and scooter operation in your area.
SAFETY WARNINGS
Safety Warnings ............................................................ 1
Before You Begin........................................................... 2
Set Up and Usage Instructions................................... 3-4
Check Before Riding...................................................... 5
Scooter Parts List .......................................................... 6
Safety Tips ..................................................................... 7
Warranty ........................................................................ 7
CONTENTS
1

Removecontentsfrombox.Inspectthecontentsoftheboxforscratchesinthepaintand/ordentsthatmayhave
occurred during shipping. Because your scooter was assembled and packed at the factory, there should not be any
problems,eveniftheboxhasafewscarsordents.
BEFORE YOU BEGIN
2
WARNING: DO
NOT USE NON-RAZOR
PRODUCTS WITH YOUR
SCOOTER.
Razor scooters have been built to
certain Razor design specifications.
The original equipment supplied
at the time of sale was selected
on the basis of its compatibility
with the frame, fork and all other
parts. Certain aftermarket products
may or may not be compatible.
Use of any non-Razor parts and/
or modifications will void the
warranty.
q Required Tools
Need Help? Visit www.razor.com for replacement parts, product support and a list of authorized
service centers or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
5mm
Allen wrench
(NotIncluded)

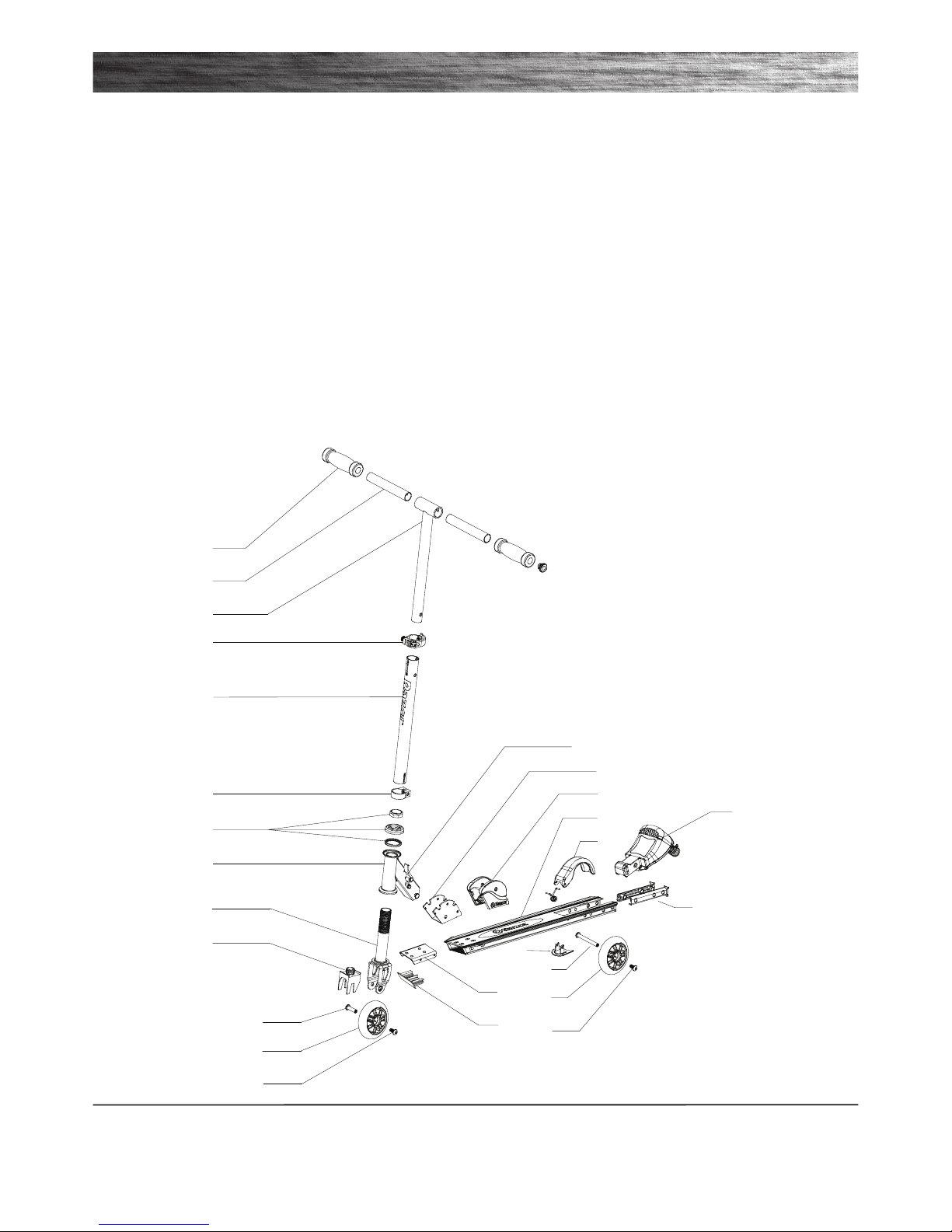

Grip
T-tube
Collar clamp
Front fork
Wheels
Deck
Steering tube/steering column
Steering tube quick-release
Handlebar
Joint lever/pivoting mechanism
Rear fender/brake
Chalk mechanism
Chalk
(Included)

WARNING: Failure to
properly engage the spring-loaded
buttons may cause the handlebars
to dislodge while riding and may
cause you to lose control and
fall. When correctly engaged the
handlebars will not rotate nor will
they move sideways. Note that
when properly engaged, the spring-
loaded buttons are clearly visible in
the holes on the T-bar.
2Make certain BOTH handlebars
are properly locked onto the T-bar.
1Insert and secure the left and
right handlebars by pressing the
spring-loaded buttons and
inserting them into the T-bar.
SET UP AND USAGE INSTRUCTIONS
3To release the folding
mechanism, put one foot on the
deck plate and push joint release
lever down. Raise handlebars up
until securely locked in the upright
position.
Note: The joint lever is spring-
loaded and will automatically lock
in the upright position when fully
upright.
WARNING: Keep
your fingers clear of the pivoting
mechanism when folding or
unfolding the scooter. Make sure
others are standing clear.

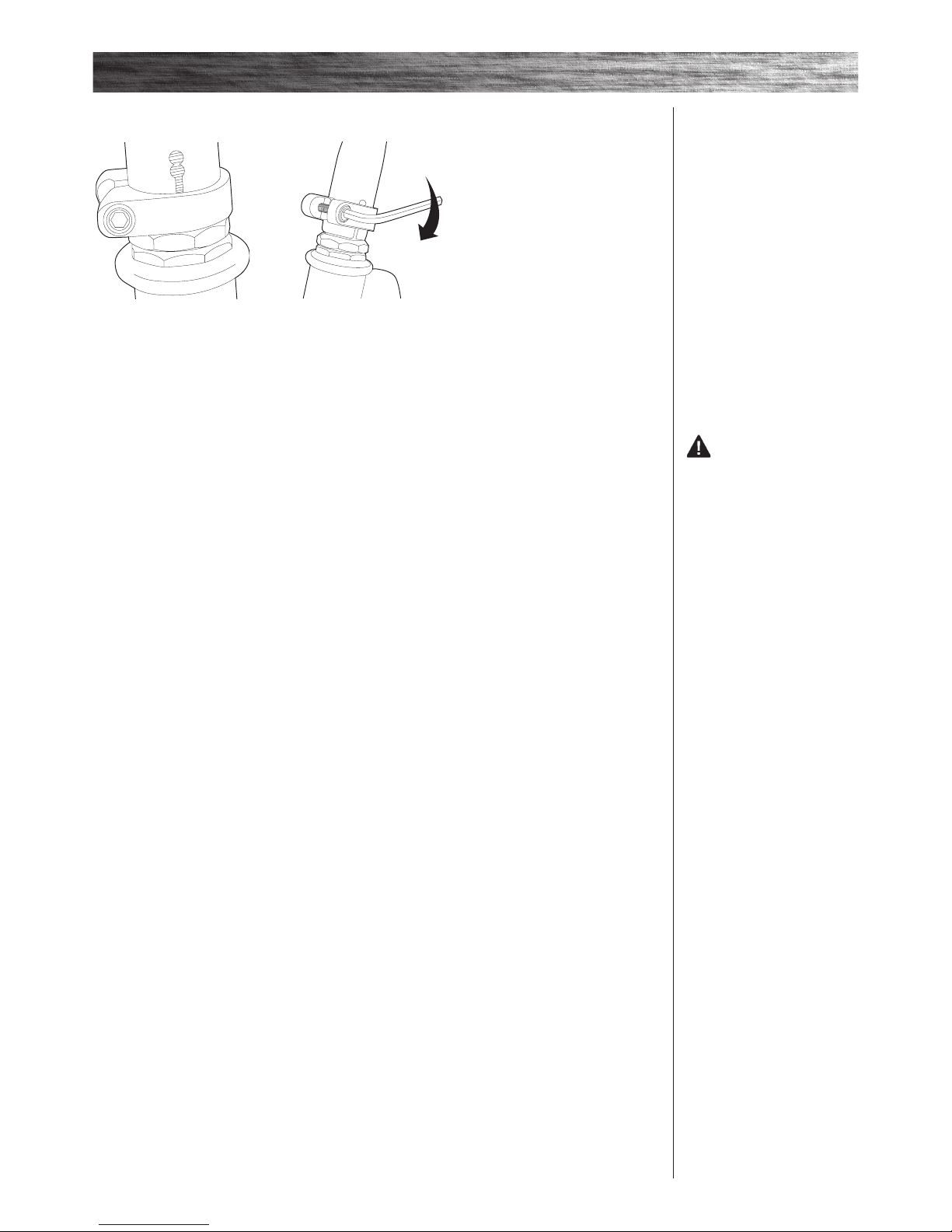

Note: The tension of the quick-
release lever can be adjusted by
tightening or loosening the Allen
bolt. Be careful not to over-tighten.
You should always be able to open
and close the quick-release lever
by hand and the T-bar should slide
freely with the quick-release open.
q Unfolding the scooter for first time use.
3
WARNING: Failure to
properly secure the quick-release
lever may cause the T-bar to
telescope up or down while riding
which may cause you to lose
control and fall.
4To adjust the height of the handlebars, open the quick-release lever and
slide the T-bar to the desired position and resecure the quick release lever to
lockintoplace.IftheT-barisraisedtothemaximumheight,depressthepush
button located directly below the quick release lever to lower the T-bar.

4
Need Help? Visit www.razor.com for replacement parts, product support and a list of authorized
service centers or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
1 Insert the tapered end of the
chalk into the spring.
q Installing your chalk
SET UP AND USAGE INSTRUCTIONS
WARNING: Keep fingers
clear of chalk bar hinge and fender
brake.
q How to Ride
Place one foot on the baseboard, push forward with the other foot. Steer. For enhanced cornering, lean slightly into the
direction of the turn. For controlled stops, apply the brake by stepping on the rear fender/brake. Razor recommends that
you practice applying the brake at various speeds and in an open area free from obstructions before riding your Razor
around others.
When riding, place ball of foot on the chalk bar and apply pressure until the chalking mechanism clicks into place. Only
use enough pressure to cause chalk to make a mark. To stop chalking, place ball of foot on chalk bar and apply pressure
until it clicks to the desired position.
q Using the Chalk Bar
WARNING: Applying too
much pressure on the chalk bar may
cause loss of control.
NOTE: Using any other part of
the foot or full foot may activate the
brake and prevent the chalk action.
NOTE: Chalk marks and
chalk life will vary based
on the amount of pressure
applied to the chalk bar and
the smoothness of the riding
surface.
1Up Position - No chalking 2 Down Position - Chalking
2 Twistchalkclockwise1/4turn
until chalk is set securely in the
spring. Periodically turn chalk as
needed.
NOTE: Chalkisnon-toxic.
ConformstoASTM4236.
Chalk washes off with water for
easy clean-up.

CHECK BEFORE RIDING
5
q Wheels and Bearings
Under normal circumstances and conditions, Razor wheels and bearings are maintenance free. Nonetheless, it is
theresponsibilityoftheownerorguardiantoperiodicallyinspectthewheelsforwearandtear,theaxleforproper
tightness, and bearings for side-to-side play and loose parts. When a wheel or wheel bearing develops play, this is an
indicationofexcesswearandreplacementisnecessary.ReplaceimmediatelywithonlygenuineRazorwheels.Wheels
other than genuine Razor wheels may not be compatible with your Razor scooter. The use of anything other than genu-
ine Razor replacement parts may affect your safety and will void your warranty.
WARNING: Wheelies
will break the chalk bar. Other
stunt-type riding reduces your
ability to maneuver and control
the scooter. Take the necessary
precautions, such as wearing
appropriate protective gear and
practice in a area safe for stunt
riding and free from obstructions.
NOTE: Worn wheels, bearings
and chalk cartridges are considered
normal wear-and-tear and are not
covered by the Razor Warranty.
Usinga5mmAllenkey,checkthatthecollarclampboltistightenedsecurely.Thispartistightenedandquality
inspected at the factory but there is a slight chance that the effects of shipping or handling may have caused this bolt
to become loose.
q Collar Clamp
q Cleaning Your Scooter
Wipe with a damp cloth to remove dirt and dust.
Do not use industrial cleaners or solvents as they may damage the surfaces. Do not use alcohol, alcohol-based or am-
monia-based cleaners as they may damage or dissolve the plastic components or soften the decals or decal adhesive.

Need Help? Visit www.razor.com for replacement parts, product support and a list of authorized
service centers or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
6
Keep your scooter running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specicationssubjecttochangewithoutnotice.)
1. Foam Grips
2. Handlebar
3. T-Bar
4. Quick-ReleseLever
5. ExtensionTube
6. CollarClamp
7. Headset
8. HeadTube
9. Fork
10. Fork Protector
11. AxleBolt(front/rear)
12. 98mmWheels
13. CouplingAxleScrew
14. DeckInsert(front)
15. ReinforcePlate
16. JointReleaseLever
17. Folding Base
18. FoldingProtector
19. Fender/Brake
20. Chalk Bar
21. DeckInsert(rear)
SCOOTER PARTS LIST
3
7
6
8
11
12
13
9
1
2
4
5
10
15
14
20
21
16
17
19
18
11
12
13
23

Be Careful!
You will see people on TV and maybe even people you know doing
tricks and stunts. These are people who have been practicing on
scooters for a very long time. Don’t try something until you are
ready. Avoid steep inclines and don’t ride too fast — you can lose
control and fall. Skateboard parks are not designed for scooters.
Never ride in traffic or on the street and watch your surroundings
for pedestrians, bikers, boarders and skaters.
Maintain a hold on the handlebars at all times.
Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects
foraperiodof6monthsfromdateofpurchase.ThisLimitedWarrantydoes
not cover normal wear and tear, or any damage, failure or loss caused by
improper assembly, maintenance, or storage.
This Limited Warranty will be void if the product is ever
•usedinamannerotherthanforrecreation;
•modiedinanyway;
•rented.
The manufacturer is not liable for incidental or consequential loss or damage
due directly or indirectly to the use of this product.
WARRANTY
Razordoesnotofferanextendedwarranty.Ifyouhavepurchasedan
extendedwarranty,itmustbehonoredbythestoreatwhichitwas
purchased.
For your records, save your original sales receipt with this manual.
__________________________________________
Loose Parts
Check and secure all fasteners before every ride. Make sure the
collar clamp, quick release lever, and handlebar spring buttons are
locked properly in place before riding.
Replacement Parts
Replacewornorbrokenpartsimmediately.Call1-866-GO-RAZOR
for parts.
Safety Gear
Always wear proper protective equipment such as an approved
safety helmet, elbow pads and kneepads. Always wear shoes
(lace-upwithrubbersoles),neverridebarefootedorinsandals,
and keep shoelaces tied and out of the way of the wheels.
SAFETY REMINDERS
q
q
q
PRE-RIDE CHECKLIST
7
DO NOT RETURN TO STORE
Failure to follow these instructions may damage
your product and void your warranty.
q
Need Help? Visit www.razor.com for replacement parts, product support and a list of authorized
service centers or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific Time.
Printed in China for:
Razor USA LLC
PO Box 3610
Cerritos, CA 90703
Copyright © 2003-2010 Razor USA, LLC. All rights reserved. RAZOR and the Razor Logo
Design are among the registered trademarks of Razor USA LLC in the United States and/or
select foreign countries. Graffitil is a trademark of Razor USA LLC. 09/2010
Item Number:
Black 13010800
Blue 13010840
Purple 13010850
