Rear view safety RVS-25W User manual

Reverse With Condence ™ 1
Wireless Backup Camera System
5" Dual Screen Display
RVS-25W
Instruction Manual
Please read this manual before using the product.
The product may be dierent from how it is described in the manual
depending on what software version you are using.

Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-06
BeforeBeginningInstallation ....................... 07
Precautions.......................... . . . . 08
Features...............................09
TechnicalParameters..............................10
Applications.................................11
MonitorMenuOperation...........................12 -13
Monitor OSD Menu Operation. . . . . . . . . . . . . . . . . . . . . . 14-15
Troubleshooting.......................... . . . . 16
Warranty.......................... . . . . . . 17
Disclaimer.......................... . . . . . 18
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.Itdoes notdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
Operating Precautions
1. The device may be powered by a 12 or 24 volt battery or the vehicle's
electrical system.
2. Make sure all cables are connected properly. Improper cable con-
nections may damage the monitor. Remove the power cable connections
when not using the device.
3. The back-up battery can be recharged when the power is on.
4. When battery is fully charged, recharging will automatically stop.
5. If batteries are not used for a while, it may take longer to charge.
1. This monitor is high voltage. Only professionals should open the
monitor's case.
2. Do not watch the video while driving unless you are monitoring the
rear view camera display.
Special Note
Occasionally, a few highlights or dark spots may appear on the LCD screen. This
doesn’t necessarily indicate any monitor defects. Never try to repair this device
yourself. If any problems occur, immediately turn the display o and notify our
company or an authorized dealer. Any disassembly or modication may lead to
damage and will also void the warranty.
PRECAUTIONS
Warning!

Reverse With Condence ™ 9
Features
ABS monitor housing that can endure high temperatures.
- 5" High resolution color TFT- LCD.
- Power input:8V-32V DC.
- Monitor circuit has protector for battery reverse (+/-).
- LED backlight display with constant voltage and constant current
circuit protection. It can solve LED working temperature problems
(the limit of LED backlight’s current) and prolong life.
- OSD menu can set each channel camera image in 4 modes NOR/
MIR/UP/DOWN; change the priority for each mode; each trigger cable
can be set to trigger to any display mode; time delay setting.
- Two channel digital wireless signal transmission. It supports sub-
screen and two screens.
- Camera waterproof rating: IP69K.
FEATURES

Rear View Safety
10
Technical Parameters
TECHNICAL PARAMETERS
Display Device Color TFT-LCD
Size 5" Digital Screen
Operation Frequency 2400 ~ 2483.5MHz
Receiving Sensitivity ≤- 86dBm(1MHZ QPSK MD300RE)
Resolution
800
×
(RGB)
×
480
View Angle (LR/UD) L/R: 70/70 U/D: 50/70
Contrast Ratio 300:1
2
Luminance(cd/m ) 300
Response Time (ms) 25
Load Dump DC 12+87V/400ms
Operating Temperature -20℃～+60℃
Storage Temperature -30℃～+80℃
operating voltage range DC8V～32V （5W Max）
Dimension(L x W x T) 139X100X55(mm)
Transmission Power 18dBm with Power control
Camera Color CMOS Camera
Image Pick-up Device 1/3" Color CMOS
Picture Elements NTSC:720(H)X480(V);PAL:720(H)X480(V)
Horizontal Resolution 500 TV Lines
Minimum illumination 0 Lux At Night ( IR LED ON)
View Angle 120°
Waterproof rating IP69K
Shockproof Rating 10G
operating voltage range DC11~32V
Dimension 106(W)x75(H)x70.4(D)mm
WARNING: This system should only be repaired by professionals. Please do not open and repair
the system yourself. This manual is for reference only.

Reverse With Condence ™ 11
Applications
APPLICATIONS

Rear View Safety
12
MONITOR MENU OPERATION
Monitor Menu Operation
1. Pair
First establish a connection between the monitor
and camera. Enter the menu, chose PAIR and press OK.The monitor will
display PAIRING START 50. After 50 seconds, re-energize the camera
and the monitor will show the camera image in 5~10s.
PAIRING SART
50
PAIRING START

Reverse With Condence ™ 13
MONITOR MENU OPERATION

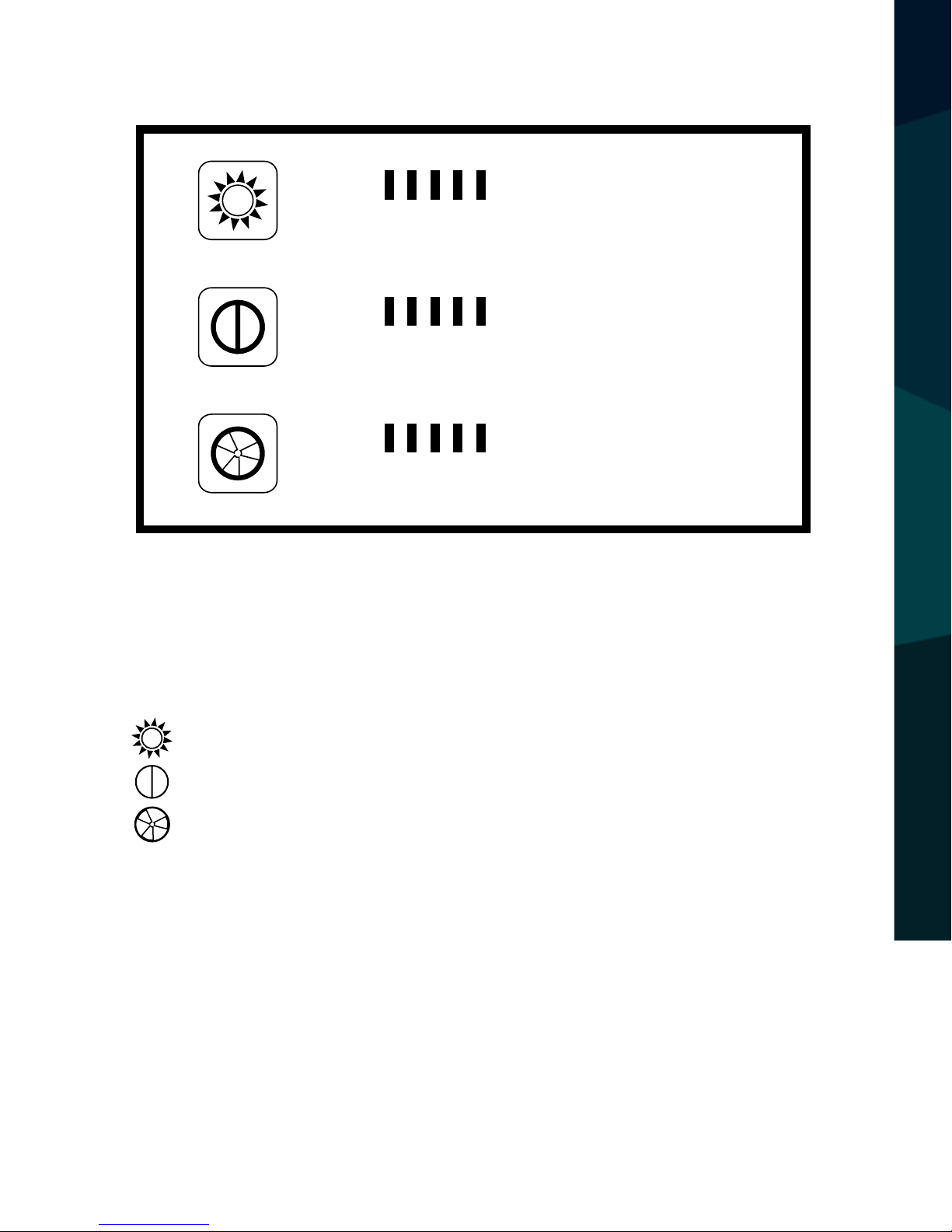

2. Picture setting
Enter the menu, chose the picture and press OK,
1. Brightness: 0-10 (Press left/right to adjust)
2. Contrast: 0-10 (Press left/right to adjust)
3. Color: 0-10 (Press left/right to adjust)
5
-
+
5
-
+
5
-
+

Rear View Safety
14
MONITOR OSD MENU OPERATION
4. Auto Scan setting:
1. Set CAM1 auto scan mode on/off;
2. Set CAM2 auto scan mode on/off;
3. Set the auto scan time.

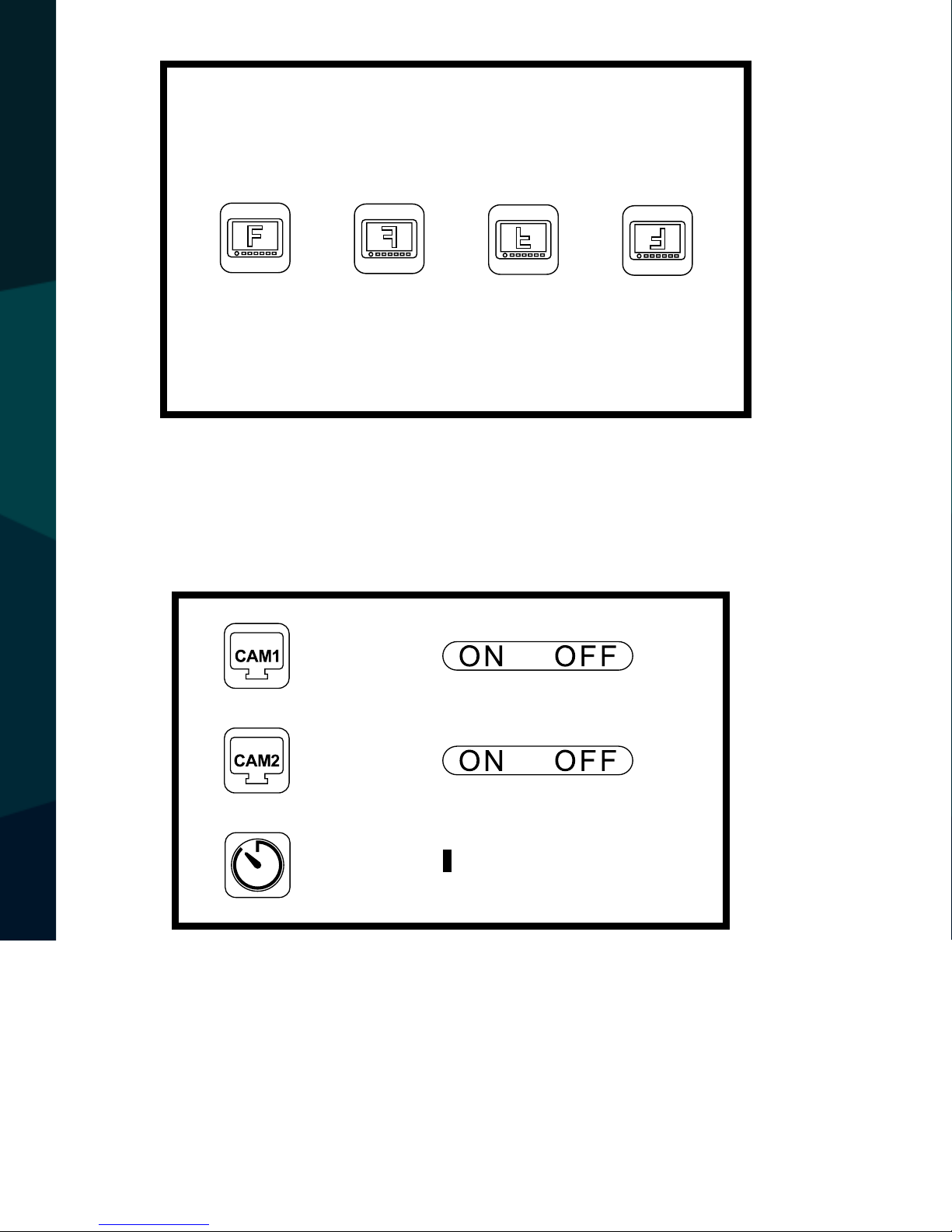

3. Mirror/Normal image setting:
Set the CAM1 and CAM2 image in 4 modes.
F
F
F
F
5
-
+

Reverse With Condence ™ 15
MONITOR OSD MENU OPERATION
5. Other functions:
1. NTSC or PAL system switch.
2. LED screen ambient light sensor on/off.
3. Electronic Label setting:Turn on/off the electronic label on CAM1.
Note:
When the monitor is in SCAN mode, the CAM1 and CAM2 image will
switch automatically according to the setting time. Press / to choose
an image.
ON OFF
ON OFF

Rear View Safety
16
• Do a hard reset, unplug all cables
and power cables, leave out for 1
minute and then re-connect them
• Check to ensure that the
connection to the camera is tight
•Verify camera cable is plugged into
port labeled Backup Camera
•Verify that the green positive
trigger on power harness is put to
power 12v+
•Verify camera is on correct camera
input
•Verify cable is connected to
monitor
•Verify camera is connected to
cable
• Connect known working camera
and cable to monitor
•Verify Green trigger is receiving
power
No Image On Screen
TROUBLESHOOTING

Reverse With Condence ™ 17
WARRANTY
ONE YEAR WARRANTY
RVS SYSTEMS, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD
OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE
ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. RVS SYSTEMS, INC. IS NOT RESPON
SIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION,
DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. RVS SYSTEMS, INC. IS NOT
RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE RVS SYSTEMS, INC. SYSTEM
AFTER PARTIAL FAILURE OR USEWITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULDYOUR RVS SYSTEMS PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIRED WHEN
THE COMPLETE RVS SYSTEMS, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND IN
SURED,TO RVS SYSTEMS, INC. OTHERTHAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHISWARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL ORWRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARD TO THIS RVS SYSTEMS, INC. RVS SYSTEMS, INC. DISCLAIMS ANY IM
PLIEDWARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE
AND ALL OTHER WARRANTIES IN NO EVENT SHALL RVS SYSTEMS. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Rear View Safety
18
DISCLAIMER
DISCLAIMER
RVS SYSTEMS AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER
OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDEWITH
AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAU
TIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS
AND MOTOR VEHICLE SAFETY REGULATIONS.THE RVS SYSTEMS PRODUCTS ARE NOT A SUB
STITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REARVIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF RVS SYSTEMS PRODUCTS INSTALLED AND RVS SYSTEMS AND/OR ITS AF
FILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE FOR ANY
INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR
INTENDED USE OFTHE PRODUCT. IN NO EVENT SHALL RVS SYSTEMS AND/OR ITS AFFILIATES
HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN CONTRACT,TORT
OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL RVS SYSTEMS AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON RVS SYSTEMS SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR ER
RORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.

Reverse With Condence ™ 19
NOTES
NOTES

Rear View Safety
20
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
