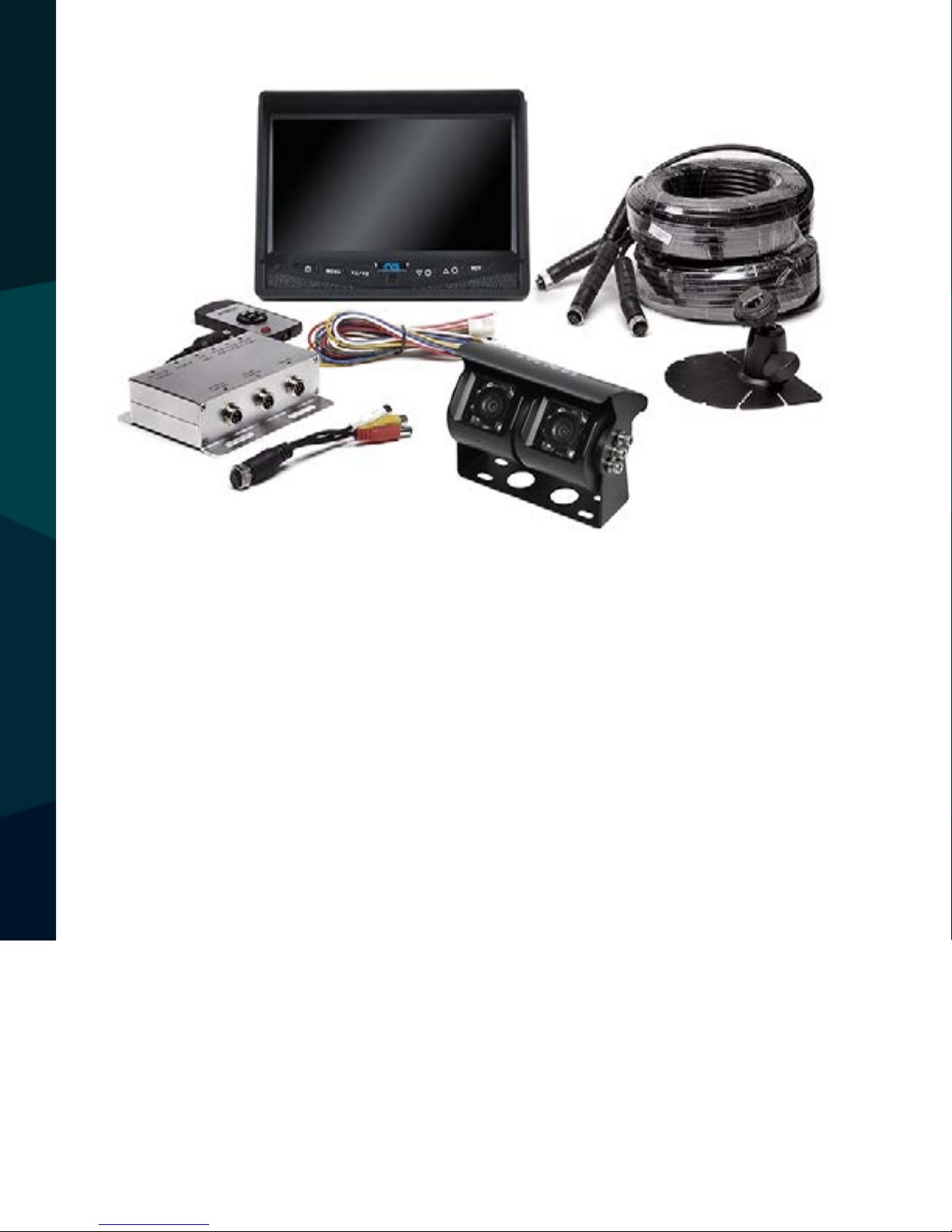

Backup Camera System With
Dual Lens Camera
RVS-813613-NM
Instruction Manual

Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-06
Before Beginning Installation . . . . . . . . . . . . . . . . . . . . . . 07
InstallationGuide............................. . 08-09
AdjustableGridLine............................. 10
InstallationandWire.............................11-12
Camera Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Monitor Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Camera Specications . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Warranty.......................... . . . . . 16
Disclaimer.......................... . . . . . 17
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemis limited.It doesnot display
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
INSTALLATION GUIDE
Cable
1. Be sure to position the cable properly. The camera cable uses aircraft
grade connectors which means the camera cable can be exposed to all
weather elements. Do not run the cable over sharp edges, do not kink
the cable and keep away from HOT and rotating parts.
2. Fasten all cables and secure all excess cable.
Monitor
1. To Attach the Pedestal mount to the dashboard or to the head-liner
use self-tapping screws and/or the adhesive pad.
2. Attach monitor to mount, and adjust mounting angle to allow opti-
mum driver viewing comfort. (see gure 1.1 on page 12)

Reverse With Condence ™ 9
INSTALLATION GUIDE
Wiring
To power the system connect the power (RED) 12V+ wire to ignition
power and the ground (BLACK) wire to chassis ground.
• These are the only wires needed to power the entire system and all
the cameras. Each camera can be seen at any time by simply pressing
the power button and using theV1/2 button to toggle.
• The three positive trigger wires (WHITE-CH1, BROWNCH2, BLUE-
CH3) each represent one channel and will turn on their channel when
the trigger wire is energized with 12V.
• "Camera 3" is the designated backup channel.To have the the back-
up camera come on when you go into reverse, con-nect the BLUE wire
to reverse power (or any power source that comes on only in reverse).
• The other channels can similarly be triggered (i.e. side cam-eras can
be triggered by the turn signals etc.)
• To automatically have camera and monitor turn ON when vehi-cle
activates, simply twist BLUE positive trigger 12V+ to Red Power line
12V+ and wire to ig-nition power.

Rear View Safety
10
INSTALLATION AND WIRE
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)
• Audio:There is audio on channels 2 and 3. On channel 3 the blue
trigger wire must be energized (12V) to activate the audio. On
channel 2 the audio is always on.
• Grid-lines: The grid-lines are also carried through the blue wire.
To use the grid-lines for reversing, connect the blue wire to a re-
verse power.
• There is a built-in voltage regulator for our systems which can
handle 12-24 volts. Real consumption is 10 to 30 Volts.

Reverse With Condence ™ 11
INSTALLATION AND WIRE
Monitor
3 Amp Fuse
1
2
3
4
1. DC12V-24V (red)
2. Ground (black)
3. Port #3 (blue)
4. Port #2 (white)
5. Port #1 (yellow)

Rear View Safety
12
MONITOR OPERATION
• "Brightness" "Contrast "Saturation" "Sharpness": adjust image properties
• Picture Adjust: Stretch image horizontally (right/left and left/right)
• Turn: Toggle between mirror/normal image on each individual channel
• Day/Night: Toggle between back-lit buttons and auto dimming
• Name: Change name of each individual channel
• Trigger Source: Toggle channel destination for each trigger
• Trigger Delay: Adjust time delay on each trigger
• Distance Grid: Toggle which channel distance grid lines will display on
• Grid Position: Adjust grid lines
• Auto Power: On: Monitor will automatically turn on when powered.
O: Monitor will only turn on when triggered. Auto: Monitor will follow previous state.
• Reset: Reset settings to factory default
Camera selection
Menu
Power
Toggle selection
up
Toggle selection
down
Rotate Image

Reverse With Condence ™ 13
CAMERA FEATURES
Toggle selection
down
Dual Camera - Perfect for Viewing Trac and Vehicle Bumper
130° Ultra-Wide all Encompassing View
18 Infra-Red Lights - 9 on Each Camera
CompletelyWaterproof - IP68 Rating
Built-in High Gain Mic

Rear View Safety
14
MONITOR SPECIFICATIONS
Monitor Information
Type LED Digital Panel
Screen Size 7"
Dot Resolution 800 X 3 (RGB) X 480
Display Format/Contrast 16:09 / 500:01:00
Display Brightness 400cd/m2
Video Input 3 channel CVBS
Video Source 1Vp-p, 750
Power Supply DC 9V - 32V
Power Consumption 5W
Audio Output 0.5W speaker
Operating Temperature -20°C ~ +70° C
Storage Temperature -30°C ~ +85°C
Video System Auto NTSC/PAL
Overall Dimensions 7" (L) x 5.25" (H) x 1" (D)
Weight 400G
Vibration Rating 5G
DOT PITCH 0.1926 (H) X 0.1710 (V)mm
Active Area 154.08(H) X 85.92(v)mm
Sync System Internal

Reverse With Condence ™ 15
CAMERA SPECIFICATIONS
Camera Information
Camera 1/3" Sony® CCD
Picture Elements 250,000 pixels
Gamma Correction r=0.45 to 1.0
Image Sensor 480 TV Lines PAL: 500 (H) X 582
(V), NTSC: 510 (H) X 492 (V)
View Angle 130°
Lens 2.1mm
Sync System Internal Synchronization
Infra-red distance 50 Feet (18 Infrared)
Usable Illumination 0 Lux (IR On)
Power Source DC 9v-32V
S/N Ratio More than 48dB
Electronic Iris 1/50, 160-1/100,000sec
Video Output 1Vp-p 75 
IR Switch Control ACDS Automatic Control
Vibration Rating 5.8'
Video Output 1Vp-p, 75 
Shutter Type Electronic Rolling Shutter (ERS)
Vibration and Shock Rating 20G
Operating Temperature -40°C ~ +50°C / RH 95% Max
Storage Temperature -40°C ~ +60°C / RH 95% Max
Dimensions 3.25" (H) x 4" (L) x 2" (D)
Storage Temperature -40°C ~ +70°C / RH 95% Max

Rear View Safety
16
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULDYOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THANTHE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC. REARVIEW SAFETY, INC.DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Reverse With Condence ™ 17
DISCLAIMER
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCETO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REAR VIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT,TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.

Rear View Safety
18
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
