Ricoh FW740 User manual

FW780
Operating Instructions
For safe and correct use of this machine, please be sure to read the Safety Informa-
tion before you use it.
FW780multi-eu-F_V4_FM.book Page 1 Tuesday, August 30, 2005 4:43 PM

Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information before using this machine. It contains important information related
to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.
Notes:
Some illustrations might be slightly different from your machine.
Certain options might not be available in some countries. For details, please contact your local dealer.
Warning:
Use of controls or adjustment or performance of procedures other than those specified in this manual
might result in hazardous radiation exposure.
Two kinds of size notation are employed in this manual. With this machine refer to the metric version.
For good copy quality, Ricoh recommends that you use genuine Ricoh toner.
Ricoh shall not be responsible for any damage or expense that might result from the use of parts other
than genuine Ricoh parts in your Ricoh office product.
Power Source
220 - 240V, 50Hz/60Hz, 7A
Please be sure to connect the power cord to a power source as above. For details about power source,
⇒p.77 “Power connection”
FW780multi-eu-F_V4_FM.book Page 1 Tuesday, May 27, 2003 5:59 PM

i
Safety Information
When using your equipment, the following safety precautions should always be
followed.
Safety During Operation
In this manual, the following important symbols are used:
R
WARNING:
Indicates a potentially hazardous situation which, if instructions
are not followed, could result in death or serious injury.
R
CAUTION:
Indicates a potentially hazardous situation which, if instructions are not
followed, may result in minor or moderate injury or damage to property.
FW780multi-eu-F_V4_FM.book Page i Tuesday, May 27, 2003 5:59 PM

ii
RWARNING:
• Connect the power cord directly into a wall outlet and never use an extension cord.
• Only connect the machine to the power source described on the inside front cover of this
manual.
• Avoid multi-wiring.
• Do not damage, break or make any modifications to the power cord. Do not place heavy ob-
jects on it, pull it hard or bend it more than necessary. These actions could cause an electric
shock or fire.
• Do not plug or unplug the power cord with your hands wet. Otherwise, an electric shock
might occur.
• Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug
becomes frayed or otherwise damaged.
• Make sure the wall outlet is near the machine and freely accessible so that in event of an
emergency it can be unplugged easily.
• Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any
of the following conditions exists:
• You spill something into the equipment.
• You suspect that your equipment needs service or repair.
• Your equipment's cover has been damaged.
• Do not take apart or attempt any modifications to this machine. There is a risk of fire, electric
shock, explosion or loss of sight. If the machine has laser systems, there is a risk of serious
eye damage.
• To avoid hazardous electric shock or laser radiation exposure, do not remove any covers or
screws other than those specified in this manual.
• Some parts of the machine are at a high voltage and could give you an electric shock. Also,
if the machine has laser systems, direct (or indirect) reflected eye contact with the laser beam
may cause serious eye damage. When the machine needs to be checked, adjusted, or re-
paired, contact your service representative.
• Do not keep using the machine with a fault or defect. Contact your service representative.
• If the machine looks damaged or breaks down, smoke is coming out, there is a strange smell
or anything looks unusual, immediately turn off the operation and main power switches
then unplug the power cord from the wall. Do not continue using the machine in this con-
dition. Contact your service representative.
• Do not put any metal objects or containers holding water (e.g. vases, flowerpots, glasses) on
the machine. If the contents fall inside the machine, a fire or electric shock could occur.
• Do not incinerate spilled toner or used toner. Toner dust might ignite when exposed to an
open flame.
• Disposal can take place at our authorized dealer or at appropriate collection sites.
• Dispose of the used toner cartridge in accordance with the local regulation.
FW780multi-eu-F_V4_FM.book Page ii Tuesday, May 27, 2003 5:59 PM

iii
RCAUTION:
•When you pull out the plug from the socket, grip the plug to avoid damaging the cord and
causing fire or electric shock.
•Unplug the power cord from the wall outlet before you move the equipment. While moving
the equipment, you should take care that the power cord will not be damaged under the
equipment.
•When the machine will not be used for a long time, unplug the power cord.
•If you use the machine in a confined space, make sure there is a continuous air turnover.
•Keep the machine away from humidity and dust. A fire or an electric shock might occur.
•Do not place the machine on an unstable or tilted surface. If it topples over, it could cause
injury.
•After you move the machine, fix it with the caster fixture. Otherwise, the machine might
move or come down to cause a personal injury.
•Protect the equipment from dampness or wet weather, such as rain, snow, and so on.
•Do not allow paper clips, staples, or other small metallic objects to fall inside the equipment.
•Do not reuse stapled paper. Do not use aluminum foil, carbon-containing paper or other
conductive paper. Otherwise, a fire might occur.
•Do not eat or swallow toner.
•Keep toner (used or unused) and toner bottle out of the reach of children.
•For environmental reasons, do not dispose of the equipment or expended supply waste at
household waste collection points. Disposal can take place at an authorized dealer or at ap-
propriate collection sites.
•When removing misfed paper, do not touch the fusing section because it could be very hot.
•Do not touch the anti-humidity heater from inside the machine because it could be very hot.
•The inside of the machine could be very hot. Do not touch the parts with a label indicating
the “hot surface”. Otherwise it could cause a personal burn.
•Rolls of paper can be heavy, so you should be careful when loading one.
•This machine has been tested for safety using this supplier's parts and consumables. We rec-
ommend you only use these specified supplies.
•Our products are engineered to meet high standards of quality and functionality, and we
recommend that you only use the expendable supplies available at an authorized dealer.
•This equipment is only to be installed by a qualified service personnel.
FW780multi-eu-F_V4_FM.book Page iii Tuesday, May 27, 2003 5:59 PM

iv
ENERGY STAR Program
•Auto Off Mode
To conserve energy, this product automatically turns off 1 minute after the
last copying or printing job has been completed. Printing is available in this
mode, but if you use the copier, press the main switch.
For how to change the default interval before entering Auto Off mode, see
Auto Off Time in“User Tools”⇒p.41
❖
❖❖
❖Specification
-
--
-Recycled Paper
Please contact your sales or service representative for recommended recycled
paper types that may be used in this machine.
As an ENERGY STAR Partner, we have determined
that this machine model meets the ENERGY STAR
Guidelines for energy efficiency.
The ENERGY STAR Guidelines intend to establish an international energy-saving system for
developing and introducing energy-efficient office equipment to deal with environmental is-
sues, such as global warming.
When a product meets the ENERGY STAR Guidelines for energy efficiency, the Partner shall
place the ENERGY STAR logo onto the machine model.
This product was designed to reduce the environmental impact associated with office equip-
ment by means of energy-saving features, such as Low-power mode.
FW780
Auto Off mode Power consump-
tion
1.5 W
Default interval 30 minute
FW780multi-eu-F_V4_FM.book Page iv Tuesday, May 27, 2003 5:59 PM

v
How to Read this Manual
Symbols
In this manual, the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation that might result in
death or serious injury when you misuse the machine without following the in-
structions under this symbol. Be sure to read the instructions, all of which are de-
scribed in the Safety Information section.
R
CAUTION:
This symbol indicates a potentially hazardous situation that might result in mi-
nor or moderate injury or property damage that does not involve personal injury
when you misuse the machine without following the instructions under this
symbol. Be sure to read the instructions, all of which are described in the Safety
Information section.
* The statements above are notes for your safety.
Important
If this instruction is not followed, paper might be misfed, originals might be
damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before op-
erating.
Note
This symbol indicates precautions for operation, or actions to take after misop-
eration.
Limitation
This symbol indicates numerical limits, functions that cannot be used together,
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[]
Keys that appear on the machine's panel display.
{}
Keys built into the machine's operation panel.
FW780multi-eu-F_V4_FM.book Page v Tuesday, May 27, 2003 5:59 PM

vi
TABLE OF CONTENTS
Guide to Components ................................................................................ 1

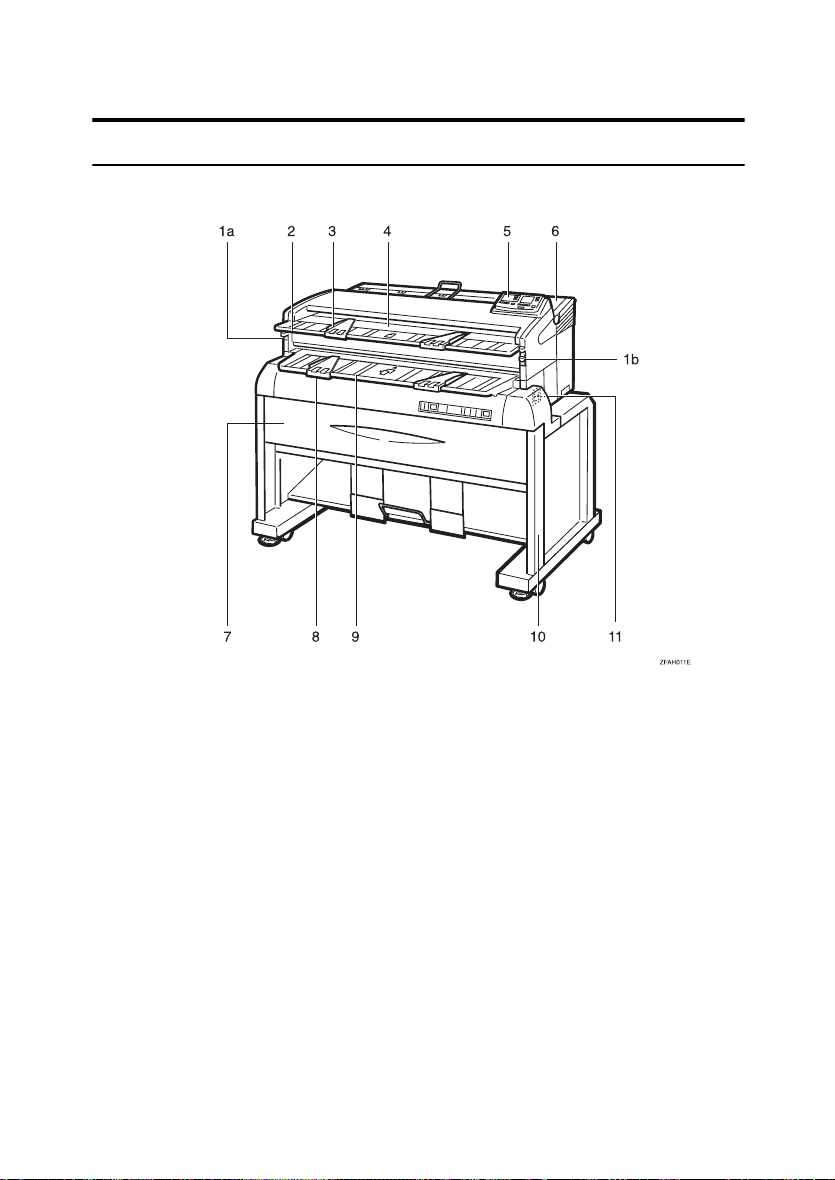

Copier Exterior ............................................................................................... 1

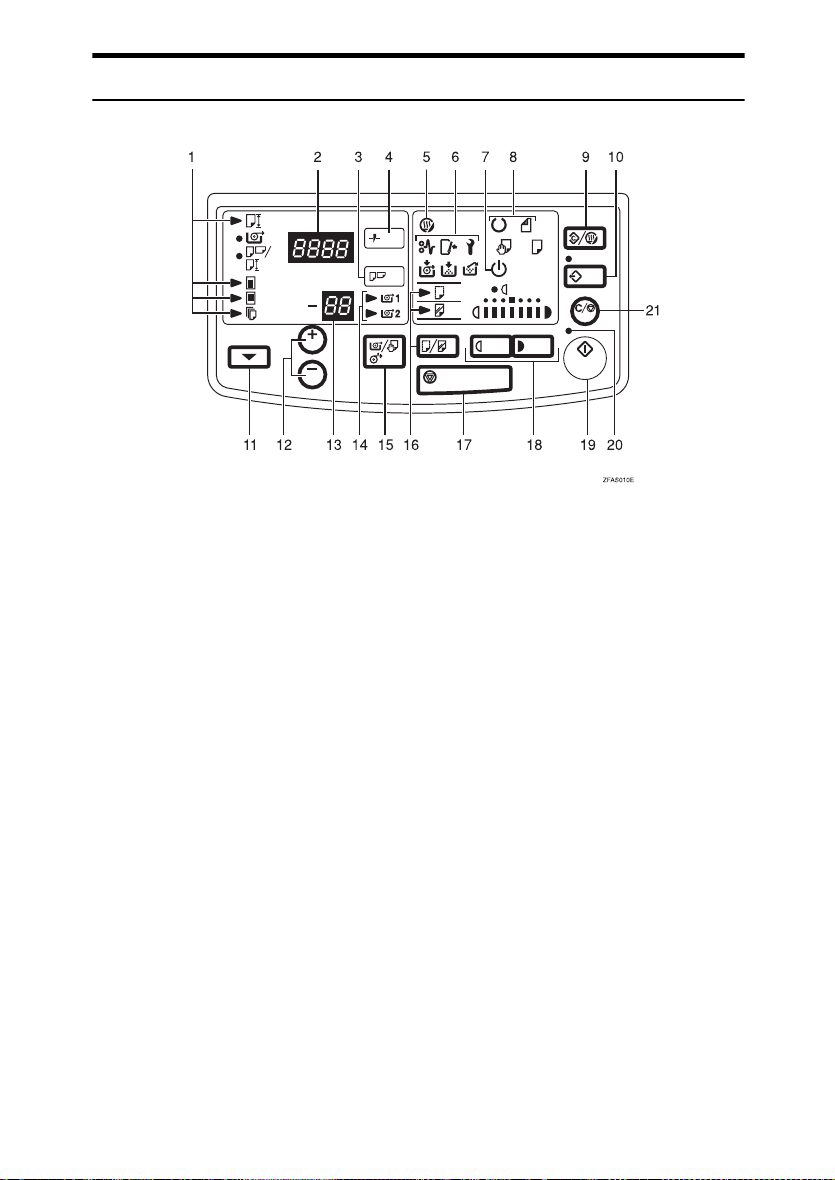

Operation Panel ............................................................................................. 3
1.Basics
Turning on the Power................................................................................. 5
Turn on the Main Power................................................................................. 5
Turn off the Main Power................................................................................. 5
Recommended Originals ........................................................................... 6
Non-recommended Originals ......................................................................... 7
Note for Leading and Side Edges of the Originals ......................................... 7
Recommended Paper................................................................................. 8
Anti-humidity Heater....................................................................................... 9
Toner.......................................................................................................... 10
Handling Toner............................................................................................. 10
Toner Storage .............................................................................................. 10
Used Toner .................................................................................................. 10
2.Copying
Basic Copying (Copying to sheets)........................................................ 11
Manual Feed Mode ...................................................................................... 17
Using the Rear Table ................................................................................... 20
Copying onto Roll Paper.......................................................................... 22
Synchro Cutting............................................................................................ 23
Preset Cutting .............................................................................................. 26
Variable Cutting............................................................................................ 27
3.Copy Settings
Copying onto Other Media....................................................................... 29
Adjusting the Fusing Temperature Manually................................................ 30
Adjusting Copy Image Density................................................................ 31
Setting the Number of Copies (Repeated Copying).............................. 32
Setting a Leading/Trailing Edge Margin ................................................. 33
Partial Copying ......................................................................................... 35
Programming Settings You Often Use ................................................... 38
A) Program key ............................................................................................ 38
B) Changing the Default Setting................................................................... 40
User Tools................................................................................................. 41
Settings You Can Change with User Tools............................................ 43
FW780multi-eu-F_V4_FM.book Page vi Tuesday, May 27, 2003 5:59 PM

vii
4.Maintaining Your Copier
Changing The Used Toner Bottle............................................................ 49
Adding Toner ............................................................................................ 52
Changing the Roll Paper Size.................................................................. 56
Removing the Roll Paper Holder.................................................................. 56
Setting the Roll Paper Holder....................................................................... 56
Loading A Roll Of Paper .......................................................................... 58
5.Troubleshooting
If Something Goes Wrong ....................................................................... 63
If Indicator Lights Up .................................................................................... 63
If Jams Occur............................................................................................ 64
If the Original is Jammed at the exit............................................................. 64
If Sheet Paper is Jammed in the Feed-in Slot.............................................. 65
If Sheet Paper is Jammed at the Paper Exit ................................................ 66
If Roll Paper Jams........................................................................................ 67
If You Cannot See the Roll Paper Jam ........................................................ 69
Others........................................................................................................ 72
Absolutely Nothing Happens........................................................................ 72
Something Happens, but Set Paper or Paper Select Never Appear............ 72
If Jams Occur Frequently............................................................................. 72
If Copies Look Wrong................................................................................... 72
White Spots Appear ..................................................................................... 72
Creases........................................................................................................ 73
Copies Come Out Dog eared....................................................................... 73
Black Streaks Appear on Copies ................................................................. 73
Daily Maintenance .................................................................................... 74
Clean the Exposure Glass & the Platen Plate.............................................. 74
Do's & Don'ts ............................................................................................ 75
Where to Put Your Copier........................................................................ 76
Machine Environment .................................................................................. 76
Power connection......................................................................................... 77
Access To Machine...................................................................................... 78
6.Specifications
Copier ........................................................................................................ 79
Roll Feeder................................................................................................... 80
Options...................................................................................................... 81
INDEX......................................................................................................... 82
FW780multi-eu-F_V4_FM.book Page vii Tuesday, May 27, 2003 5:59 PM

viii
FW780multi-eu-F_V4_FM.book Page viii Tuesday, May 27, 2003 5:59 PM

1
Guide to Components
Copier Exterior
1. Locks
Squeeze both locks (1a&1b) to open the
unit. Open the unit to empty the used
toner bottle and to remove jammed pa-
per.
2. Front Cover
Open the cover (and the unit) to access
the toner cartridge.
3. Original Guides
Use the guides to keep the original
straight as you feed the original into the
copier.
4. Original Table
Place your original face up here. If you
want to copy a stiff original that can't be
bent, use the rear table (see 6).
5. Operation Panel
⇒p.3 “Operation Panel”.
6. Rear Table
Place stiff originals face down here.
7. Roll Feeder
Feeds paper from a roll to the copier.
8. Paper Guides
Use the guides to keep the copy paper
straight as you feed it into the copier.
9. Bypass Table
Use this table when you want to make
copy one by one.
10. Table
Holds your copier and the Roll Feeder.
FW780multi-eu-F_V4_FM.book Page 1 Tuesday, May 27, 2003 5:59 PM

2

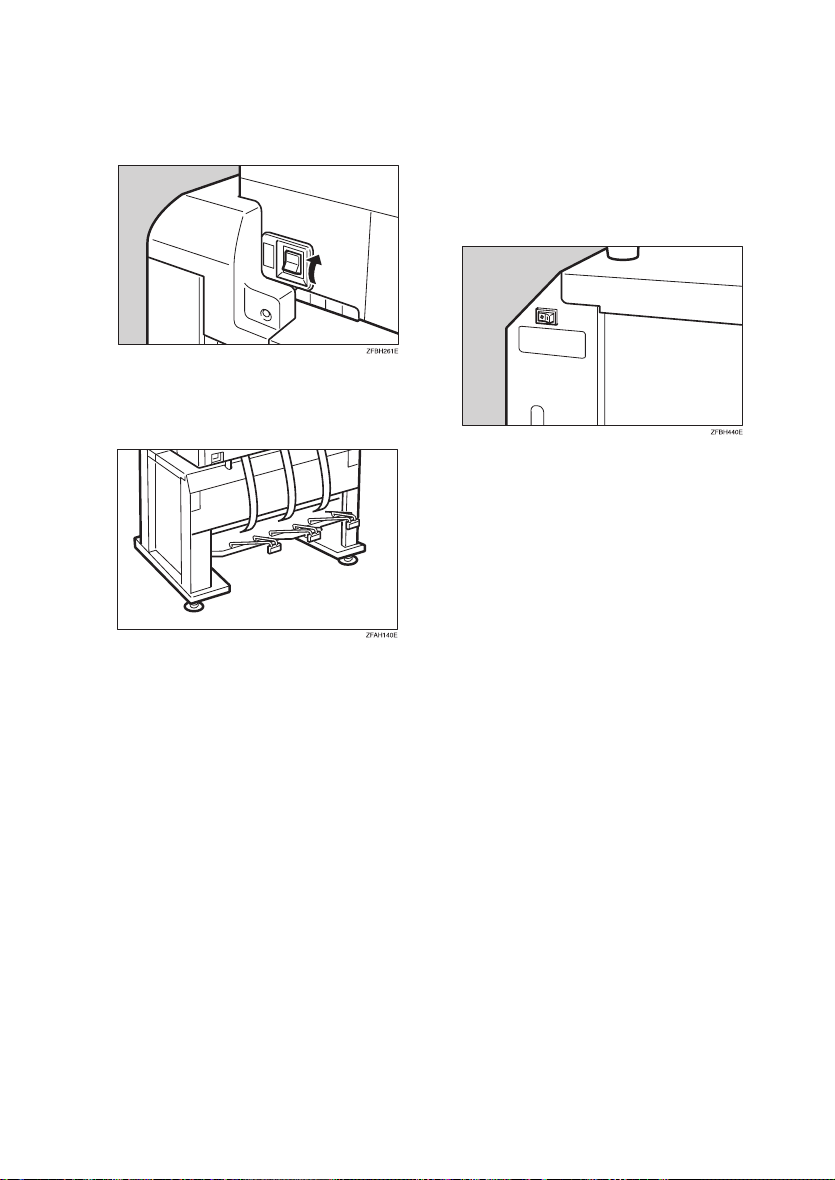

11. Main switch
Use this switch to turn the copier on and
off. The copier will need about 3 minutes
to warm up, if it's been turned off for a
long time.
12. Copy Exit Guide
Makes sure that copies don't fall off as
they come out.
13. Anti-humidity Heater Switch
When humidity is high, the paper in the
paper roll tray may absorb moisture,
which can effect the image quality of
your copies. The anti-humidity heater
prevents this. Turn on this switch, which
is located rear left corner of the machine,
when humidity is high.⇒p.9 “Anti-hu-
midity Heater”
FW780multi-eu-F_V4_FM.book Page 2 Tuesday, May 27, 2003 5:59 PM

3
Operation Panel
1. Function indicators
These indicators show which setting you
are currently editing. Press the Function
Select key to cycle through them.
•The top indicator (Paper Length indi-
cator) lights when the paper length is
being set.
•The second indicator (Leading Edge
indicator) lights when the leading
margin is being set.
•The third indicator (Trailing Edge in-
dicator) lights when the trailing mar-
gin is being set.
•The fourth indicator (Copy Counter
indicator) lights when the number of
copies is being set.
2. Paper Length display
Shows the length of paper the Roll Feeder
will send.
3. {Preset Cut}key
Press to scroll through the preset paper
lengths for the Roll Feeder.
4. {Cut Select}key
Turns Synchro Cut or Preset/Variable
Cut on and off.
5. Energy Saver indicator
Shows that the machine is in a state of
wait (Energy Saver). Press key 9.
6. Troubleshooting indicators
⇒p.63 “Troubleshooting”for details.
7. Wait indicator
Shows that the copier is not yet ready to
copy.
8. Ready (d), Set Original(R), Set
Paper (K), Bypass Select (a) indica-
tor
Ready and Set Original lights up when
the copier is ready to receive an origi-
nal.The Set Paper indicator and the By-
pass Select indicator go on when you
select Bypass table.
9. {Clear Modes/Energy Saver}key
Cancels all current settings. When you
hold down this key for three seconds or
more, the copier enters the Energy Saver
mode power.
To exit Energy Saver mode, press this key
again.
FW780multi-eu-F_V4_FM.book Page 3 Tuesday, May 27, 2003 5:59 PM

4
10. {Program}key
Allows you to recall or set a program.
The program indicator(LED) lights after
you store the setting.
11. {Function Select}key
Press to change which setting you are ed-
iting. The current selection is shown by
the indicators above the key:
•Paper Length
•Leading Edge
•Trailing Edge
•Copy Counter
Also used for copying a selected portion
of the original.
12. {+}and {—}key
Press to increase the value being edited.
Press to decrease the value being edited.
13. Leading Edge/Trailing Edge/
Copy Counter indicator
Displays the margin settings and the
number of copies made.
14. Roll Feeder indicator
Light up when you select Roll Feeder 1 or 2.
15. {Paper Select/Cut}key
Use to select the paper feed type such as
Roll feeder 1, 2 and Bypass Tray. Also
press to stop a copy job.
16. {Copy Media}key
Press to select the type of copy paper you
are using.
The copier will apply more or less heat
accordingly.
•The top indicator-Translucent paper
indicator
•The bottom indicator-Film indicator
17. {Emergency Stop}key
Press to stop the copying process imme-
diately.
Use if your original is getting stuck in the
copier.
If you stop operation by pressing this
key, remove the original.
18. Density indicator and {i},
{j}keys
Shows the density level the copies will
have.
Press the left key to make copies lighter.
Press the right key to make copies darker.
19. {Start}key
Press to start copying when you select
manual feed mode. Otherwise, the copy
job automatically start after you place
both paper and original. For details about
manual feed mode, ⇒p.17 “Manual Feed
Mode”
20. Green indicator
Lights up when you select the manual
feed mode.
21. {Clear/Stop}key
When entering numbers, press to cancel.
While copying, press to stop copying.
FW780multi-eu-F_V4_FM.book Page 4 Tuesday, May 27, 2003 5:59 PM

5
1. Basics
Turning on the Power
To turn the machine on, press the
main switch.
Turn on the Main Power
AMake sure that the power cord is
firmly plugged into the wall out-
let.
BTurn on the main switch.
Turn off the Main Power
ATurn off the main switch.
FW780multi-eu-F_V4_FM.book Page 5 Tuesday, May 27, 2003 5:59 PM

Basics
6
1
Recommended Originals
•You can set originals with weight in the range 21g/m
2
of(6 lb) to 157 g/m
2
(41 lb).
•You can set original with sizes between 914×3,000mm (W×L), 36"×118" and
210×297mm (W×L), 8.5"×11". (The maximum width that can be fed is 960mm,
38.4")
•You can not use the Repeated Copying function in the following cases:
When using the Carrier Sheet.
When setting an original longer than 1,200mm (48").
•Fix the curl of originals to within the following range:
•For the curl of the leading edge and the trailing edge: R50mm (2.0") or
more, H20mm (0.8") or less.
•For the curl of the whole paper: φ30mm (1.2") or more
•When you copy the following originals, set them in the rear table:
⇒p.20 “Using the Rear Table”
•Thick originals (0.19mm ~1mm)
•Originals less than 297mm (11") in width and more than 1,200mm (48") in
length.
•When you copy the following originals, use the carrier sheet to set them:
•Piled originals
•Folded originals
•Taped or pasted originals
•Originals which have a hole near the leading edge 40mm (1.6") to the right
or left of the center
•Dog-eared originals
•Creased, torn, or clipped-out originals
•Wavy originals
•Pasted originals
•Originals whose leading edge is not straight
•Curled originals
FW780multi-eu-F_V4_FM.book Page 6 Tuesday, May 27, 2003 5:59 PM

Recommended Originals
7
1
Non-recommended Originals
The following types of originals are not recommended.
•Wet originals
•Originals with cardboard stuck on the leading edge
•Originals with clips or staples
•Originals with wet ink or white-out
•Carbon paper
•Originals made of materials other than paper or film
(thermosensitive paper, aluminum foil, etc.)
Note for Leading and Side Edges of the Originals
Margins on the leading and side edges of originals are not copied as shown in
the illustration.
•a=0±3mm (0.12”)
•b1+b2<0±2mm (0.08”) (A1L)
FW780multi-eu-F_V4_FM.book Page 7 Tuesday, May 27, 2003 5:59 PM

Basics
8
1
Recommended Paper
R
CAUTION:
Standard paper sizes that can be used in this copier are shown below.
Note
❒When you make a copy on a non-standard size of paper, set the paper in the
bypass tray.
❒Weight of paper suitable for this copier: 51g/m2, 14lb to 134g/m2, 36lb.
❒Do not use the following kinds of paper or a paper jam might occur.
•Bent, folded, or creased paper
•Torn paper
•Perforated paper
•Non-smooth paper
•Slippery paper
•Thin paper that has low stiffness
❒Do not make a copy on paper with any kind of coating, such as thermosensi-
tive paper, art paper, aluminum foil, and carbon paper. A fault might occur.
❒Do not use paper with strong curls at the edges or corners. (Curls rising more
than 5mm (1/4") or falling more than 20mm (3/4") over a 40mm (1.5") radius.)
❒When you make copies on film, take out the copies delivered to the copy exit
guide one sheet at a time and place them on a flat surface.
❒If copying to natural tracing paper (all pulp, translucent paper) at a relative
humidity of 35% or less
AIf the paper was left out of its package for 5 minutes or more, remove
the first 1000mm (39.3") before copying.
BIf copies come out wavy or with white spots, use translucent paper in-
stead of natural tracing paper.
CAlways keep the paper in a bag when not using it.
•Store the paper in a sealed polyvinyl bag if not used for a long period.
If it gets humid, paper will curl or wave which can cause a paper jam or
part of the image not to be copied.
Do not reuse stapled paper. Do not use aluminum foil,carbon-containing paper or other con-
ductive paper. If you do, there is a danger of fire.
Metric version Inch version Bypass Roll Feeder
A0 E (36"×48") KK
A1 D (24"×36") KL KL
A2 C (18"×24") KL KL
A3 B (12"×18") KL KL
A4 A (9"×12") KK
FW780multi-eu-F_V4_FM.book Page 8 Tuesday, May 27, 2003 5:59 PM

Recommended Paper
9
1
•When you use paper in high humidity under hot conditions, take out only
the necessary amount of paper from the bag. Do not take all the paper out
of the bag.
•Do not use paper printed onto with an inkjet printer, as it may become en-
tangled or jammed, which may damage the machine. In the worst event,
this may cause a fire, depending on the paper type and ink type combina-
tion.
Anti-humidity Heater
•When humidity is high, the paper in the paper roll tray may absorb moisture,
which can effect the image quality of your copies. The anti-humidity heater
prevents this. Set this switch to "On" when the humidity reaches more than
45%.
FW780multi-eu-F_V4_FM.book Page 9 Tuesday, May 27, 2003 5:59 PM

Basics
10
1
Toner
Handling Toner
R
WARNING:
R
CAUTION:
R
CAUTION:
•If you use toner other than the recommended, a fault might occur.
•If you want to add toner, ⇒p.52 “Adding Toner”
Toner Storage
•Store toner cartridges horizontally in a cool, dark place.
•Do not leave toner cartridges in your car on a hot day for a long period of time
or anywhere that they could be subjected to temperatures of over 95°F (35°C).
•Never store toner where it will be exposed to heat.
•Do not lay heavy objects on toner bottles.
Used Toner
•Toner cannot be re-used.
•Put the used toner in the plastic bag and dispose of it according to local reg-
ulations.
•Do not incinerate used toner, toner bottles or toner cartridg-
es.
•Toner dust might ignite when exposed to an open flame.
•Dispose of toner bottles and the used toner cartridges ac-
cording to local regulations.
•Do not eat or swallow toner.
•Keep toner (used or unused), toner bottles, and toner cartridges
out of reach of children.
•This machine has been tested for safety using this supplier's
parts and consumables. We recommend you only use these
specified supplies.
