Product Support Guide G157
Version 1.3 1
Product Gestetner Lanier Ricoh Savin
G157 SP C210SF AC031cn SP C210SF SP C210SF
Launch Date: 03/15/2006
S/N Configuration: Q72xxxxxxxx
Training Information
• Auto-certification - RFG-eSource users may obtain the components of the G157
Service Documentation Update Package by performing a search using the G157
product code.
• Auto-certification - Update package can also be obtained from your Regional Order
Entry Department.
• Technical Professionals who are not currently certified on the G108 product can be
trained on the G157 by completing the G157/G108 Self-Pace WBT Training Program.
Product Concept
• High Performance
Print Speed:
Monochrome 31ppm, Color 8ppm
Copy Speed:
Monochrome 31cpm, Color 8cpm
(single doc / multi-prints)
Monochrome 21cpm, Color 7cpm
(multi docs / single-prints)
• Thick Paper Support
Paper Weight 16-55 lbs. (using standard tray)
• Full Functioned Laser Printer Based Color MFP
Copying: 600x300 dpi normal, 600x600 dpi photo color
Printing: 600x600 dpi normal, 2400dpi fine mode, GDI
Scanning: Scan to Twain, up to 1200x2400 dpi (platen)
Faxing: ADF, Super G3

Product Support Guide G157
Version 1.3 2
1. Paper Feed Unit Type 1000
Holds up to 530 sheets of paper.
Only one paper feed unit can be
installed. The installed paper feed
unit is designated as Tray 2.
2. Paper Cassette Type 1000
(Legal Tray)
Replaces the Standard Tray
(Tray 1). Allows for legal size
printing.
Machine Configuration
Controller
Memory Configuration
Maximum memory: 576MB
Minimum memory: 64MB
Note: Maximum memory can be extended to 576MB by installing a 512MB SO-DIMM (procured
locally)
No. Unit Machine Code
Main Unit G157
1Paper Tray Unit Type 1000 G389
2Paper Cassette Type 1000 (Legal) G391
No. Unit Machine Code
1
Memory Unit Type C
64 MB
128 MB
256 MB
-
G330
G331
G332
2IEEE1284
3 Ethernet
4USB 2.0
Standard
5 Optional Interface None
Standard Extended Machine
Code
64 MB G330
128 MB G331
64MB
256 MB G332

Product Support Guide G157
Version 1.3 3
General Specifications
Configuration: Desktop
Technology: Laser beam scanning, electro-photographic printing, single-component toner
development, one drum method
Copy Resolution/Speed: Color copy at 600x300 dpi, 7cpm color; 21cpm B&W
Print speed: See table below
First print speed: See table below
Dimensions: (W x D x H): 19 x 17.4 x 21 inches
Weight: Approximately 76.7 lb
Non printable area: Side 3mm; lead and trail edge 4mm (The printable area may vary depending
on paper size, printer language and printer driver settings.)
Max original size: Platen 8.5x11, ADF 8.5x14
Rating power specifications: 120V, 60Hz
Power consumption: Max 1300W; Energy Saver 16W; Average printing 615W, waiting 155W
Warm up time: Less than 45 seconds
Energy star mode: Selectable 0/30sec/5/15/30/45/60 minute increments
Safety standard: UL1950/1955 Third Edition CSA-22.2 no.950-95
EMI: FCC47 CFR, Chapter I, part 15, Class B
Environmental standard: Energy star - tier 2 specifications
Sound power level: Standby: 54dB; Printing: 67dB
Reduction of environmentally sensitive materials: RoHS Compliance; hexavalent chrome,
lead, polyvinyl
Duplex: Yes, manual duplex
GDI Controller
CPU: VR5500A 266Mhz
Print Resolution: 600x600, Fine mode 1200x600
RAM: Standard 64MB, Max 576MB; one slot available for 512MB expansion (obtained locally)
Memory type: DDR-SDRAM (SO-DIMM) PC100Mhz 64bit non-ECC/Parity 144 pin
HDD: HDD not utilized for this model
Scanner resolution: 1200x2400dpi (ADF 1200x600dpi)
Windows OS: Windows 98, Me, 2000, XP
Mac OS: 9.1 or 9.2, OS X (10.2 or later)
Unix OS: Not supported
Network Interface: Standard: IEEE 1284, USB 2.0, Ethernet
Network Interface Optional: None

Product Support Guide G157
Version 1.3 4
Fax
Compatibility: ITU-T Group 3
Coding system: MH/MR/MMR/JBIG
Modem speed: Automatic Fallback: 33600 bps
Document size: Platen max length 11.7” ADF Width 5.8”-8.5”, length 5.8”-14”
Scanning width: Max 8.2”
Printing width: Max 8.2”
Gray scale: 256 levels
Polling type: Standard, Sequential
Contrast control: Automatic/light/dark (manual setting)
Resolution: Horizontal 203 dot/inch (8 line/mm) / Vertical standard 98 dot/inch (3.85 line/mm)
One touch dial: 16 (8x2)
Speed dial: 200 stations
Broadcasting: 266 stations
Automatic redial: 1 time after 5 minutes
Auto answer: 0, 1, 2, 3,or 4 rings
Communication source: Public switched telephone network
Memory transmission: Up to 400 pages
Out of paper reception: Up to 400 pages
Internet fax: Yes
PC fax utility: Yes
Scanner
Color/Black: Color/Black
I/F: USB2.0, 10/100 Base-TX, IEEE1284
Twain compliant: TWAIN, WIA
Color Depth: 48bit color processing (input), 24bit color processing (output)
Resolution: Up to 9600x9600 dpi (interpolated)
Platen; up to 1200x2400 dpi (optical)
ADF; up to 1200x600 dpi (optical)
Document size: Platen; max width 8.5” max length 11.7”
ADF max width 5.8-8.5” length 5.8”-14”
Scanning width: max 8.5”
Gray scale: 256 levels
Scanner utilities/drivers: TWAIN driver, Scanner utility (Control Center), Image viewer (Paper
Port 9.0SE), OCR S/W (OmniPage OCR)

Product Support Guide G157
Version 1.3 5
Printing Speed
Black and White Mode Print speed First print
speed
Paper Type Paper Weight LT LGL LT
60-90g/m2 31 16 14sec
Plain paper
90-105g/m2 5.5 5.5 19sec
105-163g/m2 4.2 4.2 22sec
Thick paper
163-210g/m2 3.5 3.5 25sec
Color Mode Print speed First print
speed
Paper Type Paper Weight LT LGL LT
60-90g/m2 8 8 20sec
Plain paper
90-105g/m2 3.6 3.6 25sec
105-163g/m2 3.0 3.0 27sec
Thick paper
163-210g/m2 2.6 2.6 30sec
Supported Paper Weight Specifications
Standard Tray: 16 lb. - 55 lb. Bond (60 to 210g/m2)
Optional Tray: 16 lb. - 28 lb. Bond (60 to 105g/m2)
Legal Tray: 16 lb. - 55 lb. Bond (60 to 210g/m2)

Product Support Guide G157
Version 1.3 6
Recommended Paper
Plain Paper
Type Brand WT. Size
Hammermill Copy Plus 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Hammermill Tidal DP 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Hammermill Saving DP 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Georgia Pacific Spectrum DP 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Georgia Pacific Micro Print
Multipurpose
20 lb.
Bond
8.5" x 11"
8.5” x 14”
Champion Multi Purpose 16 lb.
Bond
8.5" x 11"
8.5” x 14”
Champion Multi Purpose 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Champion Multi Purpose 24 lb.
Bond
8.5" x 11"
8.5” x 14”
XEROX X4024 20 lb.
Bond
8.5" x 11"
8.5” x 14”
Plain
XEROX X9000 20 lb.
Bond
8.5" x 11"
8.5” x 14”

Product Support Guide G157
Version 1.3 7
Recommended Paper
Special Paper
Paper Type Plain Paper/Thick
Paper Type
Great White Laser
Glossy Photo Paper
[Brightness 94] (#
86300)
32 lb.
Bond
8.5" x 11" Glossy
Glossy Paper *1
Wausau Exact Gloss
Coated (# 97201)
80 lb.
Text
8.5" x 11" Glossy
Coated Matte
Paper
Wausau Exact Matte
Coated (# 99201)
80 lb.
Text
8.5" x 11" Glossy
Avery White Mailing
Labels (# 05160)
--- 8.5" x 11" Label
Adhesive Label
Avery White Mailing
Labels (# 05163)
--- 8.5" x 11" Label
Transparency
3M CG3700 & CG3720
(for color laser printers,
w/o stripe)
--- 8.5" x 11" OHP Transparency
Recycled Paper
Georgia Pacific
GeoCycle 30%
Recycled
20 lb.
Bond
8.5" x 11"
Thick Paper
Eastern Paper, Pristine
High Yield Index
(#081-01930)
110 lb.
Index
(199
g/m2)
8.5" x 11" Thick 163-210g/m2, 43-55lb
Westvaco Laser
Quality Envelopes
(#CO125) *3
COM10 Thick Thick Envelopes
Westvaco Laser
Quality Envelopes
(#CO130)
COM10 Thick Thin Envelopes
KENTWOVE No.10) COM10 Thick Thin Envelopes
Quality Park Business
Envelope (# qua11112)
*3
COM10 Thick Thin Envelopes
Envelopes *2
Quality Park Business
Envelope (# qua11184)
COM10 Thick Thin Envelopes
*1. Uneven density appears in partial area.
*2 Wrinkles frequently appear when placing flap onto the right.
*3 Wrinkles occasionally appear when placing flap onto the left.

Product Support Guide G157
Version 1.3 8
Additional Comments
Ricoh has tested the paper types on the previous page. However, Ricoh
recommends that end users test any paper before purchasing large
quantities. The print quality may differ according to the temperature, humidity
and printing applications in which the paper is used. In addition, paper
specifications or methods of manufacturing are subject to change, over which
Ricoh has no control.
When using special paper, feed from the standard tray and select the proper
paper type from the printer driver and the control panel. In addition, when using
thick paper or envelope, select the proper Plain Paper Type or Thick Paper Type
on the control panel. Printing numerous sheets of special paper in a short
amount of time may create some printing problems. Exclusive printing of special
paper may result in more frequent service calls, and may significantly reduce the
maximum yield of maintenance kits. Ricoh’s reliability data assumes only
occasional use of special paper.
Paper Not Supported By This Printer
Some types of paper may not perform well or may cause damage to the
machine. Do not use the following paper:
• Highly textured
• Extremely smooth or shiny
• Curled or warped
• Coated, or with a chemical finish
• Damaged, creased or folded
• That exceeds the recommended weight specification
• With tabs or staples
• Letterheads using low temperature dyes or thermography
• That is multipart or carbonless
• That is designed for inkjet printing

Product Support Guide G157
Version 1.3 9
Printer Drivers and Functions
Function Windows
9x / Me
Windows
2000 / XP
Macintosh
OS9.1, 9.2
Macintosh
OS X
Job Binding N N N N
Send to Document Server N N N N
Sample Print Y Y N N
Locked Print Y Y Y Y
Reduce/Enlarge (Scaling) Y Y Y Y
Reduce/Enlarge Centering N N N N
Collate Y Y Y Y
Layout (N-up) Y Y Y Y
Poster Y Y N N
Manual Duplex Y Y N N
Punch N N N N
Staple N N N N
Front Cover Sheet N N N N
Front and Back Cover Sheets N N N N
Slip Sheet N N N N
Chaptering (Page Layout) N N N N
Chaptering (Single Page Inserting) N N N N
Chaptering (Page Block Inserting) N N N N
User Defined Pages N N N N
Tab Stock Printing N N N N
Mirror Image Print Y Y Y Y
Negative Image Print N N N N
Dithering Y Y Y Y
Edge Smoothing N N N N
Toner Saving Y Y Y Y
Watermark Y Y Y Y
Form Overlay N N N N
Header/Footer N N N N
Adjust image position N N N N
Binding Margins Y Y Y Y
User ID N N N N
User Code N N N N
Rotate Print N N N N
Reverse Order Print N N Y Y
Do not print Blank pages N N N N
Edge to Edge Print N N N N

Product Support Guide G157
Version 1.3 10
Utilities and Drivers CD-ROM

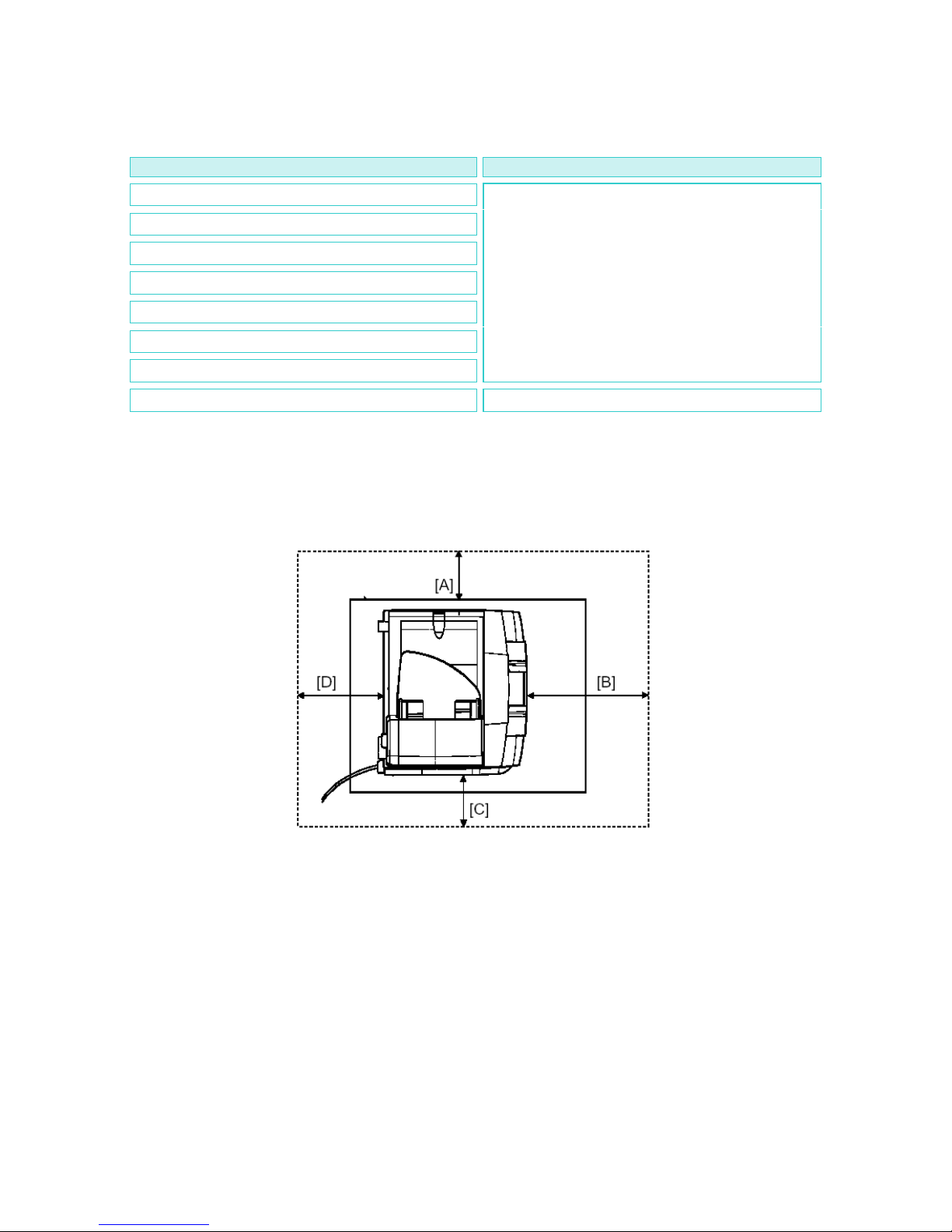

Machine Space Requirements
[A] (Right): 20”
[B] (Front): 28”
[C] (Left): 8”
[D] (Rear): 14”
NOTE: The space necessary to perform maintenance is included.
Machine Level
Front to back: 1 degree or less
Left to right: 1 degree or less
Contents Windows Environment
Printer Driver
Status Monitor
Remote setup management tool
Scanner driver
Image viewer (PaperPortSE)
OCR S/W (OmniPage)
PC Fax S/W
Windows 95/98/Me, NT4.0, 2000, XP
Printer Driver Macintosh

Product Support Guide G157
Version 1.3 11
Installation Requirements
Environment
1. Temperature range: 50 - 90.5°F
2. Humidity range: 15 - 80%RH
3. Do not install the machine in an area that is exposed to direct sunlight.
4. Do not install the machine in a space with poor airflow.
5. Do not expose the machine to a sudden temperature change, which
include:
Direct cool air from an air conditioner
Direct heat from a heater
6. Do not install the machine in an area that can be exposed to corrosive
gas.
7. Install the machine at a location lower than 8200 ft.
8. Install the machine on a strong, level base.
9. Do not install the machine in an area that can be subjected to strong
vibrations.
Power Requirements
1. Input voltage level: 120 V, 60 Hz
2. Permissible voltage fluctuation: ±10 %
3. Do not put or place anything on the power cord
Transporting The Printer After Installation
1. You need two or more people to move the machine. The machine weighs
approximately 77lbs without optional units. Before you turn off the main
power, move the CIS to the shipping position with Maintenance function
06. Note: End users can perform maintenance function 06 by
themselves. Remember to inform them to use this function before they
move the machine.
2. Keep the machine level while you move it.
3. Put the machine on a flat area. Make sure that the whole part of the base
supports the weight of the machine.
4. Whenever possible, use the padding provided in the original package to
repack machine.
5. Remove the following units and components:
• Photoconductor unit
• Optional paper feed unit
• Paper
NOTE: Do not remove the waste toner bottle. If you remove it, waste toner may
fall from the waste toner path.
6. Protect the photoconductor unit surface with paper or cloth.
7. Clean the units accessible and components in the printer.
8. Secure the paper tray and all exterior covers with appropriate tape.

Product Support Guide G157
Version 1.3 12
Reliability Information
ACV: 1.2k prints / 2.64k dev.
Color Ratio: 40%
Max CV: 2k prints
MCBF Target (mainframe): 34.3k prints / 75.43k dev
EM ratio/Call ratio: 0.035 / 0.061 (*A), 0.035 / 0.035 (*B)
Note: The above items are calculated based on the following conditions:
A4 (LT short-edge feed), 5% image coverage ratio, 2P/J
*A: Fusing units replaced by technician
*B: Fusing units replaced by users
Consumable Yields
Toner Yield
Toner Yield
Color 6.5K prints
Black 9.8K prints
Starter Toner Yield
Color 3.0K prints
Black 5.0K prints
User Replaceable Item Yield
Yield
(at 2 pages per job)
OPC Belt Unit 60K Developments
Waste Toner Bottle 11K Developments
Notes:
1. The number of developments determines the components usable life. The figures in the
table are calculated under the following conditions:
LT SEF, 5% image coverage ratio, continuous use, color ratio 40%
2. The environment is standard temperature and humidity.
3. This yield number may change depending on the circumstances and printing conditions.
Preventive Maintenance
User Maintenance/Page Count. This table lists the components that require
maintenance work when the copier has output a certain number of pages.

Product Support Guide G157
Version 1.3 13
Component 3.7KP 13.2KP EM Remarks
Registration Roller C
Waste Toner Bottle R Note 1
OPC Belt Unit R Note 1, 2
Key: C: Clean, R: Replace, L: Lubricate, I: Inspect, KP = 1,000 prints
1. The figures in the tables above are calculated under the following conditions:
LT SEF, 5% image coverage ratio, two pages per job, 50% color ratio
2. When replacing the OPC Belt Unit the User Function 74 (OPC Belt) must be
performed.
Service Maintenance
Page Count. The table lists the components that need maintenance work when the printer has
output a certain number of pages.
Key: C: Clean, R: Replace, L: Lubricate, I: Inspect, KP = 1,000 prints
Main Frame
Component 47KP 90KP 120KP Remarks
Fusing Unit R Note 1
Transfer Belt Cleaning Unit R Note 3
Transfer Roller R Note 3
Paper Feed Roller R Note 3
Separator Pad R Note 3
Transfer Belt Unit R Note 2, 3
Paper Feed Unit
Component 47KP 90KP 120KP Remarks
Paper Feed Roller R
Separator R
1. The number of developments determines the components usable life. The
figures in the tables above are calculated under the following conditions:
LT SEF, 5% image coverage ratio, two pages per job, 50% color ratio (number of
cycles are also considered in this formula)
2. The number of developments decides the actual life. The values in this table are
calculated for the conditions above.
3. These are yield parts only. But the expected yield is the same as the machine
durability under the target conditions.

Product Support Guide G157
Version 1.3 14
Necessary Settings
The PM counter initialization (Service Mode > 36 Clear Care) must be performed
after the following units are replaced:
 Transfer Belt Unit
 Transfer Roller
 Transfer Belt Cleaning Unit
 Paper Feed Roller
 Separator Pad
 Fusing Unit
Expected yield based on P/J
Expected Yield
Item
1P/J 2P/J 3P/J 5P/J
Waste Toner Bottle
(maintenance Kit)
3.54k prints
(7.8k dev.)
4.18k prints
(9.2k dev.)
4.45k prints
(9.8k dev.)
4.59k prints
(10.1k dev.)
OPC Belt Unit
(Maintenance Kit)
10.9k prints
(24k dev.)
15k prints
(33k dev.)
17.7k prints
(39k dev.)
19.5k prints
(43k dev.)
Fusing Unit
(Service Parts) 28k prints 47k prints 55k prints 60k prints
Note: The figures in the tables above are calculated under the following conditions: LT SEF, 5%
image coverage ratio, 40% color ratio
Total Counter Information
The total counter can be viewed on the display panel or printed out. Counters
that can be accessed: total page, fax, print, and copy count.
• To view the counters on the Operation panel: Press Menu/Set, 7, 2.
• To print out counters: Press Menu/Set, 5, 5, black start. The User
Settings List will be output.

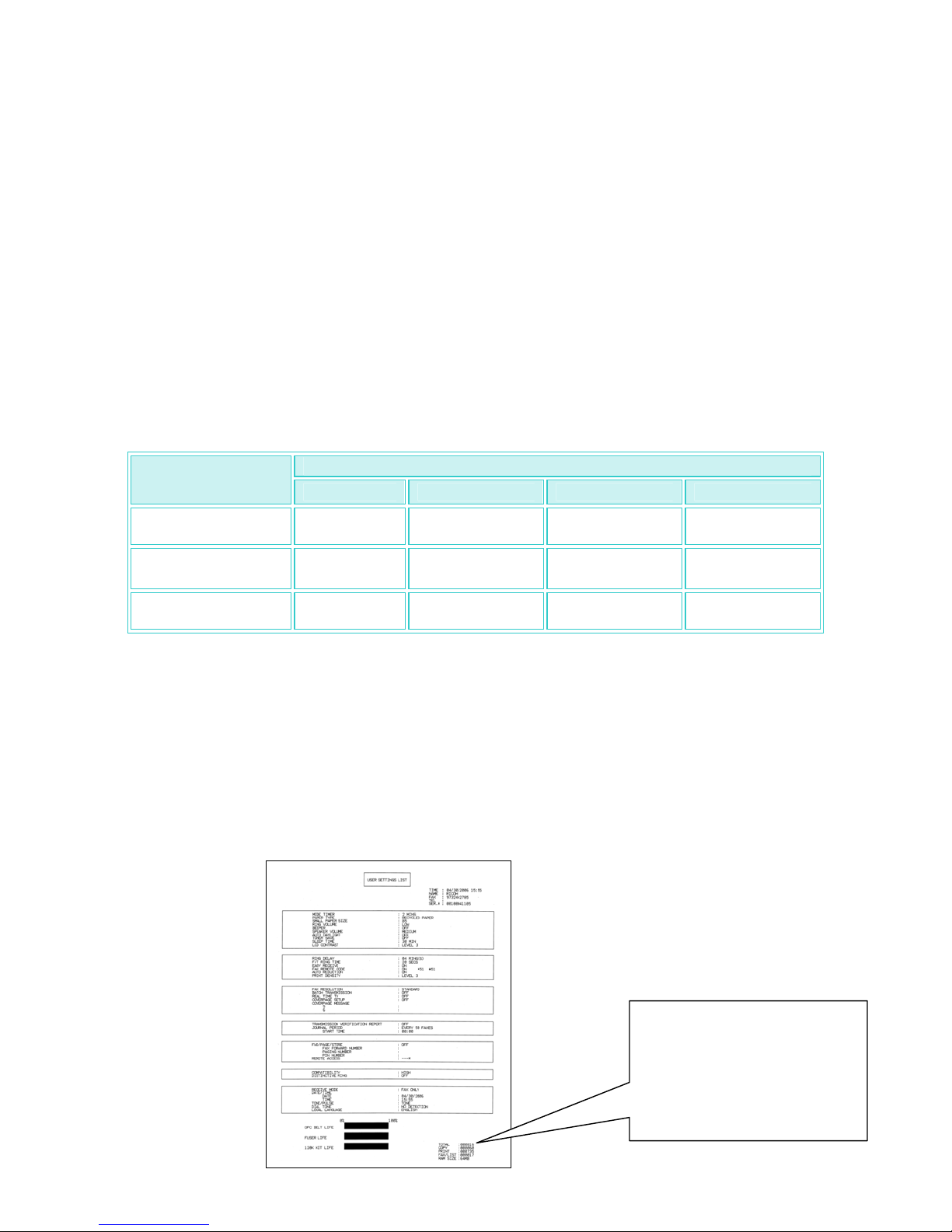

Example of User Settings List
TOTAL :000816
COPY :000060
PRINT :000735
FAX/LIST :000017

Product Support Guide G157
Version 1.3 15
Firmware
Firmware is updated via Parallel Interface Cable only. The table lists the
firmware program used by this machine.
Firmware Program Name Display
Controller Firmware LZ0732_A.upd A0511141709.14F7
Note: Example: A0511141709:14F7 is version A, which was created in 2005, on
November 14th at 17:09. 14F7 is the check sum.
Order Numbers
EDP/ID number
Name/Description
Gestetner Lanier Ricoh Savin
Paper Feed Unit
Type 1000 402067 481-0847 402067 402067
Paper Cassette
Type 1000 402069 481-0849 402069 402069
Memory Unit
Type C 64MB 400716 481-0518 400716 400716
Memory Unit
Type C 128MB 400717 481-0519 400717 400717
Memory Unit
Type C 256MB 400718 481-0520 400718 400718
Color LP Toner
Type 140 K 402070 480-0264 402070 402070
Color LP Toner
Type 140 C 402071 480-0265 402071 402071
Color LP Toner
Type 140 M 402072 480-0266 402072 402072
Color LP Toner
Type 140 Y 402073 480-0267 402073 402073
PCU Type 140 402074 480-0268 402074 402074
Waste Toner 402075 480-0269 402075 402075
G157 Main Unit 402531 479-1680 402531 402531
Branding Kit 402579 - - 402578

Product Support Guide G157
Version 1.3 16
Part Information
Item Part Number Expected Yield
Fusing Unit V128622 47KP
Cleaning Roller PU V128404 120KP
Transfer Roller V128488 120KP
Paper Feeding Roller V126142 120KP
Separator Pad V128468 120KP
Transfer Unit V128463 300KD
Optional Feed Unit Parts
Paper Feeding Roller V128539 90KP
Separator Pad V128540 90KP
Special Tools
Documentation Order Numbers
Part Number Description Q’ty
No special tools required
Manual Order number
Service Manual 002643MIU
Parts Catalog 002644MIU
Service Documentation
Update Package 002642MIU

Product Support Guide G157
Version 1.3 17
Contact Information
Resources Contact
Technical Services Call Center
(Hotline)
Ricoh: [phone]
Savin/Gestetner: [phone]
Lanier: [phone]
Application Help Desk (Software
Issues)
Phone Card order numbers
Ricoh: 2 Calls 000781MIU, 5 calls 000900MIU
Savin: 2 Calls 12992, 5 Calls 12993
Gestetner: 2 Calls 12994, 5 Calls 12995
RFG-eSource http://www.rfg-esource.com/
Technology Solutions Center http://www.tscweb.net
Savin iLINC http://w3.savin.com
Gestetner ILINE http://w3.gestetnerusa.com
Headquarter Web Sites Ricoh Corporation: http://www.ricoh-usa.com
Savin Corporation: http://www.savin.com
Gestetner Corporation: http://www.gestetnerusa.com
Lanier Corporation: http://www.lanier.com
National Reclamation Center [phone] / http://www.nrc-usa.com
Fax On Demand [phone]
Material Safety Data Sheets (800) 336-MSDS (6737)
Eastern Training Center [phone] http://www.ricohuniversity.com
Western Training Center [phone]
Version
1.0 Original
1.1 Added photo to page 1
1.2 Updated counter information on page 14
1.3 Updated Fuser part number on page 16
