Ricoh Lanier AP206 User manual

Please read the Safety Information in the“Printer Reference”before using this machine.
It contains important information related to USER SAFETY and PREVENTING EQUIP-
MENT PROBLEMS.
QUICK INSTALLATION GUIDE
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
<G063-8935>
UNPACKINGTHE PRINTER AND
CHECKINGTHE CONTENTS OF
THE BOX
Caution
• To prevent injury, this printer should be lifted by
at least two people.
Check the contents of the box according to the
following list.If one or some items are missing,
please contact your sales or service
representative.
Important
❒The parallel cable is not included in the box. It is
your responsibility to provide the parallel cable
appropriate for the computer you are using.
Quick Installation Guide (this sheet)
Setup Guide
CD-ROM
Toner Cartridge (Black)
Toner Cartridge (Yellow)
Toner Cartridge (Cyan)
Toner Cartridge (Magenta)
Fuser Cleaner
Photoconductor Unit
Fuser Oil Bottle
Power Cord
Additional Documentation
Remove the plastic bag.
Lift the printer and move it to the place where
you want to install it.
When lifting the printer, use the inset grips on both sides of the
printer.
ZDHP125E
Remove adhesive tape [A] and packing material
[B] from the printer.
ZDHH015E
AAB
INSTALLINGTHE FUSER OIL
BOTTLE AND FUSER CLEANER
Caution
• Donot incinerate the oil bottle.Thisactioncould
cause a fire or a personal injury.
• Spilt oil is very slippery. If oil is spilt, wipe it up
with an alkaline cleaner. Otherwise, the oily
surfaces can create the danger of slipping and
personal injury.
Important
Prior to moving or transporting the printer, wipe out
the fuser oil completely as explained in the “Printer
Reference” included as a PDF file on the CD-ROM.
Open the top cover by pulling the top cover open
lever.
ZDHH105E
Insert the oil bottle.When inserting, the side with
the label should be facing toward you, and the
mouth of the bottle facing down.
ZDHH175E
Installthe fuser cleaner.When installing, the roller
should be facing toward you.
ZDHH235E
Turnthe lock leversto hold the oil bottle and fuser
cleaner.
Note
❒Turn the right lock lever clockwise, and the left one
counterclockwise.
ZDHH245E
INSTALLINGTHE
PHOTOCONDUCTOR UNIT
Important
❒Donottouch thesurfaceof thephotoconductorunit.
This could damage the photoconductor unit and
reduce the print quality.
❒Do not expose the photoconductor unit to a light
source greater than 800 luxes for more than two
minutes.Thiscould damagethe photoconductorunit
and reduce the print quality.
Lift the green lock levers to a vertical position.
ZDHH125E
Remove the pins on both sides of the
photoconductor unit.
ZDHH615E
Remove the protective sheet.
ZDHH616E
Insert the photoconductor unit so that the
protruding axles on both sides are aligned with
the tracks inside the green lock levers. Lower it
until the gears mesh securely.
ZDHH145E
Important
❒Wheninsertingthe photoconductor unit,becareful
not to touch or damage the surface.
WHERETO PUTTHE PRINTER
The printer’s location should be carefully chosen
becauseenvironmentalconditions greatlyaffectits
performance.
Warning
• Confirm that the wall outlet is near the machine
and freely accessible, so that in event of an
emergency, it can be unplugged easily.
• Only connect the machine to the power source
described on this sheet.
• Avoid multi-wiring.
• Do not damage, break or make any
modifications to the power cord. Do not place
heavy objects on it, pull it hard or bend it more
than necessary. These actions could cause an
electric shock or fire.
Caution
• Keepthemachineaway from humidity and dust.
A fire or an electric shock might occur.
• Placethemachine on a strong and levelsurface.
Otherwise, the machine might fall and cause
personal injury.
• If you use the machine in a confined space,
confirm that there is a continuous flow of air.
Optimum Environmental Conditions
Recommended temperature and humidity
32.5
60
27 8010 80
32.5 2010 20
RH
80
60
40
20
10 20 30
27 50
27 70
17.5
70
17.5
50
90.5
60
80.6 8050 80
90.5 2050 20
RH
80
60
40
20
50 60 90
63.5
70
63.5
50
80.6 70
70 80
80.6 50
Possible operation range
Recommended range
The machine must be level within 5 mm, 0.2” both front to rear
and left to right.
Toavoid possiblebuild-up ofozone,locate thisprinter in alarge well
ventilatedroom thathasan airturnovermore than30m
3
/hr/person.
If you use this printer in a cold area, leave the printer on or severe
cold might damage sensitive components inside the printer.
Environments to Avoid
Important
❒Locations exposed to direct sunlight or strong light
❒Dusty areas
❒Areas with corrosive gases
❒Areas excessively cold, hot, or humid
❒Locations near an air conditioner or humidifier
❒Locations near other electronic equipment
❒Locations where the printer might be subjected to
frequent strong vibration
Power Connection
Connect the power cord to a power source with the following
specifications:
❒220-240 V, 50/60 Hz, 6 A or more
Space Required for Installing the Printer
Leave enough space around the printer. This space is necessary to
operate the printer. The recommended (or minimum) space
requirement is as follows:
ZDHH800E
C
A
D B
A: more than 50 cm (19.7")
B: more than 20 cm (7.9")
C: more than 50 cm (19.7")
D: more than 70 cm (27.6")
Attaching the Sticker
A sticker, mentionning that paper meant for an ink-jet printer is
not allowed for use with this printer, is supplied.
Pleaseattach thestickerto thebottom rightcorner ofthe top ofthe
printer [A] so that the sticker is easy to see.
ZDHH810E
A
Return the green lock levers to their original
positions.
ZDHH155E
Important
❒Do not return lock levers with force. If you cannot
lock them easily, remove the photoconductor unit
fromtheprinter.Then insert itagainuntil the gears
mesh securely. After that, try again to return the
levers to their original positions.
Close the top cover until the center of the cover
locks securely.
ZDHH810E

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Copyright© 2000 G047-8610
Printed in Japan
EE GB
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
INSTALLINGTHETONER CARTRIDGES
Warning
• Do not incinerate spilled toner or used toner.Toner
dust might ignite when exposed to an open flame.
• Disposal can take place at our authorized dealer
or at an appropriate collection site.
• Ifyoudisposeoftheusedtonercontainersyourself,
disposeofthemaccordingtoyourlocalregulations.
Caution
• Do not open the front cover when the paper tray is
pulled out halfway. If you do, it might cause a
personal injury.
• Do not eat or swallow toner.
• Keep toner (used or unused) and toner cartridges
out of reach of children.
• Our products are engineered to meet the highest
standards of quality and functionality. When
purchasing expendable supplies, we recommend
usingonly those provided by an authorized dealer.
Openthe front cover by pulling the front cover open lever.
ZDHH165E
Hold the new toner cartridge (cyan) and shake it
well,about 3to 4 times, as shown in the illustration.
ZDHT205E
Important
❒If the toner cartridge is not shaken enough, toner
might not be evenly distributed in the cartridge. In
this case, the print quality might be reduced.
Remove the tape
and the protective cover
as shown in the illustration.
ZDHT206E
Align the toner cartridge (cyan) to the “C” mark
of the printer as shown in the illustration. Slide
the cartridge in along the printer’s guide rail.
ZDHT025E
INSTALLINGTHE PAPERTRAY
Caution
• The paper tray does not have a stopper. When
pulling it out, be careful not to pull it strongly. If
you do, the tray might fall and cause personal
injury.
Thefollowingprocedure describes howto load A4 K .
For more information about the paper sizes that
can be set in the paper tray, see “Paper and Other
Media Supported by This Printer” in the “Printer
Reference”included as a PDF file on the CD-ROM.
Pull the paper tray out of the printer. Place it on a
flat surface.
ZDHY017E
If necessary, slide the front and side guides to
the paper size you want to use.
ZDHY035E
Load paper with the print side up, into the paper
tray.
ZDHY045E
Important
❒Make sure that the top of the stack is not higher
than the limit mark inside the tray.
❒The front and side guides should be set exactly to
the paper size to avoid paper feed problems.
❒Do not load different kinds of paper in the tray.
PRINTINGTHETEST PAGE
You can check if the printer works properly by
printing a test page such as the configuration page.
However,youcannotchecktheconnectionbetween
the printer and the computer by printing the test
page.
Turnonthe printer.First setthe main powerswitch
to the On position, and then depress the power
switch.

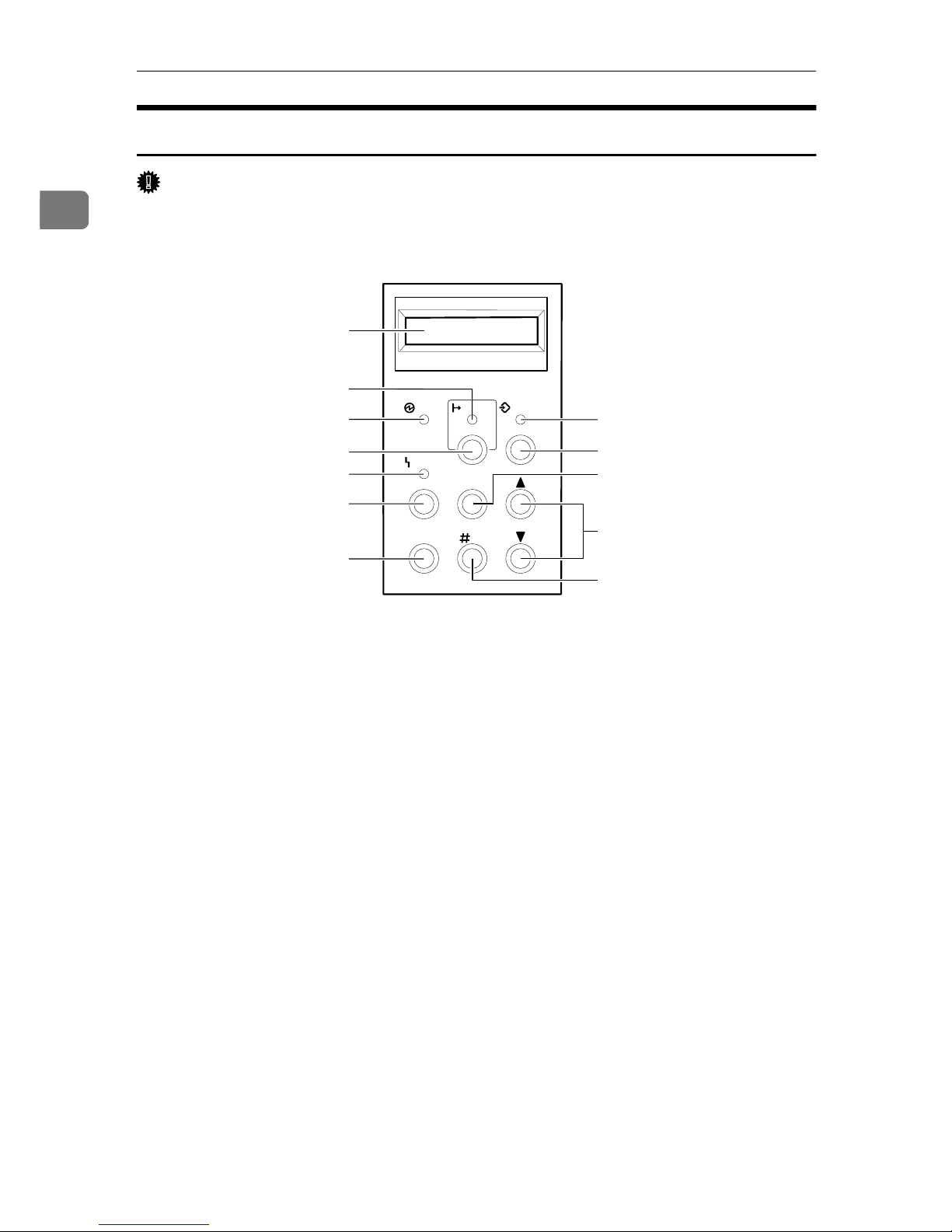

Press the Menu ( ) key.
The following message appears on the panel display.
<Menu> ▲
IPDL-C Menu ▼
Press the ▼ or ▲ key to display “List Print”, and
then press the Enter ( ) key.
<Menu> ▲
List Print ▼
The following message appears on the panel display.
<List Print> ▲
1.Config.Page ▼
Confirm that “1.Config.Page” is on the display,
and then press the Enter ( ) key.
The following message appears on the panel display.
<Config.Page>
Press # key
Press the Enter ( ) key.
In a short time, the test printing will start.
Printing...
Config.Page
Important
❒If you cannot complete the test printing correctly,
seeifan errormessage appears onthe paneldisplay.
For more information about error messages, see
“Troubleshooting” in the “Printer Reference”.
Press the On Line ( ) key.
Turn off the printer’s power switch.
CONNECTINGTHE PRINTERTO
A COMPUTER
Connect the printer to a computer using a parallel
cable.
Important
❒The parallel cable is not provided with the printer.
Itisyour responsibilitytoprovide theparallelcable
appropriate for the computer that you are using.
❒The printer’s parallel connection is a standard bi-
directional interface. It requires a standard 36-pin
parallel cable compliant with IEEE1284 and a
parallel port on the computer.
❒To avoid electrical interference, use a shielded
cable.
Note
❒Do not use a parallel cable more than 2.5 meters
(8.2 feet) long.
Confirm that the printer’s power switch is turned
off.If it is on, turn it off.
Turn the computer off.
Attach the parallel cable to the port of the
printer.Secure the cable with the metal fittings
as shown in the illustration.
Important
❒Ratingvoltageof theparallelport for thecomputer;
Max. DC 5V.
ZDHH056E
Attach the other end of the parallel cable to the
port of the computer.Secure the cable.
SETTING UP FOR PRINTING
Printing requires installation of a printer driver to
the operating system.
Reference
❒See “Printer Driver for This Printer” in the “Setup
Guide”.
❒If you want to install options, see “Installing
Options” in the “Setup Guide”.
CONNECTINGTHE POWER
CORD
Caution
• When you pull the plug out of the socket, grip
theplugtoavoiddamagingthecordandcausing
a fire or an electric shock.
• Itisdangeroustohandletheplugwithwethands.
Doing this may result in receiving an electric
shock.
Check that the printer’s main power switch (on
the rear) is set to the Off position.
ZDHH076E
Check that the printer’s power switch is set to
the Off position (not depressed).
ZDHH085E
Attach the power cord to the socket on the back
side of the printer.
ZDHH055E
Plug the other end securely into the wall outlet.
SELECTINGTHE PANEL
DISPLAY LANGUAGE
Follow the procedure below to select a language.
Note
❒You can select one of the following languages:
English, German, French, Italian, Dutch, Spanish,
or Japanese.
❒The default setting is English.
❒If you want to use the English panel display, it is
not necessary for you to do the following
procedures.
Turnonthe printer.First setthe main powerswitch
to the On position, and then depress the power
switch.
After the machine warms up, the ready message appears on the
panel display.
Press the Menu ( ) key.
The following message appears on the panel display.
<Menu> ▲
IPDL-C Menu ▼
Pressthe ▲ or ▼ keyto display“System Menu”.
<Menu> ▲
System Menu ▼
Press the Enter ( ) key.
The following message appears on the panel display.
<System Menu> ▲
1.Paper Tray ▼
Pressthe ▲ or ▼ keyto display“10.Language”.
<System Menu> ▲
10.Language ▼
Press the Enter ( ) key.
Press the ▲ or ▼ key until the language you
want to select appears on the lower line of the
panel display.
Press the Enter ( ) key.
Press the On Line ( ) key.
The On Line indicator is lit.
Press the On Line ( ) key again.
The On Line indicator turns off.
Press the Reset ( ) key.
The setting becomes effective.
Important
❒Donotuse excessiveforce in slidingin thecartridge.
Note
❒When inserting the cartridge, the side with the seal
should be up.
Repeat steps 2 - 4 for installing the magenta,
yellow, and black toner cartridges. When
installing,startwith the magenta tonercartridge,
then yellow, and then black.
Close the front cover until the center of the front
cover locks securely.
Note
❒If you set a custom paper size, you should enter the
paper size with the printer’s operation panel. For
more information, see “Loading Paper in the Paper
Tray” in the “Printer Reference” included as a PDF
file on the CD-ROM.
Slide the paper tray completely into the printer.
Important
❒Be sure to insert the paper tray completely.
Otherwise,misfeedsmight occur,or thefrontcover
might touch the paper tray.

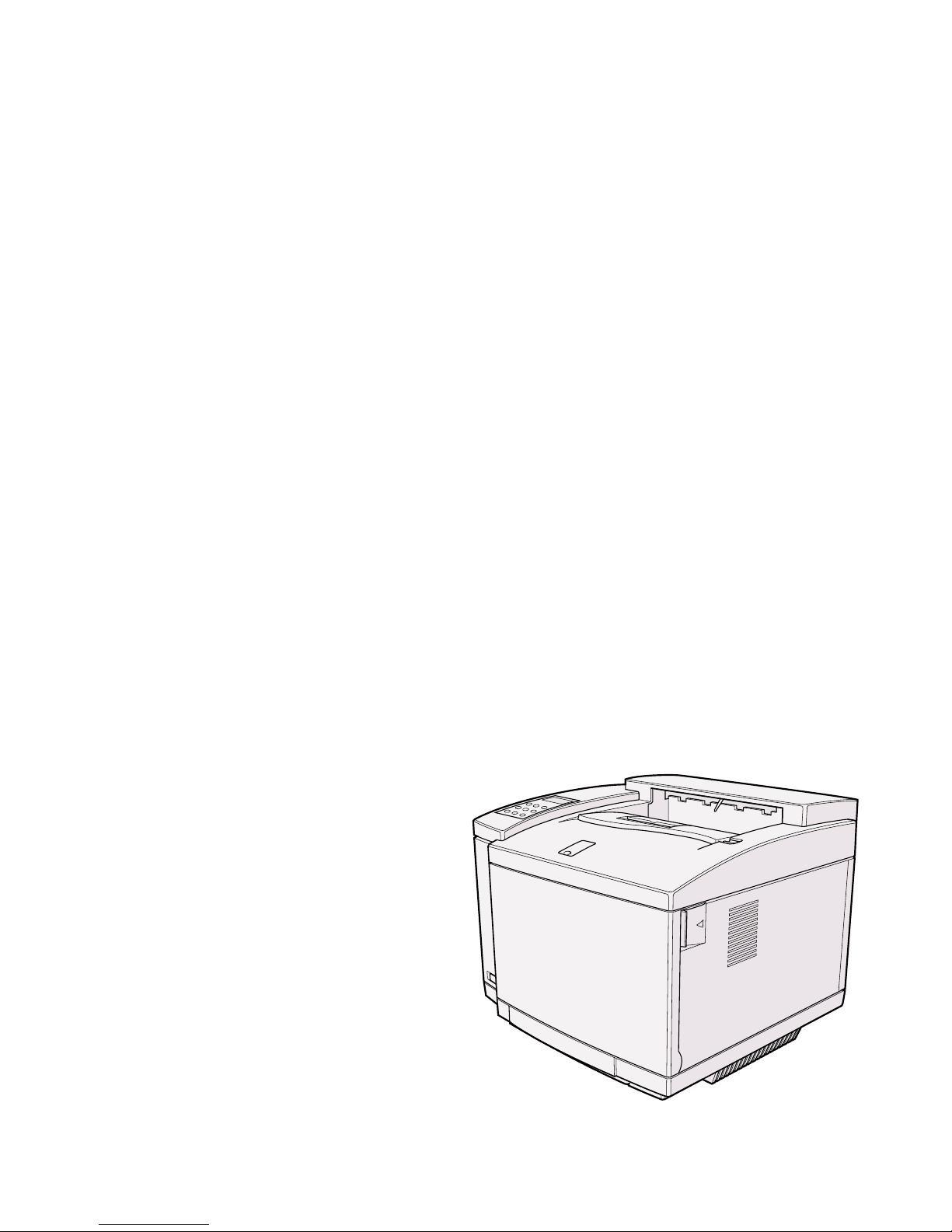

Setup Guide
Z
d
g
h
010
j
.eps
Read this manual carefully before you use this product and keep it handy for future
reference.
For safety, please follow the instructions in this manual.

Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information before using this machine. It contains important information related
to USE SAFETY and P EVENTING EQUIPMENT P OBLEMS.
Notes:
The name of the applications do not appear in the following pages. Confirm which applications you will
be using before reading this manual.
Power Source
120 V, 50/60 Hz, 11 A or more
Please be sure to connect the power cord to a power source as above.
Operator Safety:
This machine is considered a CD H class 1 laser device, safe for office/ EDP use. The machine con-
tains 5-milliwatt, 760 - 800 nanometer wavelength, GaAIAs laser diode. Direct (or indirect reflected) eye
contact with the laser beam might cause serious eye damage. Safety precautions and interlock mech-
anisms have been designed to prevent any possible laser beam exposure to the operator.
Laser Safety:
The optical housing unit can only be repaired in a factory or at a location with the requisite equipment.
The laser subsystem is replaceable in the field by a qualified Customer Engineer. The laser chassis is
not repairable in the field. Customer engineers are therefore directed to return all chassis and laser sub-
systems to the factory or service depot when replacement of the optical subsystem is required.
Important
Parts of this manual are subject to change without prior notice. In no event will the company be liable
for direct, indirect, special, incidental, or consequential damages as a result of handling or operating
the machine.
Caution:
Use of controls or adjustment or performance of procedures other than those specified in this manual
might result in hazardous radiation exposure.
Do not attempt any maintenance or troubleshooting other than that mentioned in this manual. This ma-
chine contains a laser beam generator and direct exposure to laser beams can cause permanent eye
damage.
Two kinds of size notation are employed in this manual. With this machine refer to the inch version.
Supplier shall not be responsible for any damage or expense that might result from the use of parts
other than genuine supplier's parts in your supplier's office product.
For good copy quality, supplier recommends that you use genuine supplier's toner.
Descriptions in this manual Application
PRINTER MANAGER FOR ADMINISTRA-
TOR
Aficio Manager for A min
Net Vision for A min
PRINTER MANAGER FOR CLIENT Aficio Manager for Client
Net Vision for Client

i
Trademarks
RICOH-SCRIPT2® is a registered trademark of Ricoh Company.
Microsoft® Windows® and Windows NT® are registered trademarks of Mi-
crosoft Corporation in the United States and/or other countries.
Adobe® PostScript® and Acrobat® are registered trademarks of Adobe Systems
Incorporated.
Ethernet® is a registered trademark of Xerox Corporation.
AppleTalk Apple and Macintosh are registered trademarks of Apple Computer
Incorporated.
Other product names used herein are for identification purposes only and might
be trademarks of their respective companies. We disclaim any and all rights in
those marks.
Notes:
Some illustrations might be slightly different from your machine.
Certain options might not be available in some countries. For details please con-
tact your local dealer.
Notes:
The proper names of the Windows operating systems are as follows:
•Microsoft
® Windows® 95 operating system
•Microsoft
® Windows® 98 operating system
•Microsoft
® Windows ® Millennium Edition (Windows Me)
•Microsoft
® Windows® 2000 Professional
•Microsoft
® Windows® 2000 Server
•Microsoft
® Windows NT® Server operating system Version 4.0
•Microsoft
® Windows NT® Workstation operating system Version 4.0

ii
Safety Information
When using your equipment the following safety precautions should always be
followed.
Safety During Operation
In this manual the following important symbols are used:
R WARNING:
R
WARNING:
Indicates a potentially hazardous situation which, if instructions are
not followed, could result in death or serious injury.
R
CAU ION:
Indicates a potentially hazardous situation which, if instructions are not fol-
lowed, may result in minor or moderate injury or damage to property.
•Connect the power cord directly into a wall outlet and never use an ex-
tension cord.
•Confirm that the wall outlet is near the machine and freely accessible,
so that in event of an emergency, it can be unplugged easily.
•Disconnect the power plug (by pulling the plug, not the cable) if the
power cable or plug becomes frayed or damaged.
•o avoid hazardous electric shock or laser radiation exposure, do not
remove any covers or screws other than those specified in this man-
ual.
•urn off the power and disconnect the power plug (by pulling the plug,
not the cable) if any of the following conditions exist:
•You spill something into the equipment.
•You suspect that your equipment needs service or repair.
•Your equipment's cover has been damaged.
•Do not incinerate spilled toner or used toner. oner dust is flammable
and might ignite when exposed to an open flame.
•Disposal should take place at an authorized dealer or appropriate col-
lection site.
•If you dispose of the used toner containers yourself, dispose of them
according to local regulations.

iii
R CAU ION:
•Protect the equipment from dampness or wet weather, such as rain, snow,
and so on.
•Unplug the power cord from the wall outlet before you move the equipment.
hile moving the equipment, you should take care that the power cord will
not be damaged under the equipment.
•hen you disconnect the power plug from the wall outlet, always pull the
plug (not the cable).
•Do not allow paper clips, staples, or other small metallic objects to fall inside
the equipment.
•Do not eat or swallow toner.
•Keep toner (used or unused) and toner cartridge out of reach of children.
•For environmental reasons, do not dispose of the equipment or expended
supplies at a household waste collection point. Disposal should take place
at an authorized dealer or an appropriate collection site.
•Our products are engineered to meet the highest standards of quality and
functionality. hen purchasing expendable supplies, we recommend using
only those specified by an authorized dealer.
•The inside of the machine becomes very hot. Do not touch the parts with a
label indicating a “hot surface”. Touching a “hot surface” could result in a
burn injury. (
v : means “hot surface”.)
•Symbols
R means a situation that requires you take care.
•hen removing misfed paper, do not touch the fusing section because it
could be very hot.
•If you use this printer in a cold area, leave the printer on. Otherwise, severe
cold might damage sensitive components inside the printer.

iv
Energy Star Program
❖
❖❖
❖Low-power mode (Energy Saver mode)
This printer automatically lowers its power consumption 60 minutes after the
last operation has been completed when the Energy Level is set to level 1. To
exit Low-power (Energy Saver) mode press any key on the operation panel.
To change the setting of the Energy Saver mode see “Using the Operation
Panel” in the “Printer Reference” included as a PDF file on the CD-ROM.
❖
❖❖
❖Specifications
-
--
-Recycled Paper
In accordance with the ENERGY STAR Program we recommend use of recycled
paper which is environment friendly. Please contact your sales representative
for recommended paper.
As an ENERGY STAR Partner we have determined
that this machine model meets the ENERGY STAR
Guidelines for energy efficiency.
The ENERGY STAR Guidelines intend to establish an international energy-saving system for
developing and introducing energy-efficient office equipment to deal with environmental is-
sues such as global warming.
When a product meets the ENERGY STAR Guidelines for energy efficiency the Partner shall
place the ENERGY STAR logo onto the machine model.
This product was designed to reduce the environmental impact associated with office equip-
ment by means of energy-saving features such as Low-power mode.
Lower-power mode
(Energy Saver mode)
Power Consumption 35 W or less
Default Time 30 minutes

v
anuals for This Printer
There are six manuals that separately describe the procedures for the installation
of a printer and for the operation and maintenance of the printer and its optional
equipment.
To enhance safe and efficient operation of the printer all users should read and
follow the instructions contained in the following manuals.
❖
❖❖
❖Quic Installation Guide
Describes the procedures for installing the printer.
❖
❖❖
❖Setup Guide
Describes the procedures and provides necessary information about setting
up the printer and its options (this manual).
❖
❖❖
❖Printer Reference
Describes the procedures and provides necessary information about using
the printer and its options. The manual is included as a PDF file on the CD-
ROM.
❖
❖❖
❖RICOH-SCRIPT2 Operating Instructions
Describes the menus and features you can set using the RICOH-SCRIPT2
printer driver. The manual is provided as a PDF file which is included on the
CD-ROM labeled “Printer Drivers and Utilities”.
❖
❖❖
❖Networ Interface Board Operating Instructions
Describes the procedures and provides necessary information about setting
up and using the printer in a network environment. The manual is provided
as a PDF file which is included on the CD-ROM labeled “Printer Drivers and
Utilities”.
❖
❖❖
❖UNIX Supplement
Provides information about setting up and using the printer in a UNIX envi-
ronment. This manual is included as a PDF file on the CD-ROM labeled
“Printer Drivers and Utilities”.

vi
How to Read This anual
Symbols
In this manual the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation which if instructions
are not followed could result in death or serious injury.
R
CAU ION:
This symbol indicates a potentially hazardous situation which if instructions
are not followed may result in minor or moderate injury or damage to property.
* The statements above are notes for your safety.
Important
If this instruction is not followed paper might be misfed originals might be
damaged or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before op-
erating.
Note
This symbol indicates precautions for operation or actions to take after misop-
eration.
Limitation
This symbol indicates numerical limits functions that cannot be used together
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
[]
Keys that appear on the machine's panel display.
Keys and buttons that appear on the computer's display.
{}
Keys built into the machine's operation panel.
Keys on the computer's keyboard.

vii
TABLE OF CONTENTS
1.Getting Started
Features of This Printer............................................................................ 1
Printer Drivers for This Printer................................................................. 3
Software and tilities Included on the CD-ROM..................................... 4
Guide to the Printer................................................................................... 5
Exterior-Front View ....................................................................................... 5
Exterior- ear View........................................................................................ 6
Interior........................................................................................................... 7
Operation Panel............................................................................................ 8
Turning the Printer On and Off...................................................................... 9
2.Installing Options
Available Options.................................................................................... 14
Installing the Memory nit...................................................................... 15
Installing the Network Interface Board Type306 .................................. 17
Connecting the Printer to the Network........................................................ 18
Buttons and Indicators on the Network Interface Board.............................. 19
Installing the Paper Cassette Type204 (Legal)..................................... 20
Installing the PAPER FEED NIT Type206............................................ 21
Installing the AD390 (Duplex nit)......................................................... 25
3.Configuring the Printer for the Network
Configuring the Printer for the Network with the Operation Panel..... 29
4.Installing the Printer Driver and Software
Installation Method.................................................................................. 35
Installing by Auto Run ............................................................................ 37
Installing the IPDL-C Printer Driver ....................................................... 38
Windows 95/98/Me - Installing the IPDL-C Printer Driver........................... 38
Windows 2000 - Installing the IPDL-C Printer Driver.................................. 39
Windows NT 4.0 - Installing the IPDL-C Printer Driver ............................... 40
Installing the RICOH-SCRIPT2 Printer Driver ....................................... 42
Windows 95/98/Me - Installing the ICOH-SC IPT2 Printer Driver........... 42
Windows 2000 - Installing the ICOH-SC IPT2 Printer Driver.................. 45
Windows NT 4.0 - Installing the ICOH-SC IPT2 Printer Driver ............... 48
Using Adobe PageMaker Version 6.0 or 6.5............................................... 51
Macintosh.................................................................................................... 52
INDEX........................................................................................................ 57

viii

1
1. Getting Started
Features of This Printer
This printer is designed especially for office workgroups both for shared usage
within a network environment and for one-to-one usage by being connected di-
rectly to a computer.
❖
❖❖
❖High quality photo image printing
With the 1200 × 600 dpi equivalent resolution this printer provides you high
quality color printing.
This is particularly effective when printing photographic images such as im-
ages produced by a digital camera and scanner as well as when printing text
and graphics. Using this printer photo images are rendered more smoothly
and with higher detail.
❖
❖❖
❖High performance
This printer provides the high-speed printing.
• Color Printing: 6 ppm (A4 8 1/2 " × 11" simplex)
• Monochrome Printing: 24 ppm (A4 8 1/2 " × 11" simplex)
❖
❖❖
❖Duplex printing
With the optional paper feed unit and duplex unit installed this printer pro-
vides auto duplex printing.
❖
❖❖
❖Networ connectivity
This printer is network ready with the optional Network Interface Board.
❖
❖❖
❖Networ utility
PRINTER MANAGER software consisting of ADMINISTRATOR and CLI-
ENT versions is provided. With this software multiple print devices can be
utilized effectively together on a network. This software offers several conve-
nient functions such as parallel printing and recovery printing.
❖
❖❖
❖PostScript capabilities
Using RICOH-SCRIPT2 provides the printer with PostScript capabilities. You
can use the printer in the Windows or Macintosh environments.
❖
❖❖
❖Easy handling for administration
You can set up User Codes for individuals or as a unit of a department. This
allows you to keep records of the printing done for each User Code. You can
also set up a User ID for each print job. To print a job log or a statistics report
shows you color category result and status of printing per each User Code
and User ID. Viewing the contents of a job log or a statistics report through
the PRINTER MANAGER FOR ADMINISTRATOR is available. Maximum
100 User Codes and 64 User IDs can be set.

Getting Started
2
1
❖
❖❖
❖Major specifications
*1 A4K
*2 Monochrome printing
*3 Full color printing
*4 When the optional Paper Cassette Type204 (Legal) is installed.
Printing Speed *1 24 ppm *2
6 ppm *3
Maximum Print Quality 1200 × 600 dpi resolutions
Emulation IPDL-C RICOH-SCRIPT2
Maximum Paper Size Paper Tray: Custom size *4 length 356mm width
216mm
Paper feed unit: A4 210 × 297 mm
Standard Memory Size 32 MB
Maximum Memory Size with Op-
tional Memory
256 MB

Printer Drivers for This Printer
3
1
Printer Drivers for This Printer
Printing requires installation of a printer driver appropriate to the operating sys-
tem. The following drivers are included on the CD-ROM that comes with this
printer.
*1 Microsoft Windows 95 operating system
*2 Microsoft Windows 98 operating system
*3 Microsoft Windows Millennium Edition (Windows Me)
*4 Microsoft Windows 2000 Professional Microsoft Windows 2000 Server
*5 Microsoft Windows NT Server operating system Version 4.0 Microsoft Windows NT
Workstation operating system Version 4.0 in a computer using a x86 processor
*6 Macintosh OS with LaserWriter 8
Limitation
❒The printer drivers supplied with this printer do not support operation under
a system running Windows NT with a RISC based processor (MIPS R Series
Alpha AXP Power PC).
❖
❖❖
❖IPDL-C printer drivers
The IPDL-C printer drivers are included on the CD-ROM that comes with this
printer. The IPDL-C printer drivers allow the computer to communicate with
the printer via a printer language.
⇒ P.38 “Windows 95/98/Me - Installing the IPDL-C Printer Driver”
⇒ P.39 “Windows 2000 - Installing the IPDL-C Printer Driver”
⇒ P.40 “Windows T 4.0 - Installing the IPDL-C Printer Driver”
❖
❖❖
❖RICOH-SCRIPT2 printer drivers and PPD (PostScript printer description) files
The RICOH-SCRIPT2 printer drivers and the PPD files are included on the
CD-ROM that comes with this printer. The RICOH-SCRIPT2 printer drivers
allow the computer to communicate with the printer via a printer language.
The PPD files allow the printer driver to enable printer specific functions.
⇒ P.42 “Windows 95/98/Me - Installing the RICOH-SCRIPT2 Printer Driver”
⇒ P.45 “Windows 2000 - Installing the RICOH-SCRIPT2 Printer Driver”
⇒ P.48 “Windows T 4.0 - Installing the RICOH-SCRIPT2 Printer Driver”
⇒ P.52 “Macintosh”
Printer Language
Operating System IPDL-C RICOH-SCRIPT2
Windows 95 *1 √√
Windows 98 *2 √√
Windows Me *3 √√
Windows 2000 *4 √√
Windows NT 4.0 *5 √√
Macintosh *6 √

Getting Started
4
1
Software and Utilities Included on the CD-
RO
❖
❖❖
❖PRINTER MANAGER FOR ADMINISTRATOR
A utility for the system administrator to manage printers on the network.
Reference
For the name of PRINTER MANAGER FOR ADMINISTRATOR you use
see the inside of front cover of this manual.
For more information about using PRINTER MANAGER FOR ADMINIS-
TRATOR see PRINTER MANAGER FOR ADMINISTRATOR Help.
❖
❖❖
❖PRINTER MANAGER FOR CLIENT
A utility for users to manage their own print jobs on the network.
Reference
For the name of PRINTER MANAGER FOR CLIENT you use see the in-
side of front cover of this manual.
For more information about using PRINTER MANAGER FOR CLIENT
see PRINTER MANAGER FOR CLIENT Help.
❖
❖❖
❖Multidirect Print
A utility for printing on a "Peer-to-Peer" network.
Reference
For more information about using Multidirect Print see the “Operating In-
structions” for the optional Network Interface Board included as a PDF file
on the CD-ROM.
❖
❖❖
❖PortNavi
A utility that helps you to use network printers effectively. It is useful in en-
vironments where two or more network printers are used.
Reference
For more information about PortNavi see the “Operating Instructions” for
the optional Network Interface Board included as a PDF file on the CD-
ROM.
❖
❖❖
❖Acrobat Reader
A utility that allows you to read PDF (Portable Document Format).
Note
❒Documentation about using the printer is included on the CD-ROM in a
PDF format.

Guide to the Printer
5
1
Guide to the Printer

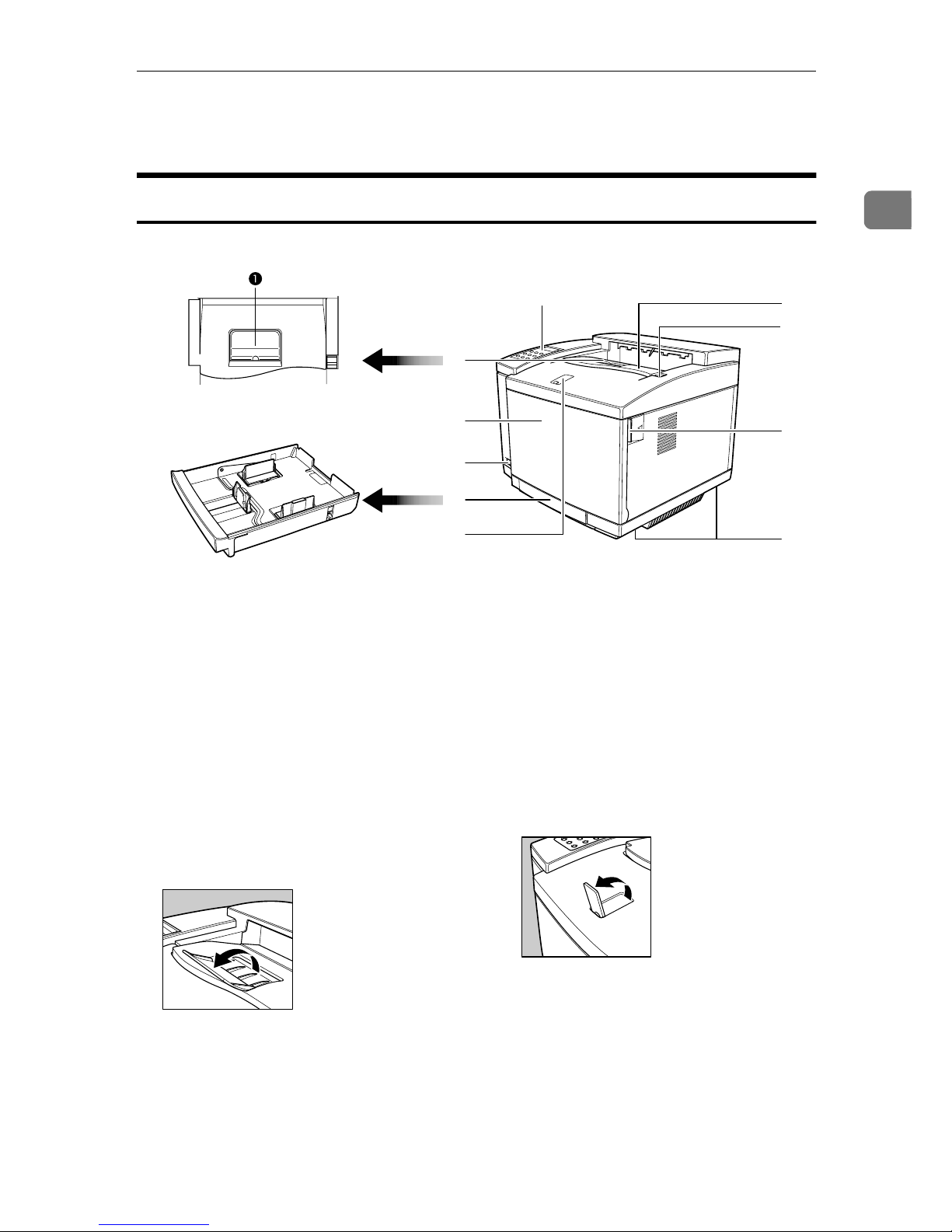

Exterior-Front View
1. Operation Panel
Contains keys for printer operation and a
panel display that shows the printer sta-
tus.
2. Top Cover
Open this cover when replacing consum-
ables or when removing misfed paper.
A Paper Stopper A: Raise this paper
stopper so that printed pages are aligned
better on the output tray. Raising this pa-
per stopper also keeps printed pages
from falling from the output tray.
3. Front Cover
Open this cover when replacing toner
cartridges or the waste toner bottle or
when removing misfed paper.
4. Power Switch
This switch enables you to turn the print-
er power on and off while the main pow-
er switch on the rear is turned on.
5. Paper Tray
Load paper into this tray for printing.
6. Paper Stopper B
Raise this stopper to keep printed pages
from falling from the output tray.
ZDHH010E
2
3
1
4
9
8
7
10
5
6
ZDGH020J
ZDGH030J

Getting Started
6
1
7. Inset Grips
Use these grips to lift the printer. There
are four grips two on the left side and
two on the right side of the printer.
8. Front Cover Open Lever
Press this lever to open the front cover.
9. Top Cover Open Lever
Press this lever to open the top cover.
10. Output Tray
Printed pages are stacked here.
Exterior-Rear View
1. Ventilator
Allows air to be discharged preventing
components inside the printer from over-
heating. Remove this cover when replac-
ing the ozone filter.
Note
❒Do not leave the ventilator obstructed
or blocked. Doing so creates the dan-
ger of malfunction due to overheat-
ing.
2. Rear Cover
Open this cover when removing misfed
paper.
3. Power Connector
Connect the power cord to this connec-
tor.
4. Printer Boar
Remove to install optional memory unit
or network interface board.
5. Parallel Interface Connector
Plug the parallel cable that connects the
printer to the computer into this connec-
tor.
6. Main Power Switch
First turn on the main power switch and
use the power switch on the front panel
to turn the printer on or off.
Normally keep the main power switch
turned on.
Turn off the main power switch when the
printer is not to be used for a long period
of time or when moving the printer.
ZDGH040J
ZDHH020E
5
4
6
2
1
3

Guide to the Printer
7
1
Interior
1. Fuser Cleaner
This cleans unnecessary toner from the
fuser roller.
2. Fuser Oil Bottle
This bottle holds oil used for fusing toner
to the paper.
3. Photocon uctor Unit
This unit is used to compose the image
being printed.
Note
❒Be careful to prevent the green film in
the photoconductor unit from becom-
ing dirty or damaged and do not
touch the black belt in the unit. The
condition of these components direct-
ly affects output quality.
4. Toner Cartri ges
A K: black toner
B Y: yellow toner
C M: magenta toner
D C: cyan toner
5. Waste Toner Bottle
This bottle is a receptacle for waste toner
generated during the printing process.
ZDGH060J
2
31
4
5

Getting Started
8
1
Operation Panel
Important
❒Never press any operation panel key while the Data In indicator on the oper-
ation panel is lit or blinking.
1. Panel Display
The display shows the current status of
the printer and error messages. ⇒ "Error
& Status Messages on the Operation Pan-
el" in the "Printer Reference" included as
a PDF file on the CD-ROM
2. On Line in icator
Tells you whether the printer is online or
offline.
Stays on while the printer is online (a
state in which the printer can receive data
from the computer).
Stays off when the printer is offline (a
state in which printer cannot receive da-
ta).
3. Power in icator
Stays on while the printer power is on.
Stays off when the power is turned off or
while the printer is in the Energy Saver
mode.
4. {
{{
{On Line}
}}
} key
Press this key to switch the printer be-
tween online and offline.
5. Error in icator
Lights up whenever any printer error oc-
curs. A message describing the cause of
the error also appears on the panel dis-
play. ⇒ "Error & Status Messages on the
Operation Panel" in the "Printer Refer-
ence" included as a PDF file on the CD-
ROM
6. {
{{
{Menu}
}}
} key
Press this key to make and check the
printer settings.
7. {
{{
{Media}
}}
} key
Use this key to select a tray change the
paper size and to make other settings for
printing.
8. {
{{
{#Enter}
}}
} key
Press this key to execute menu items se-
lected on the panel display.
ZDHS011E
Power On Line Data In
eset
EscapeMenu
Media Enter
Error
2
3
1
4
8
7
61
0
9
511
1
2
