CIP Training
Pro C9200 series
Adjustment Settings
for Operators

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
This section explains Adjustment Settings for Operators and how to specify them.
How to Use the [Adjustment Settings for
Operators] Screen
This section explains how to use the Adjustment Settings for Operators.
1.
Press this key to collapse the hierarchical display of the adjustment items, and display only the group
names of those items.
2. [Reset]
Press this key to reset the settings/modifications being currently configured. The settings/
modifications cannot be reset after you press [Apply].
3. [Apply]
Press this key to apply the settings/modifications.
4. Adjustment items
Adjustment items are displayed in this area. When you select an item, its configuration screen will
then open.
5. Configuration screen
Configure or modify the settings of the adjustment item that you have selected.
209
•All items in Adjustment Settings for Operators appear regardless of which of the machine's
optional components are installed. If you change the settings of options that are not installed, the
changes will have no effect.
4
1 2 3
DWQ560
5
To Print Screen

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
6. Adjustment Settings for Operators
Opening Adjustment Settings for Operators
Features of the Displayed Items and Setting Operations

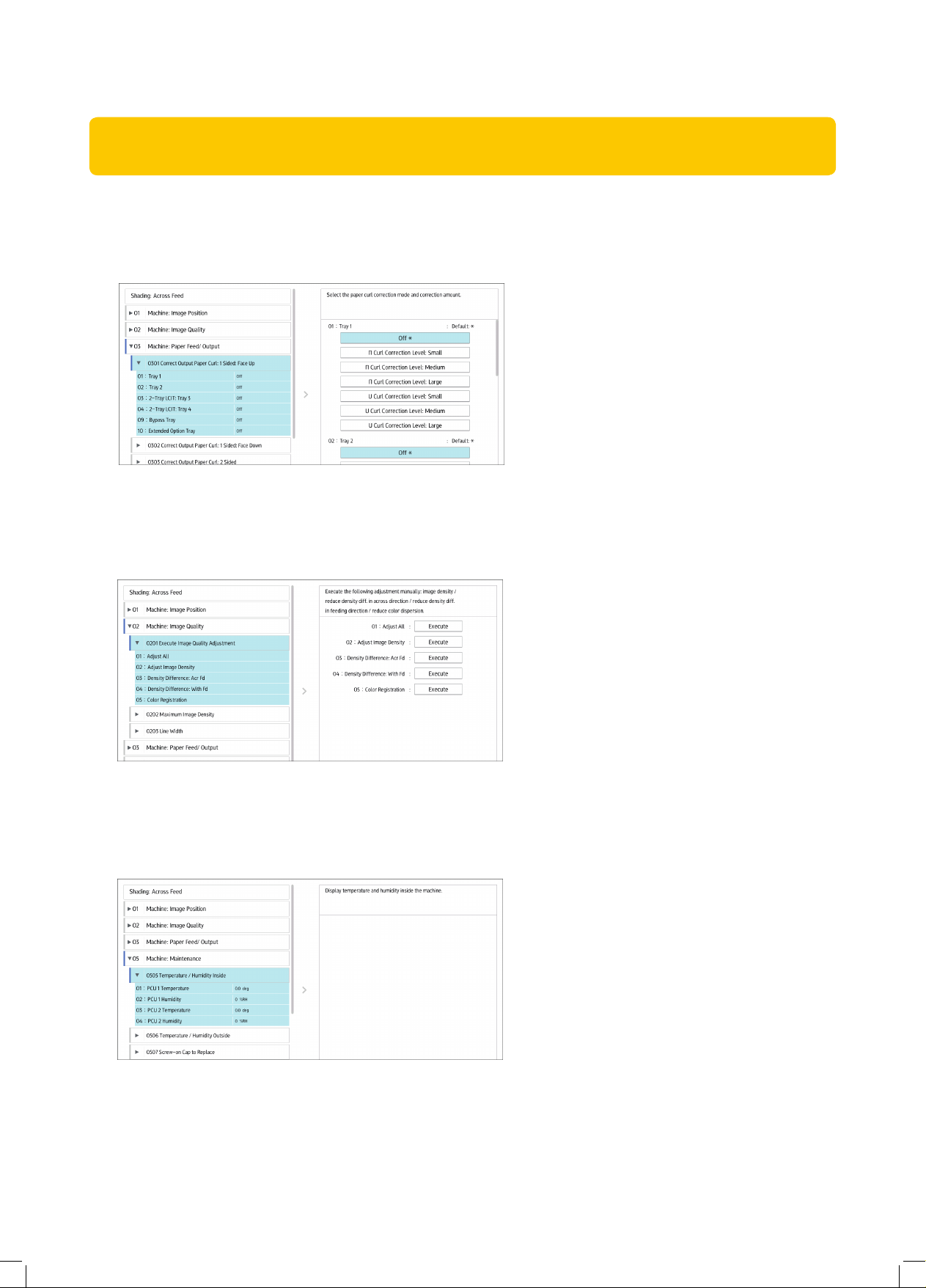

The following operations are available for each adjustment item:
•Value setting
•Item setting
•Executing
•Display only
1. Press [Adjustment Settings for Operators] on the Home screen.
2. Select and change adjustment settings.
The method for changing the selected adjustment setting depends on the setting that
you want to
change. For details, see page 176 "Features of the Displayed Items and Setting
Operations".
3. Press [Apply].
4. Press [Home] ( ) at the bottom of the screen in the center.
Value setting
Press [+] to increase the value, or [-] to decrease or use the numeric keypad to enter the
value.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
A numeric keypad appears to the left when you press the input box. Use the
keypad to enter a value.
•[×]: Press to delete the entered value character by character.
•[Clear]: Clear the entered value.
•[+/-]: Change the sign of the entered value from + (positive) to - (negative)
and vice versa.
•[Enter]: Confirm the entered value.
For some items, you can select a value from the pull-down list that appears
when you press the input box. Select a value from the list.
For some settings, move the slider right or left to increase or decrease the setting value.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Executing
Press [Execute] to perform a selected function.
Display Only
You can check the setting of the selected item.
Item setting
Select the item you require.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Printing with Adjusted Settings
To print with the settings you have adjusted, be sure to select the paper tray and paper size to
which the settings apply.
•Settings adjustable for each paper tray
•Settings adjustable for each paper size
Settings adjustable for each paper tray
•These are settings adjustable for each paper tray.
•Print jobs are processed with the adjusted settings when printing from a tray with the
applied settings.
Settings adjustable for each paper size
•These are settings adjustable for each paper size.
•Print jobs are processed with the adjusted settings when printing with a paper size that has
the applied settings.
•For details about selecting the paper tray and paper size for printing, see the manuals
for the related functions.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Menu Items and Function
All items in Adjustment Settings for Operators appear regardless of which of the machine's
optional components are installed. If you change the settings of options that are not installed, the
changes will have no effect.
01: Machine: Image Position

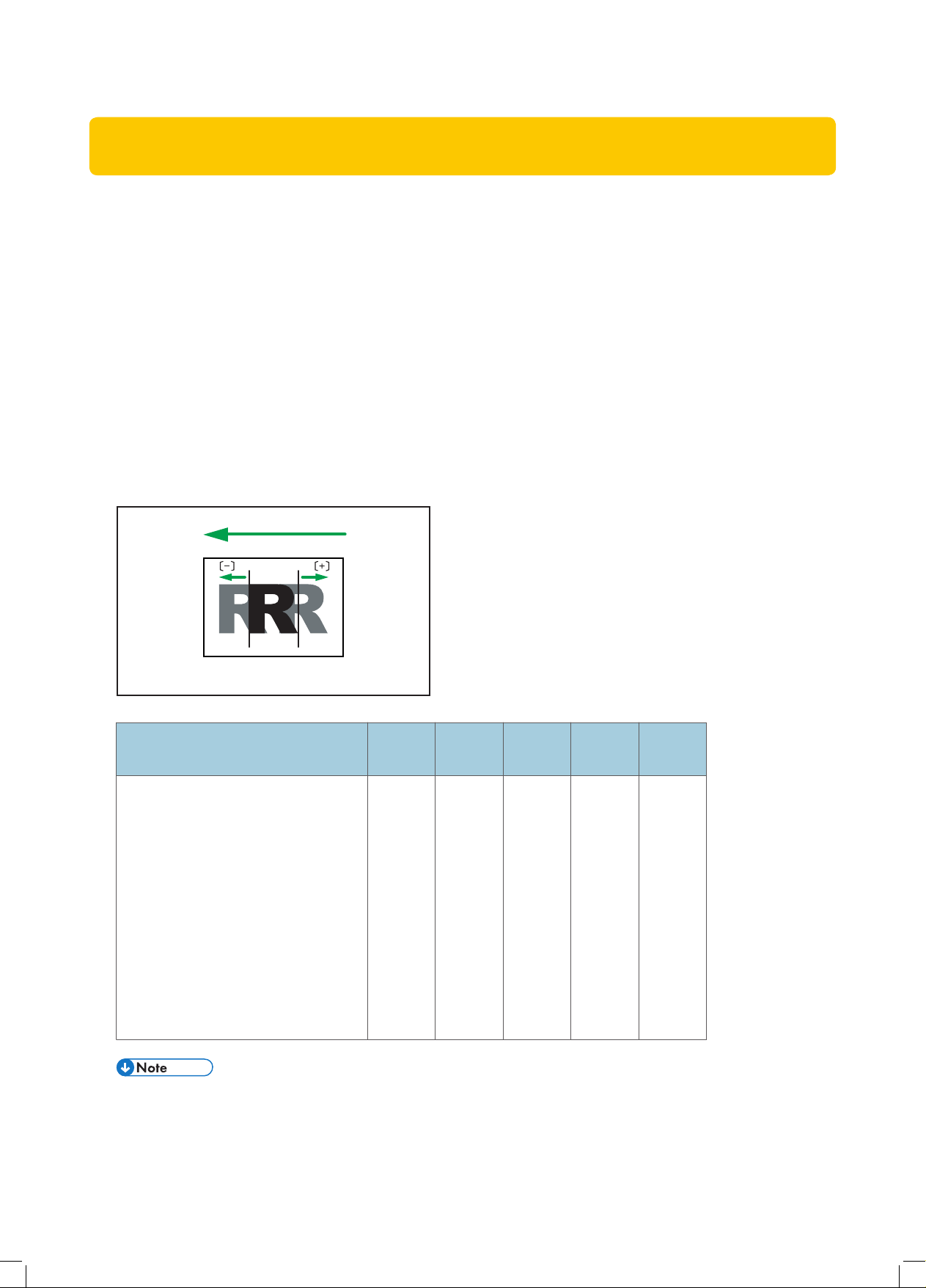

0101 Image Position: With Feed: Side 1
Adjust the image position (left and right) on side 1 along the feeding direction.
Press [ + ] to shift the image position to the right (toward the bottom edge), or press [ - ] to shift
the position to the left (toward the leading edge).
Paper feed direction
Top
Bottom
Left
(Leading Edge)
Right
(Trailing Edge)
CWY006
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.00 3.00 -3.00 0.01 mm
•If sheets are delivered face down, turn them over horizontally and check
the image position.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators

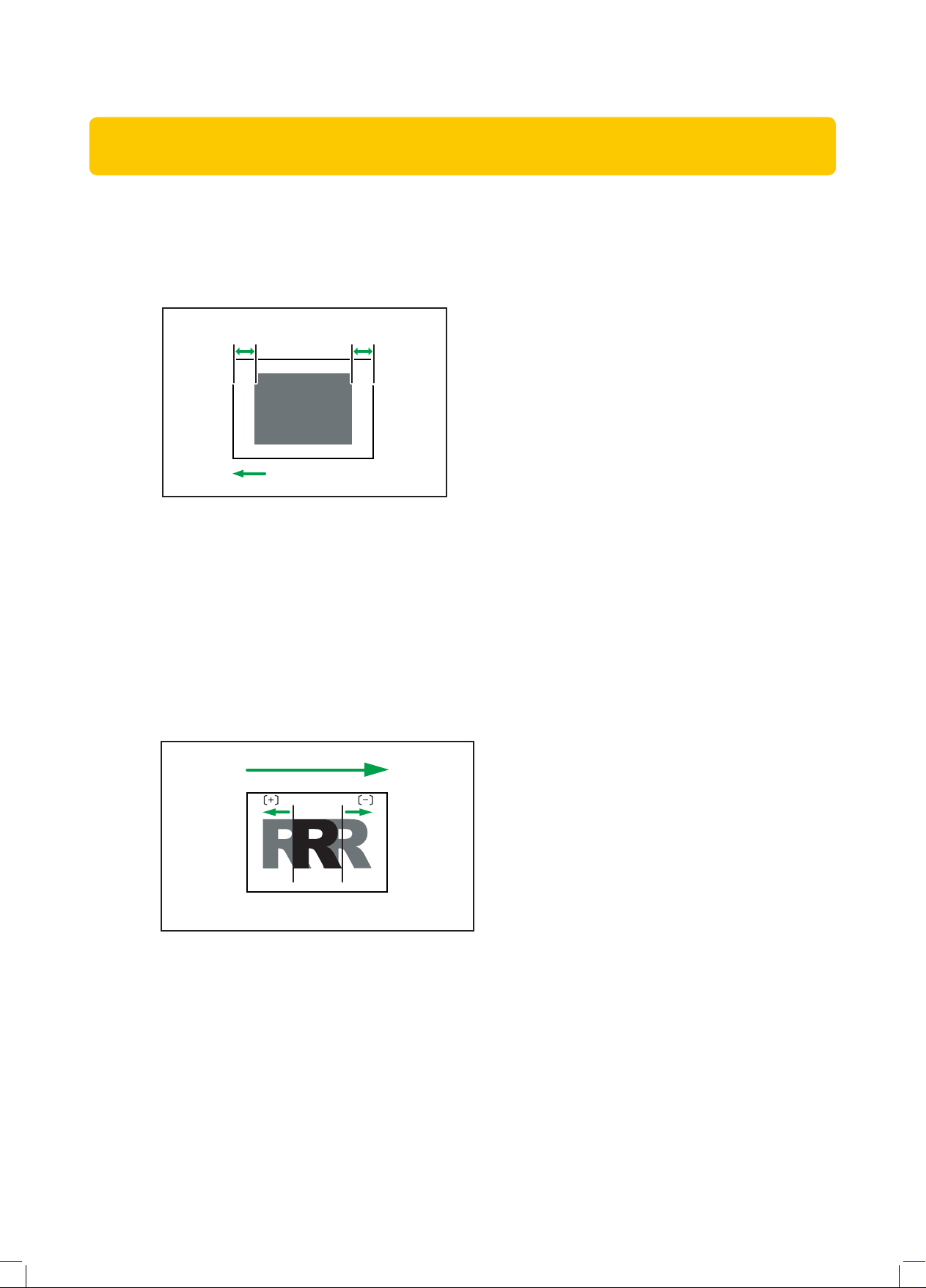

•If the leading-edge margin on the side 1 of the paper is too narrow, paper jams
may occur.
•If the trailing-edge margin on the side 1 of the paper is too narrow, paper jams
may occur when printing on the back in duplex printing.
Paper feed direction
Leading-edge margin Trailing-edge margin
CWY015
•This setting is not effective for paper fed from paper trays with custom paper
presets. For such paper, the value specified in [Image Position: Side1] in
[Advanced Settings] takes precedence.
0102 Image Position: With Feed: Side 2
Adjust the image position (left and right) on side 2 along the feeding direction.
Press [ +] to shift the image position to the left (toward the bottom edge), or press
[ - ] to shift the position to the right (toward the leading edge).
Paper feed direction
Top
Bottom
Left
(Trailing Edge)
Right
(Leading Edge)
CWY014

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.00 3.00 -3.00 0.01 mm
•If sheets are delivered face down, turn them over horizontally and check the
image position.
•This setting is not effective for paper fed from paper trays with custom paper
presets. For such paper, the value specified in [Image Position: Side2] in
[Advanced Settings] takes precedence.

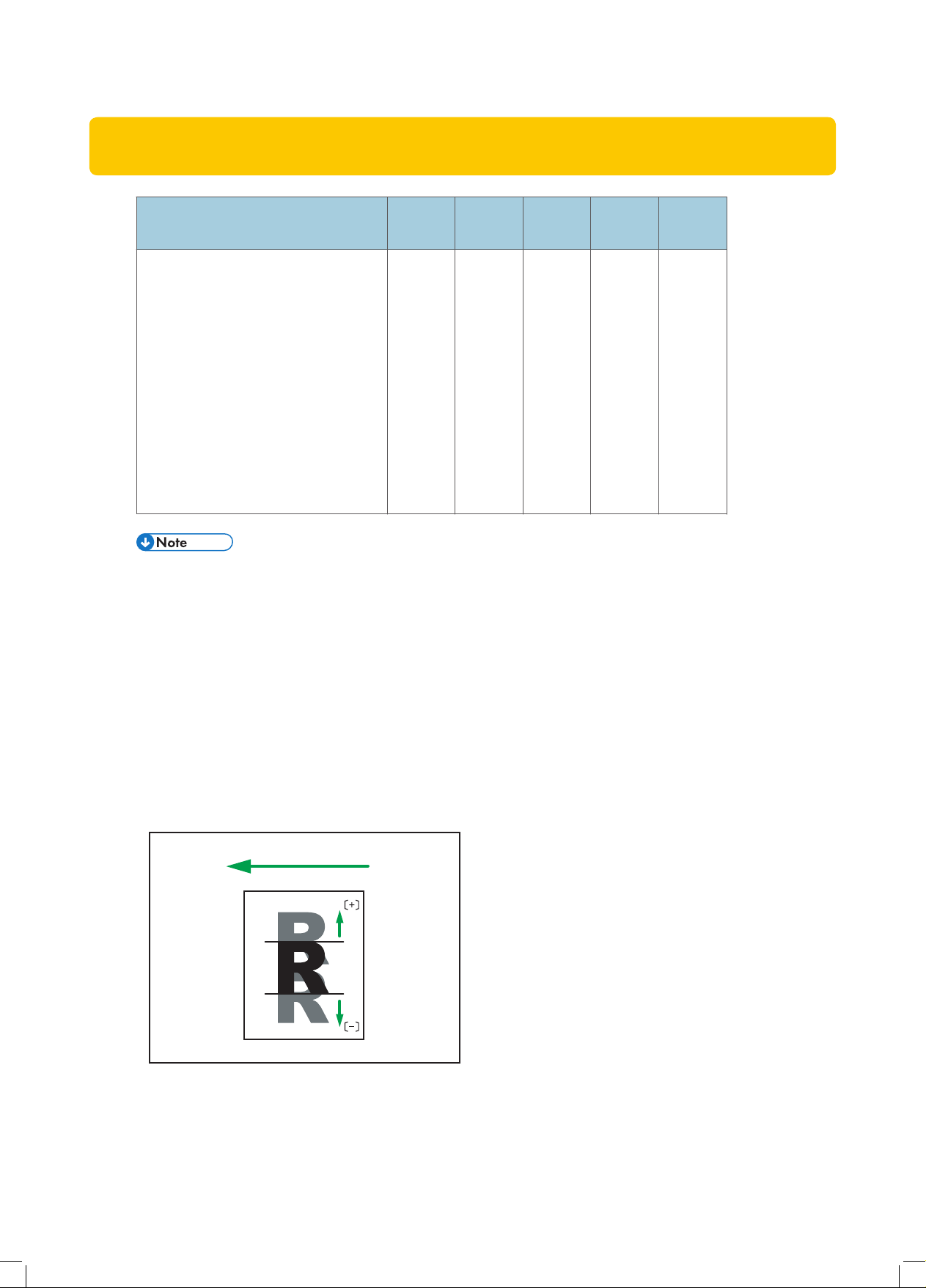

0103 Image Position: Across Feed: Side 1
Adjust the image position (up and down) on side 1 across the feeding direction.
Press [ + ] or [ - ] to shift the image position upward (toward the back) or
downward (toward the front).
DGH005
Right
(Trailing Edge)
Left
(Leading Edge)
Top
Bottom
Paper feed direction

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.00 3.00 -3.00 0.01 mm
•If sheets are delivered face down, turn them over horizontally and check the
image position.
•This setting is not effective for paper fed from paper trays with custom paper
presets. For such paper, the value specified in [Image Position: Side1] in
[Advanced Settings] takes precedence.
0104 Image Position: Across Feed: Side 2
Adjust the image position (up and down) on side 2 across the feeding direction.
Press [ ] or [ ] to shift the image position upward (toward the back) or downward
(toward the front).
DGH006
Right
(Trailing Edge)
Left
(Leading Edge)
Top
Bottom
Paper feed direction

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.00 3.00 -3.00 0.01 mm
•If sheets are delivered face down, turn them over horizontally and check the
image position.
•This setting is not effective for paper fed from paper trays with custom paper
presets. For such paper, the value specified in [Image Position: Side2] in
[Advanced Settings] takes precedence.
0105 Image Magnification: With Feed: Side 1
Adjust the horizontal image scaling to print on Side 1/2 of the paper according to the
paper expansion or shrinkage.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.000 0.500 -0.500 0.025 %
•Depending on the setup, the print side with respect to the delivery and paper feed directions
may vary.
•This setting is not effective for paper fed from paper trays with custom paper presets.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0106 Image Magnification: With Feed: Side 2
Adjust the horizontal image scaling to print on Side 1/2 of the paper according to the
paper expansion or shrinkage.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.000 0.500 -0.500 0.025 %
•Depending on the setup, the print side with respect to the delivery and paper
feed directions may vary.
•This setting is not effective for paper fed from paper trays with custom paper
presets.
0107 Image Magnification: Across Feed: Side 1
Adjust the vertical image scaling to print on Side 1/2 of the paper according to the
paper expansion or shrinkage.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.000 0.500 -0.500 0.001 %

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
•Depending on the setup, the print side with respect to the delivery and paper
feed directions may vary.
•This setting is not effective for paper fed from paper trays with custom paper
presets.
0108 Image Magnification: Across Feed: Side 2
Adjust the vertical image scaling to print on Side 1/2 of the paper according to the
paper expansion or shrinkage.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
0.000 0.500 -0.500 0.001 %
•Depending on the setup, the print side with respect to the delivery and paper
feed directions may vary.
•This setting is not effective for paper fed from paper trays with custom paper
presets.
0109 Perpendicularity Adjustment
Adjust the image skew (perpendicularity) across the feeding direction.
Press [ ] or [ ] to tilt the image to the left (toward the top) or right (toward the bottom).
Paper feed direction
Default
DWP569

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Correction Value 0 20 -20 1 -
•After performing Perpendicularity Adjustment, execute [Color Registration] under 0201
[Execute Image Quality Adjustment] in Adjustment Settings for Operators.
0110 Switch Paper Edge Detection Sensor
Specify the level for detecting the paper edge for correcting the image position
along the feeding direction.
Setting Items Selection Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Normal
High Accuracy
Normal
•Select [High Accuracy] only when blank paper is fed. Otherwise, a paper jam may occur.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Machine: Image Quality
0201 Execute Image Quality Adjustment
Execute image control or color registration adjustment manually.
The machine adjusts the image density. The time required for each process is as
follows: about 5 minutes for [Adjust All], about 1.5 minutes for [Adjust Image
Density], about 1 minute for [Density Difference: Acr Fd], about 2.5 minutes for
[Density Difference: With Fd], and about 40 seconds for [Color Registration]. A
message appears on the control panel while the process is in progress. Do not pull out
the mainframe front covers while the message is being displayed.
Setting Items Values
Adjust All
Adjust Image Density
Density Difference: Acr Fd
Density Difference: With Fd
Color Registration
Press [Execute].
•The machine executes automatic image quality adjustment after a set interval
or after printing a specified number of sheets. However, you can also
manually initiate automatic image density adjustment whenever you want.
0202 Maximum Image Density
Adjust the toner adhesion amount to the intermediate transfer belt during the image
density adjustment.
When the degree of coloration differs depending on the difference in the degree of
pigmentation, adjust the toner adhesion amount.
Press [ + ] or [ - ] to increase or decrease the toner adhesion amount.
If you change the setting value, [Adjust Image Density] is automatically performed
before the machine starts printing.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Black
Cyan
Magenta
Yellow
0 5 -5 1 -
•Increasing the toner adhesion might reduce fusibility, causing toner splatter or distorted text
and thin lines.

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0203 Line Width
Adjust the intensity of the laser for rasterizing the image data. Press [ + ] or [ - ] to
increase or decrease the intensity.
If you change the setting value, [Adjust Image Density] is automatically performed
before the machine starts printing.
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Black
Cyan
Magenta
Yellow
0 5 -5 1 -
•Screen dots and hairline width become thicker when you
increase the intensity.
Machine: Paper Feed/ Output
0301 Correct Output Paper Curl: 1 Sided: Face Up
Specify the method for straightening paper curls on 1-sided face-up output sheets.
Select the method according to the direction and degree of curl.
Setting Items Selection Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
П Curl Correction
Level: Small
П Curl Correction
Level: Medium
П Curl Correction
Level: Large
U Curl Correction
Level: Small
U Curl Correction
Level: Medium
U Curl Correction
Level: Large
Off

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0303 Correct Output Paper Curl: 2 Sided
Specify the method for straightening paper curls on 2-sided output sheets.
Select the method according to the direction and degree of curl.
Setting Items Selection Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
П Curl Correction
Level: Small
П Curl Correction
Level: Medium
П Curl Correction
Level: Large
U Curl Correction
Level: Small
U Curl Correction
Level: Medium
U Curl Correction
Level: Large
Off
0304 Detect JAM099
Specify whether or not to detect double feed (multi-sheet feeding).
If this is set to [On], the machine can detect double feeding, which prevents blank
sheets turning up in the delivered paper.
The machine may erroneously detect double feeding when using special paper
(double-layer paper, such as label paper). If such erroneous detection occurs, set this
to [Off].
This setting is invalid when you are printing from the tray for which custom paper is
allocated. For such paper, the value specified in [Detect JAM099] in [Advanced
Settings] takes precedence.
Setting Items Selection Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
On
On

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0305 Detect JAM080
Specify whether or not to detect error as a paper jam when the image deviation in the feeding direction
exceeds a certain degree.
Setting Items Values Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
On
On
0306 Detect J097/098
Specify whether or not to detect error as a paper jam when a deviation or paper
skew across the feeding direction is detected.
Setting Items Values Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
On
On

CIP Training Pro C9200 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0307 Control J097/098
Specify whether or not to correct an image position and skew across the feeding direction.
Setting Items Values Default Value
Tray 1
Tray 2
2-Tray LCIT: Tray 3
2-Tray LCIT: Tray 4
2-Tray LCIT: Tray 5
2-Tray LCIT: Tray 6
2-Tray LCIT: Tray 7
2-Tray LCIT: Tray 8
Bypass Tray
Extended Option Tray
Off
On
On
0308 Detect JAM048
Specify whether or not to detect an error as a paper jam when a problem is
detected while the registration mark is checked for image position correction.
Setting Items Values Default Value
Settting Off
On
On
