RIDGID RP 210 User manual

Pressing Tool
•Français – 13
•Castellano – pág. 27
RP 210Manual
WARNING!
Read this Operator’s Manual
carefully before using this
tool. Failure to understand
and follow the contents of
this manual may result in
electrical shock, fire and/or
serious personal injury.
99 Washington Street
Melrose, MA 02176
Phone [phone]
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

ii
RP 210 Press Tool
Table of Contents
Recording Form For Machine Serial Number ............................................................................................................1
Safety Symbols..............................................................................................................................................................2
General Power Tool Safety Warnings
Work Area Safety........................................................................................................................................................2
Electrical Safety ..........................................................................................................................................................2
Personal Safety ..........................................................................................................................................................3
Power Tool Use And Care ..........................................................................................................................................3
Battery Tool Use And Care ........................................................................................................................................3
Service........................................................................................................................................................................3
Specific Safety Information
Press Tool Safety........................................................................................................................................................4
Description, Specifications And Standard Equipment
Description..................................................................................................................................................................4
Specifications..............................................................................................................................................................5
Standard Equipment ..................................................................................................................................................5
Tool Inspection..............................................................................................................................................................5
Tool And Work Area Set-Up ........................................................................................................................................6
Operating Instructions
Preparing The Connection..........................................................................................................................................7
Pressing A Fitting With Typical Scissor Jaws ............................................................................................................7
Pressing A Fitting With Typical Actuator And Press Ring Set ....................................................................................8
Inspecting The Pressed Connection ..........................................................................................................................8
Cold Weather Operation ..............................................................................................................................................9
Maintenance Instructions
Cleaning And Lubrication............................................................................................................................................9
Required Maintenance At RIDGID Authorized Service Center ..................................................................................9
Accessories ..................................................................................................................................................................9
Storage ........................................................................................................................................................................10
Service And Repair ....................................................................................................................................................10
Disposal ......................................................................................................................................................................10
Troubleshooting..........................................................................................................................................................11
RP 210 Diagnostic Codes ..........................................................................................................................................12
Lifetime Warranty ........................................................................................................................................Back Cover

RP 210 Press Tool
Record Serial Number below and retain product serial number which is located on nameplate.
Serial
No.
Press Tool
RP 210

2
RP 210 Press Tool
General Power Tool Safety
Warnings*
WARNING
Read all safety warnings and instructions. Failure
to follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work Area Safety
•Keep your work area clean and well lit. Cluttered or
dark areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
•Keep children and by-standers away while oper-
ating a power tool. Distractions can cause you to lose
control.
Electrical Safety
•Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adap-
ter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce
risk of electric shock.
•Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrig-
erators. There is an increased risk of electrical shock
if your body is earthed or grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electrical shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of elec-
tric shock.
•If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a GFCI reduces the
risk of electric shock.
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safe-
ty information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains
important information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce
the risk of eye injury.
This symbol indicates the risk of hands, fingers or other body parts being crushed.
This symbol indicates the risk the electrical shock.
* The text used in the General Power Tool Safety Warnings section of this manual is verbatim, as required, from the applicable UL/CSA 60745 standard. This
section contains general safety practices for many different types of power tools. Not every precaution applies to every tool, and some do not apply to this tool.
NOTICE
DANGER
WARNING
CAUTION

3
Personal Safety
•Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A mo-
ment of inattention while operating power tools may
result in serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
•Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
•Remove any adjusting key or wrench before turn-
ing the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in per-
sonal injury.
•Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing, and gloves away
from moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
Power Tool Use And Care
•Do not force power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it is designed.
•Do not use power tool if the switch does not turn it
ON and OFF. Any power tool that cannot be con-
trolled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source and/or
the battery pack from the power tool before mak-
ing any adjustments, changing accessories, or
storing power tools. Such preventive safety mea-
sures reduce the risk of starting the power tool acci-
dentally.
RP 210 Press Tool
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the pow-
er tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of
untrained users.
•Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s op-
eration. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
•Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
•Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dif-
ferent from those intended could result in a hazardous
situation.
Battery Tool Use And Care
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
•Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
•When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or a fire.
•Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acciden-
tally occurs, flush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.

Failure to follow all instructions and warnings may
result in property damage and/or serious injury.
The EC Declaration of Conformity (890-011-320.10) will
accompany this manual as a separate booklet when
required.
If you have any question concerning this RIDGID®product:
– Contact your local RIDGID distributor.
Description, Specifications
And Standard Equipment
Description
The RP 210 Press Tool, when used with appropriate
jaws, is designed to mechanically press fittings onto tubing
to create a water-tight and permanent seal. When the
switch on the RP 210 is depressed, an internal electric
motor powers a hydraulic pump which forces fluid into
the cylinder of the tool, forcing the ram forward and apply-
ing thousands of pounds of pressing force onto specially
designed fittings. Attachments are also available for other
uses.
The entire cycle duration is approximately five (5) seconds.
Once the cycle begins to deform a fitting, it will automat-
ically continue until completion, even if the trigger switch
is released. The LED displays on the back of the tool indi-
cate problems such as improper temperature, open
attachment mounting pin or maintenance required.

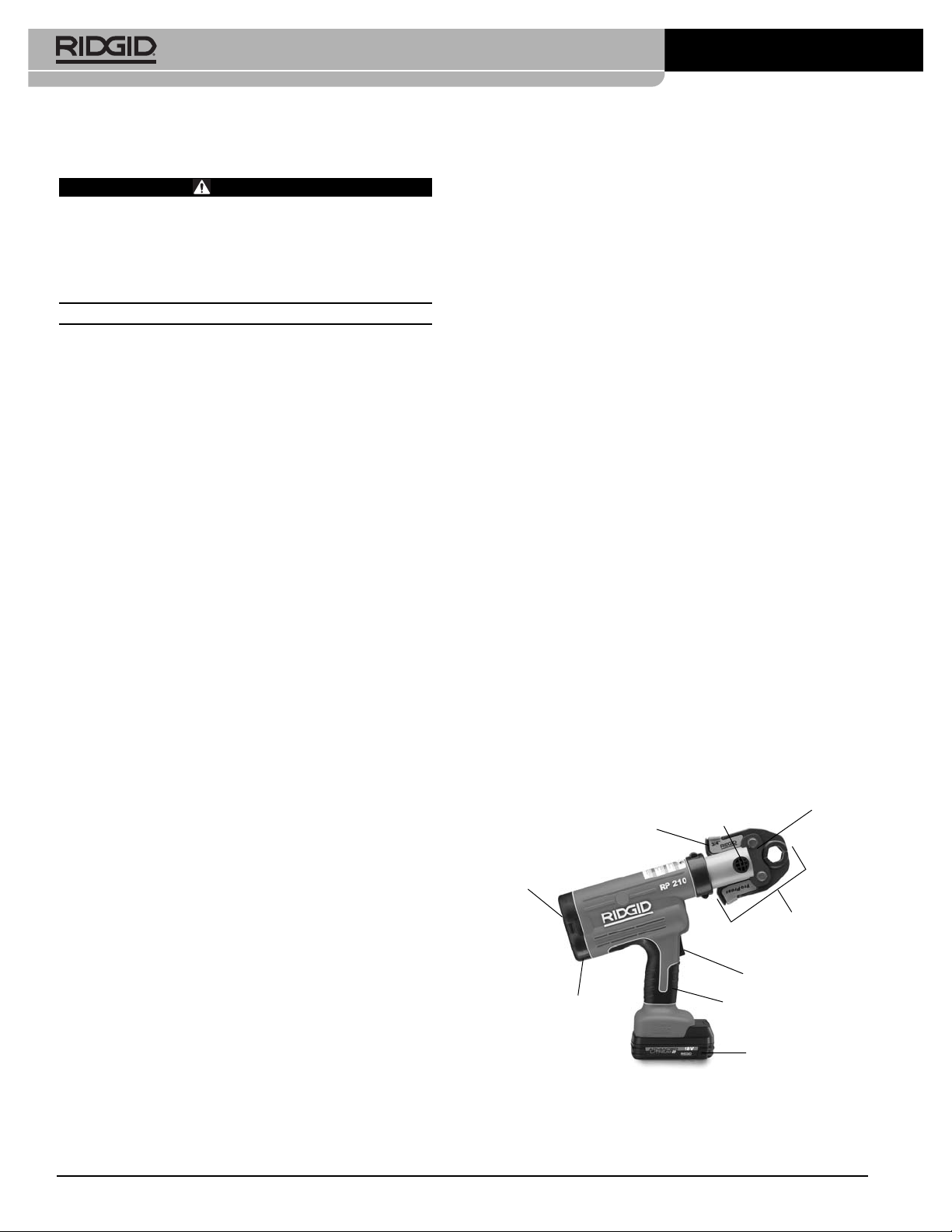

Figure 1 – RP 210-B Press Tool And Compact Series Jaw
Specific Safety Information
WARNING
This section contains important safety information
that is specific to this tool.
Read these precautions carefully before using the
RP 210 Press Tool to reduce the risk of electrical
shock or serious personal injury.
SAVE THESE INSTRUCTIONS!
A compartment in the RP 210 carrying case is included to
keep this manual with the machine for use by the operator.
Press Tool Safety
•Use the RP 210 Press Tool only with RIDGID Com-
pact pressing attachments (jaws, press ring, actu-
ator, etc.). Other uses or modifying the RP 210 Press
Tool for other applications may damage the press
tool, damage the attachments and/or cause personal
injury.
•Keep your fingers and hands away from pressing
attachments during press cycle. Your fingers or
hands can be crushed, fractured or amputated if they
become caught between the jaws or between these
components and any other object.
•Never attempt to repair damaged jaws, press ring,
actuator or other attachments. An attachment that
has been welded, ground, drilled or modified in any
manner can shatter during pressing resulting in serious
injury. Discard the entire damaged jaws. Replace with
new jaws. Never replace individual components except
for damaged jaw return springs. Please call Ridge
Tool Company, Technical Services for availability.
•Large forces are generated during product use
that can break or throw parts and cause injury.
Stand clear during use and wear appropriate protective
equipment, including eye protection.
•Only use RIDGID Press Tools and Jaws when
specified by the press fittings manufacturer. Use of
incorrect equipment and methods can cause incom-
plete joints, damage the equipment, void warranties or
cause severe personal injury or death.
•Before operating a RIDGID RP 210 Press Tool,
read and understand:
– This operator’s manual,
– The attachment instructions,
– The battery/charger manual,
– The fitting manufacturer’s installation instructions,
– The instructions for any other equipment used with
this tool,
4
RP 210 Press Tool
LED Display
Panel (Rear)
Scissor Style
Jaw Set
Jaw Arm
Attachment
Mounting Pin
Battery
Tool Housing
Switch
Handle
Jaw
Sideplate

Selection of appropriate materials and join-
ing methods is the responsibility of the system designer
and/or installer. Before any installation is attempted, care-
ful evaluation of the specific service environment, includ-
ing chemical environment and service temperature, should
be completed. Consult Press Fitting System manufac-
turer for selection information.
Tool Inspection
WARNING
Daily before use, inspect your press tool and correct
any problems to reduce the risk of serious injury
from electric shock, crushing injures, attachment
failure and other causes, and prevent tool damage.
1. Make sure that the press tool battery is removed.
Inspect the battery for damage. If any damage or
modifications are found, do not use until the battery
has been properly repaired or replaced.
2. Clean any oil, grease or dirt from the equipment,
especially the handles and controls. This helps to
prevent the machine or controls from slipping from
your grip.
3. Inspect the press tool for any of the following:
• Proper assembly, maintenance and completeness.
• Any broken, worn, missing, misaligned or binding
parts.
• Make sure that the attachment mounting pin moves
smoothly between the fully open and full closed
position and locks into each. Confirm that the
switch moves freely and does not bind or stick.
• Presence and readability of warning labels.
See
Figure 3.
• Any other condition which may prevent safe and nor-
mal operation.
If any problems are found, do not use the press tool
until the problems have been repaired.
4. Inspect and maintain the tool attachments, battery
charger and any other equipment or material in use as
directed in their instructions.
Specifications
RP 210-B Battery Press Tool:
Motor
Voltage ...................18V DC
Amperage ...............18 Amp
Power .....................324 Watts
Weight........................5.6 lbs. (2.5 Kg) (Tool Only - No
Battery)
Ram Force .................5,400 lbs. (24kN)
Operating Temperature
Range ...........................15°F to 140°F (-10°C to 60°C)
0°F to 140°F (-20°C to 60°C) with
Battery Maintained Above 15°F
(-10°C) or By Using Higher
Capacity Batteries.
See Cold
Weather Operation.
Duty Cycle...................3 Crimp /min.

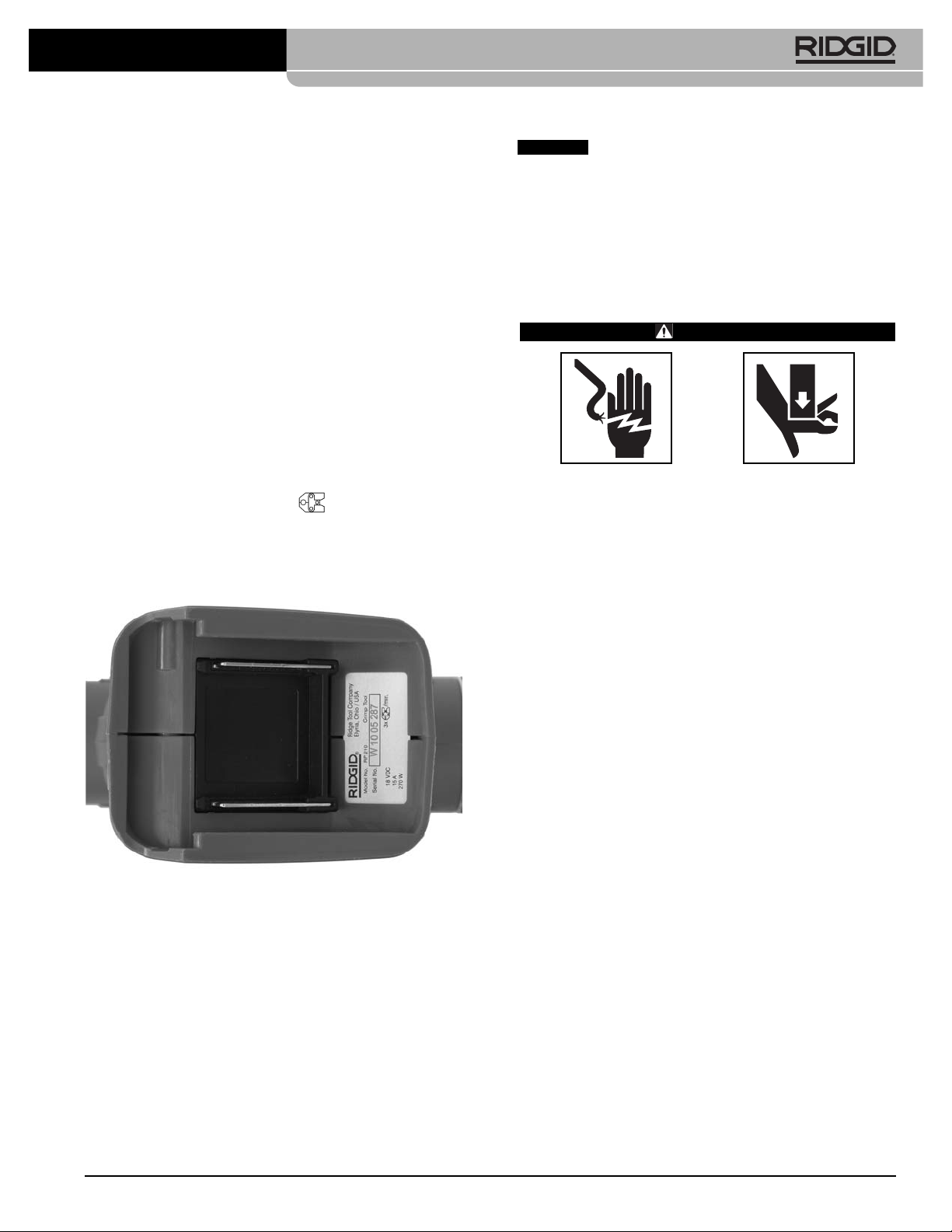

The Press Tool serial number plate is located at the bot-
tom of the handle as shown in Figure 2. The first 4 digits
indicate the month and year of the manufacture. (10 =
year, 05 = month).
Figure 2 – Press Tool Serial Label
NOTE! RIDGID jaws and attachments are offered in two
“series”
• Standard Series
• Compact Series
These series are not interchangeable. Only stan-
dard series jaws will work with standard series
tools (RP 330, RP 340, 320-E, CT-400). Similarly,
only compact series jaws will work with the com-
pact series tools (Compact 100-B, RP 200, RP
210). Please refer to the standard tool’s operator's
manuals for further information on standard tools
and jaws.
5
RP 210 Press Tool
NOTICE

Figure 3 – Press Tool Warning Label
5. With dry hands, insert a fully charged battery. Press
the ON/OFF button on the LED panel one time to turn
the press tool ON. The green, red and yellow LED on
the display panel should all blink one time on power
up, and then the green LED will remain on to indicate
that the tool is ready for use. For use in cold weather
(temperatures below 15°F (-10°C)),
see Cold Weath-
er Operation Section . If any other conditions exist, use
the Diagnostic Codes information on Page 12 to
determine the next step and do not use the tool until
it is working properly. With your hands and fingers
away from the tool ram, test the operation of the
switch to confirm proper operation. When used with
an attachment, once the tool sees enough load it
will lock on to ensure that a complete press is made.
6. Once the operation has been checked, with dry
hands remove the battery.
Tool And Work Area Set-Up
WARNING
Set up the press tool and work area according to
these procedures to reduce the risk of injury from
electric shock, fire, crushing injuries and other
causes, and prevent tool and system damage.
1. Check work area for:
• Adequate lighting.
• Flammable liquids, vapors or dust that may ignite.
If present, do not work in area until sources have
been identified and corrected. The press tool is
not explosion proof and can cause sparks.
• Clear, level, stable and dry place for operator. Do
not use the machine while standing in water.
2. Inspect the work to be done and determine the correct
RIDGID tool and attachment(s) for the application.
Using an incorrect attachment for an application can
cause injury, damage the tool and make incomplete
connections. For a complete listing of RIDGID attach-
ments available for this tool, see the Ridge Tool
Catalog on line at www.RIDGID.com or call Ridge
Tool Technical Services [phone]. Make sure
that the tool and attachment have been inspected as
directed in their instructions.
3. Evaluate the work area and determine if any barriers
are needed to keep bystanders out. Bystanders can
distract the tool operator during use.
4. Confirm that the battery is removed and fully open the
attachment mounting pin.
See Figure 4. If there is an
attachment in the tool, slide it out of the tool.
5. Slide the correct attachment into the press tool as
shown in Figure 5 and fully close the attachment
mounting pin. The tool will not operate unless the
mounting pin is fully closed.
Figure 4 – Fully Open Attachment Mounting Pin
Figure 5 – Slide Attachment Into Tool
6
RP 210 Press Tool
Warning Label

7

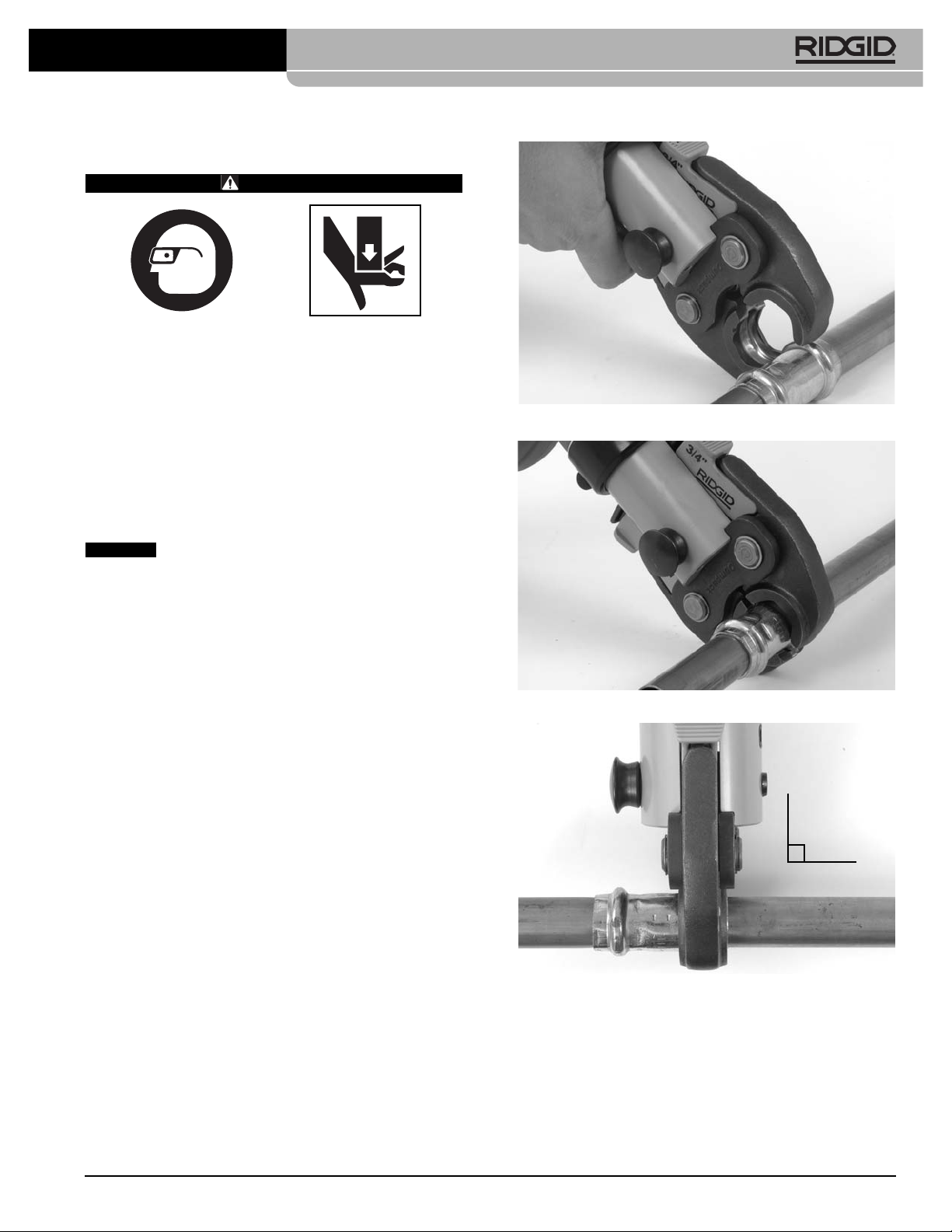

Figure 6 – Opening The Scissor-Style Jaws
Figure 7 – Placing Scissor-Style Jaw Set Around Fitting
Figure 8 – RP 210 Tool Square To Tubing
3. Make sure the jaw set and tool are square to the
tubing and depress the tool switch
(Figure 8). Keep
fingers and hands away from the jaw set to avoid
crushing injuries in jaw set and between jaw set and
surroundings. The press cycle takes about five (5)
seconds. Once a press cycle begins and the rollers
contact the jaw arms, the tool will lock-on and auto-
Operating Instructions
WARNING
Always wear eye protection to protect your eyes
against dirt and other foreign objects.
Keep your fingers and hands away from the tool
attachment during the press cycle. Your fingers or
hands can be crushed, fractured or amputated in
the attachment or tool or between the attach-
ment, work piece and other objects.
Follow operating instructions to reduce the risk of
injury from crushing and other causes and to pre-
vent tool damage.
Preparing The Connection
These instructions are generalized practices for
several types of press tool attachments. Always follow
the specific instructions for the press tool attachment being
used and the fitting manufacturers specific installation
instructions. Failure to follow the specific attachment and fit-
ting installation instructions may result in improper press
connections that can lead to extensive property damage.
1. Make sure that the work area is free of bystanders and
other distractions and that the tool and work area
has been properly set up.
2. Prepare the connection according to the fitting man-
ufacturers instructions.
3. With dry hands, insert a fully charged battery. Depress
ON/OFF button on display panel one time to turn tool
ON. All three light emitting diodes (LED’s) will blink
once. Then, the green LED should be solidly illuminated
indicating the tool is ready to press. Tool will auto-
matically turn OFF if left unused for ten (10) minutes.
4. Make sure the tubing is inserted to the proper depth in
fitting, as specified in the appropriate fitting system’s
operator's manual.
Pressing A Fitting With Typical Scissor
Jaws
1. Squeeze jaw arms to open the jaws (Figure 6).
2. Place open jaws around the fitting (Figure 7) . Make
sure the contour of the jaw set is properly aligned with
the contour of the fitting as specified in Fitting Manu-
facturer's Installation Instructions . Do not hang the jaw
set and tool from fitting. Tool could unexpectedly
drop and cause serious injury or death.
RP 210 Press Tool
NOTICE

matically complete the press cycle. Releasing the
switch will not stop the tool once the pressing process
has begun. This assures consistent, repeatable press
joint integrity.
4. Press jaw arms to open the jaw set.
5. Remove the RP 210 and jaw set from tube. Avoid
sharp edges that may have formed on the fitting dur-
ing the pressing operation.
Pressing A Fitting With Typical Actuator
And Press Ring Set
1. Open the appropriate press ring and place at right
angle onto the fitting (Figure 9). Align ring with fitting
according to fitting system’s operator’s manual. Re-
check insertion depth before completing press pro-
cess.
2. Squeeze actuator arms to open the actuator assem-
bly. Engage actuator ends into the actuator pockets in
the press ring
(Figure 10) . Make sure actuator ends
are fully engaged in pockets. Do not attempt to hang
tool and actuator from press ring. Tool could unex-
pectedly drop causing serious injury or death.
Depress the tool switch. The press cycle takes about
five (5) seconds. Once a press cycle begins and the
rollers contact the actuator arms, the tool will lock-on
and automatically complete the press cycle. Releasing
the trigger will not stop the tool once the pressing
process has begun. This assures consistent, repeat-
able press joint integrity. To avoid pinch point injuries,
keep fingers away from actuator and press ring during
the press cycle.
Figure 9 – Installing Press Ring Onto Fitting
Figure 10 – Attaching Actuator To Press Ring
3. After cycle is complete, squeeze actuator arms to
open and separate actuator from press ring. Remove
the press ring from fitting by manually grasping ring
halves and opening assembly. Avoid any sharp edges
which may have formed on fitting during pressing
operation.
The RP 210-B Press Tool will turn off auto-
matically if the battery is too low to successfully com-
plete a pressed connection. This will be indicated by
blinking of the green LED. A fully charged battery should
be inserted in the tool and the pressed connection should
be repeated as indicated above. To retract the rollers
and remove the tool from the fitting if battery dies or tool
malfunctions during pressed connection, it is necessary to
press the pressure release button on the right hand side
of the tool
(Figure 11). If this happens, the connection will
need to be pressed again to ensure completion.
Figure 11 – Pressure Release Button
Inspecting The Pressed Connection
1. Inspect the pressed fitting. If the fitting is supplied with
a control ring and/or a control label by the fitting
manufacturer, remove it. Control rings and labels
are supplied by the manufacturer to indicate that the
fitting has not yet been pressed.
8
RP 210 Press Tool
Pressure Release
Button
NOTICE

Maintenance Instructions
WARNING
Make sure battery is removed from tool before per-
forming maintenance or making any adjustment.
Cleaning And Lubrication
1. Wipe the tool clean daily with a clean dry cloth.
2. Inspect the attachment mounting pin and lubricate the
pin with silicone lubricant as needed.
3. Check return springs in attachments with each use.
Attachments should open and close freely with only
moderate finger effort required.
Required Maintenance At RIDGID
Authorized Service Center
After 30,000 cycles, the tool will show a blinking yellow
LED on the display panel as long as the tool is turned on
to indicate that it is time for maintenance and recalibration.
The tool will not run if it is not serviced within 2,000 more
cycles (32,000 total) after the yellow blinking LED begins.
Accessories
WARNING
The following tool accessories have been designed
to function with the RP 210 Press Tools. Other
accessories suitable for use with other tools may
become hazardous when used on the RP 210. To
prevent serious injury, use only accessories specif-
ically designed and recommended for use with the
RP 210, such as those listed below.
Ridge Tool Company provides Compact Pressing
attachments designed specifically for use with
RIDGID Compact Press Tools. Only use attachments
that are specifically designed to press the fitting sys-
tem you are installing. For a complete listing of
RIDGID attachments available for this tool, see the
Ridge Tool Catalog on line at www.RIDGID.com or
call Ridge Tool Technical Service Department (800)
519-3456.
Look for the following:
• Excessive misalignment of the tubes. Note that a
slight amount of misalignment at the pressed con-
nection is considered normal.
• Tubes that are not fully inserted into the fitting –
double check the insertion marks made on the
tube to see that they are still aligned with the end of
the fitting.
• Incorrect jaw or ring alignment with the fitting con-
tour, distorted or deformed fitting.
• Any other issues per the fitting manufacturer.
If any of these problems are found, then removal of the
fitting is required and a new fitting and tube will need
to be prepared and pressed in its place.
2. Test system in accordance with normal practice and
local codes.
Cold Weather Operation
As temperature drops, all batteries experience perfor-
mance degradation. The lowest temperature at which a
tool and 1.1Ah battery can make a complete press is
15°F (-10°C). At temperatures below this, the 1.1Ah bat-
tery is not able to provide sufficient power to the press tool.
Pressing at temperatures down to 0°F (-20°C) can be
done by warming the 1.1Ah battery above 15°F (-10°C) or
using a larger capacity battery (2.0Ah, 2.2Ah, 3.3Ah or
4.0Ah).
The red and green LED’s on the tool will glow when the tool
temperature is between 0°F (-20°C) and 15°F (-10°C). If
using a 1.1Ah battery, the tool may not be able to press
the connection completely. If this occurs, the tool will
stop in the middle of the press cycle and will not release
from the connection. To remove the tool from the con-
nection, press the pressure release button on the right
hand side of the tool
(shown in Figure 11) . This con-
nection then must be repressed while using either a
1.1Ah battery above 15°F (-10°C) or using a 2.0Ah,
2.2Ah, 3.3Ah or 4.0Ah battery to ensure a complete
connection.
To use the press tool between 0°F (-20°C) and 15°F
(-10°C) either:
• Use a 2.0Ah, 2.2Ah, 3.3Ah or 4.0Ah battery.
• Or maintain the 1.1Ah battery temperature above
15°F (-10°C). This can be done by placing the bat-
tery in an interior pocket when not in use or allow-
ing the battery to sit in a conditioned room until it is
sufficiently warm.
If the tool temperature is below 0°F (-20°C), only the red
LED will be on and the tool will not operate unless warmed
to above 0°F (-20°C).
9
RP 210 Press Tool
Catalog
No. Description
31023 Carrying Case (Plastic)
RP 210-B Press Tool Accessories

Service And Repair
WARNING
Improper service or repair can make machine
unsafe to operate.
Service and repair on this RP 210 Press Tool must be per-
formed by a RIDGID Authorized Service Center. The tool
fasteners have been marked to indicate if service has
been performed by unauthorized individuals.
For any repairs or maintenance, contact the Ridge Tool
Technical Service Department at [phone] or
www.RIDGID.com for nearest authorized press tool ser-
vice outlet.
For information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• Contact your local RIDGID distributor.
• Visit www.RIDGID.com or www.RIDGID.eu to find
your local RIDGID contact point.
• Contact Rdge Tool Technical Service Department at
[email protected], or in the U.S. and
Canada call [phone].
Disposal
Parts of the RIDGID RP 340 Press Tool contain valuable
materials and can be recycled. There are companies
that specialize in recycling that may be found locally.
Dispose of the components in compliance with all appli-
cable regulations. Contact your local waste management
authority for more information.
For EC Countries: Do not dispose of elec-
trical equipment with household waste!
According to the European Guideline 2002/-
96/EC for Waste Electrical and Electronic
Equipment and its implementation into nation-
al legislation, electrical equipment that is no
longer usable must be collected separately and disposed
of in an environmentally correct manner.
10
RP 210 Press Tool
Storage
Remove battery from tool and store tool and battery in
case. Avoid storing the tool, batteries or charger in extreme
heat or cold. The tool temperature sensor will not allow the
tool to turn on if oil temperature is not within the temper-
ature range of 0°F (-20°C) to 104°F (40°C). So it may be
necessary to allow the tool to warm or cool to a temper-
ature within the operating range by placing it in a condi-
tioned room before use. This will be indicated by a red
glowing LED on the display panel.
Store the carrying case in a dry, secured,
locked area that is out of reach of children and people
unfamiliar with the RP 210 Press Tool. The tool is dan-
gerous in the hands of untrained users.
WARNING
Catalog
No. Capacity Region
44693 18V 2.0 Ah North & Latin America, Australia
44698 18V 4.0 Ah North & Latin America, Australia
43323 18V 2.0 Ah Europe & China
43328 18V 4.0 Ah Europe & China
31013 18V 1.1 Ah North & Latin America, Australia
32743 18V 2.2 Ah North & Latin America, Australia
31018 18V 3.3 Ah North & Latin America, Australia
32473 18V 1.1 Ah Europe & China
28218 18V 2.2 Ah Europe & China
28448 18V 3.3 Ah Europe & China
Battery Packs
All listed batteries will work with any model RBC 20 charger. The difference
between batteries for different regions is in label markings.
Catalog Plug
No. Voltage Region Type
43458 120V North America A
43333 230V Europe C
43468 120V China A
44418 230V Australia & Latin America I
44793 100V Japan A
44833 230V United Kingdom G
44798 — North America Charger Cord A
44808 — Europe Charger Cord C
44803 — China Charger Cord A
44813 — Australia & LA Charger Cord I
44818 — Japan Charger Cord A
44828 — United Kingdom Charger Cord G
RBC 20 Advanced Lithium Battery Chargers & Cords

11
RP 210 Press Tool
SYMPTOM POSSIBLE REASONS SOLUTION
Tool will not turn ON
when ON/OFF button on
display panel is pressed.
Tool will not run when
trigger is depressed.
Green light flashes.
Tool turns OFF
either when trigger is
depressed or in the
middle of a press cycle.
Red LED glows.
Yellow LED blinks
repeatedly as long as
tool is turned ON and
tool functions properly.
Yellow LED glows con-
tinuously and tool will
not begin press cycle
when trigger switch is
depressed.
Red LED blinks repeated-
ly and tool will not begin
press cycle when trigger
switch is depressed.
Yellow LED glows when
tool is turned ON.
Jaws are locked onto
fitting.
The pressed connections
produced are not com-
plete.
Troubleshooting
Battery is completely discharged or battery has
failed.
Battery not properly inserted into handle of tool.
Battery is too low.
Tool or battery is too cold or too hot.
Scheduled maintenance/recalibration is required
after 30,000 presses.
Scheduled maintenance/recalibration is manda-
tory after 32,000 presses. Tool is “locked” and
will not function until tool is serviced.
Attachment mounting pin not fully closed.
Tool malfunction detected.
Press was not successfully completed.
Used wrong jaws for the tube size or material.
The tool was not square to the tube.
Jaw contour was not aligned with the fitting contour.
Tool is in need of repair.
Insert fully charged battery/recharge dead battery.
Check to assure battery is fully inserted.
Insert fully charged battery/recharge dead battery.
Bring tool and battery to correct operating range
between 0°F (-20°C) to 140°F (60°C) by allowing
the tool to sit in a conditioned room. If using tool
in cold temperatures, refer to
Cold Weather
Operation
Section of this manual.
NOTE! Fitting must be repressed if tool stops
in the middle of a press cycle. Failure
to do so may result in a leaking fitting.
Contact Ridge Tool Technical Service Department
at [phone] for nearest Authorized Service
outlet.
Insert attachment mounting pin to the fully closed
position.
Push pressure release valve to remove jaws from fit-
ting. Inspect and repress fitting.
Install the correct jaws.
Redo the joint with new fitting and new tube.
Make sure that the tool is square to the tube.
Redo the joint with new tube and new fitting.
Make sure the jaw contour is aligned with the
fitting contour.

12
RP 210 Press Tool
RP 210 Diagnostic Codes
LED Status Description Icon
Green Glows Tool ON.
Blinks Out of acceptable voltage range.
— Replace battery with a fully charged battery.
Red Blinks Attachment mounting pin not fully engaged. Insert pin.
Glows If only red light is ON, Out of temperature range 15°F (-10°C) to 140°F (60°C).
Yellow Blinks Service indicator after 30,000 cycles. NOTE: Tool will lock after 32,000 cycles.
Glows Machine is locked – Service after 32,000 cycles or after a malfunction.
Figure 12 – LED Diagnostic Codes
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
