RIDGID 1233 User manual

300 Compact/1233
•Français – 21
•Castellano – 43
• Türkçe – 67
• Русский – 89
Threading Machines Manual
300 Compact
1233

ii
300 C mpact/1233 Threading Machines
Table of Contents
Recording Form For Machine Serial Number..................................................................................................................................1
Safety Symbols ..................................................................................................................................................................................2
General Power Tool Safety Warnings
Work Area Safety ............................................................................................................................................................................2
Electrical Safety ..............................................................................................................................................................................2
Personal Safety ..............................................................................................................................................................................3
Tool Use And Care..........................................................................................................................................................................3
Service ............................................................................................................................................................................................4
Specific Safety Information
Safety Instructions for Transportable Threading Machines ............................................................................................................4
Description, Specifications And Standard Equipment
Description ......................................................................................................................................................................................4
Specifications ..................................................................................................................................................................................5
Standard Equipment ......................................................................................................................................................................6
Machine Assembly
Mounting on Stands ........................................................................................................................................................................6
Mounting on Bench ........................................................................................................................................................................6
Mounting on Pipe Legs ..................................................................................................................................................................6
Pre-Operation Inspection ..................................................................................................................................................................7
Machine and Work Area Set-Up........................................................................................................................................................7
Die Head Set-Up and Use
Removing/Installing Die Head ........................................................................................................................................................9
Quick-Opening Die Heads ..............................................................................................................................................................9
Inserting/Changing the Dies ........................................................................................................................................................9
Adjusting Thread Size ..................................................................................................................................................................9
Opening the Die Head at the End of the Thread........................................................................................................................10
Self-Opening Die Heads ..............................................................................................................................................................10
Inserting/Changing the Dies ......................................................................................................................................................10
Adjusting Thread Size ................................................................................................................................................................10
Trigger Slide Adjustment............................................................................................................................................................10
Opening the Die Head at the End of the Thread........................................................................................................................10
Receding Self-Opening Die Heads ..............................................................................................................................................11
Inserting/Changing the Dies ......................................................................................................................................................11
Adjusting Thread Size ................................................................................................................................................................11
Adjusting Thread Length ............................................................................................................................................................11
Preparing the Die Head to Thread ............................................................................................................................................12
Opening the die head at the end of the Thread ........................................................................................................................12
Operating Instructions
Cutting ..........................................................................................................................................................................................13
Reaming........................................................................................................................................................................................13
Threading Pipe..............................................................................................................................................................................14
Threading Bar Stock/Bolt Threading ............................................................................................................................................14
Left Hand Threading ....................................................................................................................................................................14
Removing Pipe from the Machine ................................................................................................................................................15
Inspecting Threads........................................................................................................................................................................15
Preparing Machine for Transport ..................................................................................................................................................16
Maintenance Instructions
Cleaning ........................................................................................................................................................................................16
Lubrication ....................................................................................................................................................................................16
Oil System Maintenance ..............................................................................................................................................................16
Replacing Cutter Wheel ................................................................................................................................................................17
Replacing Jaw Inserts ..................................................................................................................................................................17
Replacing Carbon Brushes ..........................................................................................................................................................17
Optional Equipment ........................................................................................................................................................................18
Thread Cutting Oil Information ......................................................................................................................................................18
Machine Storage ..............................................................................................................................................................................18
Service And Repair ..........................................................................................................................................................................18
Disposal ............................................................................................................................................................................................18
Troubleshooting ..............................................................................................................................................................................19
ifetime Warranty ..............................................................................................................................................................Back Cover
*Original Instructions - English

300 C mpact/1233 Threading Machines
Record Serial umber below and retain product serial number which is located on name plate.
Serial
o.
300 Compact/1233
Threading Machines
WARNING!
Read this Operat r’s Manual
carefully bef re using this
t l. Failure t understand
and f ll w the c ntents f
this manual may result in
electrical sh ck, re and/ r
seri us pers nal injury.
300 Compact
1233

This symbol indicates the risk of fingers, hands, clothes and other objects catching on or between gears or other rotating parts
and causing crushing injuries.
This symbol indicates the risk of fingers, legs, clothes and other objects catching and/or wrapping on rotating shafts causing
crushing or striking injuries.
2
300 C mpact/1233 Threading Machines
General Power Tool Safety
Warnings*
WARNING
Read all safety warnings, instructions, illustra-
tions and specifications provided with this power
tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE!
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work Area Safety
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
•Keep children and by-standers away while operat-
ing a power. Distractions can cause you to lose control.
Electrical Safety
•Power tool plugs must match the outlet. Never
mod ify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi -
Safety Symbols
In this operator’s manual and on the product, safety symbols and signal words are used to communicate important safe-
ty information. This section is provided to improve understanding of these signal words and symbols.
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE indicates information that relates to the protection of property.
This symbol means read the operator’s manual carefully before using the equipment. The operator’s manual contains impor-
tant information on the safe and proper operation of the equipment.
This symbol means always wear safety glasses with side shields or goggles when handling or using this equipment to reduce
the risk of eye injury.
NOTICE
DANGER
WARNING
CAUTION
This symbol indicates the risk of electrical shock.
This symbol indicates the risk of machine tipping, causing striking or crushing injuries.
This symbol means do not wear gloves while operating this machine to reduce the risk of entanglement.
This symbol means always use a foot switch when using a threading machine/power drive to reduce the risk of injury.
This symbol means do not disconnect foot switch to reduce the risk of injury.
This symbol means do not block foot switch (lock in ON position) to reduce the risk of injury.
* The text used in the General Safety Rule section of this manual is verbatim, as required, from the applicable UL/CSA 62841-1 edition standard. This section
contains general safety practices for many different types of power tools. Not every precaution applies to every tool, and some do not apply to this tool.

3
fied plugs and matching outlets will reduce risk of elec-
tric shock.
•Avoid body contact with earthed or grounded sur-
faces such as pipes, radiators, ranges and refrig-
erators. There is an increased risk of electrical shock
if your body is earthed or grounded.
•Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk
of electrical shock.
•Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
•When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of elec-
tric shock.
•If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of a G CI reduces
the risk of electric shock.
Personal Safety
•Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol, or medication. A mo -
ment of inattention while operating power tools may
result in serious personal injury.
•Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
•Prevent unintentional starting. Ensure the switch
is in the OFF-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
ON invites accidents.
•Remove any adjusting key or wrench before turn-
ing the power tool ON. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
•Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the
power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or
300 C mpact/1233 Threading Machines
jewelry. Keep your hair, and clothing away from
moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
•Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
Power Tool Use and Care
•Do not force power tool. Use the correct power tool
for your application. The correct power tool will do the
job better and safer at the rate for which it is designed.
•Do not use power tool if the switch does not turn it
ON and OFF. Any power tool that cannot be con-
trolled with the switch is dangerous and must be
repaired.
•Disconnect the plug from the power source and/or
the battery pack, if detachable, from the power
tool before making any adjustments, changing
accessories, or storing power tools. Such preven-
tive safety measures reduce the risk of starting the
power tool accidentally.
•Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
tool. Power tools are dangerous in the hands of
untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s op er ation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
•Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. The use of the power tool for operations dif-
ferent from those intended could result in a hazardous
situation.

machine. This practice could lead to trapping, entan-
glement and loss of control.
•Keep covers in place. Do not operate the machine
with covers removed. Exposing moving parts increas-
es the probability of entanglement.
•Do not use this machine if the foot switch is bro-
ken or missing. The foot switch provides safe control
of the machine, such as shut-off in case of entangle-
ment.
•One person must control the work process, ma -
chine operation and foot switch. Only the operator
should be in the work area when the machine is run-
ning. This helps reduce the risk of injury.
•Never reach into the machine front chuck or rear
centering head. This will reduce the risk of entan-
glement.
•Read and understand these instructions and the
instructions and warnings for all equipment and
materials being used before operating this tool to
reduce the risk of serious personal injury.
The EC Declaration of Conformity (890-011-320.10) will
accompany this manual as a separate booklet when
required.
If you have any question concerning this RIDGID®product:
– Contact your local RIDGID®distributor.
– Visit www.RIDGID.com to find your local RIDGID con-
tact point.
– Contact Ridge Tool Technical Service Department
at [e-mail], or in the U.S. and
Cana da call [phone].
Description, Specifications
And Standard Equipment
Description
The RIDGID®Model 300 Compact and 1233 Threading
Machines are electric motor-driven machines that center
and chuck pipe, conduit and bolt stock and rotates it while
cutting, reaming and threading operations are performed.
Threading dies are mounted in a variety of available die
heads. An integral oiling system with adjustable flow rate
is provided to flood the work with thread cutting oil during
the threading operation.
With proper optional equipment, RIDGID®Model 300
Compact and 1233 Threading Machines can be used to
thread 21/2" – 4" pipe, short or close nipples or for roll
grooving.
Service
•Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
Specific Safety Information
WARNING
This section contains important safety information
that is specific to these tools.
Read these precautions carefully before using the
300 Compact/1233 Threading achines to reduce
the risk of electrical shock or other serious injury.
SAVE THESE INSTRUCTIONS!
Keep this manual with machine for use by the operator.
Safety Instructions for Transportable
Threading achines
•Keep floor dry and free of slippery materials such as
oil. Slippery floors invite accidents.
•Restrict access or barricade the area when work
piece extends beyond machine to provide a mini-
mum of one meter clearance from the work piece.
Restricting access or barricading the work area around
the work piece will reduce the risk of entanglement.
•Do not wear gloves. Gloves may be entangled by the
rotating pipe or machine parts leading to personal
injury.
•Do not use for other purposes such as drilling
holes or turning winches. Other uses or modifying this
machine for other applications may increase the risk of
serious injury.
•Secure machine to bench or stand. Support long
heavy pipe with pipe supports. This practice will
prevent tipping.
•While operating the machine, stand on the side
where the operator controls are located. Operating
the machine from this side eliminates need to reach
over the machine.
•Keep hands away from rotating pipe and fittings.
Stop the machine before wiping pipe threads or
screwing on fittings. Allow the machine to come to
a complete stop before touching the pipe. This
practice will reduce the chance of entanglement in
rotating parts.
•Do not use this machine to install or remove (make
or break) fittings, it is not an intended use of the
4
300 C mpact/1233 Threading Machines

Figure 1 – 300 Compact Threading Machine Figure 2 – 1233 Threading Machine
5
300 C mpact/1233 Threading Machines
Rear
Centering
Device
REV/OFF/FWD
(2/0/1)
Switch
Motor
Cover Hand
Hold
Chip Tray
Chuck Jaw
Handwheel
Carriage
Handwheel
Front
Hand
Hold
Quick Opening
Die Head
Cutter
Reamer Rear
Centering
Device
REV/OFF/FWD
(2/0/1)
Switch
Warning
abel
Die
Head
Chip
Tray
Chuck Jaw
Handwheel
Carriage
Handwheel
No. 743
Reamer
No. 763
Cutter
Specifications
Parameter 300 C mpact Threading Machine 1233 Threading Machine
Pipe Threading Capacity 1/8to 2 inch (3 to 50 mm) 1/8to 3 inch (3 to 80 mm)
( ominal Pipe Size)
Bolt Threading Capacity 1/4to 2 inch (6 to 50 mm) 3/8to 2 inch (9,5 to 50 mm)
(Actual Stock Diameter)
Yes o
LH Threads (units with REV only)
Rated Motor Power (HP) 1/2HP (0.37 kW) 1/2HP (0.37 kW)
Motor Type Universal Motor, Single Phase Universal Motor, Single Phase
Electrical Information 36 RPM 52 RPM 115 V, 50/60 Hz, 15 AMP
115 V, 50/60 Hz, 12 AMP 115 V, 50/60 Hz, 18 AMP 230 V, 50/60 Hz, 8 AMP
230 V, 50/60 Hz, 8 AMP
1700 W 2100 W 1700 W
Operating Speed 36 RPM (52 RPM version available) 36 RPM
Rotary Type REV/OFF/FWD (2/0/1) switch Rotary Type REV/OFF/FWD (2/0/1) switch
Controls and O /OFF foot switch, and O /OFF foot switch
Some units use an OFF/O Rocker Some units use an OFF/O Rocker
Switch in place of the Rotary Switch. Switch in place of the Rotary Switch.
Front Chuck Hammer-Type with replaceable Hammer-Type with replaceable
Rocker-Action Jaw Inserts Rocker-Action Jaw Inserts
Rear Centering Device Scroll operated, rotates with Chuck Scroll operated, rotates with Chuck
Die Heads See RIDGID Catalog for available Die Heads See RIDGID Catalog for available Die Heads
Cutter Model 360, 1/8" - 2" Full Floating, Model 763, 1⁄4" - 3",
Self Centering Cutter Self Centering Cutter
Reamer Model 344, 1/8" - 2" Reamer Model 743, 1⁄4" - 3", 5-Fluted Reamer
Oil System Reservoir Capacity 3.2 qt (3 l), Reservoir Capacity 3.2 qt (3 l),
with integrated Gerotor Pump, with integrated Gerotor Pump,
adjustable flow rate adjustable flow rate
Weight (Unit with Die Head) 141 lb (64 kg) 165 lb (75 kg)
Warning
abel
Warning
abel
Foot
Switch
Oil
Drain
Carriage
Warning
abel
Foot
Switch
Oil
Drain
Motor
Cover
Carriage

Standard Equipment
Refer to the RIDGID catalog for details on equipment
supplied with specific machine catalog numbers.
The Threading Machine serial number plate is located on
the end of the base or the back of the base. The last 4 dig-
its indicate the month and year of the manufacture (06 =
June, 14 = 2014).
Figure 3 – Machine Serial Number
Selection of appropriate materials and instal-
lation, joining and forming methods is the responsibility of
the system designer and/or installer. Selection of improp-
er materials and methods could cause system failure.
Stainless steel and other corrosion resistant materials
can be contaminated during installation, joining and form-
ing. This contamination could cause corrosion and pre-
mature failure. Careful evaluation of materials and methods
for the specific service conditions, including chemical and
temperature, should be completed before any installation
is attempted.
achine Assembly
WARNING
To reduce the risk of serious injury during use, fol-
low these procedures for proper assembly.
Failure to mount the threading machine to a stable
stand or bench may result in tipping and serious
injury.
REV/OFF/FWD switch should be OFF and machine
unplugged before assembly.
Use proper lifting techniques. The RIDGID 300 Com -
pact weighs 141 lb (64 kg) and the 1233 weighs 165 lb
(75 kg).
ounting on Stands
The Threading Machines can be mounted on various
RIDGID Threader Stands. Refer to RIDGID catalog for
stand information and to the respective Stand Instruction
Sheet for mounting instructions.
ounting on Bench
The machines can be mounted on a level, stable bench.
To mount the unit on a bench, use four 1/4" - 20 UNC bolts
in holes provided at each corner of the machine base.
Base hole spacing is 12.25" × 18" (311 mm x 457 mm).
Tighten securely.
ounting on Pipe Legs
our equal lengths of 1" (25 mm) pipe can be used as a
stand for both the machines. Pipes cut to 33" (0.84 m)
length will place the machine rails approximately 36"
(0.91 m) off the ground. ully insert the pipes into leg sock-
ets provided on the underside of the base at the cor-
ners. Secure with four provided 10 mm hex bolts through
the base. See Figure 4.
Figure 4 – Threading Machine Mounted On Pipe egs
6
300 C mpact/1233 Threading Machines
NOTICE
Secure
egs with
Hex Bolts

7
achine and Work Area Set-Up
WARNING
Set up the Threading achine and the work area
according to these procedures to reduce the risk of
injury from electric shock, machine tipping, entan-
glement, crushing and other causes, and to help pre-
vent threading machine damage.
Secure machine to stable stand or bench. Properly
support pipe. This will reduce the risk of falling
pipe, tipping and serious injury.
Do not use the Threading achines without a prop-
erly operating foot switch. A foot switch provides
better control by letting you shut off the machine
motor by removing your foot.
1. Check work area for:
• Adequate lighting.
• lammable liquids, vapors or dust that may ignite.
If present, do not work in area until source is iden-
tified, removed or corrected, and area is completely
ventilated. The threading machine is not explosion
proof and can cause sparks.
• Clear, level, stable, dry location for all equipment
and operator.
• Good ventilation. Do not use extensively in small,
enclosed areas.
• Properly grounded electrical outlet of the correct
voltage. Check the machine serial plate for required
voltage. A three-prong or G CI outlet may not be
properly grounded. If in doubt, have outlet inspect-
ed by a licensed electrician.
2. Inspect the pipe to be threaded and associated fit-
tings. Determine the correct equipment for the job, see
specifications. Do not use to thread anything other
than straight stock. Do not thread pipe with fittings or
other attachments. This increases the risk of entan-
glement.
3. Transport equipment to work area. See Preparing
Ma hine for Transport for information.
4. Confirm equipment to be used has been properly
inspected and assembled.
5. Confirm that the REV/O / WD switch is in the O
position.
6. Check that the correct dies are in the die head and
are properly set. If needed, install and/or adjust the
Pre-Operation Inspection
WARNING
Before each use, inspect your threading machine
and correct any problems to reduce the risk of
serious injury from electric shock, crushing injuries
and other causes, and to help prevent threading
machine damage.
1. Make sure that the threading machine is unplugged
and the REV/O / WD switch is in O position.
2. Clean any oil, grease or dirt from the threading
machine, including the handles and controls. This
aids inspection and helps prevent the machine or
control from slipping from your grip. Clean and main-
tain the machine per the maintenance instructions.
3. Inspect the threading machines for the following:
• Condition of the cords and plug for damage or
modification.
• Proper assembly, maintenance and completeness.
• Any broken, worn, missing, misaligned or binding
parts or other damage.
• Presence and operation of the foot switch. Confirm
that foot switch is attached, in good condition, that
it cycles smoothly and does not stick.
• Presence and readability of warning labels (Fi -
gures 1 & 2).
• Condition of the dies, cutter wheel and reamer cut-
ting edges. Dull or damaged cutting tools increase
required force, produce poor results and increase
the risk of injury.
• Any other condition which may prevent safe and
normal operation.
If any problems are found, do not use the threading
machine until the problems have been repaired.
4. Inspect and maintain any other equipment being
used per its instructions to make sure it is functioning
properly.
300 C mpact/1233 Threading Machines

8
300 C mpact/1233 Threading Machines
dies in the die head. See Die Head Set-Up and Use
section for details.
7. Swing the cutter, reamer and die head away up
away from the operator. Make sure they are stable
and will not fall in the work area.
8 If pipe will extend past the chip tray in the front of the
machine or more than 2' (0.6 m) out of the rear of the
machine, use pipe stands to support the pipe and pre-
vent the pipe and threading machine from tipping or
falling. Place the pipe stands in line with machine
chucks, approximately 1/3of distance from end of the
pipe to the machine. Longer pipe may need more
than one pipe stand. Only use pipe stands designed
for this purpose. Improper pipe supports or support-
ing the pipe by hand can cause tipping or entangle-
ment injuries.
9. Restrict access or set-up guards or barricades to
create a minimum of 3' (1 m) clearance around the
threading machine and pipe. This helps prevent non-
operators from contacting the machine or pipe and
reduces the risk of tipping or entanglement.
10. Position the foot switch as shown in Figure 21 to
allow a proper operating position.
11. Check the level of RIDGID Thread Cutting Oil. Re -
move the chip tray and oil pan liner; see that the filter
screen assembly is fully submerged in oil. See Oil
System Maintenan e. If the machine is equipped
with the drip tray, make sure it properly placed to
direct oil dripping off the die head into the chip tray
(see Figure 5).
12. With the REV/O / WD switch in O position, run
the cord along a clear path. With dry hands, plug
the power cord into the properly grounded outlet.
Keep all connections dry and off the ground. If the
power cord is not long enough use an extension
cord that:
• Is in good condition.
• Has a three-prong plug like on the threading
machine.
• Is rated for outdoor use and contains a W or W-A in
the cord designation (e.g. SOW).
• Has sufficient wire size. or extension cords up to
50' (15.2 m) long use 14 AWG (2.5 mm2) or heavier.
or extension cords 50'-100' (15.2 m - 30.5 m) long
use 12 AWG (2.5 mm2) or heavier.
13. Check the threading machine for proper operation.
With hands clear:
• Move the REV/O / WD switch to the WD posi-
tion. Press and release the foot switch. Chuck
should rotate counter-clockwise when viewed from
the carriage end (see Figure 23.) Repeat for REV
position – chuck should rotate clockwise. If the
threading machine does not rotate in the correct
direction, or the foot switch does not control the
machine operation, do not use the machine until it
has been repaired.
• Depress and hold the foot switch. Inspect the mov-
ing parts for misalignment, binding, odd noises or
any other unusual conditions. Remove foot from the
foot switch. If any unusual conditions are found, do
not use the machine until it has been repaired
• Place die head in the use position. Depress and
hold the foot switch. Check for oil flow through the
die head. Remove foot from the foot switch. The oil
flow can be adjusted with the control valve on car-
riage (Figure 5). Clockwise rotation decreases flow
and counterclockwise increases flow. Do not adjust
while the machine is running.
Figure 5 – Adjusting Oil Flow
14. Move the REV/O / WD switch to the O position,
and with dry hands unplug the machine.
Die Head Set-Up and Use
The 300 Compact and 1233 Threading Machines can
be used with a variety of RIDGID Die Heads to cut pipe
and bolt threads. Information is included here for Quick-
Opening, Self-Opening and Receding Self-Opening Die
Heads (1233 only). See the RIDGID atalog for other
available die heads.
Die Heads using Universal Dies for pipe require one set of
dies for each of the following pipe size ranges: (1/8"), (1/4"
and 3/8"), (1/2" and 3/4") and (1" through 2"). NPT/NPSM dies
must be used in NPT die heads and BSPT/BSPP dies
must be used n BSPT die heads – The size bar is marked
for each.
+
-
Drip Tray
Control
Valve
Control
Valve

Die heads using Mono or Bolt dies require a dedicated set
of dies for each specific thread size. High speed dies
are recommended for use on 52 rpm machines.
See the RIDGID atalog for dies available for your die
head.
Always cut a test thread to confirm proper thread size after
changing/adjusting the dies.
Removing/Installing Die Head
Insert/remove Die Head Post into mating hole in car-
riage. When fully inserted, the Die Head will be held in
place. When it is installed, the Die Head can be pivoted on
post to align it with pipe or it can be swung up and out of
the way to allow use of cutter or reamer.

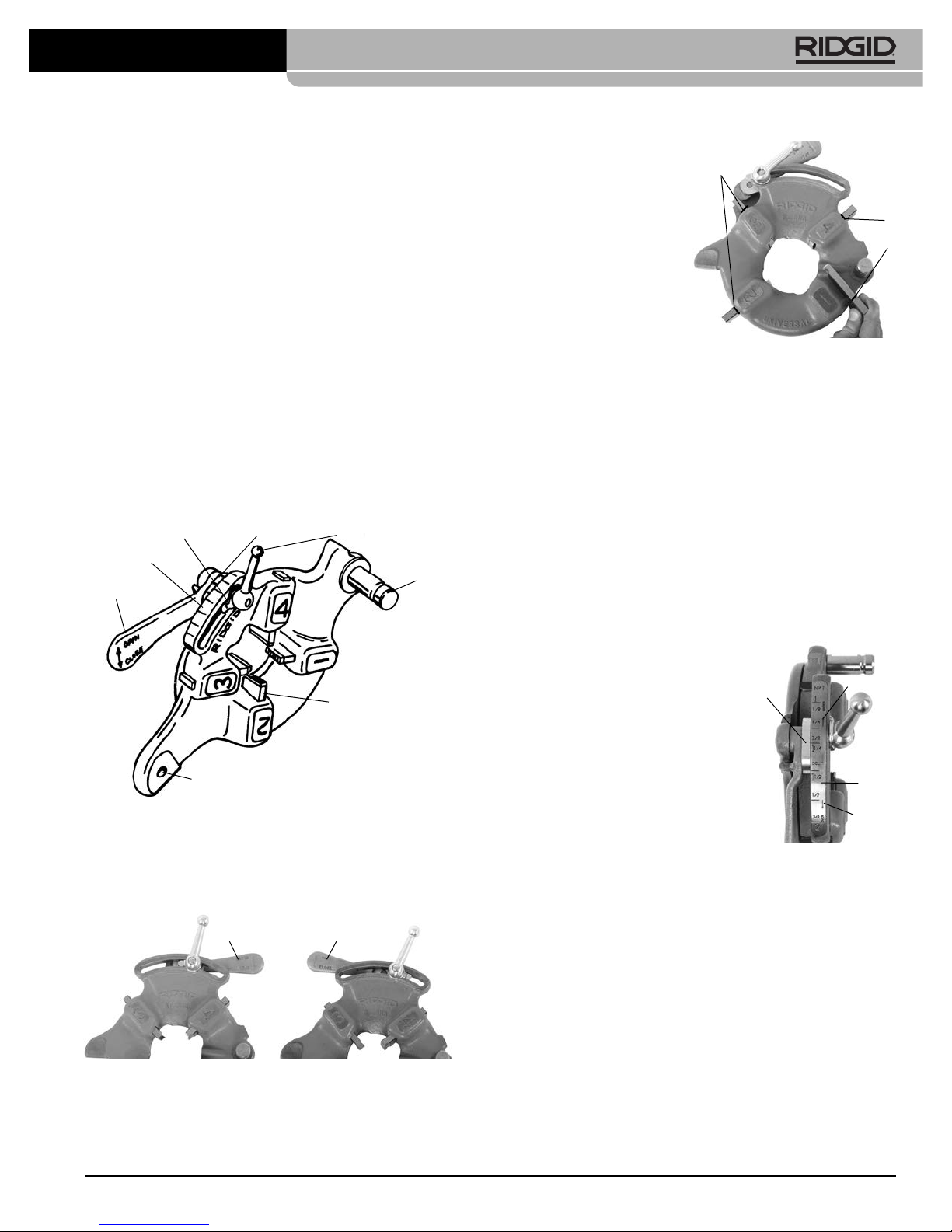

Quick-Opening Die Heads
Quick opening die heads include Model 811A and 531/532
Bolt. Quick opening die heads are manually opened and
closed for user specified thread length.
Figure 6 – Quick-Opening Die Head
Inserting/Changing the Dies
1. Place the die head with numbers facing up.
2. Move throwout lever to OPEN position (Figure 7).
Figure 7 – Open/Closed ever Position
3. Loosen clamp lever (Hex nut on Mono die heads)
approximately three turns.
4. Lift tongue of washer
out of slot in size bar.
Move washer to end
of slot (Figure 8).
5. Remove dies from the
die head.
6. Insert appropriate dies
into the die head, num -
bered edge up until the
in di cator line is flush
with the edge of the
die head (see Figure 8). Numbers on the dies must cor-
respond with those on the die head slots. Always
change dies as sets – do not mix dies from different
sets.
7. Move link index mark to align with desired size mark
on size bar. Adjust die insertion as needed to allow
movement. Washer tongue should be in slot to left.
8. Tighten clamp lever (Hex nut on Mono die heads).
Adjusting Thread Size
1. Install the die head per the Threading Machine instruc-
tions and move the die head into threading position.
2. Loosen clamp lever (Hex nut on Mono die heads).
3. Start with link index mark a -
ligned with desired size mark
on size bar. On Mono and
Bolt die heads, set link mark
at line in size bar. or bolt
threads with Uni versal die
head, set all bolt dies at
BOLT line on size bar (Fi -
gure 9).
4. If thread size needs to be ad -
justed, set the link index mark
slightly off the mark on size
bar in the direction of OVER (larger dia meter thread,
less turns of fitting engagement) or UNDER (small er
thread diameter, more turns of fitting engagement)
mark ings.
5. Tighten clamp lever.
Opening the Die Head at the End of the Thread
At the end of the thread:
• Pipe Threads – End of threaded pipe is flush with the
end of the number 1 die.
• Bolt Threads – Thread the desired length – watch
closely for any interference between the parts.
Move the throwout lever to the OPEN position, retracting
dies.
9
300 C mpact/1233 Threading Machines
Throwout ever
Size Bar
Washer Tongue ink Clamp ever (Hex Nut
on Mono Dies)
Post
Dies
Hole for ocking Pin ( H Die Heads)
Throwout
ever
Throwout
ever
Open Closed
Indicator
ine
Figure 8 – Inserting Dies
Indicator
ine
Figure 9 – Adjusting
Thread Size
ink
Index
Mark
Size
Bar
“Under”
“Over”

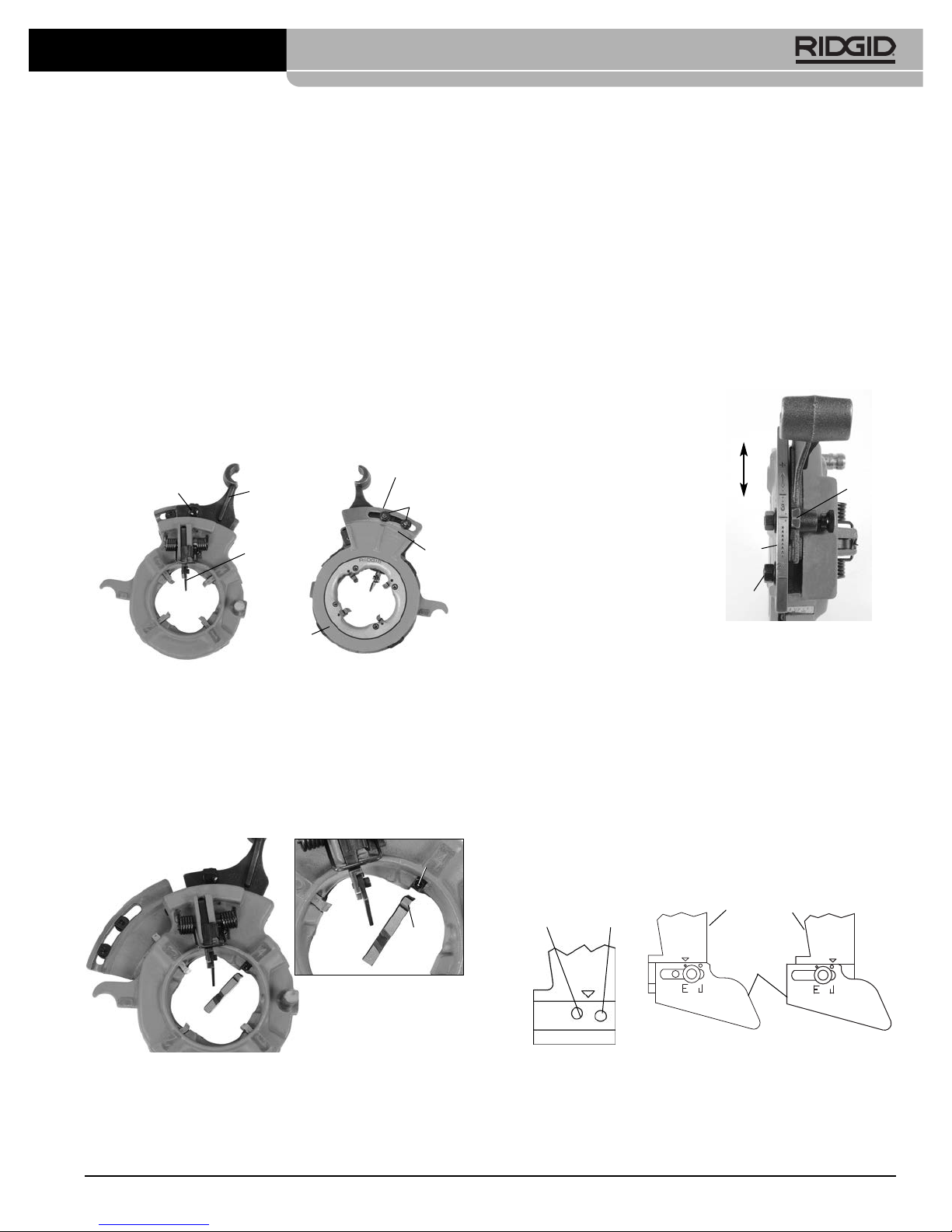

Self-Opening Die Heads
The Model 815A Die Heads are self-opening die heads.
or 1/2" through 2" pipe sizes, a trigger can be used to open
the die head when the thread is complete. or 1/8" to 3/8"
sizes, bolt and straight threads, and if desired for the
other sizes, the die head is manually opened when the
thread is complete.
Figure 10 – Universal Self-Opening Die Head
Inserting/Changing the Dies
1. Place the die head with numbers facing up.
2. Make sure the trigger assembly is released and die
head OPEN by pulling the trigger slide away from the
die head. Stay clear of the spring loaded Throwout
Lever while releasing trigger assembly.
Figure 11 – Open/Closed Position
3. Loosen clamp lever ap proximately six full turns.
4. Pull lock screw out of size bar slot so roll pin will
bypass slot. Position size bar so that the index line on
lock screw is a ligned with the RE MOVE DIES mark.
5. Remove dies from the die head.
6. Insert appropriate dies into the die head, numbered
edge up until the indicator line is flush with the edge of
the die head (see Fi gure 12). Num bers on the dies
must cor res pond with those on the die head slots.
Always change dies as sets – do not mix dies from dif-
ferent sets.
7. Move size bar so in dex
line on lock screw is a -
ligned with desired size
mark. Adjust die insertion
as needed to allow move-
ment.
8. Make sure roll pin points
to ward REMOVE DIES
mark.
9. Tighten the clamp lever.
Adjusting Thread Size
1 Install the die head per the Thread ing Machine Instruc -
tions and move the die head into threading position.
2. Loosen clamp lever.
3. Position size bar so index line on lock screw is aligned
with desired size mark on size bar.
4. If thread size needs to be ad -
justed, set the lock screw index
line slightly off the mark on size
bar in the direction of OVER
(larger dia meter thread, less
turns of fitting engagement) or
UNDER (smaller thread dia -
meter, more turns of fitting en -
gagement) markings.
5. Tighten clamp lever.
Trigger Slide Adjustment
Position the Trigger Slide for the size of pipe being thread-
ed (see Figure 14).
•1/2" and 3/4" – End of pipe should hit foot of Trigger
Slide.
• 1" to 2" – End of pipe should hit
the shank of the Trigger Slide.
or
•1/8", ¼" and 3/8" pipe
• Longer or shorter threads
• Bolt threading
Push trigger slide up and out of the
way. Die head must be opened man-
ually.
Opening the Die Head at the End of the Thread
When using trigger it will contact the end of pipe, causing
the die head to automatically open. Stay clear of the
spring loaded Throwout Lever when it releases.
10
300 C mpact/1233 Threading Machines
Throwout
ever
Open Closed
Throwout
ever
Figure 12 – Inserting Dies
Indicator ine
Indicator
ine
Indicator
ine
Figure 13 – Adjusting
Thread Size
ock
Screw
Index
ine
Size
Bar
“Over”
“Under”
Throwout
ever
Trigger
Assembly
Clamp ever
Size Bar
Roll Pin
Index
ine
ock
Screw
“Remove Dies” Mark
Trigger
Slide
1" thru 2"
pipe hit
this
surface
Trigger
Slide
1/2" and 3/4"
pipe hit this
surface
Figure 14 – Setting
the
Trigger

To open the die head manually (with trigger slide up), at
the end of the thread:
• Tapered Pipe Threads – End of pipe is flush with
the end of the number 1 die.
• Bolt and Straight Threads – Thread the desired
length – watch closely for any interference between
the parts.
Move the throwout lever to the OPEN position, retracting
dies.
Receding Self-Opening Die Heads
The Model 728 and 928 receding self-opening die heads
are used on 1233 threading machine for 21/2" and 3" pipe
sizes. A trigger is used to open the die head when the
thread is complete, and is adjustable to change thread
length.

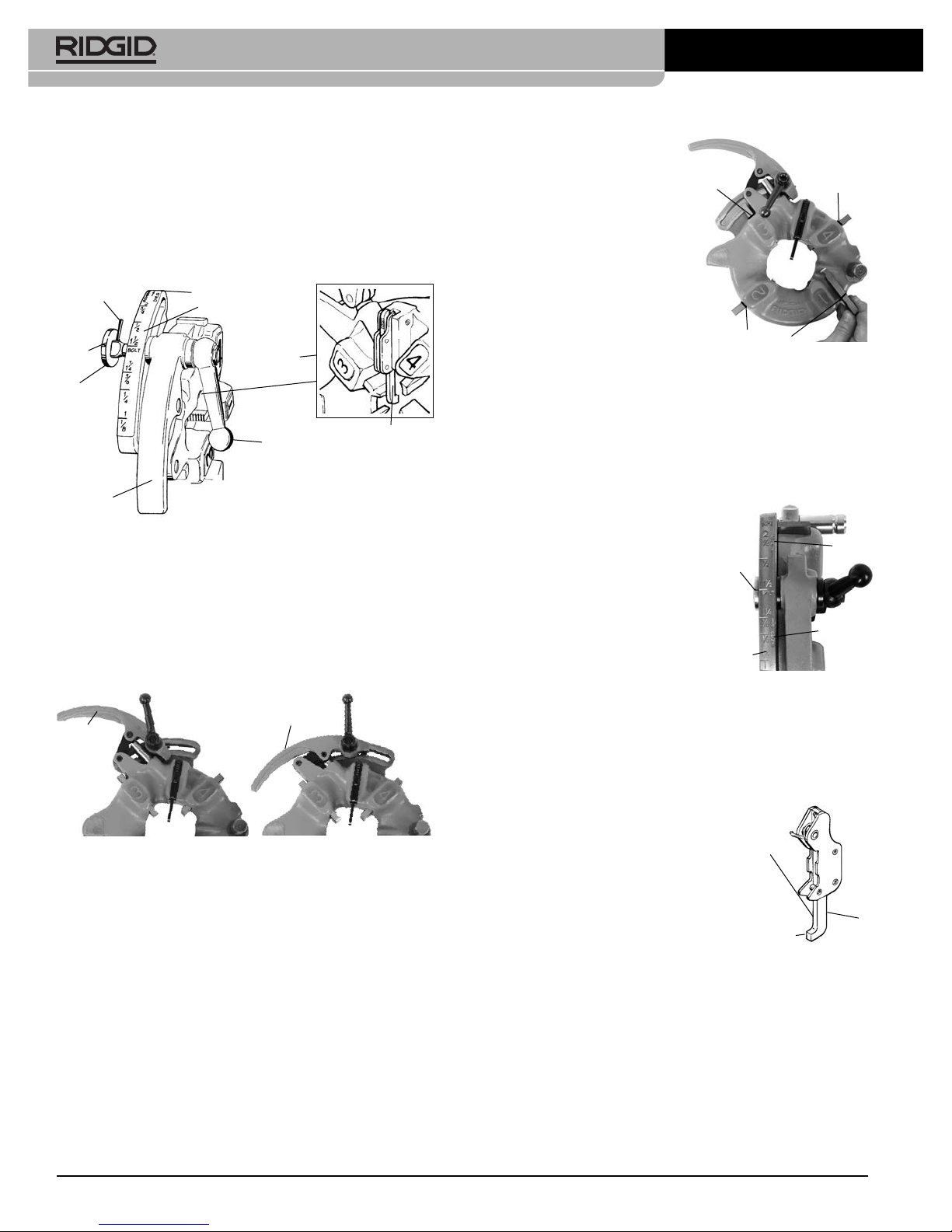

Figure 15 – Receding Self-Opening Die Head
Inserting/Changing the Dies
1. Place the die head with numbers facing up.
2. Pull back on adjuster knob on die head and fully
open die head by sliding cam plate in direction of
CHANGE DIES arrow on cam plate.
Figure 16 – Inserting Dies
3. Remove dies from die head.
Insert appropriate dies into the die head, numbered
edge up. Numbers on the dies must correspond with
those on the die head slots (see Figure 16). The die
slots have a ball detent that engages with the groove
on dies when properly installed. Always change dies
as sets – do not mix dies from different sets.
4. Pull back on adjuster knob and rotate cam plate to
desired size setting.
5. Engage adjuster knob into slot.
Adjusting Thread Size
1. Loosen the adjustment nut for the desired pipe size.
2. When setting for new dies,
start with the adjusting slide
index line aligned with the
size mark on the size bar.
3. If thread size needs to be
adjusted, set the index line
slightly off the mark on the
size bar in the + direction
(larger thread diameter, less
turns of fitting engage ment)
or in the - direction (smaller
thread diameter, more turns
of fitting engagement) as
shown on the size bar.
4. Tighten the adjustment nut.
Adjusting Thread ength
1. Loosen the screw on bottom trigger.
2. or short threads, shift the bottom trigger towards
the machine spindle. or long threads, shift it away
from the spindle (see Figure 18 – factory settings
shown). Long threads are typically preferred in ar
East and short threads in Europe. Set as desired.
3. Re-tighten the screw.
Figure 18 – Adjusting Thread ength
11
300 C mpact/1233 Threading Machines
Figure 17 – Adjusting
Thread Size
Size
Bar
Adjustment
Slide Index
ine
Front Back
Adjuster
Knob Adjuster
Slide
Trigger
Cam Plate
Size Bar
Adjustment
Nuts
“Change
Dies”
Arrow
Groove
Ball
Detent
Ball
Detent
For ong
Threads For Short
Threads
Top Trigger Hole
ocation
Short Threads ong Threads
Top Trigger
Bottom
Trigger
Adjustment
Nut
+
-

Preparing the Die Head to Thread
Lower the die head down into the threading position.
irmly push on adjusting slide to set/close the die head
(Figure 19).

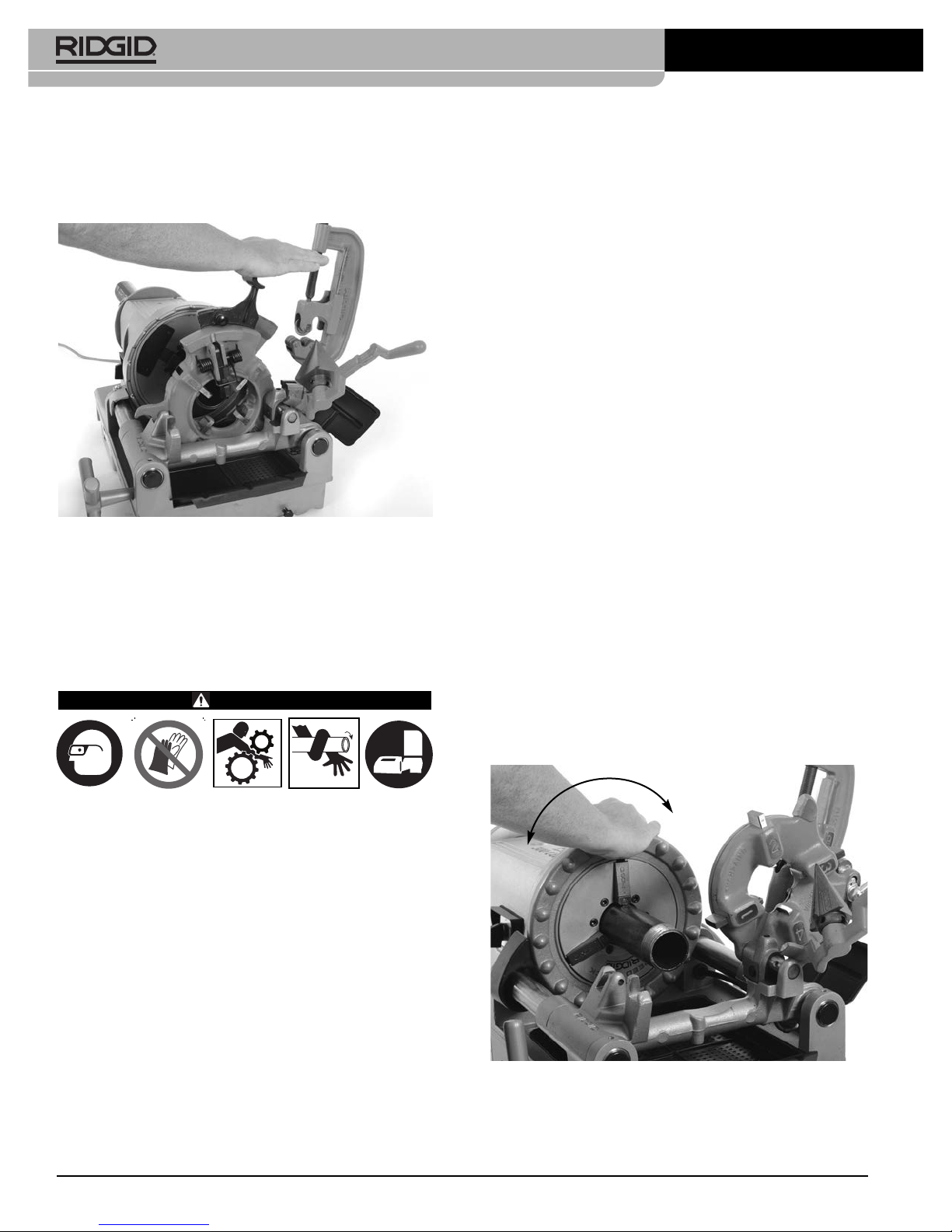

Figure 19 – Closing the Receding Die Head
Opening the Die Head at the End of the Thread
The die head trigger will contact end of pipe causing the die
head to automatically open.
Operating Instructions
WARNING
Do not wear gloves or loose clothing. Keep sleeves
and jackets buttoned. Loose clothing can become
entangled in rotating parts and cause crushing and
striking injuries.
Keep hands away from rotating pipe and parts.
Stop the machine before wiping threads or screw-
ing on fittings. Do not reach across the machine or
pipe. To prevent entanglement, crushing or striking
injuries, allow machine to come to a complete stop
before touching the pipe or machine chucks.
Do not use this machine to make or break (tighten
or loosen) fittings. This can cause striking or crush-
ing injuries.
Do not use a threading machine without a properly
operating foot switch. Never block a foot switch in
the ON position so that it does not control the
threading machine. A foot switch provides better
control by letting you shut off the machine motor by
removing your foot. If entanglement should occur
and power is maintained to the motor, you will be
pulled into the machine. This machine has high
torque and can cause clothing to bind around your
arm or other body parts with enough force to crush
or break bones or cause striking or other injuries.
One person must control both the work process
and the foot switch. Do not operate with more than
one person. In case of entanglement, the operator
must be in control of the foot switch.
Follow operating instructions to reduce the risk of
injury from entanglement, striking, crushing and
other causes.
1. Make sure that machine and work area is properly set
up and that the work area is free of bystanders and
other distractions. The operator should be the only
person in the area while the machine is operated.
The cutter, reamer and die head should be up away
from the operator, do not place in the operating posi-
tion. Make sure they are stable and will not fall. ully
open the chucks of the threading machine.
2. Insert pipe shorter than 2' (0,6 m) from the front of the
machine. Insert longer pipes through either end so
that the longer section extends out beyond the rear of
the Threading Machine. Confirm that pipe stands
are properly placed.
3. If needed, mark the pipe. Place pipe so that the area
to be cut or end to be reamed or threaded is approx-
imately 4" (100 mm) from the front of the chuck. If clos-
er, the carriage may strike the machine during the
threading and damage the machine.
4. Turn the rear centering device counterclockwise
(viewed from rear of machine) to close down onto
pipe. Make sure that the pipe is centered in the inserts.
This improves pipe support and gives better results.

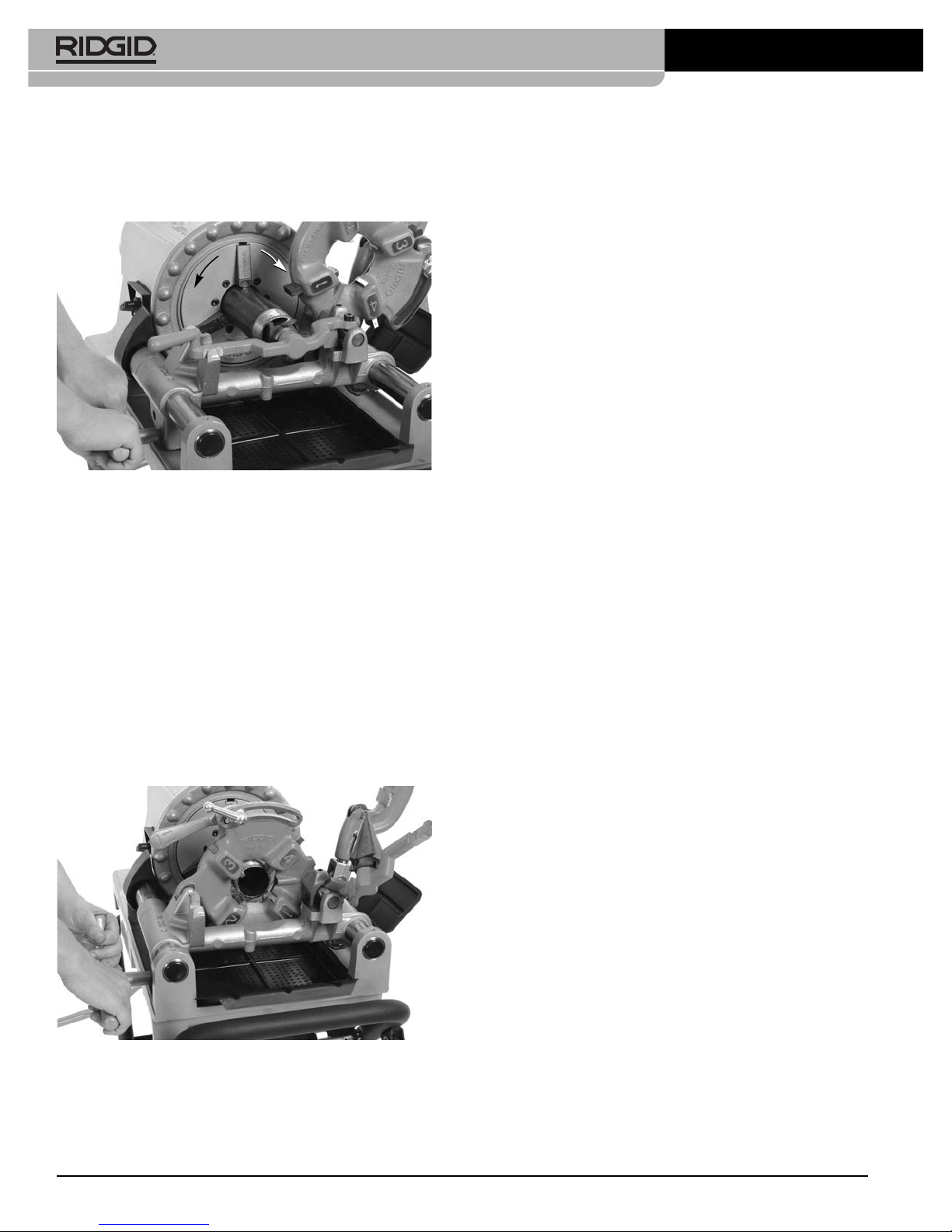

Figure 20 – Chucking Pipe
5. Turn the front chuck handwheel counterclockwise
(viewed from front of machine) to close down onto
pipe. Make sure that the pipe is centered in the inserts.
12
300 C mpact/1233 Threading Machines
Close Open

Use repeated and forceful counterclockwise spins of
the handwheel to secure the pipe in front chuck.
6. Assume a proper operating position to help maintain
control of the machine and pipe (See Figure 21).
• Stand on the REV/O / WD switch side of the
machine with convenient access to the tools and
switch.
• Be sure that you can control the foot switch. Do not
step on foot switch yet.
• Be sure that you have good balance and do not
have to overreach.
Figure 21 – Operating Position
Cutting
1. Open cutter by turning the feed screw counterclock-
wise. Lower the cutter into cutting position over the
pipe. Use the carriage handwheel to move the cutter
over the area to be cut, and align the cutter wheel with
the mark on the pipe. Cutting threaded or damaged
sections of pipe can damage the cutter wheel.
2. Tighten the cutter feed screw handle to bring the
cutter wheel firmly in contact with the pipe while
keeping the cutter wheel aligned with the mark on the
pipe.
3. Move the REV/O / WD switch to the WD position.
4. With both hands, grasp the pipe cutter feed handle.
5. Depress the foot switch.
6. Tighten the feed screw handle one-half turn per rota-
tion of the pipe until the pipe is cut. More aggressive
tightening of the handle reduces cutter wheel life
and increases pipe burr formation. Do not support the
pipe by hand. Let the cut off piece be supported by
the threading machine carriage and pipe stand.
Figure 22 – Cutting Pipe with Cutter
7. Remove foot from the foot switch.
8. Move the REV/O / WD switch to the O position.
9. Raise cutter into position up away from operator.
Reaming
1. Move the reamer into reaming position. Make sure
that it is securely positioned to prevent it from moving
during use.
2. Move the REV/O / WD switch to the WD position.
3. With both hands, grasp the carriage handwheel.
4. Depress the foot switch.
13
300 C mpact/1233 Threading Machines

5. Turn carriage handwheel to move the reamer to the
end of the pipe. Apply slight pressure to the hand-
wheel to feed the reamer into pipe to remove the burr
as desired.
Figure 23 – Reaming Pipe with Reamer, Machine Rotation
6. Remove foot from the foot switch.
7. Move the REV/O / WD switch to the O position.
8. Move the reamer up away from the operator.
Threading Pipe
Due to differing pipe characteristics, a test thread should
always be performed before the first thread of the day or
when changing pipe size, schedule or material.
1. Lower the die head into the threading position. Con -
firm that the dies are correct for the pipe being thread-
ed and properly set. See the “Die Head Set-Up and
Use” se tion for information on changing and adjust-
ing dies.
Figure 24 – Threading Pipe (811-A Quick Opening Die
Head shown)
2. Close the die head.
3. Move the REV/O / WD switch to the WD position.
4. With both hands, grasp the carriage handwheel.
5. Depress the foot switch.
6. Confirm cutting oil flow through the die head.
7. Turn carriage handwheel to move the die head to the
end of the pipe (Figure 24). Apply slight force to the
handwheel to start the die head onto the pipe. Once
the die head starts threading the pipe, no more force
is required on the carriage handwheel.
8. Keep your hands away from the rotating pipe. Make
sure the carriage does not hit the machine. When the
thread is complete, open the die head. Do not run
machine in Reverse (REV) with dies engaged.
9. Remove foot from the foot switch.
10. Move the REV/O / WD switch to the O position.
11. Turn the carriage handwheel to move the die head
past the end of the pipe. Raise the die head into
position up away from the operator.
12. Remove the pipe from the machine and inspect the
thread. Do not use the machine to tighten or loosen fit-
tings on the thread.
Threading Bar Stock/Bolt Threading
Bolt threading is similar to the pipe threading process. The
stock diameter should never exceed the thread major
diameter.
When cutting bolt threads, the correct dies and die head
must be used. Bolt threads may be cut as long as need-
ed, but make sure the carriage does not hit the machine.
If long threads are required:
1. At the end of carriage travel, leave the die head
closed, remove foot from the foot switch and move the
REV/O / WD switch to the O position.
2. Open the chuck and move the carriage and workpiece
to the end of the machine.
3. Re-chuck the rod and continue threading.
Left Hand Threading
Cutting left hand threads is similar to the right hand
threading process. Left hand threading is possible with 300
Compact threading machine with REV/O / WD switch
only. To cut left hand threads, left hand die heads and dies
are required.
1. Change the oil pump connections to allow oil flow
when the machine is run in reverse (REV). See
Figure 25. Be sure to return the connections to their
original configuration when returning to right hand
threading. Always replace cover before use.
14
300 C mpact/1233 Threading Machines
FWD (1) REV (2)REV (2)

Figure 26 – Retaining H Die Head in Place
Removing Pipe from the achine
1. With the REV/O / WD switch in the O position
and the pipe stationary, use repeated and forceful
clockwise spins of the handwheel to loosen the pipe
in the chuck. Open the front chuck and the rear-cen-
tering device. Do not reach into chuck or centering
device.
2. irmly grip the pipe and remove from the machine.
Carefully handle the pipe as the thread may still be hot
and there may be burrs or sharp edges.
Inspecting Threads
1. After removing the pipe from the machine, clean the
thread.
2. Visually inspect thread. Threads should be smooth
and complete, with good form. If issues such as
thread tearing, waviness, thin threads, or pipe out-of-
roundness are found, the thread may not seal. Refer
to the Troubleshooting Chart for help in diagnosing
these issues.
3. Inspect the size of the thread.
• The preferred method of checking thread size is
with a ring gauge. There are various styles of ring
gauges, and their usage may differ from that shown
here.
• Screw ring gauge onto the thread hand tight.
• Look at how far the pipe end extends through the
ring gage. The end of the pipe should be flush with
the side of the gauge plus or minus one turn. If
thread does not gauge properly, cut off the thread,
adjust the die head and cut another thread. Using a
thread that does not gauge properly can cause
leaks.
Figure 27 – Checking Thread Size
Figure 25A – Oil Pump Connections for eft Hand
Threading (Switch in REV)
Figure 25B – Oil Pump Connections for Right Hand
Threading (Switch in FWD)
Figure 25C – Cover in Place
2. Place a 5/16" pin 2" long through the holes in carriage
rest and left hand die head to retain in place (see
Figure 26).
15
300 C mpact/1233 Threading Machines
Pump Out (FWD)
From Filter
Pump In (REV)
To Carriage
Pump In (REV)
From Filter
Pump Out (FWD)
To Carriage
Holes
Pin
Holes
Pin
Flush
(Basic Size) One Turn arge
(Maximum Size)
One Turn Small
(Minimum Size)
Ring
Gauge

• If a ring gauge is not available to inspect thread
size, it is possible to use a new clean fitting repre-
sentative of those used on the job to gauge thread
size. or 2" and under NPT threads, the threads
should be cut to obtain 4 to 5 turns to hand tight
engagement with the fitting and for BSPT it should
be 3 turns. or 21/2" to 3" NPT threads the hand tight
engagement should be 5.5 to 6 threads, and for
BSPT it should be 4 threads.
4. See “Adjusting Thread Size” under “Die Head Set-
Up and Use” heading to adjust thread size.
5. Test the piping system in accordance with local codes
and normal practice.
Preparing achine for Transport
1. Make sure that the REV/O / WD switch is in the
O position and the cord is unplugged from the
outlet.
2. Clean the chips and other debris from the chip tray.
Remove or secure all equipment and material from
the machine and stand prior to moving to prevent
falling or tipping. Clean up any oil or debris on the
floor.
3. Place the cutter, reamer and die head in the operat-
ing position.
4. Coil up the power cord and foot switch cord.
Figure 28 – Machine prepared for Transport
5. If needed, remove the machine from the stand. Use
proper lifting techniques, be aware of the machine
weight. Machine is equipped with four hand grips at
corners. Use care in lifting and moving.
aintenance Instructions
WARNING
ake sure that the REV/OFF/FWD switch is in the
OFF position and the machine is unplugged before
performing any maintenance or making any adjust-
ments.
Always wear eye protection.
aintain threading machine according to these
procedures to reduce the risk of injury from elec-
trical shock, entanglement and other causes
Cleaning
After each use, empty the threading chips from the chip
tray and wipe out any oil residue. Wipe oil off exposed sur-
faces, especially areas of relative motion like the car-
riage rails.
If the jaw inserts do not grip and need to be cleaned, use
a wire brush to remove any build up of pipe scale, etc.
Lubrication
On a monthly basis (or more often if needed) lubricate all
exposed moving parts (such as carriage rails, cutter
wheels and rollers, cutter feed screw, jaw inserts and
pivot points) with a light lubricating oil. Wipe any excess oil
from exposed surfaces.
Clean the lubrication points to remove dirt and prevent
contamination of the oil or grease. Lubricate on a month-
ly basis.
300 Compact: Use a grease gun to add a Lithium EP
(Extreme Pressure) grease through the grease fittings in
the lubrication points.
1233: ill the lubrication points with lubricating oil. Press
the ball in the lubrication point to allow the oil to reach
bearings.
Figure 29 – ubrication Points
Oil System aintenance
Keep the oil filter screen clean for sufficient oil flow. Oil fil-
ter screen is located in the bottom of oil reservoir. Loosen
the screw that secures filter to base, remove filter from oil
line and clean. Do not operate machine with oil filter
screen removed.
16
300 C mpact/1233 Threading Machines
ubrication Points

Figure 31 – Replacing Jaw Inserts
3. Hold insert down firmly, and with screwdriver, turn so
teeth face up.
Replacing Carbon Brushes
Check motor brushes every 6 months. Replace when
worn to less than 1/2".
1. Unplug the machine from power source.
2. Loosen the two motor cover screws and remove
motor cover at rear of machine.
Figure 32 – Removing Motor Cover/Changing Brushes
Figure 30 – Filter Screen Assembly
Replace thread cutting oil when it becomes dirty or con-
taminated. To drain the oil, position a container under drain
plug at end of reservoir and remove plug. ollow all local
laws and regulations when disposing of oil. Clean build up
from the bottom of the reservoir. Use RIDGID Thread Cut -
ting Oil for high quality threads and maximum die life. See
the Spe ifi ation section for reservoir oil capacity.
The oil pump should self-prime if the system is clean. If it
does not, this indicates that the pump is worn and should
be serviced. Do not attempt to prime the pump.
Replacing Cutter Wheel
If the cutter wheel becomes dull or broken, push cutter
wheel pin out of frame and check for wear. Replace pin if
worn and install new Cutter Wheel (see atalog). Lubricate
pin with light lubricating oil.
Replacing Jaw Inserts
If Jaw inserts are worn out and do not grip pipe, they need
to be replaced.
1. Place screwdriver in insert slot and turn 90 degrees in
either direction. Remove insert (Figure 31).
2. Place insert sideways on locking pin and press down
as far as possible (Figure 31).
17
300 C mpact/1233 Threading Machines
To Remove To Replace
Screw Driver
Insert ocking
Pin Teeth
PRESS
DOWN
‘
Filter
Screen
Chip Tray
Oil Pan
iner
Oil Drain
Brush Cap
Motor Cover

3. Unscrew brush caps. Remove and inspect brushes.
Replace when worn to less than 1/2". Inspect the com-
mutator for wear. If excessively worn, have machine
serviced.
4. Re-install brushes/install new brushes. Reassemble
unit. Install all covers before operating machine.
Optional Equipment
WARNING
To reduce the risk of serious injury, only use equip-
ment specifically designed and recommended for
use with the RIDGID Threading achines.
For a complete listing of RIDGID equipment avail-
able for the 300 Compact or 1233 Threading
achine, see the Ridge Tool Catalog online at
www.RIDGID.com or call Ridge Tool Technical
Service Department [phone], from the U.S.
and Canada.
Thread Cutting Oil Information
Read and follow all instructions on the threading oil label
and Safety Data Sheet (SDS). Specific information about
RIDGID Thread Cutting Oils, including Hazard Identi fi ca -
tion, irst Aid, ire ighting, Accidental Release Measures,
Handling and Storage, Per sonal Protective Equipment,
Disposal and Transportation, is included on the container
and SDS. SDS is available at www.RIDGID.com or by con-
tacting Ridge Tool Technical Service Department at (800)
519-3456 in U.S. and Canada or rtctechservices@emer-
son.com.
achine Storage
The Threading Machines must be kept
indoors or well covered in rainy weather. Store the machine
in a locked area that is out of reach of children and people
unfamiliar with threading machines. This machine can
cause serious injury in the hands of untrained users.
Service And Repair
WARNING
Improper service or repair can make machine
unsafe to operate.
The Maintenan e Instru tions will take care of most of the
service needs of this machine. Any problems not ad -
dressed by this section should only be handled by an
authorized RIDGID service technician.
Tool should be taken to a RIDGID Independent Service
Center or returned to the factory. Only use RIDGID service
Parts.
or information on your nearest RIDGID Independent
Service Center or any service or repair questions:
• Contact your local RIDGID distributor.
• Visit www.RIDGID.com to find your local RIDGID con-
tact point.
• Contact Ridge Tool Technical Service Department at
[email protected]om, or in the U.S. and
Canada call [phone].
Disposal
Parts of the Threading Machine contain valuable mate-
rials and can be recycled. There are companies that
specialize in recycling that may be found locally. Dispose
of the components and any waste oil in compliance with
all applicable regulations. Contact your local waste man-
agement authority for more information.
For EC Countries: Do not dispose of elec-
trical equipment with household waste!
According to the European Guideline 2012/ -
19/EU for Waste Electrical and Electronic
Equipment and its implementation into nation-
al legislation, electrical equipment that is no
longer usable must be collected separately and disposed
of in an environmentally correct manner.
18
300 C mpact/1233 Threading Machines
Catal g M del
N . N , Descripti n
97075 815A 1/8" - 2" PT, Self-Opening, RH Die Head
97065 811A 1/8" - 2" PT, Quick-Opening, RH Die Head
97080 815A 1/8" - 2" BSPT, Self-Opening, RH Die Head
45322 815A 1/8" - 2" BSPT, Self-Opening, RH EUR. RT
97070 811A 1/8" - 2" BSPT, Quick-Opening, RH Die Head
97045 531 1/4" - 1" Bolt, Quick-Opening, RH/LH Die Head
97050 532 11/4" - 2" Bolt, Quick-Opening, RH/LH Die Head
67657 250 Folding Wheel Stand
58077 250 Folding Wheel Stand
92457 100A Universal Leg & Tray Stand
92462 150A Universal Wheel & Tray Stand
92467 200A Universal Wheel & Cabinet Stand
51005 819 ipple Chuck, 1/2" - 2" PT
68160 819 ipple Chuck, 1/2" - 2" BSPT
For 300 Compact Only
84537 816 1/8" - 3/4" Semi-Automatic Die Head
84532 817 1" - 2" Semi-Automatic Die Head
67662 — 916 Groover Adapter Bracket
For 1233 Only
54437 728 21/2" - 3" PT, Receding Self-Opening, RH Die Head
93562 928 21/2" - 3" BSPT, Receding Self-Opening, RH Die Head
— 419 ipple Chuck
WARNING
