Rollplay W461-G01 Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
(2-Person Assembly Recommended)
Model #: W461-G, W461-G01, W461-G02, W461-G03, W461-G04, W461-G05
12V GMC Sierra Denali
Scan here
to view the
assembly video
®

Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY 12V 12AH
MOTOR 12V 35W
AGE 3 Years and Up
MAX WEIGHT 59 kg (130 lb)
PRODUCT SIZE 156.5 x 90 x 71 cm (61.61 x 35.43 x 27.95 in)
SPEED 4 - 8 km/h (2.5 MPH - 5 MPH )
(Preset at 4km/h(2.5 MPH))
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 12.0V 0.8A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt or register your
product at www.rollplay.com as we may require proof of
purchase. [e-mail]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety..........................................................5
Parts ..........................................................7
Charging Instructions ...............................8
Assemble the Rear Support Bars ............9
Install the Rear Support Bars .................10
Install the Rear Wheel Axle.....................11
Install the Gear Boxes.............................12
Assemble the Rear Wheels.....................13
Assemble the Front Wheels....................14
Attach the Truck Bed ..............................15

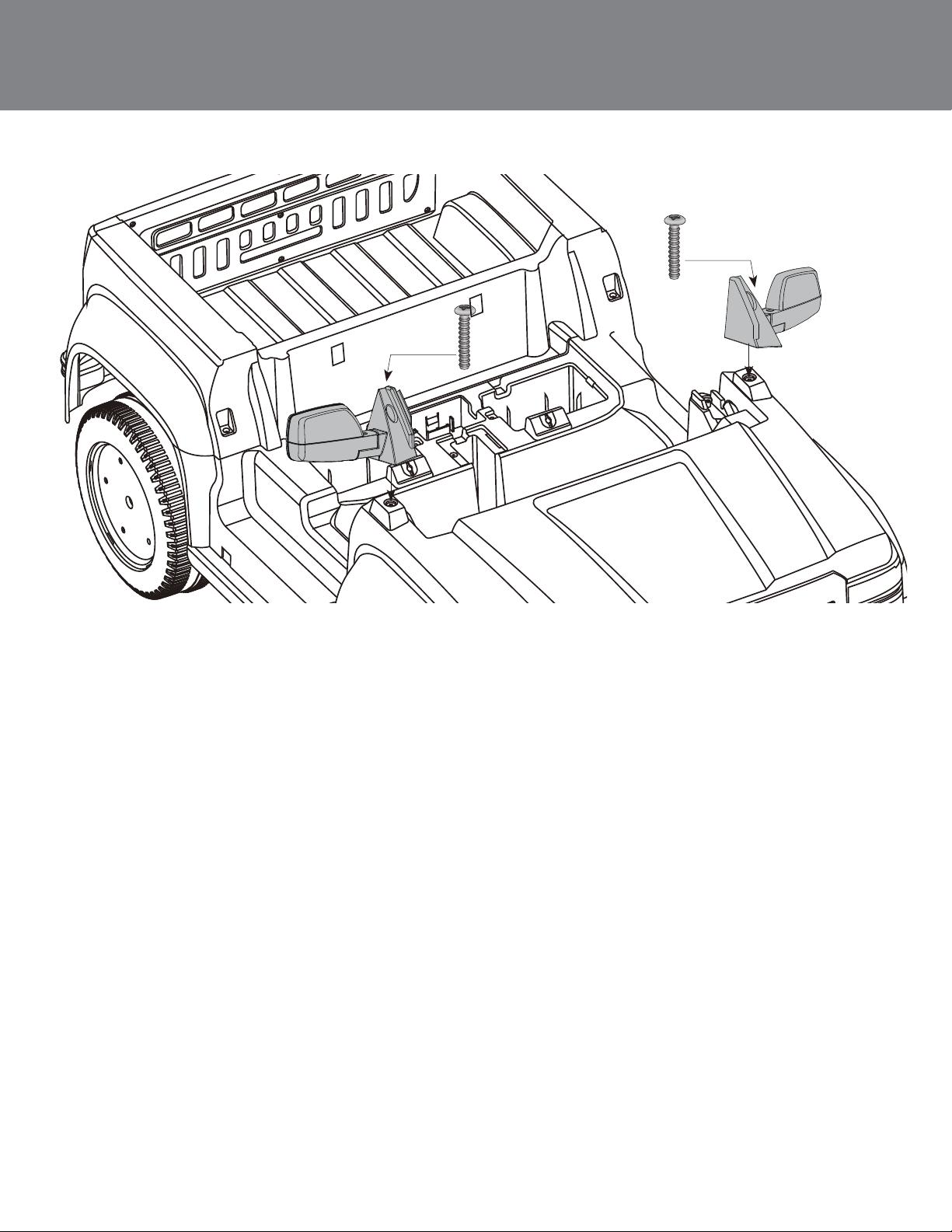

Attach the Mirrors ...................................16
Attach the Windshield and Dashboard..17
Attach the Steering Rod .........................18
Assemble the Steering Wheel ................19

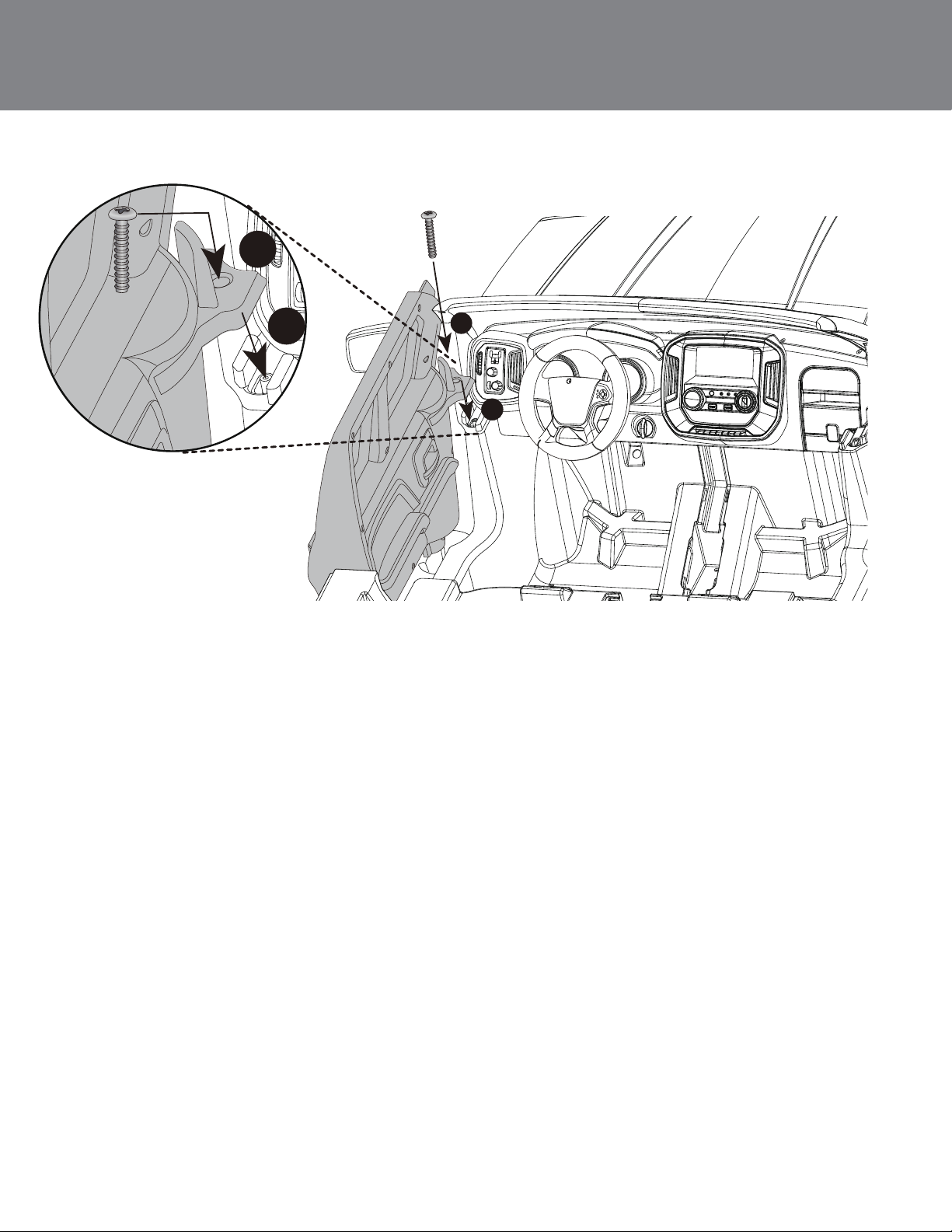

Attach the Doors .....................................20
Attach the Tailgate ..................................21
Battery Attachment .................................22
Attach the Seat ........................................23
Operation Instructions ............................24
Maintenance ............................................25
General Care ............................................26
Troubleshooting Guide............................27
FCC Information ......................................29
Service and Repairs ...............................30
Warranty ...................................................31
Product Registration ...............................32

5
Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
NEVER allow more than (2) riders in the vehicle.
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
•Always use common sense and safe practices when using the vehicle.
•This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
plastic bags before assembly.
•Riders must always wear a tted helmet that complies with U.S. customer Product
Safety Commission (CPSC) Standard CFR 1203.
•Do not overload the vehicle. Do not remove the weight restriction decals.
•Do not pull the vehicle with another vehicle or similar device.
•Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
•Always wear shoes in the vehicle.
•Do not operate near streets or motor vehicles.
•Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•Do not operate near water, swimming pools or other uids.
•Do not operate in dangerous weather conditions such as rain or snow.
•Do not operate near loose dirt, mud, sand or ne gravel.
•Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
•Always use the vehicle in a safe, secure environment with adult supervision.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7
Parts
1. Gear Box (2)
2. 12V Battery
3. Right Mirror
4. Left Mirror
5. Right Door
6. Left Door
7. Seat
8. Right Support Bar (R)
9. Left Support Bar (L)
10. Support Lateral Bar
11. Rear Axle
12. Battery Charger
13. Wheel Covers (4)
14. Front Wheels (2)
15. Rear Wheels (2)
16. Windshield & Dashboar
17. Steering Wheel
d
18. Tailgate
19. Truck Bed
20. Truck Body
21. Manual
• Phillips screwdriver
• 2 AA batteries
Not Included:
7
4
5
6
8
9
11
10
13
14
12
16
1
19
2
3
17
15
18
23
22. Hex Wrench
23.
24.
25.
26.
27.
28.
Steering Rod
MP3 Cable
22
23
21
24
25
27
28
26
Blister pack
Steering wheel screw
Steering wheel nut
Screws (19)
Helpful Tip:
1. Parts 24-27 are located
in the blister pack
2. Spare parts: Screws 2
20

8
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
Connect the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Locate the white battery connector (A) that
attaches directly to the battery.
4. Connect the white battery connector to the
white battery charger connector (B).
5. Replace the seat.
Charge the Battery:
6. The charging station is located on the
bottom of the right door (1)
7. Plug in the connector on the charger into
the charging station (1)
8. Plug the charger into a 120V outlet (2)
9. Unplug the charger from the outlet when
charging is complete
10. Remove the charger connector from the
charging station
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
BA
1
1
2

9

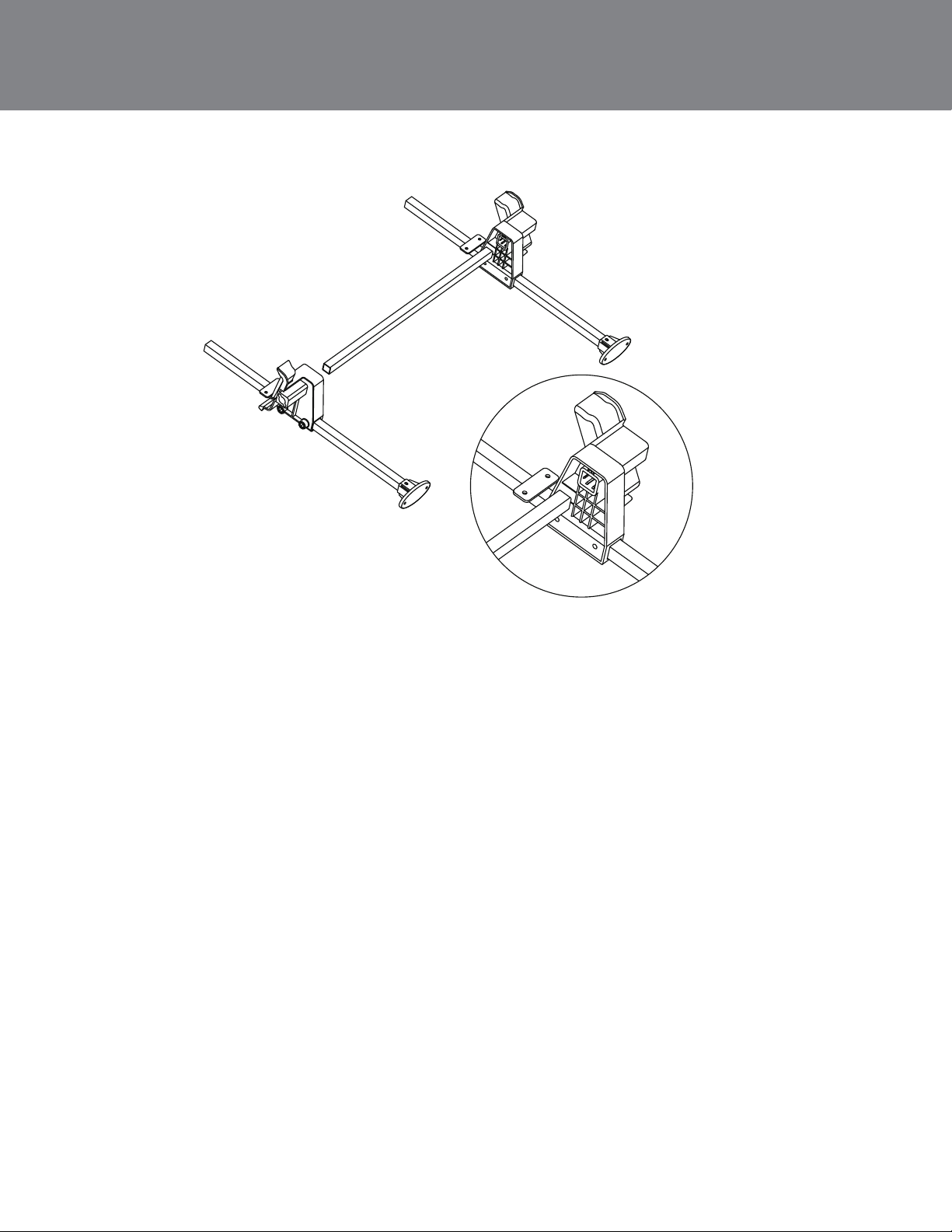

Assemble the Rear Support Bars
1. Locate the right (8) and left (9) support bars and the r
2-Person Assembly Recommended
ear support lateral bar (10)
2. Insert the rear support lateral bar into the square slots on the rear support side
bars
3. Ensure the assembly is secure before moving on to the next step
L
R

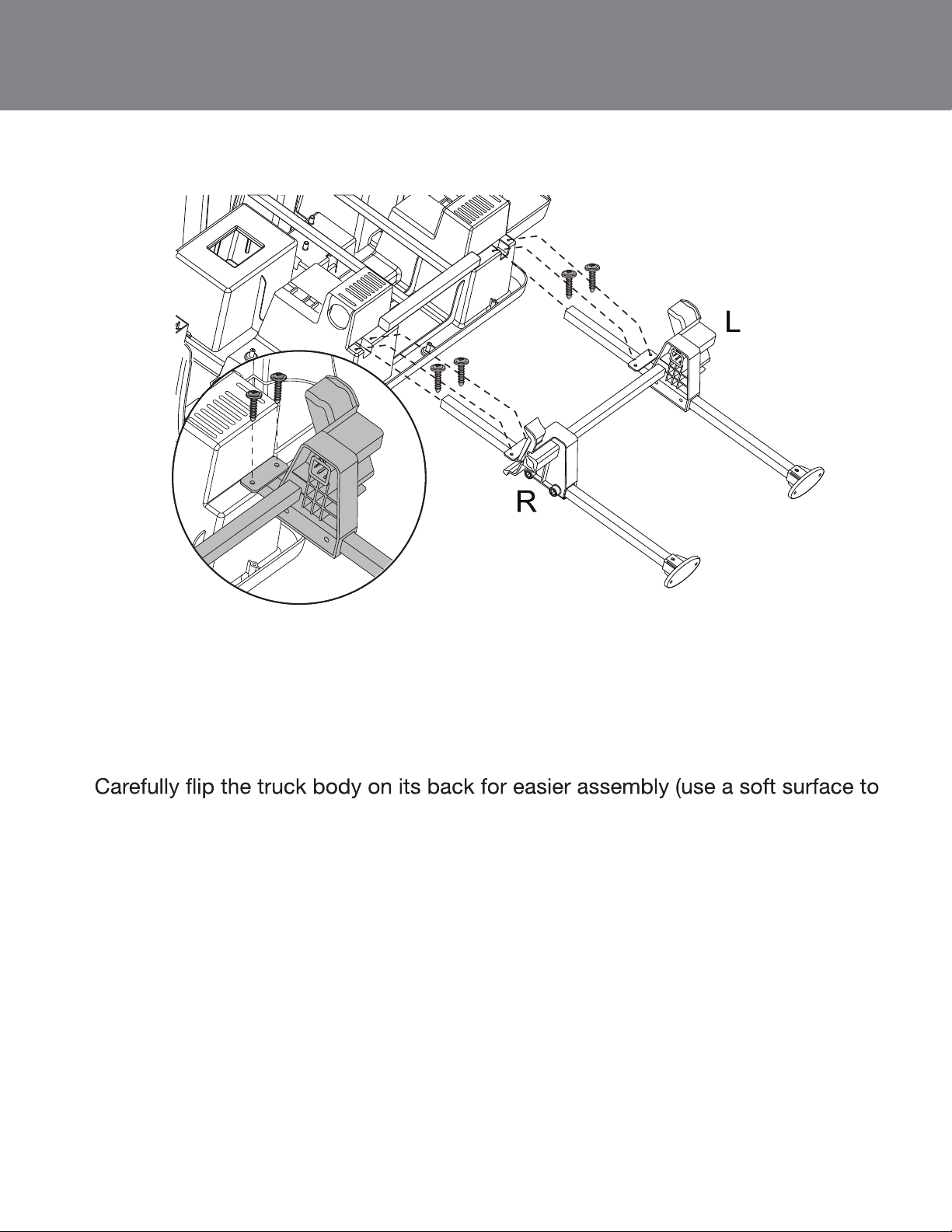

10 Install the Rear Support Bars
1.
avoid any scratches or damage)
2. Slide the assembled rear support bars into the square holes on the back of the car
body
3. Align the screw holes on the support bars with the holes on the truck body
4. Insert 4 screws from the blister pack (28) into the holes and fasten securely with
a screwdriver

11

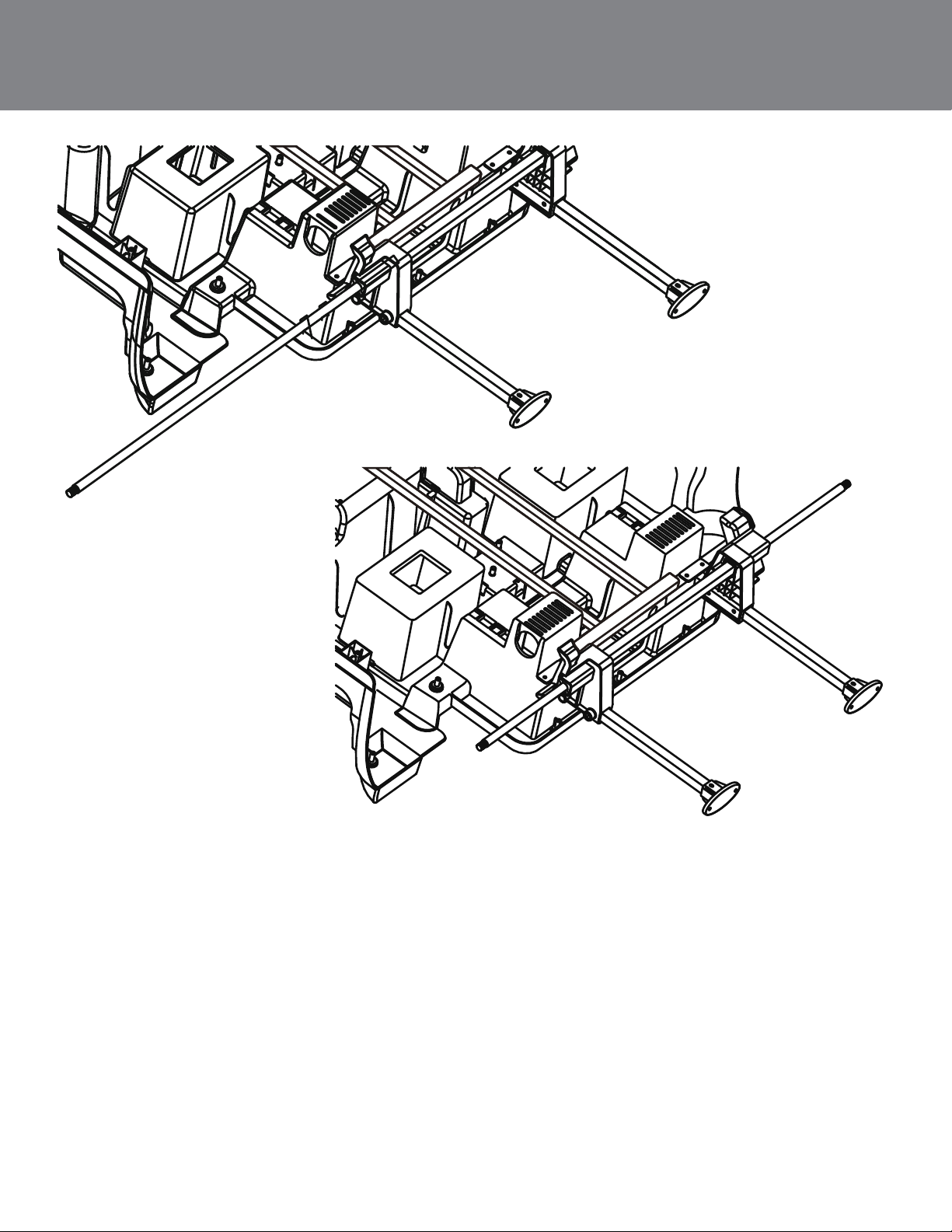

Install the Rear Wheel Axle
1. Locate the rear wheel axle (11)
3. Slide the rear axle horizontally through the rear support system as pictured
4. Make sure the axle is centered before and during rear wheel installation
2. Remove the nut and washer from both sides of the rear axle

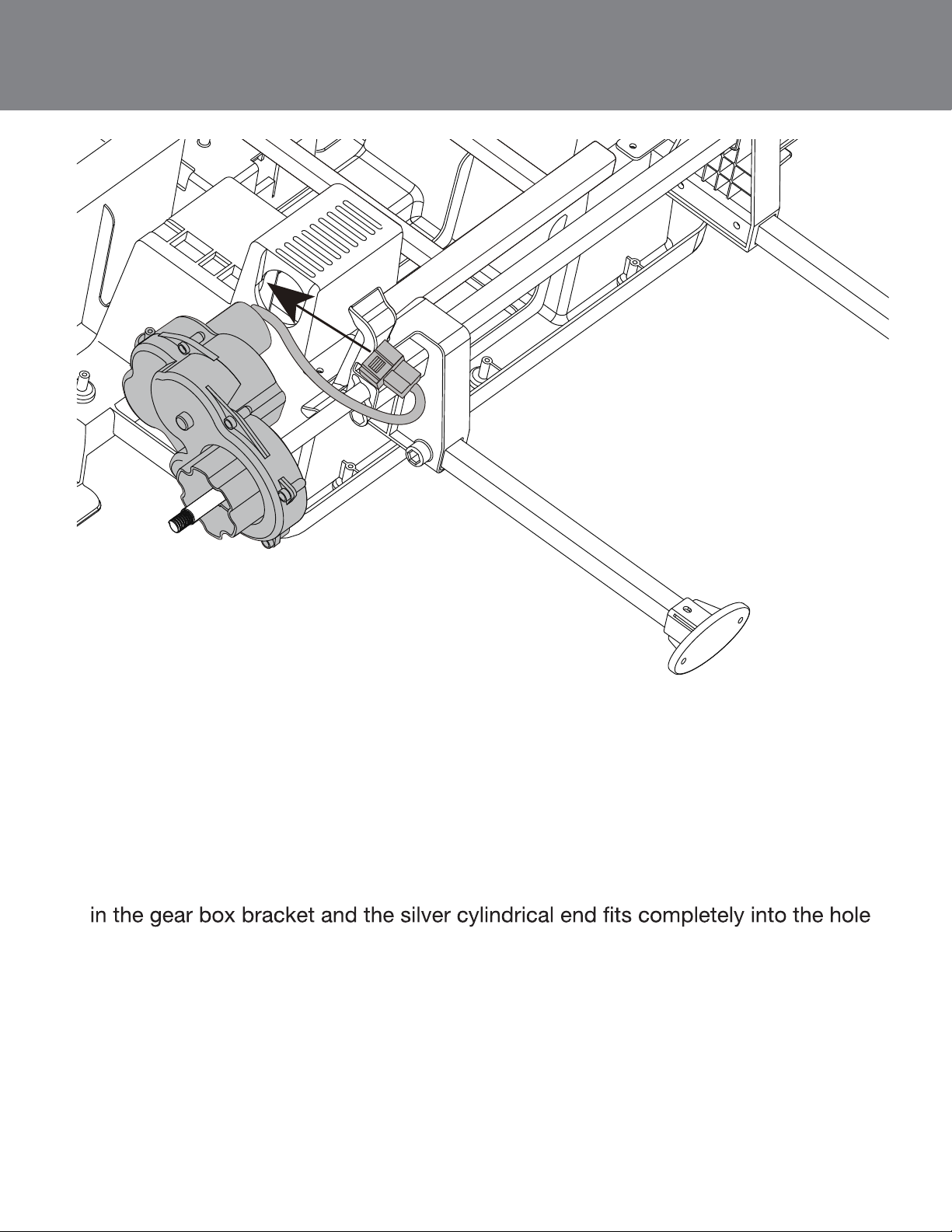

12 Install the Gear Boxes
1. With the truck body still on its back, locate the two holes on either side of the truck
body with the white gearbox connector and yellow gearbox connector
2. Insert the connector on the gear box into the truck body. Slide one of the gear
boxes (1) onto the rear axle with the white gears facing out until it sits completely
that leads to the battery compartment
3. Slide the wiring connection back into the battery compartment
4. Repeat the same steps on the other side of the car

13
Assemble the Rear Wheels
1. Locate one of the rear wheels (15)
2. Slide the rear wheel onto the axle with the gear teeth facing inward. Connect the
gear teeth on the wheel with the gear box
3. Slide a thin washer onto the axle
4. Using the hex wrench (23), fasten the nut on the end of the axle and tighten until
you cannot turn the wrench anymore
5. Repeat steps 1-4 for the other rear wheel
Helpful Tip:
1.
wheels onto the rear axle, then your rear
wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel
axle. Using two hands, push down on
the rear wheel axle and slide it gently
toward the side of the vehicle that needs
more room.

14 Assemble the Front Wheels
1. Slide a thick washer onto the front axle
2. Slide the front wheel onto the front axle (14). The concave side should face inward.
3. Slide the thin washer onto the front axle
4. Using the hex wrench, fasten the nut on the end of the axle and tighten until you
can not tighten any more
5. Repeat steps 1-4 for the other front wheel

15

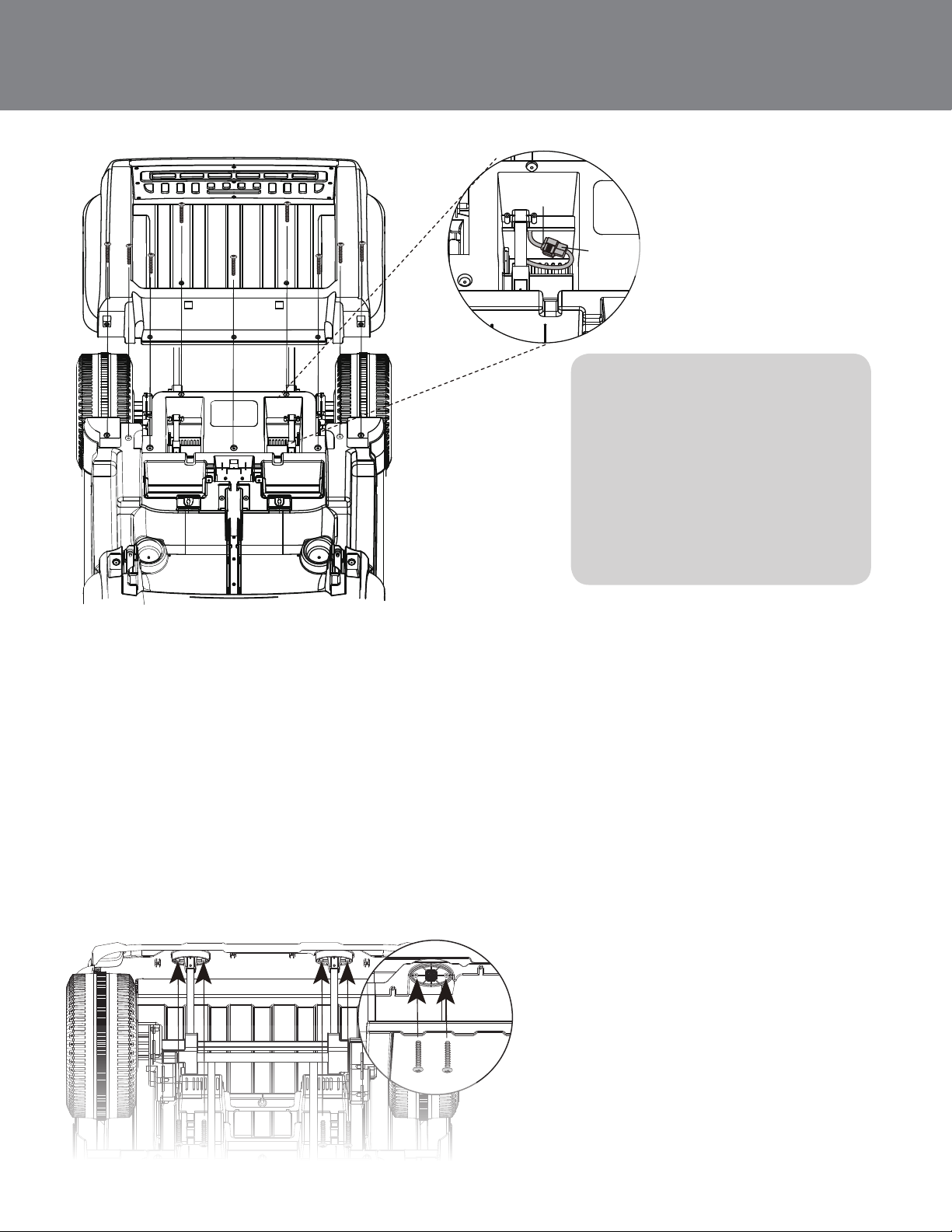

Attach the Truck Bed
2.
1. Locate thirteen screws (26) from blister pack
Turn the truck right-side up so that the wheels are on the ground
4. Match the 9 screw holes on the truck bed with the holes on the truck
body
5. Align the holes and fasten all screws (26) securely with a screwdriver
6. Turn over the truck body
and align the holes and
fasten the four screws (26)
accordingly.
3. Connect the connectors from the truck body with the connectors on the
gear boxes. Ensure the yellow gear box connector is connected to the
yellow main harness and the white gear box connector is connected
to the white main harness
main
harness
Helpful Tip:
1. Ensure the grey battery connector
is connected to the grey engine
connector
2. Ensure the white gear box connector
is connected to the white engine
connector
3. Ensure the yellow gear box connector
is connected to the yellow engine
connector.
gear box
connector

16 Attach the Mirrors
1. Remove the mirrors (3 and 4) from the package
2. Align the hole on the mirror with the hole on the car
3. Insert the screw into the hole and fasten the screw with a screwdriver to
secure the mirror
4. Repeat steps 1-3for the other mirror

17
Attach the Windshield and Dashboard
1. Attach the wire connector coming from the dashboard (16) body
(located in the dashboard) to the wire connector attached to the car
body. Locate the connector in the truck body, and the dashboard
wire in the dashboard to avoid pressed.
2. Match the plastic inserts on the dashboard with the four slots on the
card body and insert into the car body at a 45 degree angle
3. Click the windshield into place with the mirrors

18 Attach the Steering Rod
2.
1.
Locate the steering rod (24)
3. Insert the straight end of the steering rod into the steering rod hole on
the underside of the dashboard. The steering rod should slide all the
way through the dashboard, then hold it by hand
4. The shorter
5. Carefully turn the truck back to the standing position.
, curved end of the steering rod wil insert through the round
hole on the front axle
surface to avoid any scratches or damage). Please take notice on
dashboard to avoid drop off from truck.

19
Assemble the Steering Wheel
1. Use a Phillips head screwdriver to remove the screw on the battery
compartment of the steering wheel
2. Insert two AA batteries into the battery compartment
3. Replace cover and use the screwdriver to fasten
4. Locate the steering wheel screw (24) and nut (25) from blister pack wheel
5. Hold the steering rod by hand, and slide the steering wheel (3) onto the
steering rod
6. Align the holes on the steering wheel with the holes on the steering rod
7. Slide the steering wheel screw (24) through the steering wheel and
steering rod
8. Fasten the nut (25) to the end of the screw and tighten the screw with a
screwdriver
WARNING!
DO NOT mix old and new batteries.
DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
25
24

20 Attach the Doors
2
1
1
2
1. Align the left door with the interior facing the inside of the truck.
2. Position the hole on the door over the hole on the truck body and
slide the post on the bottom of the door into the hole on the truck
body side.
3. Insert the screw into the screw hole and fasten to secure. Note: The
doors will only t on the truck body if the dashboard is properly
installed over the posts on the truck frame.
4. Repeat steps 1-3 for the other door
