Rollplay W461P-02 Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
(2-Person Assembly Recommended)
Model #: W461P-01, W461P-02, W461P-03, W461P-04，W461-P-F-TL
12V Chevy Silverado
Scan here
to view the
assembly video

Introduction
Thank you for purchasing this vehicle from Rollplay. We hope the rider
enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt and register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY 12V 12AH
MOTOR 12V
AGE 3 Years and Up
MAX WEIGHT 59 kg (130 lb)
PRODUCT SIZE 156.5 x 90 x 71 cm
61.61 x 35.43 x 27.95 in
SPEED 4 - 8 km/h
2.5 MPH - 5 MPH (Preset at 4km/h 2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 12.0V 1A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Contact Customer Service if you need assistance or replacement parts.
Please have your model number and serial number ready before calling.
Please have proof of purchase. Keep your sales receipt and register your
product at www.rollplay.com as we may require proof of purchase.
[e-mail]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

4Table of Contents
Safety..........................................................5
Parts ..........................................................7
Charging Instructions ...............................8
Assemble the Rear Support Bars ............9
Install the Rear Support Bars .................10
Install the Rear Wheel Axle.....................11
Install the Gear Boxes.............................12
Assemble the Rear Wheels.....................13
Assemble the Front Wheels....................14
Attach the Truck Bed ..............................15
Attach the Mirrors ...................................16
Attach the Windshield and Dashboard..17
Attach the Steering Rod .........................18
Assemble the Steering Wheel ................19
Attach the Doors .....................................20
Attach the Tailgate ..................................21
Battery Attachment .................................22
Attach the Seat / Fasten Seatbelt ..........23
Operation Instructions ............................24
Maintenance ............................................25
General Care ............................................26
Troubleshooting Guide............................27
FCC Information ......................................29
Service and Repairs ...............................30
Warranty ...................................................31
Product Registration ...............................32

5
Safety
WARNING: SAFETY RIDING RULES
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
NEVER allow more than (2) riders in the vehicle.
RISK OF FIRE. Do not bypass.
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle.
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material and
plastic bags before assembly.
•
Safety Commission (CPSC) Standard 16 CFR 1203.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
• Do not operate in dangerous weather conditions such as rain or snow.
•
•
• Always use the vehicle in a safe, secure environment with adult supervision.
• Remove batteries if product is to be left unused for a long time; Always replace
the whole set of batteries at one time; Do not mix old and new batteries; Do not mix
alkaline, standard (carton-zinc) or rechargeable (nickel-cadmium) batteries.

6Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
•
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT:
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

7
Parts
1. Gear Box ( x 2 )
2. 12V Battery
3. Right Mirror
4. Left Mirror
5. Right Door
6. Left Door
7. Seat
8. Right Support Bar (R)
9. Left Support Bar (L)
10. Support Lateral Bar
11. Rear Axle
12. Battery Charger
13. Wheel Covers ( x 4 )
14. Front Wheels ( x 2 )
15. Rear Wheels ( x 2 )
16. Windshield & Dashboard
17. Steering Wheel
18. Tailgate
19. Truck Bed
20. Truck Body
21. Manual
22. Hex Wrench
23. Steering Rod
24. Steering Wheel Screw
25. Steering Wheel Nut
26. Screws ( x 19 )
27. MP3 Cable
28. Blister Pack
• Phillips screwdriver
• 2 AA batteries
Not Included:
7
4
5
6
8
9
11
10
13
14
12
16
1
19
2
3
17
15
18
20
23
22
23
21
24
25
27
28
26
Helpful Tip:
1. Parts 24-27 are located in the
blister pack
2. Spare parts: Screws (2)

8Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

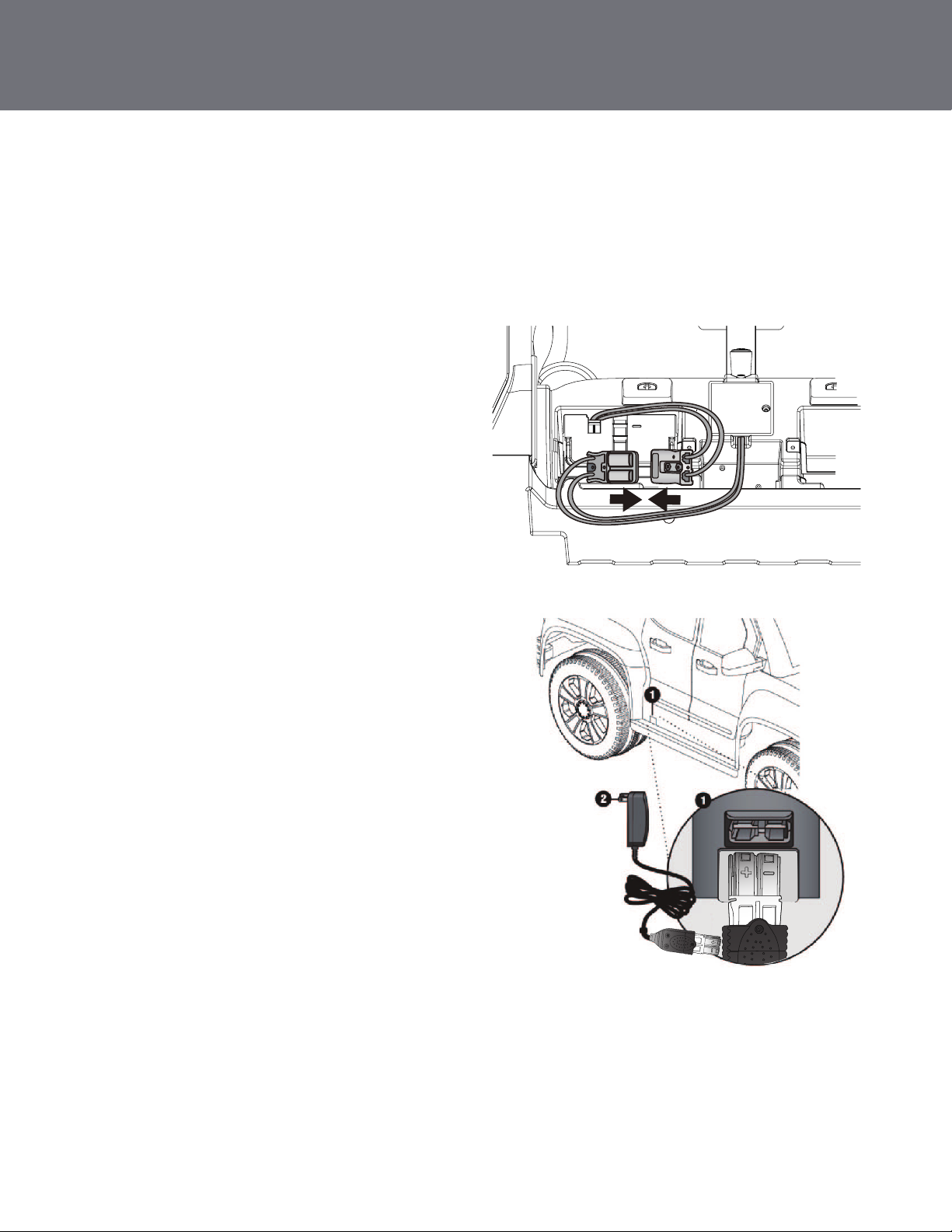

Connect the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Locate the white battery connector (A)
that attaches directly to the battery.
4. Connect the white battery connector (A) to
the white battery charger connector (B).
5. Replace the seat.
Charge the Battery:
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
BA
1.The charging station is located on the
bottom of the right door (1).
2.Plug in the connector on the charger into
the charging station (1).
3.Plug the charger into a 120V outlet (2).
4.Unplug the charger from the outlet when
charging is complete.
5. Remove the charger connector from the
charging station.

9
Assemble the Rear Support Bars
1. Locate the right (8) and left (9) support bars and the support lateral bar (10)
2. Insert the rear support lateral bar (10) into the square slots on the rear support side
bars (8,9)
3. Ensure the assembly is secure before moving on to the next step
2-Person Assembly Recommended
L(9)
R(8)
Support Lateral
Bar (10)

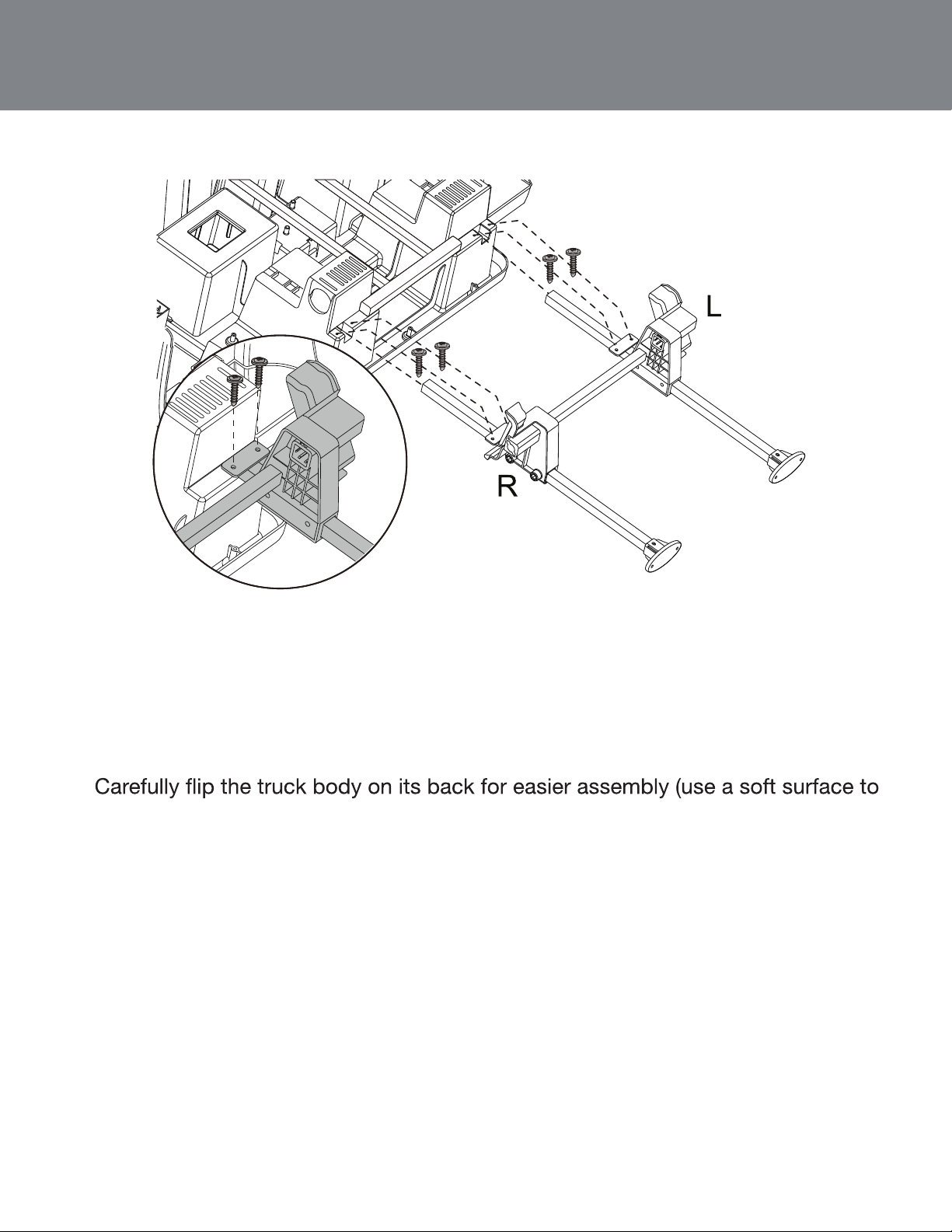

10 Install the Rear Support Bars
1.
avoid any scratches or damage)
2. Slide the assembled rear support bars (8,9,10) into the square holes on the back
of the truck body
3. Align the screw holes on the support bars with the holes on the truck body
4. Insert 4 screws (26) from the blister pack into the holes and fasten securely with a
screwdriver

11

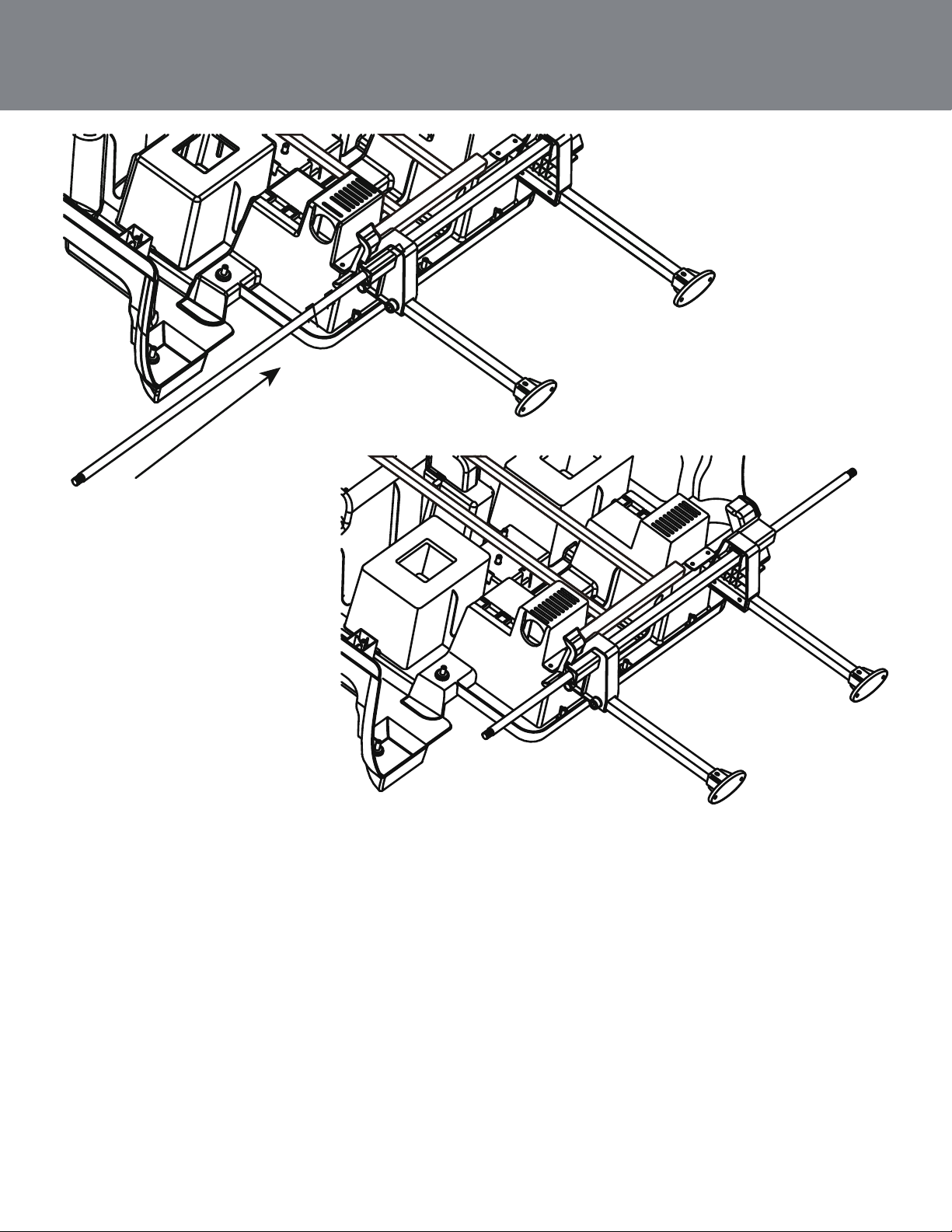

Install the Rear Wheel Axle
1. Locate the rear wheel axle (11)
2. Remove the nut and washer from both sides of the rear axle
3. Slide the rear axle horizontally through the rear support system as pictured
4. Make sure the axle is centered before and during rear wheel installation
(11)

12 Install the Gear Boxes
1. With the truck body still on its back, locate the two holes on either side of the
truck body with the white gearbox connector and yellow gearbox connector
2. Slide the left gear box (1) onto the rear axle with the white gears facing out
completely into the hole that leads to the battery compartment.
3. Repeat the same steps on the other side of the truck with the right gear box (1)
4. The gearbox wiring connection will be completed on page 15
(1)

13
Assemble the Rear Wheels
1. With the truck on its back, locate one of the rear wheels (15)
2. Slide the rear wheel onto the axle (11) with the gear teeth facing inward. Align the
gear teeth on the wheel with the gear box (1)
3. Slide a washer onto the axle
4. Using the hex wrench (22), fasten the nut on the end of the axle and tighten until
you cannot turn the wrench anymore
5. Snap on the wheel cover (13) by aligning the tabs on the cover with the slots on the
wheel
6. Repeat steps 1-5 for the other rear wheel (15)
Helpful Tip:
1.
wheels onto the rear axle, then your rear
wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel
axle. Using two hands, push down on
the rear wheel axle and slide it gently
toward the side of the vehicle that needs
more room.

14 Assemble the Front Wheels
1. Slide a thick washer onto the front axle
2. Slide the front wheel (14) onto the front axle. The concave side should face inward
3. Slide the thin washer onto the front axle
4. Using the hex wrench (22), fasten the nut on the end of the axle and tighten until you
can not tighten any more
5. Snap on the wheel cover (13) by aligning the tabs on the cover with the slots on the
wheel
6. Repeat steps 1-5 for the other front wheel (14)

15

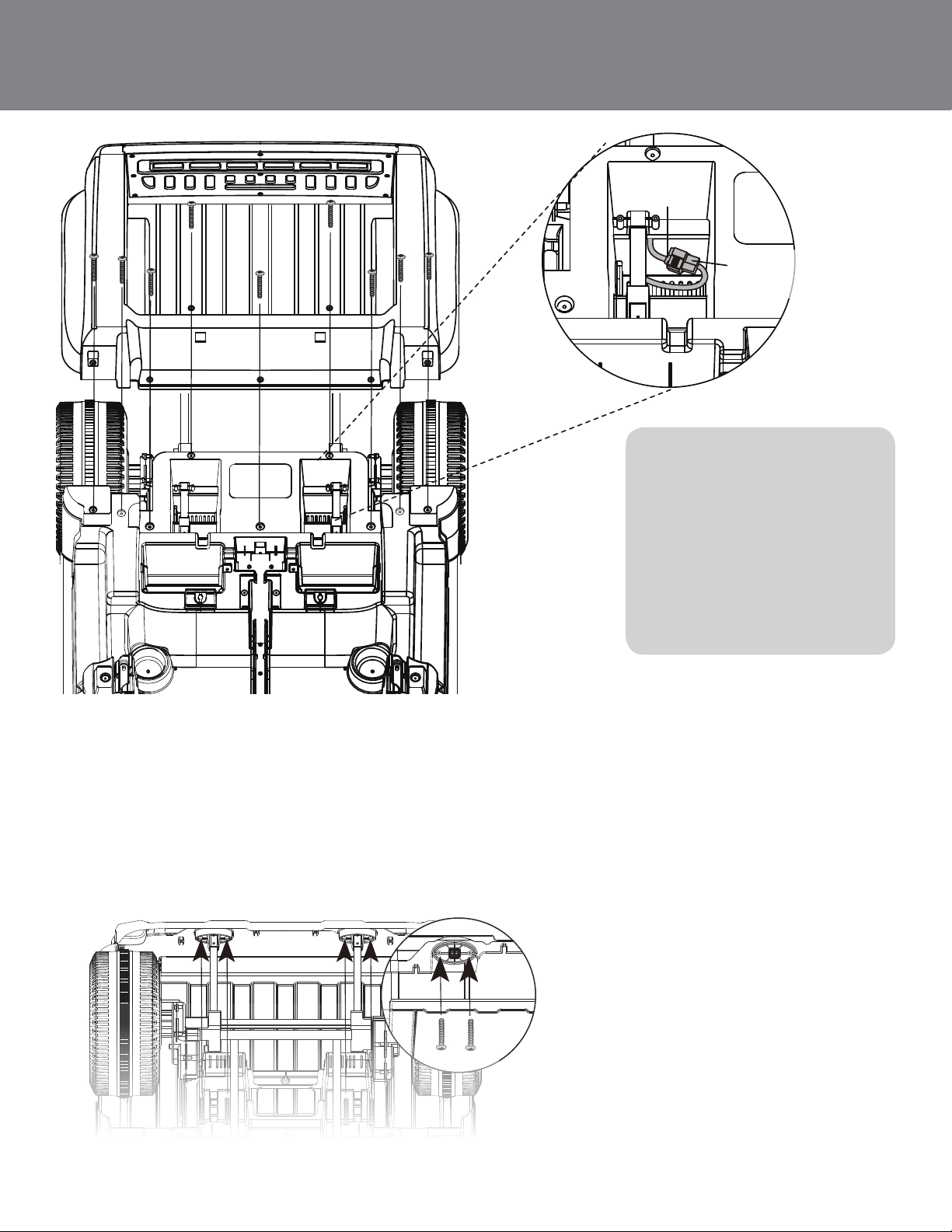

Attach the Truck Bed
1. Locate thirteen screws (26) from blister pack
2. Turn the truck right-side up so that the wheels are on the ground
3. Connect the connectors from the truck body with the connectors on the gear
boxes. Ensure the yellow gear box connector is connected to the yellow main
harness and the white gear box connector is connected to the white main harness
4. Match the 9 screw holes on the truck bed with the holes on the truck body
5. Align the holes and fasten all
screws (26) securely with a
screwdriver
6. Turn over the truck body and
align the holes and fasten the
four screws (26) accordingly.
main
harness
gear box
connector
Helpful Tip:
1. Ensure the grey battery
connector is connected to the
grey engine connector
2. Ensure the white gear box
connector is connected to the
white engine connector
3. Ensure the yellow gear box
connector is connected to the
yellow engine connector.

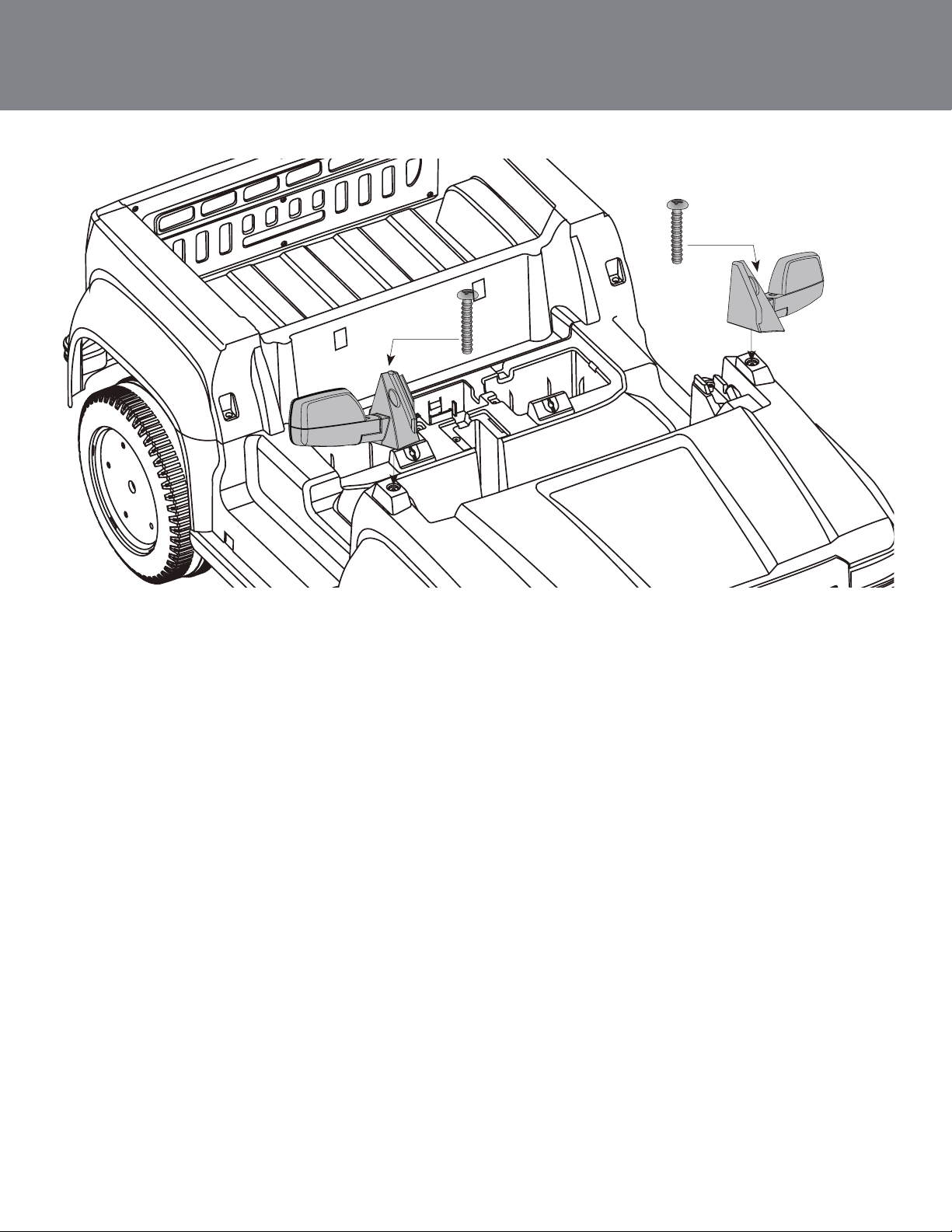

16 Attach the Mirrors
1. Remove the mirrors (3,4) from the plastic bags
2. Align the hole on the mirror with the hole on the truck
3. Insert the screw into the hole and fasten the nut with a screwdriver to
secure the mirror
4. Repeat steps 1-3 for the other mirror

17
Attach the Windshield and Dashboard
1. Attach the 2 wire connectors coming from the dashboard (16) body
(located in the dashboard) to the 2 wire connectors attached to the
truck body.
2. Match the plastic inserts on the dashboard with the four slots on the
truck body and insert into the truck body at a 45 degree angle.
3. Click the windshield/dashboard into place with the mirrors. Make sure
the holes on either side of the dashboard assembly snap over the posts
on the truck frame.

18 Attach the Steering Rod
1. Locate the steering rod (23).
2. Insert the straight end of the steering rod into the steering rod hole on
the underside of the dashboard. The steering rod should slide all the
way through the dashboard.
3. The shorter, curved end of the steering rod will insert through the round
hole on the front axle.

19
Assemble the Steering Wheel
1. Use a Phillips head screwdriver to remove the screw on the battery
compartment of the steering wheel
2. Insert two AA batteries into the battery compartment
3. Replace cover and use the screwdriver to fasten
4. Remove the steering wheel screw and nut from the hole on the steering
wheel
5. Slide the steering wheel (17) onto the steering rod (23)
6. Align the holes on the steering wheel with the holes on the steering rod
7. Slide the steering wheel screw through the steering wheel and steering
rod
8. Fasten the nut to the end of the screw and tighten the screw with a
screwdriver
Helpful Tip:
1. Have one person hold the steering
rod in place to prevent it from
sliding down while the other person
attaches the steering wheel
When replacing AA batteries, always replace both
batteries at the same time. Do not mix old batteries with
new batteries or batteries of different types.
WARNING
25
24

20 Attach the Doors
1. Align the doors (5,6) with the interior facing the inside of the truck
2. Position the hole on the door over the hole on the truck body and slide
the post on the bottom of the door into the hole on the truck body side
3. Insert the screw into the screw hole and fasten to secure. Note: The
over the posts on the truck frame
4. Repeat steps 1-3 for the other door
2
1
3
Truck frame post
3
1
2
