Rosemount 3051 Pressure Transmitter
Includes Transmitter Option TR
Start
End
Step 1: Mount the Transmitter
Step 2: Consider Housing Rotation
Step 3: Set Switches
Step 4: Connect the Wiring and Power Up
Step 5: Verify Configuration
Step 6: Trim the Transmitter
Safety Instrumented Systems Requirements
Product Certifications
4051 RevBA.fm Page 1 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
2
© 2009 Rosemount Inc. All rights reserved. All marks property of owner.
Rosemount and the Rosemount logotype are registered trademarks of Rosemount Inc.
Emerson Process Management Rosemount
Division
8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone]
T (Intnl) [phone]
F [phone]
Emerson Process Management
GmbH & Co. OHG
Argelsrieder Feld 3
82234 Wessling
Germany
T 49 (8153) 9390, F49 (8153) 939172
Emerson Process Management
Asia Pacific Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211
F (65) 6777 0947/65 6777 0743
Beijing Rosemount Far East Instrument Co., Limited
No. 6 North Street, Hepingli, Dong Cheng District
Beijing 100013, China
T (86) (10) 6428 2233
F (86) (10) 6422 8586
IMPORTANT NOTICE
This installation guide provides basic guidelines for Rosemount 3051C/T transmitters
(reference manual document number 00809-0100-4051). It does not provide
instructions for diagnostics, maintenance, service, or troubleshooting. This document
is also available electronically on www.emersonprocess.com/rosemount.
WARNING
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with
the appropriate local, national, and international standards, codes, and practices.
Please review the approvals section of the 3051C/T reference manual for any
restrictions associated with a safe installation.
• Before connecting a HART communicator in an explosive atmosphere, ensure the
instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• In an Explosion-Proof/Flame-Proof installation, do not remove the transmitter
covers when power is applied to the unit.
Process leaks may cause harm or result in death.
• Install and tighten process connectors before applying pressure.
Electrical shock can result in death or serious injury.
• Avoid contact with the leads and terminals. High voltage that may be present on
leads can cause electrical shock.
4051 RevBA.fm Page 2 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
3
STEP 1: MOUNT THE TRANSMITTER
Liquid Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent
valves are oriented upward.
Gas Flow Applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Steam Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
F
low
4051 RevBA.fm Page 3 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
4
STEP 1 CONTINUED...
Panel Mount Pipe Mount
Coplanar™Flange
Traditional Flange
In-line
4051 RevBA.fm Page 4 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
5
STEP 1 CONTINUED...
Bolting Considerations
If the transmitter installation requires assembly of the process flanges, manifolds, or flange
adapters, follow these assembly guidelines to ensure a tight seal for optimal performance
characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by
Emerson as spare parts. Figure 1 illustrates common transmitter assemblies with the bolt
length required for proper transmitter assembly.

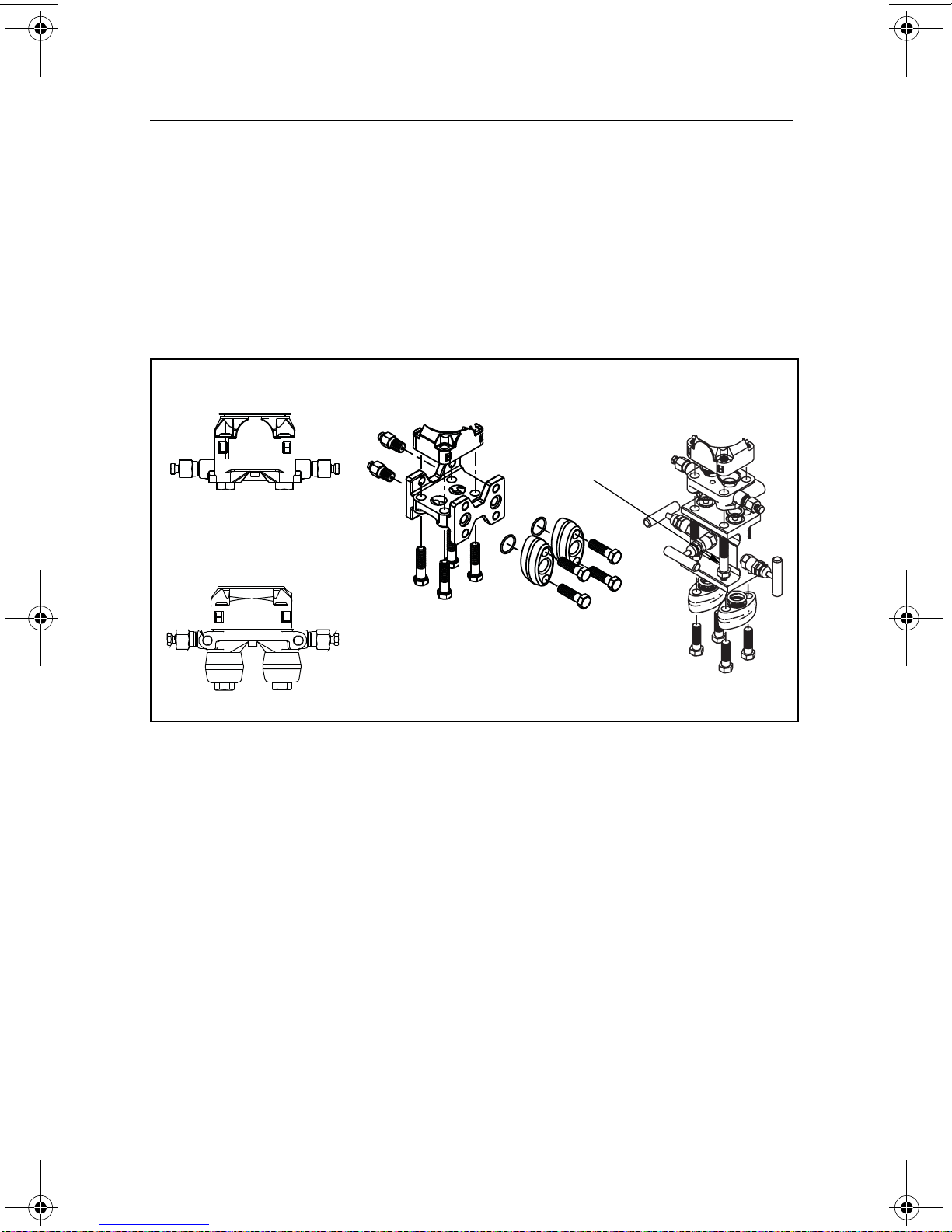

Figure 1. Common Transmitter Assemblies
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the
markings on the head of the bolt and referencing Figure 2. If bolt material is not shown in
Figure 2, contact the local Emerson Process Management representative for more
information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with
a lubricant to ease installation. However, no additional lubricant should be applied when
installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern. See Figure 2 for
initial torque value.
4. Torque the bolts to the final torque value using the same crossing pattern. See Figure 2
for final torque value.
5. Verify that the flange bolts are protruding through the isolator plate before applying
pressure.
4 x 1.75-in. (44 mm)
4 x 2.88-in. (73 mm)
A. Transmitter with
Coplanar Flange
B. Transmitter with Coplanar
Flange and Optional
Flange Adapters
C. Transmitter with Traditional
Flange and Optional Flange
Adapters
D. Transmitter with
Coplanar Flange and
Optional Manifold and
Flange Adapters
4 x 1.75-in. (44 mm) 4 x 1.50-in. (38 mm)
4 x 1.75-in. (44 mm)
4 x 2.25-in. (57 mm)
4051 RevBA.fm Page 5 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
6
STEP 1 CONTINUED...
Figure 2. Torque values for the flange and flange adapter bolts

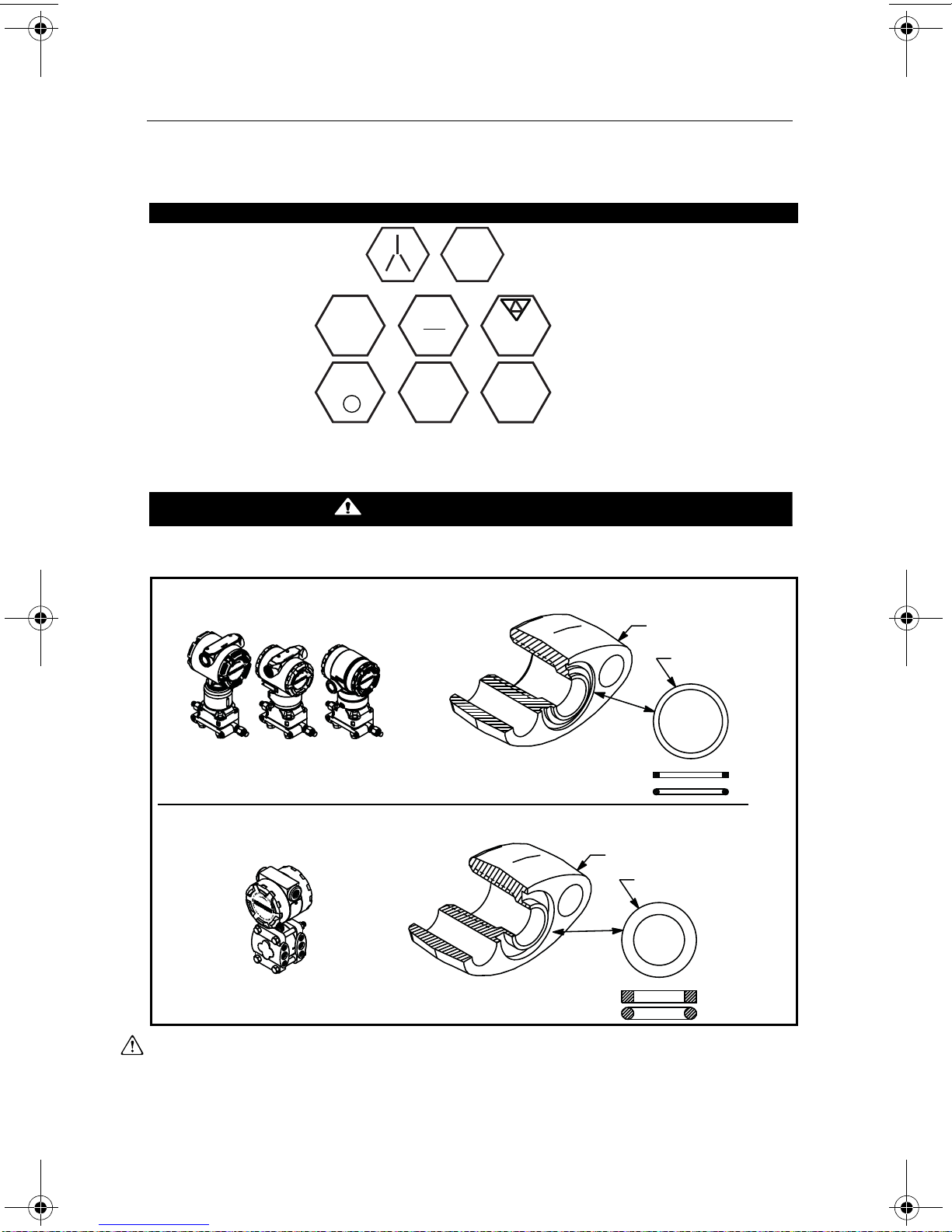

O-rings with Flange Adapters
WARNING
Whenever the flanges or adapters are removed, visually inspect the o-rings. Replace them
if there are any signs of damage, such as nicks or cuts. If you replace the o-rings, re-torque
the flange bolts and alignment screws after installation to compensate for seating of the
PTFE o-ring.
Bolt Material Head Markings Initial Torque Final Torque
Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.
Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.
Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or
serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring
that is designed for its specific flange adapter, as shown below.
B7M
316
316
316
SW
316
STM
316
R
B8M
Rosemount 3051S / 3051 / 2051 / 3001 / 3095
Rosemount 1151
Flange Adapter
O-ring
Flange Adapter
O-ring
PTFE Based
Elastomer
PTFE
Elastomer
4051 RevBA.fm Page 6 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
7
STEP 1 CONTINUED...
Inline Gage Transmitter Orientation
The low side pressure port (atmospheric reference) on the inline gage transmitter is located
in the neck of the transmitter, behind the housing. The vent path is 360° around the
transmitter between the housing and sensor. (See Figure 3.)
Keep the vent path free of any obstruction, including but not limited to paint, dust, and
lubrication by mounting the transmitter so that the process can drain away.
Figure 3. Inline Gage Transmitter
STEP 2: CONSIDER HOUSING ROTATION
STEP 3: SET SWITCHES (OPTION D1)
(
If alarm and security adjustment option is not installed, the transmitter will operate normally
with the default alarm condition alarm high and the security off.
To improve field access to wiring or to better
view the optional LCD display:
1. Loosen the housing rotation set screw.
2. First, using a 5/64-in. hex wrench, rotate the
housing clockwise to the desired location. If
the desired location cannot be achieved due
to thread limit, rotate the housing counter
clockwise to the desired location (up to 180°
from thread limit).
3. Retighten the housing rotation set screw.
Figure 4.

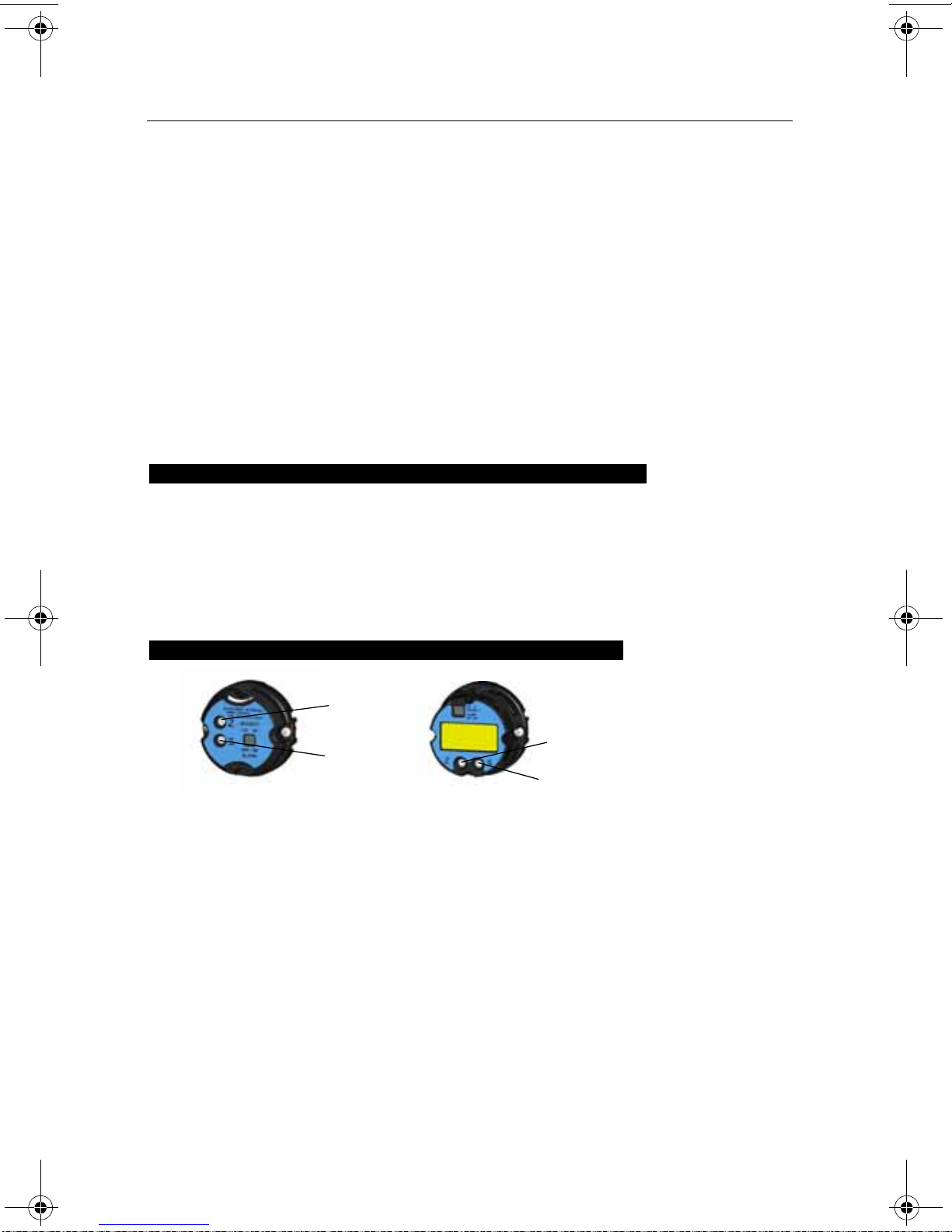

Figure 5. Transmitter Switch Configuration
Without LCD Display With LCD Display
Slide the security and alarm switches into the preferred position by using a small screwdriver.
Low side pressure port
(atmospheric reference)
Housing Rotation Set Screw
Security
Alarm
Alarm
Security
4051 RevBA.fm Page 7 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
8
STEP 4: CONNECT WIRING AND POWER UP
Connect Wiring and Power Up
Use the following steps to wire the transmitter:
1. Remove the housing cover labeled “Field Terminals.”
2. Connect the positive lead to the “+” terminal, and the negative lead to the “–” terminal.
NOTE
Do not connect the power across the test terminals. Power could damage the test diode in
the test connection. Twisted pairs yield best results; shielded signal wiring is not necessary.
Use 24 AWG or larger wire and do not exceed 5,000 feet (1500 meters).
3. Plug and seal unused conduit connections.
4. If applicable, install wiring with a drip loop. Arrange the drip loop so the bottom is lower
than the conduit connections and the transmitter housing.
5. Replace the housing cover.
The figures below show the wiring connections necessary to power a 3051C/T and enable
communications with a hand-held HART communicator.
Transmitter Wiring (4-20 mA / HART)
Installation of the transient protection terminal block does not provide transient protection
unless the 3051 case is properly grounded.
RL250
Power
Supply
4051 RevBA.fm Page 8 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
9
STEP 4 CONTINUED...
Signal Wiring Grounding
Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical
equipment. Grounding terminations are provided on the outside of the sensor module and
inside the Terminal Compartment. These grounds are used when transient protect terminal
blocks are installed or to fulfill local regulations. See Step 2 below for more information on
how the cable shield should be grounded.
1. Remove the Field Terminals housing cover.
2. Connect the wiring pair and ground as indicated in Figure 6. The cable shield should:
a. Be trimmed close and insulated from touching the transmitter housing.
b. Continuously connect to the termination point.
c. Be connected to a good earth ground at the power supply end.
Figure 6. Wiring
3. Replace the housing cover. It is recommended that the cover be tightened until there is
no gap between the cover and the housing.
4. Plug and seal unused conduit connections.
PWR/
COMM TEST
P/N
3151-9004-0001
AMBIENT TEMPS
AVOVE 60 REQUIRE
WIRING RATED TO
AT LEAST 90 C
DP
Trim shield and
insulate
Insulate
Shield
Connect Shield Back to the
Power Supply Ground
Ground for
Transient
Protection
Minimize
Distance
Minimize
Distance
4051 RevBA.fm Page 9 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
10
STEP 4 CONTINUED...
Power Supply
The dc power supply should provide power with less than two percent ripple. The total
resistance load is the sum of the resistance of the signal leads and the load resistance of
the controller, indicator, and related pieces. Note that the resistance of intrinsic safety
barriers, if used, must be included.
Figure 7. Load Limitation
Maximum Loop Resistance =
43.5 * (Power Supply Voltage – 10.5)
The HART communicator requires a minimum loop
resistance of 250for communication.
Voltage (V dc)
Load (Ohms)
Operating
Region
1387
1000
500
010.5 20 30 42.4
4051 RevBA.fm Page 10 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
11
STEP 5: VERIFY CONFIGURATION
A check (⻫) indicates the basic configuration parameters. At minimum, these parameters
should be verified as part of the configuration and startup procedure.
Table 1. HART Fast Key Sequence
Function Fast Key Sequence
Alarm Level Configuration 1, 4, 2, 7, 7
Alarm and Saturation Levels Configuration 1, 4, 2, 7
Analog Output Alarm Direction Configuration 1, 4, 2, 7, 6
Analog Output Trim 1, 2, 3, 2
Burst Mode On/Off 1, 4, 3, 3, 3
Burst Options 1, 4, 3, 3, 4
⻫Damping 1, 3, 6
Date 1, 3, 4, 1
Descriptor 1, 3, 4, 2
Digital To Analog Trim (4-20 mA Output) 1, 2, 3, 2, 1
Field Device Information 1, 4, 4, 1
LCD Meter Configuration 1, 3, 7
Loop Test 1, 2, 2
Lower Sensor Trim 1, 2, 3, 3, 2
Message 1, 3, 4, 3
Number of Requested Preambles 1, 4, 3, 3, 2
Pressure Alert Configuration 1, 4, 3, 5, 3
Poll Address 1, 4, 3, 3, 1
Poll a Multidropped Transmitter Left Arrow, 4, 1, 1
Remapping 1, 4, 3, 6, 4
Rerange- Keypad Input 1, 2, 3, 1, 1
Saturation Level Configuration 1, 4, 2, 7, 8
Scaled D/A Trim (4–20 mA Output) 1, 2, 3, 2, 2
Scaled Variable Configuration 1, 4, 3, 4, 7
Self Test (Transmitter) 1, 2, 1, 1
Sensor Information 1, 4, 4, 2
Sensor Temperature 1, 1, 4
Sensor Trim 1, 2, 3, 3
Sensor Trim Points 1, 2, 3, 3, 5
Status 1, 2, 1, 2
⻫Tag 1, 3, 1
Temperature Alert Configuration 1, 4, 3, 5, 4
⻫Transfer Function (Setting Output Type) 1, 3, 5
Transmitter Security (Write Protect) 1, 3, 4, 5
⻫Units (Process Variable) 1, 3, 2
Upper Sensor Trim 1, 2, 3, 3, 3
Zero Trim 1, 2, 3, 3, 1
4051 RevBA.fm Page 11 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
12
STEP 6: TRIM THE TRANSMITTER
Transmitters are shipped fully calibrated per request or by the factory default of full scale
(lower range value = zero, upper range value = upper range limit).
Zero Trim
A zero trim is a single-point adjustment used for compensating mounting position and line
pressure effects. When performing a zero trim, ensure that the equalizing valve is open and
all wet legs are filled to the correct level.
If zero offset is less than 3% of true zero, follow the “Using the HART Communicator”
instructions below to perform a zero trim. If zero offset is greater than 3% of true zero,
follow the “Using the Transmitter Zero Adjustment Button” instructions below to rerange. If
hardware adjustments are not available, see the 3051 Reference Manual (document
number 00809-0100-4051) to perform a rerange using the HART Communicator.
Using the HART Communicator
Using the Transmitter Zero Adjustment Button
Push and hold the zero adjustment button for at least two seconds but no longer than ten
seconds.
HART Fast Keys Steps
1, 2, 3, 3, 1 1. Equalize or vent the transmitter and connect HART
communicator.
2. At the menu, input the HART Fast Key sequence.
3. Follow the commands to perform a zero trim.
Without LCD Display With LCD Display
Span
Zero
Span
Zero
4051 RevBA.fm Page 12 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
13
SAFETY INSTRUMENTED SYSTEMS
Additional Safety Instrumented Systems information is available in the Rosemount 3051
reference manual (document number 00809-0100-4051). The manual is available
electronically on www.emersonprocess.com/rosemount or by contacting an Emerson
Process Management representative.
3051 Safety Certified Identification
All 3051 transmitters must be identified as safety certified before installing into SIS
systems. To identify a safety certified 3051, verify that QT is included in the transmitter
model code.
Installation
No special installation is required in addition to the standard installation practices outlined
in this document. Always ensure a proper seal by installing the electronics housing cover(s)
so that metal contacts metal.
Environmental limits are available in the 3051 Product Data Sheet
(document number 00813-0100-4051). This document can be found at
www.emersonprocess.com/rosemount/safety/certtechdocumentation.htm.
The loop should be designed so the terminal voltage does not drop below 10.5 Vdc when
the transmitter output is 22.5 mA.
If hardware security switches are installed, the security switch should be in the “ON”
position during normal operation. See Figure 5 on page 7. If hardware security switches are
not installed, security should be “ON” in the software to prevent accidental or deliberate
change of configuration data during normal operation.
Configuration
Use any HART-compliant master to communicate with and verify configuration of the 3051
SIS (see Table 1 on page 11 and 9 to verify configuration). User-selected damping will
affect the transmitters ability to respond to changes in the applied process. The damping
value + response time should not exceed the loop requirements.
NOTE
Transmitter output is not safety-rated during the following: configuration changes,
multidrop, and loop test. Alternative means should be used to ensure process safety during
transmitter configuration and maintenance activities.
Alarm and Saturation Levels
DCS or safety logic solver should be configured to match transmitter configuration. Figure 8
identifies the three alarm levels available and their operation values.
4051 RevBA.fm Page 13 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
14

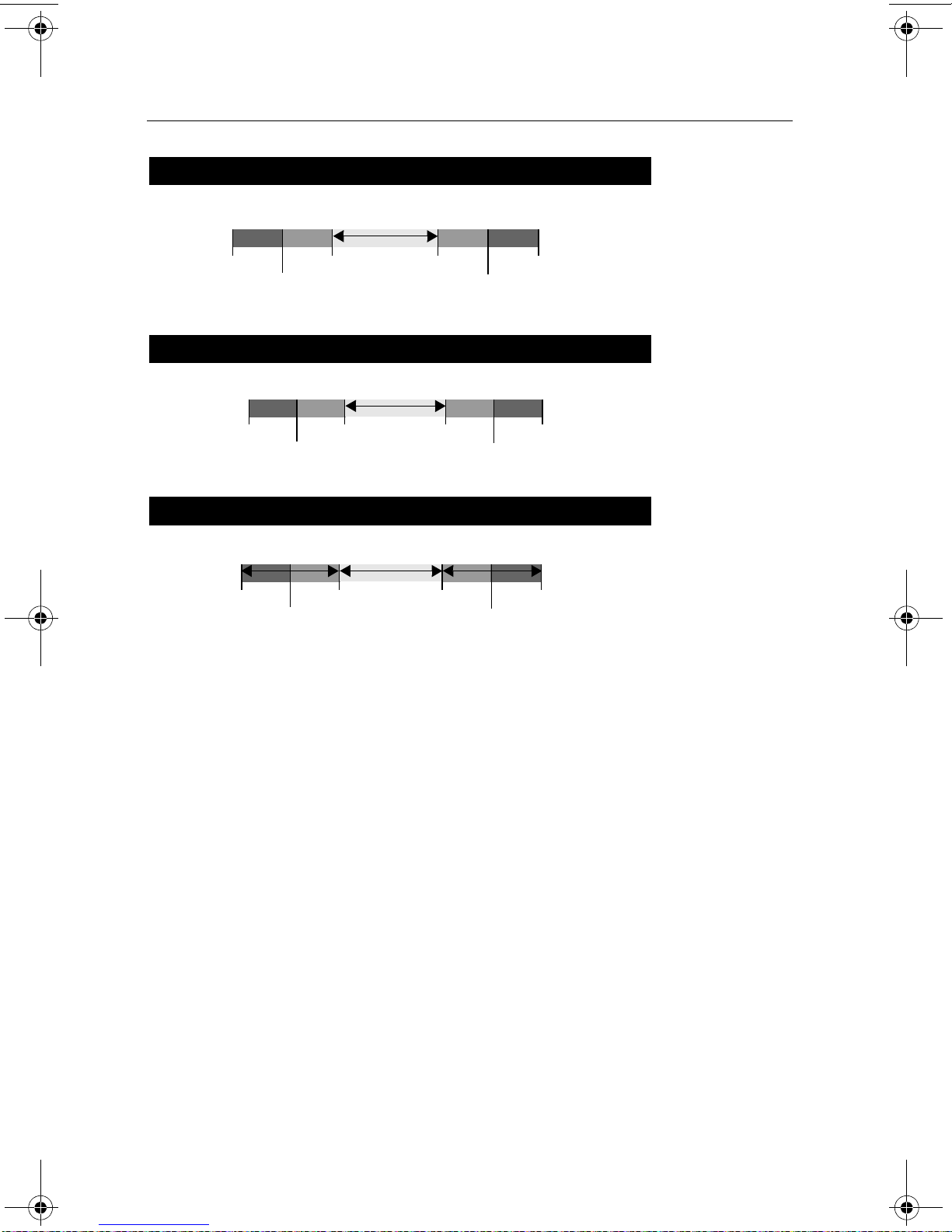

Figure 8. Alarm Levels
Setting the alarm values and direction is dependent on whether or not the hardware switch
option is installed. You can use a HART master or communicator to set the Alarm and
Saturation values.
Switches installed
1. If using a communicator, use the following fast key sequence to set the Alarm and
Saturation values.
Alarm Levels - Fast Key; 1, 4, 2, 7, 7
Saturation Levels - Fast Key; 1, 4, 2, 7, 8
2. Manually set the direction for the Alarm to HI or LO using the ALARM switch as shown
in Figure 5 on page 7.
Switches not installed
1. If using a communicator, use the following fast key sequence to set the Alarm and
Saturation values and the Alarm Direction:
Alarm Levels - Fast Key; 1, 4, 2, 7, 7
Saturation Levels - Fast Key; 1, 4, 2, 7, 8
Alarm Direction Fast Key; 1, 4, 2, 7, 6
Rosemount Alarm Level
Namur Alarm Level
Custom Alarm Level(3)(4)
(1) Transmitter Failure, hardware or software alarm in LO position.
(2) Transmitter Failure, hardware or software alarm in HI position.
(3)Highalarmmustbe at least0.1 mAhigherthanthehighsaturationvalue.
(4) Low alarm must be at least 0.1 mA lower than the low saturation value.
20.8 mA
high
saturation
3.9 mA
low
saturation
3.75 mA(1) 21.75(2)mA
20 mA
4 mA
Normal
Operation
Normal
Operation
4 mA 20 mA
20.5 mA
high saturation
22.5(2)mA
3.8 mA
low saturation
3.6 mA(1)
Normal
Operation
4 mA 20 mA
20.1 - 21.5 mA
high saturation
20.2 - 23.0(2)mA
3.7 - 3.9 mA
low saturation
3.6 - 3.8 mA(1)
4051 RevBA.fm Page 14 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
15
Operation and Maintenance
Proof Test and Inspection
The following proof tests are recommended. Proof test results
and corrective actions taken must be documented at
www.emersonprocess.com/rosemount/safety/certtechdocumentation.htm in the event that
an error is found in the safety functionality.
Use "Table 1: HART Fast Key Sequence" to perform a Loop Test, Analog Output Trim, or
Sensor Trim. See the 3051 reference manual for additional information.
Five-Year(1) Proof-Test
Conducting an analog output Loop Test satisfies the proof test requirements and will
detect more than 52% of DU failures not detected by the 3051C or 3051L automatic
diagnostics, and more than 62% of DU failures not detected by the 3051T automatic
diagnostics.
Required tools: HART host/communicator and mA meter.
1. On HART host/communicator enter the Fast Key Sequence 1, 2, 2.
2. Select “4 Other.”
3. Enter the milliampere value representing a high alarm state.
4. Check the reference meter to verify the mA output corresponds to the entered value.
5. Enter the milliampere value representing a low alarm state.
6. Check the reference meter to verify the mA output corresponds to the entered value.
7. Document the test results per your requirements.
Ten-Year Proof-Test
This proof test, when combined with the Five-Year Proof-Test, will detect over 92% of DU
failures not detected by the 3051C or 3051L automatic diagnostics, and over 95% of DU
failures not detected by the 3051T automatic diagnostics.
Required tools: HART host/communicator and pressure calibration equipment.
1. Perform a minimum two point sensor calibration check using the 4-20mA range points
as the calibration points.
2. Check the reference mA meter to verify the mA output corresponds to the pressure
input value.
3. If necessary, use one of the “Trim” procedures available in the 3051 reference manual
to calibrate.
4. Document the test results per your requirements.
NOTE
The user determines the proof-test requirements for impulse piping.
Visual Inspection
Not required.
(1) May be a longer proof test interval as justified by PFDavg calculation.
4051 RevBA.fm Page 15 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
16
Special Tools
Not required.
Product Repair
All failures detected by the transmitter diagnostics or by the proof-test must be reported.
Feedback can be submitted electronically at
www.emersonprocess.com/rosemount/safety/certtechdocumentation.htm.
The 3051 is repairable by major component replacement. Follow the instructions in the
3051 reference manual (document number 00809-0100-4051) for additional information.
Reference
Certification
The 3051 SIS was designed, developed, and audited to be compliant to IEC 61508 Safety
certified SIL 2 Claim Limit.
Specifications
The 3051 SIS must be operated in accordance to the functional and performance
specifications provided in the 3051 reference manual.
Failure Rate Data
The FMEDA report includes failure rates and common cause Beta factor estimates.
Contact your Emerson Process Management representative to obtain a copy.
3051 SIS Safety Failure Values
Safety accuracy: 2.0%(1)
Safety response time: 1.5 second
Product Life
50 years – based on worst case component wear-out mechanisms – not based on wear-out
process wetted materials
(1) A 2% variation of the transmitter mA output is allowed before a safety trip. Trip values in the DCS or safety
logic solver should be derated by 2%.
4051 RevBA.fm Page 16 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
17
PRODUCT CERTIFICATIONS
Approved Manufacturing Locations
Emerson Process Management - Rosemount Inc. — Chanhassen, Minnesota, USA
Emerson Process Management — Wessling, Germany
Emerson Process Management Asia Pacific Private Limited — Singapore
Emerson Process Management — Beijing, China
Emerson Process Management — Daman, India
Emerson Process Management — Sorocaba, Brazil
European Directive Information
The EC declaration of conformity can be found on page 22. The most recent revision can
be found at www.emersonprocess.com.
Ordinary Location Certification for Factory Mutual
As standard, the transmitter has been examined and tested to determine that the design
meets basic electrical, mechanical, and fire protection requirements by FM, a nationally
recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety
and Health Administration (OSHA).
Hazardous Locations Certifications
North American Certifications
Factory Mutual (FM)
E5 Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II, Division 1, Groups E, F, and G. Dust-Ignition-Proof for Class III, Division 1.
T5 (Ta = 85 °C), Factory Sealed, Enclosure Type 4x
I5 Intrinsically Safe for use in Class I, Division 1, Groups A, B, C, and D; Class II,
Division 1, Groups E, F, and G; Class III, Division 1 when connected per Rosemount
drawing 03031-1019; Non-incendive for Class I, Division 2, Groups A, B, C, and D.
Temperature Code:T4 (Ta = 70 °C), T5 (Ta = 40 °C),
Enclosure Type 4x
For input parameters see control drawing 03031-1019.
Canadian Standards Association (CSA)
All CSA hazardous approved transmitters are certified per ANSI/ISA 12.27.01-2003.
E6 Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II and Class III, Division 1, Groups E, F, and G. Suitable for Class I, Division 2
Groups A, B, C, and D. Enclosure Type 4X, factory sealed; Single Seal. Class I Zone
1 Ex d IIC T5.
C6
Explosion-Proof and Intrinsically Safe approval. Intrinsically Safe for Class I, Division
1, Groups A, B, C, and D when connected in accordance with Rosemount drawings
03031-1024. Temperature Code T3C; Single Seal.
Explosion-Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition-Proof for
Class II and Class III, Division 1, Groups E, F, and G. Suitable for Class I, Division 2
Groups A, B, C, and D hazardous locations. Enclosure type 4X, factory sealed; Single
Seal.
4051 RevBA.fm Page 17 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
18
European Certifications
I1 ATEX Intrinsic Safety and Dust
Certification No.: BAS 97ATEX1089X II 1 GD
Ex ia IIC T4 (Tamb = –60 to +70 °C)
Ex tD A20 T80 °C (Tamb –20 to 40 °C) IP66/IP68
1180
ATEX I1 Input Parameters
Ui= 30 V
Ii= 200 mA
Pi= 0.9 W
Ci= 0.012 µF
Li = 0.0
Special Conditions for Safe Use (X):
When the optional transient protection terminal block is installed, the apparatus is not
capable of withstanding the 500V insulation test required by Clause 6.3.12 of
EN60079-11. This must be taken into account when installing the apparatus.
N1 ATEX Non-incendive/Type n and Dust
Certification No.: BAS 00ATEX3105X II 3 GD
Ex nL IIC T5 (Tamb = –40 to +70 °C)
Ui= 42.4 Vdc max
Ex tD A22 T80 °C (Tamb = –20 to 40 °C) IP66/IP68
Special Conditions for Safe Use (X):
When the optional transient protection terminal block is installed, the apparatus is not
capable of withstanding a 500V r.m.s. by Clause 6.8.1 of EN60079-15 test to case.
This must be taken into account on any installation in which it is used, for example by
assuring that the supply to the apparatus is galvanically isolated.
4051 RevBA.fm Page 18 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009 Rosemount 3051
19
E8 ATEX Flameproof and Dust
Certification No.: KEMA 00ATEX2013X II 1/2 GD
Ex d IIC T6 (Tamb = –50 to 65 °C)
Ex d IIC T5 (Tamb = –50 to 80 °C)
Ex tD A20/A21 T90 °C, IP66/IP68
1180
Vmax = 42.4 V dc
Special Conditions for Safe Use (X):
This device contains a thin wall diaphragm. Installation, maintenance, and use shall
take into account the environmental conditions to which the diaphragm will be
subjected. The manufacturer’s instructions for installation and maintenance shall be
followed in detail to assure safety during its expected lifetime.
Japanese Certifications
Approvals pending, consult factory for availability.
E4 TIIS Flameproof
Ex d IIC T6
I4 TIIS Intrinsic Safety
Pending
Certificate Description
TC18213 3051CD/CG/L 4-20mA HART (with meter)
TC18214 3051CD/CG/L 4-20 mA HART (no meter)
TC18215 3051CA 4-20mA HART (with meter)
TC18216 3051CA 4-20 mA HART (no meter)
TC18217 3051T 4-20mA HART (with meter)
TC18218 3051T 4-20 mA HART (no meter)
TC18219 3051CD/CG/L 4-20mA HART (with meter), Dual Housing
4051 RevBA.fm Page 19 Monday, June 22, 2009 3:15 PM

Quick Installation Guide
00825-0100-4051, Rev BA
June 2009
Rosemount 3051
20
Australian Certifications
I7 SAA Intrinsic Safety
Certification No.: AUS EX 1249X
Ex ia IIC T4 (Tamb = 70 °C)
Ex ia I
IP66
When connected per Rosemount drawing 03031-1026
Special Conditions for Safe Use (X):
The apparatus may only be used with a passive current limited power source Intrinsic
Safety application. The power source must be such that Po (Uo * Io) / 4.
Modules using transient protection in the terminal assembly (T1 transient protection
models) the apparatus enclosure is to be electrically bonded to the protective earth.
The conductor used for the connection shall be equivalent to a copper conductor of 4
mm2minimum cross-sectional area.
It is a condition of safe use that the following parameters are to be taken into account
for Instrinsic Safety Applications.
SAA Approved Input Parameters
Ui= 30 V
Ii= 200 mA
Ii= 160 mA (Option Code T1)
Pi= 0.9 W
Ci= 0.01 µF (Output Code A)
Li= 10 µH
Li= 1,05 mH (Output Code A with T1)
E7 SAA Flame-Proof and Dust
Certification No.: AUS Ex 03.1347X
Ex d IIC T6 (Tamb = 40 °C)
Ex d IIC T5 (Tamb = 80 °C)
DIP A21 T6 (Tamb = 40 °C)
DIP A21 T5 (Tamb = 80 °C)
IP66
Special Conditions for Safe Use (X):
It is a condition of safe use for transmitter enclosures having cable entry thread other
than metric conduit thread that the equipment be utilized with an appropriate certified
thread adaptor or cable gland.
It is a condition of safe use, where only one entry is used for connection to external
circuits, that the unused entry shall be closed by means of the blanking plug supplied
by the manufacturer or a suitable certified blanking plug.
It is a condition of safe use that the irrelevant explosion protection marking code shall
be permanently scribed off the certification marking label upon completion of
commissioning, where the equipment is supplied with a certification marking label
showing more than one explosion protection marking code.
4051 RevBA.fm Page 20 Monday, June 22, 2009 3:15 PM
