Rosemount 3095MF Series User manual

www.rosemount.com
¢00825-0100-4716/¤
Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
Start
End
Step 1: Mount the Transmitter
Step 2: Transmitter Installation
Step 3: Software Installation
Step 4: Connect the Wiring and Power Up (HART or Fieldbus)
Step 5: Configure the Transmitter (HART or Fieldbus)
Step 6: Trim the Transmitter
Product Certifications
Rosemount 3095 MultiVariable™Mass Flow
Transmitter with HART®or FOUNDATION™
Fieldbus Protocol
Rosemount 3095MF Series Flowmeter Transmitter

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
2
© 2009 Rosemount Inc. All rights reserved. All marks property of owner. Rosemount and the Rosemount logotype are
registered trademarks of Rosemount Inc.
Rosemount Inc.
8200 Market Boulevard
Chanhassen, MN USA 55317
T (US) [phone], F [phone]
T (International) [phone]
Emerson Process Management GmbH & Co. OHG
Argelsrieder Feld 3
82234 Wessling
Germany
T 49 (8153) 9390, F49 (8153) 939172
Emerson Process Management Asia Pacific
Private Limited
1 Pandan Crescent
Singapore 128461
T (65) 6777 8211, F (65) 6777 0947
Beijing Rosemount Far East Instrument Co.,
Limited
No. 6 North Street,
Hepingli, Dong Cheng District
Beijing 100013, China
T (86) (10) 6428 2233, F (86) (10) 6422 8586
IMPORTANT NOTICE
This installation guide provides basic guidelines for the Rosemount 3095 MultiVariable
Mass Flow Transmitter (reference manual document number 00809-0100-4716). It also
provides the basic electronics guidelines for the 3095MFA (reference manual document
number 00809-0100-4809), the 3095MFC (reference manual document number
00809-0100-4810) and the 3095MFP (reference manual document number
00809-0100-4686). It does not provide instructions for configuration, diagnostics,
maintenance, service, or troubleshooting. Refer to the appropriate reference manual for
more instruction. These manuals are also available electronically on
www.rosemount.com.
WARNING
Explosions could result in death or serious injury:
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices.
• Before connecting a HART-based communicator in an explosive atmosphere, make
sure the instruments in the loop are installed in accordance with intrinsically safe or
non-incendive field wiring practices.
• In an Explosion-Proof/Flame-Proof installation, do not remove the transmitter covers
when power is applied to the unit.
• Do not remove the transmitter covers in explosive environments when circuit is live.
• Both transmitter covers must be fully engaged to meet explosion-proof requirements.
Process leaks may cause harm or result in death.
• To avoid process leaks, only use the o-ring designed to seal with the corresponding
flange adapter.
Electrical shock can result in death or serious injury.
• Avoid contact with the leads and the terminals. High voltage that may be present on
leads can cause electrical shock.

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
3

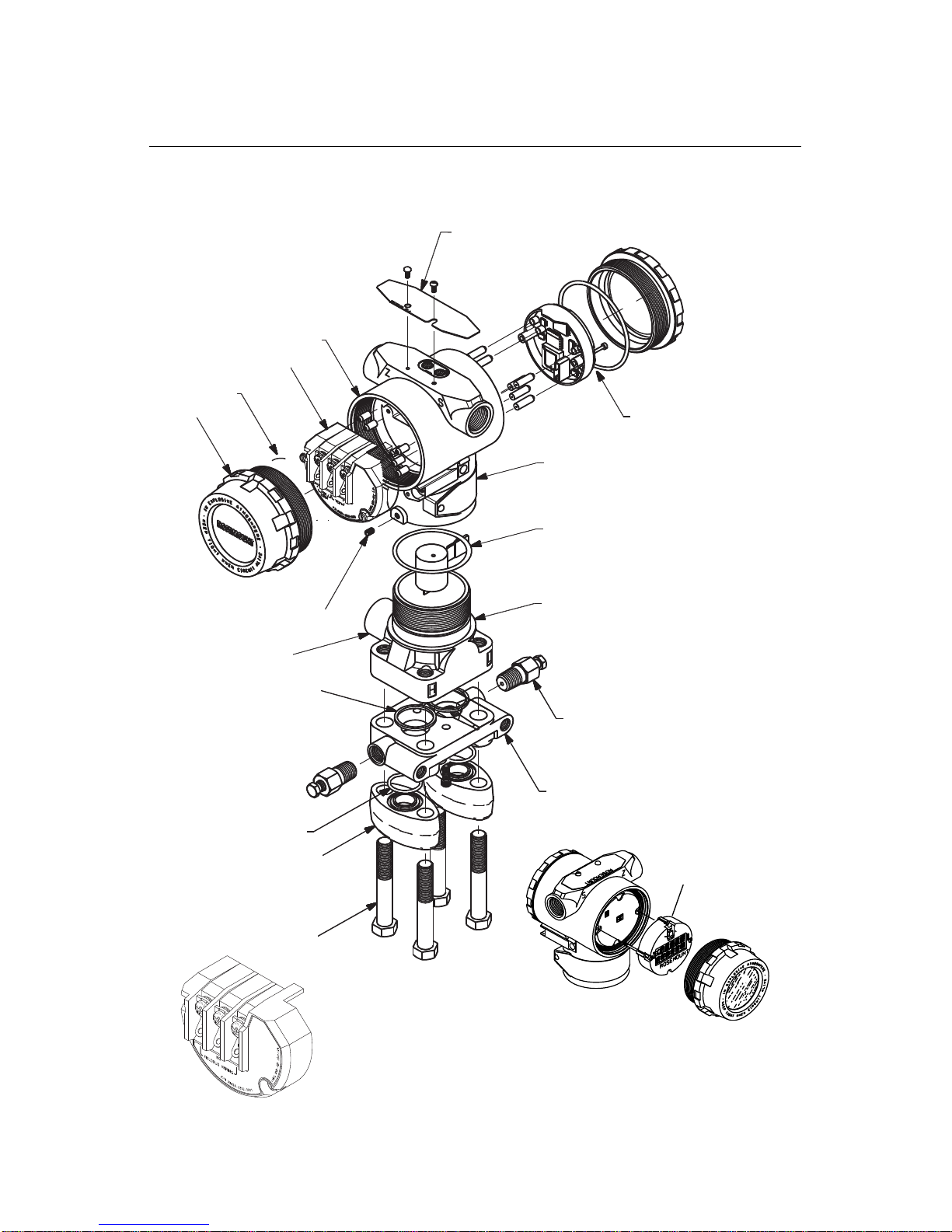

TRANSMITTER EXPLODED VIEW
Housing
O-ring
Cover
Housing Locking Screw
RTD Connector
Process Adapter O-ring
Electronics Board
Nameplate
Module O-ring
Sensor Module
Drain/Vent Valve
Flange Adapter O-ring
Optional Flange Adapters
Bolts
Coplanar Flange
Certification Label
LCD Display Assembly
LCD Display
Cover
Terminal Block
(HART)
Terminal Block (Fieldbus)

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
4
STEP 1: MOUNT THE TRANSMITTER
Figure 1. Using a Mounting Bracket
Liquid Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Mount the transmitter so that the drain/vent
valves are oriented upward.
Gas Flow Applications
1. Place taps in the top or side of the line.
2. Mount beside or above the taps.
Steam Flow Applications
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
Panel Mount(1)
(1) Panel bolts are customer supplied.
Pipe Mount
Flow
Flow
Flow
Flow

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
5
STEP 2: TRANSMITTER INSTALLATION

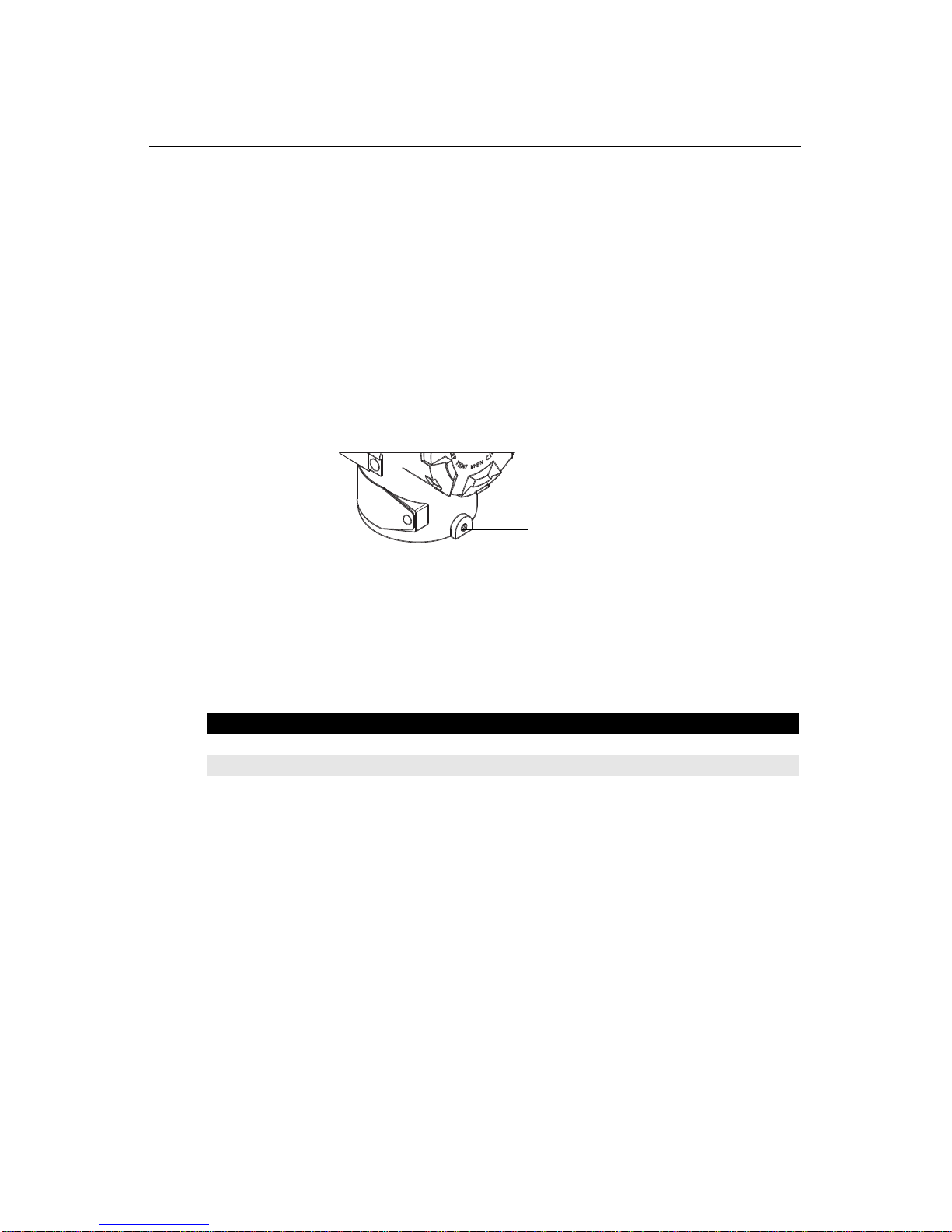

Consider Housing Rotation
To improve field access or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. Rotate the housing clockwise to the desired position – up to 180° from its original
position. Over rotating will damage the transmitter.
3. If the desired position is attained, tighten the housing rotation set screw.
4. If the desired position cannot be reached because the housing will not rotate further,
rotate the housing counterclockwise until in the desired position is attained (up to 180°
from its original position).
5. Tighten the housing rotation set screw.
Field Installation
1. Mount the transmitter
a.Install the flange or flange/adapter bolt finger-tight.
b.Torque bolts to initial torque value using a cross pattern (see Table 1). When
installing to a mounting bracket, torque bolts to 125 in./lb (169 N/m)
2. Set the Security Jumper, which is located on the front of the electronics board inside the
electronics housing cover. Putting the Security Jumper in the ON position will protect
against configuration change from being unintentionally made. The transmitter operates
normally if the jumpers are not installed. The Security default is OFF.
Table 1. Torque Cross Pattern
Bolt Material Initial Value Final Value
Carbon Steel (CS) 300 in./lb (34 N/m) 650 in./lb (73 N/m)
Stainless Steel (SST) 150 in./lb (17 N/m) 300 in./lb (34 N/m)
Housing Rotation Set
Screw (9/64-inch)

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
6
STEP 2 CONTINUED...
3. Set the Failure Mode Alarm (HART devices), which is located on the front of the
electronics board inside the electronics housing cover. The Alarm Jumper position
determines if the output is driven high or low when a failure is detected. The transmitter
operates normally if the jumpers are not installed and the Alarm default fail is HI.

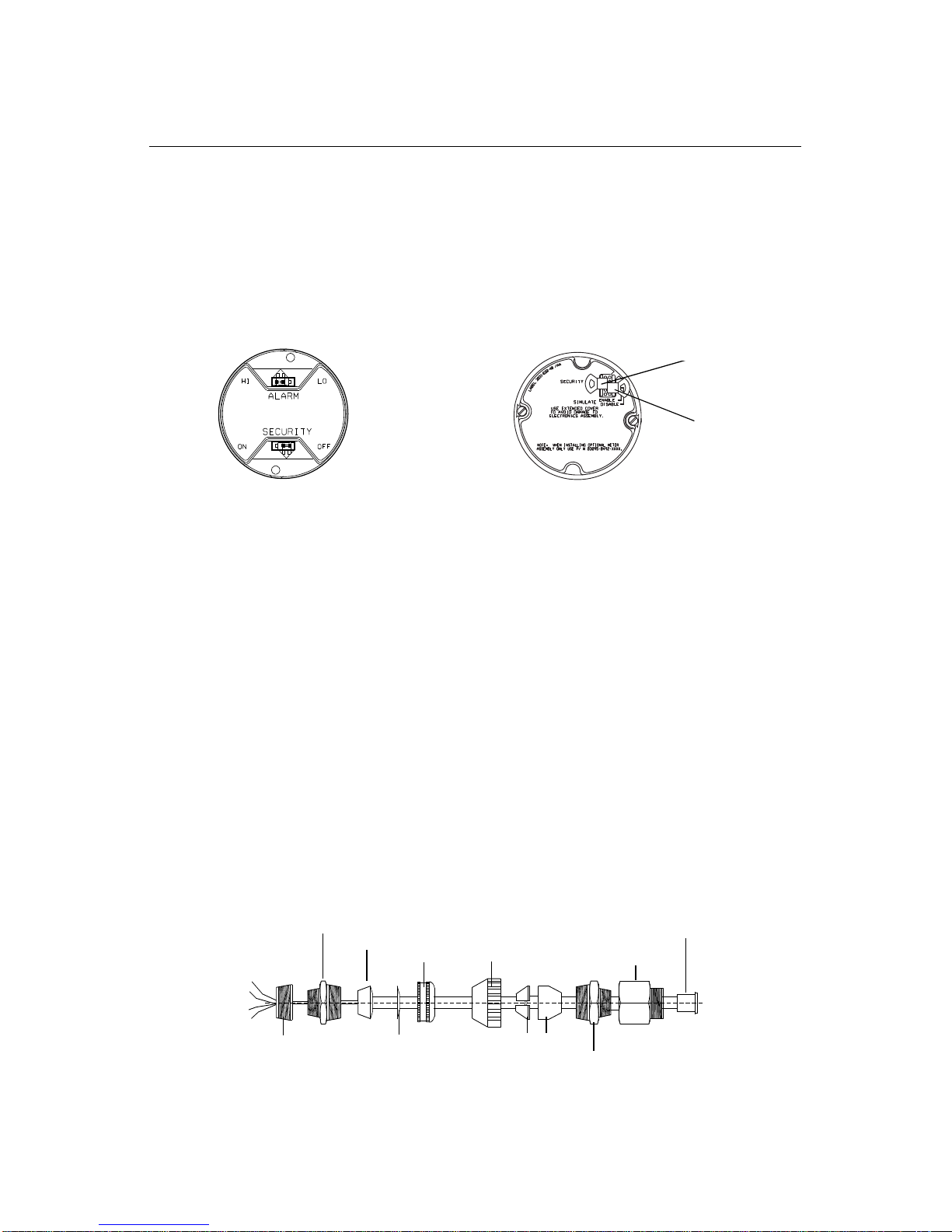

Figure 2. Alarm Jumper Location
4. Set the Simulate Jumper (FOUNDATION fieldbus devices), which is located on the front of
the electronics board inside the electronics housing cover. The jumper is used to
simulate the measurement and is used as a lock-out feature for the AI function block. To
enable the simulate feature, insert the jumper across ENABLE while the transmitter is
powered. The default position for the Simulate Jumper is DISABLE. Enable the simulate
feature after power is applied to the device. Simulate is automatically disabled
regardless of jumper position if power is cycled.
5. Connect the transmitter to the process.
6. Install the RTD Cable Assembly (optional). All RTD 3095 Cable Assemblies use the
3095 RTD Cable Connector. Identify the cable type being installed and follow the steps
below.
• Installing an Armored Shielded RTD Cable (See Figure 3)
a.Fully engage the black cable connector to the 3095 RTD connector.
b.Tighten the cable adapter until metal contacts metal.
c.Install the compression fitting.
d.Tighten the cap onto the compression fitting.
Figure 3. Armored Shielded RTD Cable
HART Electronics Board FOUNDATION fieldbus Electronics Board
Simulate Jumper
Security Jumper
Washer
Cap
Black Cable Connector
RTD Cap
Conductive Bushing
Connect
to RTD
Compression Fitting
Compression Fitting
Cable Adapter
3/4to 1/2-14 NPT Adapter Bushing

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
7
STEP 2 CONTINUED...
• Installing a Shielded 3095 RTD Cable (See Figure 4)
Note: Shielded cable is intended for use in a conduit.
a.Fully engage the black cable connector to the 3095 RTD Connector.
b.Tighten the cable adapter until metal contacts metal.
Figure 4. Shielded RTD Cable
• Installing a ATEX/IECEx Flameproof 3095 RTD Cable (See Figure 5)
a.Fully engage the black cable connector to the 3095 RTD Connector.
b.Tighten the cable adapter and cable gland until metal contacts metal.
Figure 5. ATEX/IECEx Flameproof RTD Cable
7. Check all process connections for leaks.
8. Connect the appropriate wiring (see Step 5). Ground the transmitter according to
national and local electrical codes. Install field wiring grounding (optional).
Cable Adapter 1/2–14 NPT
Black Cable Connector
Black Cable Connector/ RTD Connector
Cable Adapter
Cable Gland
RTD Cable Gland CM20

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
8
STEP 2 CONTINUED...
Bolting Considerations
If the transmitter installation requires assembly of the process flanges, manifolds, or flange
adapters, follow these assembly guidelines to ensure a tight seal for optimal performance
characteristics of the transmitters. Use only bolts supplied with the transmitter or sold by
Emerson as spare parts. Figure 6 illustrates common transmitter assemblies with the bolt
length required for proper transmitter assembly.

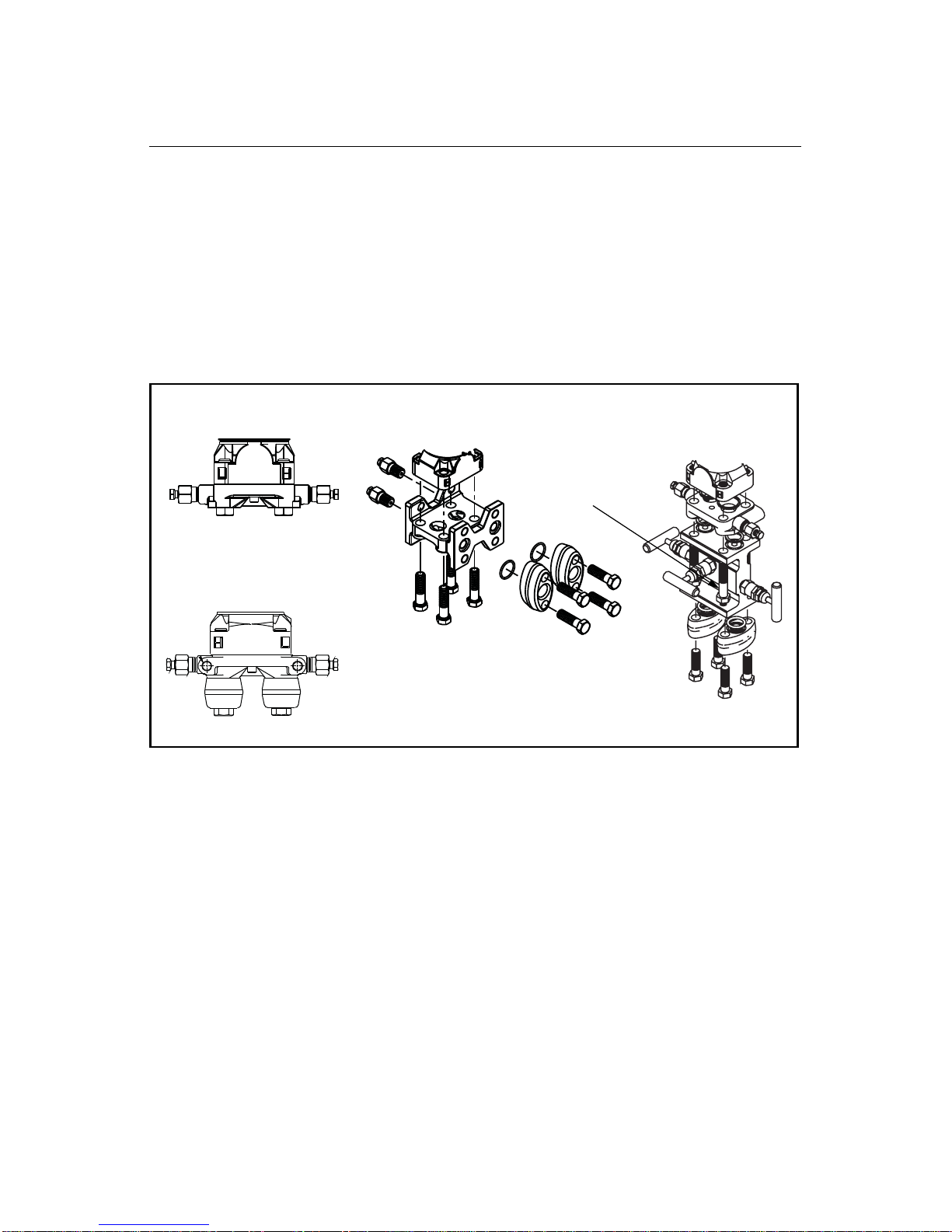

Figure 6. Common Transmitter Assemblies
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the
markings on the head of the bolt and referencing Figure 7. If bolt material is not shown in
Figure 7, contact the local Emerson Process Management representative for more
information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication and the stainless steel bolts are coated with
a lubricant to ease installation. However, no additional lubricant should be applied when
installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern. See Figure 7 for initial
torque value.
4. Torque the bolts to the final torque value using the same crossing pattern. See Figure 7
for final torque value.
5. Verify that the flange bolts are protruding through the isolator plate before applying
pressure.
4 x 1.75-in. (44 mm)
4 x 2.88-in. (73 mm)
A. Transmitter with
Coplanar Flange
B. Transmitter with Coplanar
Flange and Optional
Flange Adapters
C. Transmitter with Traditional
Flange and Optional Flange
Adapters
D. Transmitter with
Coplanar Flange and
Optional Manifold and
Flange Adapters
4 x 1.75-in. (44 mm) 4 x 1.50-in. (38 mm)
4 x 1.75-in. (44 mm)
4 x 2.25-in. (57 mm)

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
9
STEP 2 CONTINUED...

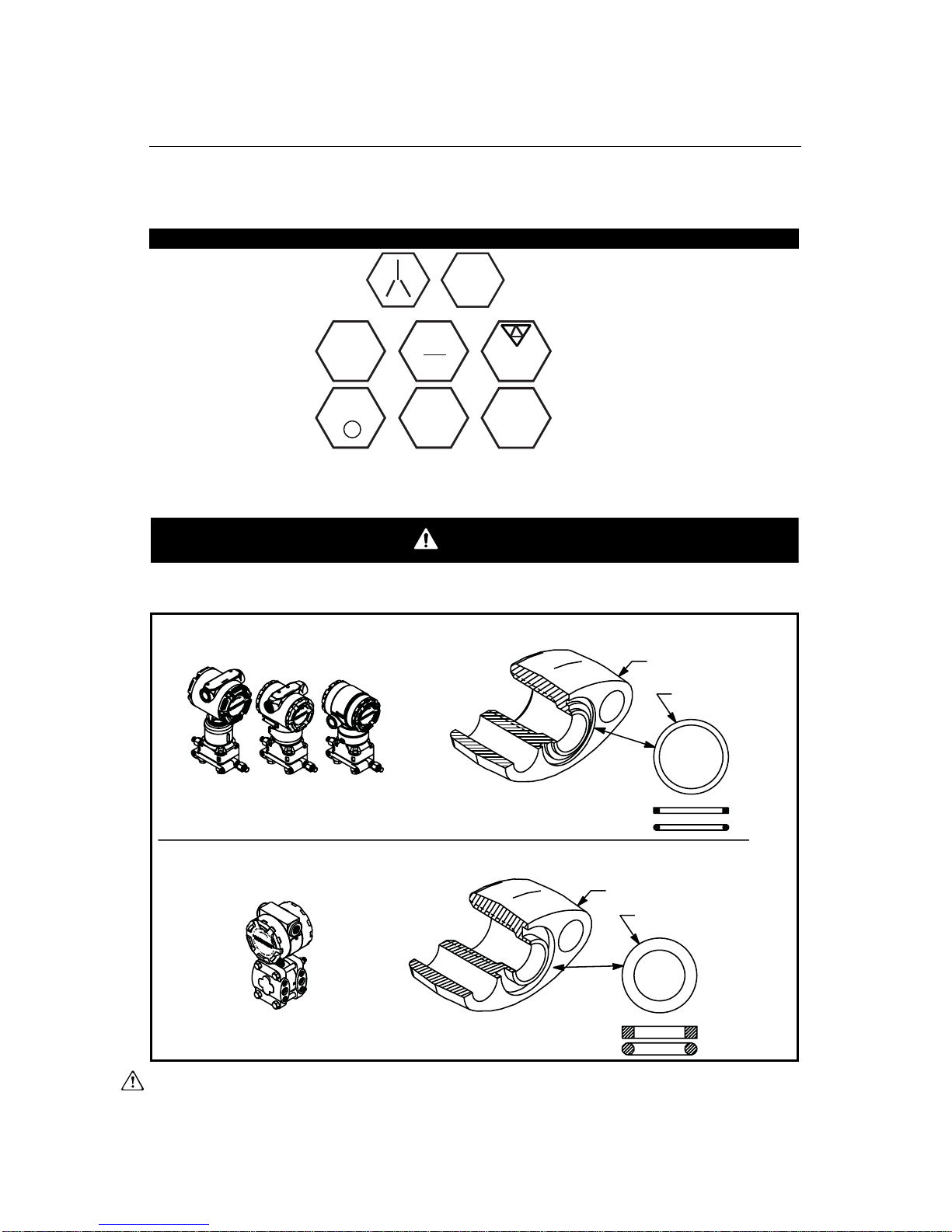

Figure 7. Torque values for the flange and flange adapter bolts
O-rings with Flange Adapters
WARNING
Whenever the flanges or adapters are removed, visually inspect the o-rings. Replace them if
there are any signs of damage, such as nicks or cuts. If the o-rings are replaced, re-torque
the flange bolts and alignment screws after installation to compensate for seating of the
PTFE o-ring.
Bolt Material Head Markings Initial Torque Final Torque
Carbon Steel (CS) 300 in.-lbs. 650 in.-lbs.
Stainless Steel (SST) 150 in.-lbs. 300 in.-lbs.
Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or
serious injury. The two flange adapters are distinguished by unique O-ring grooves. Only use the O-ring
that is designed for its specific flange adapter, as shown below.
B7M
316
316
316
SW
316
STM
316
R
B8M
Rosemount 3051S / 3051 / 2051 / 3095
Rosemount 1151
Flange Adapter
O-ring
Flange Adapter
O-ring
PTFE Based
Elastomer
PTFE
Elastomer

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
10
STEP 3: SOFTWARE INSTALLATION
The 3095 Engineering Assistant (EA) for HART and 3095 Engineering Assistant (EA) for
FOUNDATION Fieldbus software programs can be installed on the same computer. The
applications cannot be open simultaneously.
3095 Engineering Assistant (EA) for HART Software Installation
1. Install the Program
a.Place the CD-ROM in the drive and run setup.exe from Windows NT, 2000, or XP.
b.After installing the software, install the HART Modem (see “Installing the HART
Modem” on page 11).
2. Upgrade the previous versions of Engineering Assistant program (if required)
a.Place the CD-ROM disk 2 into the drive and run the EAUpgrade.exe from Windows
98, NT, 2000, or XP. To properly install, the program will first uninstall Engineering
Assistant from the computer. (Upgrades also are available at www.rosemount.com.)
b.Remove the installation disk and reboot the computer to complete installation.
c.To install the upgraded program, run the EAupgrade.exe from Windows 95,98, or
NT again.
3. Connect the computer to the 3095 transmitter.
a.Connect the HART modem cable to the computer using the 9-pin serial or USB
communications port on the computer.
b.Open the cover above the side marked Field Terminals, and connect the
mini-grabbers to the two 3095 terminals marked COMM.
4. Select Engineering Assistant for HART from the program menu.
On-Line Mode: EA communicates directly with the 3095 through AMS.
a.In AMS Explorer view or AMS Connection view, right-mouse click on a 3095 device
tag or icon.
b.Select SNAP-ON/Linked Apps > Engineering Assistant.
Off-Line Mode: Engineering Assistant does not communicate directly with the 3095.
Instead, the EA configuration is sent to a 3095 later when Engineering Assistant is in
on-line mode. In the off-line mode a future device needs to be created in order to launch
Engineering Assistant.
a.In AMS Explorer view or AMS Device Connection view, left click on Plant Database
to the Area folder.
b.Left click on Area to the Unit folder.
c.Left click on Unit to the Equipment Module folder.
d.Left click on Equipment Module to the Control Module folder.
e.right-mouse click on Control Module to the pop-up context menu.
f. Select Add Future Device.
g.Select 3095MV Template and click OK.
h.Right-mouse click on Future device to pop-up context menu.
i. Select SNAP-ON/Linked Apps > Engineering Assistant.

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
11
STEP 3 CONTINUED...
Installing the HART Modem
After installing the 3095 Engineering Assistant, the HART modem configuration window
automatically appears when the 3095 Engineering Assistant is opened. If this window is
canceled, the HART modem may be installed manually with the following procedure.
1. Close AMS. From the Start Menu select Programs > 3095 Engineering Assistant >
AMS Network.
2. Select Add from the AMS Network Configuration window. A “Select AMS Network
Component Type” window will open.
3. Select Hart Modem.
4. Select Install.
5. Step through the Wizard. A prompt will inquire a COMM PORT. A typical default is
“COMM 1”.
6. Select OK. Close out of the AMS Network Configuration window.
7. Re-open the HART Modem Properties. Click on the Connection tab and set the Retry
Count to 5. Click the Advanced tab and check the Multidrop checkbox and set the
Address Range as 0 to 2.
8. The configuration change will activate when 3095 Engineering Assistant is launched.
NOTE
Exit from the program if a Palm Pilot HotSync or any other program is shared with the
COMM PORT.
3095 Engineering Assistant (EA) for FOUNDATION Fieldbus
1. Install the 3095 Engineering Assistant for FOUNDATION Fieldbus Program and
the FOUNDATION fieldbus communication card drivers.
a.Place CD-ROM disk 2 into the drive.
b.Browse and select 3095 Engineering Assistant for FOUNDATION Fieldbus software
application from Windows NT, 2000, or XP
c.Open the ReadMe.txt file and follow the instructions provided.
2. Install the FOUNDATION Fieldbus communication card.
a.Insert either the PCMCIA card or PCI card into the computer, following the
instructions provided with the communications card.
3. Connect the 3095 transmitter to computer and establish communications.
a.Connect the 9-pin communications cable into the FOUNDATION Fieldbus card port
located in the computer.
b.Connect communication wiring to connection ports labeled “D+” and “D-”.
c.Open the transmitter cover on the side marked “Field Terminals” and connect the
communication wires to the two 3095 transmitter terminals labeled “Fieldbus
Wiring”.
4. Select the 3095 Engineering Assistant for FOUNDATION Fieldbus from the program menu
or use the 3095 EA FOUNDATION fieldbus shortcut icon.

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
12
STEP 4: CONNECT WIRING AND POWER UP(HART)
STEP 4: CONNECT WIRING AND POWER UP(HART)
Use the following steps to wire the transmitter:
1. Remove the housing cover on the side marked FIELD TERMINALS.
2. Connect the signal leads to the terminals.
NOTE
Do not connect the powered signal wiring to the test terminals. Power could damage the test
diode in the test connection. Shielded twisted pair cable should be used for best results. Use
24 AWG or larger wire and do not exceed 5,000 feet (1500 meters).
3. Plug and seal unused conduit connections.
4. Install wiring with a drip loop. Arrange the drip loop so the bottom is lower than the
conduit connections and the transmitter housing.
5. Replace the housing cover.

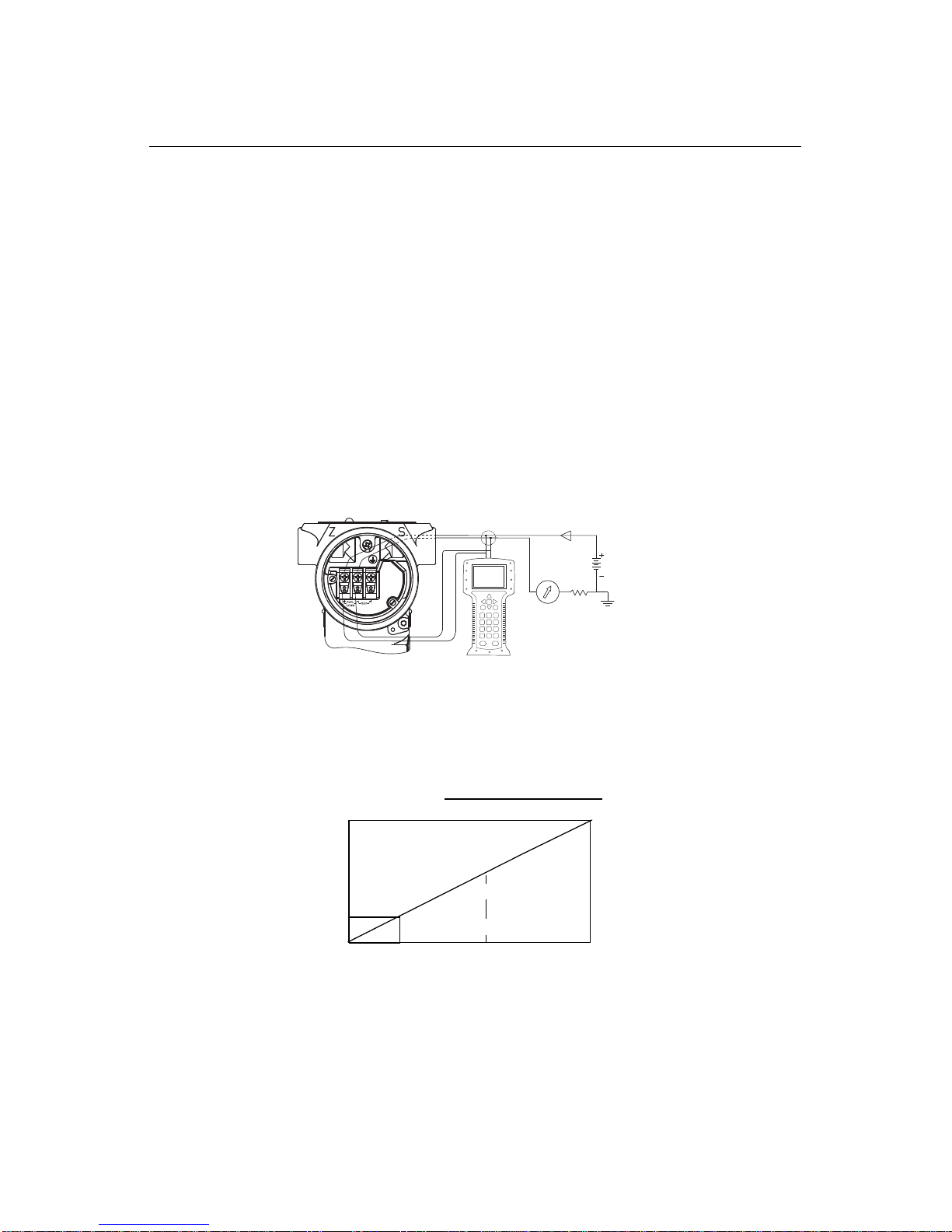

Figure 8 shows wiring connections necessary to power a 3095 and enable communications
with a hand-held HART communicator.
Figure 8. Transmitter Wiring Diagrams (4–20 man Power Supply)
The dc power supply should provide power with less than two percent ripple. The total
resistance load is the sum of the resistance of the signal leads and the load resistance of the
controller, indicator, and related pieces. Note that the resistance of intrinsic safety barriers, if
used, must be included.
Figure 9. Load Limitation
RL250
Current
Meter
24 Vdc Supply
Installation of the transient protection terminal block does not provide
transient protection unless the 3095 case is properly grounded.
Max. Loop Resistance = Power Supply Voltage-11.0
0.022
2000
Load (Ohms)
011.0 42.4(1) 55
Operating
Region
(1) For CSA approval, power supply must not exceed 42.4 Vdc.
(2) HART protocol communication requires a loop resistance value between 250-1100 ohms, inclusive.
Power Supply
250
16.5(2)

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
13
STEP 4: CONNECT WIRING AND POWER UP(FIELDBUS)
Use the following steps to wire the transmitter:
1. Remove the housing cover labeled “Field Terminals.” Terminals are not polarity sensitive.
2. Connect the signal leads to the terminals labeled “Fieldbus Wiring”.
3. Plug and seal unused conduit connections.
4. Install wiring with a drip loop. Arrange the drip loop so the bottom is lower than the
conduit connections and the transmitter housing.
5. Replace the housing cover.
NOTE
Do not attach shield to ground.
Power Supply
To operate and provide complete functionality, the transmitter requires the supply voltage to
be within the ranges shown below.
Power Conditioner
A fieldbus segment requires a power conditioner to isolate the power supply filter and
decouple the segment from other segments attached to the same power supply.
Grounding
Signal wiring of the fieldbus segment can not be grounded. Grounding out one of the signal
wires will shut down the entire fieldbus segment.
Shield Wire Ground
To protect the fieldbus segment from noise, grounding techniques for shield wire usually
requires one and only one grounding point for shield wire to avoid creating a ground loop.
The ground point is typically at the power supply.
Signal Termination
For every fieldbus segment a terminator should be installed at the beginning and at the end
of each segment.
Approval Option Code Supply Voltage
B, D, F, J, K, L, N, 2, 4, 9 9-30 Vdc
A, C, E, G, H, P, R, 0, 3, 5, 7, 8 9-32 Vdc
T, U, V, W, Y, 6 9-17.5 Vdc

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
14
STEP 5: CONFIGURE THE TRANSMITTER (HART)
Setting the Loop to Manual
Set the process application loop to manual when preparing to send or request data that
would disrupt the loop or change the output of the transmitter. A prompt will appear
reminding the user to set the loop to manual when necessary. Acknowledging this prompter
does not set the loop to manual.
Send the Configuration to the Transmitter
Use the following steps to send the configuration to the transmitter. All previous transmitter
information will be overwritten when the information is sent.
1. EA: Select Configure > Configure Flow.
2. Step through the Flow Configuration wizard.
3. Check Send Flow Configuration to update the transmitter’s flow calculation.
4. From the Device Connection window, right click on the transmitter icon, and select
Configuration Properties. On the Basic Setup window, verify the units of measure and
the LRV to URV range (4-20 mA setpoints).
Basic Configuration Parameters
NOTE:
A check (✓) indicates the basic configuration parameters. At minimum, these parameters
should be verified as part of the configuration and startup procedure.
Transmitters are shipped from Emerson Process Management fully calibrated and
configured for the application when C2 Option is ordered. Without C2 Option, configuration
will be by the factory default.
Table 2. HART Communicator Fast Key Sequence
Function/Variable Fast Key Sequence
% rnge 1, 1, 2
% rnge 1, 1, 5, 1, 3
4V is 1, 1, 5, 4, 1
AO Alrm typ 1, 4, 1, 1, 1
AO1 1, 1, 3
AO1 3
AP Damping 1, 4, 2, 5, 2
AP Sens Trim 1, 2, 2, 1, 2
AP Units 1, 3, 2, 2
Absolute (AP) 1, 1, 4, 2
Atm Press Cnfg 1, 4, 2, 3
Burst mode 1, 4, 1, 2, 4, 2
Burst option 1, 4, 1, 2, 4, 1
Change PV Assgn 1, 1, 5, 1, 5
Change SV Assgn 1, 1, 5, 2, 3
Change TV Assgn 1, 1, 5, 3, 3
Change 4V Assgn 1, 1, 5, 4, 3
D/A trim 1, 2, 2, 2, 1
DP Low Flow Cutoff 1, 4, 6
DP LRV 4

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
15
DP Sens Trim 1, 2, 2, 1, 1
DP Snsr Range 1, 3, 5, 1
DP URV 5
DP units 1, 3, 2, 1
Date 1, 3, 4, 4
Descriptor 1, 3, 4, 2
Diff pres damp 1, 4, 2, 4
Diff pres 1, 1, 1
Diff pres 2
Fld dev rev 1, 3, 4, 9, 2
Flo rate 1, 1, 4, 5
Flow Rate Special Units 1, 4, 5, 1
✓Flow Units 1, 3, 2, 5
GP Damping 1, 4, 2, 5, 4
GP Sens Trim 1, 2, 2, 1, 3
GP Units 1, 3, 2, 4
Gage (GP) 1, 1, 4, 4
Hardware rev 1, 3, 4, 9, 4
LCD Settings 1, 4, 3
Loop test 1, 2, 1, 1
Message 1, 3, 4, 3
Num req preams 1, 4, 1, 2, 2
Num resp preams 1, 4, 1, 2, 3
PV is 1, 1, 5, 1, 1
Poll addr 1, 4, 1, 2, 1
Process temp unit 1, 3, 2, 3
Process temp 1, 1, 4, 3
RS type 1, 3, 5, 10
✓RTD Config 1, 4, 2, 2
✓Range values 1, 3, 3
Reset 1, 2, 1, 3
SP Snsr Range 1, 3, 5, 2
SP Type 1, 3, 5, 3
SV is 1, 1, 5, 2, 1
Scaled D/A trim 1, 2, 2, 2, 2
Status group 1 1, 6
Totalizer 1, 4, 4
Totalizer Special Units 1, 4, 5, 2
TV is 1, 1, 5, 3, 1
✓Tag 1, 3, 1
Temp Sens Trim 1, 2, 2, 1, 4
Temp damp 1, 4, 2, 5, 3
Universal rev 1, 3, 4, 9, 1
View status 1, 2, 1, 2
Write protect 1, 3, 4, 8
Xmtr Var Slot Assn 1, 4, 1, 2, 4, 3
Function/Variable Fast Key Sequence

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
16
STEP 5: CONFIGURE THE TRANSMITTER (FIELDBUS)
Each FOUNDATION fieldbus host or configuration tool has a different way of displaying and
performing configurations. Some use Device Descriptions (DD) or DD methods for
configuration and to display data consistently across platforms. There is no requirement that
a host or configuration tool support these features.
Use the following block examples to do basic configuration to the transmitter. For more
advanced configurations including configuring the 3095 Mass Flow transducer block, see
the 3095 Manual (00809-0100-4716).
NOTE
DeltaV users should use DeltaV Explorer for the Resource and Transducer blocks and
Control Studio for the Function Blocks.
Send the Configuration to the Transmitter
Use the following steps to create and send the mass flow configuration to the Mass Flow
Transducer Block.
NOTE
All previous Mass Flow transducer block information will be overwritten when the
configuration is sent.
1. Open the 3095 Engineering Assistant for FOUNDATION fieldbus.
2. Select scan to scan the FOUNDATION fieldbus segment and select the device requiring
the new or updated mass flow configuration file.
3. Select the EA Wizard.
4. Step through the Flow Configuration Wizard to create a mass flow configuration file.
5. Save the new or updated mass flow configuration file. Files must be saved for future
review or update. Files cannot be uploaded from the Mass Flow Transducer Block.
6. Select send to send the mass flow configuration file to the selected transmitter Mass
Flow Transducer Block.
To configure the AI Block
AI Block configuration parameters
Parameters Enter Data
Channel 1 = Pressure
2 = Static Pressure
3 = Process Temperature
4 = Device Temperature
5 = Mass Flow
L_Type Direct, Indirect, or Square Root
XD_Scale Scale and Engineering Units
(Note: Only select the units that are supported by the device.)
Pressure:
Pa bar inH20 @ 68°F psi inHg @ 0°C
kPa mbar mmH20 @ 68°F g/cm2 mmHg @ 0°C
mPa atm ftH20 @ 68°F kg/cm2 mmH20 @ 4°C
torr inH20 @ 4°C
Temperature:
°C °F K
Mass Flow Rate:
lbm/sec lbm/min lbm/hr lbm/day kg/sec
kg/min kg/hour g/sec g/min g/hr
StdCuFt/sec StdCuFt/min
StdCuFt/hr StdCuFt/day StdCuM/sec
StdCuM/min StdCuM/hr StdCuM/day
Out_Scale Scale and Engineering Units

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
17
STEP 6: TRIM THE TRANSMITTER
NOTE
Transmitters are shipped from Emerson Process Management fully calibrated and
configured for the application when C2 Option is ordered. Without C2 Option, configuration
will be by the factory default (span = upper range limit for FOUNDATION fieldbus transmitters).
Zero Trim
A zero trim is a single-point adjustment used for compensating mounting position effects
and line pressure effects. When performing a zero trim, ensure the low side block valve is
closed, the equalize valve is open, the high side block valve is open, and all wet legs are
filled to the correct level.
Using the Field Communicator
1. Equalize the transmitter and connect Field communicator.
2. At the menu, input the Fast Key sequence.
3. Follow the commands to perform a zero trim.
4. Once the zero trim is complete, verify that the high side block valve is open, close the
equalize valve tightly, then open the low side block valve.
Using the Foundation Fieldbus AI Block
For zero errors greater than the allowable zero trim, compensate for the offset by using the
XD_Scaling, Out_Scaling and Indirect L_Type.
Using the Foundation Fieldbus Host System
Perform a Zero Trim method if the host system supports methods associated with the
TRANSDUCER 1400 block. Otherwise, if the host system does not support methods see
the 3095 Manual (00809-0100-4716).
NOTE
For Absolute Pressure (AP) Sensor: If open to atmosphere, reading should be at
atmospheric pressure (roughly 12 - 15 psi (0.8 - 1.0 bar), not zero. Use a barometer that is
four times as accurate as the 3095 AP sensor.
Fast Keys Steps
1, 2, 2, 1, 1 Trim DP Offset (Zero)
1, 2, 2, 1, 2 Trim SP Offset (Zero), (AP, GP)

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
18
PRODUCT CERTIFICATIONS
Rosemount 3095 with HART
Approved Manufacturing Locations
Rosemount Inc. — Chanhassen, Minnesota USA
Emerson Process Management GmbH & Co. — Wessling, Germany
Emerson Process Management Asia Pacific Private Limited — Singapore
Beijing Rosemount Far East Instrument Co., Limited – Beijing, China
European Directive Information
The EC declaration of conformity for all applicable European directives for this product can
be found on the Rosemount website at www.rosemount.com. A hard copy may be obtained
by contacting our local sales office.
ATEX Directive (94/9/EC)
Emerson Process Management complies with the ATEX Directive.
European Pressure Equipment Directive (PED) (97/23/EC)
3095F_2/3,4/D and 3095M_2/3,4/D Flow Transmitters
— QS Certificate of Assessment - EC No. PED-H-100 Module H Conformity
Assessment
All other 3095_ Transmitters/Level Controller
— Sound Engineering Practice
Transmitter Attachments: Process Flange - Manifold
— Sound Engineering Practice
Electro Magnetic Compatibility (EMC) (2004/108/EC)
3095 Flow Transmitters — EN 61326-1:1997 – A1, A2, and A3
Ordinary Location Certification for Factory Mutual
As standard, the transmitter has been examined and tested to determine that the design
meets basic electrical, mechanical, and fire protection requirements by FM, a nationally
recognized testing laboratory (NRTL) as accredited by the Federal Occupational Safety and
Health Administration (OSHA).
Rosemount 3095 HART Hazardous Locations Certifications
North American Certifications
FM Approvals
AExplosion Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition Proof for Class
II/Class III, Division 1, Groups E, F, and G. Enclosure Type 4X. Factory Sealed. Provides
nonincendive RTD connections for Class I, Division 2, Groups A, B, C, and D.
JIntrinsically Safe for use in Class I, II and III, Division 1, Groups A, B, C, D, E, F, and G
hazardous outdoor locations. Non-incendive for Class I, Division 2, Groups A, B, C, and
D. Temperature Code T4. Factory Sealed.
For input parameters and installation see control drawing 03095-1020.

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009 Rosemount 3095 MultiVariable
19
Canadian Standards Association (CSA)
CExplosion Proof for Class I, Division 1, Groups B, C, and D. Dust-Ignition Proof for Class
II/Class III, Division 1, Groups E, F, and G. CSA enclosure Type 4X suitable for indoor
and outdoor hazardous locations. Provides nonincendive RTD connection for Class I,
Division 2, Groups A, B, C, and D.Factory Sealed. Install in accordance with Rosemount
Drawing 03095-1024. Approved for Class I, Division 2, Groups A, B, C, and D.
KIntrinsically Safe for Class I, Division 1, Groups A, B, C, and D. when installed in
accordance with Rosemount drawing 03095-1021. Temperature Code T3C.
For input parameters and installation see control drawing 03095-1021.
European Certifications
FATEX Intrinsic Safety
Certificate Number: BAS98ATEX1359X II 1 G
Ex ia IIC T5 (Tamb = –45 °C to 40 °C)
Ex ia IIC T4 (Tamb = –45 °C to 70 °C)
1180
Special Conditions for Safe Use
The 3095, when fitted with the transient terminal block (order code B), are not capable
of withstanding the 500 volts insulation test required by EN 60079-11, Clause 6.3.12.
This condition must be accounted for during installation.
Table 3. Connection Parameters (Power/Signal Terminals)
Ui= 30V
Ii= 200 mA
Pi= 1.0 W
Ci= 0.012 µF
Li= 0
Table 4. Temperature Sensor Connection Parameters
Uo= 30V
Io= 19 mA
Po= 140 mW
Ci= 0.002 µF
Li= 0
Table 5. Connection Parameters for Temperature Sensor Terminals
Co= 0.066 ␮F Gas Group IIC
Co= 0.560 ␮FGas Group IIB
Co= 1.82 ␮F Gas Group IIA
Lo= 96 mH Gas Group IIC
Lo= 365 mH Gas Group IIB
Lo= 696 mH Gas Group IIA
Lo/Ro= 247 ␮H/ohm Gas Group IIC
Lo/Ro= 633 ␮H/ohm Gas Group IIB
Lo/Ro= 633 ␮H/ohm Gas Group IIA

Quick Installation Guide
00825-0100-4716, Rev DA
October 2009
Rosemount 3095 MultiVariable
20
GATEX Type n
Certificate Number: BAS98ATEX3360X II 3 G
Ex nL IIC T5 (Tamb = –45 °C to 40 °C)
Ex nL IIC T4 (Tamb = –45 °C to 70 °C)
Ui= 55V
The apparatus is designed for connection to a remote temperature sensor such as a
resistance temperature detection (RTD)
Special Conditions for Safe Use
The 3095, when fitted with the transient terminal block (order code B), are not capable
of withstanding the 500 volts insulation test required by EN60079-15 Clause 6.8.1. This
condition must be accounted for during installation.
HATEX Flameproof
Certificate Number: KEMA02ATEX2320X II 1/2 G
Ex d IIC T5 (-50°C Tamb 80°C)
T6 (-50°C Tamb 65°C)
1180
Special Conditions for Safe Use (x):
The device contains a thin wall diaphragm. Installation, maintenance, and use shall take
into account the environmental conditions to which the diaphragm will be subjected. The
manufacturer’s instructions for installation and maintenance shall be followed in detail to
assure safety during its expected lifetime.
PATEX Dust
Certificate Number: KEMA02ATEX2321 II 1 D
Ex tD A20 T 90°C(-40°C Tamb 80°C)
V = 55 Vdc MAX
I = 23 mA MAX
IP66
1180
IECEx Certifications (HART)
4IECEx Intrinsic Safety
Certificate Number: IECEx BAS06.0070X
Ex ia IIC T4 (-45°C Ta 70°C)
Ex ia IIC T5 (-45°C Ta 40°C)
Table 6. Input Parameters
HART I.S.
Ui= 30Vdc
Ii= 200 mAdc
Pi= 1.0 W
Ci= 12 nF
Li= 0
