IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS, WARNINGS on the inside back cover.
C5.3
www.rosscontrols.com
Online Version
02/19/20
# Voltage: W=24 VDC; Z=100-110/50, 100-130/60 VAC/Hz, e.g., W6577A2902Z. For other voltages, consult ROSS.
## Voltage: Z=100-110/50, 100-130/60 VAC/Hz.
*Sub-bases and manifold bases ordered separately, refer to page C5.14-C5.18.
** Valve Response Time – Response Time (msec) = M + (F • V). This is the average time required to fill a volume V (cubic inches) to 90% of supply
pressure or to exhaust it to 10% of supply pressure. M and F values are shown above.
ANSI

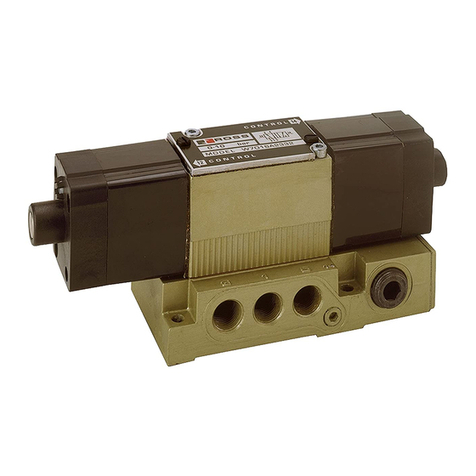

W70 Series
Direct Solenoid Controlled Valves
3.12 (79)
2.25 (57) 2.88 (73)
1.97 (50)
3.94 (100)
2.60 (66) 3.41 (87)
2.63 (67)
10.0 (254)
3.5 (88)
ANSI Size 1
ANSI Size 2.5
ANSI Size 4
5
42
14
5-Way 2-Position Valves, Single Direct Solenoid, Spring Return
ANSI
Size Port Size Valve Model
Number*
Avg.
CV
Average Response Constants** Weight lb
(kg)
MF
In-Out Out-Exh.
1 1/4 - 3/8 W7016B2331W#1.0 20 3.5 4.9 3.5 (1.6)
2.5 3/8 - 1/2 W7016A3331Z## 2.5 17 1.6 2.7 3.3 (1.5)
4 3/8 - 3/4 W7016C4331Z## 4.2 – – – 4.3 (1.9)
1
53
42
14 12
5-Way 2-Position Valves, Double Direct Solenoid, Detented
ANSI
Size Port Size Valve Model
Number*
Avg.
CV
Average Response Constants** Weight lb
(kg)
MF
In-Out Out-Exh.
1 1/4 - 3/8 W7016B2332W#1.0 20 3.5 4.9 3.5 (1.6)
2.5 3/8 - 1/2 W7016A3332Z## 2.5 10 1.3 1.8 3.3 (1.5)
4 3/8 - 3/4 W7016C4332Z## 4.2 – – – 4.3 (1.9)
5-Way 3-Position Valves, Double Direct Solenoid
ANSI
Size Port Size
Valve Model Number#* Avg.
CV
Average Response Constants** Weight
lb (kg)
Power Center Closed Center Open Center M F
In-Out Out-Exh.
1 1/8 - 3/8 W7017B2905WW7017B2331WW7017B2332W1.0 20 3.5 4.9 4.5 (2.0)
2.5 3/8 - 1/2 – W7017A3331WW7017A3332W1.9 10 1.3 1.8 5.0 (2.3)
4 1/2 - 3/4 – W7017C4331WW7017C4332W3.8 – – – 5.8 (2.6)
Closed Center Open CenterPower Center
2
4
12
14
2
4
12
14
42
14 12
Double SolenoidSingle Solenoid
9.30 (236)
3.12 (79)
2.25 (57) 2.88 (73)
1.97 (50)
10.75 (273)
3.94 (100)
2.60 (66) 3.41 (87)
2.63 (67)
13.20 (335)
2.80 (70)
3.5 (88)
Double SolenoidSingle Solenoid
Double Solenoid
Single Solenoid
Options: Indicator Light (in Base/Manifold), refer to page C5.17-C5.18. Accessories ordered separately, refer to page C5.19.
C5
Valve Dimensions – inches (mm)
STANDARD SPECIFICATIONS (for valves on this page):
Construction Design Spool and Sleeve
Mounting Type Base
Solenoids Rated for continuous duty. AC power; DC for ANSI size 1 models only.
Voltage 24 volts DC; 110-120 volts AC, 50/60 Hz
Power Consumption
(each solenoid)
20 watts on DC;
ANSI Size 1: 140 VA inrush, 30 VA holding on 50 or 60 Hz
ANSI Size 2.5 & 4: 380 VA inrush, 79 VA holding on 50 or 60 Hz
Temperature Ambient: 40° to 120°F (4 to 50°C)
Temperature Media: 40° to 175°F (4° to 80°C)
For other temperature ranges, consult ROSS.
Flow Media Filtered air
Operating Pressure Vacuum to 150 psig (10 bar)
Construction Material
Valve Body: Cast Aluminum
Spool: Stainless Steel
Seals: Buna-N
Manual Override Flush; Rubber, non-locking
C
