RS PRO 3101 User manual

User Manual
RS PRO 3101
stock number: 254-3501
VIBRATION METER
UNIT
A
M R SET
REC MAX
MIN
0
24 6 8
10
Datalogger
rspro.com

rspro.com
CONTENTS
Title Page
1. SAFETY INFORMATION .....................................................1
2. INTRODUCTION FEATURES..............................................2
3. SPECIFICATIONS................................................................3
4. PARTS & CONTROLS.........................................................8
4-1 Description of Parts & Control Keys................................8
4-2 Description of Display...................................................14
5. PREPARATIONS ...............................................................17

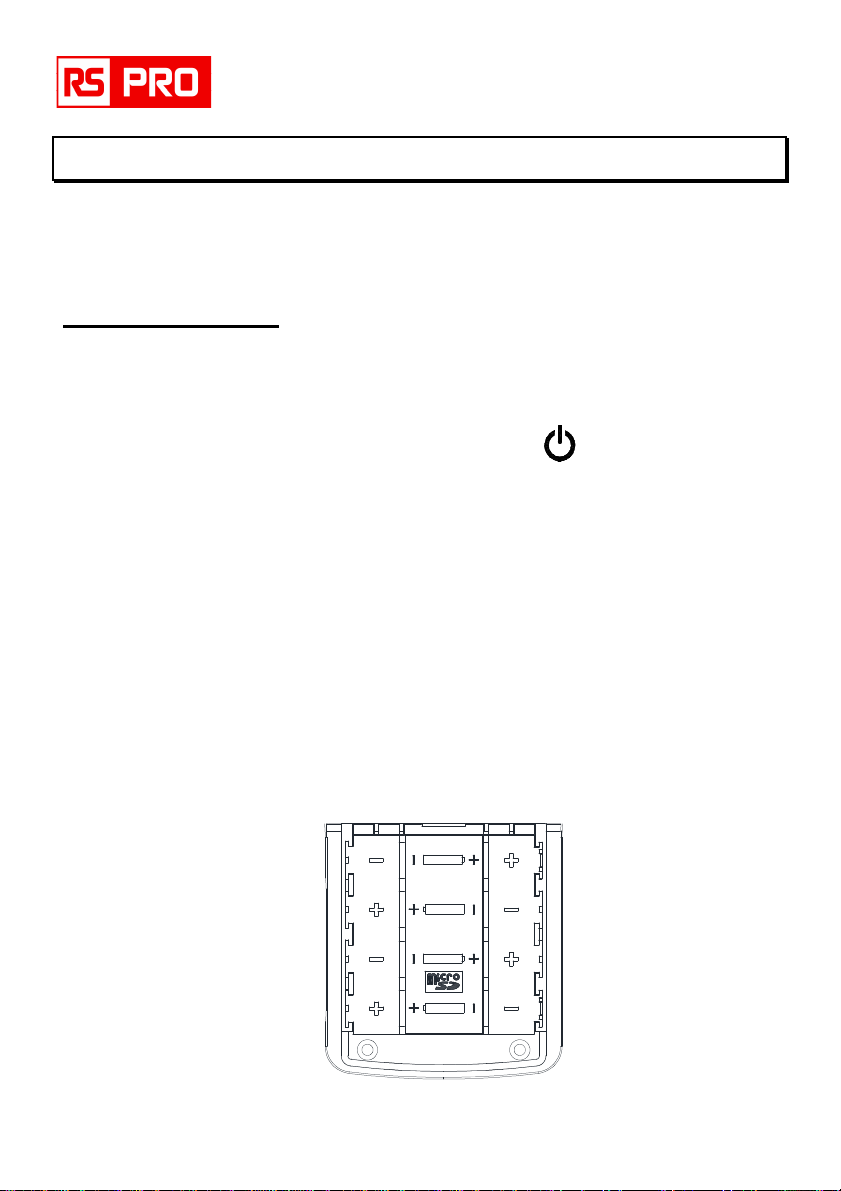

5-1 Power Supply................................................................17
5-2 Cable and Accelerometer Connection ..........................19
5-3 Accelerometer Mounting...............................................20
6. SETUP................................................................................25
6-1 Setting the Real-Time ...................................................25
6-2 Enable the Auto Power off function...............................25
6-3 Setting the Accelerometer Sensitivity............................26
7. VIBRATION MEASUREMENT...........................................28
7-1 Vibration Measurement.................................................28
7-2 Manual Data Memory and Read...................................29
7-3 Maximum & Minimum Recording Measurement...........30
7-4 Calibration.....................................................................31
7-5 Auto Datalogging...........................................................32
7-6 Auto-Cycle Timer Datalogging ......................................33
7-7 No-Cycle Timer Datalogging.........................................34
8. RTC BUTTON CELL BATTERY REPLACEMENT............36
9. MAINTENANCE.................................................................36
10. SOFTWARE INSTALLATION AND OPERATION ...........36

rspro.com 1
1. SAFETY INFORMATION
To prevent bodily injury or damage to the meter, the following
cautions must be observed.
CAUTION
Do not place the meter on an unstable place (shaky table or
sloping place).
If the meter falls down, it is very dangerous.
Do not use and storage the place which moisture or dust,
and where air with high salt or sulphur content, or other
gase or chemicals. It causes fire or shock hazard.
Take care not to drop the meter, and protect if from shocks
and vibrations.
Do not tap the LCD panel with a finger or a pen. It become
the cause of defective display or malfunction.
After using the meter, always turn the meter off and when
the meter is not to be used for a week or longer, remove the
batteries to prevent possible damage caused by battery
leakage.
Please be sure undergo periodic inspection the meter and
the piezoelectric accelerometer 1 or 2 times in an year.
Do not substitute parts or modify the meter.
When powering the meter externally, use only the specified
optional AC adapter ( VA-03 ). Other type of adapter may
cause malfunction or damage to the meter.
When using the meter near rotating machinery, take care
that cables cannot be caught in the machinery.

rspro.com
2
2. INTRODUCTION FEATURES
The meter is designed mainly for routine maintenance and
monitoring of rotational and other industrial machinery.
Acceleration, velocity, and displacement can be easily
measured using a suitable frequency range, allowing
comprehensive and precise evaluation of machine vibrations.
Applications:
Industrial hygiene investigations
Industrial machinery check-ups
Manufacturing QA
Features:
Wide range of measurement applications supported by
selecting different accelerometers
Backup function instantly reactivates previous settings at
next power-on
Maximum/Minimum record function
Manual data memory stores up to 99 data
Auto data memory micro SD CARD (maximum capacity
32GB can be used)
 Headphone output for detecting noise in machine components
※Protected by:
Taiwan: D176325
China: ZL 2015 30418325.7
U.S.A.: US D807,212

rspro.com 3
3. SPECIFICATIONS
Accelerometer Model PA-01 specification
1. Sensor: Voltage output type (built-in preamplifier)
2. Type: CCLD (Constant Current Line Drive)
3. Sensitivity: Listed on supplied calibration chart of PA-01
4. Transverse sensitivity: 5% or less
5. Frequency characteristics: 5Hz to 10kHz (±10%), 10kHz to
15kHz (±3dB)
6. Resonance frequency: 27kHz
7. Amplitude non-linearity: ±1%
8. Acceleration range: 200m/s²
9. Constant current supply: DC24V, 2mA
10. Operating temperature and humidity: -20 to +70℃,
max. 90%RH
11. Storage temperature and humidity: -30 to +80℃,
max. 90%RH
12. Size and weight: 19(D) x 46(H) mm / 46g
Meter specification
Measurement range (with PA-01)
Acceleration (ACC): 0.02 ~ 200m/s² EQ PEAK 1Hz ~ 5kHz
Velocity (VEL): 0.3 ~ 1000mm/s RMS 3Hz ~ 1kHz
0.1 ~ 1000mm/s RMS 10Hz ~ 1kHz
Displacement (DISP): 0.02 ~ 100mm EQ PEAK 3Hz ~ 500Hz
0.001~100mm EQ PEAK 10Hz~500Hz
Upper and lower measurement limit may be further
restricted, depending on accelerometer mounting method.

rspro.com
4
Upper measurement limit for velocity and displacement
measurements is restricted by maximum input
acceleration.
Frequency range
Acceleration (ACC): 3Hz ~ 1kHz, 3Hz ~ 5kHz,
1Hz ~ 100Hz, 3Hz ~ 20kHz
Velocity (VEL): 10Hz ~ 1kHz, 3Hz ~ 1kHz
Displacement (DISP): 10Hz ~ 500Hz, 3Hz ~ 500Hz
The above figures refer to the point where response is
down by 10% from flat response, due to the action of a
high-pass filter or low-pass filter.
For displacement measurements, the 500Hz limit is
disposed by the maximum input acceleration.
The electrical characteristics of 10Hz to 1kHz for velocity
correspond to ISO 2954:2012 (Mechanical vibration of
rotating and reciprocating machinery-Requirements for
instruments for measuring vibration severity).
Measurement range settings
For piezoelectric accelerometer PA-01 and accelerometers
with sensitivity is 1.0 ~ 9.9mV/(m/s²)
Acceleration (ACC): 1, 10, 100, 1000 m/s²
Velocity (VEL): 10, 100, 1000 mm/s
Displacement (DISP): 0.1, 1, 10, 100 mm
For accelerometers with sensitivity is 0.1 ~ 0.99 mV/(m/s²)
Acceleration (ACC): 10, 100, 1000, 10000 m/s²
Velocity (VEL): 100, 1000, 10000 mm/s
Displacement (DISP): 1, 10, 100, 1000 mm

rspro.com 5
For accelerometers sensitivity is 10 ~ 99 mV/(m/s²)
Acceleration (ACC): 0.1, 1, 10, 100 m/s²
Velocity (VEL): 1, 10, 100 mm/s
Displacement (DISP): 0.01, 0.1, 1, 10 mm
Indication characteristics
Acceleration (ACC): EQ PEAK, RMS
Velocity (VEL): RMS, EQ PEAK
Displacement (DISP): EQ PEAK, EQ p-p, RMS
EQ PEAK = RMS x
2
, EQ p-p = EQ PEAK x 2
Time constant of rms processing: 1 second
Manual data memory: Maximum 99 data (01 ~ 99) can be
stored by manually.
Auto data memory: micro SD CARD (Maximum capacity
32GB can be used) or Maximum 99 blocks.
Gain calibration: After setting the accelerometer sensitivity,
calibration is performed to provide proper
gain.
Setting range: 0.10 to 0.99, 1.0 to 9.9, 10 to 99 mV/(m/s²)
Overload indication: “OVER” flashing shown on LCD display
Battery status indication: 4 – segment display
Display accuracy (electrical characteristics)
Acceleration (ACC): Range full-scale ±2% (159.2Hz)
Velocity (VEL): Range full-scale ±3% (159.2Hz)
Displacement (DISP): Range full-scale ±5% (159.2Hz)
Overall accuracy (in combination with PA-01)
Acceleration (ACC): Range full-scale ±5% (159.2Hz)
Velocity (VEL): Range full-scale ±7% (159.2Hz)
Displacement (DISP): Range full-scale ±12% (159.2Hz)

rspro.com
6
Headphone output: Vibration sound monitor
Operating temperature and humidity: -10℃~ +50℃,
max. 90%RH
Storage temperature and humidity: -20℃~ +60℃,
max. 90%RH
Power requirements: Four IEC R6 size AA batteries
(zinc-carbon batteries, alkaline
batteries, or nickel-metal hydride
batteries) or AC adapter (VA-03 for
100 to 240V AC, optional)
Power consumption: Approx. 60mA (6V, backlight off)
Battery life: Continuous use, on room temperature, backlight
off, accelerometer in stable condition.
Zinc-carbon batteries (R6KG): Approx. 8 hours
Alkaline batteries (LR6): Approx. 28 hours
Nickel-metal hydride batteries (HR6): eneloop xx
Approx. 23 hours
Dimensions: 169mm(L) x 78mm(W) x 40mm(H) (maximum)
158mm (L) x 78mm (W) x 40mm (H) (without
protruding parts)
Weight: Approx. 286g (including four batteries, but excluding
accelerometer and curled cable)

rspro.com 7
Supplied accessories: Piezoelectric accelerometer PA-01x1
Accessories for PA-01
Curled cable VA-02 x 1
Magnet attachment VA-01 x 1
IEC R6 batteries zinc-carbon x 4
Instruction manual x 1
PA-01 calibration chart x 1
CD software x 1
Micro-USB cable x 1
Optional accessories: AC adapter VA-03
M5x0.8 screw VA-04
Hex flat attachment VA-05
Rod attachment VA-06

rspro.com
8
4. PARTS & CONTROLS
4-1 Description of Parts & Control Keys
A
M R SET
REC MAX
MIN
0
24 6 8
10
DC 6V
UNIT
VIBRATION METER
Datalogger
1. BNC input connector:
The piezoelectric accelerometer is to be connected here,
using the supplied curled cable. The power supply to drive
the accelerometer (24V, 2mA) is always output from the BNC
input connector.
2. LCD Display:
Shows the measurement value and status information.

rspro.com 9
3. ACC/VEL DISP key:
Press this key to select measurement of acceleration (ACC
m/s²), velocity (VELmm/s) or displacement (DISP mm) mode.
4. READ key:
Press this key to enter or exit the manual data memory
READ mode.
5. MEM key:
Press this key one time to store the one data to memory.
Total memory size is 99 sets.
6. HOLD key:
Press this key to freeze or unfreeze the display reading.
7. key: Press this key to turn the meter on or off.
8. key:
Press this key to turn the backlighting on or off, the backlight
will go off automatically after about 30 seconds.
9. ▲▼ keys:
 In the setting mode, press “▲▼” keys to increase or decrease
the displayed setting.
In the READ mode, press “▲▼” keys to select increase
or decrease the memory address.
In the maximum/minimum record mode, press “▲▼”
keys to select maximum, minimum, or current measured
display indication.
10. MODE key :
Press this key to enter or exit the maximum/minimum
recording mode.

rspro.com
10
11. UNIT/↵key:
UNIT : In themeasurement mode, press “ UNIT ” key to change
the measurement units.
↵: In the setting mode, press ↵key to enter or exit a
setting mode or store the displayed setting.
12. ►key:
In the setting mode, press ►key to move among the
available items.
In the measurement mode, press ►key to cycles through
the following date/time display.
Minute and Seconds ( ) →Year and Month ( ) →
Day and Hour ( )
13. LOCK keys:
Press ►and ▼two keys simultaneous to locks all the front
panel keys except for the “ACC/VEL DISP”, “MEM”, “HOLD”,
and “ ” power keys.
To cancel the locked condition, press ►and ▼two keys
simultaneous again.
14. FREQ RANGE key:
Press this key to select the frequency range for each
measurement mode. Once the setting is made, that setting
will be used every time the measurement made is selected.
The following settings are available.
ACC: 3Hz to 1kHz, 3Hz to 5kHz, 1Hz to 100Hz, 3Hz to
20kHz
VEL: 10Hz to 1kHz, 3Hz to 1kHz
DISP: 10Hz to 500Hz, 3Hz to 500Hz

rspro.com 11
15. PEAK RMS/P-P key:
Press this key to select the display mode for each
measurement mode. Once the setting is made, it will be
used every time the measurement mode is selected. The
following settings are available.
Acceleration (ACC): EQ PEAK, RMS
Velocity (VEL): RMS, EQ PEAK
Displacement (DISP): EQ PEAK, EQ P-P, RMS
The display characteristics settings have the following meaning.
RMS (effective value): The average intensity of the time
waveform signal over a certain period is shown. The value is
calculated as the square root of the mean (average) value of
the squared function of the signal.
EQ PEAK (equivalent peak value): This is the maximum
peak value based on the assumption that the RMS value is
for a sinusoidal wave.
It is calculated as RMS x 2= EQ PEAK
EQ P-P (equivalent peak-to-peak value): This is the
difference between the minimum and the maximum peak
value based on the assumption that the RMS value is for a
sinusoidal wave.
It is calculated as EQ PEAK x 2 = EQ P-P
16. LEVEL RANGE key:
Press this key to select the level range.
The available ranges for the various mode are listed below.
When using an accelerometer with a sensitivity of 1.0 to
9.9 mV/(m/s²).
ACC: 1, 10, 100, 1000 m/s²
VEL: 10, 100, 1000 mm/s
DISP: 0.1, 1, 10, 100 mm

rspro.com
12
When using an accelerometer with a sensitivity of 0.1 to
0.99 mV/(m/s²).
ACC: 10, 100, 1000, 10000 m/s²
VEL: 100, 1000, 10000 mm/s
DISP: 1, 10, 100, 1000 mm
When using an accelerometer with a sensitivity of 10 to
99 mV/(m/s²).
ACC: 0.1, 1, 10, 100 m/s²
VEL: 1, 10, 100 mm/s
DISP: 0.01, 0.1, 1, 10 mm
17. Headphone output: 1/8” Stereo Jack
Listen to vibration source, when you use headphone.
M R SET MAX
MIN
0
24 6 8
10
Vibration source
Headphone
User
18.AC adapter input socket (DC 6V, 1A, )
The optional AC adapter VA-03 can be connected here to
power the meter.
Important
Use only the specified AC adapter. Using a different
adapter may cause malfunction or damage.

rspro.com 13
19. Battery compartment:
Four batteries (IEC R6, size AA) are inserted here.
20. USB socket: micro USB interface

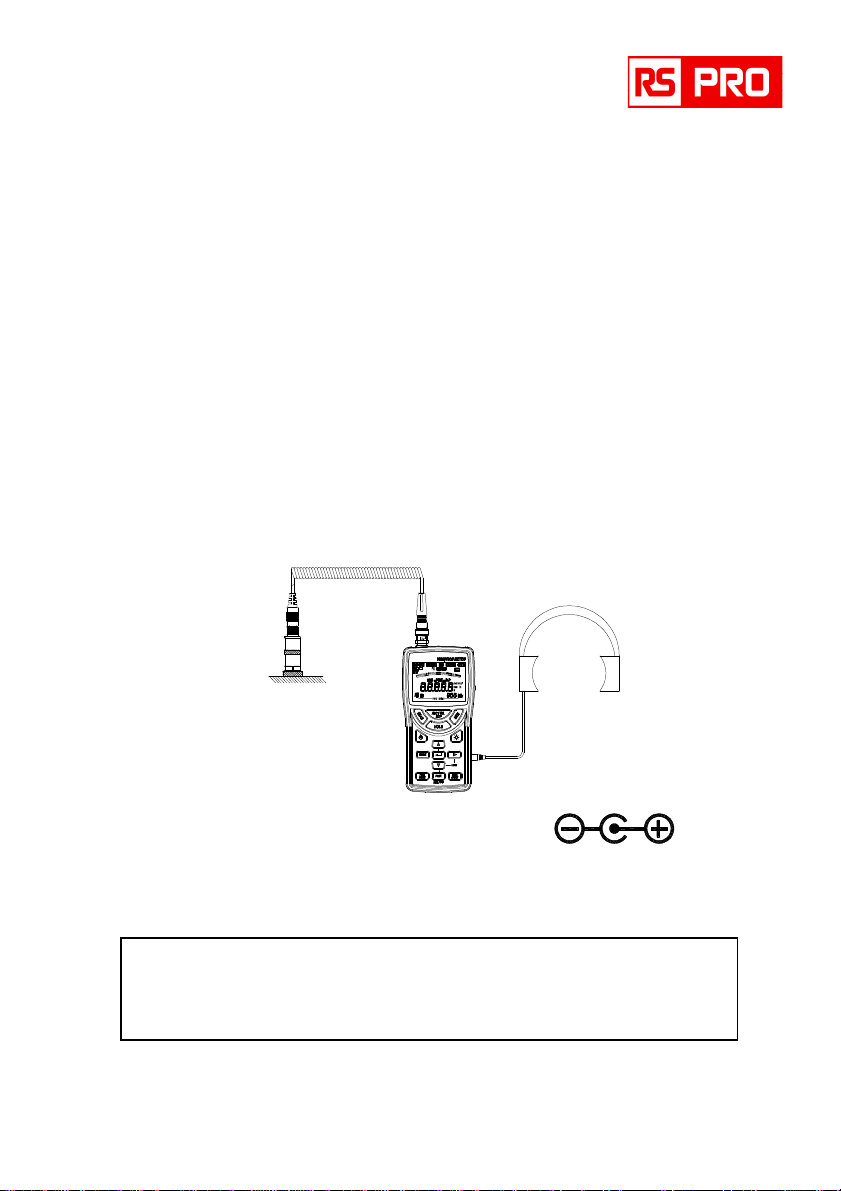

Piezoelectric accelerometer
Curled cable
Piezoelectric accelerometer
PA 01
BNC connector
BNC connector:
Insert this connector into the input connector on the meter.
Piezoelectric accelerometer PA-01:
Detects vibrations and converts then into an electric signal.
The accelerometer must be coupled on the measurement
object using screw mounting or another method.
(
VA
-
02
)

rspro.com
14
4-2 Description of Display
M R SET
REC MAX
MIN
0
24 6 8
10
1. Date/time: Shows the current, memory or recorded year,
month/day, hour/minute, or second.
: Year÷Month
: Day-Hour
: Minute :Second
2. HOLD : Data hold indicator
3. Full-scale value: Shows the full-scale value of the current
range. The maximum value is 10000. The
minimum value is 0.01.
4. : Key lock indicator
5. OVER : OVER indicator
If an overload condition has occurred during
measurement, the indication OVER is flashing
shown on the display.

rspro.com 15
6. : Battery status indicator
Four segment indicator shows the remaining batteries
capacity. When the indication starts to flash, correct
measurement is no longer possible. Replace the
batteries immediately.
7. Data memory:
M: Manual stored measured value to memory indication,
M disappear one time store one data into the memory.
R: Read manual data memory mode indication.
: Manual data memory address number (1 ~ 99).
: Auto data memory and No-cycle timer datalogging
indication.
:Auto-cycle timer datalogging indication.
8. SET : Setting mode indicator.
9. Maximum/Minimum recording indicator:
REC : Record mode and current measured value display
indication.
REC MAX : Maximum measured value display indication.
REC MIN : Minimum measured value display indication.
10. Bar graph display: Displays the present momentary value
with a bar.
The bar displays the value of the
displayed data in intervals of approx.
0.01 seconds.
The scale value which agrees with the
selected range is displayed.

rspro.com
16
11. Display mode:
RMS: True effective value
EQ PEAK: Equivalent peak value (RMSx 2)
EQ P-P: Equivalent peak-to-peak value (EQ PEAK x 2)
(only Displacement)
12. Measurement value: Numeric indication of measurement
value in intervals of approx. 1 second.
13. Measurement mode unit indicator:
m/s² : Acceleration (ACC)
g: Acceleration (ACC)
mm/s : Velocity (VEL)
in/s : Velocity (VEL)
mm : Displacement (DISP)
mils : Displacement (DISP)
mV/m/s² : Accelerometer sensitivity
14. Frequency range indicator:
Left (lower limit) Right (upper limit)
1Hz 100Hz
3Hz 500Hz
10Hz 1kHz
5kHz
20kHz

rspro.com 17
5. PREPARATIONS
The required matter is indicated before beginning measurement.
Always set the power to OFF before inserting batteries and
making any connections.
5-1 Power Supply
The meter can be powered by four IEC R6 (sizeAA) batteries
or by the optionalAC adapter VA-03 (for 100 to 240VAC).
Battery installation:
When the meter is in operation, press key to turn off the
meter.
Insert four IEC R6 (size AA) batteries with correct polarity
as follows.
Make sure that all four batteries are of the same type.
Do not mix different battery types or old and new batteries.
Prevention of battery fluid leakage:
1. When the battery power is low, replace the new battery
in order to avoid thefurther battery fluid leakage possibility.
2. When the meter will not be in use for the long period of
time, please remove the batteries out of meter to
prevent the possibility of battery fluid leakage damage.
AA
AA
AA
AA

rspro.com
18
Selecting the battery type:
Set the battery type used for the meter. The remaining
battery capacity corresponding to the selected battery type
is displayed.
Available settings are Zinc-carbon, Alkaline and Ni-MH
(nickel-metal hydride) battery.
1. Press key to turn on the meter.
2. Press “MODE” key for 3 seconds to enter the setting
mode, the “
SET
” mark is displayed.
3. Press ↵key to enter the selecting battery type mode, the
“ ” mark is flashing displayed.
4. Press ▲or ▼key to select the battery type used for the
meter.
“ ” Zinc-carbon battery
“ ” Alkaline battery
“ ” Ni-MH battery
5. Press ↵key to store the selecting and exit this mode.
6. Press “MODE” key again to exit setting mode.
The battery indicator in the top right corner of the display
shows the remaining battery capacity.
: Full battery capacity.
: Reduced number of segment shows decreasing
capacity.
: Battery low. Should be replaced soon.
: When the indication starts to flash, correct
measurement is no longer possible. Replace
the batteries immediately.
