RS PRO IDS-1000B Series User manual

Instruction Manual
IDS-1000B Series
Digital Storage Oscilloscope
EN FR DE IT SP

Table of Contents
04/12/2017 Version No. 003 1
Table of Contents
SAFETY INSTRUCTIONS ...............................................................3
GETTING STARTED.......................................................................8
IDS-1000B Series Overview ............................................. 10
Appearance..................................................................... 14
Set Up............................................................................. 27
Built-in Help..................................................................... 37
MEASUREMENT.......................................................................... 38
Basic Measurement ......................................................... 40
Automatic Measurement...................................................49
Cursor Measurement........................................................ 65
Math Operation................................................................ 73
CONFIGURATION........................................................................ 85
Acquisition....................................................................... 87
Display............................................................................94
Horizontal View.............................................................. 100
Vertical View (Channel) .................................................. 109
Trigger ...........................................................................117
System Settings and Miscellaneous Settings 140
APPS........................................................................................ 144
Applications................................................................... 145
SAVE/RECALL........................................................................... 155
File Format/Utility .......................................................... 156
Create/Edit Labels ......................................................... 163
Save ............................................................................. 166
Recall............................................................................ 175

IDS-1000B Series Instruction Manual/English
2 04/12/2017 Version No. 003
Reference Waveforms ....................................................182
FILE UTILITIES..........................................................................185
HARDCOPY KEY........................................................................192
REMOTE CONTROL CONFIG .....................................................196
Interface Configuration ...................................................197
MAINTENANCE..........................................................................210
FAQ...........................................................................................216
APPENDIX.................................................................................219
Updating the Firmware ...................................................220
Installing Optional Apps ..................................................222
IDS-1000B Specifications ...............................................225
Probe Specifications.......................................................230
IDS-1000B Dimensions...................................................231
INDEX .......................................................................................233

SAFETY INSTRUCTIONS
04/12/2017 Version No. 003 3
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that you must
follow during operation and storage. Read the following before
any operation to insure your safety and to keep the instrument in
the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the IDS-1000B.
WARNING
Warning: Identifies conditions or practices that could result in
injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that could result in
damage to the IDS-1000B or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal

IDS-1000B Series Instruction Manual/English
4 04/12/2017 Version No. 003
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted municipal
waste. Please use a separate collection facility or contact the
supplier from which this instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Make sure the BNC input voltage does not exceed 300Vrms.
Never connect a hazardous live voltage to the ground side of
the BNC connectors. It might lead to fire and electric shock.
Do not place any heavy object on the IDS-1000B.
Avoid severe impact or rough handling that leads to damaging
the IDS-1000B.
Do not discharge static electricity to the IDS-1000B.
Use only mating connectors, not bare wires, for the terminals.
Do not block the cooling fan opening.
Do not perform measurement at a power source or building
installation site (Note below).
Do not disassemble the IDS-1000B unless you are qualified.
(Measurement categories) EN 61010-1:2010 specifies the measurement
categories and their requirements as follows. The IDS-1000B falls under category
I.
Measurement category IV is for measurement performed at the source of low-

SAFETY INSTRUCTIONS
04/12/2017 Version No. 003 5
voltage installation.
Measurement category III is for measurement performed in the building
installation.
Measurement category II is for measurement performed on the circuits directly
connected to the low voltage installation.
Measurement category I is for measurements performed on circuits not directly
connected to Mains.
Power Supply
WARNING
AC Input voltage: 100 - 240V AC, 50 - 60Hz, auto selection.
Power consumption: 30 Watts.
Connect the protective grounding conductor of the AC power
cord to an earth ground, to avoid electrical shock.
Cleaning the
IDS-1000B
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild detergent and
water. Do not spray any liquid.
Do not use chemicals containing harsh materials such as
benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free, almost non-
conductive pollution (Note below)
Relative Humidity: ≤80%, 40°C or below; ≤45%, 41°C ~ 50°C
Altitude: < 2000m
Temperature: 0°C to 50°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees and their
requirements as follows. The IDS-1000B falls under degree 2.

IDS-1000B Series Instruction Manual/English
6 04/12/2017 Version No. 003
Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized
gases), that may produce a reduction of dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive pollution occurs.
The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution occurs.
Occasionally, however, a temporary conductivity caused by condensation must
be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-conductive
pollution occurs which becomes conductive due to condensation which is
expected. In such conditions, equipment is normally protected against
exposure to direct sunlight, precipitation, and full wind pressure, but neither
temperature nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -10ºC to 60ºC
Humidity: Up to 93% RH (non-condensing) / ≤40ºC, up to 65%
RH (non-condensing) / 41ºC ~ 60 ºC
Disposal
Do not dispose this instrument as unsorted municipal waste.
Please use a separate collection facility or contact the supplier
from which this instrument was purchased. Please make sure
discarded electrical waste is properly recycled to reduce
environmental impact.

SAFETY INSTRUCTIONS
04/12/2017 Version No. 003 7
Power cord for the United Kingdom
When using the oscilloscope in the United Kingdom, make sure the power cord
meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured
marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal
marked with either the letter E, the earth symbol or coloured Green/Green &
Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with
the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the
supplier.
This cable/appliance should be protected by a suitably rated and approved HBC
mains fuse: refer to the rating information on the equipment and/or user instructions
for details. As a guide, a cable of 0.75mm2should be protected by a 3A or 5A fuse.
Larger conductors would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket
is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains
power and remove the cable, any fuses and fuse assemblies. All hazardous wiring
must be immediately destroyed and replaced in accordance to the above standard.

IDS-1000B Series Instruction Manual/English
8 04/12/2017 Version No. 003
GETTING STARTED
This chapter describes the IDS-1000B in a nutshell, including its
main features and front / rear panel introduction. After going
through the overview, follow the Set Up section to properly set up
the oscilloscope for first time use. The Set Up section also
includes a starter on how to use this manual effectively.
IDS-1000B Series Overview..............................................10
Series lineup.................................................................................10
Main Features ..............................................................................11
Accessories..................................................................................12
Appearance .....................................................................14

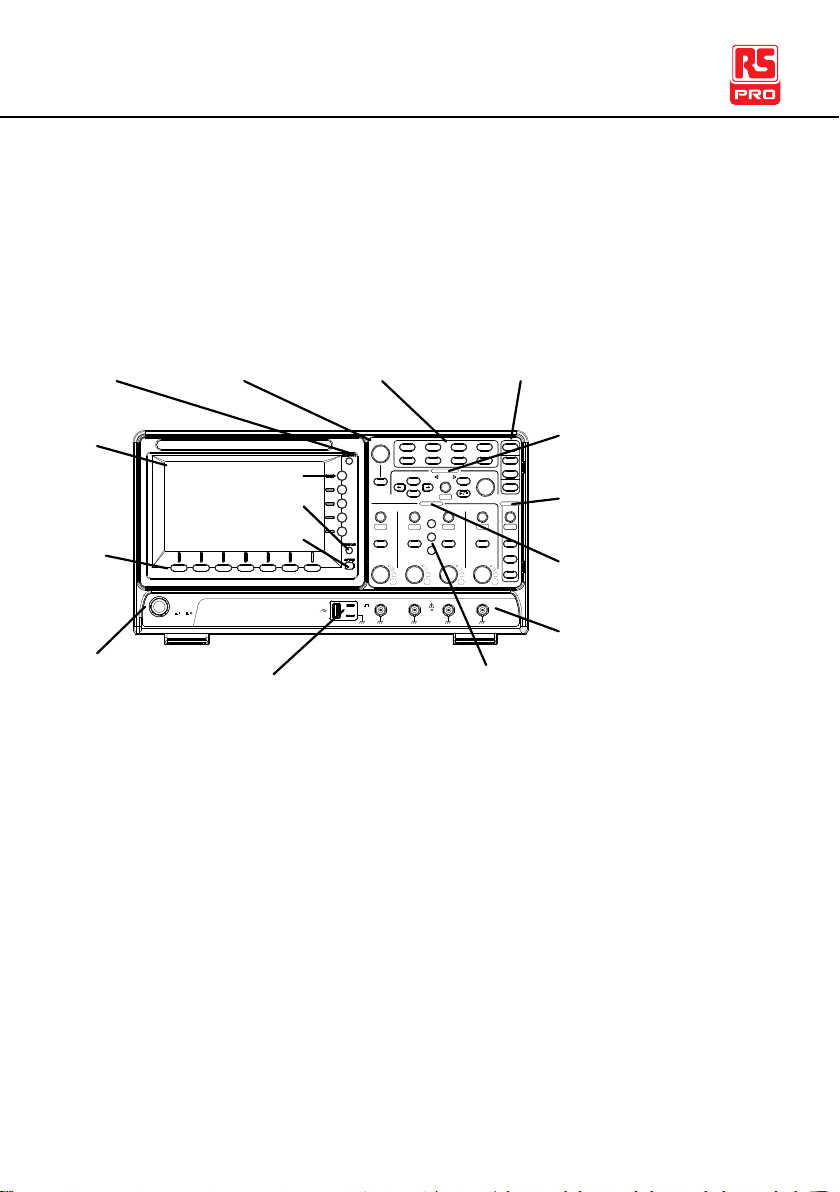

IDS-1074B/1104B Front Panel.....................................................14
IDS-1072B/1102B Front Panel.....................................................15
Rear Panel ...................................................................................22

GETTING STARTED
04/12/2017 Version No. 003 9
Display..........................................................................................24
Set Up............................................................................. 27
Tilt Stand......................................................................................27
Power Up......................................................................................28
First Time Use..............................................................................29
How to Use This Manual..............................................................32

IDS-1000B Series Instruction Manual/English
10 04/12/2017 Version No. 003
IDS-1000B Series Overview
Series lineup
The IDS-1000B series consists of 5 models, divided into 2-channel and 4-channel
versions.
Model name
Frequency
bandwidth
Input channels
Max. Real-time Sampling Rate
IDS-1072B
70MHz
2
1GSa/s
IDS-1102B
100MHz
2
1GSa/s
IDS-1054B
50MHz
4
1GSa/s
IDS-1074B
70MHz
4
1GSa/s
IDS-1104B
100MHz
4
1GSa/s

GETTING STARTED
04/12/2017 Version No. 003 11
Main Features
Features
7 inch, 800 x 480, WVGATFT display.
Available from 50MHz to 100MHz.
Real-time sampling rate of 1GSa/s max.
Deep memory: 10M points record length.
Waveform capture rate of 50,000 waveforms per second.
Vertical sensitivity: 1mV/div~10V/div.
On-screen Help.
32 MB internal flash disk.
Go-NoGo app.
Remote Disk app (4 channel models only).
Interface
USB host port: front panel, for storage devices.
USB device port: rear panel, for remote control or printing (to
PictBridge compatible printers).
Probe compensation output with selectable output frequency
(1kHz ~ 200kHz).
Ethernet port (IDS-1054B, IDS-1074B, IDS-1104B only).
Calibration output.

IDS-1000B Series Instruction Manual/English
12 04/12/2017 Version No. 003
Accessories
Standard Accessories
Part number
Description
N/A region dependent
Power cord
Passive Probe; 100 MHz, x2
for IDS-1072B/ IDS-1102B
GTP-101A-2
Passive Probe; 100 MHz, x4
for IDS-1054B/ IDS-1074/
IDS-1104B
Optional Accessories
Part number
Description
GTC-001
Instrument cart, 470(W)x430(D)mm (U.S. type input
socket)
GTC-002
Instrument cart, 330(W)x430(D)mm (U.S. type input
socket)
GTL-110
Test lead, BNC to BNC heads
GTL-242
USB cable, USB2.0A-B type cable 4P
GTP-101A-2
Passive probe; 100MHz

GETTING STARTED
04/12/2017 Version No. 003 13
Standard Apps
Name
Description
Go-NoGo
Go-NoGo testing app.
Remote Disk
Allows the scope to mount a network share drive (4
channel models only).
Drivers
USB driver
LabVIEW driver

IDS-1000B Series Instruction Manual/English
14 04/12/2017 Version No. 003
Appearance
IDS-1074B/1104B Front Panel
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION POSITION POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
CH1 CH2 CH3 CH4
2V
CAT I
1MW16pF
300Vrms MAX.
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
POWER
LCD
Variable knob
and Select key Autoset, Run/Stop, Single and Default settings
CH1~CH4
Trigger
controls
Function
keys
USB Host port, Probe
Compensation terminals
Power
button
Hardcopy key
Option key
Math, Reference
and Bus keys
Bottom
menu
keys
Horizontal
controls
Menu key
Vertical
controls
Side menu keys

GETTING STARTED
04/12/2017 Version No. 003 15
IDS-1072B/1102B Front Panel
LCD
Variable knob
and Select key Autoset, Run/Stop, Single and Default settings
CH1~CH2,
EXT TRIG
Trigger
controls
Function
keys
USB Host port, Probe
Compensation terminals
Power
button
Hardcopy key
Option key
Math, Reference and
Bus keys
Bottom
menu
keys
Horizontal
controls
Menu key
Vertical
controls
Side menu keys
VARIABLE
POSITION
HORIZONTAL
TRIGGER
LEVEL
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select Search
Set/Clear
Zoom
Menu
50 %
Force-Trig
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
M
R
B
POWER
CH1 CH2 EXT TRIG
2V
CAT I
1MW16pF
300Vrms MAX.
CAT I
1MW16pF
300Vpk MAX.
LCD Display
7” WVGATFT color LCD. 800 x 480 resolution, wide angle view
display.
Menu Off Key
Use the Menu Off key to hide the onscreen menu
system.
Option Key
Not available.

IDS-1000B Series Instruction Manual/English
16 04/12/2017 Version No. 003
Menu Keys
The side menu and bottom menu keys are used to make
selections from the soft-menus on the LCD user interface.
To choose menu items, use the 7 Bottom menu keys located on
the bottom of the display panel.
To select a variable or option from a menu, use the side menu
keys on the side of the panel. See page 32 for details.
VARIABLE
POSITION
HORIZONTAL
POSITION
POSITION POSITION POSITION
VERTICAL
MATH
REF
BUS
SCALE
TRIGGER
LEVEL
PUSH TO
ZERO
SCALESCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
CH1 CH2 CH3 CH4
2V
CAT I
1M W16pF
300Vpk MAX.
Measure
Display
Cursor
Help
APP
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select Search
Set/Clear
Zoom
CH1 CH2 CH3 CH4
M
R
B
Menu
50 %
Force-Trig
Digital Storage Oscilloscope
G D S - 1 1 0 4 B 100 MHz 1 GS/s Visual Persistence Oscilloscope
POWER
Side menu keys
Bottom menu keys
Hardcopy Key
The Hardcopy key is a quick-save or quick-print
key, depending on its configuration. For more
information see pages 194(save) or 193(print).
Variable Knob
and Select Key
Select
VARIABLE
The Variable knob is used to increase/decrease
values or to move between parameters.
The Select key is used to make selections.

GETTING STARTED
04/12/2017 Version No. 003 17
Function Keys
The Function keys are used to enter and configure different
functions on the IDS-1000B.
Measure
Measure
Configures and runs automatic measurements.
Cursor
Cursor
Configures and runs cursor measurements.
APP
APP
Configures and runs applications.
Acquire
Acquire
Configures the acquisition mode.
Display
Display
Configures the display settings.
Help
Help
Shows the Help menu.
Save/Recall
Save/Recall
Used to save and recall waveforms, images,
panel settings.
Utility
Utility
Configures the Hardcopy key, display time,
language, probe compensation and calibration. It
also accesses the file utilities menu.
Autoset
Autoset
Press the Autoset key to automatically set the
trigger, horizontal scale and vertical scale.
Run/Stop Key
Run/Stop
Press to Freeze (Stop) or continue (Run) signal
acquisition (page 43).

IDS-1000B Series Instruction Manual/English
18 04/12/2017 Version No. 003
Single
Single
Sets the acquisition mode to single triggering
mode.
Default Setup
Default
Resets the oscilloscope to the default settings.
Horizontal
Controls
The horizontal controls are used to change the position of the
cursor, set the time base settings and zoom into the waveforms.
Horizontal
Position
POSITION
PUSH TO
ZERO
The Position knob is used to position the
waveforms horizontally on the display screen.
Pressing the knob will reset the position to zero.
SCALE
SCALE
The Scale knob is used to change the horizontal
scale (TIME/DIV).
Zoom
Zoom
Press Zoom in combination with the horizontal
Position knob.
Play/Pause
The Play/Pause key allows you to play through a
waveform in zoom mode.
Search
Search
Not available.
Search Arrows
Not available.

GETTING STARTED
04/12/2017 Version No. 003 19
Set/Clear
Set/Clear
Not available.
Trigger Controls
The trigger controls are used to control the trigger level.
Level Knob
LEVEL
Used to set the trigger level. Pressing the knob
will reset the level to zero.
Trigger Menu
Key
Menu
Used to bring up the trigger menu.
50% Key
50 %
Sets the trigger level to the half way point (50%).
Force - Trig
Force-Trig
Press to force an immediate trigger of the
waveform.
Vertical
POSITION
POSITION
PUSH TO
ZERO
Sets the vertical position of the waveform. Push
the knob to reset the vertical position to zero.
Channel Menu
Key
CH1
Press the CH1~4 key to set and configure the
channel.
(Vertical)SCALE
Knob
SCALE
Sets the vertical scale of the channel (TIME/DIV).
