RS PRO RS-SI 7002 User manual

RS Part-No. 2539783
RS-SI 7002
25MHz Active Differential Probe
x20 / x50 / x200
ENGLISH

Safety Summary
To avoid personal injury and/or product damage, review and comply
with the following safety precautions. These precautions apply to both operating and maintenance
personnel and must be followed during all phases of operation, service, and repair of this probe.
A WARNING statement calls attention to an operating procedure, practice, or condition,
which, if not followed correctly, could result in injury or death to personnel.
A CAUTION statement calls attention to an operating procedure, practice, or condition,
which, if not followed correctly, could result in damage to or destruction of parts or the
entire product.
Do Not Work Alone
Do not work alone when working with high voltages.
Inspect the Probe
Inspect the probe and accessories for cracks and frayed or broken leads before each use. If
defects or damages are noted, DO NOT USE the probe.
Dry Conditions
Hands, shoes, floor, and work bench must be dry. Avoid making measurements under
humidity, dampness, or other environmental conditions that might affect safety.
Do Not Remove the Probe’s Casing
Removal of the probe’s casing may expose you to electric shock. If necessary, disconnect the
inputs and outputs of the probe before opening the case.
Hazardous Contact
To avoid injury, remove jewelry such as rings, watches, and other metallic objects. Do not touch
exposed connections and components when power is present.
Unexpected Charges
Hazardous voltages may be present in unexpected locations in circuitry being tested when a
fault condition in the circuit exists.
Capacitors inside the instrument may retain a charge even if the instrument is disconnected from
its source of supply.
ENGLISH

Use Only in Office-Type Indoor Setting
The probe is designed to be used in office-type indoor environments.
Do not operate the probe:
In the presence of noxious, corrosive, flammable fumes, gases, vapors, chemicals, or
finely-divided particulates.
In environments where there is a danger of any liquid spilled on the probe.
In air temperatures exceeding the specified operating temperatures.
In atmospheric pressures outside the specified altitude limits or where the surrounding gas
is not air.
Not for Critical Applications
This probe is not authorized for use in contact with the human body or for use as a component in a
life-support device or system.
Do Not Substitute Parts
Do not install substitute parts or perform any unauthorized modification to the instrument.
Only Qualified Personnel
Only qualified personnel should use this probe. This differential voltage probe is designed to be
used by personnel who are trained, experienced, or otherwise qualified to recognize hazardous
situations and who are trained in the safety precautions necessary to avoid possible injury when
using such a device.
Observe Maximum Working Voltage
Do not use any probe above its maximum working voltage ranges. ee specifications on page 7.
Use Proper Power Source
Do not operate this probe from a power source that applies more than the voltage specified.
Must be Grounded
This probe is grounded by the shell of the BNC connector through the grounding conductor of the
power cord of the measurement instrument. Before making connections to the input leads of this
probe, ensure that the output BNC connector is attached to the BNC connector of the
measurement instrument, and that the measurement instrument is properly grounded. Whenever
it is likely that the ground protection is impaired, you must make the instrument inoperative and
secure it against any unintended operation.
ENGLISH

Terms and Symbols
The following symbols appear on the product or in its documentation:
Direct voltage
Both direct and alternating voltage
Caution, possibility of electric shock
Caution, see documentation for details
Earth Ground
Definitions
Measurement Category II (CAT II)
refers to local-level electrical distribution, such as that provided by a standard wall outlet or
plug-connected equipment. Examples of CAT II measurements would be household appliances,
portable tools, and similar modules.
Measurement Category III (CAT III)
refers to measurements on hard-wired equipment in fixed installations, distribution boards, and
circuit breakers that form part of a building wiring installation. Other examples are wiring,
including cables, bus bars, junction boxes, switches, socket outlets in the fixed installation, and
stationary motors with permanent connections to fixed installations
Pollution Degree 2
refers to an operation environment where normally only dry, non-conductive pollution occurs.
Temporary conductivity caused by condensation can be expected.
Working CAT rating is equal to that of the lowest rated element within the test set-up.
ENGLISH

Compliance Statements
EC Declaration of Conformity
The product conforms to the applicable European Union requirements per
IEC 61010-031:2015 Safety requirements
for electrical equipment for measurement, control and laboratory use.
Part 31: Safety requirements for hand-held probe assemblies for electrical measurement and test.
EU RoHS Compliance
The probe and accessories conform to the 2011/65/EU RoHS2 Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems). This product is subject to Directive 2012/19/EU of the European
Parliament and the Council of the European Union on waste electrical and electronic
equipment (WEEE), and in jurisdictions adopting that Directive, is marked as being
put on the market after August 13, 2005, and should not be disposed of as unsorted
municipal waste. Please utilize your local WEEE collection facilities in the disposition of
this product and
otherwise observe all applicable requirements.
This probe is in compliance with IEC 61010-031:2015 CAT III, Pollution Degree 2.
ENGLISH

1 Introduction
Overview
The RS-SI 7002 active differential probe allows safe, accurate measurement between two voltage
points where neither point is referenced to ground. The probe offers both a 25 MHz bandwidth
for the x50x and x200 attenuation settings and 15 MHz bandwidth for the x20 attenuation
setting. Compatible with oscilloscopes from all major manufacturers, the probe is exclusively
powered by the included 9 V power adapter.
Features
Meets IEC 61010-1:2015 safety standard
Selectable attenuation settings of x20, x50 and x200
25MHz bandwidth (@ x50 and x200 attenuation settings)
15MHz (@ x20 attenuation setting)
Up to ±700V (DC + AC peak) common mode
High accuracy (±2%)
Power indicator LED
Over range indicator LED
Initial Inspection
This unit is tested prior to shipment. It is therefore ready for immediate use upon receipt. An initial
physical inspection should be made to ensure that no damage has been sustained during shipment.
After the inspection, verify the contents of the shipment.
Delivery Content
Differential probe RS-SI 7002
2 x Grabber, black & red
2 x test leads with insulated 4 mm banana plugs - silicone jacket, black & red
insulated BNC cable, 100cm
9 V power adapter –EU version
User manual
ENGLISH

2 Using the Probe
WARNING
At the time of powering on the probe, the input leads must not be connected to an
item to be tested. Never operate the probe with the case open.
CAUTION
This probe is used to carry out differential measurements between two points on the
circuit under test. This probe is not designed for electrically insulating the circuit under
test or the measuring instrument.
Inspection Procedure
1. Connect the BNC output connector to the vertical input of the oscilloscope.
2. Power on the probe.
3. Set the attenuation setting on the oscilloscope to match the probe.
4. Connect the input of probe to a function generator. Then select a square-wave output of
10 V amplitude and 100 kHz frequency.
5. The square-wave will be displayed on the screen of the oscilloscope. This indicates
the probe is working properly.
Note that the oscilloscope should show the same voltage and frequency as the function
generator.
ENGLISH

Getting Started
1. Connect the BNC output connector to the vertical input of a general purposed
oscilloscope. The oscilloscope must have a ground referenced.
2. Connect power adapter.
3. Select the proper attenuation ratio. When measuring signals below 70V, switch the
attenuation ratio to x20 in order to get higher resolution and less noise ratio. For
voltages up to 175V, set the attenuation ratio to x50 and for voltages up to 700V set
the attenuation ratio to x200.
4. The power indicator LED should turn on.
5. Plug the supplied grips onto the test leads and connect the circuit under test.

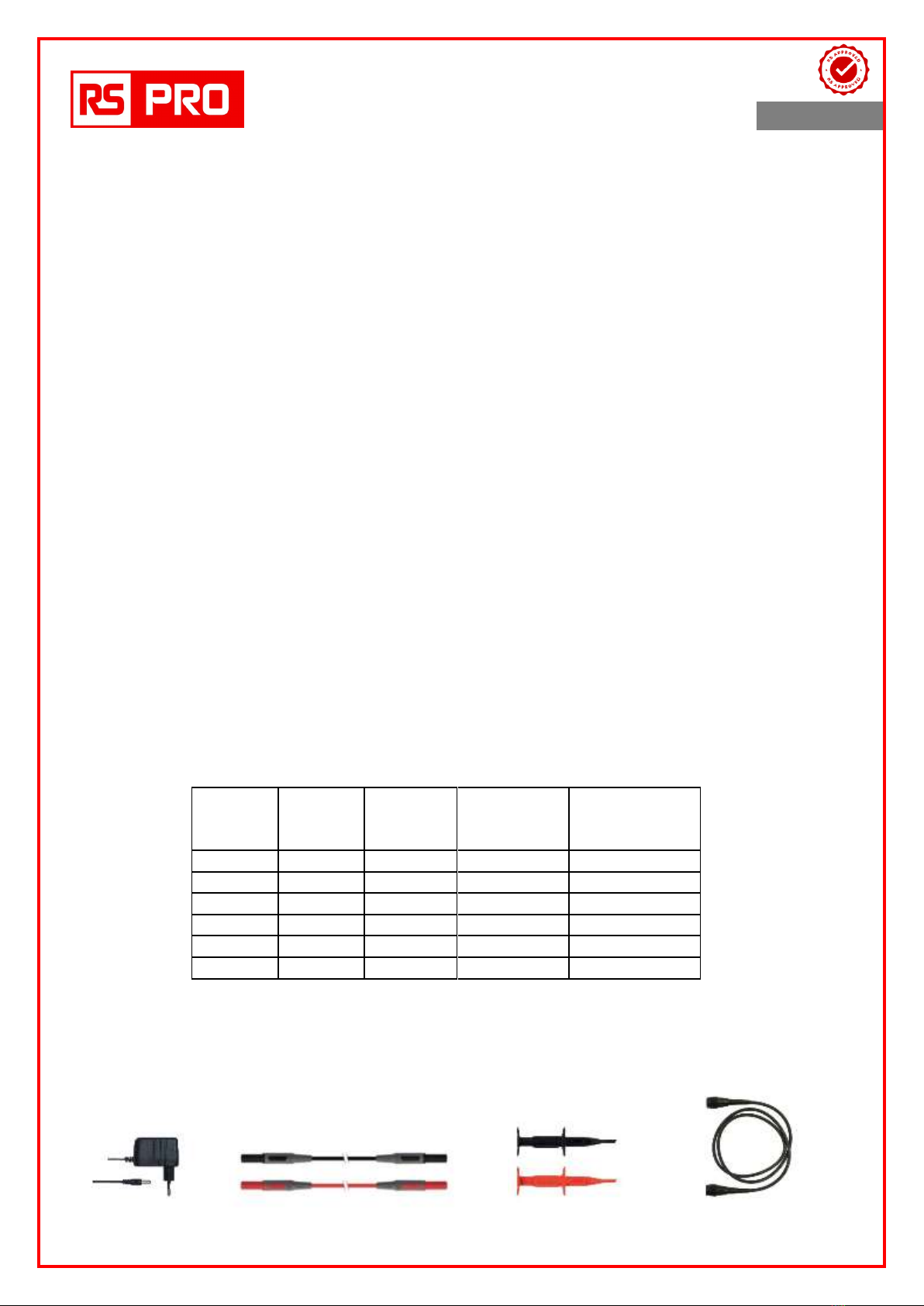

Vertical Scale on Oscilloscope
The actual vertical scale of the oscilloscope is equal to the attenuation factor multiplied by the
range of vertical scale selected on the oscilloscope.
For example, with the probe on factor x20 and the oscilloscope on 0.5V/div, the real vertical
scale is 20 x 0.5 = 10V/div.
With the probe on x200, the real vertical scale is 200 x 0.5 = 100V/ div.
These values apply when the oscilloscope is set to the typical 1 MΩimpedance input. When the
scope is set to 50Ωinput, the actual vertical scale will be doubled:
20V/div for the x20 setting and 200V/div for the x200 setting.
Scope Input
Probe
Actual
Vertical Scale
Actual Vertical
Impedance
Attenuation
Attenuation
Reading on
Scale of the
Setting
Setting
Oscilloscope
Oscilloscope
1MΩ
x20
x20
0,5V/div
10V/div
1MΩ
x50
x50
0,5V/div
25V/div
1MΩ
x200
x200
0,5V/div
100V/div
50Ω
x20
x40
0,5V/div
20V/div
50Ω
x50
x100
0,5V/div
50V/div
50Ω
x200
x400
0,5V/div
200V/div
Included Accessories
ENGLISH

Probe Input – 2 x 4mm Plug
External Power
Supply
Probe Output
BNC Connector
3 Product Overview
Power Indicator (Red)
ENGLISH
Over Range Indicator (Red)
Attenuation Selector
Switch

4 Specifications
All specifications apply to the unit after a temperature stabilization time of 20 minutes
over an ambient range of 25°C ± 5°C.
RS-SI 7002
Bandwidth
25MHz @ x200
25MHz @ x50
15MHz @ x20
Rise Time
14ns @ x200
14ns @ x50
23ns @ x20
Attenuation
x20, x50, x200
DC-Accuracy
±2%
CMRR
80dB @ 60Hz
60dB @ 100Hz
50dB @ 1MHz
Maximum Input Voltage @ x20
(DC + AC peak)
±70V
Maximum Input Voltage @ x50
(DC + AC peak)
±175V
Maximum Input Voltage @ x200
(DC + AC peak)
±700V
Absolute Maximum Input Voltage
(each side to ground)
600Vrms
Input Impedance
(differential)
4MOhm // 1,2pF
Input Impedance
(each side to ground)
2MOhm // 2,3pF
Output Voltage Swing
±8V using 1MΩ oscilloscope input
Offset (typical)
±5mV
Noise (typical)
2mVrms
Source Impedance
50Ohm
Power Supply
9V power adapter (included)
Weight
250g
Dimensions
195 x 55 x 30mm
BNC cable length
100cm
Input lead length
55cm each
Operation Tempearure/Humidity
0°C to 50°C / 10% to 85% RH
Storage Tempearure/Humidity
-30°C to 70°C / 10% to 90% RH
Safety Standard
IEC 61010-031:2015 CAT III
Pollution Degree
2
Specifications are subject to change without notice.
ENGLISH

5 Voltage Derating Curve
The derating curve of the absolute maximum input voltage in common mode is shown as
follows:
RS-SI 7002 Derating Curve
6 Cleaning
This probe does not require any particular cleaning. If necessary, clean the case with a soft
cloth.
WARNING
Dry the probe thoroughly before attempting to make voltage measurements.
CAUTION
Avoid immersing or using abrasive cleaners or solvents containing Benzene (or
similar solvents) on the probe as these can cause deterioration of the probe body
and cables.
ENGLISH
RS-SI 7002 Derating Curve

FOR MORE INFORMATIONS VISIT www.rs-components.com
