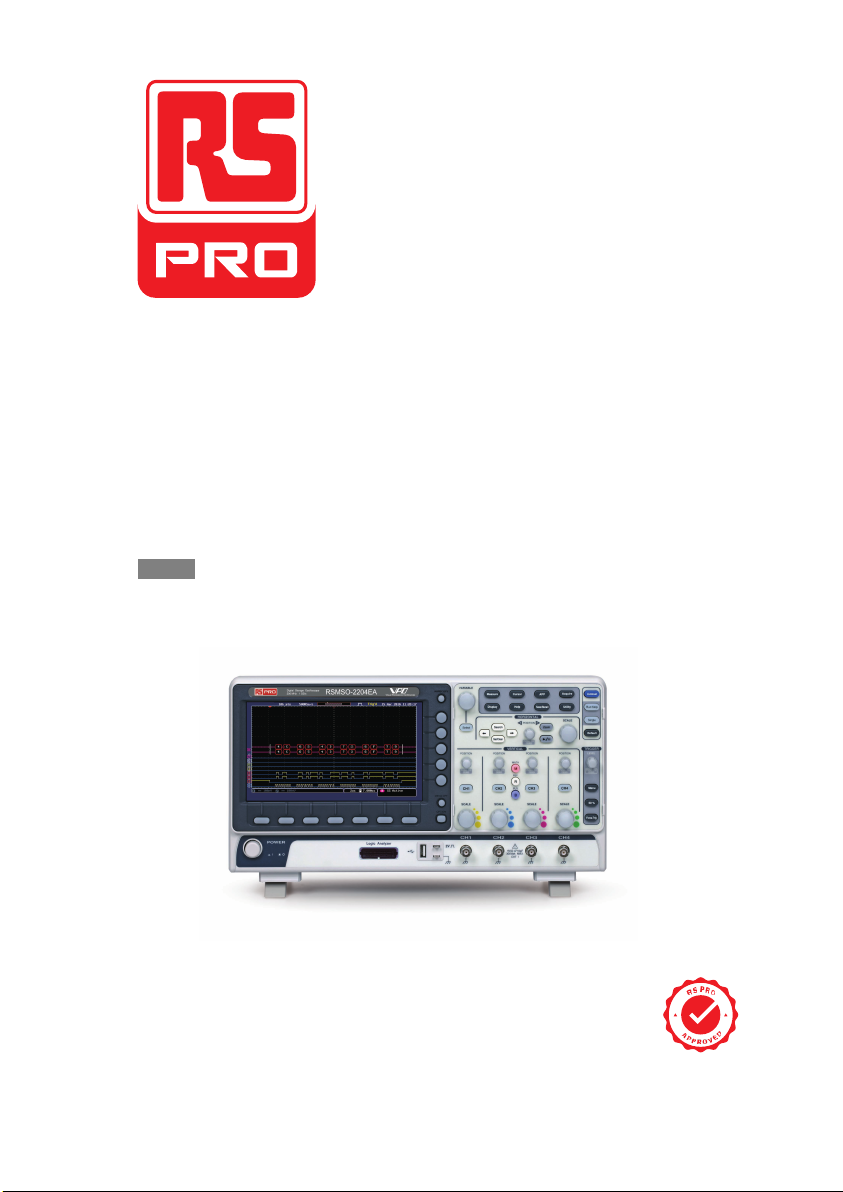

RS PRO RSMSO-2000E Series User manual

User Manual
rspro.com
RSMSO-2000E series
Stock number: 1804786 RSMSO-2102E 1804787 RSMSO-2104E
1804788 RSMSO-2202E 1804789 RSMSO-2204E
1804790 RSMSO-2102EA 1804791 RSMSO-2104EA
1804792 RSMSO-2202EA 1804793 RSMSO-2202EA
EN

1
Table of Contents
SAFETY INSTRUCTIONS .................................................. 3
GETTING STARTED .......................................................... 8
RSMSO-2000E Series Overview .............. 9
Appearance .......................................... 13
Set Up.................................................. 25
Built-in Help ........................................ 35
MEASUREMENT ............................................................ 36
Basic Measurement ............................. 37
Automatic Measurement...................... 44
Cursor Measurement ........................... 58
Math Operation ................................... 65
ADVANCED CONFIGURATION ....................................... 75
Acquisition .......................................... 78
Segmented Memory Acquisition .......... 83
Display................................................. 95
Horizontal View ................................. 100
Vertical View (Channel)...................... 108
Bus Key Configuration........................ 116
Trigger ............................................... 143
Search................................................ 183
System Settings and Miscellaneous
Settings ............................................. 192
LOGIC ANALYZER .........................................................197
Logic Analyzer Operation ................... 198
ARBITRARY WAVE GENERATOR ....................................213
Arbitrary Wave Generator Operation .. 214

2 rspro.com
APPLICATIONS .............................................................246
Introduction....................................... 247
Go-NoGo application ......................... 249
DVM application ................................ 254
Data Log application .......................... 256
Digital Filter application .................... 258
Mask application................................ 260
SAVE/RECALL ...............................................................270
File Format/Utility ............................. 271
Create/Edit Labels.............................. 276
Save ................................................... 279
Recall ................................................. 286
Reference Waveforms ......................... 292
FILE UTILITIES .............................................................294
HARDCOPY KEY ...........................................................300
REMOTE CONTROL CONFIG ........................................304
Interface Configuration ...................... 305
MAINTENANCE ............................................................315
FAQ..............................................................................321
APPENDIX ....................................................................324
Updating the Firmware ...................... 325
RSMSO-2000E/2000EA Specifications 327
Probe Specifications .......................... 332
Dimensions ....................................... 333
Declaration of Conformity .................. 334
INDEX ..........................................................................335

3
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the Product
name.
WARNING
Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that
could result in damage to the equipment or to
other properties.
DANGER High Voltage
(Note)
Attention required
Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.

4 rspro.com
Safety Guidelines
General
Guideline
WARNING
CAUTION
Make sure the BNC input voltage does not
exceed 300Vrms.
Never connect a hazardous live voltage to the
ground side of the BNC connectors. It might
lead to fire and electric shock.
Do not place any heavy object on the RSMSO-
2000E/2000EA.
Avoid severe impact or rough handling that
leads to damaging the RSMSO-2000E/2000EA.
Do not discharge static electricity to the
RSMSO-2000E/2000EA.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not perform measurement at a power source
or building installation (Note below).
Do not disassemble the RSMSO-2000E/2000EA
unless you are qualified.
Note
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows. The
RSMSO-2000E/2000EA falls under category I.
Measurement category IV is for measurements performed at the
source of low-voltage installation.
Measurement category III is for measurements performed in the
building installation.
Measurement category II is for measurements performed on
circuits directly connected to the low voltage installation.
Measurement category I is for measurement performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage: 100 - 240V AC, 50 - 60Hz,
auto selection. Power consumption: 30 Watts.
Connect the protective grounding conductor of
the AC power cord to an earth ground, to avoid
electrical shock.

5
Cleaning the
RSMSO-2000E
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh materials
such as benzene, toluene, xylene and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: ≤80%, 40°C or below; ≤45%,
41°C ~ 50°C
Altitude: < 2000m
Temperature: 0°C to 50°C
Note
(Pollution Degree) EN 61010-1:2010 specifies the pollution degrees
and their requirements as follows. The RSMSO-2000E/2000EA falls
under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -10°C to 60°C
Humidity: Up to 93% RH (non-condensing) /
≤40ºC, up to 65% RH (non-condensing) / 41ºC
~ 60 ºC

6 rspro.com
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

7
Power cord for the United Kingdom
When using the oscilloscope in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

8 rspro.com
GETTING STARTED
This chapter describes the RSMSO-
2000E/2000EA in a nutshell, including its main
features and front / rear panel. After going
through the overview, follow the Set Up section
to properly set up the device for first time use.
The Set Up section also includes an introduction
on how to use this manual effectively.
RSMSO-2000E/2000EA Series Overview ..................... 9
Integrated instruments and series lineup .......................................9
Main Features ...................................................................................10
Accessories ........................................................................................11
Appearance .............................................................. 13

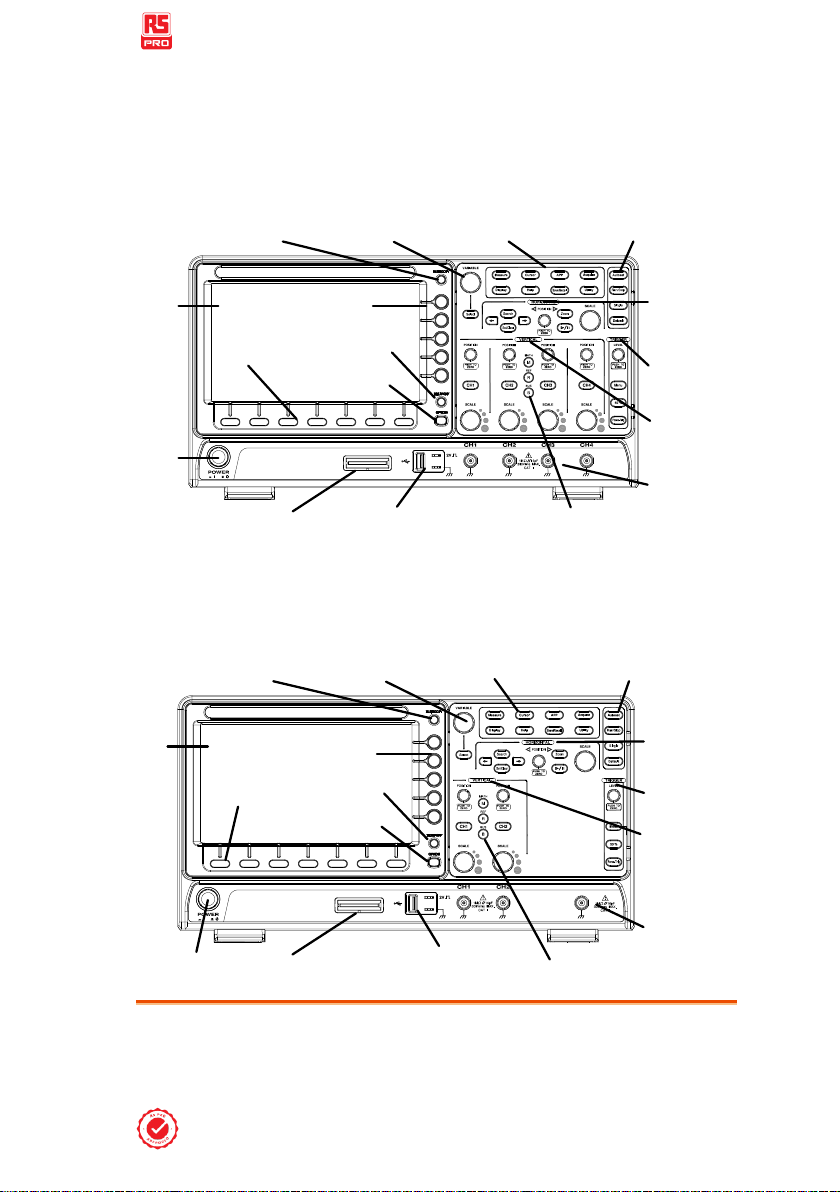

RSMSO-2000E/2000EA 4-channel models Front Panel.........13
RSMSO-2000E/2000EA 2-channel models Front Panel.........13
RSMSO-2000E Rear Panel.............................................................20
RSMSO-2000EA Rear Panel .........................................................20
Display ...............................................................................................22
Set Up ..................................................................... 25
Tilt Stand ...........................................................................................25
Power Up...........................................................................................26
First Time Use ..................................................................................27
How to Use This Manual ...............................................................30
Built-in Help ............................................................ 35

9
RSMSO-2000E Series Overview
Integrated instruments and series lineup
The RSMSO-2000E has different hardware implemented
instruments:
Model name
Logic Analyzer
(16 channels)
Arbitrary Wave Generator
(2 channels)
RSMSO-2000E
✓
✗
RSMSO-2000EA
✓
✓
The RSMSO-2000E series consists of 8 models, divided into 2-
channel and 4-channel versions.
Model name
Frequency
bandwidth
Input
channels
Max. Real-time
Sampling Rate
RSMSO-2102E / 2102EA
100MHz
2
1GSa/s
RSMSO-2104E / 2104EA
100MHz
4
1GSa/s
RSMSO-2202E / 2202EA
200MHz
2
1GSa/s
RSMSO-2204E / 2204EA
200MHz
4
1GSa/s

10 rspro.com
Main Features
Features
8 inch, 800 x 480, WVGA TFT display.
Available from 100MHz to 200MHz.
Real-time sampling rate of 1GSa/s (2 channel
models), 1GSa/s max. (4 channel models).
Deep memory: 10M points record length.
Waveform capture rate of 120,000 waveforms
per second.
Vertical sensitivity: 1mV/div~10V/div.
Segmented Memory: Optimizes the acquisition
memory to selectively capture only the
important signal details. Up to 29,000 successive
waveform segments can be captured with a
time-tag resolution of 4ns.
Waveform Search: Allows the scope to search
for a number of different signal events.
Logic Analyzer: Can be used to measure
discrete inputs or measure values on parallel or
serial buses.
Arbitrary Wave generator (RSMSO-2000EA
only): Full-function dual channel arbitrary
waveform generator.
Powerful embedded applications such as: Data
Logging, Digital Voltmeter, Go-No Go, Mask,
Digital filter, etc …
On-screen Help.
32 MB internal flash disk.

11
Interface
USB host port: front panel, for storage devices.
USB device port: rear panel, for remote control
or printing.
Ethernet port as standard.
Probe compensation output with selectable
output frequency (1kHz ~ 200kHz).
Calibration output.
Accessories
Standard
Accessories
Part number
Description
N/A
Quick Start Guide
N/A region dependent
Power cord
GTP-100B-4, for
RSMSO-2102E/2102EA
RSMSO-2104E/2104EA
Passive probe; 100 MHz
GTP-200B-4, for
RSMSO-2202E/2202EA
RSMSO-2204E/2204EA
Passive probe; 200 MHz
GTL-16E
16-channel Logic
Analyzer probe
Standard Apps
Name
Description
Go-NoGo
Go-NoGo testing app.
DataLog
Waveform or image data logging
app.
DVM
Digital Voltmeter app.
Digital Filter
High or low pass digital filter for
analog inputs.
Mask
Creates shape templates for signal
comparison.
Remote Disk
Allows the scope to mount a network
share drive.

12 rspro.com
Optional
Accessories
Part number
Description
Demo mode
Demonstration mode that is used
with the GDB-03 demo board.
GDB-03
Demo board.
Drivers, others
USB driver
LabVIEW driver

13
Appearance
RSMSO-2000E 4-channel models Front Panel
Side
menu keys
LCD
Variable knob
and Select key
Autoset, Run/Stop,
Single and Default
settings
Trigger
controls
Function keys
USB Host port, Probe
Compensation terminals
Power
button
Hardcopy key
Math, Reference
and Bus keys
Bottom
menu keys
Horizontal
controls
Vertical
controls
Option key
Menu key
Logic Analyzer
Probe connector
CH1~CH4
RSMSO-2000E 2-channel models Front Panel
LCD
Variable knob
and Select key
Autoset, Run/Stop,
Single and Default
settings
CH1~CH2,
EXT TRIG
Trigger
controls
Function
keys
USB Host port, Probe
Compensation terminals
Hardcopy key
Math, Reference
and Bus keys
Bottom
menu keys
Vertical
controls
Option key
Menu key
Side
menu keys
Power
button
Horizontal
controls
EXT TRIG
Logic Analyzer
Probe connector
LCD Display
8” WVGA TFT color LCD. 800 x 480 resolution,
wide angle view display.

14 rspro.com

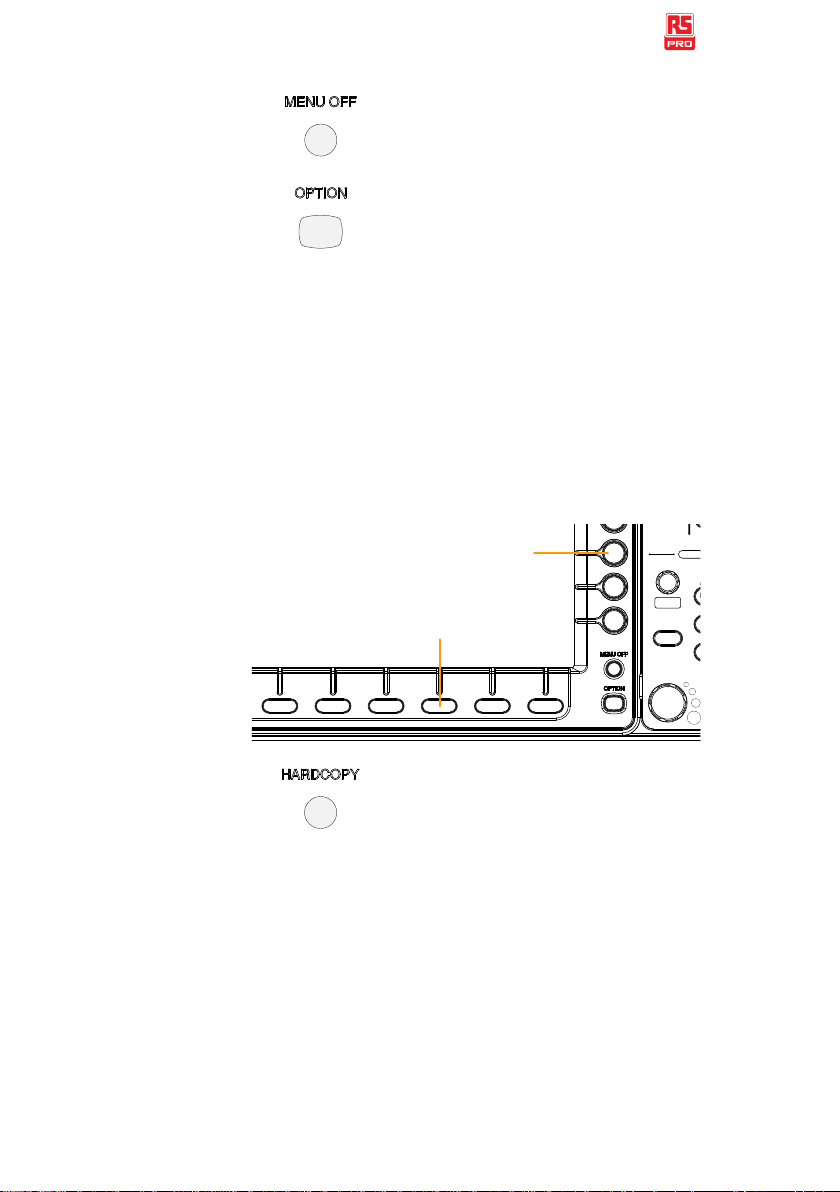

Menu Off Key
Use the Menu Off key to hide the
onscreen menu system.
Option Key
The Option key is used to access
installed options.
Menu Keys
The side menu and bottom menu keys are used to
make selections from the soft-menus on the LCD
user interface.
To choose menu items, use the 7 Bottom menu
keys located on the bottom of the display panel.
To select a variable or option from a menu, use the
side menu keys on the side of the panel. See page
30 for details.
VARIABLE
POSITION
HORIZONTAL
TRIGGER
LEVEL
PUSH TO
ZERO
PUSH TO
ZERO
SCALE
Measure
Display
Cursor
Help
Test
Save/Recall
Acquire
Utility
Autoset
Run/Stop
Single
Default
Select Search
Set/Clear
Zoom
Menu
50 %
Force-Trig
POSITION
POSITION
VERTICAL
MATH
REF
BUS
SCALESCALE
PUSH TO
ZERO
PUSH TO
ZERO
M
R
B
Digital Storage Oscilloscope
GDS-2202E 200 MHz 1 GS/s Visual Persistence Oscilloscope
POWER
CH1 CH2 EXT TRIG
2V
CAT I
1MW16pF
300Vpk MAX.
CAT I
1MW16pF
300Vpk MAX.
Side menu keys
Bottom menu keys
Hardcopy Key
The Hardcopy key is a quick-save
or quick-print key, depending on
its configuration. For more
information see pages 302 (save)
or 301 (print).

15
Variable Knob
and Select Key
Select
VARIABLE
The Variable knob is used to
increase/decrease values or to
move between parameters.
The Select key, when lit up, is
used to make selections.
Function Keys
The Function keys are used to enter and configure
different functions on the RSMSO-2000E/2000EA.
Measure
Measure
Configures and runs automatic
measurements.
Cursor
Cursor
Configures and runs cursor
measurements.
APP
APP
Configures and runs PR PRO
applications.
Acquire
Acquire
Configures the acquisition mode,
including Segmented Memory
acquisition.
Display
Display
Configures the display settings.
Help
Help
Shows the Help menu.
Save/Recall
Save/Recall
Used to save and recall
waveforms, images, panel settings.

16 rspro.com
Utility
Utility
Configures the Hardcopy key,
display time, language, probe
compensation and calibration. It
also accesses the file utilities
menu.
Autoset
Autoset
Press the Autoset key to
automatically set the trigger,
horizontal scale and vertical scale.
Run/Stop Key
Run/Stop
Press to Freeze (Stop) or continue
(Run) signal acquisition (page 40).
The run stop key is also used to
run or stop Segmented Memory
acquisition (page 87).
Single
Single
Sets the acquisition mode to single
triggering mode.
Default Setup
Default
Resets the oscilloscope to the
default settings.
Horizontal
Controls
The horizontal controls are used to change the
position of the cursor, set the time base settings,
zoom into the waveforms/traces and search for
events.
Horizontal
Position
POSITION
PUSH TO
ZERO
The Position knob is used to
position the waveforms/traces
horizontally on the display screen.
Pressing the knob will reset the
position to zero.
SCALE
SCALE
The Scale knob is used to change
the horizontal scale (TIME/DIV).

17
Zoom
Zoom
Press Zoom in combination with
the horizontal Position knob.
Play/Pause
The Play/Pause key allows you to
view each search event in
succession –to effectively “play”
through each search event. It is
also used to play through a
waveform/trace in zoom mode.
Search
Search
The Search key accesses the search
function menu to set the search
type, source and threshold.
Search Arrows
Use the arrow keys to navigate the
search events.
Set/Clear
Set/Clear
Use the Set/Clear key to set or
clear points of interest when using
the search function.
Trigger Controls
The trigger controls are used to control the trigger
level and options.
Level Knob
LEVEL
Used to set the trigger level.
Pressing the knob will reset the
level to zero.
Trigger Menu Key
Menu
Used to bring up the trigger menu.
50% Key
50 %
Sets the trigger level to the half
way point (50%).
Force - Trig
Force-Trig
Press to force an immediate trigger
of the waveform.

18 rspro.com
Vertical
POSITION
POSITION
PUSH TO
ZERO
Sets the vertical position of the
waveform/trace. Push the knob to
reset the vertical position to zero.
Channel Menu
Key
CH1
Press the CH1~4 key to set and
configure the corresponding
channel.
(Vertical)SCALE
Knob
SCALE
Sets the vertical scale of the
channel (TIME/DIV).
External Trigger
Input
EXT TRIG
Accepts external trigger signals
(page 143). Only on 2 channel
models.
Input impedance: 1MΩ
Voltage input: ±15V (peak), EXT
trigger capacitance: 16pF.
Math Key
MATH
M
Use the Math key to set and
configure math functions.
Reference Key
REF
R
Press the Reference key to set or
remove reference waveforms.
BUS Key
BUS
B
The Bus key is used for parallel
and serial bus (UART, I2C, SPI,
CAN, LIN) configuration.
