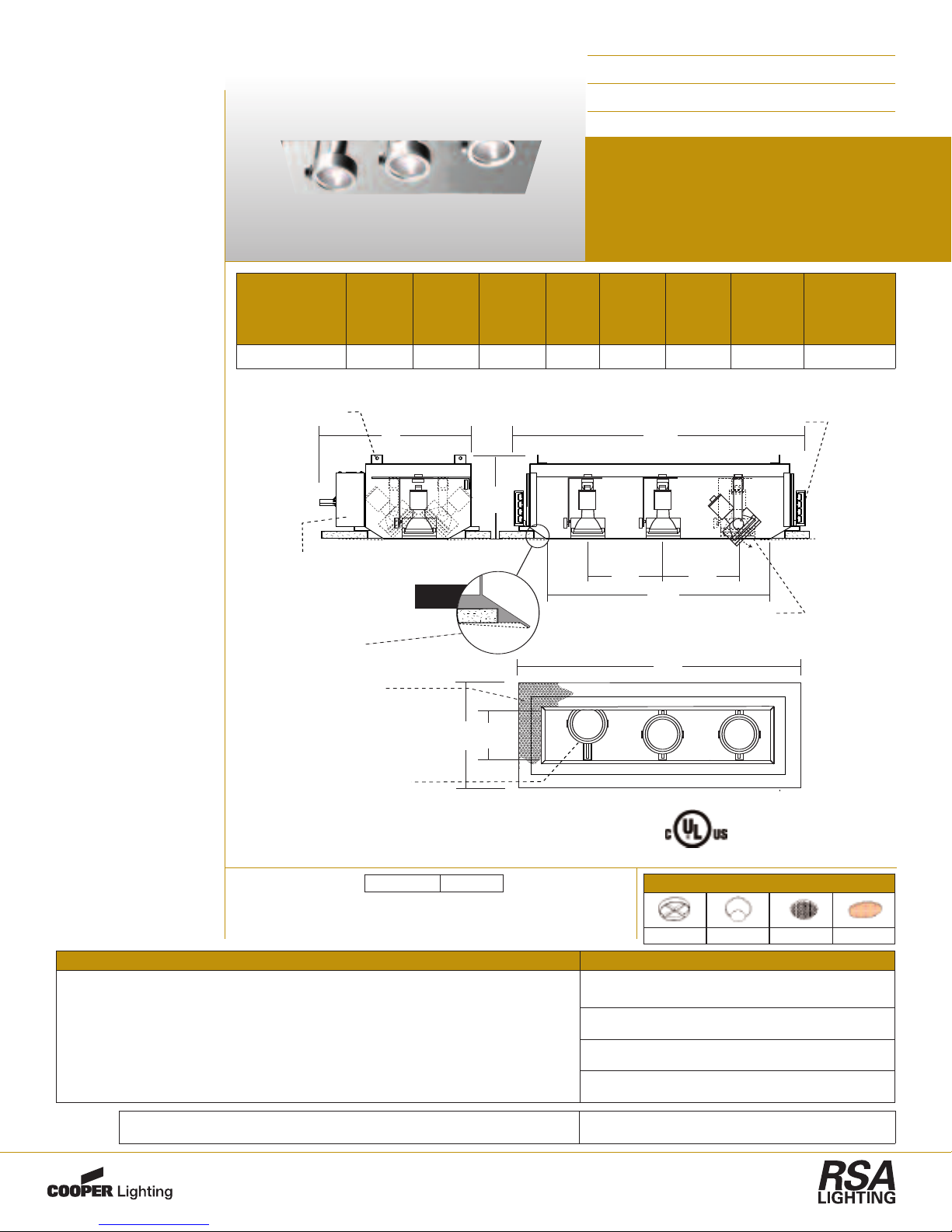

RSA Lighting COMBOLIGHT LV2003IS User manual

Catalog #
Type
Project
COMBOLIGHT®LV Series
THREE (3) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR20 Line Voltage
6.75"6.75"
A
B
C
ED
F
G
380º x 45º locking
angular adjustment

45º visual cut-off
Perforated mesh plaster 
frame adheres to ceiling 
compound for seamless 
trimless mounting.
Beveled housing interior and 
standard retractable yokes allow 
lamp holders to slide within the 
housing for added adjustability.
Trimless
Detail
Ceiling mudding 
compound is applied 
directly to the edge 
of the aperture. 
Side mounted compartment
houses wiring and thermal
protector. Accessible 
through fixture opening.
Tabs for aircraft 
cable suspension
above ceiling Butterfly Brackets
for Black Iron mounting
Other Adders
CC - Two Circuit
CP - Chicago Plenum
RECESSED PAR20
LV TRIMLESS
Dimensions A
Housing
Length
B
Housing
Height
C
Aperture
Length
D
Aperture
Width
E
Plaster Frame
Width
F
Plaster Frame
Length
G
Above Ceiling
Width
Ceiling
Cut-Out
26.75” 7.09” 21.00” 5.30” 11.05” 26.75” 13.25” 24.20” x 8.50”
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
DESCRIPTION:
An adjustable PAR20 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50” or
0.625” drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
3-PAR20 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
aroundfixture.Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. J-Box and
wiring accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
SPECIFY -
ORDERING EXAMPLE:
=Three Light Trimless Recessed PAR20 - White Interior
LV2003IS WH
Cat. # / Description Interior Finish
LV2003IS : 3Light Recessed Next Generation Trimless Combo Fixture120V PAR20 BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV2003IS
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]
