RTA Products TECHNI MOBILI RTA-988D User manual

EXPANDABLE HOME OFFICE DESK
MODEL RTA-988D
ASSEMBLY INSTRUCTIONS
REV.CAR-7114-0223
Thank you for purchasing our product
Scan QR to view full
assembly video

•
•Please be kind to our planet, when done with the assembly,
recycle any of the packaging materials that is accepted by
your city or recycling service. Thank you!
12
RTA-988D
P.1 P.1
•Please read carefully the assembly instructions before the installation.
• Do not discard this manual or any of the packaging
material until the unit has been completely assembled.
•The assembly might require of 2 persons for certain steps. Before you
start the instalation, make sure there is someone else nearby to help you.
•Scan this QR code to view the complete assembly video online.
NOTE:During the playback, you can easily locate or jump into any step by
clicking on the time stamps listed below the video:
STEP 1 00:00 • STEP 2 0:53 • STEP 3 1:26 • STEP 4 1:31 • STEP 5
2:00 • STEP 6 2:16 • STEP 7 2:34 • STEP 8 2:49 • STEP 9 3:09 •
STEP 10 3:40 • STEP 11 3:45 • STEP 12 4:05 • STEP 13 4:18 •
STEP 14 4:34 • STEP 15 4:54
•The product assembles ONLY as shown in the front page,
with the drawers on the LEFT and the storage door on the
RIGHT. The sections are not interchangeable.
After the item is assembled, you can use rubbing alcohol to
erase or remove the visible part numbers printed or labeled
on the pieces.
X

P.2 P.2
RTA-988D
1
x1 2
x1 3
x1
4
x1
Tabletop (main panel)
The replacement parts service is limited to
the 48 contiguous United States.
If you reside in AK, HI, PR, U.S. territories
or other countries,
please contact the
supplier from where
the unit was purchased.
Missing, damaged and defective
parts can be replaced at no cost
to you. Please refer to the last
pages on this manual.
Do a quick inventory
of all the parts and
hardware listed below
MAIN PARTS LIST
Left side panel Top front panel
Left front panel 5
x1 6
x1 7
x1
8
x1
Right-top side panel Top-back panel Right side panel
Cabinet top panel
9
x1 10
x1 11
x2
12
x2
Middle side panel Cabinet bottom
panel Cabinet skirt panel
Drawer front panel
13
x1 14
x2 15
x2
16
x4
Cabinet back panel Drawer back panel Drawer bottom
board
Drawer side panel

RTA-988D
P.3 P.3
MAIN PARTS LAYOUT (FOR REFERENCE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
11
16
x2

RTA-988D
P.4 P.4
HARDWARE LIST
TOOLS THAT ARE REQUIRED (NOT INCLUDED WITH THE PRODUCT)
PART QTY SIZE ITEM
C
D
E
F
M3.5x14
B
A
42
4
8
4
2
1
M3.5x25
M8/M6x28mm
Plastic dowel
Large
metal bracket
Small
metal bracket
I
J
1
Phillips Screwdriver
or
Power drill with
Phillips bit
K
L
M6x30
Wooden dowel
H
G
31
4
8
6
22
22
M3.5x40
M5x11
Euro screw
Plastic
glide foot
M5x30
Bolt
15x11
Cam lock
Hammer
M8
M6
RIGHT
LEFT
RIGHT
LEFT
"FLAT": 2 pcs per set,
go inside the cabinet
"L shape": 2 pcs per
set, go on the drawers
Flat
metal bracket
M
N
O
18
6
2
2x22
Nail
Hole cover
sticker
Plastic handle
P
2
Sets Metal sliders,
Set of 4 pcs
PART QTY SIZE ITEM
1
1Pencil

RTA-988D
1. Screw the bolt into the indicated hole on the
panel indicated in the assembly step. 2. Join the other panel (with the big hole) to the panel with the bolt. If it comes with the cam
locks already pre-installed, make sure to align
them to receive the bolt's head (refer to point
3). There might be a very small gap between
the panels which is normal.
3. Insert the cam lock on the panel with the big
hole making sure it goes aligned to receive the
bolt's head.
4. Use a Phillips screwdriver to turn the cam
lock clockwise. This will lock the panels
togheter and also will close any gaps.
Cam lock
alignment
If the cam locks come
pre-in stalled, make sure they
are aligned (see point 3).
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL
P.5 P.5
CAM BOLT AND CAM LOCK TUTORIAL
THE INSTRUCTIONS BELOW
ARE NOT ACTUAL ASSEMBLY STEPS
This unit uses cam bolts and locks (also known as mini fixes).
If you are not familiar with this kind of hardware, the below is a tutorial
that explains how to use them on the steps where they are required.
THE ASSEMBLY STEPS START ON PAGE 7

RTA-988D
P.6 P.6

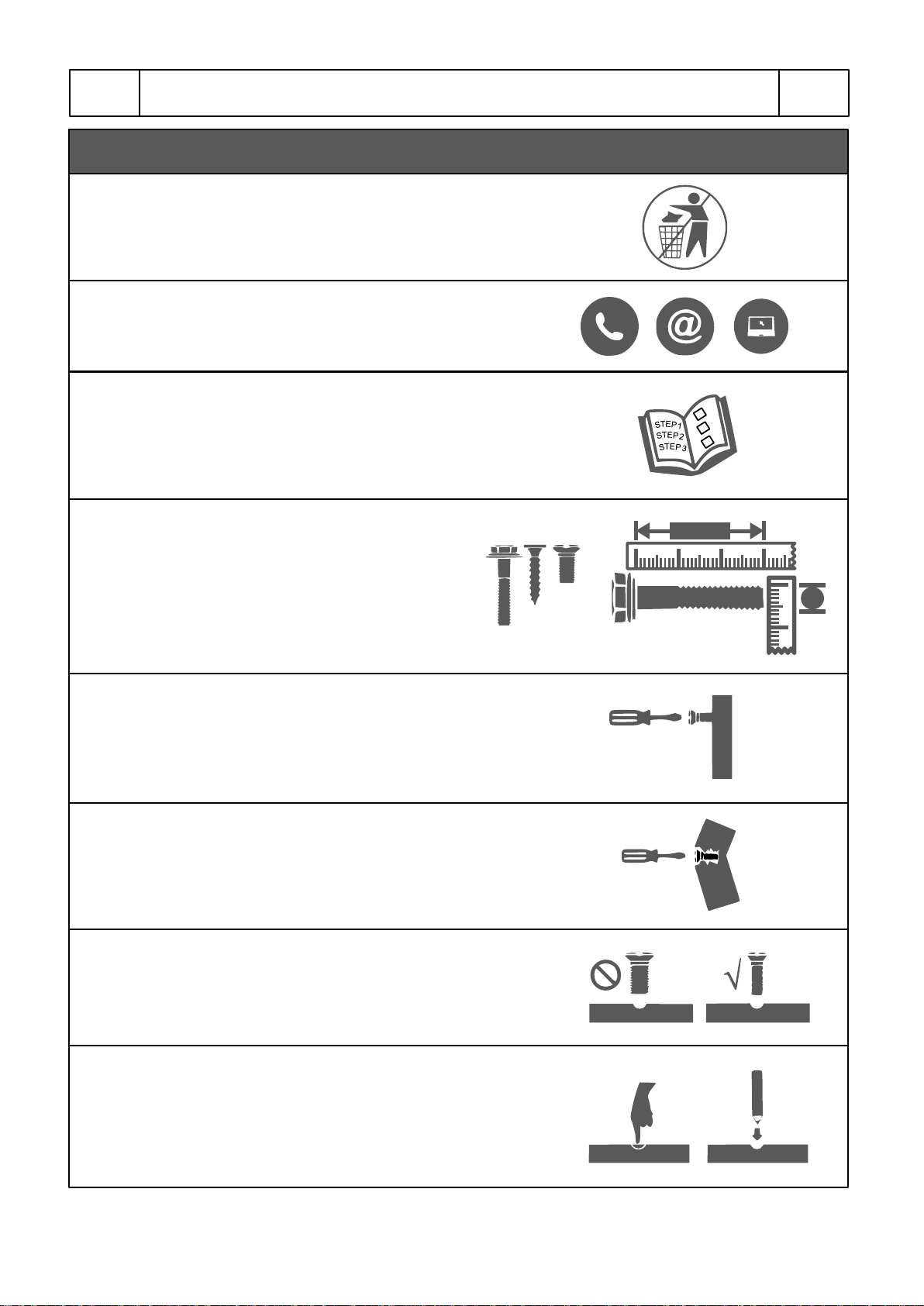

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
• If during assembly you find an issue or need clarification,
please contact our Customer Service for assistance.
Please refer to the last pages on this manual.
• On each step read the instructions thoroughly and
analyze the illustrations before proceeding to do the
assembly.
• Follow the instructions step by step and do not skip any
unless our Customer Service advises it is OK to do so.
• Do not overtighten or force the screws as they might
break, strip, damage the threads of the holes or get stuck
inside the part.
• Make sure you understand which hardware will be
used on each step. Using the wrong size of screw,
bolt or pin might strip the threads or cause damage
to the part in which it is being used.
• To avoid misalignments, always leave the screws loose
and tighten them until all pieces are positioned correctly.
• If the hole seems too small for the screw, make sure you
are using the correct size of screw and/or that you are
installing it in the correct hole.
• Do not discard this manual or any of the packaging
material until the unit has been completely assembled.
√
√
M6
30mm
M6x30
•Sometimes on the panels the laminate or material might be
covering the hole partially or entirely. If there is no visible
hole or it seems too small, pass and press the tip of your
finger over the area where the hole should be located to feel
its indentation, and once found, carefully pierce the laminate
to uncover the hole underneath.

RTA-988D
P.7 P.7

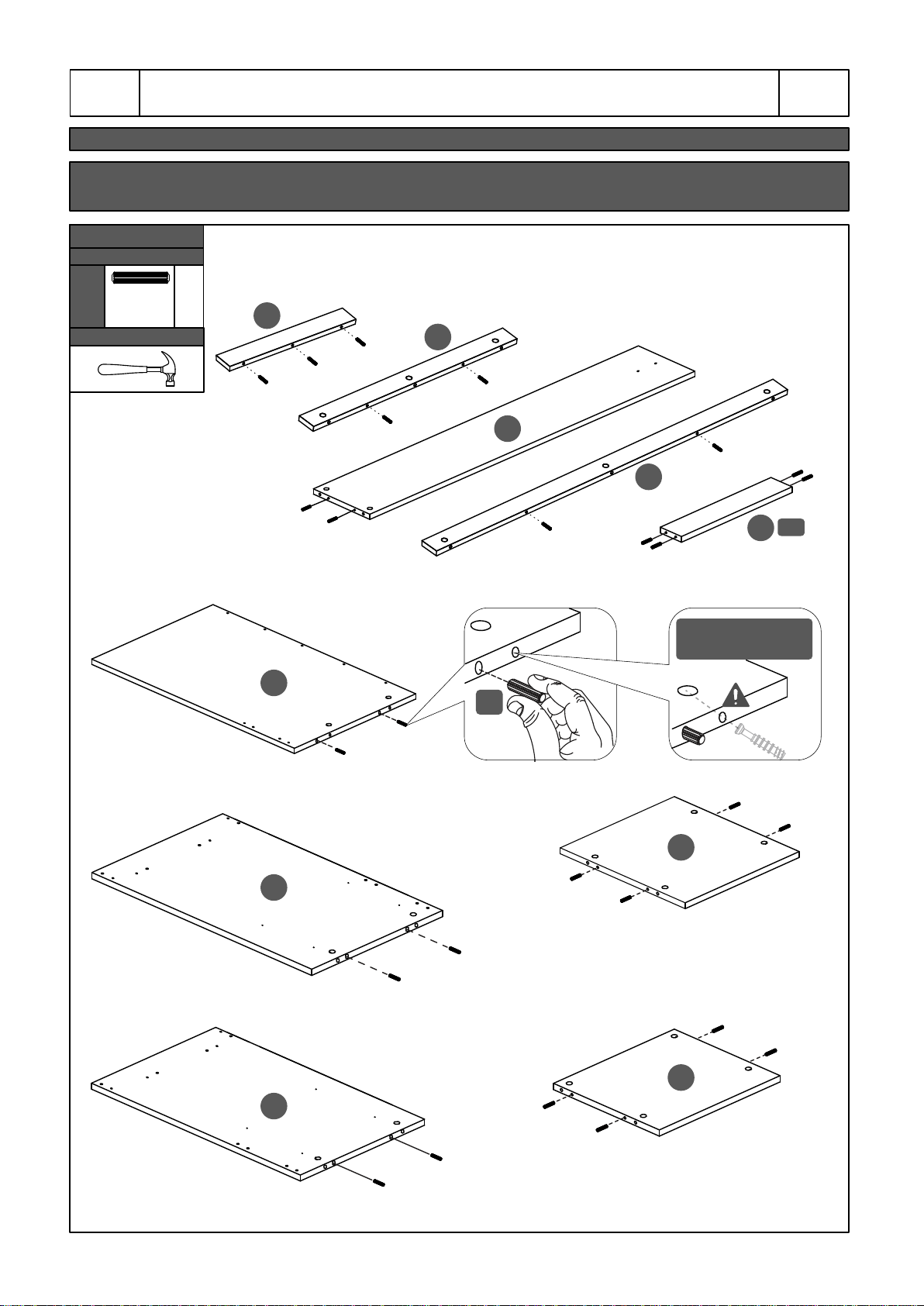

Install the wooden dowels Ginto the indicated holes on panels:
2, 3, 4, 5, 6, 7, 8, 10, 11 and 13.
STEP 1
Hardware
M6x30
Wooden
dowel
31
Pcs
ASSEMBLY STEPS
G
2
3
5
6
7
8
10
11
13
G
x2
Tools (NOT included)
WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR
FINISH DURING ASSEMBLY.
4
This other hole is for
bolts in other steps

K
RTA-988D
P.8 P.8
Install the bolts Kinto the indicated holes on panels 1, 2, 7, 8and 9.
STEP 2
Hardware
M5x30 22
Pcs
2
8
(Front)
Tools (NOT included)
OR
7
9
1
K
Make sure the bolts enter as
straight as possible Make sure the bolts enter all the way through its threading
(Front)
(Front)
(Front)
(Top)
(Top)
(Top)
(Back)

RTA-988D
P.9 P.9

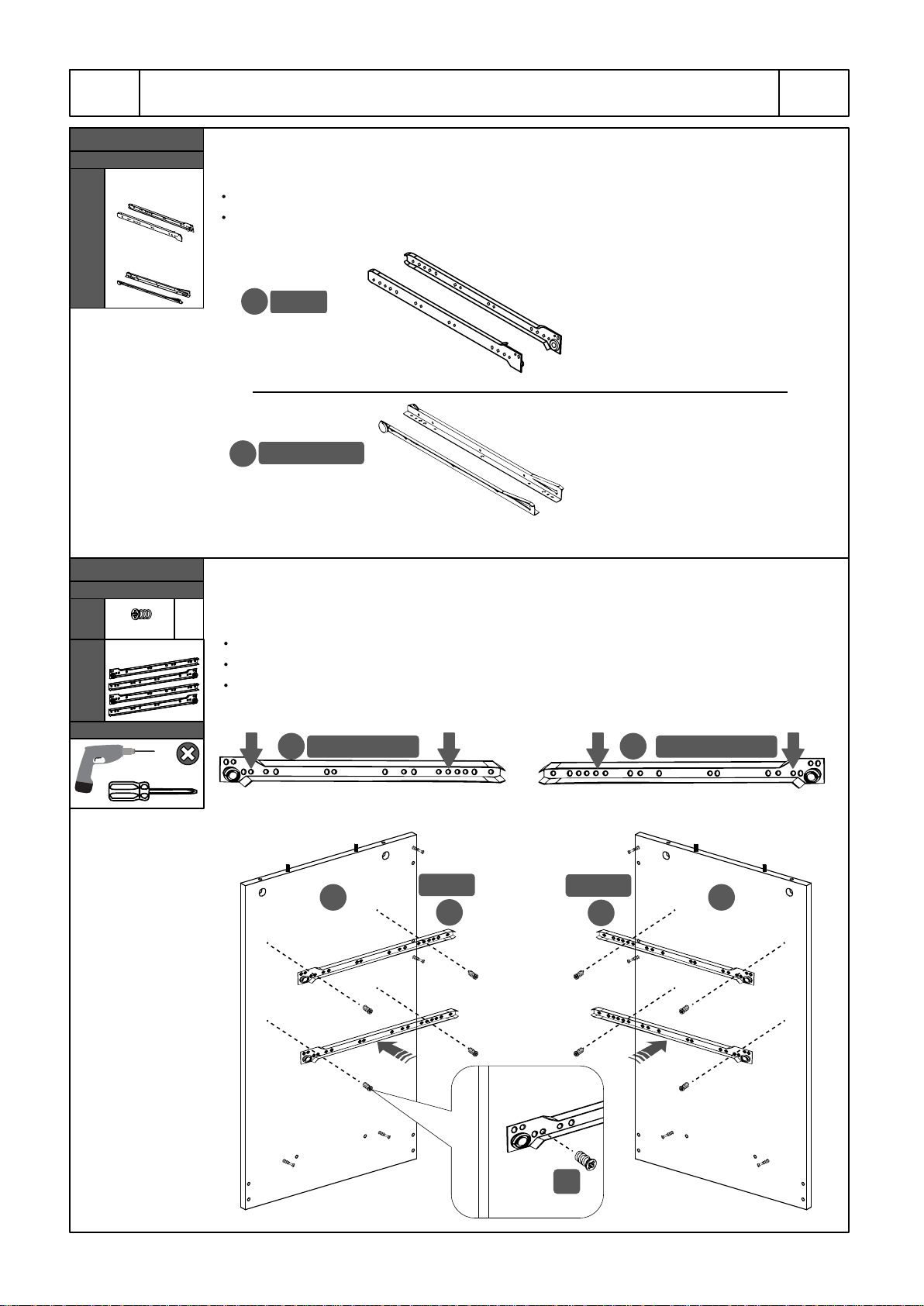

P
4 "flat" pieces:
STEP 3
Hardware
P
(Front)
(Top)
78
Use screws I to assemble the "Flat" sliders Pto the side panels 7and 8in their
respective sides (Right sliders to 7, left sliders to 8).
NOTES:
The wheels go towards the front of the panels.
Attach first on the front, through the 4th hole on the slider.
The sliders will show 2 free holes above the wheels.
STEP 4
Hardware
IM5x11 8
Pcs
2 "flat" pieces
per set:
2 "L shape"
pieces per set:
Grab both sets of sliders P(total 8 pieces) and separate them into 2 groups
according to their shape:
The "flat" ones will be used on the next step.
The "L" shaped won't be used until step 9, set them aside.
(Front)
(Front)
(Front)
(Front)
P"L" Shaped
P"Flat"
RIGHT
LEFT
RIGHT
LEFT
The "flat" ones will be
used on the next step
.
The "L" shaped won't be
used until step 9, set
them aside.
(Front)(Front)
P"Flat", LEFT
P"Flat", RIGHT
(Top)
(Front)
P
LEFT
Tools (NOT included)
Or
P
RIGHT
(Front)
I

L
STEP 6
Hardware
Cam lock
4
Pcs
Tools (NOT included)
OR
L
RTA-988D
P.10 P.10
Join the cabinet’s bottom panel 10 and back panel 13 to the right side panel 7,
making sure the big holes for the cam locks go facing towards the inside and
the bottom respectively.
Insert the cam locks Linto 10 and 13, and turn them to lock the pieces together
as shown and as explained in page 5.
.
STEP 5
Hardware
Cam lock
4
Pcs
7
8
10
13
Tools (NOT included)
Join the cabinet’s skirt panels 11 to the right side panel 7.
Join the middle side panel 8to panels 10, 11 and 13.
Insert the cam locks Linto 10 and 13, and turn them to lock the pieces together
as shown and as explained in page 5.
.
(Front)
(Back)
OR
(Front)
(Top)
(Top)
(Bottom)
(Alignment)
L
(Alignment)
Attach panel 10 first
7
11
11
10
11
11
13
FIRST
THEN
(Alignment)
(Alignment)
L
L

Tools (NOT included)
OR
AND
J
RTA-988D
P.11 P.11

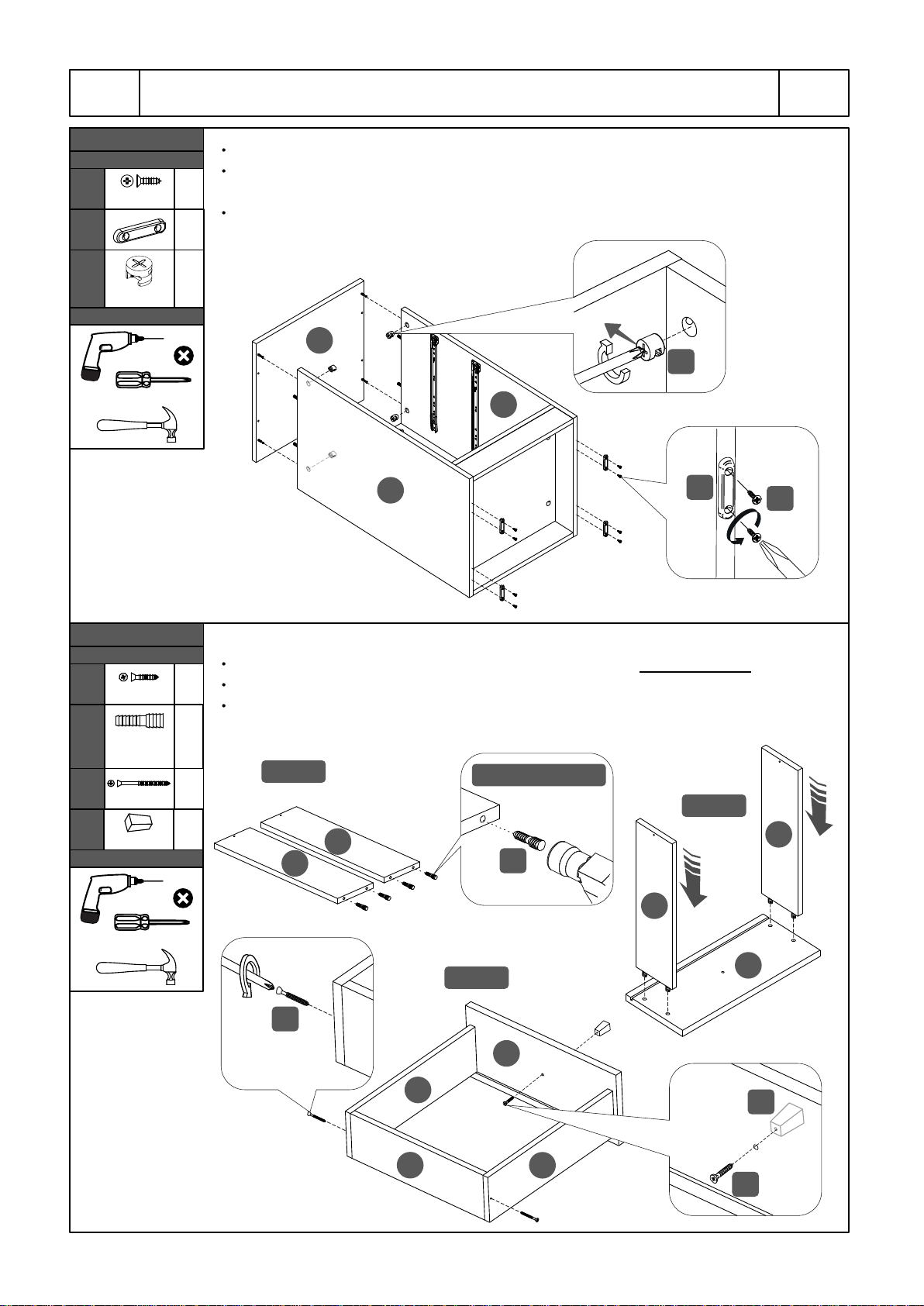

Join the cabinet’s top panel 9to the side panels 7and 8.
Insert the cam locks Linto 7and 8, and turn them to lock the pieces together as
explained in page 5.
Attach the bottom plastic glides Jto the bottom of panels 7and 8with screws A
as shown.
STEP 7
Hardware
4
Pcs
For each of the two drawers:
Install the plastic dowels Cto the side panels 16 from the thinner end.
Join the side panels 16 to the front panel 12 as shown.
Assemble the back panel 14 to the side panels 16 with screws H.
Attach the handle Oto the front panel 12 with screws Bas shown.
STEP 8
Hardware
B2
Pcs
Plastic
dowel
8
Pcs
C
LCam lock
4
Pcs
Tools (NOT included)
OR
AM3.5x14 8
Pcs
AND
7
8
9L
(Alignment)
A
J
H
Handle
4
Pcs
O
M3.5x40
2
Pcs
M3.5x25
FIRST
LAST
16 16
H
C
THINNER END THEN 16
16
12
12
14
16
16
O
B

RTA-988D
P.12 P.12
MNail
18
Pcs
M
(Top)
(Bottom)
15
12
14
M
(Just mark
the 3rd hole
from each
end, and
remove)
P
4 "L" pieces:
STEP 9
Hardware
AM3.5x14 8
Pcs
Tools (NOT included)
Or
A
A
P
RIGHT
LEFT
(Front)
(Back)
RIGHT
And

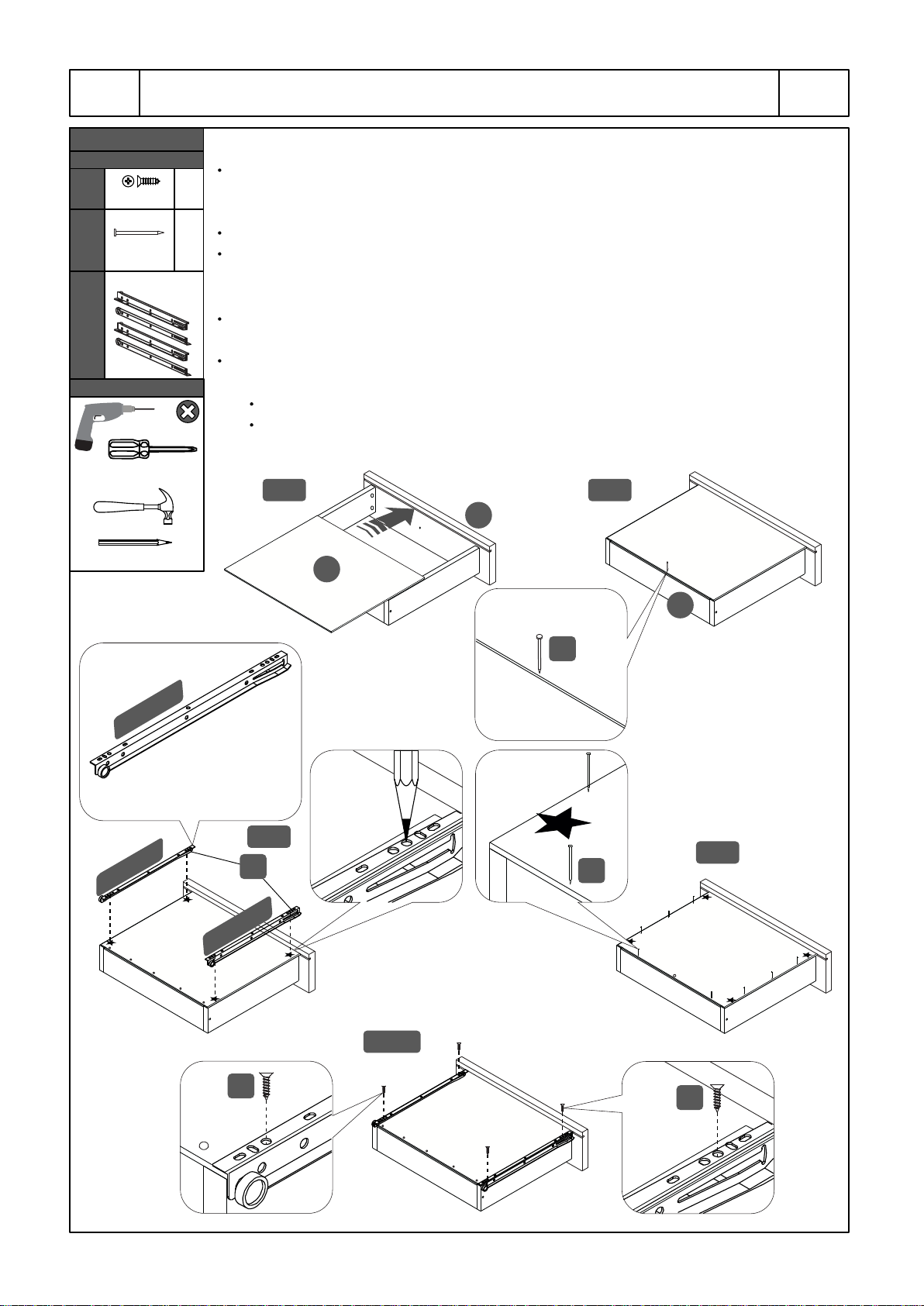

For each of the drawers:
Flip them upside-down (the groove on the front panel 12 will face up) and place
on it the drawer bottom board 15, inserting one end into the groove of the front
panel.
Use one nail Mto secure the bottom board to the back panel 15 as shown.
Place the "L" shaped sliders Pon the sides with their wheels facing towards the
back, and mark the board with a pencil on the 3rd hole from each end that will
be used to attach them to the drawer, and remove the sliders.
Secure the bottom board 15 with 8 more nails Mmaking sure not to block the
marks where the sliders will be installed.
Assemble the sliders Pon their respective sides with screws A.
Notes:
The wheels go towards the back of the drawer.
The sliders should not protrude from the bottom of the drawer, otherwise
they raise the drawer 1" more and won't fit in the unit.
1st 2nd
3rd 4th
LAST

RTA-988D
P.13 P.13
STEP 10
With the help of another person, join the left side panel 2to the tabletop 1, insert
the cam locks Linto the holes of 2, and turn them to lock the pieces as
explained in page 5.
Join the top back panel 6to the side panel 2, insert the cam locks Linto the
holes of 6, and turn them to lock the pieces as explained in page 5.
Cover the cam locks with stickers N.
STEP 11
Hardware
This step
requires of
2 persons
NCover 4
Pcs
1
2
6
(Front)
(Back)
Insert the drawers into the cabinet, starting with the bottom one, and with the
front facing down at an angle. If the drawers don't seem to fit, review the
assembly done in steps 4and 9.
Tighten flushed
If the drawers stop or feel like hitting something,
tighten all the screws as flushed as possible so
the heads don't interfere with the rollers.
The wheels from the
drawer must slide in
the middle of the
sliders, not on top
on them.
LCam lock
4
Pcs
Tools (NOT included)
OR L
N
(Alignment)
(Alignment)
N2
(Back)
(Front)
L

A
RTA-988D
P.14 P.14
With the help of another person holding firmly the panel 6, attach the brackets D
to secure panel 6to the tabletop 1with screws Aas shown. It is recommended
to secure first at the opposite end of panel 2.
Attach the glides Jto the botom of panel 2with screws Aas shown.
STEP 12
Hardware
M3.5x14 16
Pcs
This step
requires of
2 persons
Join panel 3to the tabletop 1with cam locks Las explained in page 5.
Join panel 4to panel 2with cam locks Las explained in page 5.
3
4
Please note Message
IMPORTANT:
■Please note that neither panel 6 or panel 1 have predrilled holes or any other
markings for this step; that is the way ithey are manufactured.
■The assembly of panel 6 requires that it stays as still as possible, so a second person
should hold it in place firmly during the assembly.
IMPORTANT:
■Panel 6 not necessarily will install 100%
perfectly, and small misalignments and gaps are
possible, and should not be of concern or
considered a product defect.
■If the misalignment or gap is very noticeable,
you can remove the brackets and reinstall by
placing them slightly to the left or right of their
original positions.
1
2
2
FIRST
THEN
6
D
A
A
J
Tools (NOT included)
OR
D3
Pcs
J2
Pcs
STEP 13
Hardware
LCam lock
6
Pcs
Tools (NOT included)
OR
(Alignment)
L
(Alignment)
L
1

STEP 15
A
D
RTA-988D
P.15 P.15
Attach the side panel 5to the tabletop 1.
Secure panel 5to panel 1with the large bracket Dand screws A.
Secure the panel 5to panels 3and 6with small brackets Eand screws A.
Secure panels 3and 4with the flat bracket Fand screws A.
STEP 14
Hardware
M3.5x14 10
Pcs
Large
bracket
1
Pc
With the help of another person, place the tabletop section over the cabinet
section on the left side (item does not allow to assemble the other way), and
extend to a desired width.
Please do not exceed the recommended maximum expansion of 10.5".
While the other person holds firmly the tabletop, secure the back panel 6to the
cabinet back panel 13 with screws Bfrom behind.
Cover the screw heads with stickers N.
Hardware
BM3.5x25 2
Pcs
This step
requires of
2 persons
N2
Pcs
3
4
5
6
E
ESmall
bracket
2
Pcs
FFlat
bracket
1
Pc
Tools (NOT included)
OR
FIRST
1
THEN
D
F
A
A
A
1
5
A
E
Tools (NOT included)
OR
9
Message
Maximum 10.5"
13
10.5"
Max.
6
1
N

Give yourself a nice pat on the back, you did a great job!
P.16 P.16
RTA-988D
ALL DONE!
Please take your time to read all warnings and warranty information in the following pages.
ENJOY YOUR NEW UNIT!

P.17 P.17
RTA-988D
Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and water,
then dry with a clean towel.
If you decide to use a cleaning agent, test first on an area hidden from view such as
underneath the tabletop.
Every 4 months, inspect the unit completely and make sure that all screws are tighten.
When transporting the unit to places far away, protect and secure the unit to avoid damage in
transit.
Shall any part of the unit become defective during the warranty period, replacement parts
might be available to you at no charge. Please refer to the last pages on this manual.
The warranty does not extend to regular wear and tear, nor the manufacturer assumes liability
for damages or consequences due to accidents, incorrect assembly, negligence, improper
use, modifications, or not heeding the above warnings.

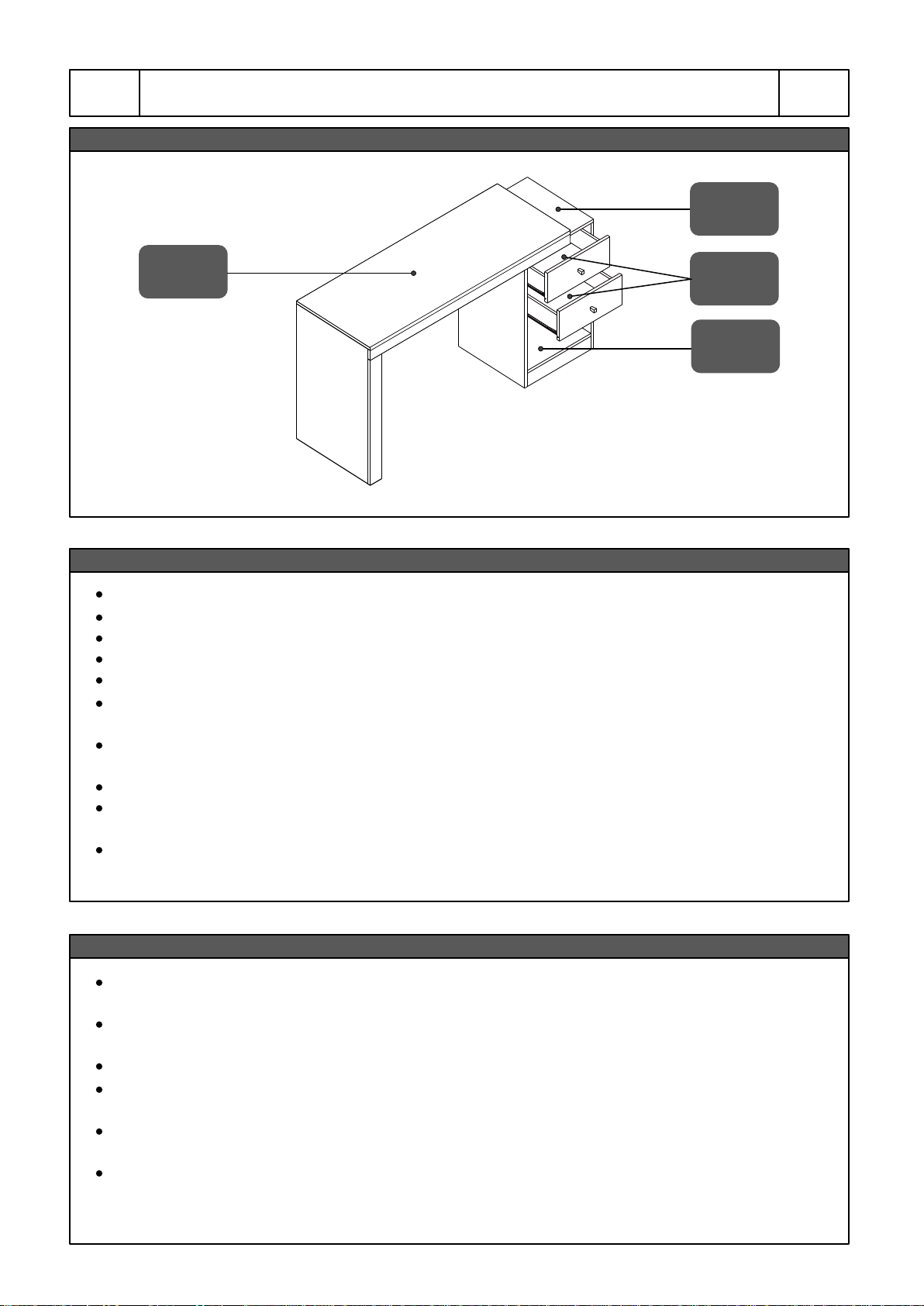

WEIGHT LIMITS
CARE AND MAINTENANCE
WARNINGS
Do not exceed the indicated weight limits.
Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
Do not use solvents or abrasive materials to clean the unit.
Do not sit on the unit or lean against it.
Do not allow small children to play under or over the unit.
Do not allow small children to reach inside the drawers or compartments without your
supervision.
Do not pull, push or drag the unit to move it for more than 1 feet. The unit must be lifted by at
least 2 persons when moving in the same or adjacent rooms.
Before moving the unit, make sure to secure or remove any object that is heavy or might fall off.
Please note that lifting from the tabletop with too much weight on the product might lead to part
damage/separation.
When lifting the unit, use both hands and bend your knees, not your backs.
22 Lbs
(10 Kg)
44 Lbs
(20 Kg) 13 Lbs
(6 Kg)
22 Lbs
(10 Kg)

P.18 P.18
RTA-988D
TECHNI MOBILI WARRANTY
RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA
Products or its authorized resellers that this product will be free from defects in its workmanship
and materials, under normal use and service conditions, as described herein. "Defects" as used
in this warranty, is defined as any imperfections that impair the use of the furniture or product.
RTA Products LLC will replace any defective part, at its discretion, and without charge to the
original purchaser other than the freight from the end consumer to RTA Products.
Replacement parts can only be supplied if parts are available. Items out of production may be
unavailable. This warranty will be effective for the applicable time period beginning the date of
purchase on your original sales receipt. RTA product’s obligation under this warranty is limited to
repairing or replacing products or parts as provided herein. This product has been designed for
and is intended for office and home-office use only. This warranty is Original Purchaser’s sole
remedy for product defects, and this warranty does not extend to any product, or damage to any
product, caused by or attributed to abuse or misuse, products used for commercial or rental
purposes, use modifications of, or attachments to the product, and products or parts not used,
maintained, or extended hereunder is in lieu of any and all other warranties, express or implied,
including without limitations any implied warranty or merchantability or of fitness for a particular
purpose. Please note, all desks made with PVC Laminate surface should not be exposed to
direct sunlight, as it may damage the material. Damage of this nature is not covered under this
warranty.
RTA Products will not be responsible for indirect, special, incidental or consequential damages.
This warranty is limited to merchandise purchased in the Continental United States, excludes
AK, HI and PR. Some States do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other rights that may vary from state
to state.
RTA Products will advise you of the procedure to follow in making warranty claims. The following
are the procedures for warranty claims:
a. Call us Monday – Friday, from 9am-5pm (Eastern Time) at [phone] to explain the
defect and give your name, address and phone number. Please have ready the model number
of our product, date and place of purchase. You can also write to us by e-mail to
[email protected] and include the same information.
b. If we determine that replacement will remedy the situation, and in order to determine the
extent or the cause of the defect, purchaser will need to send the part in question at purchaser’s
expense. Once we receive the part, we will examine it and determine whether the claim is valid
(or not), and then proceed to send the replacement. We will ship the replacement at our
expense.
DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY

Your satisfaction is very important to us. Our Support agents can help
you with any issues you may have, please feel free to contact us with any
questions you have about our products, or to request replacement parts.
FOR ADDITIONAL INFORMATION
PLUS HELP OPTIONS
VISIT: WWW.TECHNIMOBILI.COM
CLICK ON SUPPORT TAB
Or scan the following QR Code:
[email protected]
EMAIL US:
To request replacement parts, email us with the model number
of the product, the part number or letter of the requested part,
and proof of purchase.
