RTA Products TECHNI MOBILI RTA-739DL User manual

REV.-PFT-5-7534-0923
L-SHAPE HOME OFFICE TWO-TONE DESK
WITH STORAGE
MODEL RTA-739DL
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product
Scan QR to view full
assembly video
VIDEO

P.1 P.1
1
x1
RTA-739DL
2
x1 3
x1 4
x1
Right frame Left frame Center-left leg Center-right leg
5
x1 6
x1
Left-top-back tube Left-bottom-back tube
14
x1 Left tabletop
12
x4
15
x1 Corner top
7
x1 8
x1
Left-top-front tube Right-top-back tube
9
x1 10
x1
Right-bottom-back tube Right-top-front tube
Corner-bottom-back tube Foot
11
x1 13
x1 Earphones
hook
27.5" 27.5"
27.5" 24.5"
24.5" 22.5"

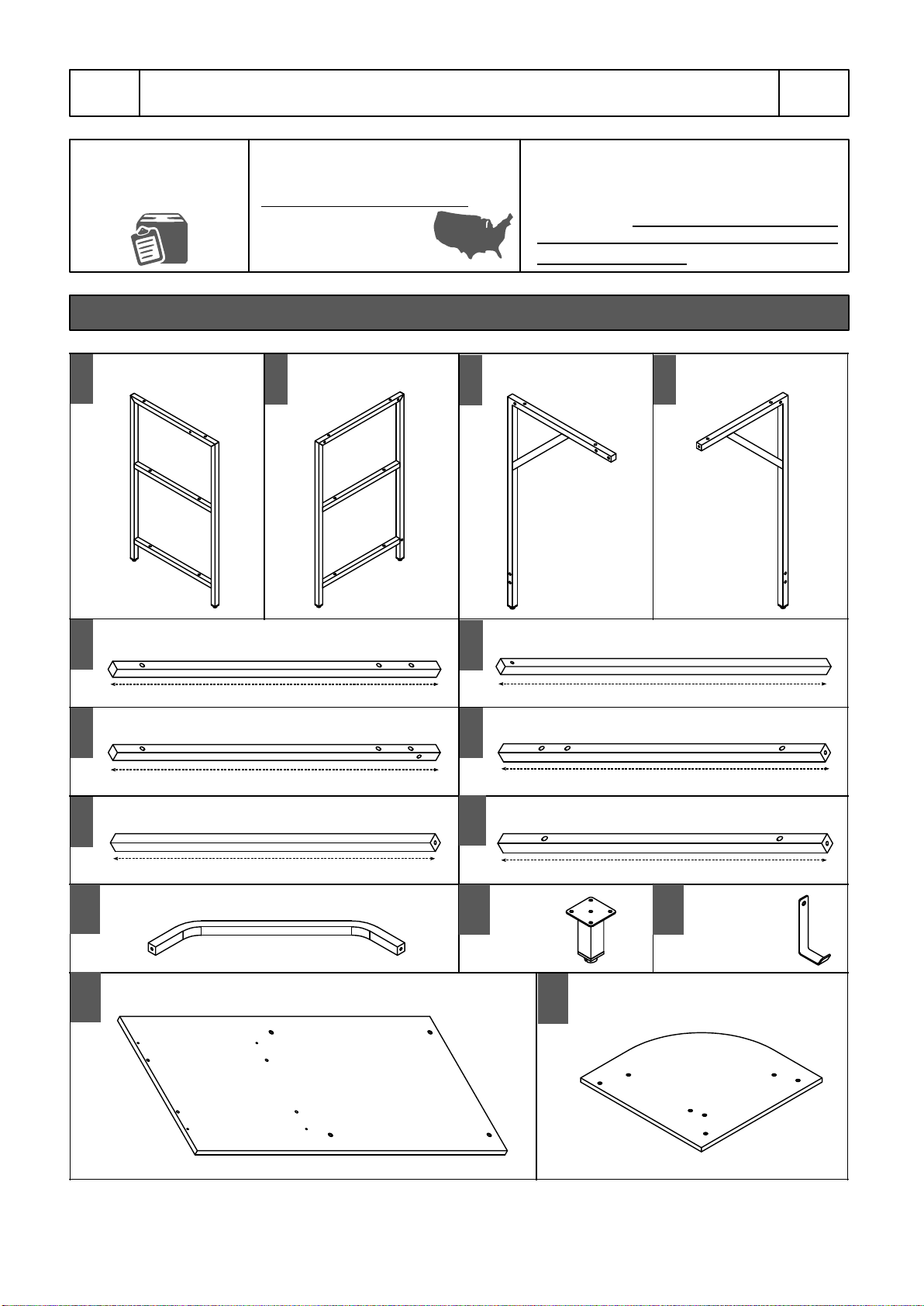

MAIN PARTS LIST
Replacement Parts for International
Customers & AK-HI-PR orders:
RTA Products will replace the part free of
charge, while the customer is responsible
for shipping costs plus any International
local taxes or duties.
Do a quick inventory
of all the parts and
hardware listed below.
For Support, assembly questions
& Replacement Parts within the
48 Contiguous United States:
Please email us at:
[email protected]

P.2 P.2

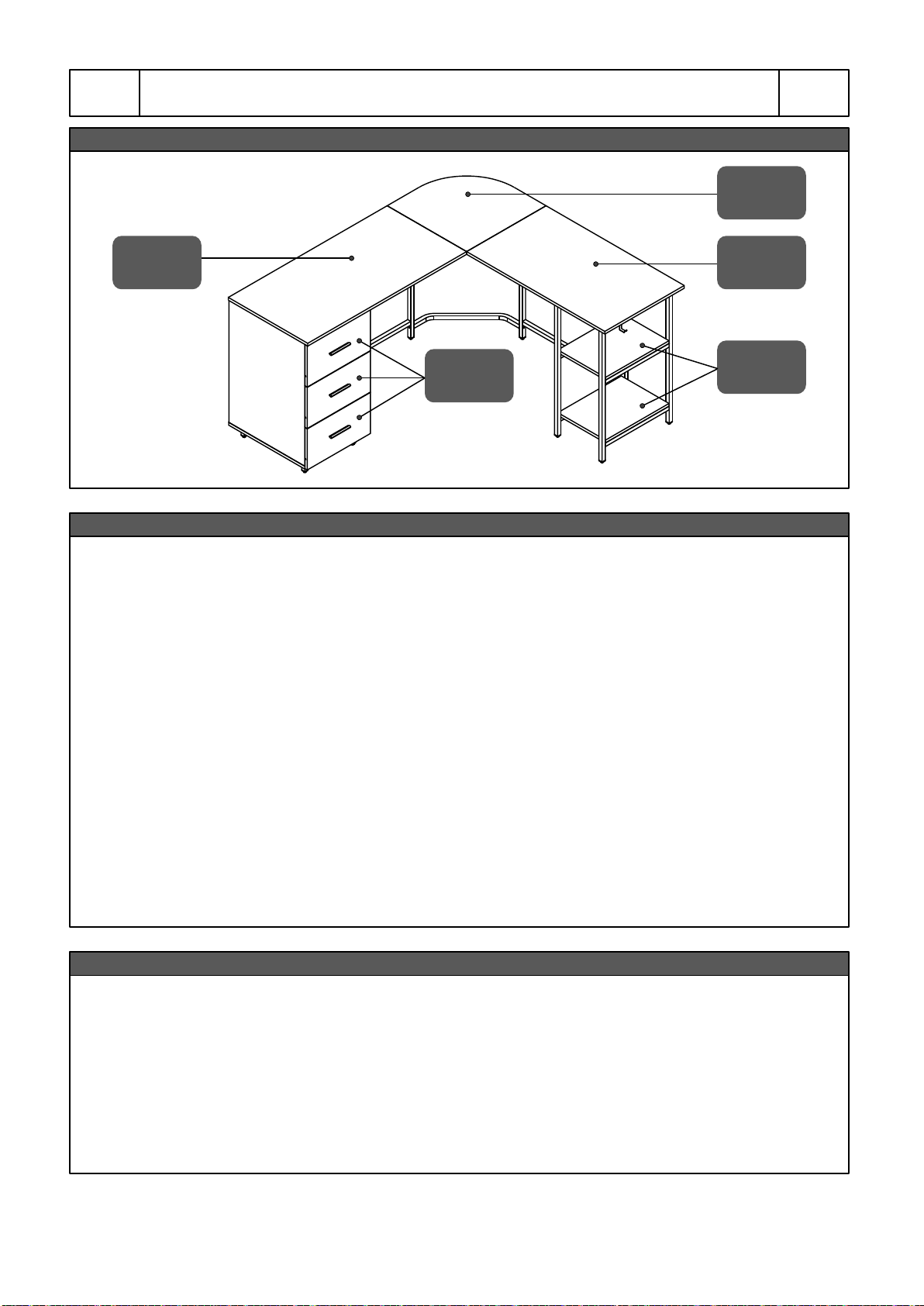

RTA-739DL
RIGHT
LEFT
MAIN PARTS LIST (Continue)

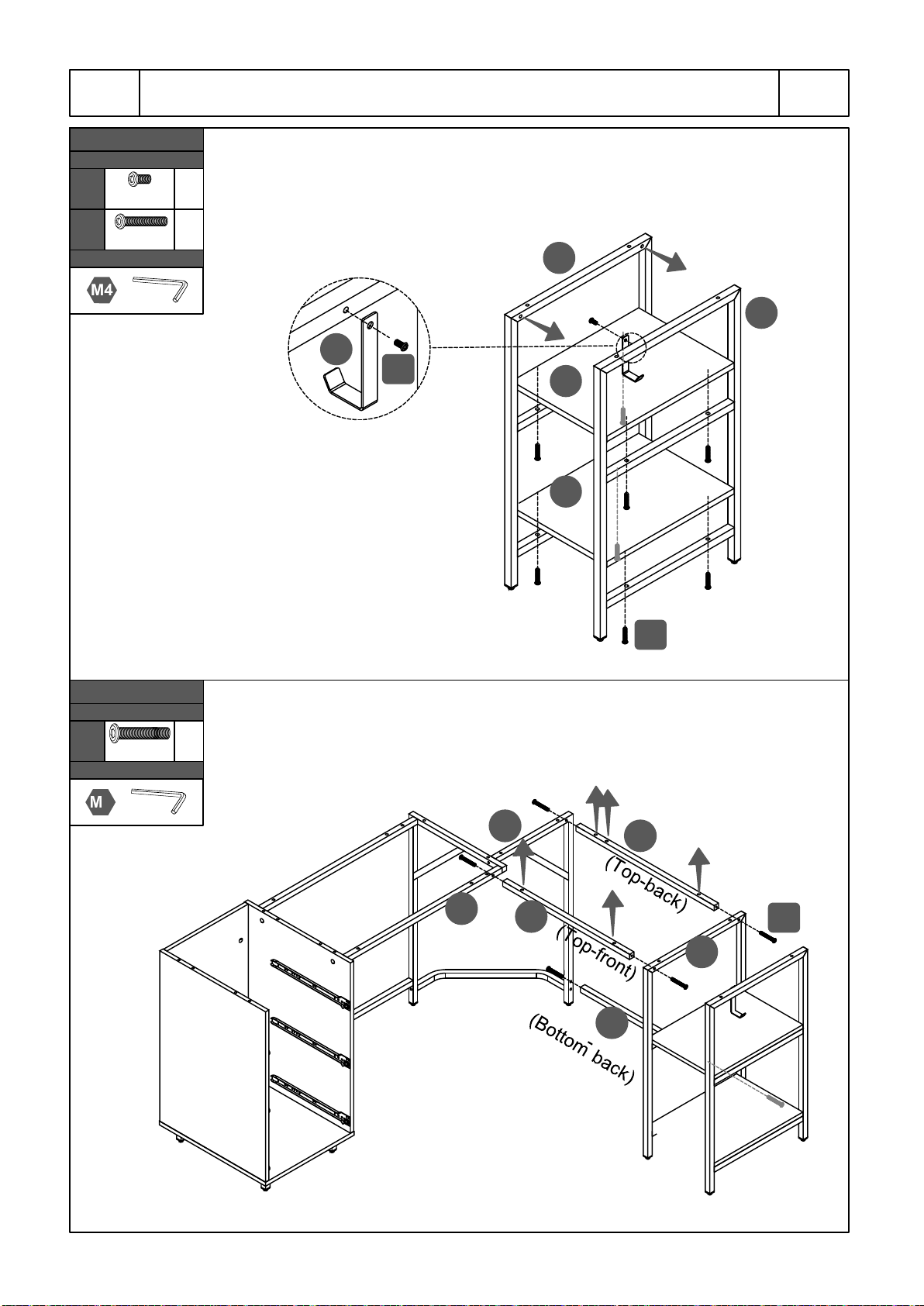

16
x1 Right tabletop 17
x2 Right shelf panel
18
x1 Left panel 19
x1 Right panel 20
x1 Back panel 21
x1 Bottom panel

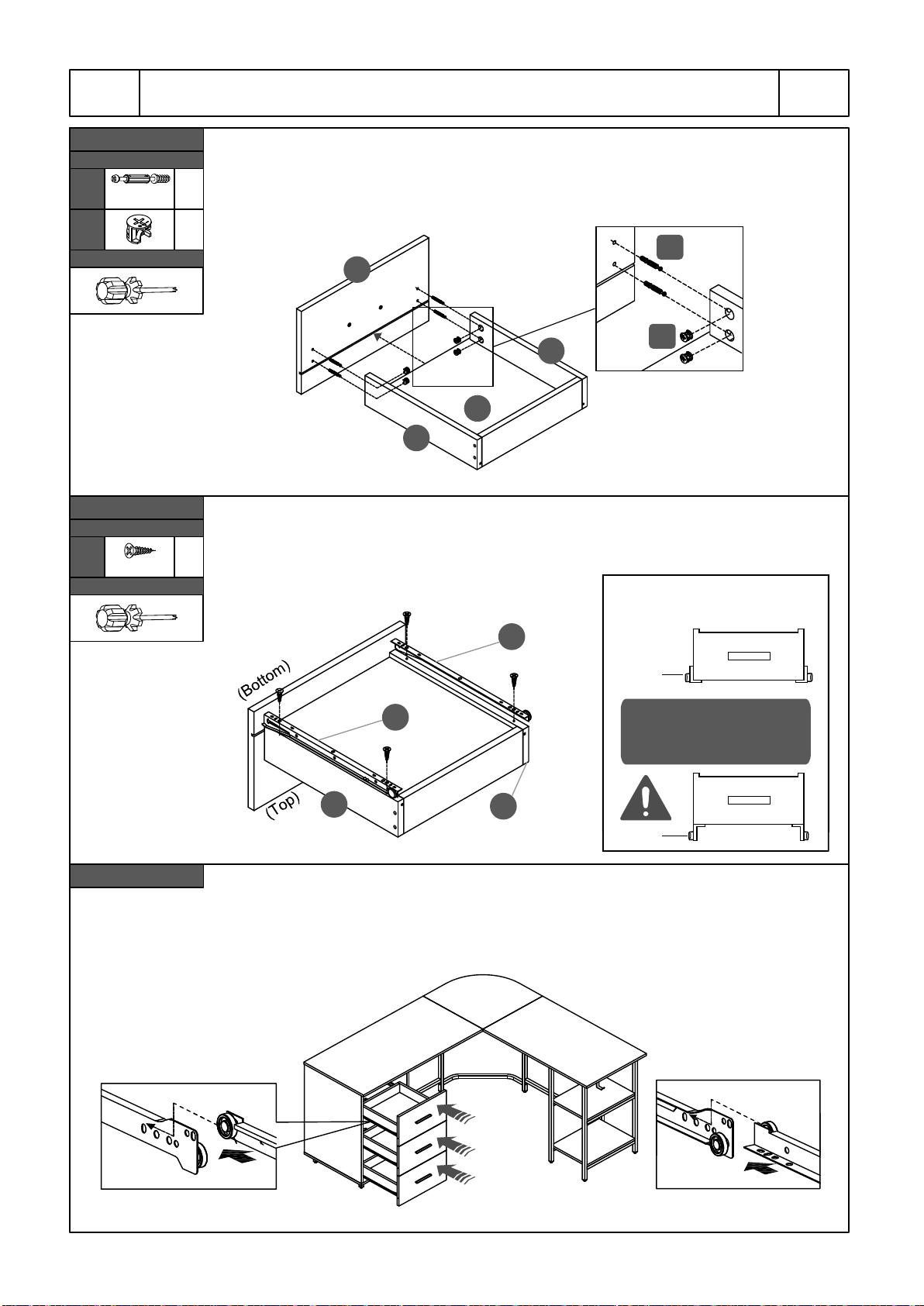

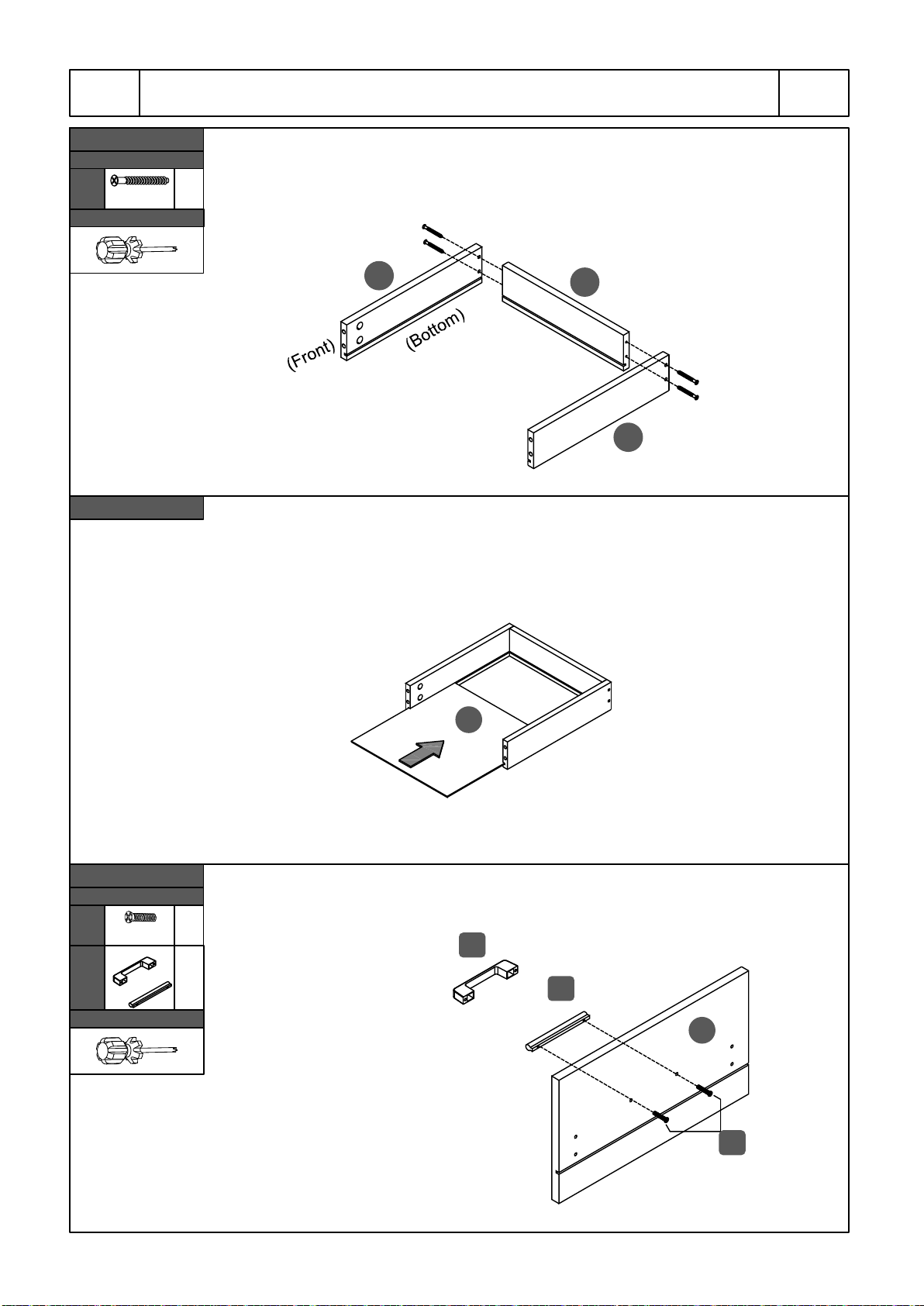

22
x3 Drawer front panel 23
x3 Drawer left panel 24
x3 Drawer right panel 25
x3 Drawer back panel
26
x3 Drawer bottom
board 27
x3
Sets
Sliders*, 4 pcs per set
“Flat”: 2 pcs, go inside the cabinet “L shaped”: 2 pcs, go on the drawers
* 24 pcs of
screws D come
packaged
together with
these pieces.
RIGHT
LEFT

12
13
14
15
16
17
18
20
21
22
26
RTA-739DL
P.3 P.3
(Left)
(Front)
MAIN PARTS LAYOUT (For reference)
17
1
2
34
8
5
710
9
11
6
19
25
23
24
(Back)
(Right)

RTA-739DL
P.4 P.4

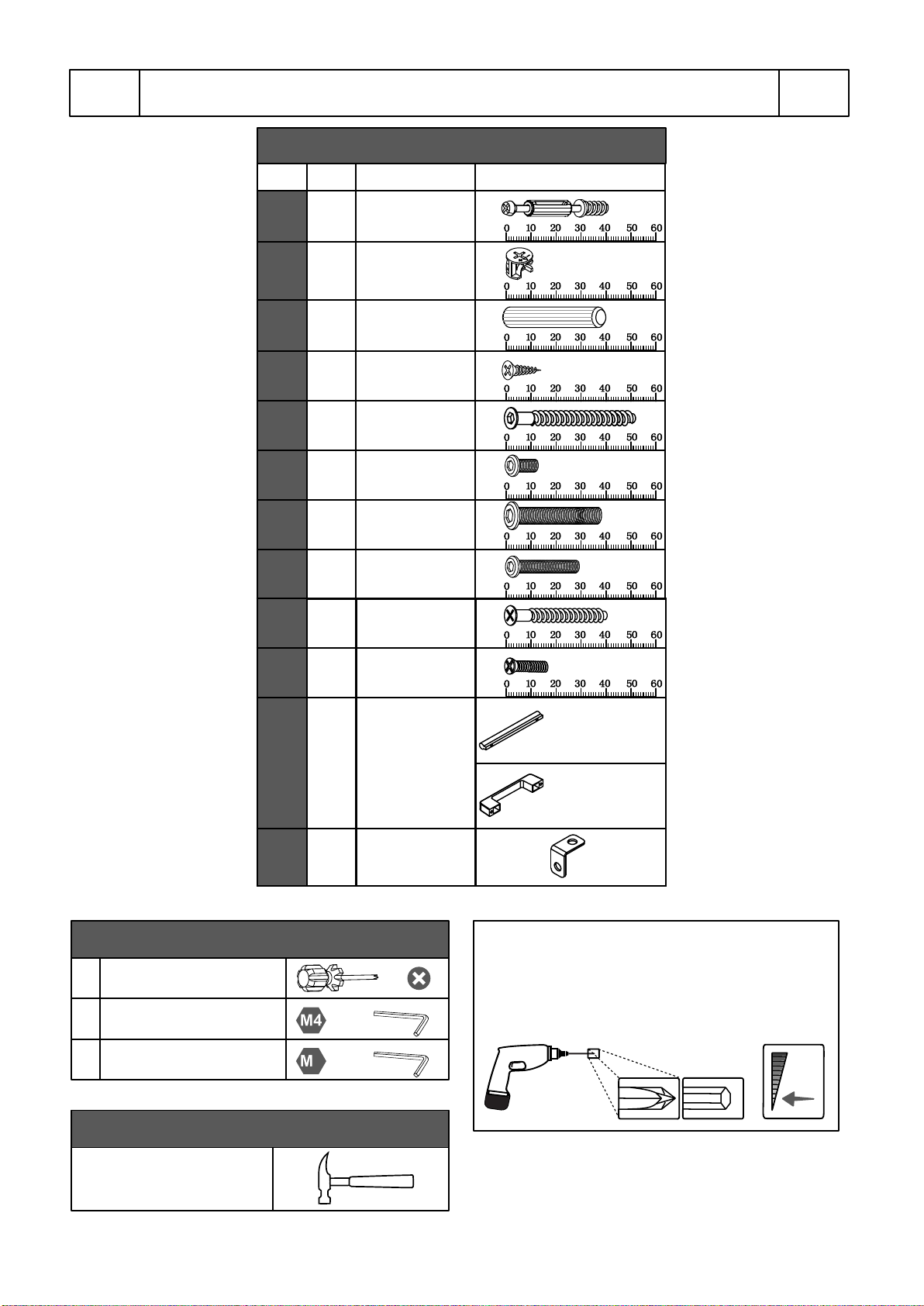

HARDWARE LIST
PART
QTY ITEM
A20 M5x42
bolts
B20 Ø15x12
Cam locks
C8Ø8x40
Dowels
D* 40* M3.5x14
E4M7x50
F7M6x12
G12 M8x40
H27 M6x30
I12 M5x40
J6M4x18
K396mm
Handle*
L3Metal
bracket
Desks in color
Sand and Walnut
use this shape in
color Silver
Desk in color
Gold uses only
this shape in
color Gold
*24 pcs of screws D
come with sliders 27*
1M4 Allen Wrench
1M4 Allen Wrench
INCLUDED TOOLS
1Phillips Screwdriver
TOOLS REQUIRED BUT NOT INCLUDED
Hammer
If you decide to use your own power driver:
• Make sure to have the appropriate hex or
Phillips bits.
• Start using at a low torque or speed to
avoid stripping the screws.
5

P.5 P.5
RTA-739DL

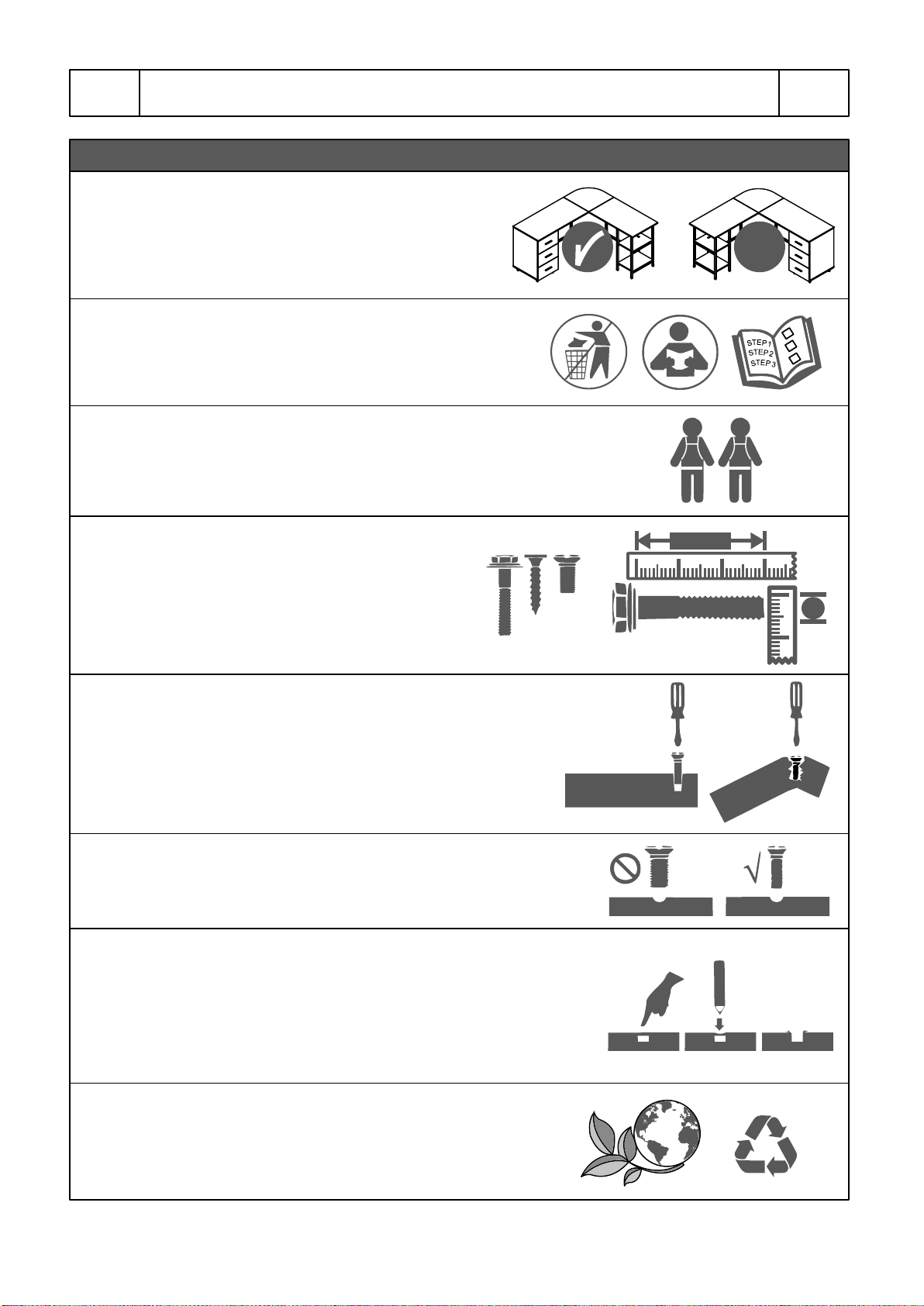

BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
M6
30mm
M6x30
• Make sure you understand which
hardware will be used on each step. Using
the wrong size of screw, bolt or pin might
strip the threads or cause damage to the
part in which it is being used.
• To avoid misalignments, always leave the screws
loosely and do not tighten them until all the pieces
are positioned correctly.
• Do not overtighten or force the screws as they might
break, strip, damage the threads of the holes, or get
stuck inside the parts.
• If the hole seems to small for the screw, make sure
you are using the correct size of screw and/or that
you are installing it in the correct hole.
• Sometimes on the wood panels the laminate or
material might be covering the hole partially or
entirely, if there is no visible hole or if it looks too
small, pass and press the tip of your finger over the
area to feel its indentation, and carefully pierce the
laminate to uncover the hole underneath.
• Do not discard this manual or any of the packaging
material until the unit is completely assembled.
• Please read the assembly instructions throughly and
follow step by step.
• The product is not reversible, it assembles ONLY
as shown in the front page, with the drawers on
the LEFT side. The drawers cannot install on
the RIGHT side.
Thank you!
12
Leave loose,
tighten all together
√
√
X
• The assembly might require of 2 persons for certain
steps. Before you start the instalation, make sure there
is someone else nearby to help you.
Do not
overtighten
• Please be kind to our planet, when done with the
assembly, recycle any of the packaging materials
that is accepted by your city or recycling service.

RTA-739DL
P.6 P.6
1. Screw the bolt into the indicated hole on the
panel indicated in the assembly step.

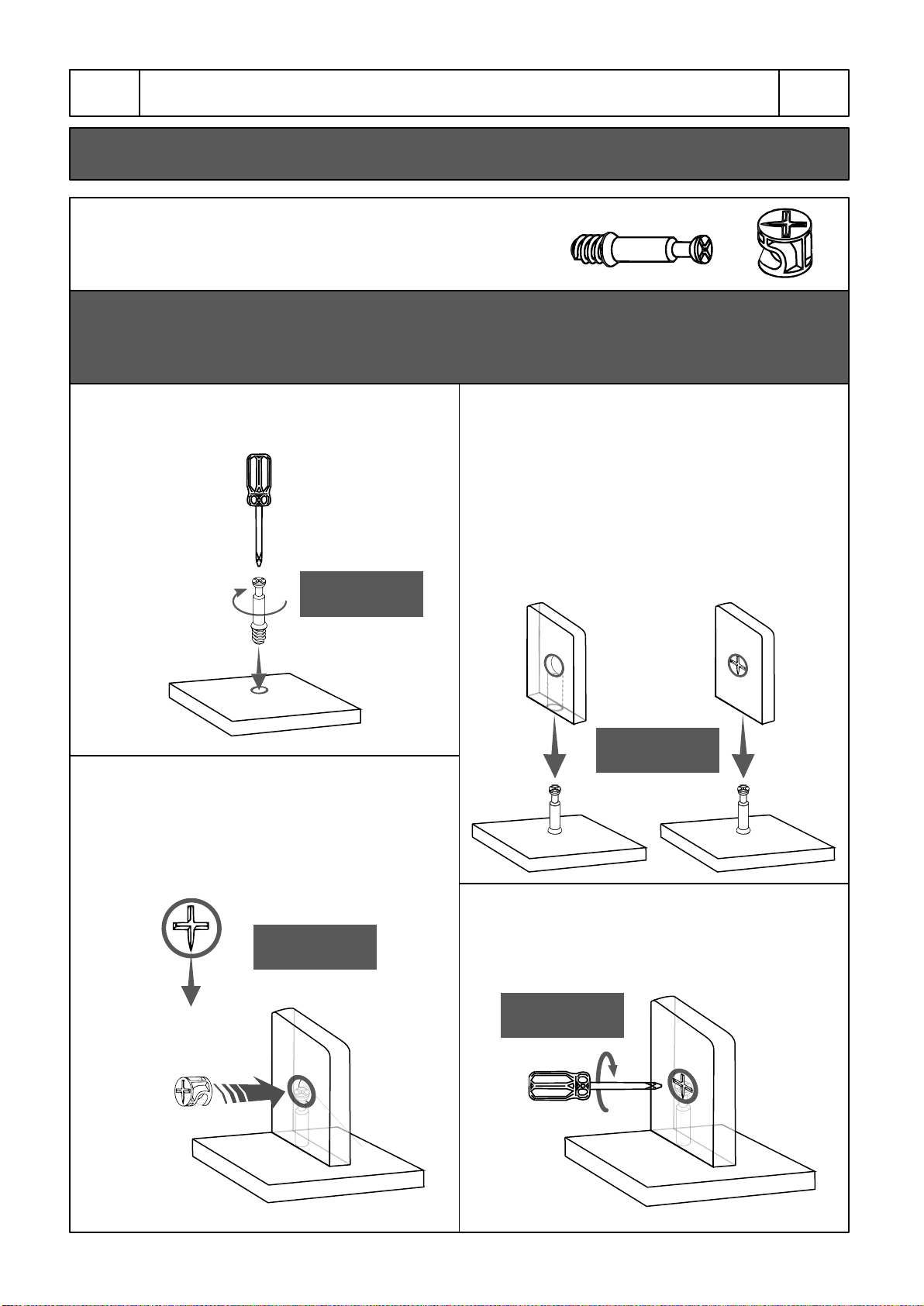

CAM BOLT AND CAM LOCK TUTORIAL
THE INSTRUCTIONS BELOW
ARE NOT ACTUAL ASSEMBLY STEPS
This unit uses cam bolts and locks (also known as mini fixes).
If you are not familiar with this kind of hardware, the below is a tutorial
that explains how to use them on the steps where they are required.
2. Join the other panel (with the big hole) to the
panel with the bolt. If it comes with the cam
locks already pre-installed, make sure to align
them to receive the bolt's head (refer to point
3). There might be a very small gap between
the panels which is normal.
3. Insert the cam lock on the panel with the big
hole making sure it goes aligned to receive the
bolt's head.
4. Use a Phillips screwdriver to turn the cam
lock clockwise. This will lock the panels
togheter and also will close any gaps.
Cam lock
alignment
If the cam locks come
pre-in stalled, make sure they
are aligned (see point 3).
THE ASSEMBLY STEPS START ON NEXT PAGE
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL
THIS IS ONLY
A TUTORIAL

The “Flat” ones will be used on the next step.
WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS TO PROTECT THEIR
FINISH DURING ASSEMBLY.
D
RTA-739DL
P.7 P.7
STEP 1
STEP 2
Hardware
Tools (included)
ASSEMBLY STEPS
Assemble the “Flat” sliders 27 to the cabinet panels 18 and 19 with
screws D, making sure the wheel faces towards the front of the panel.
Please note the sliders attach at the front on the 4th hole and the wheel
faces down with 2 empty holes above it.
M3.5x14
12
Pcs
19
18
(Front)
(Front)
D
(Front)
(Front)
(Front)
(Front)
RIGHT
LEFT
RIGHT
LEFT
(Front)
27 "Flat", RIGHT
(Front)
27 "Flat", LEFT
Grab all the sets of sliders 27 and separate them into 2 groups accordingto their
shape:
The “Flat” ones will be used on the next step.
The “L Shaped” won't be used until step 18, so set them aside.
The “L Shaped” won't be used
until step 18, so set them aside.

A
B
RTA-739DL
P.8 P.8
STEP 3
Hardware
M5x42 4
Pcs
4
Pcs
Tools (included)
(Front)
19
18
20
STEP 4
Hardware
EM7x50 4
Pcs
Tools (included)
Max.
10mm
Do not stick
out more
than 10mm
•FIRST Insert the dowels Cinto the indicated holes on panel 20.
THEN attach the bolts Ainto the indicated holes on panels 18 and 19.
LAST join the panels 18 and 19 to panel 20, insert the cam locks Bon panel 20
and turn them to locka the pieces as explained in the Cam Lock Tutorial page.
•
•
Turn the cabinet upside-down and assemble the bottom panel 21 to
the panels 18 and 19 with screws E.
18
E
(Top)
19
21
CØ8x40 4
Pcs
Tools (NOT included)
FIRST
SECOND
Cam locks
alignment
on 20
LAST
C
A
B

D
RTA-739DL

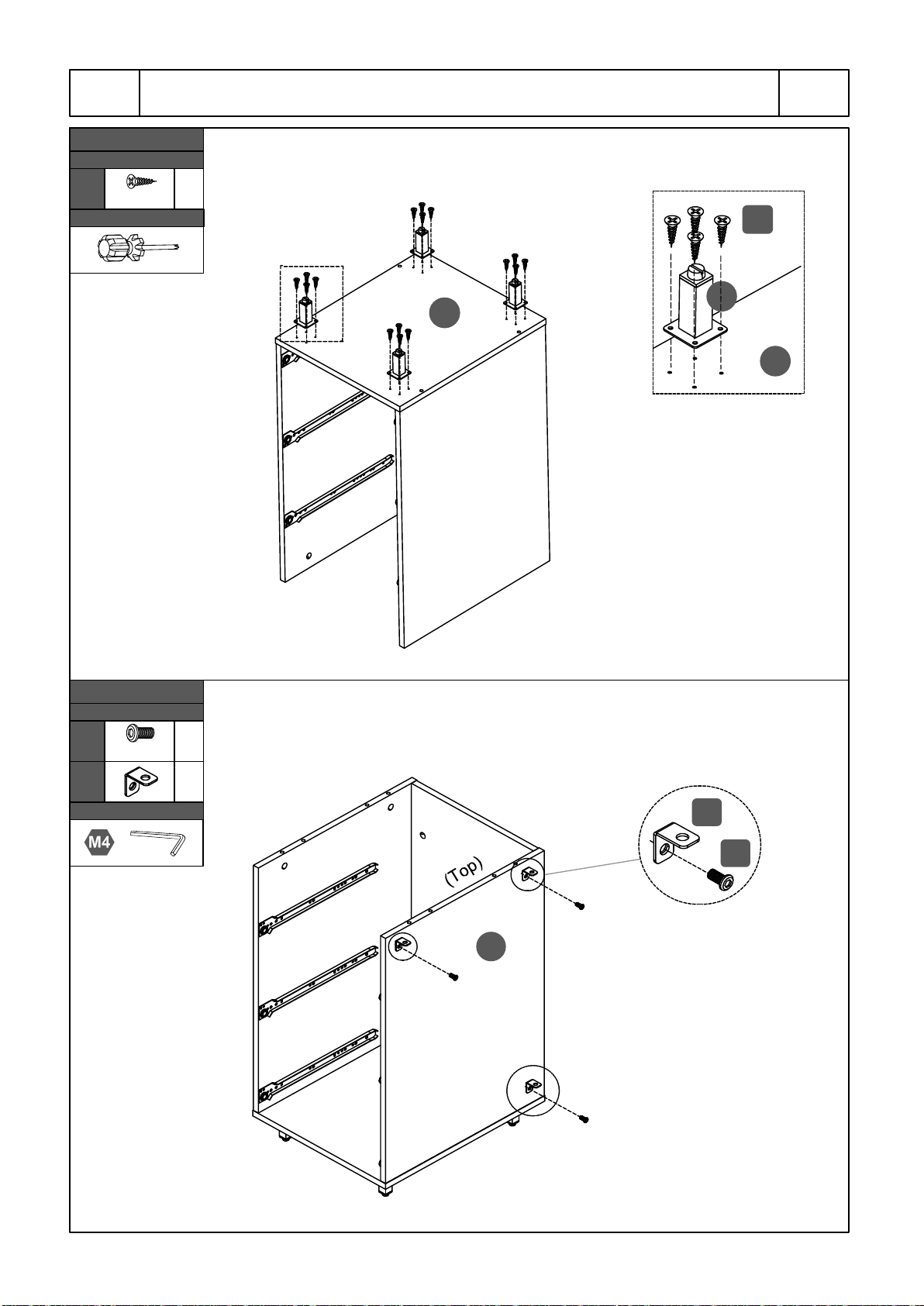

Attach the feet 12 to the bottom panel 21 with screws D.
.
Bring the cabinet upright and attach the brackets Lto panel 19 facing UP
with screws F.
21
D
21
12
Brackets
facing UP
F
L
19
(Back)
P.9 P.9
STEP 5
Hardware
M3.5x14 16
Pcs
Tools (included)

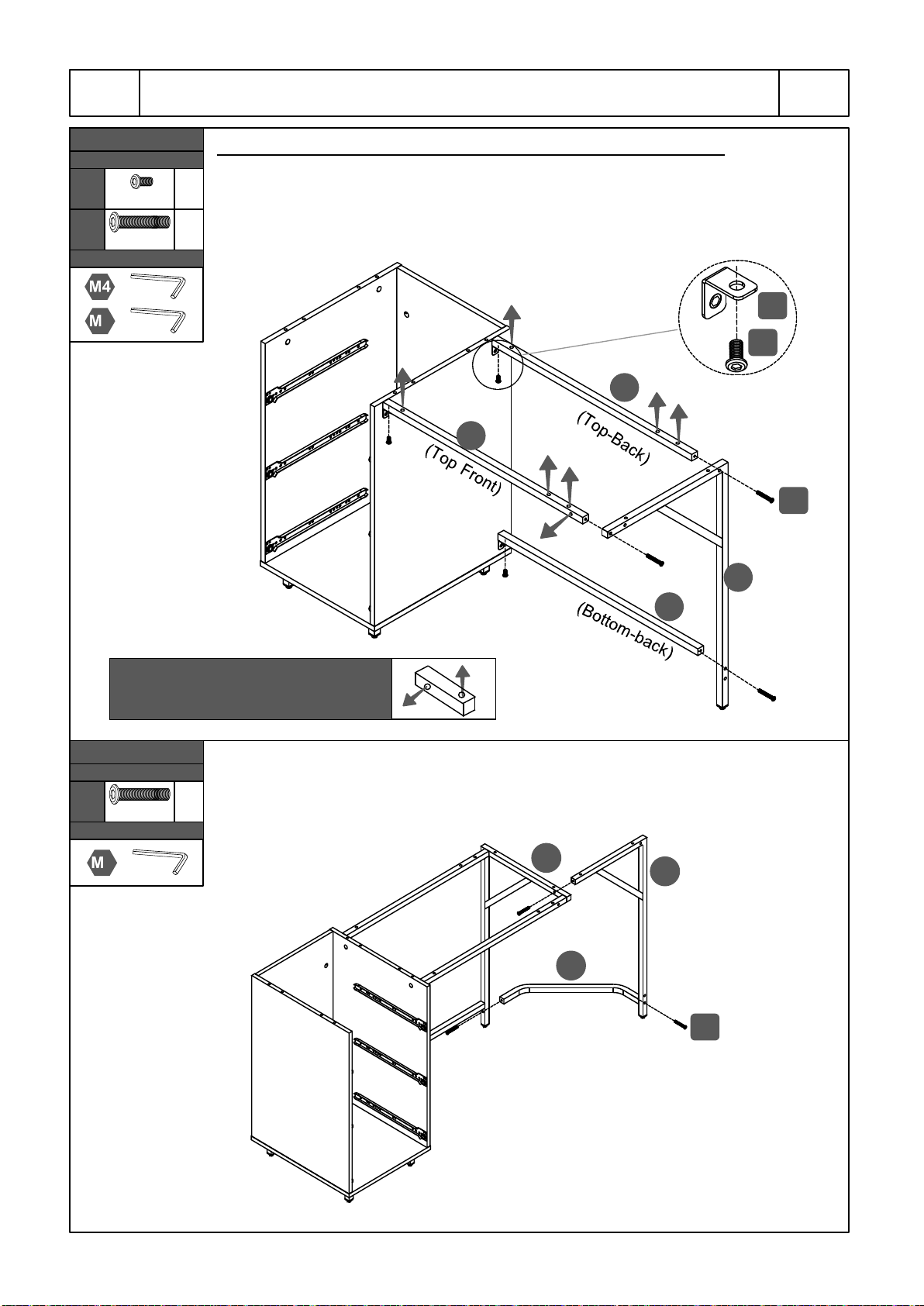

STEP 6
Hardware
FM6x12 3
Pcs
L3
Pcs
Tools (included)
