Russound UNO-S2 User manual

UNO™-S2 Keypad
Rev. 2

SAFETY INFORMATION
UNO-S2 Keypad
2
1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance in the operating instructions should be adhered to.
4. Follow Instructions - All operating and user instructions should be followed.
5. Water and Moisture - The appliance should not be used near water; for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
6. Wall or ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventila-
tion. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventila-
tion openings, or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through
the ventilation openings.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appli-
ances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
10. Grounding or Polarization - Precaution should be taken so that the grounding or polarization means of an appliance is not
defeated.
11. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, receptacles, and the point where they
exit from the appliance.
12. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure
through the openings.
13. Damage Requiring Service - The appliance should be serviced by qualified service personnel when: the power supply cord
or the plug has been damaged; or objects have fallen, liquid has been spilled into the appliance; or the appliance has
been exposed to rain; or the appliance does not appear to operate normally; or the appliance has been dropped or the
enclosure is damaged.
14. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All
other servicing should be referred to qualified service personnel.
Precautions:
1. Power – WARNING: BEFORE TURNING ON THE POWER FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
All models are designed for use with either AC120V, 60Hz or AC240, 50Hz voltages. The unit will autoswitch to either of
these voltages.
2. Do Not Touch The UNO-S2 With Wet Hands – Do not handle the unit or power cord when your hands are wet or damp. If
water or any other liquid enters the cabinet, take the UNO-S2 to a qualified service person for inspection.
3. Care – Periodically wipe off the front and side panels of the cabinet with a soft cloth. Do not use rough material, thin-
ners, alcohol or other chemical solvents or cloths since this may damage the finish or remove the panel lettering.

TABLE OF CONTENTS
UNO-S2 Keypad
3
Front Panel ......................................................................................4-5
Normal Operation ..............................................................................6
User Menu ......................................................................................7-8
Settings ............................................................................................9
Update Port ....................................................................................10
Rear Panel ......................................................................................11
Keypad Location ..........................................................................12-13
Keypad Connections ....................................................................14-15
IR Receiver Connection ....................................................................16
Technical Specifications ....................................................................17
Warranty ....................................................................................18-19

USER GUIDE
UNO-S2 Keypad Front Panel
4
3
2
4
6
7
1
5

USER GUIDE
UNO-S2 Keypad Front Panel
5
LCD PANEL - 12-character backlit display shows status of the room, source,
volume, and more
SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the
CAV6.6. Press and hold brings up the USER MENU for Loudness, Bass, Treble, etc.
VOLUME UP/DOWN BUTTONS - Raises and lowers the volume for the room
IR RECEIVER - Receives IR signals and passes them to the controller and source equip-
ment. Also used when operating the UNO Keypad by using the UNO-LRC1 remote
COMMAND KEYS - Pressing the command keys controls the source equipment
POWER BUTTON - Turns room ON or OFF when pressed once, press and hold a
second time will turn on or off all CAV6.6 rooms
F1 AND F2 BUTTONS - Selects Favorite 1 or Favorite 2 - preset user-selected
favorite settings per room
3
2
4
6
7
1
5

USER GUIDE

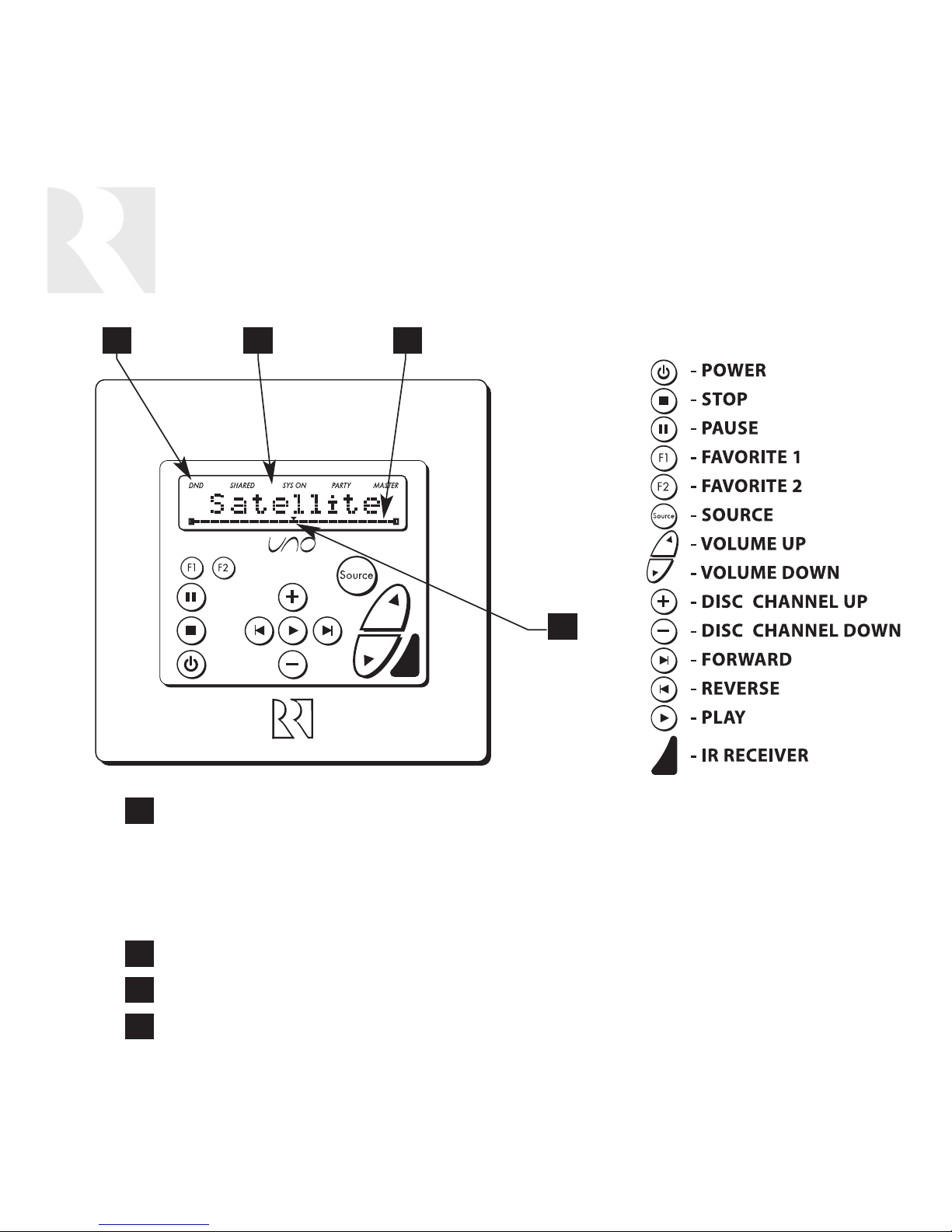

UNO-S2 Keypad Normal Operation
6
/
/
MODE:
“DND”- Do Not Disturb
“SHARED”- Same source selected in multiple rooms
“SYS-ON”- Indicates system on
“PARTY”- Party Mode enabled
“MASTER”- Master Keypad in Party Mode
12-character display
Volume Indicator
Indicates the middle of setting range
1
4
2 3
1
4
2
3

USER GUIDE
UNO-S2 Keypad User Menu
7
Zone On/Off
Press and release to turn on the UNO
System Keypad. This also turns on the cor-
responding CAV6.6’s room, and any pre-
sets previously assigned will be activated,
including settings for bass, volume, last
source selected, etc. Press and release
to turn off the UNO System Keypad.
This will also put the corresponding
CAV6.6’s room into a standby state.
System All On/Off
An “All On” command is issued by pressing
and holding for 3 seconds, after an ini-
tial room has been turned on. An “All Off”
command can be issued to all rooms by
pressing and holding after the room
has been turned off.
System On Indicator
When the room is off, but the system is on
in another room, is illuminated by a
green backlight and the "SYS ON" icon
remains visible.
Source Select Button
scrolls through the six A/V source
inputs and the Aux source. To change
sources, press and release . As the
sources are sequentially selected, each
source's name appears on the keypad LCD
panel. When a source is selected in more
than one room, the “SHARED” icon will
appear on all UNO Keypads using that
source. is also used to enter the User
Menu with a press and hold action. (See
next page for User Menu)
Volume Up/Down Buttons
The room’s audio output is adjusted using
F1 and F2 Buttons
The and buttons are user favorite
presets. These presets can be selected at
any time to recall source selection, vol-
ume, favorite channel, disc, etc. To store a
favorite preset: first, adjust the room set-
tings and select a source to be stored.
Next, press and hold the desired or
continued

USER GUIDE
UNO-S2 Keypad User Menu
8
button until SAVED is displayed on the
LCD panel. Now a press and release of the
button will recall the favorite preset. To set a
favorite numbered disc or channel, use
or to select a disc or channel (e.g.,
channel 45). Wait for the keypad to show
the source name, then press and hold the
F1 or F2 within 15 seconds of setting the
numeric selection to save the setting.
Command Keys
The command keys allow control of the
selected source at the UNO Keypad. The
command keys are activated with a press
and release, or press and hold to access
secondary functions.
The User Menu allows the user to adjust
the audio properties and control functions
of a particular room.
The following keys are used to navigate
and make changes while using the User
Menu:
To enter the User Menu, press and hold
during normal operation.
To exit the User Menu, press and release .
Adjust feature setting (increment).
Adjust feature setting (decrement).
Go to next feature.
Go to previous feature.
View current feature setting.
The following features make up the User
Menu:
BASS TREBLE LOUDNESS
BALANCE TURN ON VOL BG
COLOR DO NOT DSTRB PARTY
MODE FRONT A/V IN

USER GUIDE
UNO-S2 Keypad Settings
9
Feature and Setting:
1. BASS -10 < Bass:Flat > +10
2. TREBLE -10 < Treble:Flat > +10
3. LOUDNESS (more bass, fuller sound)
On or Off
4. BALANCE Left -10 < Center > Right +10
5. TURN ON VOL (default room volume level)
0 to 100
6. BG COLOR (keypad background light)
Amber or Green or Off
7. DO NOT DSTRB - On or Off (default)
Do Not Disturb means do not disturb this
room or selected source. This stops pages
from being sent to this room, stops an “All
Off," "All On" or Party Mode command from
affecting this room. When another UNO
Systems Keypad selects the same source, a
DND icon will appear alerting the user the
source is in Do Not Disturb mode.
8. PARTY MODE - Master (Enable/Disable)
When in “PARTY MODE” the system is primari-
ly controlled by a “MASTER” Keypad. Party
Mode links all rooms to the same source
which is selected by the Master Keypad
room. Any keypad in the system can become
a Master Keypad (if enabled) but only one
Master Keypad may exist at a time in Party
Mode. Selecting Master Keypad mode from
another keypad will transfer Master Keypad
control to that room and release it from the
first. When the source selected in the Master
Keypad room is changed then the source for
all rooms changes as well.
Volume level changes at the Master Keypad
will be reflected in all rooms in Party Mode.
Non-Master zones in Party Mode can tem-
porarily override Master Keypad volume level
adjustments for their particular room prefer-
ence. F1 and F2 favorite presets selected
from the Master Keypad will be enabled in all
rooms in Party Mode. Master Keypad will not
change Bass, Treble, or Loudness adjust-
ments for any other rooms other than the
Master Keypad room. Every other keypad will
still operate its respective bass, treble, bal-
ance and loudness adjustments for that room.
9. FRONT (AUX) A/V IN - Enabled/Disabled
Allows the system to select a seventh
source option through the controller's front
panel AUX connection for use with cam-
corders, game consoles, etc.

INSTALLER GUIDE

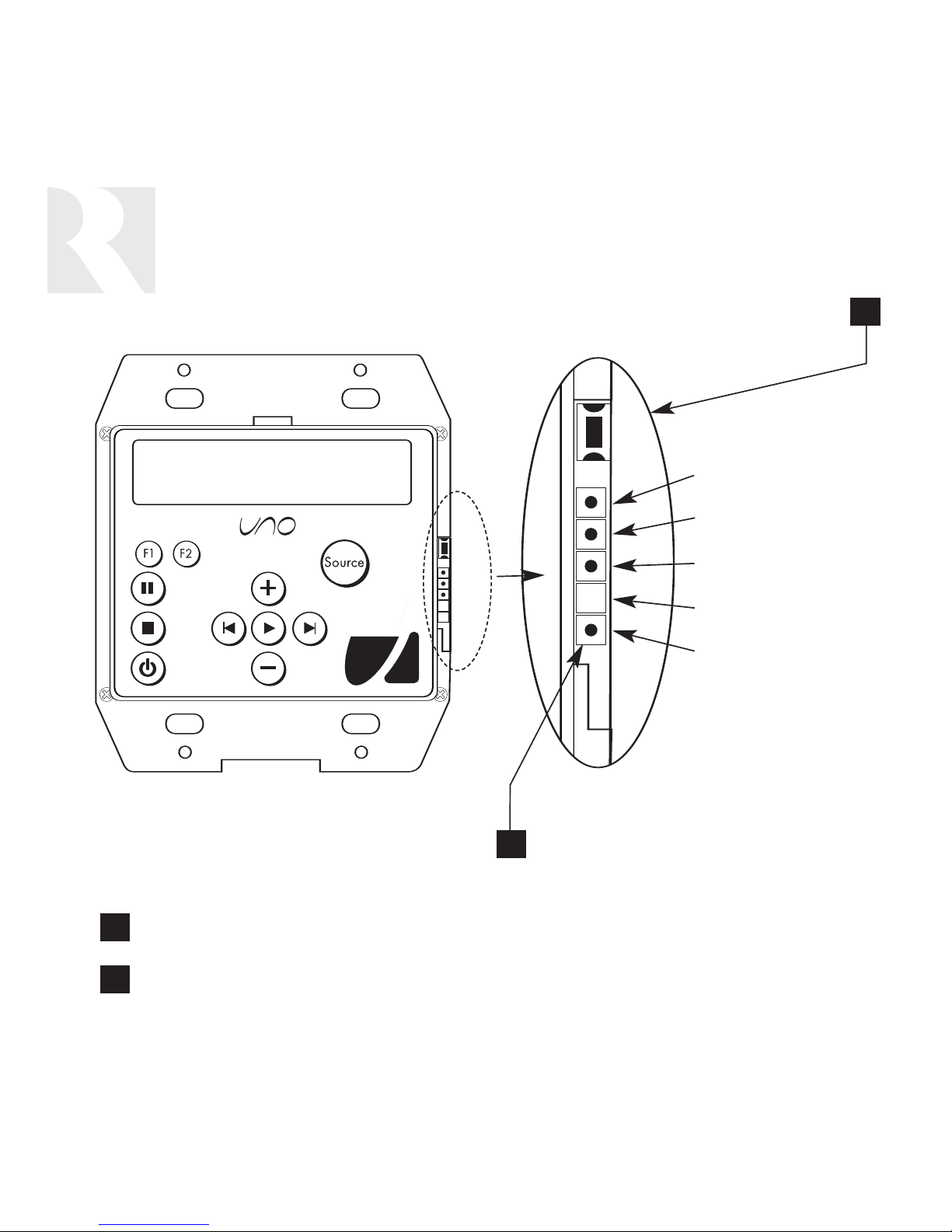

UNO-S2 Keypad Update Port
10
DATA RS-232
DATA RS-232
GND
N/C
N/C
SETUP BUTTON - Activates Installer Setup Mode for the UNO-S2 keypad
OS UPDATE PORT - Port used for UNO keypad OS software updates
1
2
1
2

INSTALLER GUIDE

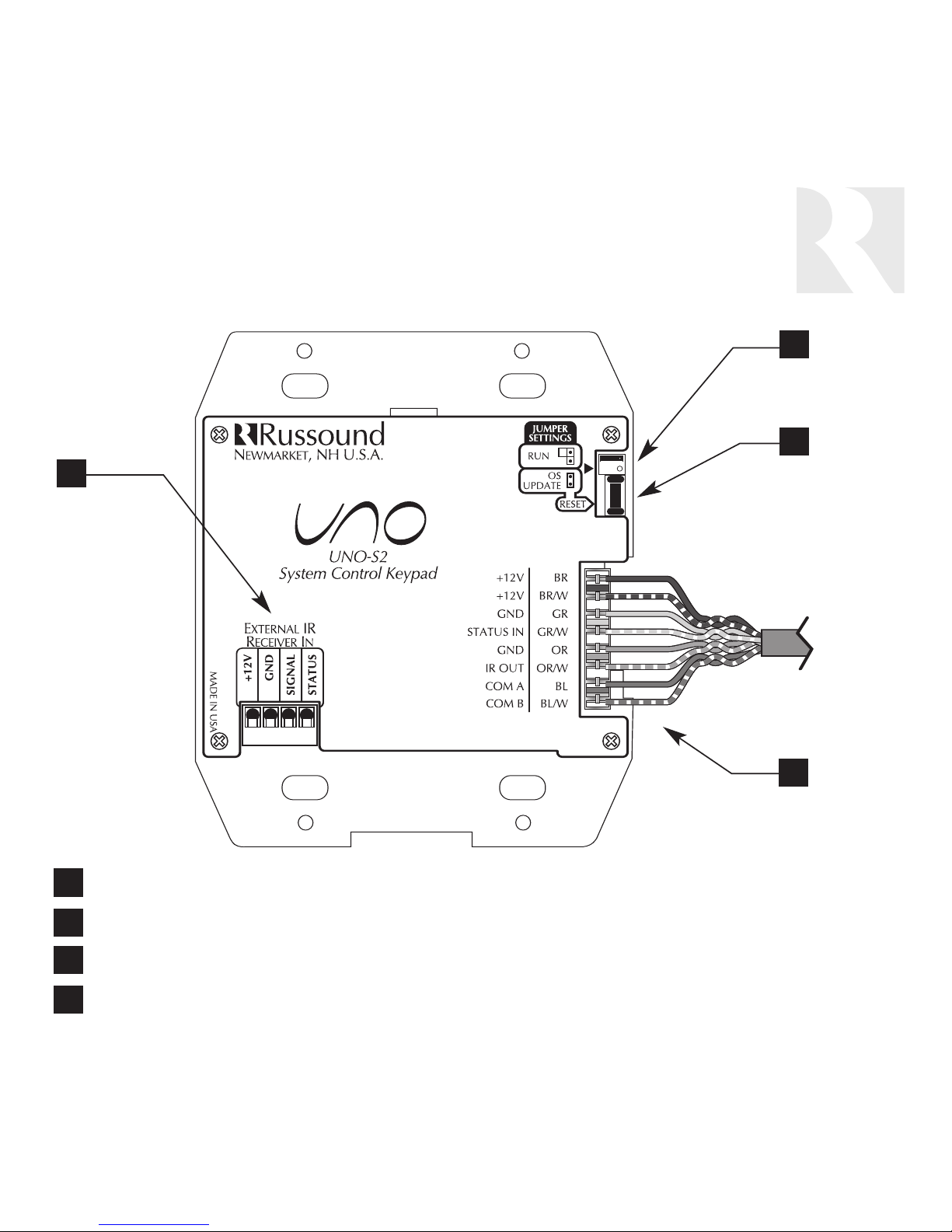

UNO-S2 Keypad Rear Panel
11
EXTERNAL IR RECEIVER IN CONNECTOR - Connection for an external IR Receiver.
OS UPDATE JUMPER - Selects “Run” or “OS Update” mode.
RESET BUTTON - Reset whenever changing from RUN to OS update
110 PUNCHDOWN CONNECTOR - Termination for CAT-5 connection between the
UNO-S2 Keypad and the CAV6.6 controller.
1
1
2
3
4
2
3
4

INSTALLER GUIDE
UNO-S2 Keypad Location
12
Plastic Double-Gang
Electrical Box
UNO-S2 Back Plate
Screw
Screw
Screwless
Cover Plate

INSTALLER GUIDE
UNO-S2 Keypad Location
13
The best infrared remote performance is
achieved with the keypad installed away
from any direct sunlight, plasma TV, and low
voltage lighting controls. Also consider con-
venience when choosing a location.
Choose a place that is easily seen from
the position where a person is most likely
to be located.
Check whether or not you can route the
wire to the location you have chosen.
Keypad Installation
To install a double-gang keypad, you will
need to use a UL/CSA approved plastic
double-gang electrical box.
Route CAT-5 wire to the junction box from
the CAV6.6.
Use the supplied 110 punchdown tool to
connect each wire to its corresponding
color labeled on the punchdown terminal
(See page 12 for details).
Ensure jumper setting on the keypad is in
the “RUN” position.
Mount the keypad in the electrical box and
attach the cover plate. Repeat the steps
until all keypads are installed.

INSTALLER GUIDE

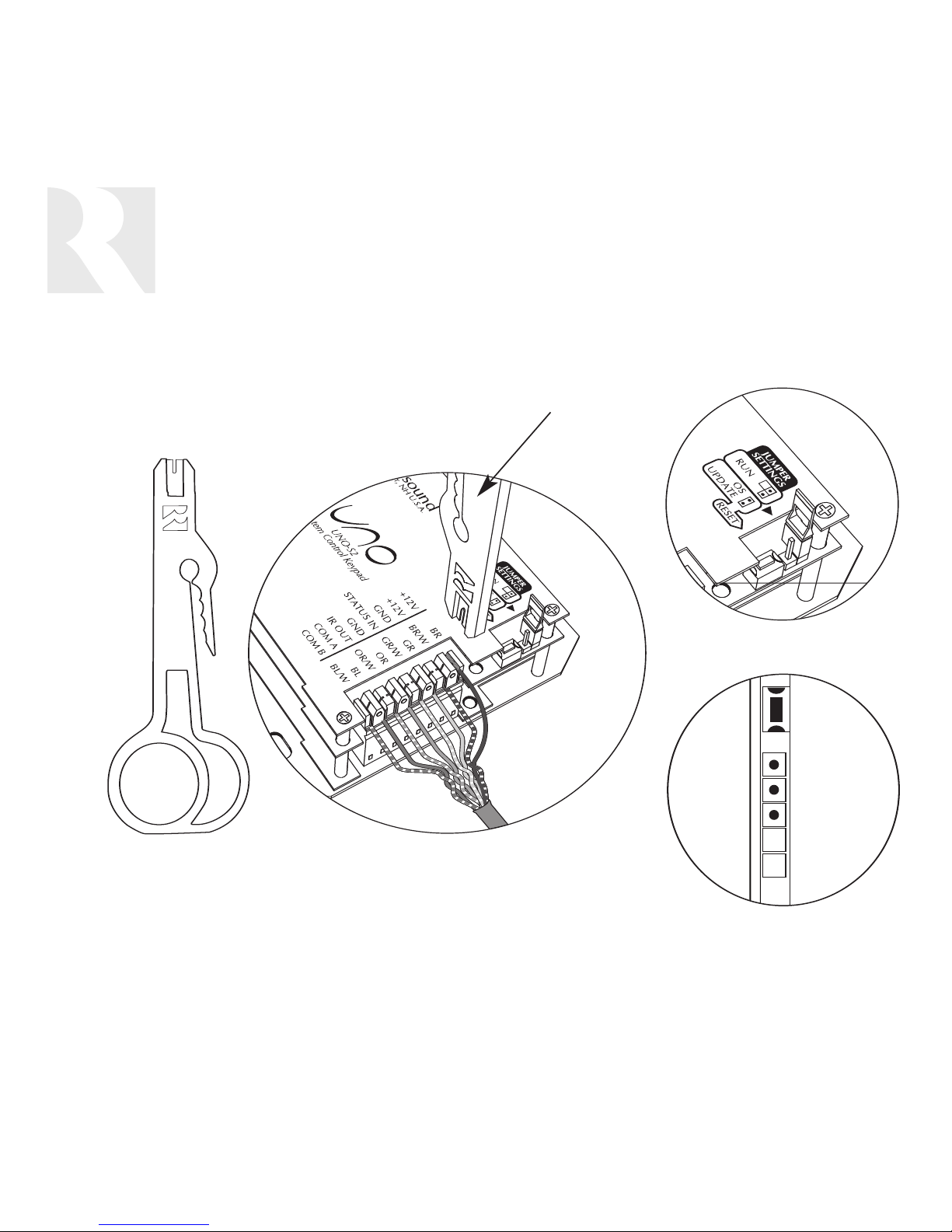

UNO-S2 Keypad Connections
14
Punchdown Tool
CAT-5 Connections (back of keypad)
Jumper Setting
(back of keypad)
OS Update Port
(front of keypad)
Punchdown Tool

INSTALLER GUIDE
UNO-S2 Keypad Connections
15
CAT-5 Connection
The UNO-S2 Keypad uses a 110-punch-
down terminal to provide a simple installa-
tion and strong connection for CAT-5
cable’s eight conductors. Punchdown ter-
minals require the use of a punchdown
tool which has been provided with the key-
pad kit. Attach the CAT-5 cable to the 110-
punchdown terminal on the UNO-S2
Keypad as shown, matching the conductor
colors to the connection color guide. The
keypad will not operate properly if the ter-
minations deviate from the required
connection order.
Take care when using an impact 110 punch-
down tool, as this may overspread the con-
tact points. Use of the impact tool may pro-
pel stray bits of wire and jacket into the key-
pad’s chassis and possibly cause a short in
the circuitry. Gently shake or blow air
through the keypad chassis to remove stray
wire before the keypad is installed into the
junction box.
OS Update Port
The OS Update Port is is used to update the
UNO-S2 Keypad operating system software
in the future. When an update is released, it
will be available online through the Document
Center at www.russound.com. Look for the
Technical Documents under Multi-
source/Multi-room products. The program-
ming cable is available from Russound, Part
#2500-120633.
Jumper Setting
The jumper settings on the back of the UNO-
S2 Keypad can be set for “Run” and “OS
Update.” The jumper setting must be in the
“Run” position before the keypad is mounted
into the junction box, and must remain set in
“Run” to operate the keypad. The jumper will
be set to “OS Update” only while updating
the keypad’s operating systems.
Caution

16
The UNO-S2 keypad has an EXTERNAL
IR RECEIVER IN terminal for connecting
an external IR Receiver such as the
Russound 858, SaphIR Eye, or SaphIR
Phantom. Use 2 twisted pair wire with
one pair connecting GND (GROUND)
and IR (SIGNAL) and the other pair con-
necting ST (STATUS) and V+ (+12VDC).
Connect the shield or drain to ground
at the UNO-S2 only.
Back of
Russound 858
Back of
UNO-S2
INSTALLER GUIDE
IR Receiver Connection

TECHNICAL SPECIFICATIONS
17
Technical Specifications
Dimensions: 3.65"W x 1.125"D x 4.3"H (9.2 x 10.9 x 2.8 cm)
Fits 2 Gang UL/CSA Approved Junction Box
Weight: 9 oz. (255 g)
Power Requirements: 12 VDC 180mA
CAT-5 Connection: 110 punchdown

WARRANTY
18
Warranty Repair
The Russound UNO-S2 is fully guaranteed against all defects in materials and workman-
ship for two (2) years from the date of purchase. During this period, Russound will
replace any defective parts and correct any defect in workmanship without charge for
either parts or labor.
For this warranty to apply, the unit must be installed and used according to its written
instructions. If service is necessary, it must be performed by Russound. The unit must be
returned to Russound at the owner's expense and with prior written permission.
Accidental damage and shipping damage are not considered defects, nor is damage
resulting from abuse or from servicing by an agency or person not specifically authorized
in writing by Russound.
This Warranty does not cover:
• Damage caused by abuse, accident, misuse, negligence,
or improper installation or operation
• Power surges and lightning strikes
• Normal wear and maintenance
• Products that have been altered or modified
• Any product whose identifying number, decal, serial number, etc.
has been altered, defaced or removed

WARRANTY
19
Russound sells products only through authorized Dealers and Distributors to ensure that
customers obtain proper support and service. Any Russound product purchased from an
unauthorized dealer or other source, including retailers, mail order sellers and online sell-
ers will not be honored or serviced under existing Russound warranty policy. Any sale of
products by an unauthorized source or other manner not authorized by Russound shall
void the warranty on the applicable product.
Damage to or destruction of components due to application of excessive power voids the
warranty on those parts. In these cases, repairs will be made on the basis or the retail
value of the parts and labor. To return for repairs, the unit must be shipped to Russound
at the owner's expense, along with a note explaining the nature of service required. Be
sure to pack the unit in a corrugated container with at least three (3) inches of resilient
material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at [phone] for a Return
Authorization number. Write this number on the shipping label and ship to:
Russound
ATTN: Service,5 Forbes Road, Newmarket, NH 03857
Due to continual efforts to improve product quality as new technology and techniques
become available, Russound/FMP, Inc. reserves the right to revise system specifications
without notice.

Russound
5 Forbes Road, Newmarket, NH 03857
tel [phone] • fax [phone]
e-mail: [email protected]
www.russound.com
Rev. 2 28-1141
