RUSTA 62561120 User manual

3X2 M
3,6X2,5 M
4,5X3 M

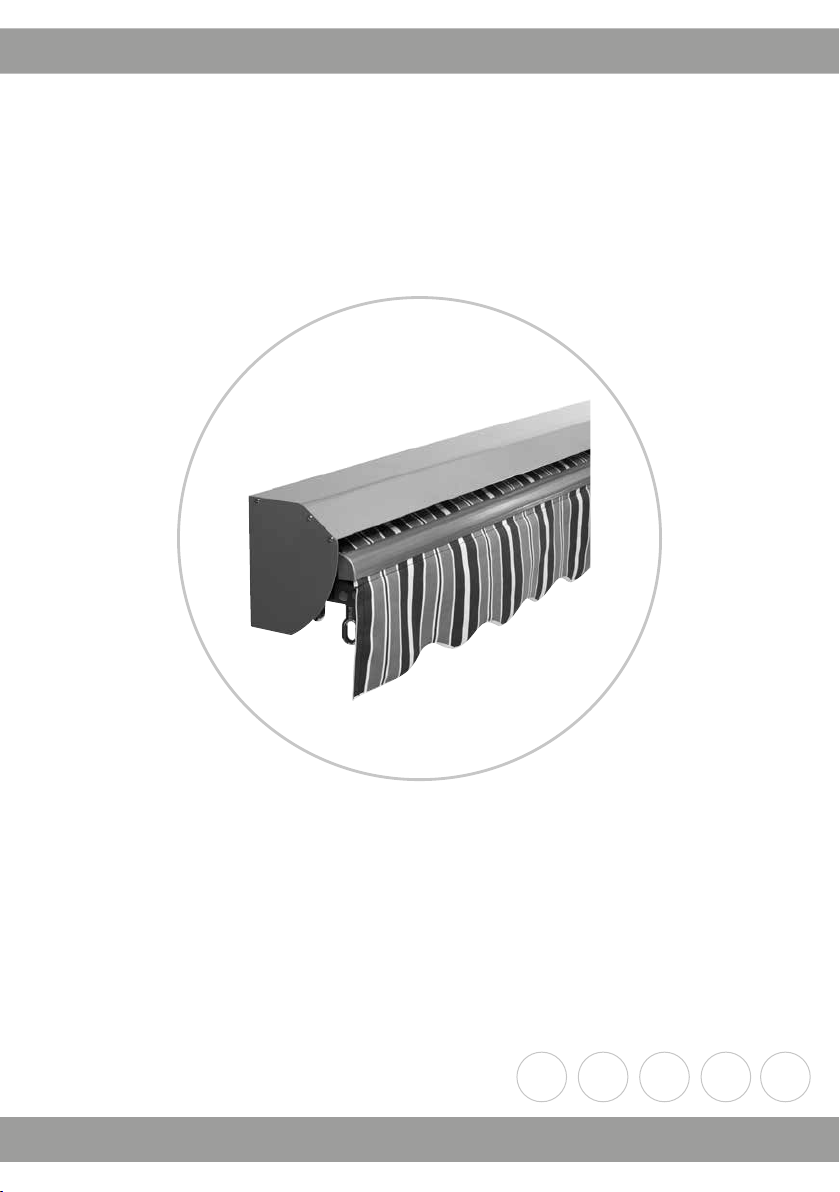

Awning Housing
Markisskydd / Markisebeskyttelse / Markisenschutz /
Markiisisuoja
SEENG NO FIDE
Manual/Bruksanvisning/Gebrauchsanweisung/Käyttöohje
Item. No. 62561120, -1121, -1122

SAFETY INSTRUCTIONS:
• Carefully follow the safety and assembly instructions and save the
user’s manual for future use.
• The awning must be uninstalled and placed on the ground in order to
install the awning housing.
• At least 3 persons should uninstall the awning.
• Place the awning on a clean, level surface.
• Be careful, because rough handling can damage both the awning and
the awning housing.
WARNING!
If these instructions are not followed, an accident may
lead to serious personal injury or property damage.
2
ENG
Thank you for choosing to
purchase a product from Rusta!
Read through the entire manual
before installation and use!
Awning Housing
Read the user manual carefully to make sure that the product is assembled, used and
maintained correctly, as described in the instructions in this user manual. Keep the user
manual for future reference.

Name Picture Number
Panel 2 pcs
Flanged end 2 pcs
Joint bracket 1 pce
Joint Bracket 2 pcs
Plastic joint 1 pce
Centring pin
3 pcs
Bolt M6x20 8 pcs
Washer M6 8 pcs
Nut M6 8 pcs
Screw StT4.8x16 6 pcs
Lock bolt 6 pcs
PACKAGE CONTENTS
Required tools (not included):
Adjustable spanner Philips screwdriver
3

ENG
MAINTENANCE
• Regular maintenance is important for safety purposes and for extending the service
life of the awning housing.
• Inspect the screws and nuts twice per year. Tighten them if they are loose.
• Do not use the awning housing if it is damaged or if it is not properly fastened. A
damaged awning housing can damage the awning.
CLEANING
• Dust and dirt accumulate on the awning housing over time. Therefore, it is important to
clean the awning housing regularly to maintain an attractive appearance.
• A gentle spray cleaner or a mixture of water and cleanser can be used for cleaning.
• After cleaning, dry o the awning housing with a rag.
• NOTE: When cleaning the housing it is very important that cleanser does not come into
contact with the canopy.
ASSEMBLY
Panel 2 pcs
Joint 1 pc
Centring pin 1 pc
Bolt M6x20 4 pcs
Centring pin
Joint
Bolt M6x20
Panel
1
4

• Place the two panels on a clean, level
surface.
• Loosely insert 4 M6x20 bolts in the
respective slots.
• Place the 3 centring pins in the
respective hole.
• Press the joint onto the side where the
centring pins are now located.

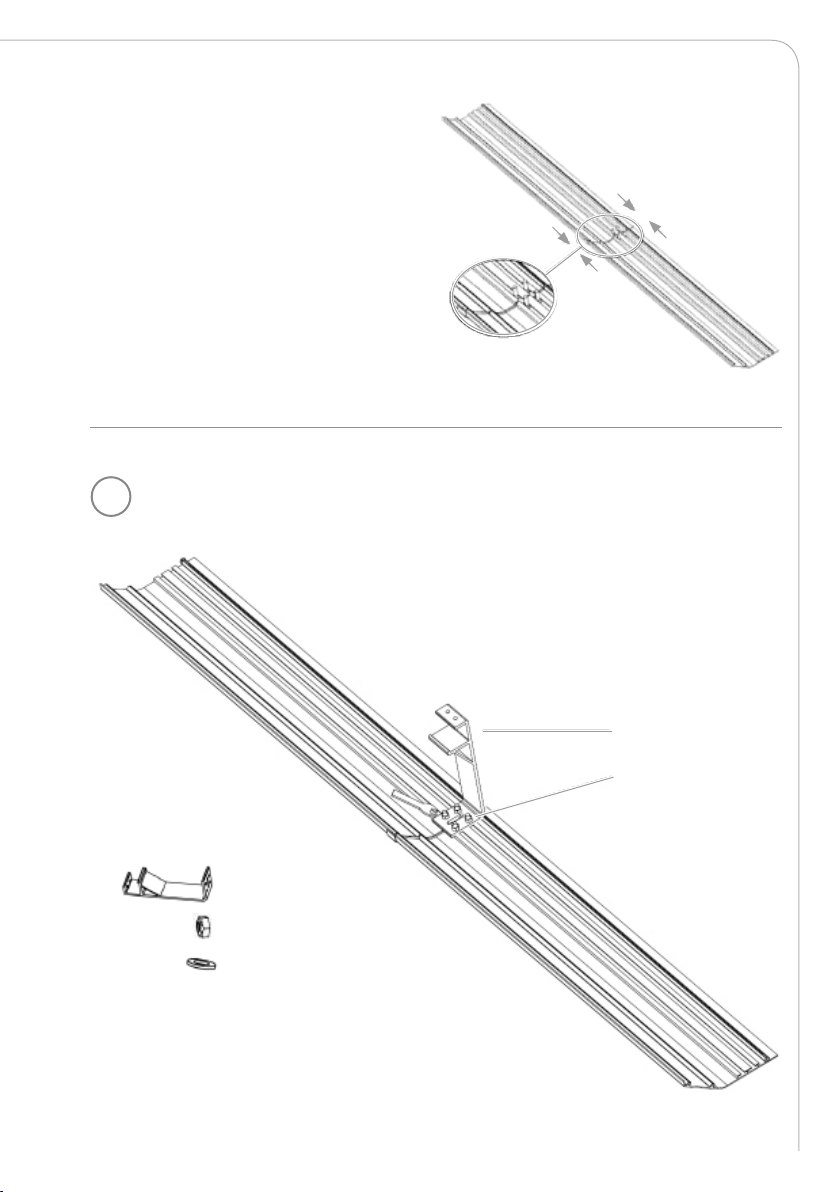

• Now press the two panels together
according to the illustration to the right.
When the nuts are tightened, it is important that the panels are still pressed
together so that there is no gap in the joint.
Joint bracket 1 pce
Nut M6 4 pcs
Washer M6 4 pcs
Joint bracket
Nut and washer M6
2
5

ENG

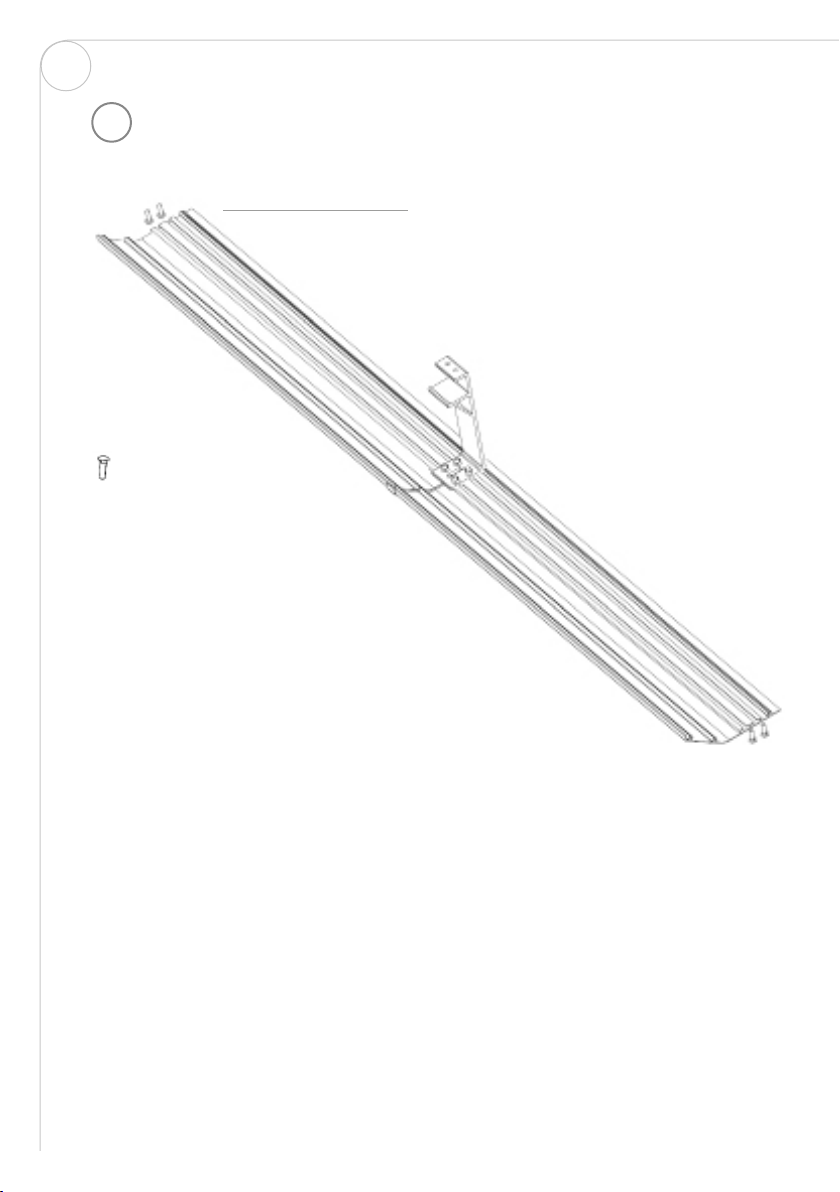

Loosely insert 4 M6x20 bolts in the respective slots.
Screw M6x20 4pcs
Bolt M6x20
3
6

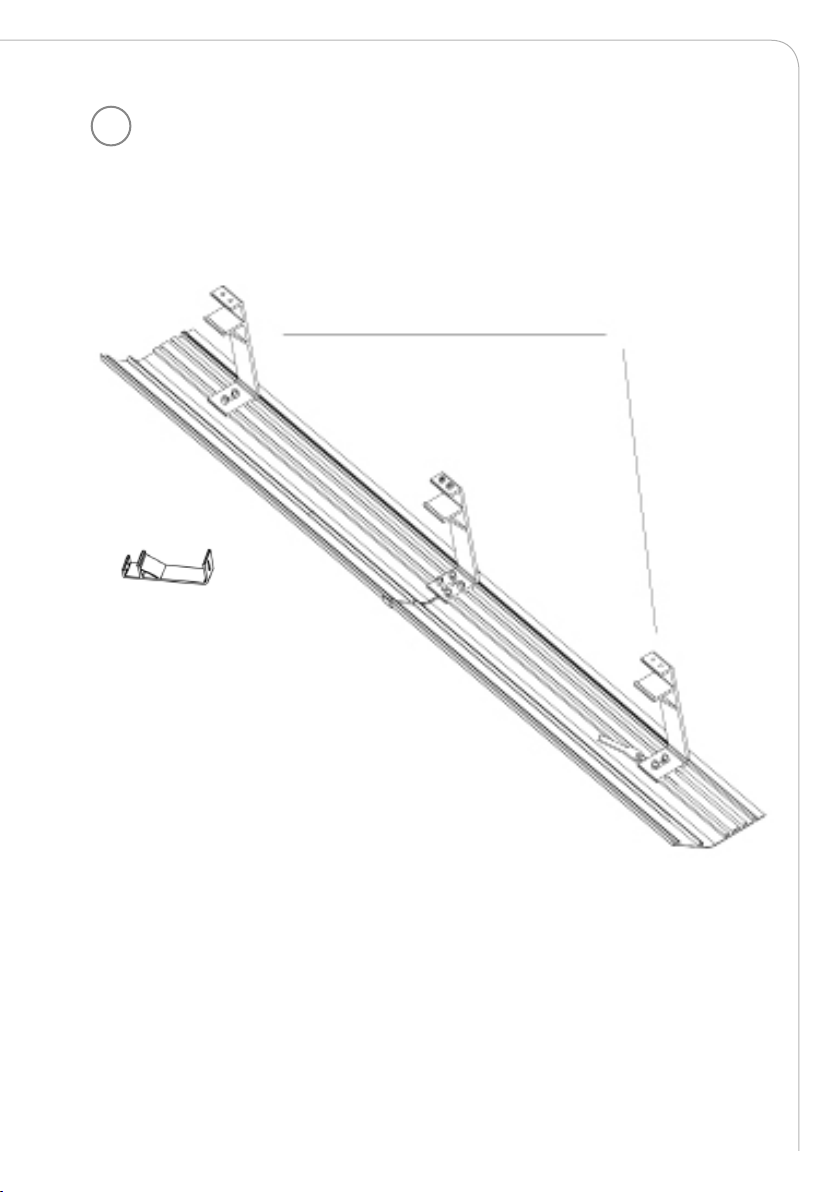

Bracket
Bracket 2 pcs
• Bear in mind that the brackets should be positioned so that they are located
at the same point as the awning’s wall brackets or arm brackets where the
awning housing is positioned on the awning beam.
• It is important that the brackets are straight when the nuts are tightened.
4
7

ENG

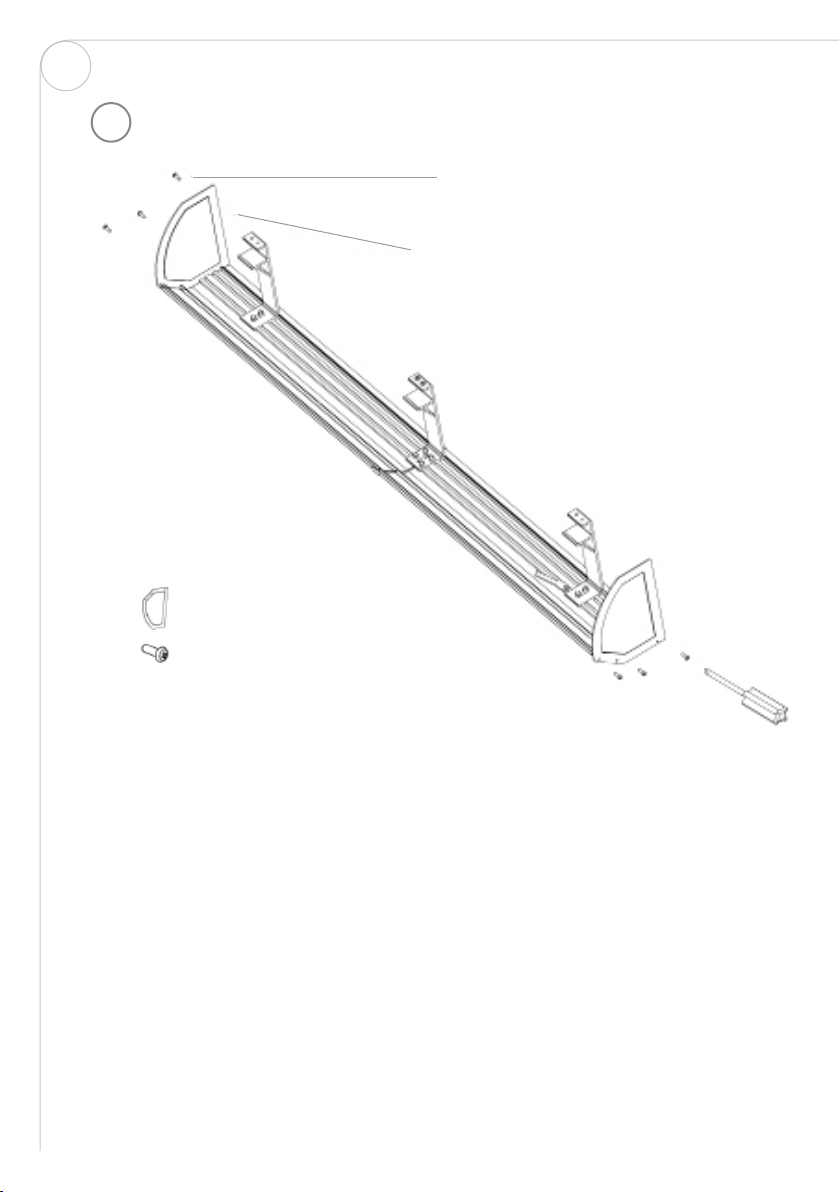

Screw ST4.8x16
Flanged end
Flanged end 2 pcs
Screw ST 4.8x16 6 pcs
5
8

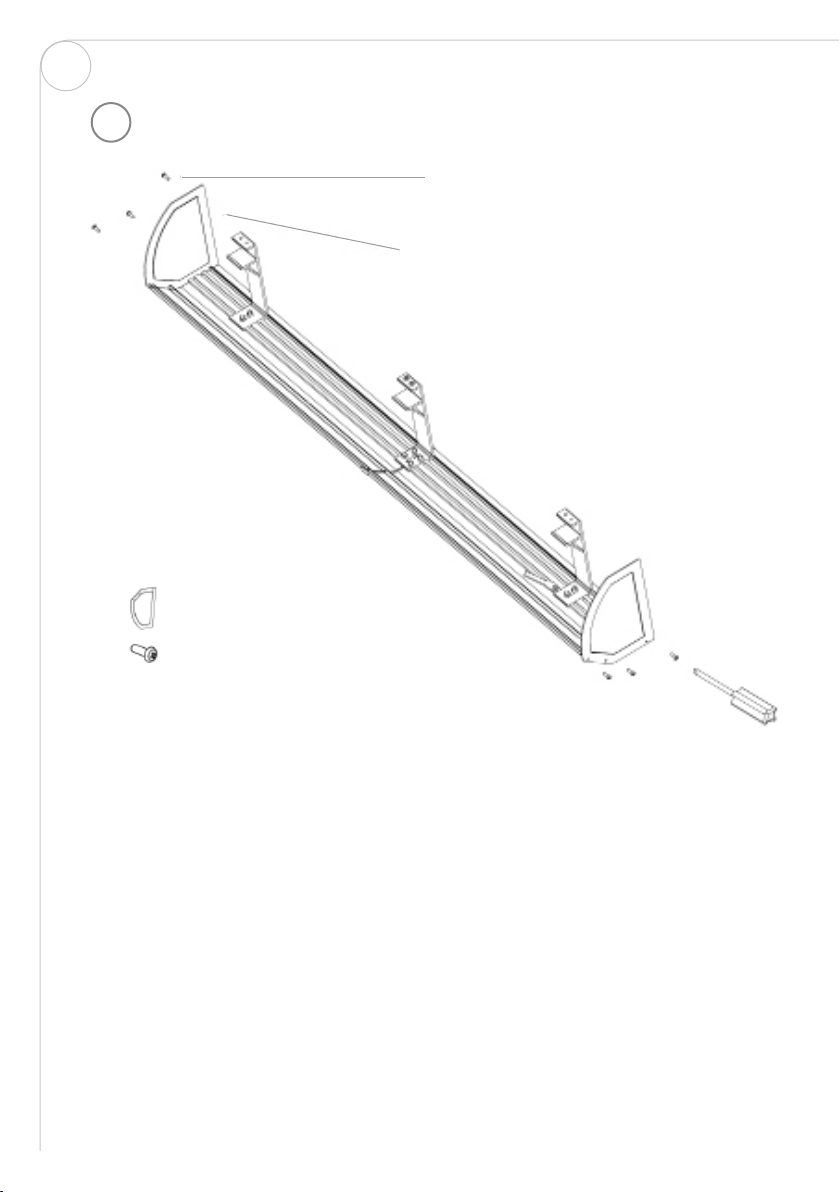

• Place the awning on a clean, flat surface.
• Tilt the awning forward slightly.
• Fasten the awning housing on the awning beam.
At least 2 people are required to perform this task.
• Fasten the awning housing on the awning with the 6 lock bolts.
Awning beam
Lock bolt
Lock bolt 6 pcs
6
9

ENG
• Lift the awning together with the awning housing and re-attach the awning
beam to its wall mounts. Three people should perform this task.
• Fasten the awning with its bolts.
7
10
RIGHT OF COMPLAINT
By law the product must be returned to the place of purchase along with the original
receipt in the event of a complaint. The user is liable for any damage to the product that
is caused by not using the product for its intended purpose or by not following this user
manual correctly. The right of complaint will not apply in these instances.
INFORMATION ABOUT HAZARDOUS WASTE
Used products should be handled separately from
household waste. They should be taken for recycling in
accordance with local rules for waste management.
