Ryobi R18JS User manual

ORIGINAL INSTRUCTIONS
18V Jigsaw
R18JS

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

Safety
1
Safety, performance, and dependability have been given
top priority in the design of your jigsaw.
INTENDED USE
The jigsaw is intended to be used only by adults who have
read and understood the instructions and warnings in
this manual, and can be considered responsible for their
actions.
:LWK DSSURSULDWH EODGHV ¿WWHG WKH SURGXFW LV GHVLJQHG
to cut wood, plastic, drywall, and metal up to the depth
GHVFULEHGLQWKHVSHFL¿FDWLRQWDEOH
The product is designed for handheld use. The product
LV QRW WR EH PRXQWHG RQWR D ZRUNEHQFK XQOHVV VSHFL¿F
instructions about how to do this are given by the
manufacturer of the product.
Do not use the product for any other purpose. Use of the
product for operations different from intended could result
in a hazardous situation.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
HOHFWULFVKRFN¿UHDQGRUVHULRXVLQMXU\
Save all warnings and instructions for future reference.
The term “power tool’’ in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
WORK AREA SAFETY
ŶKeep work area clean and well lit. Cluttered or dark
areas invite accidents.
ŶDo not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
ŶKeep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
ŶPower tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
ŶAvoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
ŶDo not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
ŶDo not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
ŶWhen operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
ŶIf operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
ŶStay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
ŶUse personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
ŶPrevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
ŶRemove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
ŶDo not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
ŶDress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
ŶIf devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
ŶDo not let familiarity gained from frequent use of
tools allow you to become complacent and ignore

Safety
2
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
ŶDo not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
ŶDo not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
ŶDisconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
ŶStore idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
ŶMaintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
ŶKeep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
ŶUse the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
ŶKeep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
ŶRecharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
ŶUse power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
ŶWhen battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
ŶUnder abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
ŶDo not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or
risk of injury.
ŶDo not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130°C may cause explosion.
ŶFollow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk
of fire.
SERVICE
ŶHave your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
ŶNever service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
JIGSAW SAFETY WARNINGS
ŶHold the power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electric shock.
ŶUse clamps or another practical way to secure and
support the workpiece to a stable platform. Holding
the workpiece by hand or against your body leaves it
unstable and may lead to loss of control.
ŶWear a dust mask.
Additional safety instructions
ŶAvoid running your saw at low speeds for extended
periods of time. Running at low speeds under constant
usage may cause your saw to become overheated. If
this occurs, cool your saw by running it without a load
at full speed.
ŶAmbient temperature range for tool during operation is
between 0°C and 40°C.
ŶAmbient temperature range for tool storage is between
0°C and 40°C.

Safety
3
ŶThe recommended ambient temperature range for the
charging system during charging is between 10°C and
38°C.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING
7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQGSURGXFW
damage due to a short circuit, never immerse your
WRRO EDWWHU\ SDFN RU FKDUJHU LQ ÀXLG RU DOORZ D ÀXLG WR
ÀRZ LQVLGH WKHP &RUURVLYH RU FRQGXFWLYH ÀXLGV VXFK
as seawater, certain industrial chemicals, and bleach
or bleach-containing products, etc., can cause a short
circuit.
ŶAmbient temperature range for battery during use is
between 0°C and 40°C.
ŶAmbient temperature range for battery storage is
between 0°C and 20°C.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps
or tape. Do not transport batteries that are cracked or
leaking. Check with the forwarding company for further
advice.
KNOW YOUR PRODUCT
See page 5.
1. Hex key
2. Lock-on button
3. Trigger switch
4. Speed control dial
5. Blade clamp sleeve
6. Blade guard
7. Blade
8. Orbital adjustment knob
9. Base assembly
10. Battery port
11. Handle, insulated gripping surface
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise and the operator
should pay special attention to avoid the following:
ŶInjury caused by vibration
–Use the lowest speed setting which achieves the
cutting, limit exposure. See Risk Reduction.
ŶInjury caused by dust
–Dust may enter the eyes or respiratory system.
Wear eye protection at all times. Wear appropriate
dust control mask with filters suitable for protecting
against particles from the material being cut. Do
not eat, drink, or smoke in the work area. Ensure
adequate ventilation.
ŶInjury caused by electric shock
–The blade may contact hidden wiring, causing
parts of the product to become live. Always hold
the product by the designated handles and take
care when blind-cutting into walls and floors where
cables may be hidden.
ŶInjury caused by contact with the blade
–The blades are very sharp and will become hot
during use. Wear gloves when changing blades.
Keep hands away from the cutting area at all times.
Clamp the workpiece whenever possible.
ŶInjury caused by noise
–Noise can damage hearing. When using power
tools for an extended period of time, wear hearing
protection.
ŶDamage to sight; eye protection should be worn.
RISK REDUCTION
It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome
in certain individuals. Symptoms may include tingling,
QXPEQHVV DQG EODQFKLQJ RI WKH ¿QJHUV XVXDOO\ DSSDUHQW
upon exposure to cold environments.
Hereditary factors, exposure to cold and dampness, diet,
smoking and work practices are all thought to contribute to
the development of the these symptoms.
There are measures that can be taken by the operator to
possibly reduce the effects of vibration:
Keep your body warm in cold weather. When operating the
unit wear gloves to keep the hands and wrists warm. It is
reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
ŶAfter each period of operation, exercise to increase
blood circulation.
ŶTake frequent work breaks.
ŶLimit the amount of exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your doctor.
Injuries may be caused, or aggravated, by prolonged use of
a tool. When using any tool for prolonged periods, ensure
you take regular breaks.

Safety
4
MAINTENANCE
WARNING
The product should never be connected to a power
supply when assembling parts, making adjustments,
cleaning, performing maintenance, or when the product
is not in use. Disconnecting the product from the power
supply will prevent accidental starting that could cause
serious injury.
WARNING
When servicing, use only original manufacturer’s
replacement parts, accessories and attachments. Use of
any other parts may create a hazard or cause product
damage.
ŶAvoid using solvents when cleaning plastic parts. Most
plastics are susceptible to various types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
WARNING
'RQRWDWDQ\WLPHOHWEUDNHÀXLGVJDVROLQHSHWUROHXP
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
WARNING
For greater safety and reliability, all repairs should be
performed by an authorised service centre.
ŶAlways wear safety goggles or safety glasses with side
shields during power tool operation or when cleaning. If
operation is dusty, also wear a dust mask.
ŶClean the product using a brush or a dust collection
system.
ŶAll of the bearings in the product are lubricated with
a sufficient amount of high grade lubricant for the life
span of the product under normal operating conditions.
Therefore, no further lubrication is required.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories
and packaging should be sorted for
environmental-friendly recycling.
SYMBOLS
Safety alert
Please read the instructions carefully
before starting the machine.
No-load speed
CE conformity
EurAsian Conformity Mark
Ukrainian mark of conformity
Cutting capacity in wood
Stroke length
Width of blade insert
Cutting metal
Cutting plastic
Straight and curved cutting on wood
Straight cutting on wood
Orbital motion
Increase speed
Decrease speed
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or
retailer for recycling advice.

Know your product
5
8
9
5
6
7
311
2
4
1
10

6
Getting started
2
1
1
2
1
45

7
Getting started
32

Operation
8
1
3
2
2
1
1
Û
2
1
3
2
1
4

Operation
9
2
3
1
Û
Û Û
Û ÛÛ Û
2
1
1
3
2
1
2
1
2
3

Operation
10
2
1
1
3
2
5
6
4
1
2
7

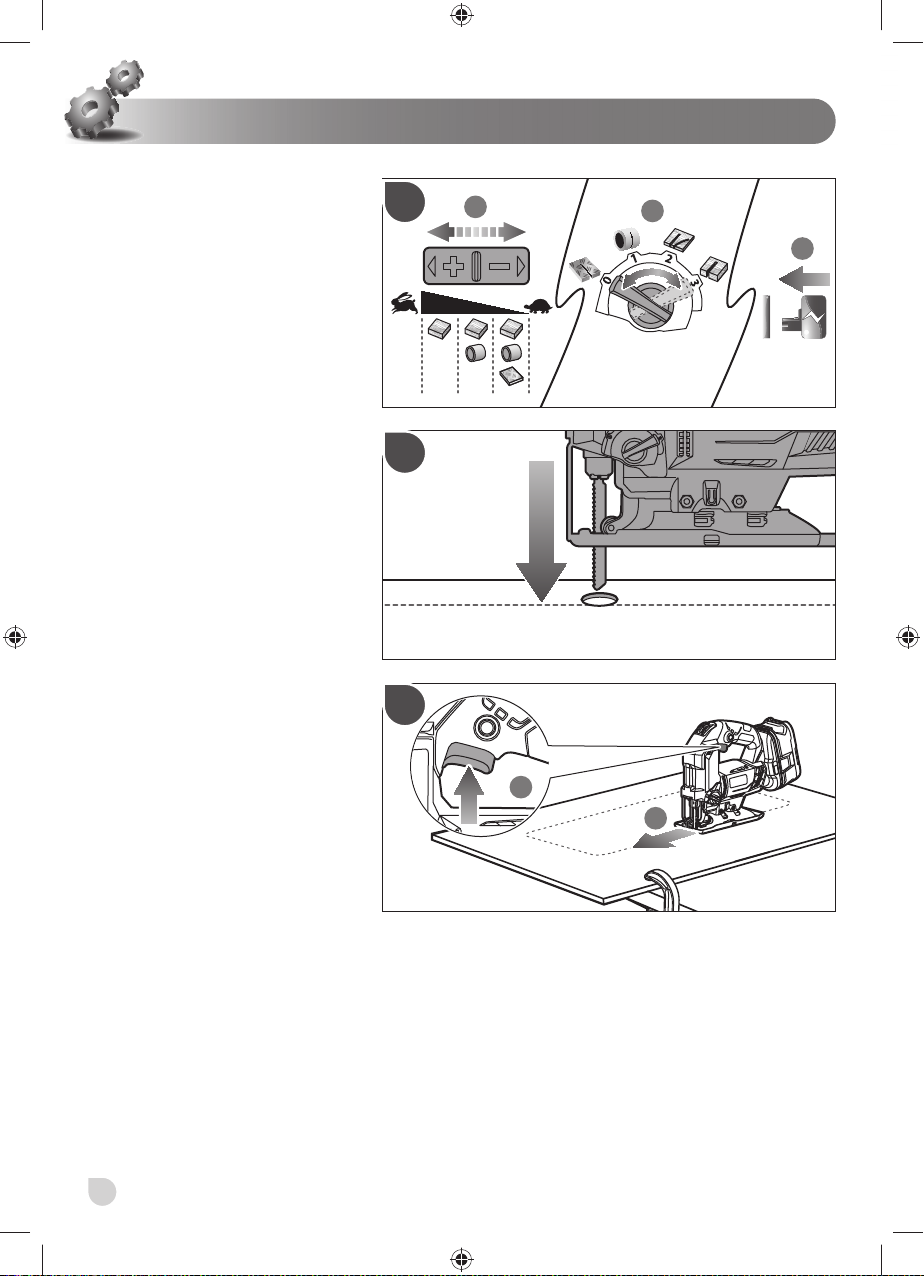

Operation
11
3
4
2
1
1
3
=
Û
2
1

Operation
12
1
2
7
1
3
2
6
5
20190128v6

Maintenance
13
3
2
1
2
1
1
2

VIBRATION LEVEL
WARNING
The vibration emission level given in this information sheet has been measured in accordance with a standardised test
given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of
exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used
for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may
VLJQL¿FDQWO\LQFUHDVHWKHH[SRVXUHOHYHORYHUWKHWRWDOZRUNLQJSHULRG
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or
ZKHQLWLVUXQQLQJEXWQRWDFWXDOO\GRLQJWKHMRE7KLVPD\VLJQL¿FDQWO\UHGXFHWKHH[SRVXUHOHYHORYHUWKHWRWDOZRUNLQJ
period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool
and the accessories, keep the hands warm, and organisation of work patterns.
PRODUCT SPECIFICATIONS
18V jigsaw
Model R18JS
Voltage 18 V
Stroke per minute 1100 - 3000 min-1
Stroke length 25 mm
Max cutting capacity
in wood 101 mm
in steel 6 mm
Weight
(According to EPTA procedure

2.5 kg (1.3Ah) - 3.2 kg
(9.0Ah)
Measured sound values determined according to EN 62841:
A-weighted sound pressure level LpA = 86.0 dB(A)
Uncertainty K 5 dB(A)
A-weighted sound power level LWA = 97.0 dB(A)
Uncertainty K 5 dB(A)
Wear ear protectors.
The vibration total values (triaxial vector sum) determined
according to EN 62841:
Cutting boards ah,B PV2
Uncertainty K PV2
Cutting sheet metals ah,M PV2
Uncertainty K PV2
BATTERY AND CHARGER
Model Compatible battery
pack (not included)
Compatible charger
(not included)
Lithium-ion
RB18L13
RB18L15
RB18L20
RB18L25
RB18L40
RB18L50
BCL14181H
BCL14183H
RC18150
RC18627
RC18115
RC18120
RC18118C

RYOBI®WARRANTY APPLICATION CONDITIONS
In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.
1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date
has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer
and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies
only on new products.
2. 7KHUHLVD SRVVLELOLW\ WRH[WHQGIRU D SDUWRIWKHUDQJH RI SRZHUWRROV$&'&WKH ZDUUDQW\ SHULRGRYHUWKHSHULRG
described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended
ZDUUDQW\LVFOHDUO\GLVSOD\HGLQVWRUHVDQGRURQSDFNDJLQJDQGLVFRQWDLQHGZLWKLQWKHSURGXFWGRFXPHQWDWLRQ7KH
HQGXVHULVUHTXLUHGWRUHJLVWHUKLVKHUQHZO\DFTXLUHGSURGXFWVRQOLQHZLWKLQGD\VIURPWKHGDWHRISXUFKDVH7KH
HQGXVHUPD\UHJLVWHUIRUWKHH[WHQGHGZDUUDQW\LQKLVKHUFRXQWU\RIUHVLGHQFHLIOLVWHGRQWKHRQOLQHUHJLVWUDWLRQIRUP
where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is
required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt,
which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended
warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at
WKHSXUFKDVHGDWH7KHZDUUDQW\LVOLPLWHGWR UHSDLUDQGRUUHSODFHPHQWDQGGRHVQRWLQFOXGHDQ\RWKHU REOLJDWLRQV
including but not limited to incidental or consequential damages. The warranty is not valid if the product has been
misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty
does not apply to:
–any damage to the product that is the result of improper or lack of maintenance
–any product that has been altered or modified
–any product where original identification (trade mark, serial number) markings have been defaced, altered or
removed
–any damage caused by non-observance of the instruction manual
–any product not displaying the CE approval mark on the rating plate
–any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior
authorisation by Techtronic Industries
–any product connected to an improper power supply (amps, voltage, frequency)
–any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
–normal wear and tear spare parts
–inappropriate use, overloading of the tool
–use of non-approved accessories or parts
–Power tool accessories provided with the tool or purchased separately. including but not limited to screw driver bits,
drill bits, abrasive discs, sand paper and blades, lateral guide etc.
–Components (parts and accessories) subject to natural wear and tear, including but not limited to Service &
Maintenance Kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary
handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins &
springs, etc.
4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the
following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product
to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely
packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short
description of the fault.
5. $UHSDLUUHSODFHPHQWXQGHUWKLVZDUUDQW\LVIUHHRIFKDUJH,WGRHVQRWFRQVWLWXWHDQH[WHQVLRQRUDQHZVWDUWRIWKH
warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage
will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
6. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia.
Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

ACD PLANT LTD
145 Southbank Road
Coundon
Coventry, West Midlands
CV6 1FG
Phone: [phone]
Email: [email protected]
Web: www.acdplant.co.uk
CBS Power Tools Limited
Unit 4, V P Square
Storeys Bar Rd, Fengate
Peterborough, Cambridgeshire
PE1 5YS
Phone: [phone]
Email: [email protected]
Web: www.cbspowertools.com
C D Powertools
76 Old Road
Churwell Morley, Leeds
LS27 7TH
Phone: [phone]
Email: [email protected]
Web : www.cdpowertools.co.uk
C J Sinclair Limited
44 Victoria Road
St Peters
Broadstairs, Kent
CT10 2UG
Phone: [phone]
Email: [email protected]
Web: www.cjsinclairltd.co.uk
Powertech Ind Ltd
Unit 2C, Ellison Road
Norwood Ind, Killamarsh
Sheffield, South Yorkshire
S21 2JG
Phone: [phone]
Email: [email protected]
Web: www.powertech-industrial.co.uk
RYCKO Technical Services LTD
104 Green Lane
St Albans, Herts
AL3 6EX
Phone: [phone]
Email: [email protected]
Web: www.ryckotechnical.com
ToolTech Industrial Equipment
227 E Dunhill Road, Macosquin
Coleraine, Co Londonderry
BT514LQ
Phone: [phone]
Email: [email protected]
AUTHORISED SERVICE CENTRES
)RUDQXSGDWHGOLVWRIDXWKRULVHGVHUYLFHFHQWUHVYLVLWKWWSXNU\RELWRROVHXKHDGHUVHUYLFHDQGVXSSRUWVHUYLFHDJHQWV

DECLARATION OF CONFORMITY
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany
Herewith we declare that the product
18V Jigsaw
Brand: RYOBI
Model number: R18JS
Serial number range: 44417704000001 - 44417704999999
is in conformity with the following standards or standardized documents
(&(8(8
EN 55014-1:2017, EN 55014-2:2015, EN 62841-1:2015, EN 62841-2-11:2016
RoHS documentation is compiled according to EN 50581:2012
Todd Chipner
Sr. Director, Regulatory & Safety
Winnenden, Oct. 30, 2018
Authorised to compile the technical file:
Alexander Krug, Managing Director
Techtronic Industries GmbH
Max-Eyth-Straße 10, 71364 Winnenden, Germany

Techtronic Industries GmbH
Max-Eyth-Straße 10,
71364 Winnenden, Germany
961152818-03
RYOBI is a trademark of Ryobi Limited,
and is used under license.
