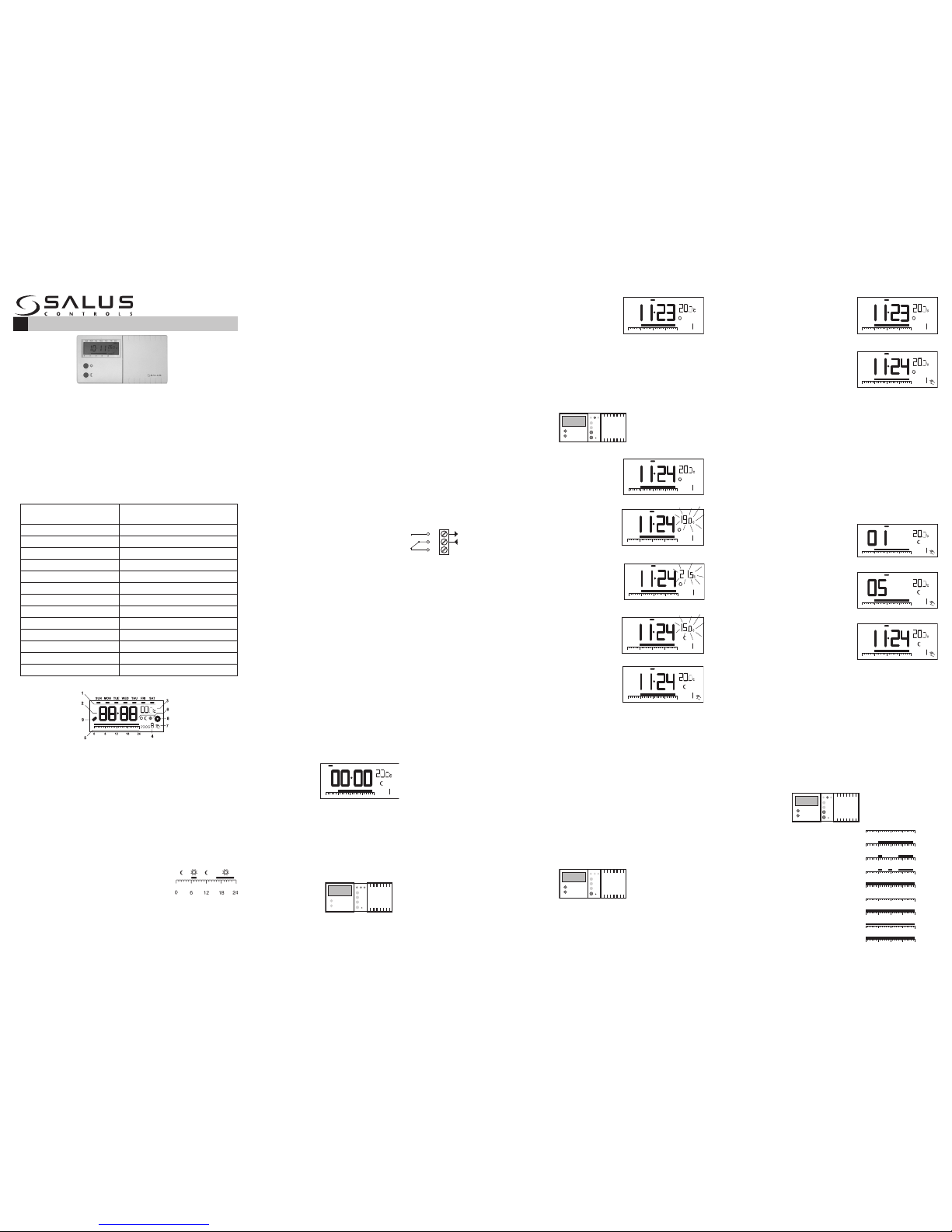

Salus Thermo 091 User manual

Program
Euro-thermostat is a programmable thermostat. It can automatically adjust the
room temperature to a comfortable level when you are at home, and lower it to
save energy when you go out or sleep. What you have to do is to program the
thermostat so that it knows when to raise the temperature. There are altogether
nine programs contained in the memory of the thermostat. Six of them are preset
in the factory and the remaining three are user changeable.
Manual override
If you want to change the temperature temporarily and do not want to alter the
programs you have set, you can simply touch a button to override the current
program.
INSTALLATION INSTRUCTIONS
Caution: Switch off the electric source before installing the thermostat. We re-
commend that the installation be performed by trained personnel.
Select a suitable location for the thermostat. The location of the thermostat can
greatly affect its performance. If it is located where air circulation cannot reach,
or exposed to direct sun light, it will not adjust the room temperature properly.
To ensure proper operation, the thermostat should be installed at an inside wall
with freely circulating air. Find a place where your family is usually occupied.
Avoid close proximity to heat generating appliances (e.g. TV, heater, refrigerator)
or exposed to direct sunlight. Do not install near a door where the thermostat
will suffer from vibration.
Wiring
Wiring terminals are at the back of the thermostat.
You can nd three terminals labeled COM, NO and NC.
It is a typical single-pole, double throw (SPDT) contact.
In most situations COM and NO are used.
Mounting the thermostat
Using the template provided, drill two ø6mm holes in the wall. Insert the wall
anchors and tighten the left screw with 3mm clearance. Fix the thermostat by
putting it over the screwhead and slide it rightward (note the keyhole-like opening
at the back of the thermostat). Tighten the remain screw to lock it in place.
Note: If the wall is made of wood, there is no need to use the wall anchors. Drill
two ø2.7mm holes instead of ø6mm.
USING YOUR NEW THERMOSTAT
The following procedures show how to operate the thermostat. It is recommended
that you follow the instructions and try to operate once before connecting it to
the heating or cooling system.
1, Start
The thermostat is operated by two LR6 alkaline batteries. Please remove the
front cover and install two new batteries.
When the batteries are installed, the thermostat should be operating and you
can see the LCD active. If the thermostat does not work properly, please check
the batteries for wrong polarities and press the reset button by using a ball-point
pen.
The LCD after start or reset:
0 6 12 18 24
SUN MON TUE WED THU FRI SAT
PROG
Note:
i, Temperature may not be 20°C as the diagram shown and the Output-On in-
dicator may activate after a few seconds, depending on different situations.
ii, Do not use a pencil to push the reset button. The graphite residue of a pencil
can cause a short circuit and damage the thermostat.
2, Set day/time
To set day, press d. Similarly, press hto set hour and mto set minute.
Buttons used:
THERMOSTAT THERMO 091 – USER’S MANUAL
Your new thermostat will serve your family for years and signicantly save the
energy cost. The large multi-data liquid crystal display allows you to operate the
feature-rich design with a touch of a button. Before operating the thermostat, we
hope you can read this manual thoroughly.
BE FAMILIAR WITH YOUR THERMOSTAT
Appearance
There is a sliding door on the right half of the thermostat. If you open the door, you
can see some buttons. This door is removable for the replacement of batteries.
After opening the door, you can ip the door up or down to see the dip switch
and battery compartment.
Specication
Temperature measurement
range:
0---34.5°C (0.5°C step)
Temperature control range: 5---30°C (0.5°C step)
Temperature accuracy: +/-1°C
Clock accuracy: +/-70 seconds/month
Program: 6 preset, 3 user-dene
Switching span: 1°C or 2°C
Control mode: Heating or Cooling system
Minimum air-con. cycle time: 5 minutes
Switching: 230VAC 50Hz 5A resistive
Battery: 2 x LR6 alkaline battery
Dimensions: 154 x 80 x 30 mm (W x H x D)
Operation temperature: 0 --- 45°C
Storage temperature: -20 --- 60°C
Operating humidity: 5 --- 90% non-condensing
LCD
1 Day of the week Indicator
2 Time
3 Temperature
4 Program Number
5 Program Prole Indicator
6 Temperature Mode Indicator
7 Manual Override Indicator
8 Output-On Indicator – will be displayed and rotates if the ouput is on. It will
disappear if the output is off
9 Low Battery Indicator – will be displayed if the voltage of the batteries drop to
a certain level. Please change the batteries as soon as possible.
Temperature mode
You can see ☼ and

on both the buttons and the LCD. ☼
means comfort temperature and

means economy tem-
perature. These two temperatures are user changeable.
Furthermore, there is a xed defrost temperature (7°C)
indicated by  on the LCD. Throughout the operation of
the thermostat we will refer to them as comfort, economy
or defrost temperature instead of numeric values.
Example:
When start or after reset, the time is 00:00,
Sunday. To set the clock to current time (e.g.,
11:23, Tuesday), press d2 times, h11 times
and m23 times.
Note: When you press and hold the keys for 2 seconds, the day/time will change
rapidly. Release when the desired setting comes.
3, View/Change temperature
Press Temp, and the thermostat enter View/Change temperature mode. The
LCD will show the setting of the current temperature mode ( ☼ ,

or  ) which
will be ashing. Press ☼ or

to review or change the temperature. Press OK
to directly return to normal operation mode. Buttons used:
Example:
i, In normal mode…
ii,Press Temp. The setting of comfort tempera-
ture is ashing:
iii,To change, press ☼ . For example, to change
to 21.5°C, press ☼ 5 times :
iv, To review economy temperature, press

:
v, You can press

key again to set the economy
temperature, or press OK to return to normal
operation mode.
Note:
i, The temperature setting range is 5° to
30°C.
ii, To lower the setting, enter View/Change temperature mode and press ☼ or

until it reaches 30°C and then the setting will return to 5°C. Continue to
pressing until the desired setting comes.
iii,The setting will change rapidly by pressing and holding the keys.
iv, Please note the temperature mode indicator. A ☼ means the comfort tempe-
rature is being viewed or changed. A

indicates economy temperature. If is
shown, it is defrost temperature. Defrost temperature is always at 7°C and is
not changeable.
v, It is not always necessary to use the OK key to return to normal operation
mode. After 15 seconds of no key pressed it will automatically return to normal
mode.
4, Manual Override
Press ☼ to select comfort temperature. Press

to select economy temperature.
The current temperature mode will be overrode until the next set point of the
program comes. Press OK to clear override. Buttons used :
Example:
i, In normal operation mode, press

to change
the current comfort setting to economy set-
ting:
The temperature is now set to economy mode.
This mode will be held until 23:00. (It is because
the program for the day is PROG 1. At 23:00 the
temperature will change from comfort to econo-
my, which matches the override setting.)
Time hold
Timer hold is an alternative to manual override. Press and hold ☼ (or

) key for
2 seconds, the hold time will appear. Press the key again to set the hold time.
Press OK to return to normal operation mode. The maximum can be set is 24
hours. In the hold period the temperature will not be affected by the program.
When timer hold is active, pressing the corresponding temperature mode key
(e.g., ☼ if comfort mode is being held) will show the remaining hold time. The
remaining hold time can also be changed by using the same key. If another
temperature mode key is pressed (e.g., if comfort mode is being held), the timer
hold will be cleared.
Example:
i,To change the current setting from comfort to
economy for 5 hours, press and hold

for 2
seconds. The hold time will appear.
ii,The hold time is 1 hour. Press

4 times to
change the hold time to 5:
iii,Press OK or just leave no key pressed for 15
seconds, the thermostat will return to normal
mode
Note:
i, A ‘hand’ appears when the current temperature mode is being overrode.
ii, The setting will change rapidly by pressing and holding the keys.
5, View/Change Programs
Press Prog, the program of the current day is ready to be changed.
Press Prog again to advance to the next day and the program of that day will
be shown.
Press Prog# to change the program.
Program 6, 7 and 8 are user-dene programs. You can use ☼ or

to change
the distribution of comfort or economy temperature and hto review the setting.
Press OK to return to normal operation mode.
Buttons used:
There are altogether nine programs available, as
the diagram shown:
Program 0 is a special program. It will set the whole
day to defrost temperature (7°C). (If cooling mode
is selected, it will turn off the system. See Part 8,
Controlling a cooling system.)
Program 1,2, and 3 are some typical schedules of a
day. You can select them if you nd them suitable.
Program 4 sets the whole day to comfort temperature
while program 5 sets it to economy.
Program 6, 7 and 8 are user-dene programs. They
can be modied to suit your need.
NO
COM
NC
GB
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
0612 18 24
PROG 0�
0612 18 24
PROG 1
0612 18 24
PROG 2
0612 18 24
PROG 3
0612 18 24
PROG 4
0612 18 24
PROG 5
0612 18 24
PROG 6
0612 18 24
PROG 7
0612 18 24
PROG 8
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG

Example:
i, Assume you want to assign program 6 to Satur-
day and want to set the whole day to economy
temperature except from 13:00 to 18:00. Press
Prog. The thermostat enters program mode and
the program of the current day (e.g., Tuesday)
is ready to be programmed.
The display shows that the program set for Tuesday is program 1, with the
temperature at 00:00 at economy temperature (15ºC).
ii, Press Prog 4 times. The day indicator will point
to Saturday:
iii,Press Prog# 5 times to change the program
from program 1 to program 6:
iv, Now you can set the time shown to economy
temperature by pressing

, or press ☼ to set
it to comfort temperature. Or you can use hkey
to pass through the time without changing the
setting.
Since we want to set 13:00 to 18:00 to comfort
temperature and the remains to economy tem-
perature, press

13 times. 00:00 to 12:00 will be programmed to economy
temperature:
v, Press hor ☼ 6 times to move the ashing point
to 19;00:
vi,Finally, press

5 times to set the remains of
the day to economy temperature:
vii,By pressing OK or leaving no key pressed for
15 seconds, the thermostat will return to normal
operation mode.
Note:
i, Program 0, 1, 2, 3, 4, 5 are preset programs. ☼ and

cannot be used to edit
them. But the hkey is still active.
ii, The nine programs are common to all seven days. This includes the three
user-dened programs. This means that if you change one of the user-dened
programs of a day, the same program of the other days will also be chan-
ged.
iii,The setting will change rapidly by pressing and holding the keys.
6, Reset button
There is a small hole at the right of the OK key. This is the reset button. Pressing
it can reset the thermostat into initial status:
Time – 00:00:00; Day – Sunday; Temperature – Comfort: 19°C, Economy: 15°C;
Programs – All seven days set to PROG 1; User-dene programs – Set to comfort;
Manual override – All cleared; Output – Off
Note: Do not use a pencil to push the reset button because the graphite residue
can cause a short circuit and damage the thermostat.
Under an environment with high (+/- 8KV) electrostatic discharge, the product
may not be operated as in normal conditions. The user maybe required to reset
the unit.
7, Dip switches
If you remove the front cover, you can nd three small switches (dip switches).
These three switches are used to control the span, output-on delay and heat/cool
system (This thermostat is capable of controlling a cooling system. For details
please refer to Part 8: Controlling a cooling system.)
Dip switches
7.1, SPAN
Span is the temperature difference between the turn on temperature and turn off
temperature. 1°C or 2°C of span can be selected and the effect is summarized
in the following table:
Span Heating System Cooling System
1°C
O n
when.....
Tr<=Ts-0.5 Tr>=Ts+0.5
O f f
when.....
Tr>=Ts+0.5 Tr<=Ts-0.5
2°C
O n
when.....
Tr<=Ts-1.0 Tr>=Ts+1.0
O f f
when.....
Tr>=Ts+1.0 Tr<=Ts-1.0
Ts: Set temperature
Tr: Room temperature
For example, if you set the temperature to 20°C and span = 1, the heater will
operate when the room temperature drops to 19.5°C and turns off when the
temperature rises to 20.5°C
7.2, Output-on 5 minutes delay
With this switch enabled, the external system will switch on only if it has been
off for more than 5 minutes. If cooling system is selected, this function will be
activated automatically.
7.3, Heat/Cool system select
To select whether a heating or a cooling system to be controlled. Note that nor-
mally for a heating system the comfort temperature is higher than the economy
temperature, while it is reverse for a cooling system.
Span = 2
Cool
Span = 1
Heat
Delay Enable
Delay Disable
8, Controlling a cooling system
By setting the dip switch, the thermostat can be used to control a cooling system.
The operation is similar to that of heating system. However, there are some
differences between them, as the following list:
1, In general the comfort temperature of a cooling system is lower than the
economy temperature.
2, The switching is reversed: The thermostat switches on the system when the
room temperature is higher than the set temperature.
3, There is no more defrost temperature. The snow (  ) and 7°C will not be displa-
yed. If you select program 0 the thermostat will switch off the cooling system.
4, The 5 minute minimum cycle time is enabled automatically, regardless of the
setting of the dip switch.
Inside the packaging you should nd
1 Euro-thermostat 2 #6 x 1” screws
2 wall anchors 1 drilling template
1 user manual
Salus Controls plc
Salus House,
Dodworth Business Park South,
Dodworth, Barnsley, S75 3SP
Web: www.salus-tech.com
IM-091-GB-01
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
C
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
WED
0612 18 24
SUN MON TUETHU FRISAT
PROG
