QUICK REFERENCE
QON: Press to for 1/2 seconds turn on your handset.
QOFF: Press the OK key for 3 seconds to turn off your handset.
QLOCK/UNLOCK: Press 4to to lock/unlock your handset.
QVOLUME ADJUST: Use the two keys placed at the right side of the handset
for volume control.
QMICROPHONE MUTE: Press OK key, “MIC MUTED” is shown in the display.
Press OK to enable the microphone again.
QRINGER MUTE WITHOUT ANSWERING CALL: When the phone is ringing
press the OK key and the ringing signal is muted.The display shows:“RINGER
MUTED”.
QRECEIVING CALLS: If the phone rings, the call can be answered by pressing
the key.
QREDIAL: Press the <key to enter the redial/CLIP stack.
Q“R” : If off hook this key acts as a flash function. If on hook: reads a mes-
sage.
Q“<”: When editing press and hold to delete the last digit.When on hook press
to display last outgoing calls.
1
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 5
2

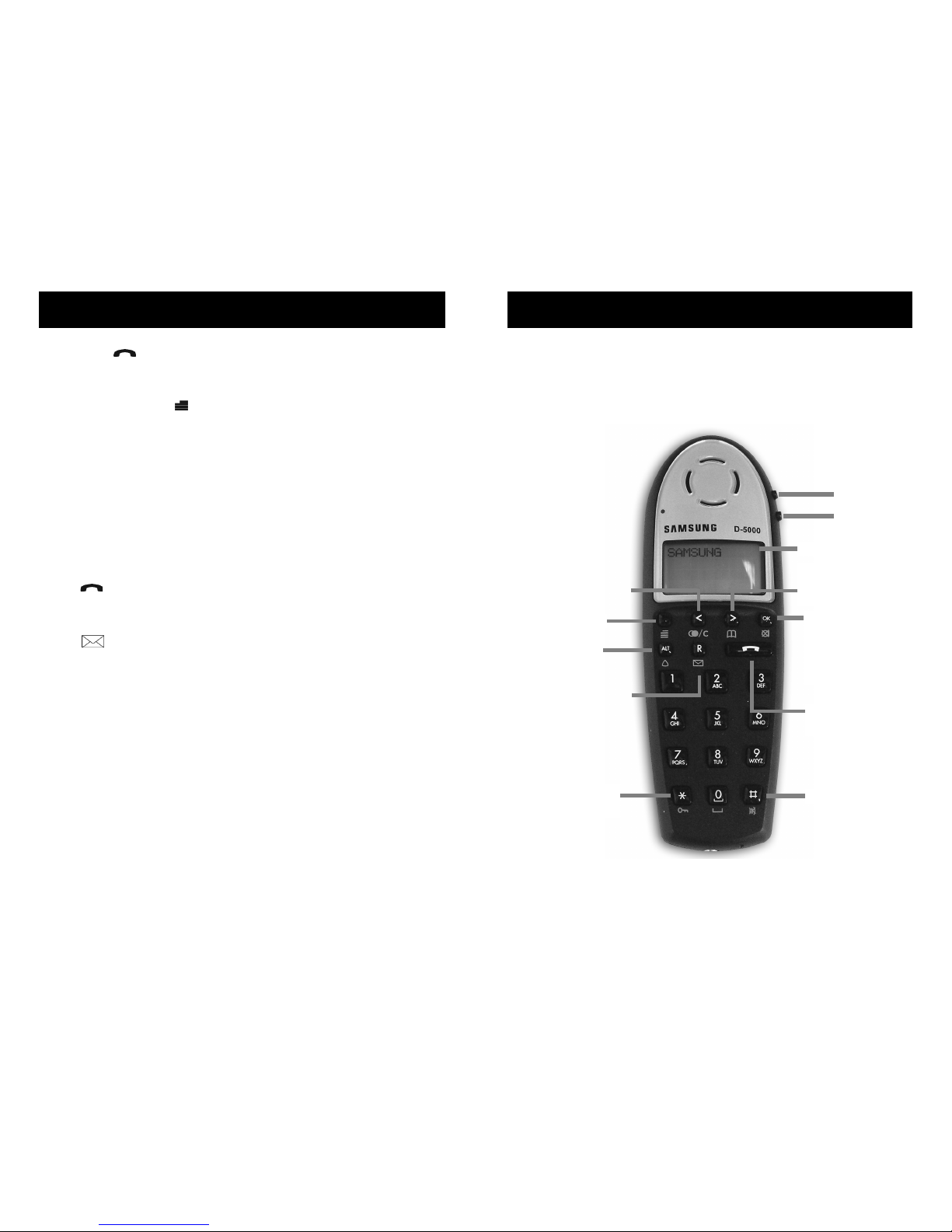

CONSTRUCTION
Your Samsung iDCS SLiM handset will provide you with the greatest possible
degree of flexibility and mobility due to high battery capacity, practical weight,
size and design.
Display with Backlight
Menu Key
Volume
Up/Down
Confirmation Key
Mute Microphone
Mute Ringer when
ringing. Press for 3
seconds to Turn Off.
Silent (Menu #)
Keyboard Lock
(Menu 4)
Key for Internal
Calls
Left Arrow Key or
Redial Menu
Right Arrow Key, Save
Number or Telephone
Book Menu.
Recall Key
(Mail Key) On/Off Hook Key
and Turn On.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 6

3
BATTERY INSTALLATION
Before using the telephone it is important that you connect the battery to the con-
nector in the battery box. Assemble the battery cover as described below and
place the handset into the charger.
• Push the battery cover 5 mm towards the headset plug using your thumbs.
• Lift off battery cover.
• If the battery is not already installed, place battery plug in the slot in the bat-
tery box.
• Place the battery plug in the slot with red wire closest to the left (see Rear
View below).
• Insert battery with the label readable and replace cover.
Handset Rear View
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 7
4
CHARGING
It takes approximately 3 1/2 hours to charge the handset from fully discharged to
its full capacity. Place the handset in the charger. The display shows the charging
status in line 3.For correct charging the room temperature has to be between 0ºC
and 25ºC and therefore the handset must not be placed in direct sunshine. The
battery has a built-in heat sensor which will stop the charging if the battery tem-
perature is too high.
It is necessary to recharge the battery when the display shows“BATTERY LOW”,or
if it cannot be turned on. The LED flashes at a low frequency while charging and
lights constantly when the charging has finished.The display goes back to normal
mode when fully charged.
When the handset is placed in the charger the vibrator will not work and the B-
answer function is inactive even if chosen. If the battery is fully discharged, it will
be a moment before charging starts.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 8

5
KEY FUNCTIONS
The handset has 21 keys.
Two keys are placed at the right side for volume control.Press upper or lower key
to change the volume.Each key press turns volume one step up/down.
Go to Menu Structure or Exit Menu Structure (Escape or
»NO«.
“<”,Menu: Left, Cursor Left, press and hold to delete last
digit.Long press: delete all. From standby text: Redial
Menu.
“>”,Menu: Right, Cursor Right, After a Digit: Store number in
telephone book. From standby text:Telephone book read.
“OK”,Confirmation (»YES«) or jump to next level in the menu.In
off hook: Mute. Long key press turns the handset OFF.
“ALT”,If residential systems: Internal calls off hook, and internal
recall if already off hook.
“R”,If off hook this key acts as a flash function.If on hook: Read
message.
On hook, off hook and turn ON.
4,4 Long = pause (—), extra long: change from pulse to
DTMF (“T” appears in the display, GAP standard).
0 - 9 Digits or letters in alphanumeric mode (names and mes-
sages).
##, Choose uppercase or lowercase letters in alphanumeric
mode.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 9
6
TURNING THE HANDSET
ON/OFF
ON: Press key for 1/2 second.
When the handset is turned on the symbol is shown in the lower left corner
of the display, if the handset is subscribed to a system (please refer to the Create
Subscription section of this user guide).
OFF: Press the OK (MUTE) key for 3 seconds.
Please note:When the handset has been outside the coverage area,it can take up
to 30 seconds before the handset is back on the system after re-entering the cov-
erage area.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 10

7
MAKING A CALL
For making or receiving calls the handset has to be subscribed to a system
( shown in the display, see Create Subscription section).
Press the key, the icon in the display will flash until connection is estab-
lished.
Dial the number.
Pre-Dial
Press the number to dial (long press on 4will make a pause, if necessary)
Press and hold <key to delete last digit.
Press the key, the icon in the display will flash until connection is estab-
lished.
Telephone Book
Press the >key to enter the telephone book.
Search for the number either by using the <key or the >key or by pressing the
first letter in the name by using the digits 1-9 (refer to the Key Functions section).
Press the key, the icon in the display will flash until connection is estab-
lished.
Redial

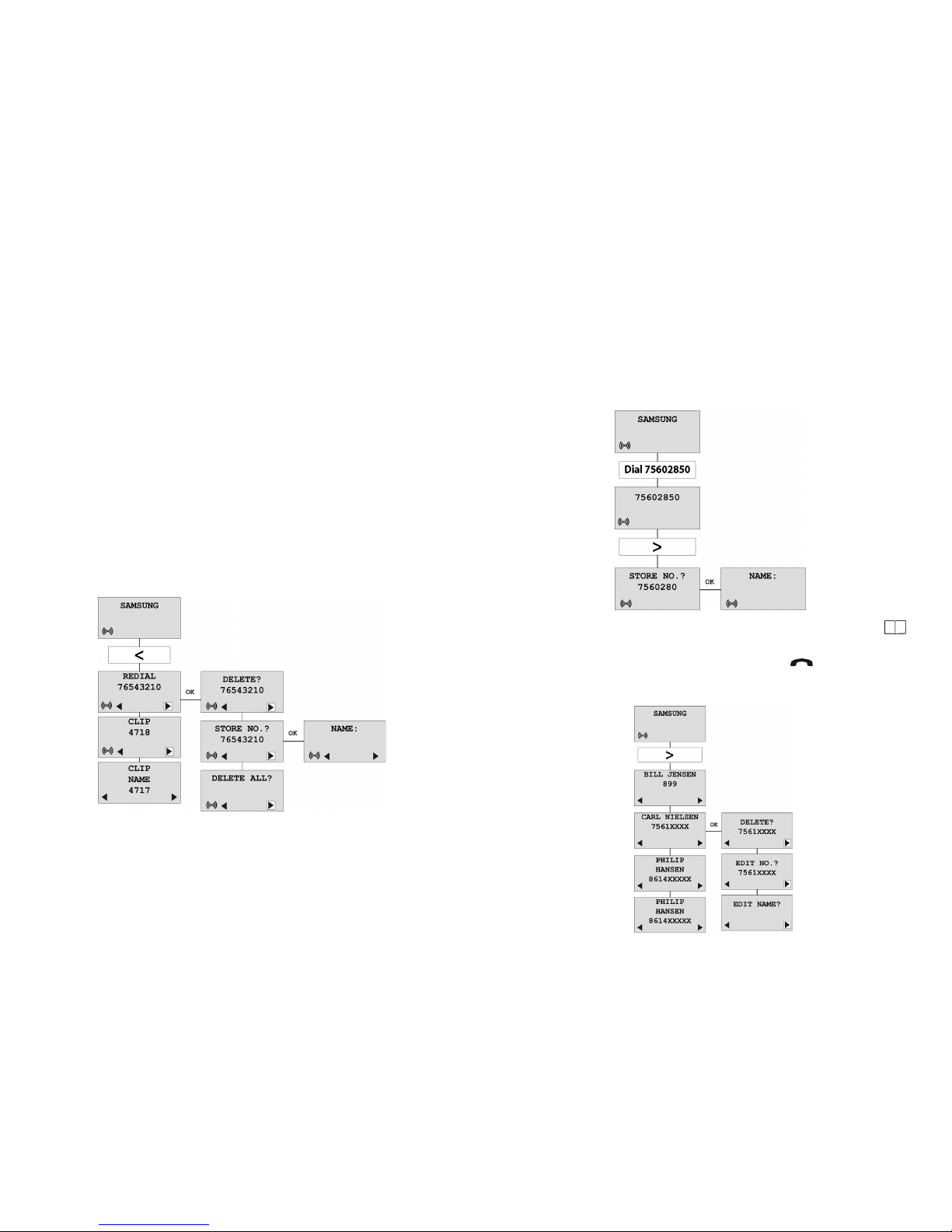

Redial / CLIP (CLIP = Calling Line Identification Presentation) stack:
Press the <key to enter the redial/CLIP stack.
Search for the number by using the <key or the >key, redialed numbers are
marked with REDIAL or name and clip numbers are marked either with CLIP or the
name of the person who called and the LED is on.
Press the key, the icon in the display will flash until connection is estab-
lished.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 11
8
Using the handset on residential systems:
Internal Call Post-Dial:
Press the ALT key , the icon in the display will flash.
Dial the number of another handset on the base station, the icon will flash
until the connection is established.
Internal Call Pre-Dial:
Press the number of another handset on the base station.
Press the ALT key the icon will flash until the connection is established.
RECEIVING CALLS
If the phone rings, the call can be answered by pressing the key.
When ringing the LED flashes fast, and the display shows the CLIP (if presented).
If it is an external call (or if no CLIP) the display shows:“INCOMING CALL”.
It is possible to stop the ringing signal without answering the call. Press the OK
key ( ) and the ringing signal is muted.The display shows:“RINGER MUTED”.
If the handset is used with a headset,it is possible to answer a call by pressing any
key on the handset.
DURING A CONVERSATION
Volume Adjust
Use the two keys placed at the right side of the handset for volume control.
Microphone Mute
Press the OK key ( ), MIC. MUTED is showed in the display.
Press the OK key ( ) to enable the microphone again.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 12

9
Transferring the Call to Another Handset
Press R, and dial the new number.
Press the key and the call is transferred to the other handset.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 13
10
PROFILES (Set-Ups)
The handset has two user-defined profiles (set ups),and a mode where all sounds
are disabled (SILENT). Pressing the followed by OK will show the chosen pro-
file. A new profile can be selected by using the arrow keys. To select the chosen
profile press OK.To escape (without storing anything) press again.
A quick way of choosing a profile,is to press and then 1,2 or #(1 is the Profile
1, 2 is the Profile 2 and # is SILENT). To change the set up in a profile, press
followed by the OK twice. All settings have to be defined under each of the
two profiles.The display shows if the SILENT mode or PROFILE2 is chosen.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 14

11

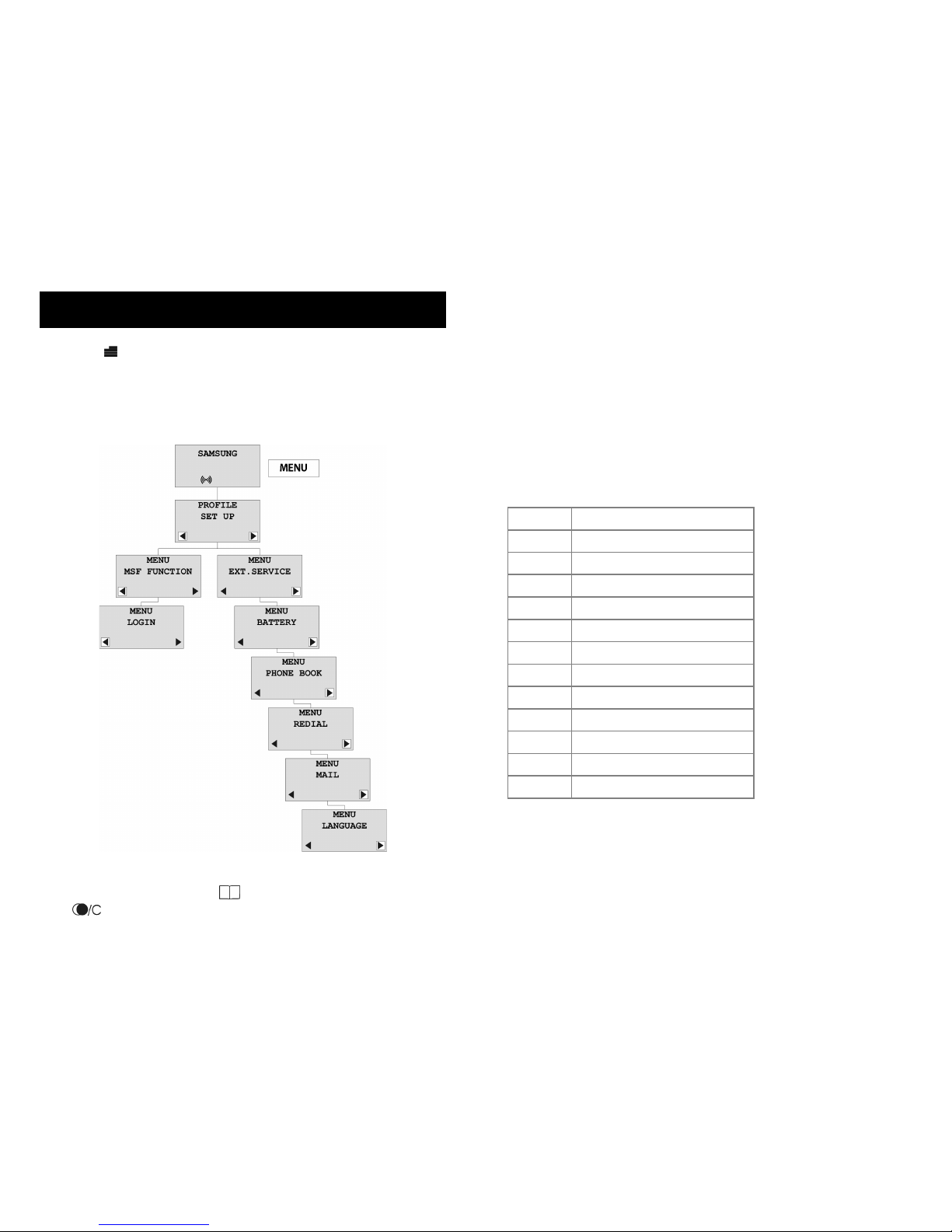

MENU STRUCTURE
Pressing the key, enters or exits the menu structure. It has to be used if a “NO”
or “CLEAR”is wanted in the menu structure.
Pressing the OK key, jumps to a lower level in the menu.When the lowest menu
level is reached,it will store the setting and jump to a higher level.It has to be used
if a “YES”is wanted.
The phone book and redial menu can be accessed directly.
The phone book by pressing the >key and the redial menu by pressing the
<key .
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 15
USING THE ALPHANUMERIC KEYBOARD
The normal dialing keys (0-9) are used for writing the name to be placed in the
phone book. By pressing the keys a certain number of times the related letters or
digits will appear in the display. Spaces are made by using the 0key. Key #
changes between uppercase and lowercase letters.The arrows will move the cur-
sor. Left arrow is also used for deleting (hold for 1 second) = delete. New letters
can be inserted.
Change of key press and pauses lasting more than 1 second automatically moves
the cursor to the next position.
KEY FUNCTIONS
12
Key
1Æ Ø Å @ Ä Ö ß Ü 1
2A B C @ Ä Á À Â 2
3D E F 3
4G H I Ï Î 4
5J K L 5
6M N O Ö Ó Ò 6
7P Q R S ß 7
8T U V Ü Ú Ù Û 8
9W X Y Z 9
0Space . , _ - + : ? ! 0
4* # / \ ( ) = &
#Upper/lower case
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 16

13
PROFILE SETUP
In the following you will find a description of how to set up one of the 2 profiles.
To enter the Profile Set-Up menu press .Then press OK and use >or <to find
the profile you wish to change and confirm with OK.You are now able to switch
between the different settings. Press OK when you find the setting you wish to
change. Change the setting according to your needs, confirm with the OK key
and automatically you go to the next setting.Press the key to finalize the pro-
file setup.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 17
14
PROFILE FUNCTIONS
BACKLIGHT: Can be turned on/off using the >and <. Confirm with OK.
RINGERTONE: Scroll through the 9 different ringertones using >and <.
Confirm with OK.
RINGER VOLUME: Turn the volume up and down using >and <.Confirm with
OK.
KEY CLICK: Turn the volume up and down using >and <. Confirm with OK.
VIBRATOR: Can be turned on/off using >and <. Confirm with OK.
B-ANSWER: Can be turned on/off using >and <. Confirm with OK. When
turned on, the telephone automatically goes off hook when ringing.If subscribed
to the system it automatically goes on hook when calls are terminated.
REMARK: Automatically on-hook is only reliable under defined conditions relat-
ed to the interface settings between the Control Unit and the PBX.
START VOL:Start volume can be adjusted using the >and <.Confirm with OK.
OUT OF RANGE: The out of range indication can be turned on/off using the >
and <. Confirm with OK. With the out of range indicator turned on, a beep will
appear when the telephone is moving out of range of the base station, and “OUT
OF RANGE”will appear in the display.
AUTO KEYLOCK: The auto keylock function can be turned on/off using the >
and <. Confirm with OK. With auto keylock turned on the handset will automati-
cally lock the keys after 60 seconds. Press 4to activate the keys again.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 18

MENU SUBSCRIPTION AND LOGIN
15
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 19
16
Create a Subscription
To make subscriptions,the system must allow subscriptions to be made.Some sys-
tems also require an Access Code (AC).If more than one system currently permits
subscription,you will need to know the ID of the system to which you wish to sub-
scribe.Access Codes and system ID’s will be provided by the system administrator.

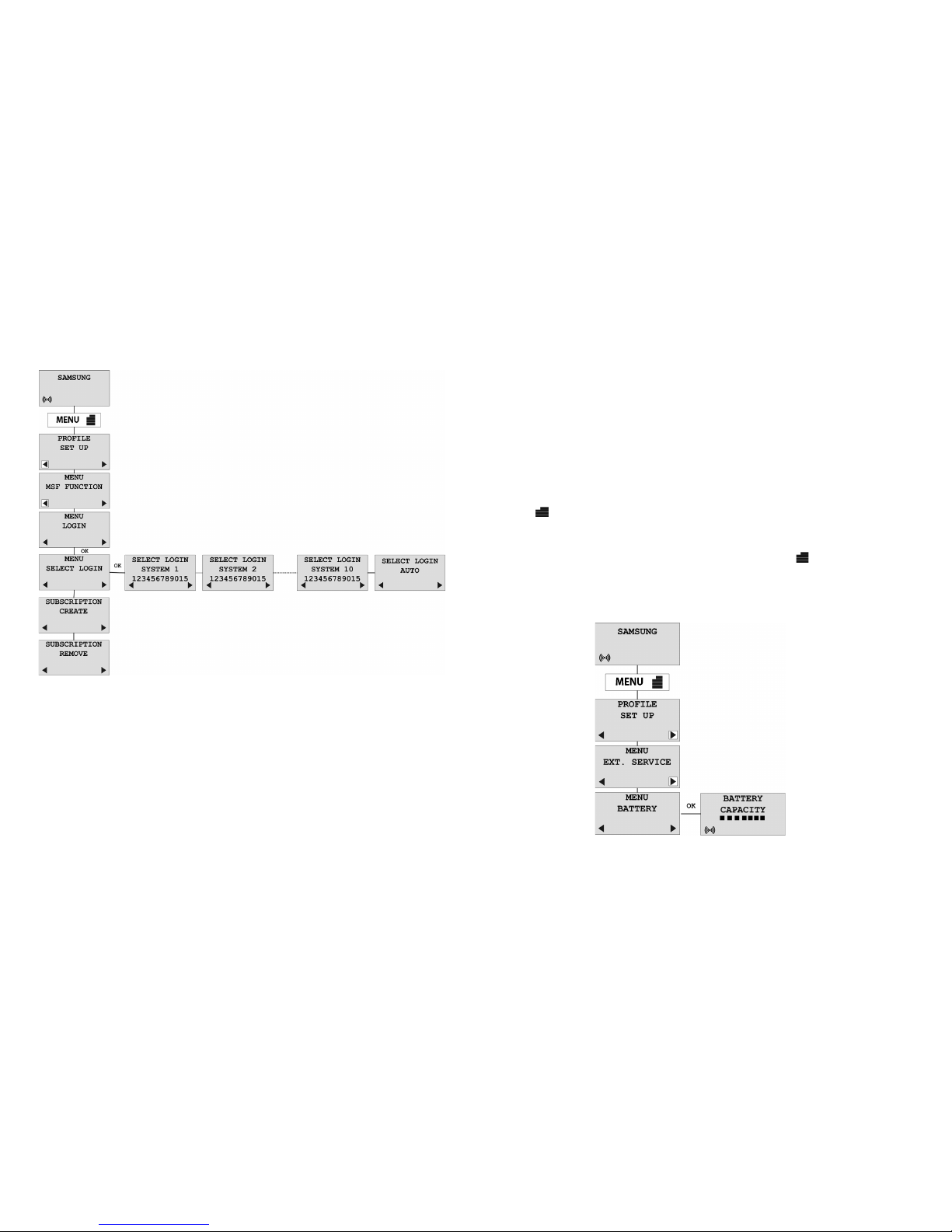

Choose the SUBSCRIPTION CREATE menu to subscribe to a new system (refer to
the diagram on previous page).
Use the <and >keys to scroll between the ID’s of the different systems available.
During subscription the handset will search for free positions and perform sub-
scription on the first free position. An alternative position can be chosen using <
or >. Give in the AC (if required) using the keyboard, and press OK.If the subscrip-
tion was successful,the startup text will be replaced by the standby text given into
the system by the system administrator and is shown in the display. If not, the
subscription has failed and the procedure must be retried.
If the handset is already subscribed to 10 systems, you will have to remove a sub-
scription before creating a new subscription (refer to Remove Subscription).
Login
The handset can be subscribed to 10 different systems enabling you to use the
same handset on 10 different systems.
If you would like to change to another system, use the login menu to connect to
another system number. The actual chosen system is shown with the red LED on.
To change to another system use <or >and press OK to confirm.
To be able to log on to a system, subscription to the system has to be established
(see Create a Subscription).
Under LOGIN/SELECT LOGIN only subscriptions will be shown. Free positions will
not be shown.
Samsung_Mobility_User_Guide.qxp 3/29/2005 3:32 PM Page 20
