Sauder 408761 User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-20
Français pg 21-24
Español pg 25-28
Lot # 364270 09/04/14
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Desk
Graham Hill Collection | Model 408761
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
For all your
newfangled gadgetry.

Table of Contents Assembly Tools Required
2-3
4
5-20
21-24
25-28
29-30
31
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
408761 www.sauder.com/servicesPage 2

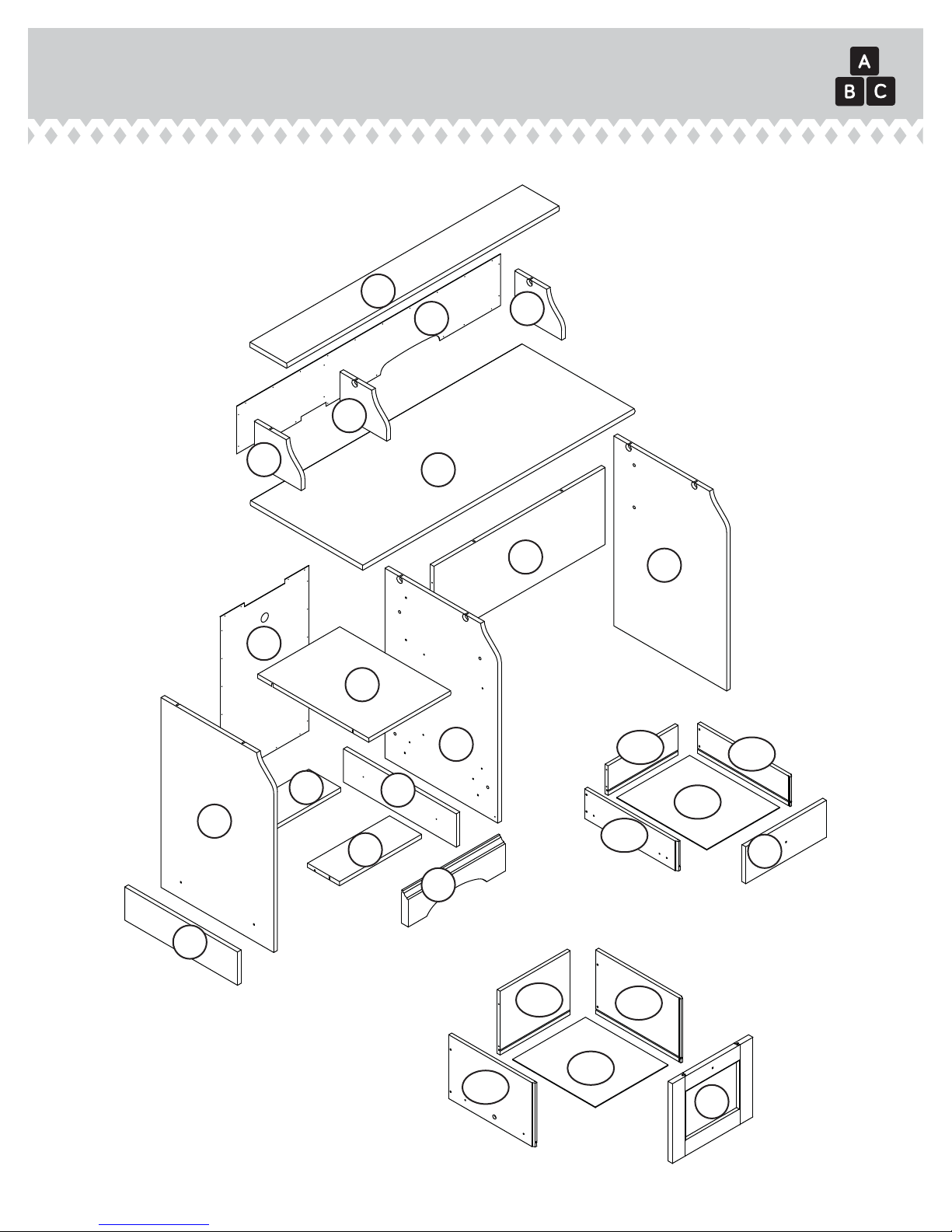

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C UPRIGHT (1)
D RIGHT UPRIGHT (2)
D14 LARGE RIGHT DRAWER SIDE (1)
D15 LARGE LEFT DRAWER SIDE (1)
D78 LARGE DRAWER BACK (1)
D107 RIGHT DRAWER SIDE (1)
D108 LEFT DRAWER SIDE (1)
D109 DRAWER BACK (1)
D707 LARGE DRAWER BOTTOM (1)
D716 DRAWER BOTTOM (1)
E LEFT UPRIGHT (1)
F TOP (1)
G HUTCH TOP (1)
H MODESTY PANEL (1)
I SHELF (1)
J HUTCH BACK (1)
K BACK (1)
L BRACE (2)
M SIDE BASE (2)
N BASE (1)
O LARGE DRAWER FRONT (1)
T DRAWER FRONT (1)
Electric drill with 1/4" bit
(ONLY in indicated step)

Part Identification Now you know
our ABCs.
408761www.sauder.com/services Page 3
A
B
C
D
EF
G
H
I
J
K
L
M
N
O
T
D
LM
D107
D109
D707
D108
D78 D14
D15
D716

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
408761 www.sauder.com/servicesPage 4
ZEXTENSION SLIDE - 2 YEXTENSION RAIL - 2
(EXTENSION SET SHOWN SEPARATED)
FILE GLIDE - 2
AA
40CA CABINET RIGHT - 1 40CB CABINET LEFT - 1 40CC DRAWER RIGHT - 1 40CD DRAWER LEFT - 1
FF TWIST-LOCK®
FASTENER - 21 GG SLIDE CAM - 4 ANGLE
BRACKET - 4
HH PULL - 2
II METAL PIN - 4 KK
BLACK 1-7/8" FLAT HEAD SCREW - 8
LL MM BROWN 1" FLAT HEAD SCREW - 4
SILVER 3/4" MACHINE SCREW - 1
NN OO SILVER 5/8" MACHINE SCREW - 1
BLACK 9/16" LARGE HEAD SCREW - 8
PP QQ GOLD 5/16" FLAT HEAD SCREW - 16
NAIL - 44
1N 30S BLACK 1-9/16" FLAT HEAD SCREW - 8

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.

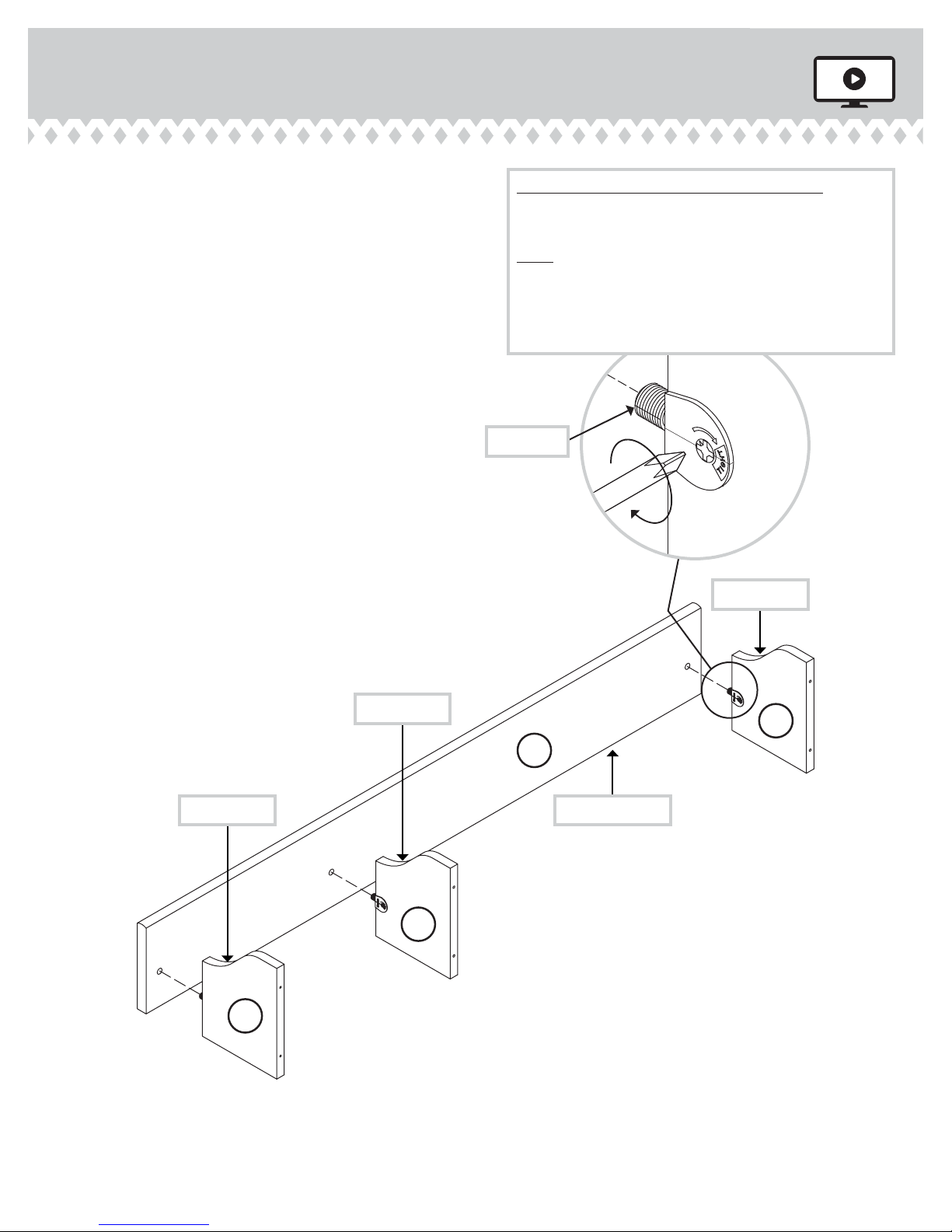

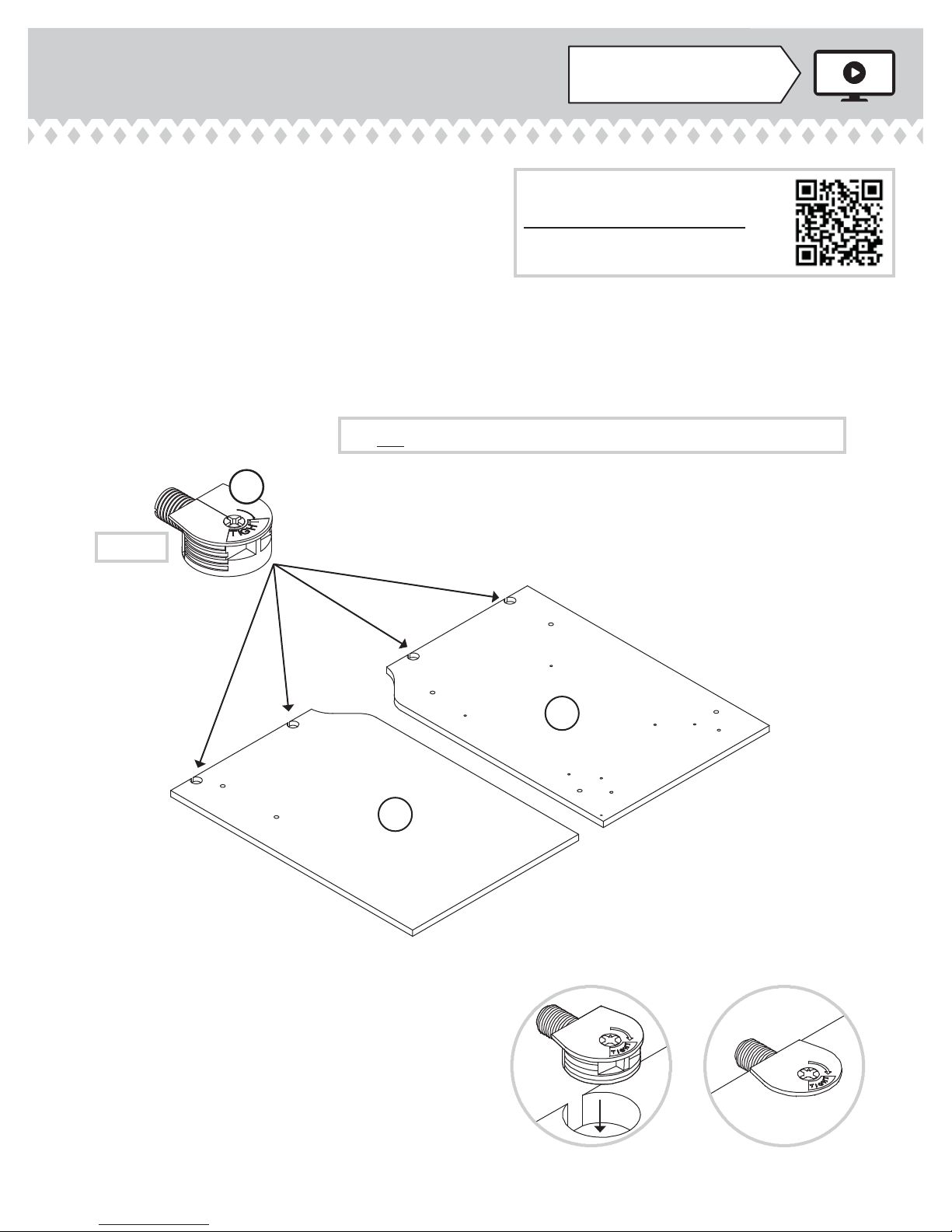

å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (FF) into the large holes in the RIGHT END (A)
and LEFT END (B).
å Repeat this step for the UPRIGHTS (C, D, and E),
MODESTY PANEL (H), SHELF (I), and both BRACES (L).
408761www.sauder.com/services Page 5
(21 used)
FF
Do not tighten the TWIST-LOCK® FASTENERS in this step.
A
B
Scan this QR code or go to this address:
http://qr.sauder.com/?ID=1595
to watch a video on how to assemble your unit.

Step 2

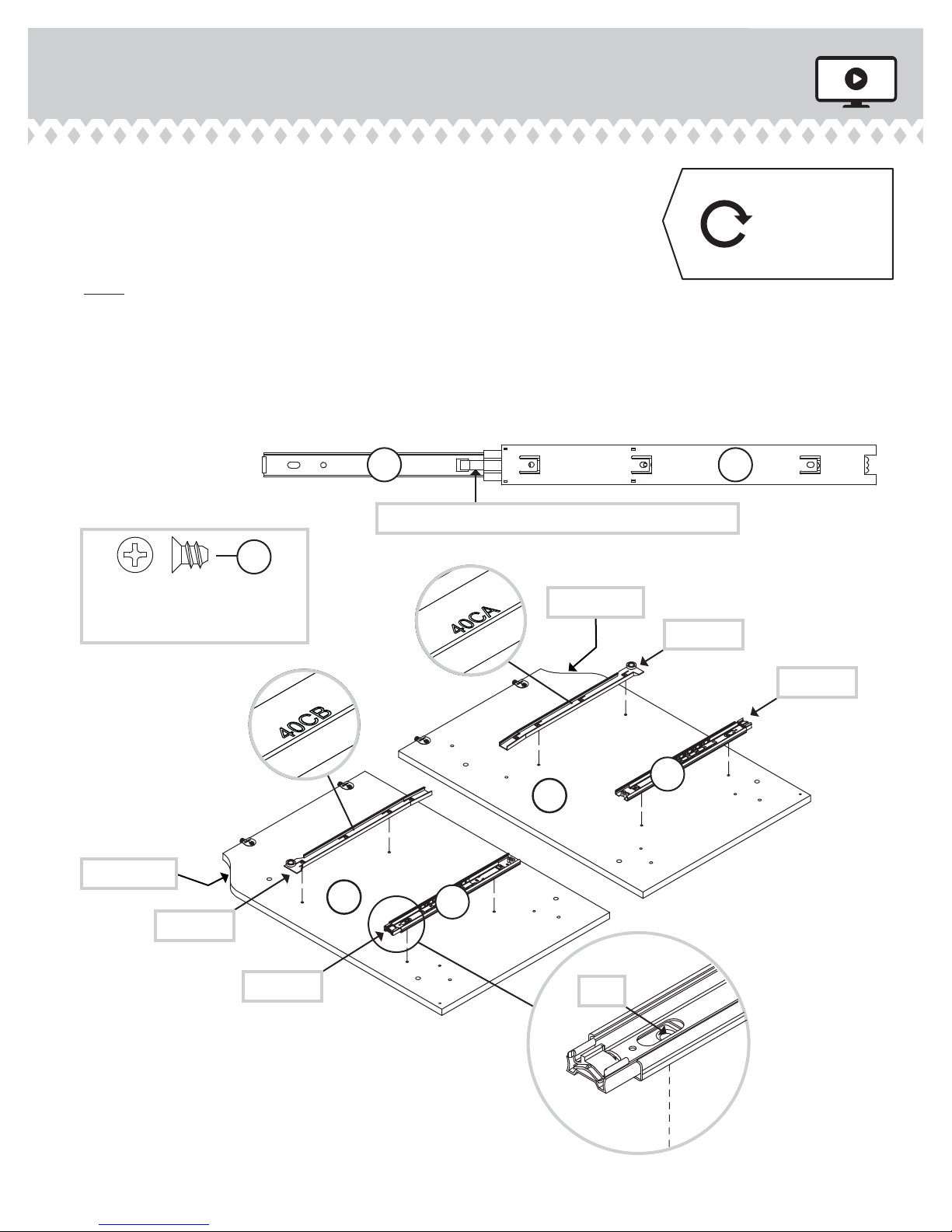

å Separate the EXTENSION SLIDES (Z) from the EXTENSION RAILS (Y) as
shown in the upper diagram below. Be prepared, the parts are greasy.
å Fasten an EXTENSION RAIL (Y) to the LEFT END (B) and UPRIGHT (C). Use
four GOLD 5/16" FLAT HEAD SCREWS (QQ).
å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the
enlarged diagram. Then, slide the inner cartridge of the EXTENSION RAIL out
to find the other hole that lines up with the hole in the END. Turn a SCREW
into this hole.
å Fasten the CABINET RIGHT (40CA) and CABINET LEFT (40CB) to the LEFT
END (B) and UPRIGHT (C). Use four GOLD 5/16" FLAT HEAD SCREWS (QQ).
408761 www.sauder.com/servicesPage 6
C
B
Push the black lever in and pull the SLIDE from the RAIL.
Z Y
Curved edge
Open end
Curved edge
Open end
Remember:
Righty tighty.
Lefty loosey.
GOLD 5/16" FLAT HEAD SCREW
(8 used in this step)
QQ
Y
Y
Hole
1
2
3
4
1
2
34
Roller end
Roller end
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS

å Fasten the UPRIGHTS (D and E) to the HUTCH TOP (G).
Tighten three TWIST-LOCK® FASTENERS.
Step 3
408761www.sauder.com/services Page 7
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
G
D
D
E
Curved edge
Unfinished edge
Curved edge
Curved edge

Step 4

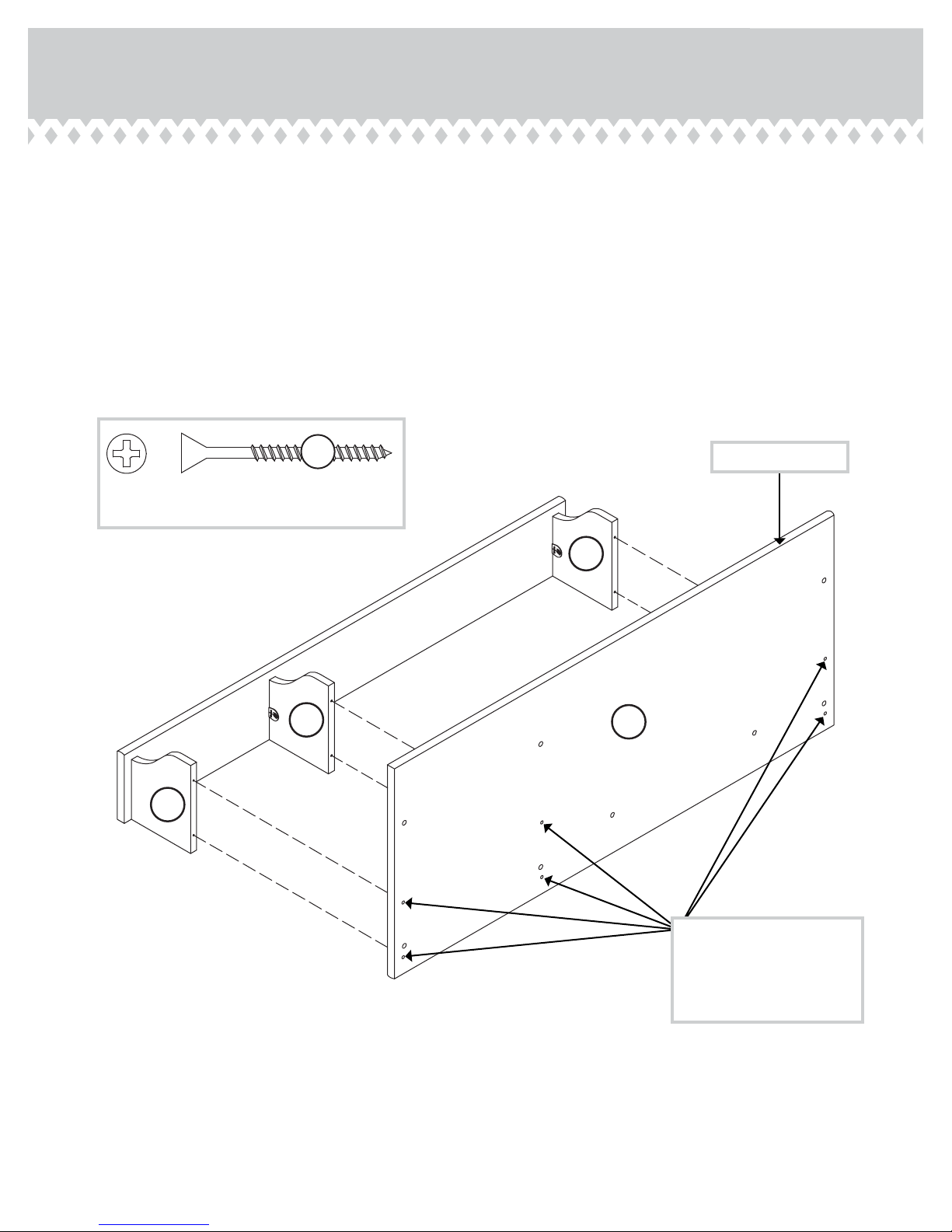

å Finish drilling the six holes shown in the bottom surface of
the TOP (F) using a 1/4" or 6.5mm drill bit.
å Next, fasten the TOP (F) to the UPRIGHTS (D and E). Use
six BLACK 1-7/8" FLAT HEAD SCREWS (LL).
408761 www.sauder.com/servicesPage 8
F
D
D
E
Unfinished surface
Long rounded edge
BLACK 1-7/8" FLAT HEAD SCREW
(6 used in this step)
LL
Finish drilling the holes from
the bottom surface. Use a
1/4" or 6.5mm drill bit. Then,
use six BLACK 1-7/8" FLAT
HEAD SCREWS (LL).

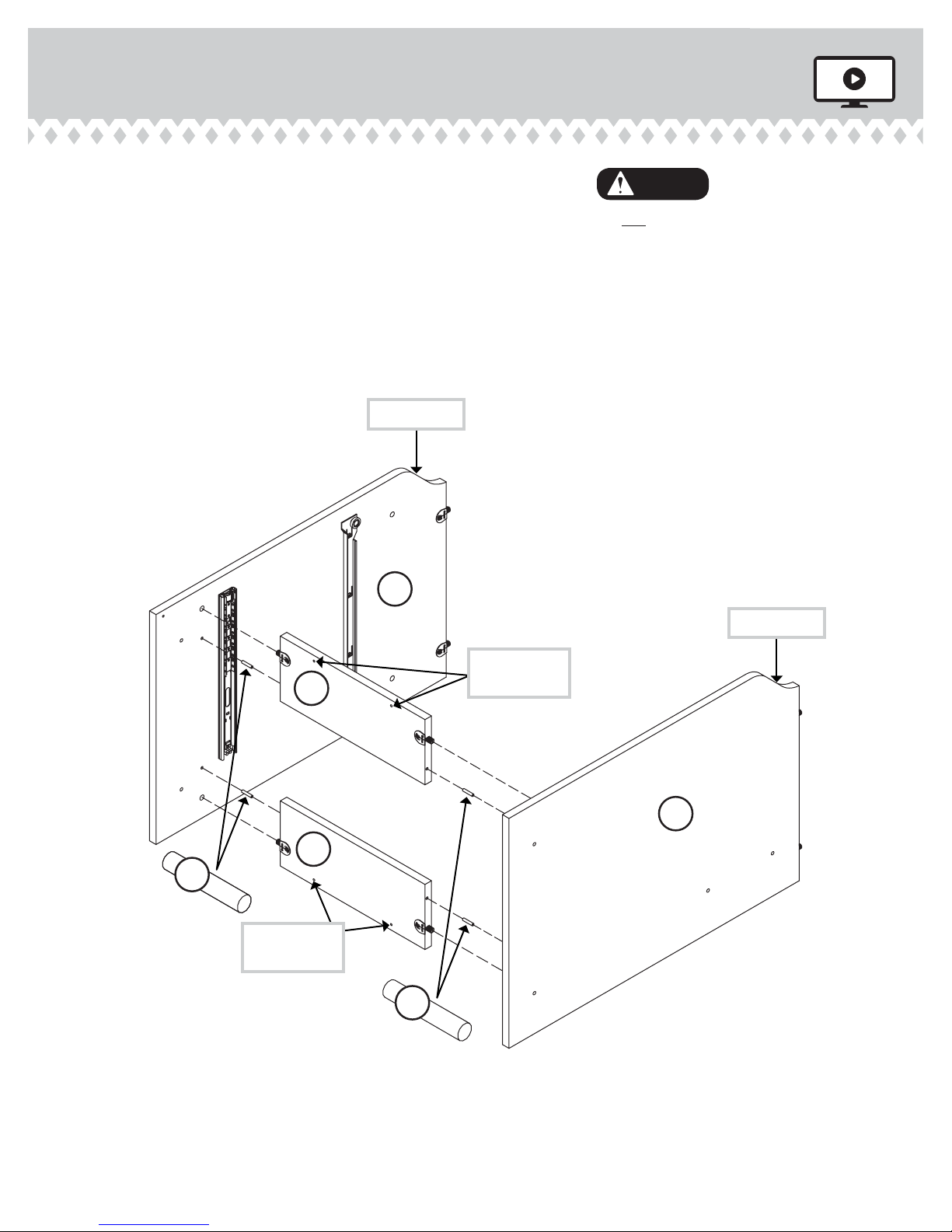

å Insert four METAL PINS (KK) into the BRACES (L).
å Insert the METAL PINS (KK) in the ends of the BRACES (L)
into the holes in the LEFT END (B) and UPRIGHT (C).
å Now, fasten the BRACES (L) to the LEFT END (B) and
UPRIGHT (C). Tighten four TWIST-LOCK® FASTENERS.
Step 5
408761www.sauder.com/services Page 9
Curved edge
Curved edge
L
L
C
B
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
These holes
must be here.
These holes
must be here.
KK
KK
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution

Step 6
å Fasten the SHELF (I) to the LEFT END (B) and
UPRIGHT (C). Tighten four TWIST-LOCK® FASTENERS.
å Fasten the SIDE BASES (M) to the LEFT END (B) and
UPRIGHT (C). Use four BROWN 1" FLAT
HEAD SCREWS (MM).
408761 www.sauder.com/servicesPage 10
Surface with
TWIST-LOCK®
FASTENERS
C
B
I
M
M
BROWN 1" FLAT HEAD SCREW
(4 used in this step)
MM
Surface without holes
Surface without holes
Long unfinished edge
Long unfinished edge
Curved edge

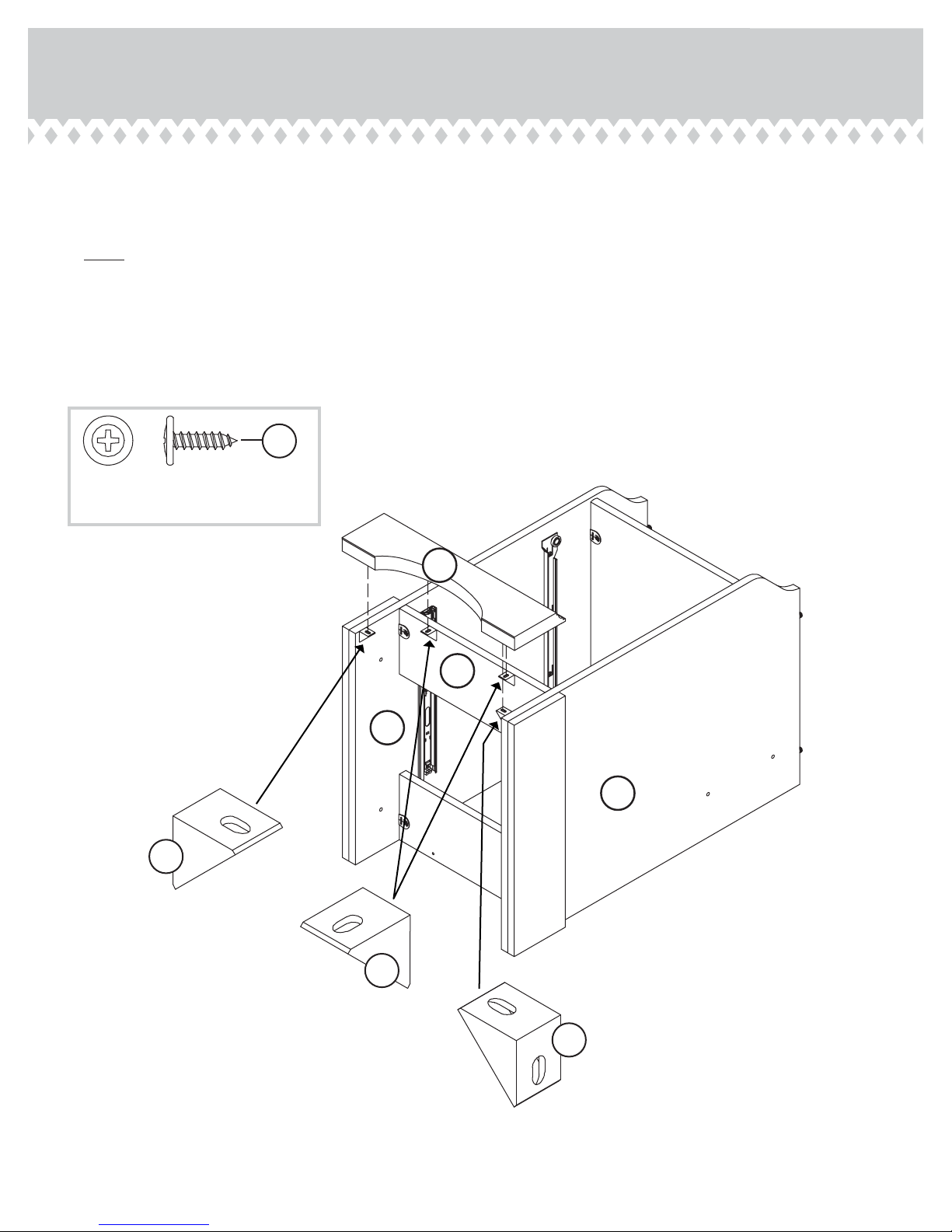

å Fasten four ANGLE BRACKETS (HH) to the LEFT END (B),
UPRIGHT (C), and BRACE (L). Use four BLACK 9/16" LARGE
HEAD SCREWS (PP).
å NOTE: Be sure the edges of the ANGLE BRACKETS are even
with the edges of the END, UPRIGHT, and BRACE.
å Fasten the BASE (N) to the LEFT END (B), UPRIGHT (C), and
BRACE (L). Use four BLACK 9/16" LARGE HEAD SCREWS (PP).
Step 7
408761www.sauder.com/services Page 11
C
B
L
N
HH
HH
HH
BLACK 9/16" LARGE HEAD SCREW
(8 used in this step)
PP

Step 8

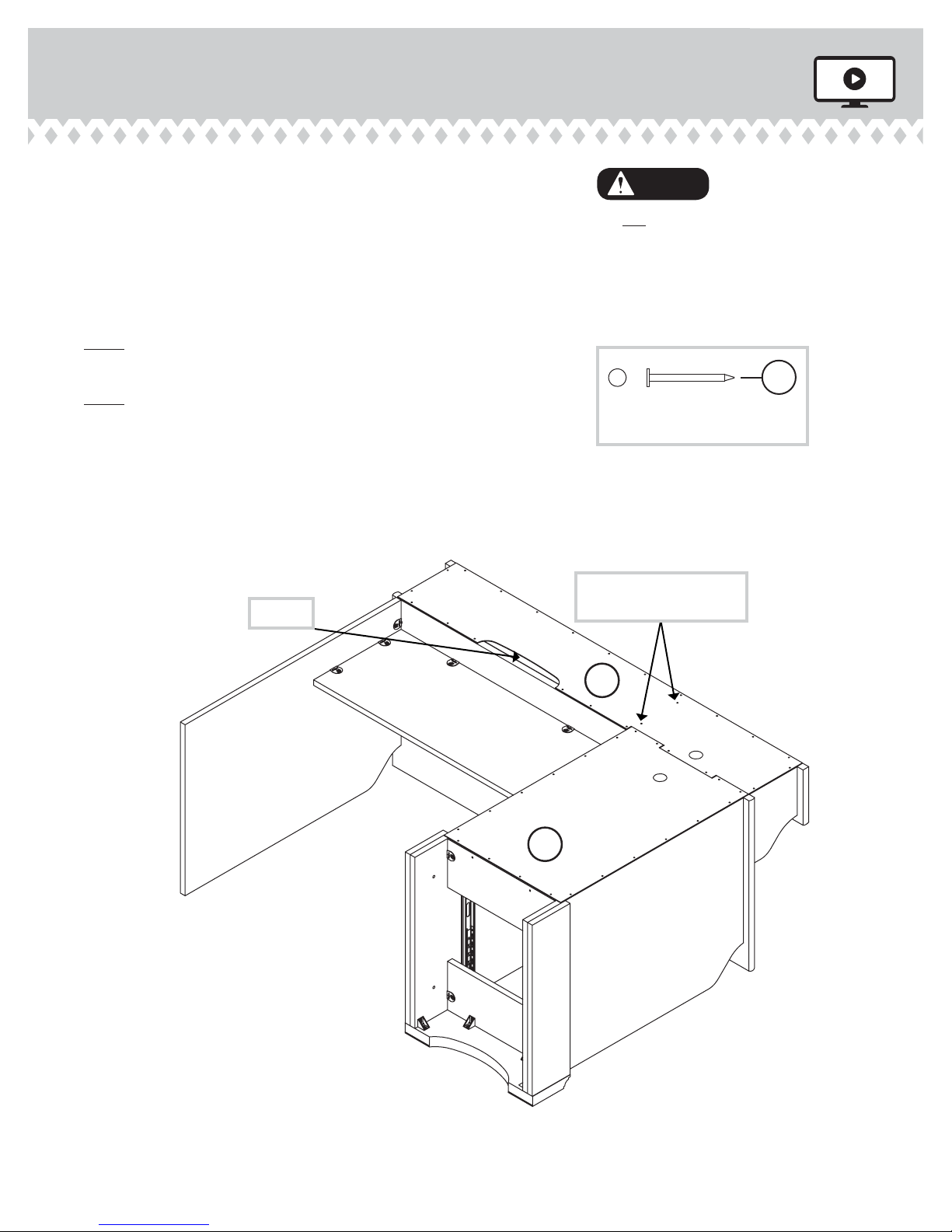

å Carefully stand the assembly upright.
å Fasten the RIGHT END (A) to the MODESTY PANEL (H).
Tighten two TWIST-LOCK® FASTENERS.
å NOTE: Be sure to support the MODESTY PANEL until it is
fastened to the UPRIGHT (C).
å Fasten the MODESTY PANEL (H) to the UPRIGHT (C).
Use two BLACK 1-7/8" FLAT HEAD SCREWS (LL).
408761 www.sauder.com/servicesPage 12
Pro Tip: Lift with your
legs. And, you know,
your arms.
Surface without
TWIST-LOCK®
FASTENERS
C
HA
Edge with TWIST-LOCK® FASTENERS
Curved edge
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
LL

å You may need someone’s help in this step.
å Fasten the TOP (F) to the ENDS (A and B),
UPRIGHT (C), and MODESTY PANEL (H).
Tighten eight TWIST-LOCK® FASTENERS.
Step 9
408761www.sauder.com/services Page 13
A
F
C
H
B
Long rounded edge

Step 10
å Carefully turn your unit over onto its front edges. Lay the
BACKS (J and K) over your unit.
å Make equal margins along all four edges of the BACKS (J
and K). Push on opposite corners of your unit if needed to
make it "square".
å Fasten the BACKS (J and K) to your unit using the NAILS (RR).
å NOTE: Be sure to tap NAILS into the holes that line up over
the UPRIGHT (D).
å NOTE: Perforations have been provided for access through
the BACK. Carefully cut out the holes needed.
408761 www.sauder.com/servicesPage 14
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Unfinished surface
These holes must line up
over the UPRIGHT (D).
NAIL
(44 used in this step)
RR
Unfinished
surface
Cut-out
J
K

Step 11
408761www.sauder.com/services Page 15
VIEW THE T-LOCK BOX VIDEO

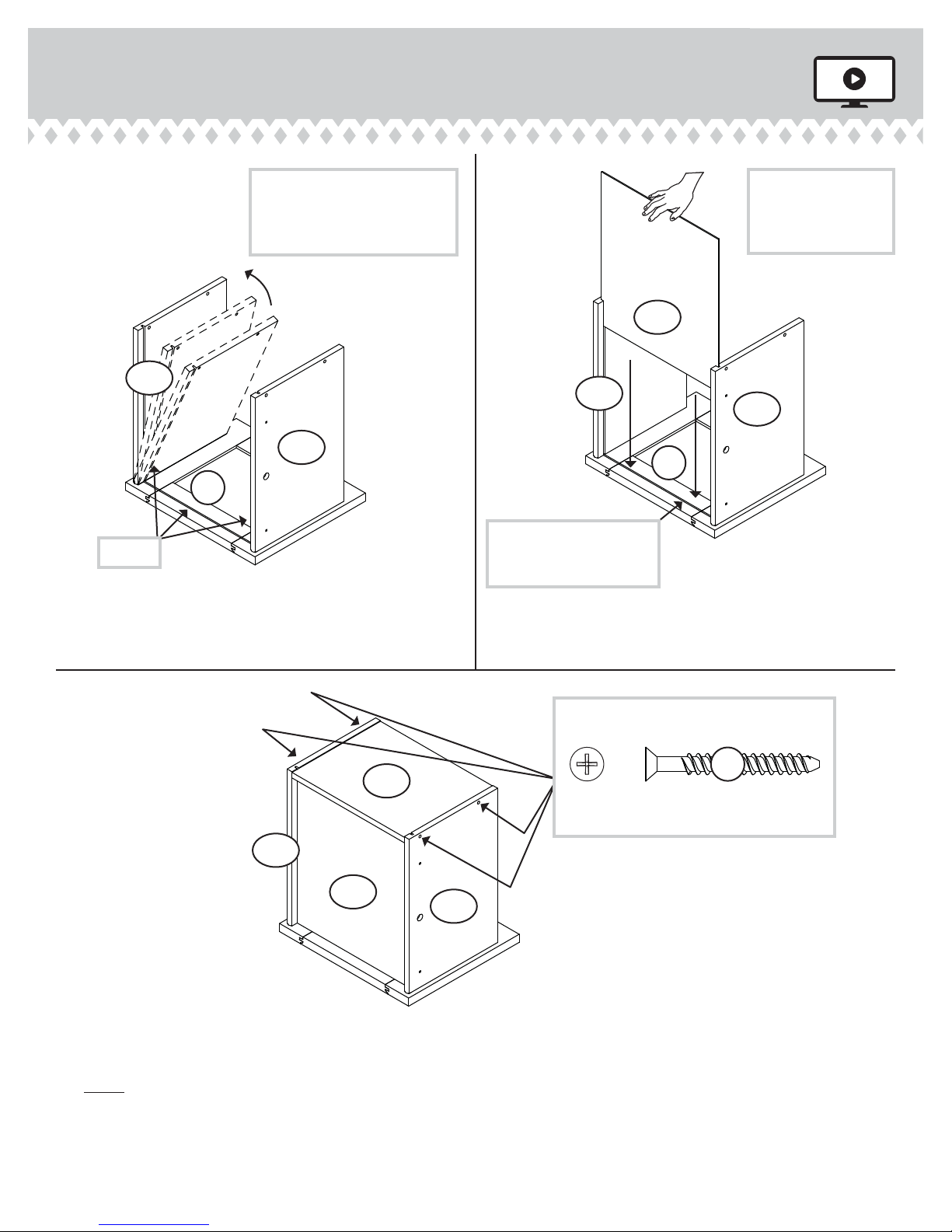

å Fasten the LARGE DRAWER BACK (D78) to the LARGE DRAWER
SIDES (D14 and D15). Use four BLACK 1-9/16" FLAT HEAD SCREWS (30S).
å NOTE: Be sure the DRAWER BOTTOM (D716) inserts into the groove of the
LARGE DRAWER BACK (D78).
å Repeat this step for the remaining drawer using the LARGE
DRAWER BOTTOM (D707).
12
3
å Insert the LARGE DRAWER SIDES (D14 and D15)
at an angle into the slot at each end of the LARGE
DRAWER FRONT (O).
å Slide the DRAWER BOTTOM (D716) into the grooves in
the LARGE DRAWER SIDES (D14 and D15) and LARGE
DRAWER FRONT (O).
The tabs should insert freely
into the slots. Gently tilt the
DRAWER SIDES side to side
until the tabs slip into the slots.
Groove
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
D14
D15
D716
D716
D14
D15
D78
D15
O
O
Unfinished
surface
With the palm of
your hand, tap the
DRAWER BOTTOM
down into the groove.
D14
Start each screw a few turns before
completely tightening any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(8 used in this step)
30S

Step 12

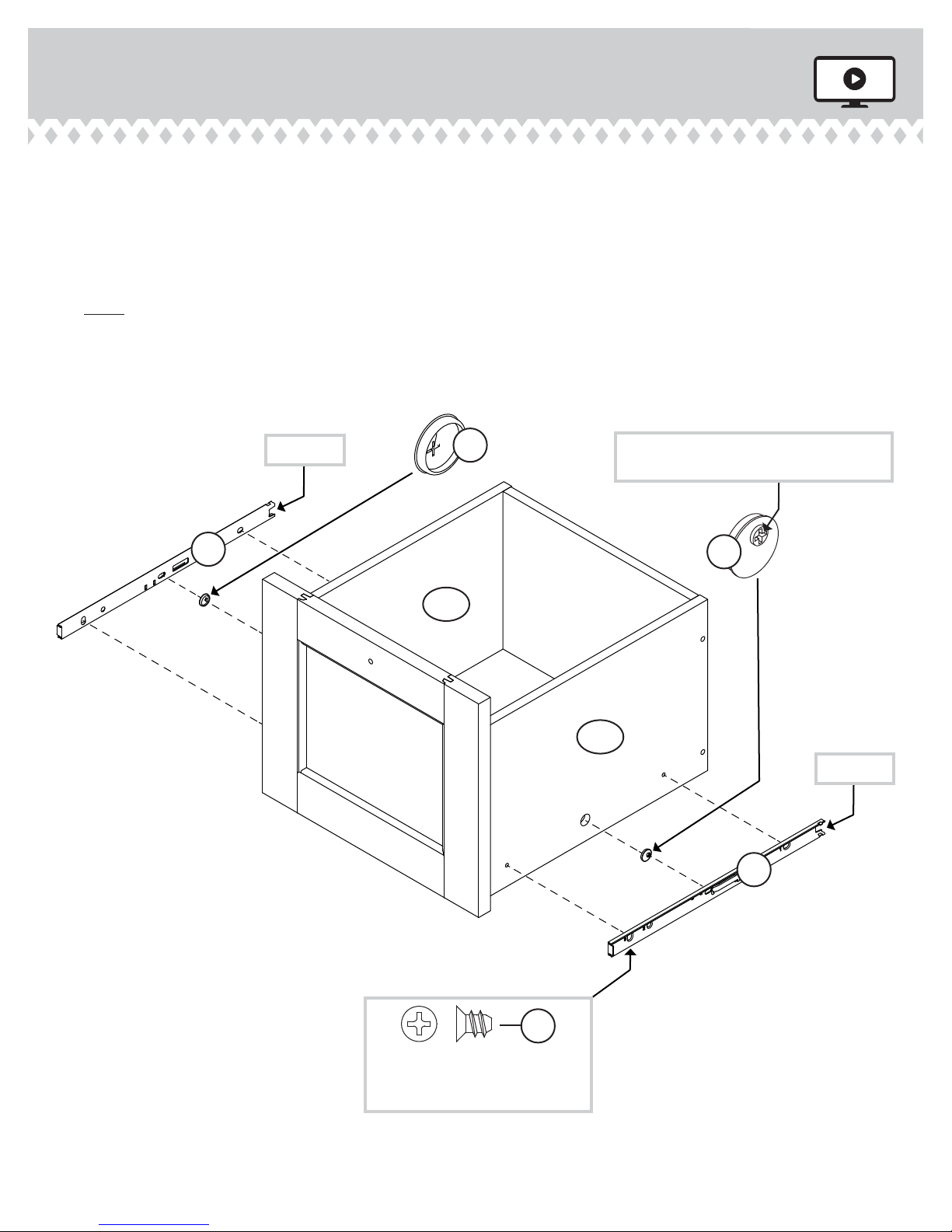

å Insert the SLIDE CAMS (GG) into the large holes in the
LARGE DRAWER SIDES (D14 and D15).
å Fasten the EXTENSION SLIDES (Z) to the LARGE
DRAWER SIDES (D14 and D15). Use four GOLD 5/16"
FLAT HEAD SCREWS (QQ) through holes #1 and #3.
å NOTE: The screw head in the CAM must be visible
through the slotted hole in the SLIDE.
408761 www.sauder.com/servicesPage 16
Open end
1
2
3
Open end
1
2
3
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
Z
Z
GG
GG
D14
D15
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
QQ

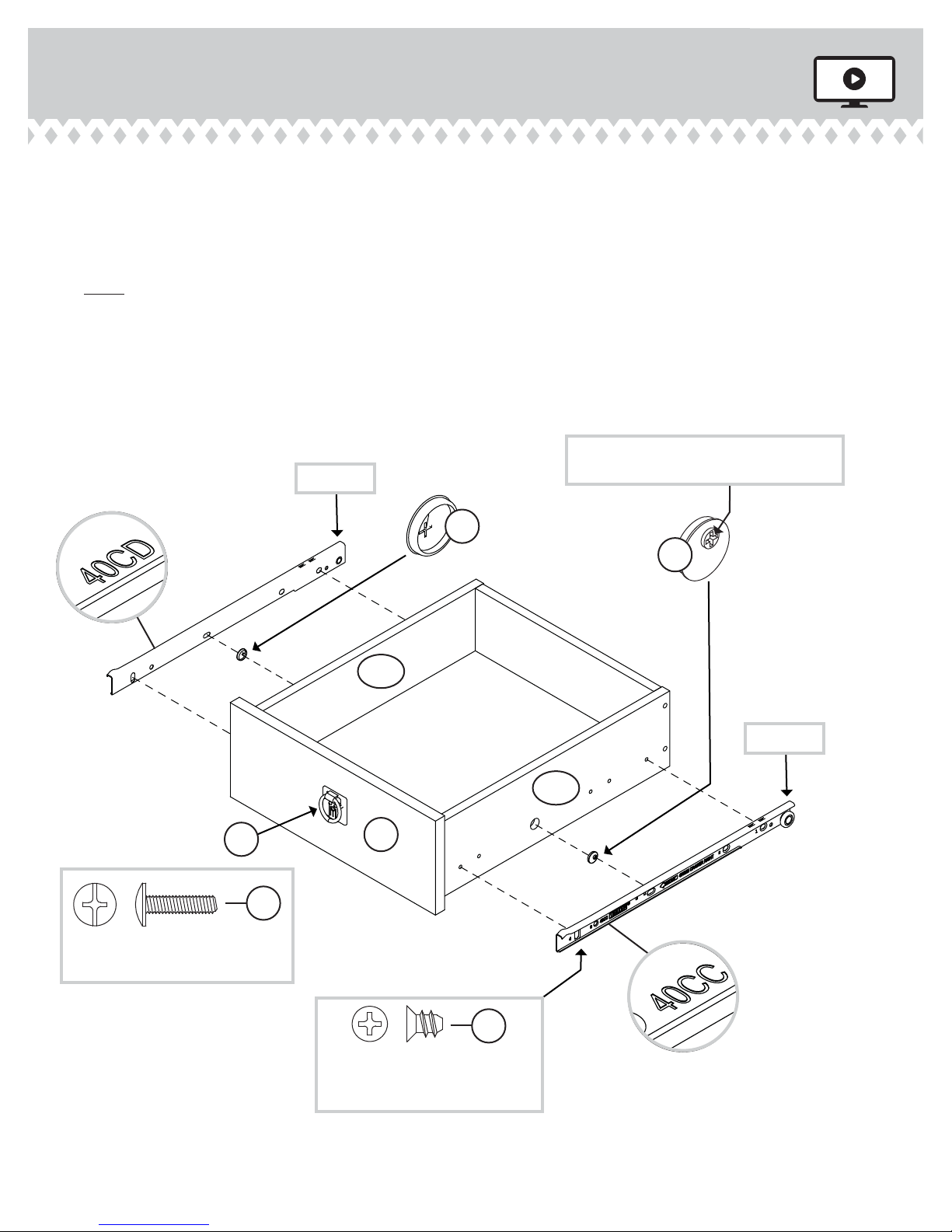

å Insert a SLIDE CAM (GG) into each DRAWER SIDE (D107 and D108).
å Fasten the DRAWER RIGHT (40CC) and DRAWER LEFT (40CD) to
the DRAWER SIDES (D107 and D108). Use four GOLD 5/16" FLAT
HEAD SCREWS (QQ) through holes #1 and #4.
å NOTE: The screw head in the CAM must be visible through the
slotted hole in the SLIDE.
å Fasten a PULL (II) to the DRAWER FRONT (T). Use a SILVER 5/8"
MACHINE SCREW (OO).
Step 13
408761www.sauder.com/services Page 17
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
GG
GG
GOLD 5/16" FLAT HEAD SCREW
(4 used in this step)
QQ
D107
D108
T1
2
3
4
Roller end
Roller end
1
2
3
4
SILVER 5/8" MACHINE SCREW
(1 used for the PULL)
OO
II

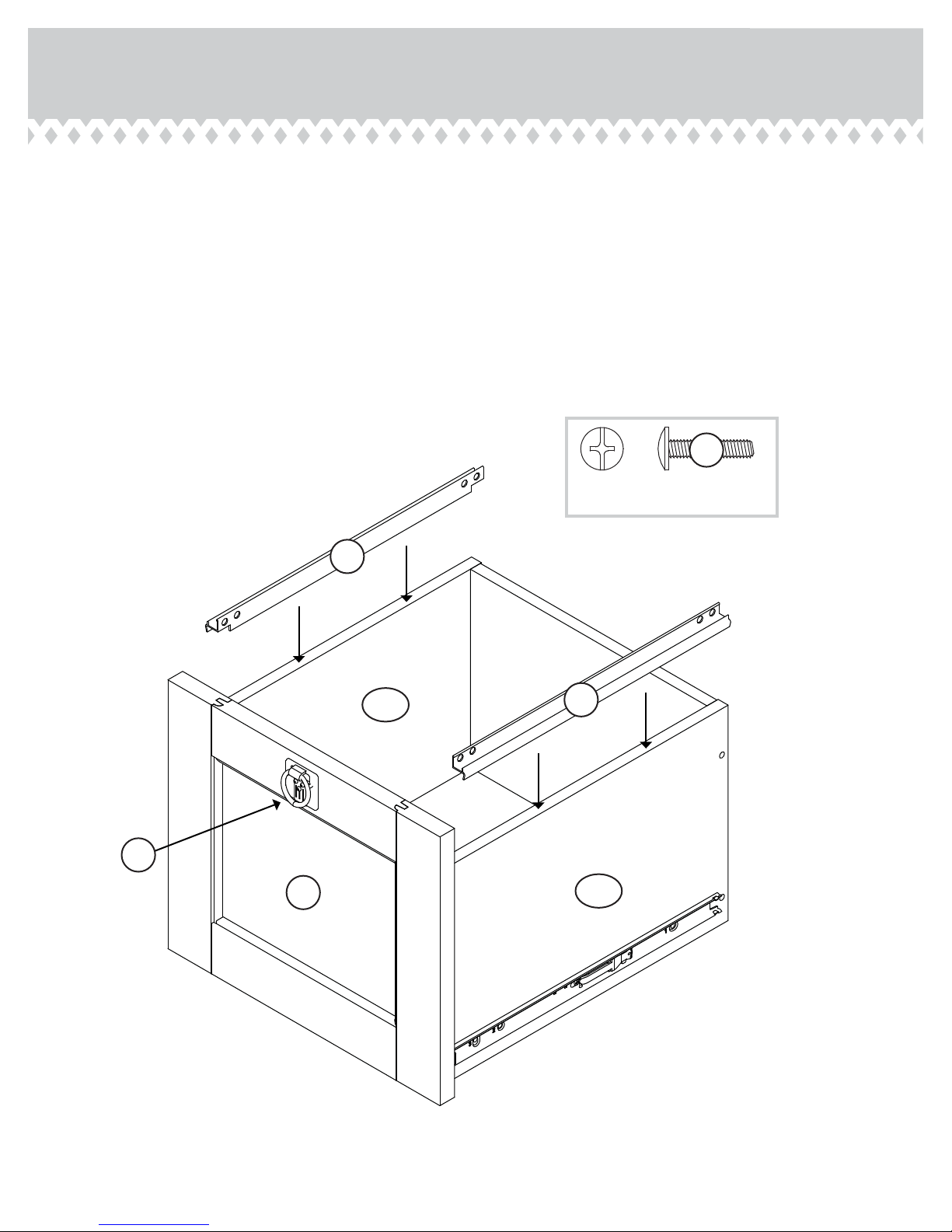

Step 14

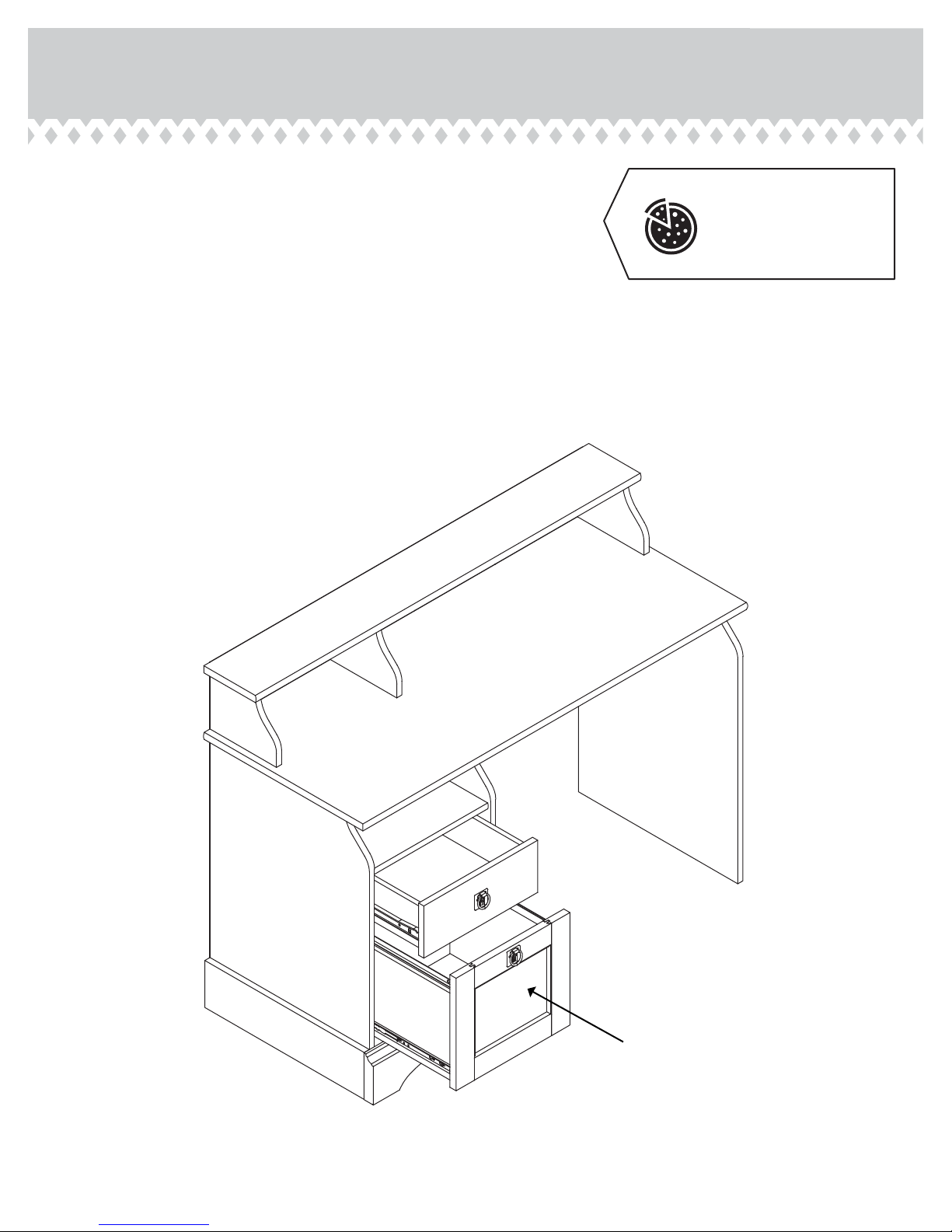

å Fasten a PULL (II) to the LARGE DRAWER FRONT (O). Use a SILVER
3/4" MACHINE SCREW (NN).
å Push the FILE GLIDES (AA) onto the DRAWER SIDES (D14 and D15).
408761 www.sauder.com/servicesPage 18
II
O
AA
AA
D14
D15
SILVER 3/4" MACHINE SCREW
(1 used for the PULL)
NN

å Carefully stand your unit upright.
å To insert the large drawer into your unit, line up the
EXTENSION SLIDES on the drawer with the EXTENSION
RAILS on the unit and push the drawer into the unit until
the drawer is fully inserted. The drawer will push in hard
until it is all the way in, then it will slide in and out easier.
å To insert the other drawer into your unit, tip the front
of the drawer down and drop the rollers on the drawer
behind the rollers on the unit. Lift the front of the drawer
up and slide it into the unit.
Step 15
408761www.sauder.com/services Page 19
25 lbs.
70 lbs.
20 lbs.
15 lbs.
30 lbs.
If you're doing this to
help a friend, don't
leave without a bite.

Step 16
å To make adjustments to the large drawer, loosen SCREW #3 (#4 in the top drawer) in the SLIDES a 1/4 turn, then
turn the cam clockwise or counter-clockwise. Notice how the drawer raises or lowers as you turn the cam. By
adjusting the drawers this way, it will help the DRAWER FRONTS line up better when closed. Tighten the SCREWS
when finished with adjustments.
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. To clean your unit, dampen a cloth with tap water and wipe.
408761 www.sauder.com/servicesPage 20
The higher the screw in the oblong hole,
the higher your drawer front will be. The
lower the screw, the lower the drawer front.
Loosen screw #3 a 1/4 turn, turn the cam a 1/4 turn
maximum in both the clockwise and counter-clockwise
directions to make adjustments, and then tighten screw #3.
And to celebrate, why not share your success story?
Cam
