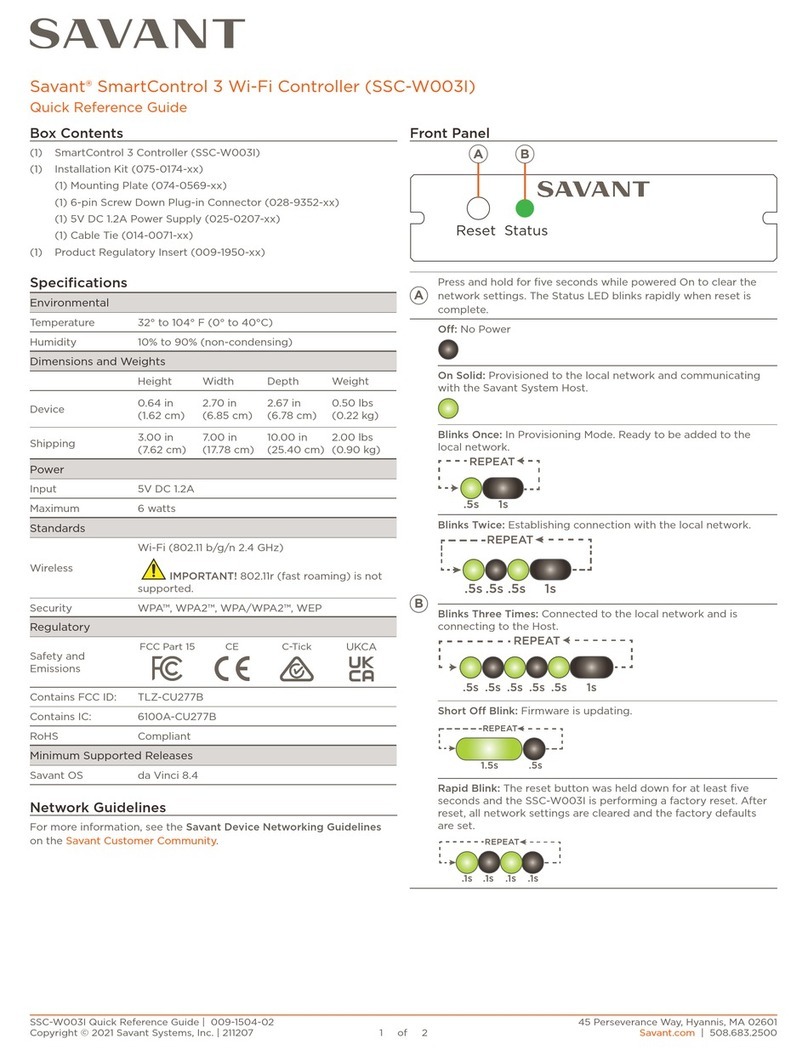

Savant SmartControl 3 User manual

SSC-W103I | 009-1580-01 | 180305
Copyright 2018 Savant Systems, LLC
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
1 of 2
Box Contents
(1) SmartControl 3 Controller (SSC-W103I-xx)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0165-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight
Height 0.64 in (16.2 mm)
Width 2.7 in (68.5 mm)
Depth 2.67 in (67.8 mm)
Weight Net: 0.25 lb (0.11 kg) Shipping: 1.50 lb (0.68 kg)
Power
Input Power 5V DC 1.2A
Max Power 6 watts
Standards
Wireless
Wi-Fi (802.11 b/g/n 2.4 GHz)
IMPORTANT! 802.11r (fast roaming) is not
supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
Safety and
Emissions
FCC Part 15 CE C-Tick
Contains FCC ID: TLZ-CU277
Contains ID: 6100A-CU277
RoHS Compliant
Specifications
Front Panel
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed in
the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of trac or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
AB
Reset Status
Press will place the device in remote pairing mode, this will turn
the Status LED red.
Press and hold for five seconds while powered on to clear the
network settings. The Status LED blinks rapidly when reset is
complete.
O: No Power
Green: Provisioned to the local network and communicating
with the Savant Pro System Host.
Blink Green Once: In Provisioning Mode. Ready to be added to
the local network.
Blink Green Twice: Establishing connection with the local net-
work.
Blink Green Three Times: Connected to the local network. Is
connecting to the Host.
Short O Green Blink: Firmware is updating.
Rapid Green Blink: The reset button was held down for at least
five seconds and the SSC-W103I is performing a factory reset.
After reset, all network settings are cleared and the factory
defaults are set.
Red: RF scan mode. This is used to bind a Savant Button
Remote.
A
B
1s.5s
Repeat
.5s.5s. 5s
Repeat
1s
.5s .5s
.5s. 5s
Repeat
.5s1 s
.5s1.5s
Repeat
.1s.1s. 1s
Repeat
.1s
Minimum Supported Release
Savant OS: da Vinci 8.8
Savant® SmartControl 3 - Wi-Fi Smart Controller with 3 IR and RF (SSC-W103I-00)
Quick Reference Guide
For Product Info

SSC-W103I | 009-1580-01 | 180305
Copyright 2018 Savant Systems, LLC
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
2 of 2
Rear Panel
5 VDC
-IR
- 1 + - 2 + - 3 +
A B C
AIR
Used to send IR signals to control devices with
an IR input or IR receiver via an IR flasher (5V
tolerant only).
Before making connections, see the IR Wiring
section below for important precautions
regarding IR functionality.
BInput Power 5V DC 1.2A - Connect to included power supply.
CCable Lance Use with included cable tie to secure power
supply connection.
Regulatory
The following statements are applicable to the SSC-W103I.
FCC Regulations:
15.19. These devices comply with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) These devices may not
cause harmful interference, and (2) these devices must accept any in-
terference received, including interferences that may cause undesired
operation.
15.21. The changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
15.105. This equipment has been tested and found to comply with the
limits for CLASS B digital device, pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications,
However there is no guarantee that interference will not occur in a par-
ticular installation, If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving circuit dierent from that to which
receiver is connected.
– Increase the separation between the equipment and the receiver.
– Consult the dealer or experienced radio/TV technician for help.
IC Regulations:
RSS-Gen 7.1.3. These devices comply with Industry Canada license-ex-
empt RSS standard(s). Operation is subject to the following two con-
ditions: (1) These devices may not cause interference, and (2) These
devices must accept any interference, including interference that may
cause undesired operation of the device.
RSS-21- Annexe 9: A 9.4. Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil
ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
IR Wiring
IR connections are made using the 6-pin screw down plug-in type con-
nector included with each SSC-W103I controller. This connector plugs
into the connection on the rear of the controller.
IMPORTANT! IR Wiring Precautions
– Ensure all IR emitters are within 15 feet (4.6 meters) from the control-
ler’s location.
– Use of 3rd party flashing IR emitters with Talk Back is not recom-
mended. These types of emitters can draw voltage away from the IR
signal that can degrade IR performance.
Use white stripe
for positive (+)
PIN 1 IR 1 -
PIN 2 IR 1 +
PIN 3 IR 2
-
PIN 4 IR 2 +
- 1 + - 2 + - 3 +
432
165
PIN 5 IR 3
-
PIN 6 IR 3 +
Making Connections
1. Remove Power if power is applied.
2. Pull to remove the terminal block from the rear of the controller.
3. With a small flat bladed screwdriver, turn the screws on the top of
connector counterclockwise until the silver crimps in the front of
the connector opens enough to slide the wire(s) into the square
slots.
4. Insert the stripped wires from the first IR input or output device
into ports 1 and 2 observing the correct signals. Do not allow more
than ½ inch of bare wire exposed.
5. Turn the screws clockwise until the screw tightens around the wire.
Tug on the wire a bit to verify the wires are installed securely.
6. Continue until all wires are installed.
7. Repeat steps 3 - 5 for any additional IR devices.
8. Plug terminal block back into the rear of the controller.
9. Reapply power.
Connecting to a Wireless Network
To provision the SSC-W103I controller onto a local network, one of the
following methods can be used:
– SmartConnect Application – version 1.7 or later.
– Embedded Web UI – All da Vinci builds.
Both methods are described in the SmartControl 3 –Deployment
Guide.
Additional Documentation
Additional Documentation is available on the Savant Customer
Community.
– SmartControl 3 (SSC-W103I) Deployment Guide (009-0274-xx)
– SmartConnect Software Reference Guide (009-1046-xx)
– Videos on the Savant Controllers Family in the pages of the Savant
University.
