Welcome to Savant Pro Remote
Welcome to the Savant Pro Remote and Base (REM-1000). This User Guide gives an overview of the hardware, software, and how to use the touchscreen to
navigate through the various main screens. Read the Pro Remote User Guide in its entirety prior to operating the REM-1000 to control your Savant Pro
system.
Networking
−Local Wi-Fi® Network supporting 2.4 GHz (802.11 b/g/n)
−Local Wi-Fi® Network Security – WPA1™, WPA2™, WPA1™ + WPA2™, WEP
Gestures
The Savant Pro Remote User Guide instructs a user to tap, press and hold, and swipe left, right, up or down on the LED screen.
Tap
Press and release (tap) a button or icon.
Press and Hold
Press and hold a button or icon on the screen until a pop-up menu or some other feature appears.
Swipe Right
Press and swipe your finger to the right.
Swipe Left
Press and swipe your finger to the left.
Swipe Left
or Right
Press and swipe your finger to the left or right.
Swipe Up
Press and swipe your finger toward the top of the screen.
Swipe Down
Press and swipe your finger toward the bottom of the screen.
Swipe Up
or Down
Press and swipe your finger up or down.
Customer Support
−For additional assistance with the Savant Pro Remote or other Savant Products refer to information on the Savant Community -or-
−Call the Savant Customer Support Center Toll Free: 1-877-SAVANT5 (1-877-728-2685).

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
3
of
15
1. Hardware Overview
Hardware information such as button descriptions is described below.
Power Button
Press/Release
−Powers on the Remote. Remote will take 5-7
seconds before Savant logo appears.
−With Remote powered on, the power button
will toggle the last used A/V Service on or
off.
Press/Hold (5 sec.) – Powers remote Off.
Microphone
Used for voice commands and is positioned
behind small hole on top of remote.
Touchscreen
Display
Multi colored LCD display with multiple screens
for viewing and control.
−Motion Activated
−One touch and swipe operation
−Controls for Services
Volume
Increase or decrease volume of the Service
shown on the touchscreen display.
Channel
Channel up or down the service selected on the
touchscreen display (if applicable).
Scroll/Select
Standard up, down, left, and right arrows used
for on-screen control. Press and hold the
up/down arrow to page up or down the on-
screen menus. Press select button to select the
highlighted item.
Voice Command
Activate services, scenes, environmental
controls, and various other functions using voice
commands. See the Voice Commands section
Remote Base
Charging
Station
Charges the battery when the
Remote is set into the Remote
Base.
Wi-Fi® Base
Station
Communicates with the
Savant Pro system over the
local Wi-Fi network.
Bluetooth
Base Station
Communicates with the Pro
Remote using Bluetooth v4.0

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
4
of
15
2. Introduction to the Pro Remote Screens

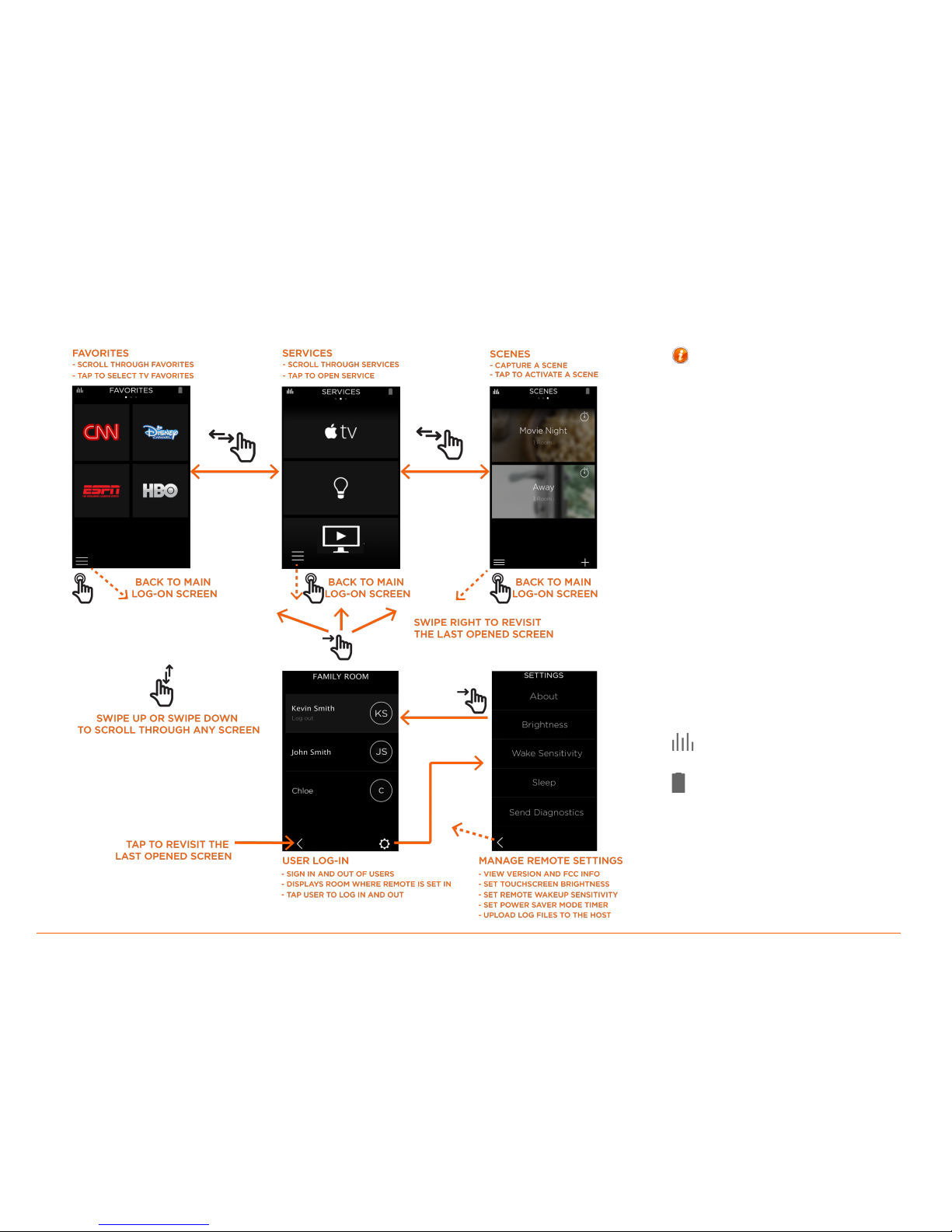

The Pro Remote has several main screens. The diagram below shows how to navigate through these screens. Refer to the appropriate section for
additional information for each screen.
HELPFUL INFORMATION!
•From the User Log in/Log out
screen, tap a User to log out the
active user and log in the
selected user.
•Swipe right on the User Log in
screen to revisit to the last
viewed screen (SCENES,
SERVICES, FAVORITES).
•To traverse the FAVORITES,
SERVICES, and SCENES screens,
simply swipe left or right.
•Scenes created on the Pro
Remote are synced to the Savant
Pro 8 App and vice versa.
•Users added in the Savant Pro 8
App are synced to the Pro
Remote.
•Swipe up or down to scroll
through the fields of any screen.
•The Scenes and Favorites
available to each user are the
Scenes and Favorites set up for
that user. Each user has their own
set of Scenes and Favorites to
choose from.
- A device is On and streaming
audio, video, or both.
- Battery Level Indicator.
For additional information on
each screen, refer to the
appropriate sections below.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
5
of
15
3. User Log In/Log Out
The Remote's Log in screen is opened when the Remote is first powered on. Any User Accounts created in the Savant Pro 8 App will be synced to and
appear on the Remote.
3.1. Users (Configured User Accounts)
After creating a Savant Pro 8 App User account in the existing Savant Pro system, the new user is automatically synced to the Pro Remote (made
available). In addition, any other users who were granted access through the Savant Pro 8 App will sync to the Pro Remote as well.
−There are three types of Remote Users (Admin, Household, and Guest). All permissions
are set up through the Savant Pro 8 App and synced to the Remote. Refer to the Savant
Pro 8 App User Guide on the Savant Community for more information on User types.
−The active user (logged in) has the words Log out visible just below it. This indicates
which is the active user.
−Only one user can be active at a time.
−Swipe right to open the last viewed screen.
This will be either the FAVORITES, SERVICES, or SCENES screen.
−Select the icon to open the last viewed screen. This will be either the FAVORITES,
SERVICES, or SCENES screen. The left arrow functions like the swipe right action above.
−To log on, tap the appropriate user. This will automatically log out the active user and log
on the selected user.
−To simply log out, tap the active user and that user is logged out.
−Select the icon to open the SETTINGS screen.
−The icon from any other screen (FAVORITES, SERVICES, or SCENES) reverts the
user back to the log on screen.
HELPFUL INFORMATION - Savant User (Default User Profile)
If the Savant Pro system that the Remote is being added to does not have an iOS® or Android® device with the Savant Pro 8 App and a Savant Pro
8 App account created, the user available on the Pro Remote defaults to user: Savant User. The Savant User on the Remote has limited access.
Basic functions such as adjusting the functions in the SETTINGS screen and controlling the available Services in the SERVICES screen are enabled.
Functions that require the Remote to sync with the Savant Pro 8 App are not enabled. For example:
−Favorites that exist in the cloud are not available.
−A Scene can be captured using the Remote but additional functions such as deleting or modifying that scene cannot be done since the Savant
Pro 8 App is where that functionality exists.
Since the Remote has such limited access and functionality, the Remote should be synced to a User Account on the Savant Cloud Server. To do
this, download and install the Savant App to an iOS or Android® device and create an account. Once the account created is associated with the
Savant Pro system (Savant Host) the Remote will automatically sync to the Savant Pro 8 App. From there a User can be selected.
For information on Downloading, Installing, and Creating a User for the Savant Pro 8 App, refer to the Savant Pro 8 App User Guide (009-1399-xx)
on the Savant Community.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
6
of
15
4. SETTINGS

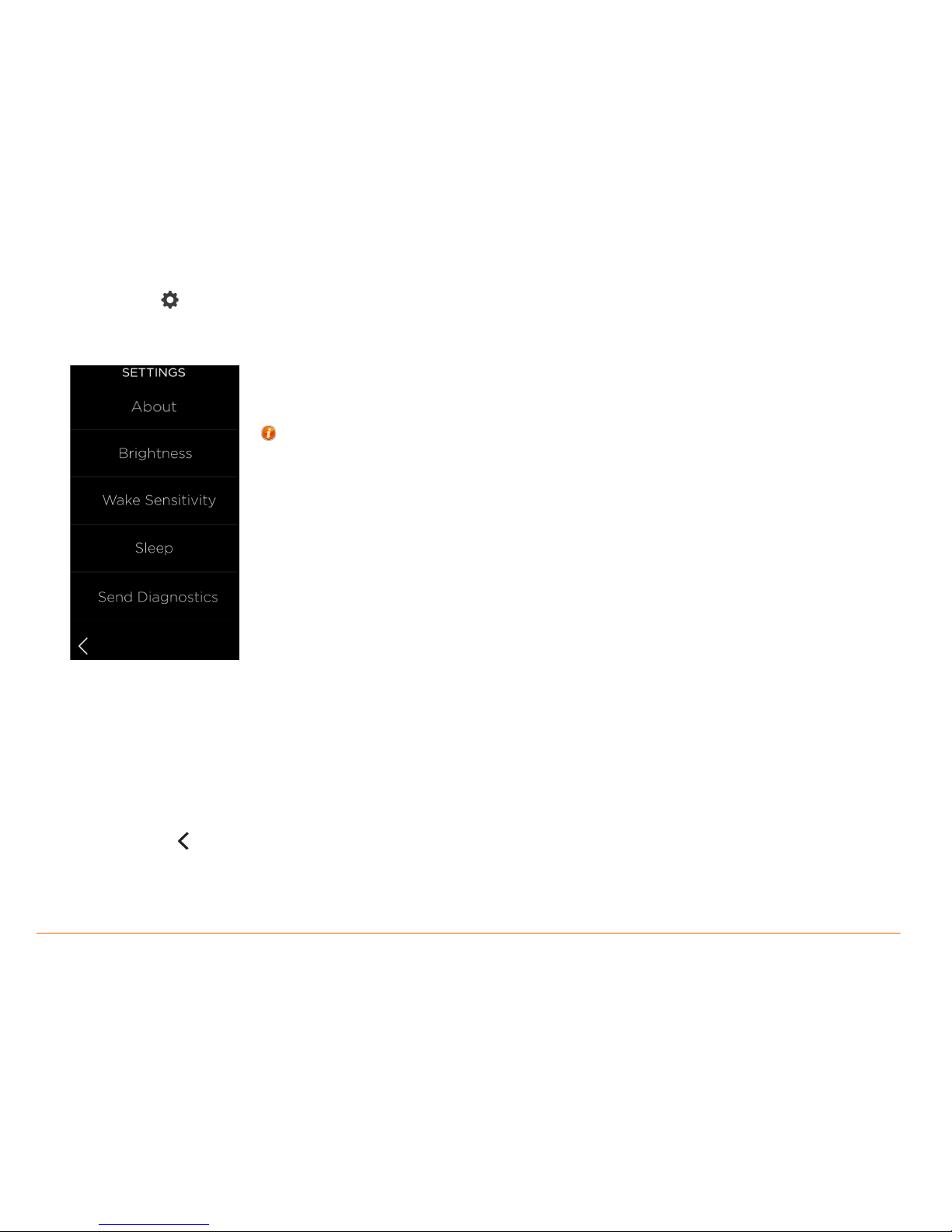

In the SETTINGS screen, a user can view and modify hardware related functions. Adjusting sleep timers, screen brightness and viewing versioning
information are a few of the actions available.
About
The About page gives specific versioning and FCC information about the Pro Remote
Model: Model Number of the Pro Remote is displayed.
HELPFUL INFORMATION! This is the model number of just the Pro Remote. The Pro Remote Base is SRB-1000 and
the combination of the two is REM-1000
Version: Version of software (OTA) loaded on the Pro Remote.
S/N: Serial number of the Pro Remote
FCC ID: / IC: Regulatory information
Brightness
Tap to access the Brightness adjustment screen. In this screen, there are five levels of intensity to choose from. Set
the brightness level by selecting more or less dots. More dots selected indicate a brighter screen.
Wake Sensitivity
Wake Sensitivity is the amount of movement required to wake up the Remote after it has gone into Sleep or Power
Saver Mode. Tap to access the Wake Sensitivity field. In the Wake Sensitivity adjustments screen, select Low,
Medium, or High. A setting of High will require less movement of the Remote to wake it up.
Sleep
Sets the amount of time the Remote will stay active without moving or pressing a button before going to sleep or into power saver mode. Tap to access
the Sleep adjustments screen. Select the time for the remote to stay active. The selections range from 10 seconds to 2 minutes.
Send Diagnostics
When troubleshooting a problem, the Savant Support Team may require the embedded logs from the Remote. Pressing the Send Diagnostics field will
upload the log files to the Remote Base and then the Remote Base will upload the files to the Savant Pro system Host. Full communications between the
Remote, Remote Base, and Host are required. With the log files loaded in the Host, the Savant Support Team can view the files and take any necessary
actions required.
BACK ARROW
Select the left arrow to revert back to the User Log In / Log Out screen.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
7
of
15
5. SCENES
Scenes make it easy to control one or more Services using a button press or tap. The Pro Remote can capture a Scene using the current states and levels
of the devices in the Savant Pro system. Once the Scene is created, it will be available in the SCENE screen. Before describing how to create a Scene, it is
important to know the following:
−Any Scenes captured on the Remote are automatically synced to the Savant Pro 8 App.
−Scenes captured in a user account are not available to other user accounts.
−Deleting or modifying a Scene is set in the Savant Pro 8 App only. Once completed, the modifications are synced back to the Pro Remote.
−The Remote will only capture lighting and Media Services when building a Scene. All other Services that are not Media and Lighting related need to
be set up in a Scene on the Savant Pro 8 App.
−Timers and Fade adjustments can't be set up in the Remote. Those functions are set up in the Savant Pro 8 App and automatically synced back to the
Remote.
5.1. Adjust Services to the Desired Levels
The first step would be to set the levels and states of the Services (ceiling light, corner lamp in this example) to the desired levels. This can be
completed using the Savant App, Savant Pro Remote, or manually adjusting each device. Any method that gets the Services to their desired levels
and states is supported.
5.2. Capture the Current Service Levels
Once the levels and states of the Services are set, the current settings can be captured.
1. From the SCENES screen, tap +icon to start the CAPTURE process (See image below).

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
8
of
15
2. In the CAPTURE screen that opens, the Remote displays the captured Services. The captured Services are the active (switched on) Services in
the room where the Remote is set up.
−If the captured Services in the checked room are the only Services being added to the Scene, skip this step and move to step 3 below.
−If the captured Services will need to be modified or if any additional Services from other rooms need to be added, refer to the information
below in this step.
A. The Remote captures a snapshot of the following:
−All active (switched on) Services from the room that the
Remote is set up in. These Services are automatically added to
the Scene being created.
−Services from other rooms that can be captured on the
Remote. These Services are NOT selected.

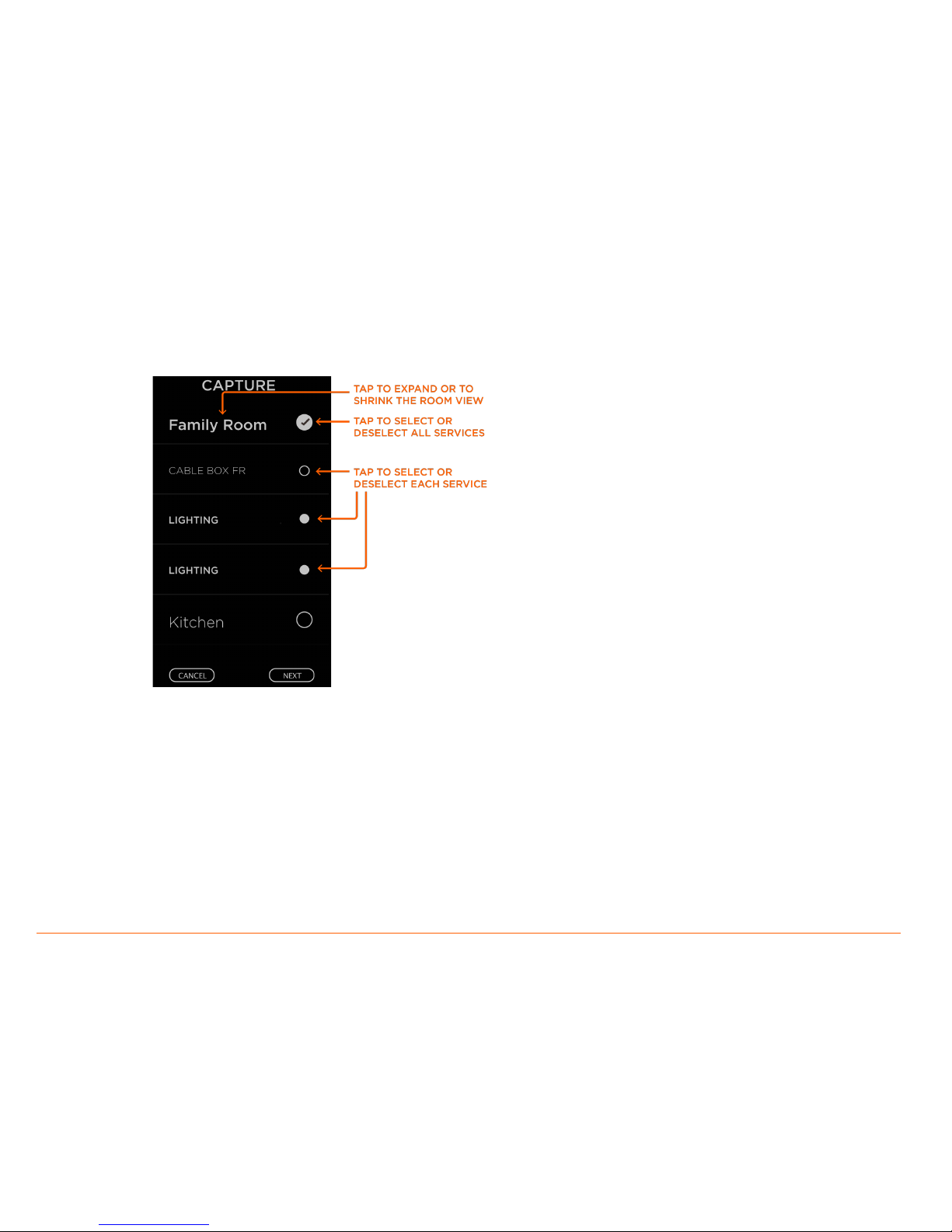

B. To expand any room, tap the text for that room. In the image to the
left, the Family Room has been expanded to display all the
captured Services.
C. Any of the captured Services can be deselected by tapping that
Service in the list. In this example, the CABLE BOX FR (family
room) has been deselected and the two Lighting Services are left
selected.
D. To select or deselect a room with all of its Services, tap the room
icon to add a check mark. This adds the room with all its Services
to the Scene. For example, tapping the Kitchen icon in the image to
the left adds the Kitchen with all its Services to the Scene.
E. If adding a room to the Scene, the room can be expanded and each
of the Services displayed in that room can be removed from the
Scene.
3. Select the NEXT button when all Services are added or removed.
4. In the SCENE NAME screen that opens, select a name for the Scene from the list of default scene names available.
5. Select SAVE to save the Scene. The Scene is now saved and is available in the SCENES screen of the Remote. In addition, a default image will
be added. The images are the same images available in the Savant Pro 8 App.
6. Test your newly created Scene and verify it works as intended. Modifications to the Scene will now need to be modified using the Savant Pro 8
App. All modifications made in the App will be synced back to the Remote.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
9
of
15
6. SERVICES
A Service controls the devices in your Savant Pro system. All the available Services for your system are located in the SERVICES screen. Refer to the
Introduction to the Pro Remote Screens section above to locate the SERVICES screen.
−Swipe up or down to scroll through the available Services.
−Tap the Service to open.
−A dot (•) to the left of the Service Icon indicates the Service is active or switched
on.
−Tap the icon to navigate to the User Log In/Log Out screen
SERVICE ICON TABLE
The table below displays the Service Icons and what they represent. For a guide comparing the Features and Services supported on the Savant Pro 8
App vs. the Features and Services supported on the Pro Remote, refer to the Savant Pro 8 App vs Remote Comparison Guide on the Savant Community.
Icon
Description
Amazon Fire TV
Apple TV
AT&T Pay TV
Blu-ray DVD
Bright House
Networks Cable
Item
Description
Charter Spectrum
Cable
COX Cable
DirecTV Satellite
Cable
Dish Network
Satellite Cable
Fan Service

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
10
of
15
Item
Description
Generic Audio
Generic Cable
Generic CD
Generic DVI
Generic DVD
Generic Game
Generic HDMI
Generic Media
Generic Satellite
Generic Video
Lighting
Google Chromecast
Google Fiber
Optimum Cable
PlayStation 1
PlayStation 2
Item
Description
PlayStation 3
PlayStation 4
Radio Service
Radio (AM)
Radio (FM)
Radio (Satellite)
RCN Cable
Relay and Trigger
ROKU
Savant Music
Shades
SONOS
Time Warner Cable
TiVo
VCR
VGA

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
11
of
15
Icon
Description
Wii Game
Wii U Game
Xbox Game
Xbox One Game
Xbox 360 Game
Xfinity Cable
Verizon FIOS

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
12
of
15
7. FAVORITES
The FAVORITES screen is where favorites for a Cable or Satellite Provider are added. Refer to the Introduction to the Pro Remote Screens section above
to locate the FAVORITES screen.
−Favorites can't be added using the Pro Remote.
−Favorites are added using either the Savant Pro 8 App or the Channel Listing Editor in RacePoint
Blueprint (Tools > Channel Listings Editor).
−Favorites are synced from the Savant Pro 8 App to the Pro Remote.
−There is no limit to the number of Favorites that can be added. However, Savant recommends the
number of favorites be limited to around 50.
−Tap the icon to navigate to the User Log In/Log Out screen

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
13
of
15
8. Voice Commands
Your Savant Remote makes it easy to control various Services in your Savant Pro system through a series of simple voice commands.
8.1. Activate a Command
To utilize the Voice Command function, do the following:
1. Press and hold the voice command button on the front of the remote for a few seconds till the voice command ready icon appears.
2. Say the command and release the button (Microphone is on top near power button). For example you could say Watch Cable. The touchscreen
will display the command back to you,
and perform the action spoken.
8.2. List of Voice Commands
For a list of supported voice commands, do the following:
1. Press and hold the Voice Command button and say Voice Commands. A VOICE CONTROL screen will appear with a list of categories.
2. Swipe up or down and select a category.
3. In the screen that opens, a list of voice commands is displayed. Swipe up or down to scroll through the list of commands.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
14
of
15
9. Software Updates
The software in the Pro Remote is pre-installed at the factory with a set version. The next few sections describe how these devices are updated if there
are updates available after installing into the Savant Pro system.
9.1. Over The Air (OTA) Updates
As described above, a fixed version of software is installed onto the Pro Remote before leaving the factory. Once the Pro Remote and Base are
configured and installed into the Savant Pro system, the Remote is eligible to receive Over The Air (OTA) software updates. OTA updates typically
happen automatically with no interaction by the user. If however, the update process is interrupted and the software downloads but doesn't install,
it can be finished manually by selecting the UPDATE button that appears on the touchscreen to allow a user to complete the process. This section
describes both the automatic and manual update process.
1. Savant releases an Over the Air update and it is loaded into the Savant Host.
2. Once the update is loaded on the Host, the Host initiates a download to the Pro Remote as long as the following criteria is met:
−Pro Remote must have at least a 60% charge on its rechargeable batteries
−Pro Remote must be cradled in the Pro Remote Base.
−No A/V Services are active or switched on.
If all of these criteria are met, the Host automatically downloads and installs the update. The download to the Pro Remote can take a few hours.
TIP! It is good practice to cradle the Pro Remote in its Base overnight. The overnight hours are a good time for the Pro Remote to download and
update itself without any interruptions. However, the download to the Pro Remote can begin at any time as long as the criteria above are met.
3. After the Remote is updated, the software version can be verified through the About screen on the Pro Remote.
(From the Remote's Main User Log on/Log out screen select > About)
UPDATE button
There is a 2nd scenario where:
1. The software is downloaded to the Host.
2. Software is then downloaded to the Remote but never installed onto the Remote.
In this case, the software update is loaded onto the Remote but waiting to get installed. If this occurs, an UPDATE button appears in the About
screen (From the Remote's Main User Log on/Log off screen, select > About). If the UPDATE button appears in this screen, select it and the
updated software will install. This will take a few minutes and the Remote will not be usable till after the update completes.

Savant Pro Remote User Guide
Copyright © 2016 Savant Systems, LLC
009-1410-00 | 160614
15
of
15
Important Notice
Disclaimer
Savant Systems, LLC. reserves the right to change product specifications without notice, therefore, the information presented herein shall not be
construed as a commitment or warranty.
Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages
resulting from the performance, furnishing, reliance on, or use of this material.
Patents
Certain equipment and software described in this document is protected by issued and pending U.S. and foreign patents.
All products and services are trademarks or registered trademarks of their respective manufacturer.
Copyright
This document contains confidential and proprietary information protected by copyright. All rights reserved. Copying or other reproduction of all or
parts of this document is prohibited without the permission of Savant Systems.
Trademarks
© 2016 Savant Systems, LLC. All rights reserved. Savant, Savant App, Savant Host, Now You Can, RacePoint Blueprint, Single App Home, TrueCommand,
TrueControl, and the Savant logo are trademarks of Savant Systems, LLC.
AirPlay, Apple, AirPort Express, AirPort Extreme, Apple TV, Apple Remote Desktop, FireWire, iMac, iTunes, iPad, iPad mini, iPad Air, iPhone, MacBook,
Mac and OS X are trademarks or trade names of Apple Inc. iOS is a trademark of Cisco®. Android, Google, Google Play, and other Google marks are
trademarks of Google, Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance®. HDMI® is a trademark of HDMI Licensing, LLC.
All other brand names, product names, and trademarks are the property of their respective owners.
Technical and Sales Support
Savant Systems, LLC is dedicated to providing prompt and effective support in a timely and efficient manner.
•To contact Savant Support, access the Savant Community and enter a support Case ticket.
•To contact Savant Sales, visit Savant.com and select Contact Us to locate a local sales representative in your area.
