Saxby Lighting Atlantis Post Manual

Commissioning
Instruction leaflet
Atlantis Post
70847 & 70848
www.saxbylighting.com
For your safety, always switch off the supply before changing lightbulbs, or cleaning. Live Voltages may be present in
this unit even when turned of or when completely disconnected.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Recycling advice
Safety information
Saxby Lighting Ltd. BH23 3PE
Do not use solvents or abrasive cleaners as these could
damage the finish.
In some cases, surface corrosion may arise after
installation. This is normally caused by tiny iron particles
left behind after the brushing process when finishing.
In normal circumstances, stainless steel is very resistant
to corrosion. It does however require maintenance to
preserve the high quality appearance. Wash the product
with warm soapy water, removing all surface deposits.
Rinse with clean water and with a soft cloth, wipe dry.
Then with a soft cloth soaked with a protective oil, wipe
all over.
If the product is subject to extreme environmental
conditions such as marine locations, industrial pollution
and acid rain these maintenance procedures should
be carried out around four times a year. For severe
corrosion, non-abrasive cream cleaners or proprietary
stainless steel cleaners should be used to remove the
corrosion. Wash and dry as detailed above. Then with a
soft cloth soaked with a protective oil, wipe all over.
Do not clean the units with a pressure washer.
- Fit the product over the fixing bolts, re-fit the plastic
washers (B) and then the dome nuts (A). Use a
suitable spanner to securely tighten the product to
the mounting surface.
- Replace fuse or circuit breaker and switch on. Your
light is now ready for use.
Iss.1 27052016
Fitting/replacing bulbs
• Whenchangingabulb,alwaysswitchoffatthe
mains and allow the bulb to cool before handling.
Dispose of used bulbs carefully. Do not exceed the
wattage stated or use a different shape bulb from that
indicated on the fitting.
1. Unscrew the bezel
2. Remove the old bulb by turning anti-clockwise.
3. Insert new bulb.
4. Replace the bezel ensuring that it is tightly secured.
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of the connection block.
Check that...
Care & Cleaning
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
This light fitting is Class 1 and must be connected to
an Earth circuit
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge. If you are in any doubt,
please consult a qualified electrician.
This light fitting should be connected to a circuit with a
30mA RCD fitted.
If replacing an existing fitting, make a careful note of
the connections.
Always use the correct type and wattage bulb. Using
the incorrect wattage bulb will damage the bulb and
ballast.
When changing a bulb, always switch off at the mains
and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
This product is rated at IP65.
This product is not suitable for dimming.
This product is not suitable for location in or near a
marine or sea environment.
The entire unit gets hot whilst on for a period of time.
Specification
Voltage: 240V 50Hz a.c.
Lamp: 2 x 35W GU10 halogen
IP rating: 65
Layout
Installation
Wiring
• Planthedesiredlayoutofthisfittingcarefully,
ensuring the cables will reach the distance between
the junction box and the light fitting.
• Thisproductisdesignedfordomesticandlight
industrial use. It should not be used to support other
objects or used as a replacement for concrete or
metal pillars.
• Avoidlocatinganycablesinpositionsthatwould
cause a hazard. Position cables and outdoor rated
junction boxes (not supplied) away from areas
where they may be at risk from being cut, trapped or
damaged.
• WerecommendthatyouuseH05RN-Fspecification
cable (not supplied) which is an outdoor grade,
rubber sheathed cable. The mains supply cable must
have a minimum cross sectional area of 1.0mm².
Existing fittings must be completely removed before
installation of a new product. Before removing the
existing fitting, carefully note the position of each set
of wires.
- Using base plate as a template, mark the fixing holes
onto the mounting surface.
- Drill holes to the necessary size and depth - taking
care not to damage any concealed pipes or wiring
below the mounting surface.
- This product comes complete with expanding
bolt type fixings (C) which are suitable for use on
most surfaces, however alternative fixings may be
required.
- Push the fixing bolts into the mounting holes.
Having correctly identified the wiring from
your existing light fitting, pull the wire through
the bottom of the fitting and connect to the
connection block inside the product in the
following way:

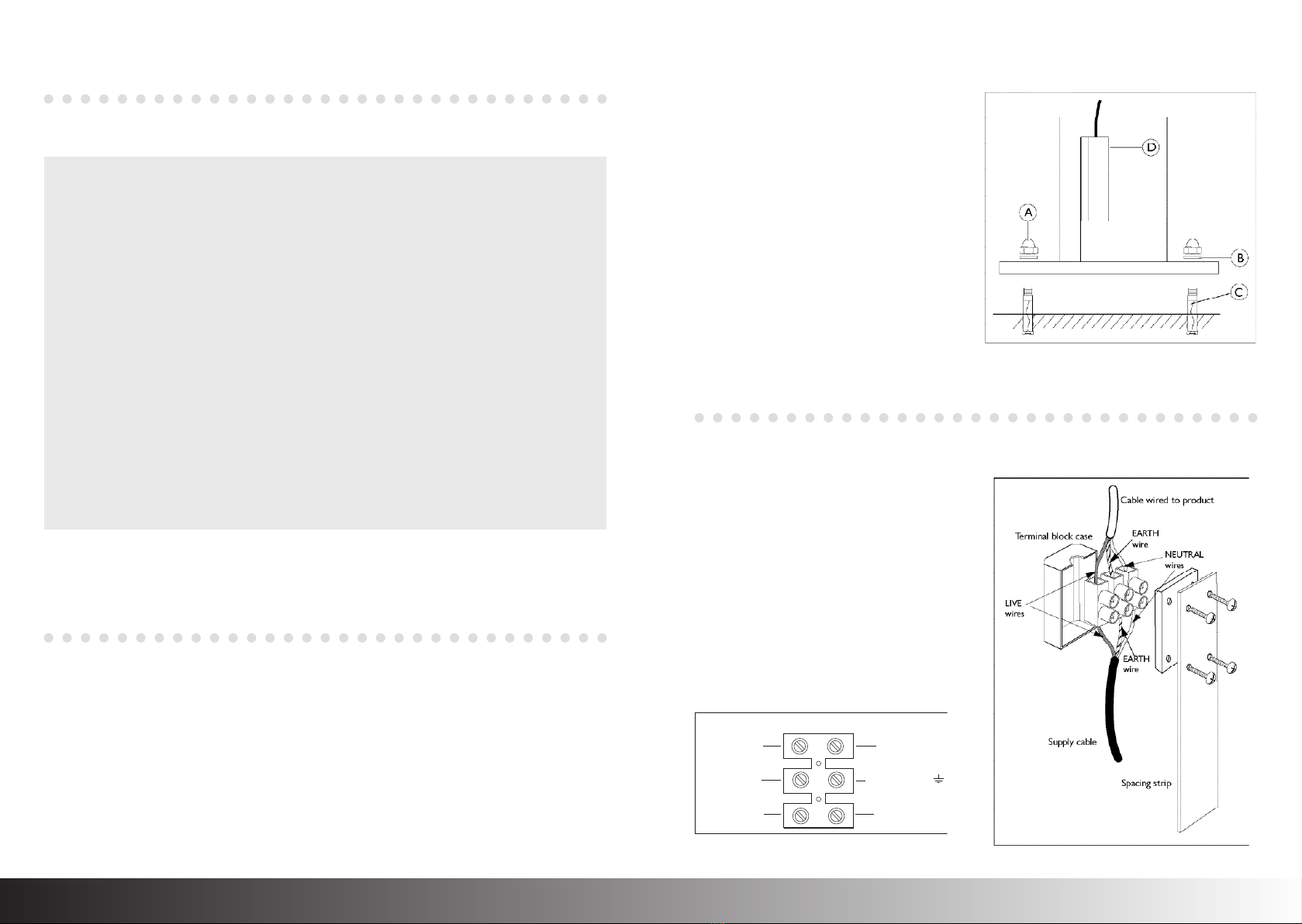

• See Diagram 2. Pull spacing strip from
inside of tube.
• Unscrew the 4 screws which attach the
black box to the spacing strip. Open
the terminal block case and pull out the
terminal block. Wire as detailed below.
• Push terminal block back into the black box
and refit the terminal block cover.
NEUTRAL
EARTH
SWITCHED LIVE
BLUE (N)
BROWN (L)
GREEN/YELLOW
SUPPLY LIGHT FITTING
