SCAN 68-2 User guide

68
ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 68
UK SCAN
UK - ASSEMBLY AND INSTRUCTIONS MANUAL
SCAN 68

2
68
UK SCAN
You have purchased a product by one of Europe’s leading manufacturers of
wood-burning stoves, and we are sure that you will have years of pleasure from your
purchase.
To make the best possible use of your stove, it is important that you
follow our advice and instructions. Read through this Assembly and Instruction
Manual carefully before you start to assemble your stove.
CONGRATULATIONS
ON YOUR NEW SCAN
WOOD-BURNING STOVE
SCAN 68-7
Wall hung model
With side windows
Black mouldings
SCAN 68-8
Wall hung model
With side windows
Aluminium
mouldings
SCAN 68-2
Wall hung model
Without side windows
Aluminium mouldings
SCAN 68-3
Pedestal
Without side windows
Black mouldings
SCAN 68-4
Pedestal
Without side windows
Aluminium
mouldings

SCAN 68-15 LB
Low Base
Soapstone
Without side windows
Black mouldings
SCAN 68-13 LB
Low Base
Without side windows
Black mouldings
SCAN 68-14 HT
High Top
Without side windows
Aluminium mouldings
SCAN 68-15
Soapstone
Without side windows
Black mouldings
SCAN 68-13 HT
High Top
Without side windows
Black mouldings
SCAN 68-11
Portal
With side windows
Black mouldings
SCAN 68-13
Steel sides
Without side windows
Black mouldings
SCAN 68-9
Pedestal
With side windows
Black mouldings
SCAN 68-12
Portal
With side windows
Aluminium mouldings
SCAN 68-14
Steel sides
Without side windows
Aluminium mouldings
SCAN 68-10
Pedestal
With side windows
Aluminium mouldings

4

5
TABLE OF CONTENTS
¬¬ MOUNTING THE UK-SCREW 43
¬¬ TECHNICAL DATA 6
Installation 6
Safety 6
Technical data and dimensions 6
Dimension 7

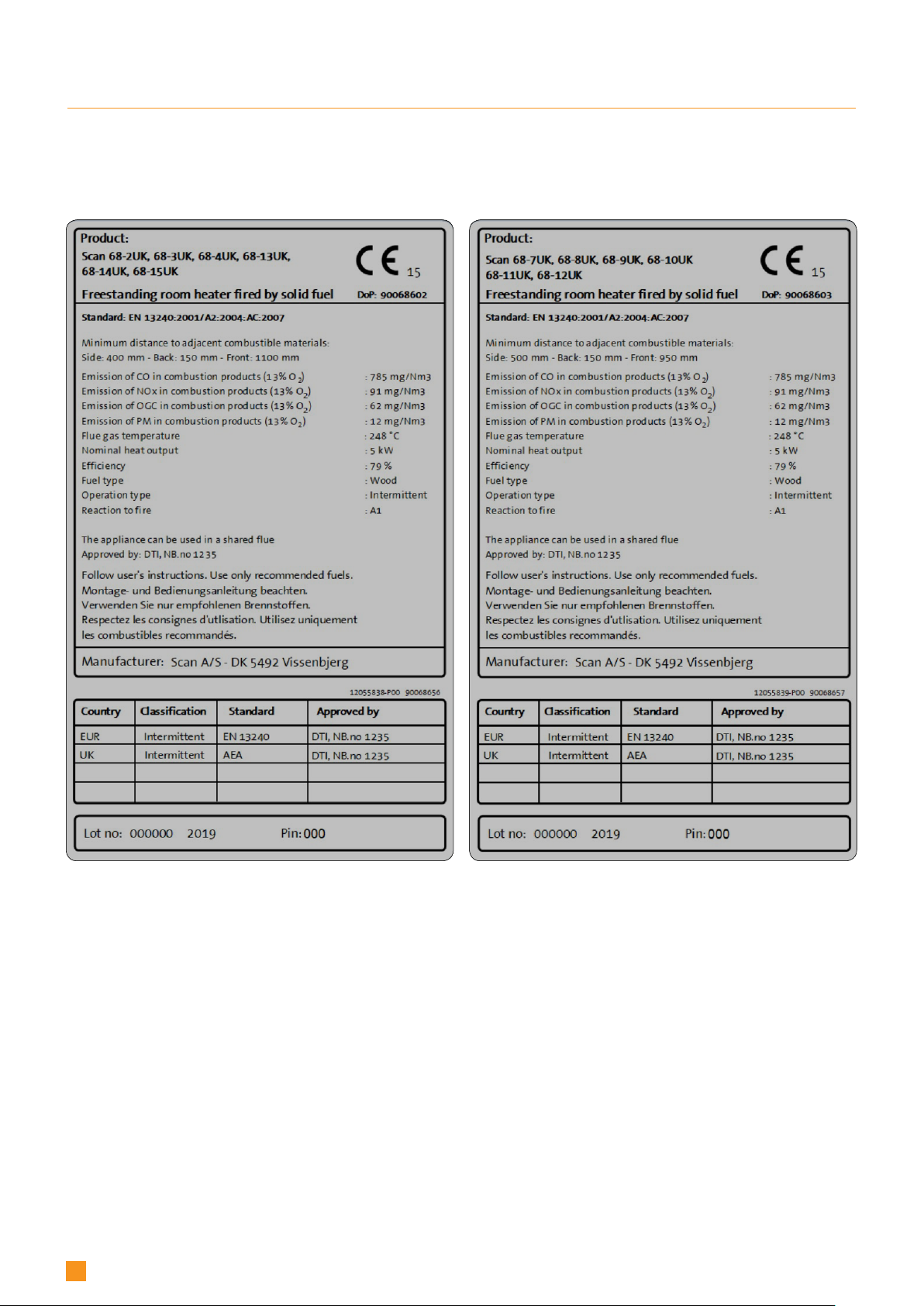

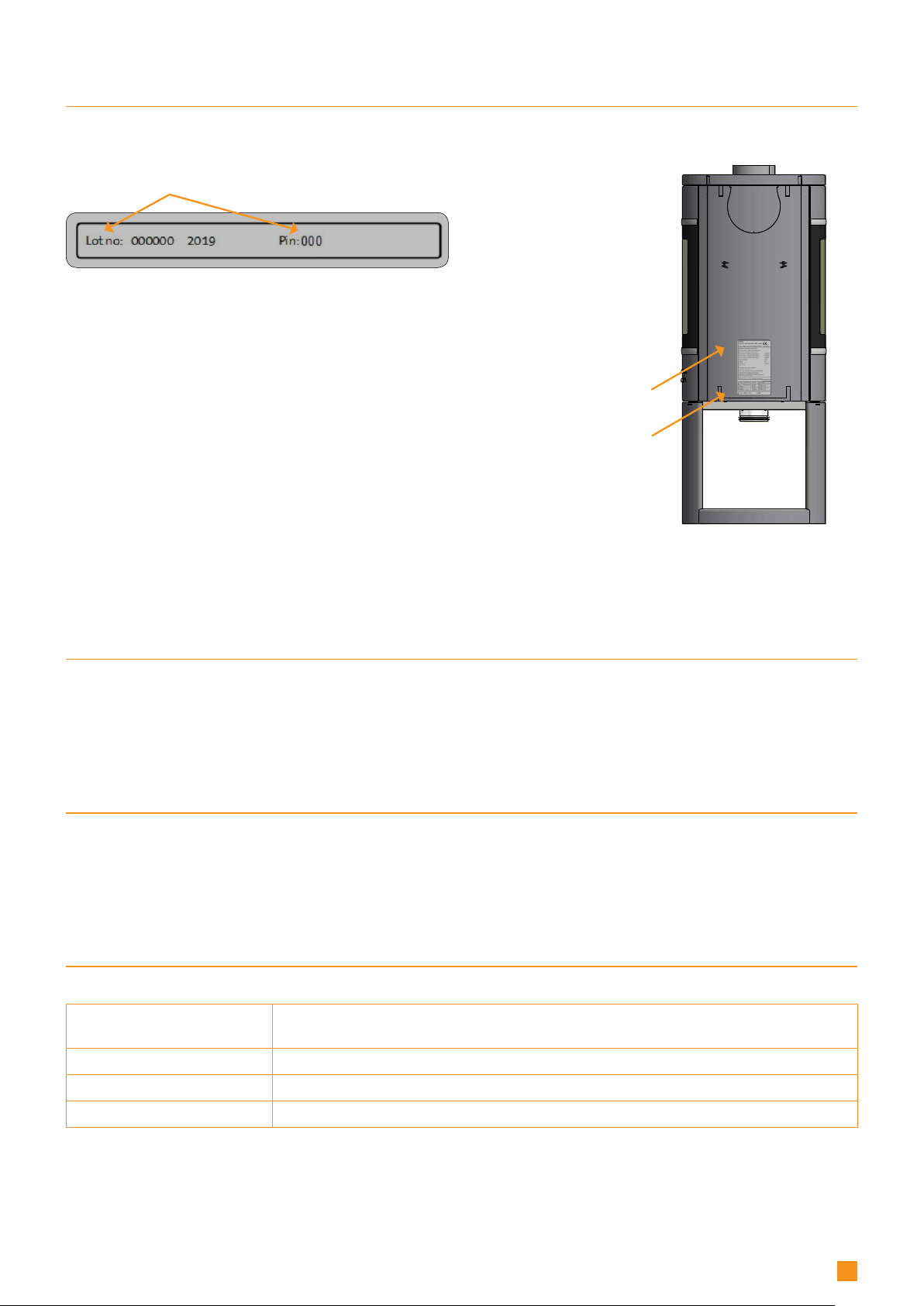

Type plate 12
Product registration number 13
¬¬ ASSEMBLY 13
Additional accessories 13
Loose parts 13
Disposal of packaging 13
Fresh air intake 14
Closed combustion system 14
Existing chimney and pre-fabricated element chimney 15
Connection between stove and steel chimney 15
Requirements for chimney 15
Load-bearing foundation 16

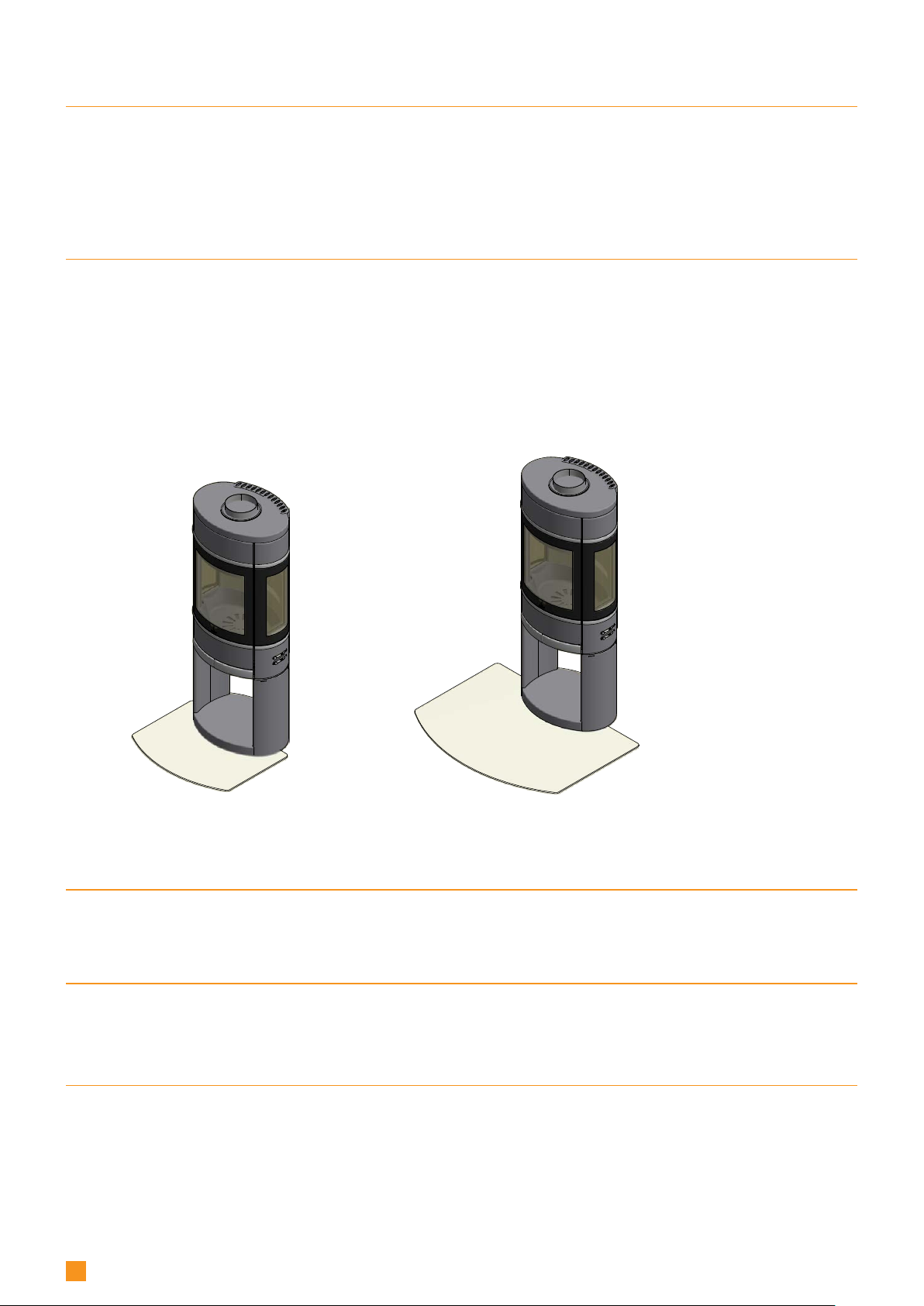

Floor plate 16
Positioning your wood-burning stove 16
Distance to furniture 16
Safety distance 16
Distance to flammable materials 17
Distance to firewall 18

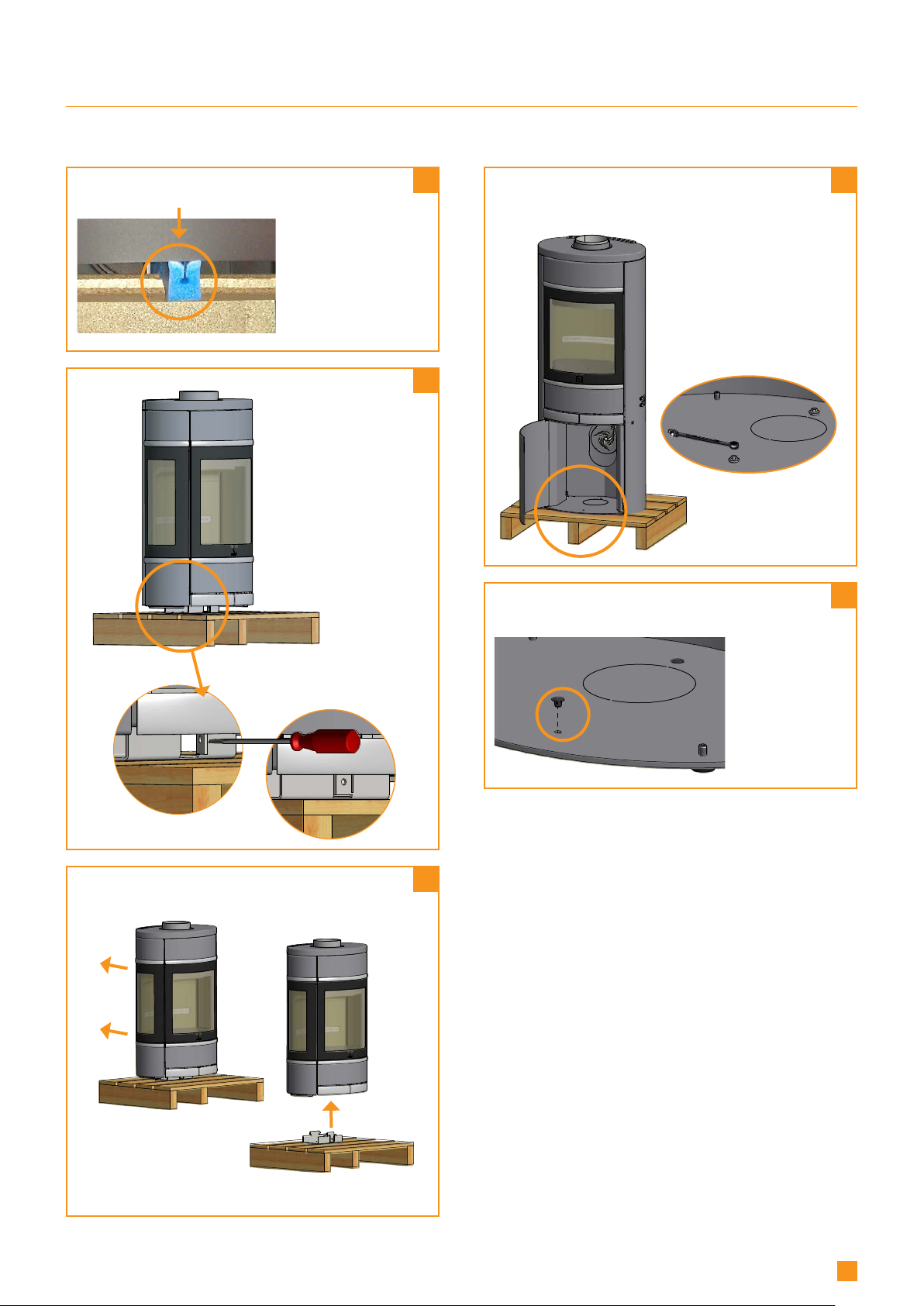

Removal of packaging 19

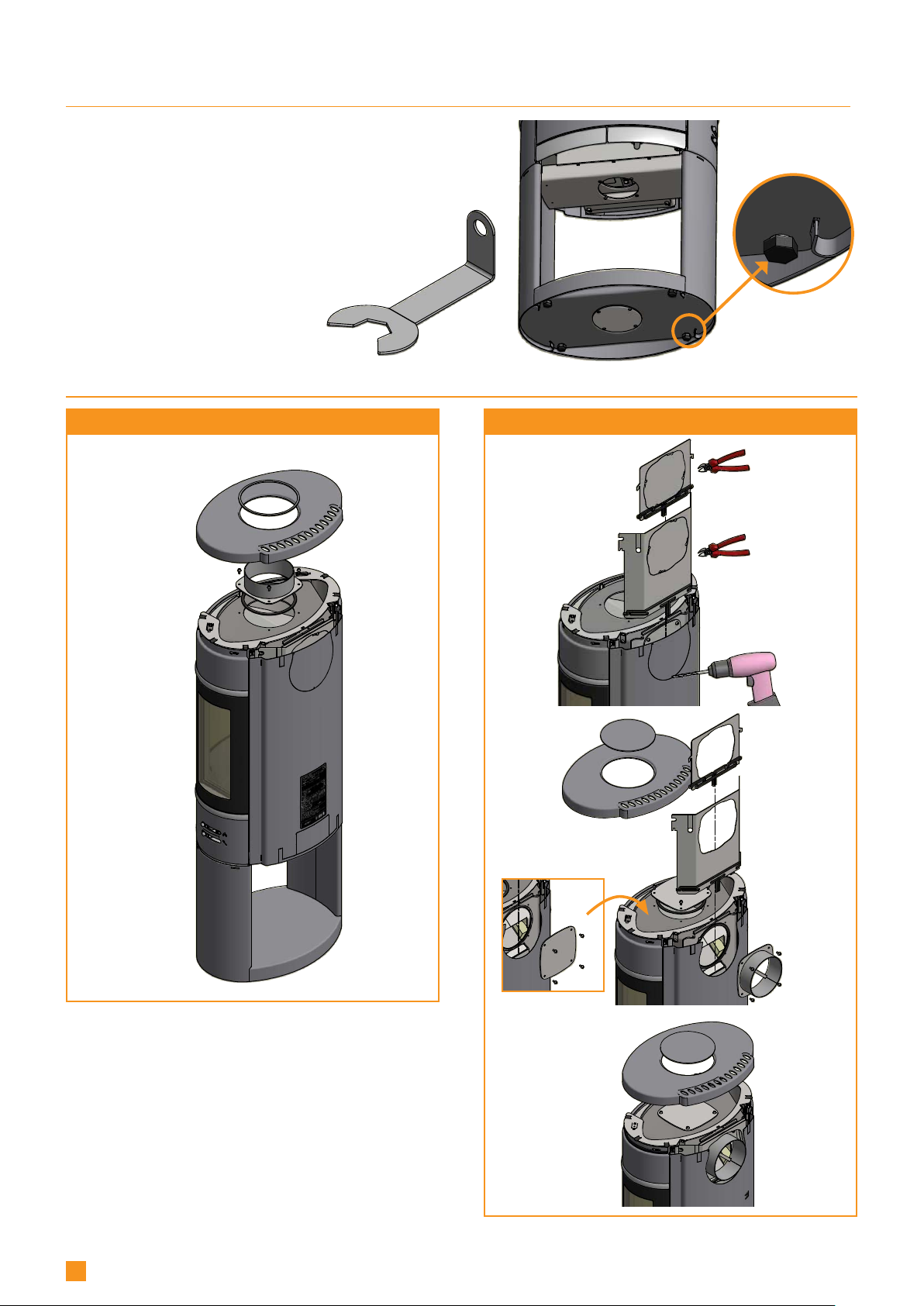

Height adjustment of stove 20
Connecting piece 20

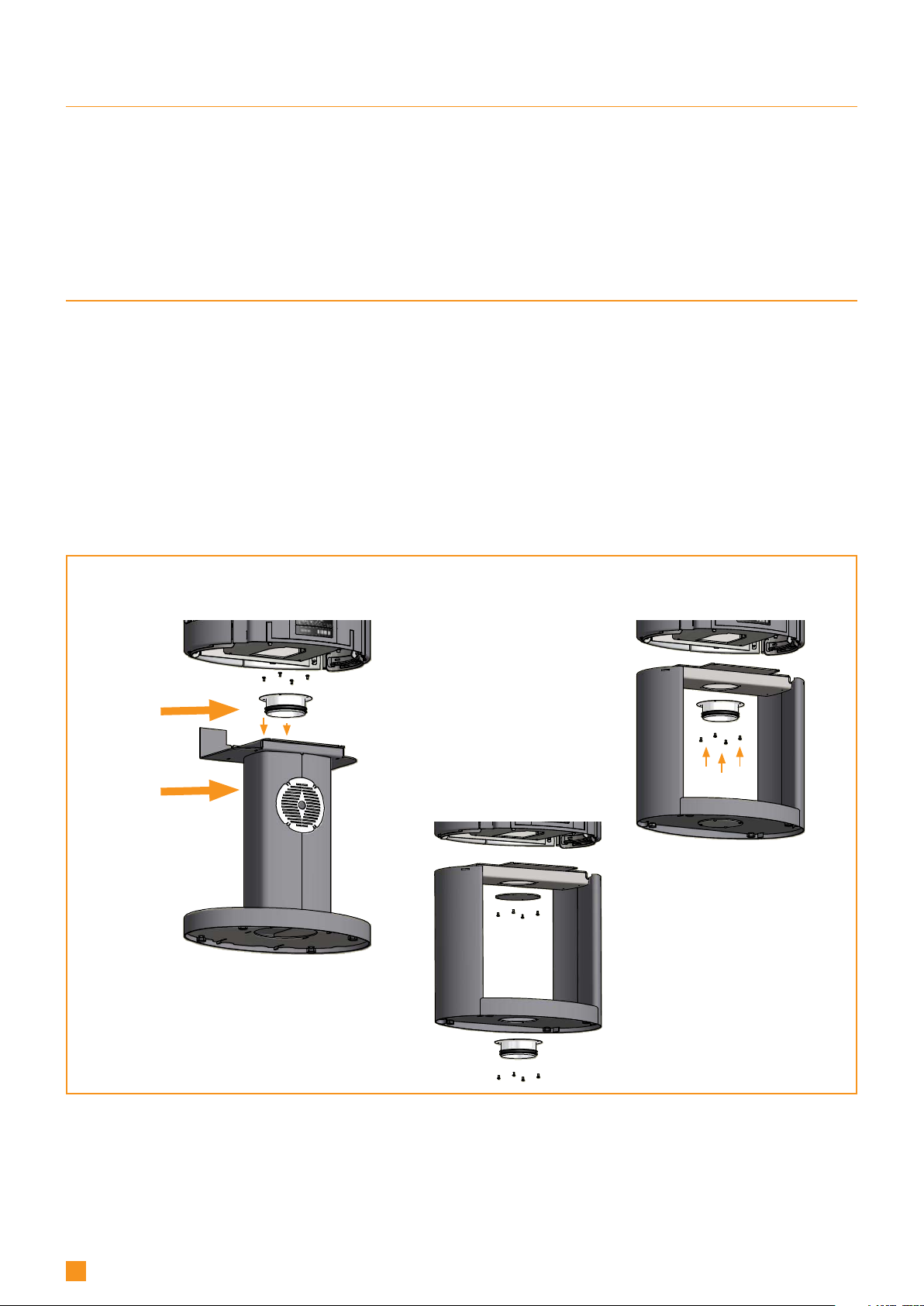

Mounting of the burn chamber on the pedestal basel 21
Mounting of the burn chamber on the portal basel 22
Mounting of the storage door for the portal unit 23
Mounting of wall-hung model 24
Mounting of the wall fitting on the stove 25
Fitting natural stone 27
Removal of the self-closing door spring 29
Mounting of external air supply on the wall fitting 29
Mounting of high top 30
Wall mounting kit for Scan 68 with high top 31
Heat-storage stone 32
¬¬ INSTRUCTIONS FOR USE 33
CB-technology (Clean Burn) 33
Baffle plate 33
Primary air 33
Secondary air 33
Ash container 33
The Clean Air Act 1993 and Smoke Control Areas 33
Handle for riddling grate 34
Refueling on to a low fire bed 34
Operation with door left open 34
Dampers left open 34
¬¬ INSTRUCTIONS FOR HEATING 35
Environmentally friendly operation 35
Lighting 35
Continuous operation 36
Warning about over-firing 36
Using your stove in various weather conditions 36
Firing in the spring or autumn 36
The function of the chimney 36
Chimney fire 36
General notes 37
¬¬ HANDLING FUEL 38
Selecting wood/fuel 38
Preparation 38
Storing 38
Moisture 38
Use of the following as fuel is illegal 38
Calorific value of the wood 38
¬¬ MAINTAINANCE 39
¬¬ TROUBLESHOOTING 43
¬¬ WARRANTY 44

6
TECHNICAL DATA AND DIMENSIONS
Materials
Steel plate
Cast iron
Galvanised sheet
Vermicolite
Surface treatment Senotherm
Max. wood length ca. 33 cm
Weight Scan 68-2/7/8 ca. 98 kg
Weight Scan 68-3/4/9/10 ca. 105 kg
Weight Scan 68-11/12 ca. 107 kg
Weight Scan 68-13/14 ca. 110 kg
Weight Scan 68-13 LB ca. 100 kg
Weight Scan 68-15 ca. 190 kg
Weight Scan 68-15 LB ca. 170 kg
Connecting piece internal diameter 144 mm
Connecting piece external diameter 148 mm
Approval type Intermittent fuelling*
Intermittent operation in this context means normal use
of a wood-burning stove. In other words, you should let
the fire die down until only the embers are left before
refueling.
This stove is produced in accordance with type approval
for the product, which also covers the product’s Assembly
and Instruction Manual.
The Declaration of Performance (DoP) is available from
www.scan-stoves.com
*
Test in compliance with EN 13240
CO Emission at 13% O20,04 %
CO Emission at 13% O2556 mg/Nm3
Dust @ 13% O214 mg/Nm3
Nox@ 13% O285 mg/Nm3
Efficiency 80 %
Energy efficiency index 107
Energy efficiency class A+
Nominel output 5,5 kW
Chimney temperature EN 13240 265 °C
Amount of smoke 5,3 g/sek
Sub-pressure EN 13240 12 Pa
Recommended sub-pressure in
connecting piece 17 Pa
Required combustion air supply 16,2 m3/h
Fuel Wood
Fuel consumption 1,6 kg/h
Amount of fuel 1,4 kg
Test in compliance with EN 13240
in smoke restricted areas
CO Emission at 13% O20,06 %
CO Emission at 13% O2785 mg/Nm3
Dust @ 13% O212 mg/Nm3
Nox@ 13% O291 mg/Nm3
Efficiency 79 %
Energy efficiency index 105,6
Energy efficiency class A
Nominel output 5 kW
Chimney temperature EN 13240 248 °C
TECHNICAL DATA
INSTALLATION
¬ The house owner is responsible for ensuring that installation and assembly are in accordance with national and local building
regulations as well as the information provided in this Assembly and Instructions Manual.
¬ When you install any kind of fireplace or stove, you must inform the local building and housing authorities. In addition you are
obliged to have the installation inspected and approved by a local chimney sweep prior to commissioning.
¬ To ensure best-possible functionality and safety for your installation, we advise you to call a professional fitter. Your Scan
dealer will be able to recommend a qualified fitter in your area. For information on Scan Dealers, please go to
www.scan-stoves.com.
SAFETY
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as
intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case
if parts that are necessary for the operation and safety of the stove are dismantled or removed.

7
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068002.idw
90068002
Målskitse pedesal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1272
500
192
179
371
611 0*
326***
1255**
350
130*** 220***
250***
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068004.idw
90068004
Målskitse wall
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
794
500 400
371
221
179
400
776**
681*
250***
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068002.idw
90068002
Målskitse pedesal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1272
500
192
179
371
611 0
326
1255
350
130 220
250
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068004.idw
90068004
Målskitse wall
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
794
500 400
371
221
179
400
776
681
250
B A
C
B A
C
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068002.idw
90068002
Målskitse pedesal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1272
500
192
179
371
611 0
326
1255
350
130 220
250
C

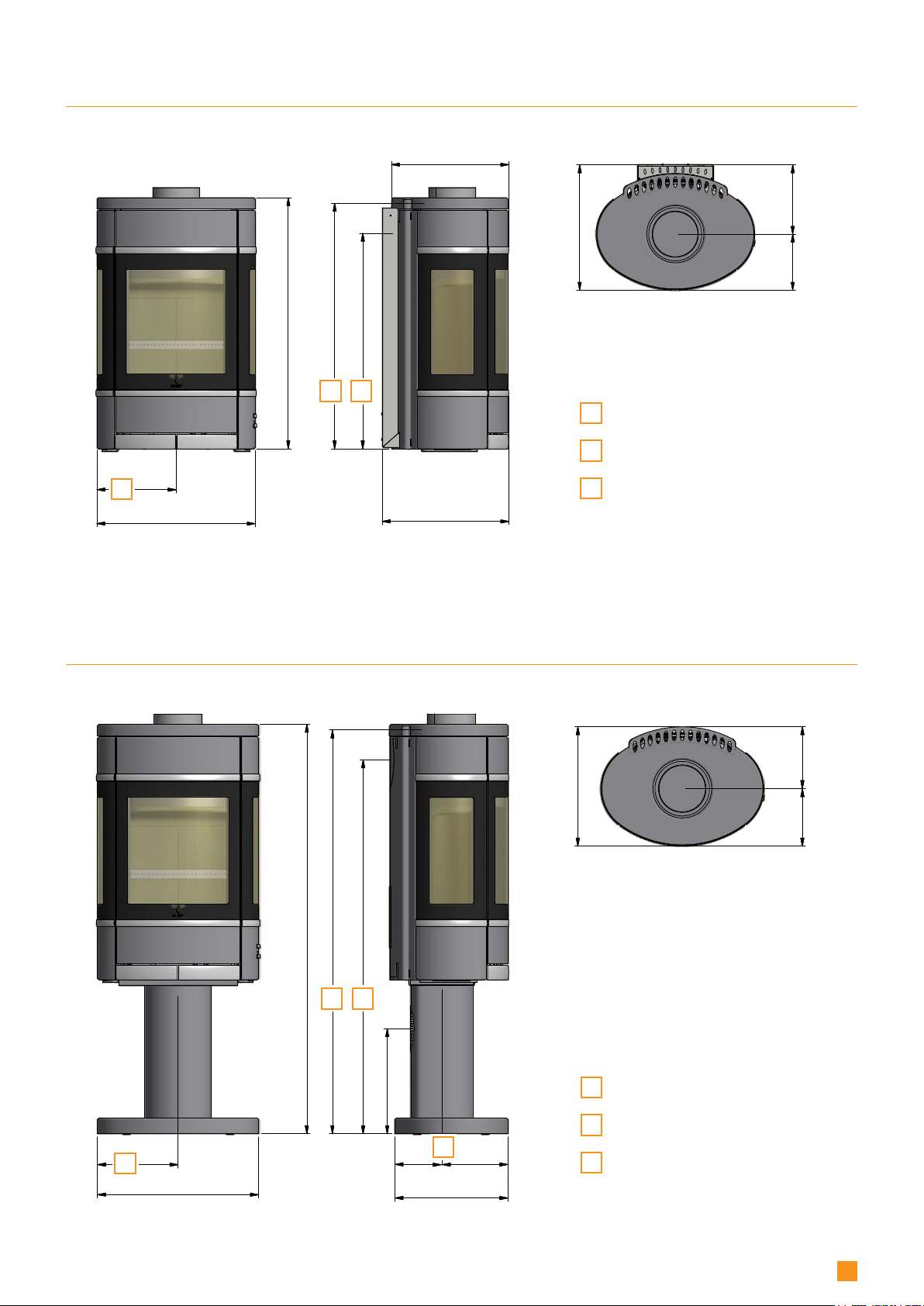

DIMENSION SKETCH SCAN 68-3, 68-4, 68-9 AND 68-10 (PEDESTAL)
DIMENSION
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters
SCAN 68-2, 68-7 AND 68-8 (WALL HUNG MODEL)

8
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068001.idw
90068001
Målskitse Portal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
250***
371
192
179
1110*
1205**
350
175***
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068001.idw
90068001
Målskitse Portal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
250
371
192
179
1110
1205
350
175
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068001.idw
90068001
Målskitse Portal
16-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
250
371
192
179
1110
1205
350
175
B A
CC

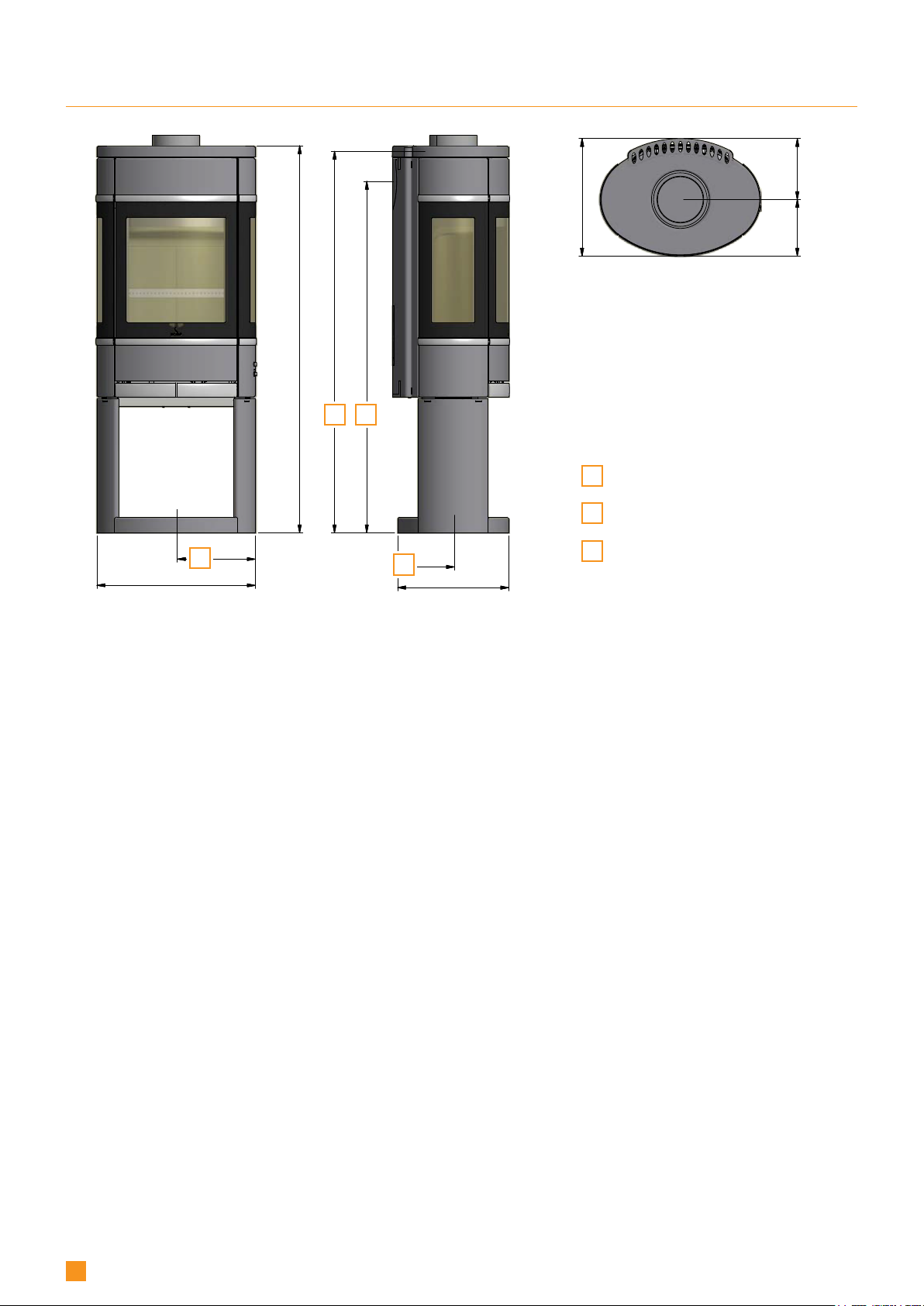

DIMENSION SKETCH SCAN 68-11 AND 68-12 (PORTAL)
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters

9
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 68\10068900 - Manual.iam
90068093
simpel portal
18-03-2015 sr
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
371
192
179
1110*
1205**
219***
147***
276***
250***
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 68\90068155.idw
9006815508-03-2017
pcj
Weight: Area:
108,41 kg N/A
500
250***
371
179192
1000
889*
983**
147*** 219***
88
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 68\10068900 - Manual.iam
90068093
simpel portal
18-03-2015 sr
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
371
192
179
1110
1205
219
147
276
250
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 68\10068900 - Manual.iam
90068093
simpel portal
18-03-2015 sr
Scan 68
VÆGT:
AREAL:
N/A
N/A
1222
500
371
192
179
1110
1205
219
147
276
250
B
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 68\90068155.idw
9006815508-03-2017
pcj
Weight: Area:
108,41 kg N/A
500
250
371
179192
1000
889
983
147 219
88
C
A
C
C
C
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 68\90068155.idw
9006815508-03-2017
pcj
Weight: Area:
108,41 kg N/A
500
250
371
1791921000
889
983
147 219
88
B A
C
DIMENSION SKETCH 68-13 AND 68-14 (STEEL SIDES)
DIMENSION SKETCH SCAN 68-13 LB (LOW BASE)
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters

10
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068080.idw
90068080
HT
02-07-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1650
371
276
1110
1205
250
147
179 192
366
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068080.idw
90068080
HT
02-07-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1650
371
276
1110
1205
250
147
179 192
366
B A
C
C
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068080.idw
90068080
HT
02-07-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1650
371
276
1110*
1205**
250*** 147***
179 192
366
DIMENSION SKETCH SCAN 68-13 AND 68-14 HT (HIGH TOP)
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters

11
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068136.idw
90068136
målskitse fedtsten
05-10-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1257
586
371
192
179
1205
1110
276
147 219
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068160.idw
90068160
Scan 68-15,16 low
10-07-2017 pcj
VÆGT:
AREAL:
108,41 kg
N/A
DIM.: Scan A/S
1035
371
179192
586
294
219
147
88
889
983
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068136.idw
90068136
målskitse fedtsten
05-10-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1257
586
371
192
179
1205
1110
276
147 219
Stove:
Path:
Articlenumber:
Material:
Date:
Constructed/Changed by:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Scan 68\90068155.idw
9006815508-03-2017
pcj
Weight: Area:
108,41 kg N/A
500
250***
371
179192
1000
889*
983**
147*** 219***
88
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068136.idw
90068136
målskitse fedtsten
05-10-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
1257
586
371
192
179
1205
1110
276
147 219
B A
C
C
NAVN:
STI:
M3 NR.:
MATERIALE: DATO: SIGN:
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068160.idw
90068160
Scan 68-15,16 low
10-07-2017 pcj
VÆGT:
AREAL:
108,41 kg
N/A
DIM.: Scan A/S
1035
371
179192
586
294
219
147
88
889
983
B A
CC

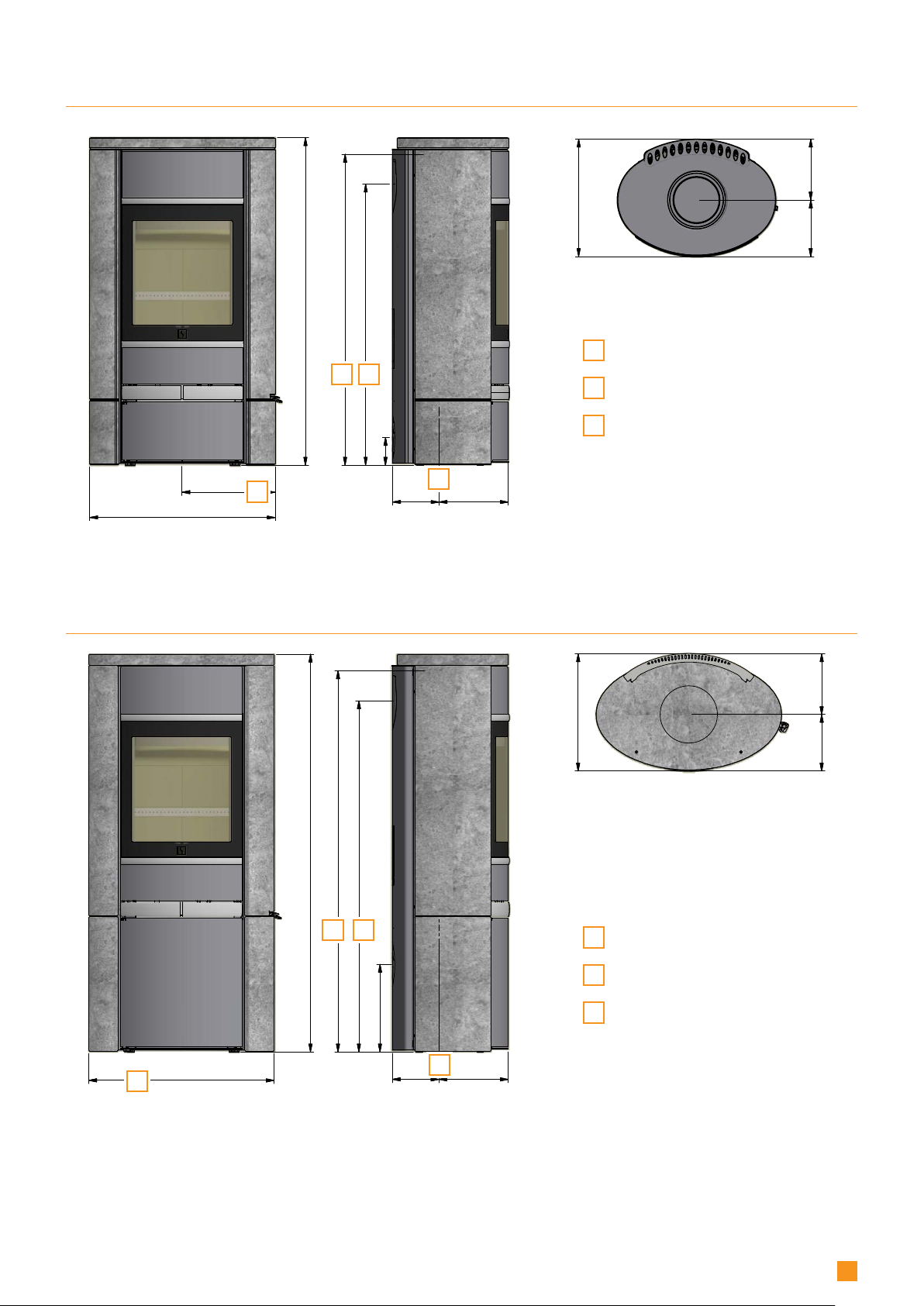

DIMENSION SKETCH SCAN 68-15 (SOAPSTONE)
DIMENSION SKETCH SCAN 68-15 LB (SOAPSTONE + LOW BASE)
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters
ACentre rear outlet
BHeight to the beginning of the
connecting piece at top outlet
CCentre of fresh air intake
All measurements are in millimeters

12
Typeplates
TYPE PLATE
All Scan wood-burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable
materials.
The type plate is located at the rear of the stove.

13
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068003.idw
90068003
Ovn bagfra
18-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
PRODUCT REGISTRATION NUMBER
All Scan wood-burning stoves are provided with a product registration number. You will always need to quote this number when
contacting your dealer or Scan A/S.
The product registration number is located at the rear of the stove.
ADDITIONAL ACCESSORIES
¬ Small shaped floor plate in glass or steel ¬ High Top (Scan 68-13/14 HT)
¬ Large shaped floor plate in glass or steel ¬ Storage door for the portal unit
¬ Heat accumulating stones for high top ¬ Connecting piece for inside flue pipe, 6"
¬ Wall mounting kit for Scan 68 with high top ¬ Adjustment key for height adjustment
LOOSE PARTS
¬ Glove ¬ Dekor ring for top outlet
¬ Connecting piece 6" ¬ 4 Screw M5 x 10 mm
¬ Seal ¬ 1 Pass Screw M5 x 10 mm (UK) - Please see instructions
¬Allen key (5 mm) for inspection holes
DISPOSAL OF PACKAGING
Your Scan stove may come supplied with the following packaging:
Wood packaging The wood packaging can be reused and after final use can be incinerated as a CO2neutral
product or sent for recycling
Foam Send for recycling or waste disposal
Plastic bags Send for recycling or waste disposal
Stretch/plastic film Send for recycling or waste disposal
ASSEMBLY
Type plate
Product registration number

14
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 68\10068900 - Manual.iam
90068010
Portal sokkel mont.
18-03-2015 sr
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068028.idw
90068028
Friskluft pedestal
17-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068029.idw
90068029
Friskluft fra gulv
20-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
FRESH AIR INTAKE
In a well-insulated house the air used for the combustion process has to be replaced. This particularly applies to houses with
mechanical ventilation. There are different ways of making sure that air is exchanged. The most important thing is to ensure that
there is a supply of air to the room where the wood stove is located. The external wall vent must be located as close to the wood
stove as possible, and you must be able to close it when you are not using the stove.
National and local building regulations must be followed with regard to connection of a fresh air intake.
NOTE: WHEN CONNECTING THE SCAN 68 LOW BASE WITH A FRESH AIR INLET, WE RECOMMEND THAT YOU USE A SHORT,
ANGLED CONNECTION PIECE BECAUSE OF THE LIMITED SPACE IN THE BASE. (FOR EXAMPLE JØTUL PRODUCTNO. 158962-F373).
CLOSED COMBUSTION SYSTEM
You should use the closed combustion system for the wood-burning stove if you live in a newly-built, airtight home. External
combustion air is connected through a ventilation pipe via the wall or floor.
We recommend mounting a valve in the ventilation pipe in order to avoid condensate in the stove and the pipe system, which can
be closed when the oven is not in use. It can also be an advantage to insulate the ventilation pipe.
Minimum Ø100 mm ventilation pipe, maximum length: 6 meters with a maximum of one bend.
If you want external combustion air via a wall, remove the cover plate at the rear of the stove with a pair of cutting pliers. See the
procedure in this manual.
If the external combustion air is connected at the rear, the dismounted plate must be mounted on the hole for external air in the
bottom of the stove.
NOTE: IF THE STOVE HAS A FRESH AIR CONNECTION OR CLOSED COMBUSTION, THE VENTILATION PIPE MUST BE OPEN, WHEN THE
STOVE IS IN USE.
External air supply
through the wall.
External air supply
through
the floor.
The external air supply can be connected through the pedestal or the portal by mounting the delivered connecting piece.
PORTAL
If you want to connect an
external air supply from the
bottom of the base, remove
the blind flange and mount it
at the top of the base. Then
mount the delivered connect-
ing piece under the base as
shown below.
PEDESTAL

15
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068016.idw
90068016
knærør
07-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY
If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim-
ney sweep, for advice. These experts will also let you know if your chimney needs renovating.
¬ When connecting a pre-fabricated element chimney, follow the manufacturer’s connection instructions for the relevant chim-
ney type.
CONNECTION BETWEEN STOVE AND STEEL CHIMNEY
Your Scan dealer, or local chimney sweep, can advise you on choosing a make and type of steel chimney (we recommend using
JØTUL’s chimney system). This ensures that the chimney will match your wood-burning stove.
REQUIREMENTS FOR CHIMNEY
The chimney must have a diameter of min. 148 mm and be labelled T400 and G for soot testing. The length must be min. 4 me-
tres.
If you opt to connect the stove with an elbow pipe, you should use a curved elbow, as this gives a better draught.
When using a steel chimney, we recommend that it is equipped with an inspection door.
If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the
horizontal part can be cleaned through here.
The requirements to the chimney and the flue pipe in terms of safety distances must be met.
¬ Choosing the wrong length or diameter of steel chimney could impair functionality.
¬ Always observe the chimney vendor‘s instructions precisely.

16
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068032.idw
90068032
lille gulvplade
21-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068034.idw
90068034
stor gulvplade
21-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
Small shaped floor plate in glass or steel. Large shaped floor plate in glass or steel
POSITIONING YOUR WOOD-BURNING STOVE
There are no requirements concerning the distance to non-combustible materials, but we recommend a distance of 50 mm in order
to facilitate the cleaning of the stove, the flue pipe and the chimney, and to prevent possible damages to the wall.
DISTANCE TO FURNITURE
With side windows: 950 mm - Without side windows: 1100 mm
You should however assess whether furniture or other items might become excessively dry due to being too close to the stove.
SAFETY DISTANCE
European, national and local regulations concerning safety distances for wood-burning stoves and flue pipes must be complied
with.
LOAD-BEARING FOUNDATION
All items in our product range come under the category of lightweight fireplaces and stoves and do not normally require any rein-
forcement of the beam structure. They can be positioned on ordinary beams/floor.
You should of course make sure that the foundation on which the stove is positioned can indeed support the weight of the stove
and, where applicable, a steel chimney, if you have opted for this solution. In case of doubt about the carrying capacity of the
floor, please consult a building expert.
FLOOR PLATE
If you are placing the stove on a flammable floor, you must comply with the national and local regulations on the size of any
non-flammable subsurface required to cover the floor around the stove.
Your local Scan dealer can advise you on regulations concerning protection of flammable materials in the vicinity of your stove.
The floor plate’s function is to protect the floor and flammable material against any sparks that may occur. A floor plate can be
made of steel or glass, but the stove can also be erected on clinker concrete, natural stone or similar materials.
(ACCESSORY)

17
150
350
340
595
100
363
628
100
*400/**500
*100/*100
*100/**350
*100/**350
A: 100 mm
B: 100 mm
A: 400 mm
B: 500 mm
150
350
340
595
100
363
628
100
*400/**500
*150/*150
*100/**350
*100/**350
A: 100 mm
B: 350 mm
A: 100 mm
B: 350 mm
A: 317 mm
B: 567 mm
A: 317 mm
B: 567 mm A: 449 mm
B: 802 mm
150
350
340
595
100
363
628
100
*400/**500
*150/*150
*100/**350
*100/**350
A: 400 mm
B: 500 mm
A: 150 mm
B: 150 mm
150
350
340
595
100
363
628
100
*400/**500
*150/*150
*100/**350
*100/**350
A: 100 mm
B: 350 mm
A: 100 mm
B: 350 mm
A: 317 mm
B: 567 mm
A: 317 mm
B: 567 mm A: 449 mm
B: 802 mm
A: 341 mm
B: 341 mm
A: 650 mm
B: 750 mm
A: 341 mm
B: 341 mm
A: 650 mm
B: 750 mm
A: 291 mm
B: 291 mm
A: 650 mm
B: 750 mm
DISTANCE TO FLAMMABLE MATERIALS
A = Without side windows
B = With side windows
DISTANCE TO FLAMMABLE MATERIALS, SHOWN WITH INSULATED FLUE PIPE
These distances apply for an insulated flue pipe all the way down to the stove.
Parallel rear wall installation
Parallel rear wall installation
45° Corner installation
45° Corner installation
, SHOWN WITH UN-INSULATED FLUE PIPE

18
50
50
700
700
253
*50/**150
*1100/**1200
*1100/**1200
*50/**150
*50/**50
50
700
*50/*50
*900/**900
50
100
700
960
*50/**50
*200/**300
*900/**1100
*1000/**1000
A: 1000 mm
B: 1000 mm A: 600 mm
B: 1200 mm
A: 50 mm
B: 50 mm
A: 50 mm
B: 50 mm
A: 50 mm
B: 150 mm
A: 900 mm B: 1100 mm A: 900 mm
B: 900 mm
A: 600 mm B: 1200 mm
A: 200 mm
B: 300 mm
A: 50 mm
B: 150 mm
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 64\90064047.iam
90064047
Brandmur og isoleret røgrør - Scan 64 uden sideglas
29-08-12 BC
Scan 64
VÆGT:
AREAL:
N/A
N/A
50
50
100
50
50
700
700
960
700
700
253
50
50
700
700
253
*50/**150
*1100/**1200
*1100/**1200
*50/**150
50
50
700
700
253
*50/**150
*1100/**1200
*1100/**1200
*50/**150
50
50
700
700
253
*50/**150
*1100/**1200
*1100/**1200
*50/**150
50
50
700
700
253
*50/**150
*1100/**1200
*1100/**1200
*50/**150
Flammable materialFirewall:
DISTANCE TO FIREWALL
110 mm brick, 50 mm JØTUL Firewall or other material with a corresponding insulation ability.
A = Without side windows
B = With side windows
The indicated distances are valid for insulated as well as un-insulated smoke pipes.

19
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068097.idw
90068097
Scan 68 13/14 påpalle
01-09-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 58\90358170.idw
90358170
Scan 58-7 - 10 afmontage ovn påpalle
04-07-11 BC
Scan 58
VÆGT:
AREAL:
N/A
N/A
A
B
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068012.idw
90068012
oven afmonteres palle
07-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
B
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068011.idw
90068011
afmont. fra emb
24-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN: STI:
DIM.:
MATERIALE: DATO: SIGN:
Scan A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Bygningsdele\Skruetrækker.ipt
Plade, st. 240
Skruetrækker
18-01-2006 sr
VÆGT:
AREAL:
0,54 kg
12726 mm^2
M3 NR.:
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068011.idw
90068011
afmont. fra emb
24-03-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068013.idw
90068013
Ovn løftes fra palle
07-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\90068014.idw
90068014
ovn mont palle
05-05-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:
EMNE:
C:\Working Folder\Designs\Scan 58\90358171.idw
90358171
Plastprop for transportsikringshuller
04-07-11 BC
Scan 58
VÆGT:
AREAL:
N/A
N/A
41
2
3
5
REMOVAL OF PACKAGING
Check that the stove is not damaged before starting to install it.
Pull back and lift
Please remove protection
The plastic plugs are mounted in the transport
safety holes
Remove the two screws in the wood compartment
and lift the stove off the pallet

20
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068030.idw
90068030
stilleskruer
20-04-2015 hms
Sacn 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068030.idw
90068030
stilleskruer
20-04-2015 hms
Sacn 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068036.idw
90068036
topafgang
23-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068025.idw
90068025
Bagudgang monteret
16-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068021.idw
90068021
bagudgang fjerne
14-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
Ø 6 mm
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068023.idw
90068023
expl af ændring til bagudgang
16-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
NAVN:
STI:
DIMENSION:
MATERIALE: DATO: SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
TG.NR:EMNE:
C:\Working Folder\Designs\Scan 68\90068035.idw
90068035
bagudgang
23-04-2015 hms
Scan 68
VÆGT:
AREAL:
N/A
N/A
Stove:
Path:
Material:
Date:
SCAN A/S
DK-5492 Vissenbjerg©
Drawing
number:
Name:
C:\Working Folder\Designs\Tilbehør\20080098.ipt
Rustfast plade, AISI 304
20080098
Ajustment screw 07-11-2018
TKH
Tilbehør
Weight: Area:
N/A N/A
Articlenumber:
Constructed /Changed by:
38 38,6
136,9
90°
173°
1,5
HEIGHT ADJUSTMENT OF STOVE
The Scan 68 has four adjustment screws under the stove.
Use the adjustment screws and the adjustment key (Accessories)
to get the stove to stand straight and level.
If the floor plate is used, the stove must be adjusted so that the
plate can be placed under the front of the stove.
NOTICE: It is very important that the stove is level to allow an
optimal function of the door. Please note that once mounted
the stove can no longer be adjusted!
CONNECTING PIECE
The stove is prepared from the factory for top
outlet.
TOP OUTLET REAR OUTLET
Ajustment key
