Sega Harley Davidson & L.A Riders User manual

OWNER’SMANUAL
SEGA ENTERPRISES, USA
1ST PRINTING
JAN.- 1998
TM
MANUAL NO. 4200-6367
STD TYPE

Warranty
Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies
that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman-
ship or materials under normal operating conditions. This also certifies that all Interactive Control
Assemblies are to be free from defects in workmanship and materials under normal operating condi-
tions. No other product in this machine is hereby covered.
Sellers sole liability in the event a warranted part described above fails shall be, at its option, to
replace or repair the defective part during the warranty period. For Warranty claims, contact your
Sega Distributor.
Should the Seller determine, by inspection that the product was caused by Accident, Misuse, Ne-
glect, Alteration, Improper Repair, Installation or Testing, the warranty offered will be null and void.
Under no circumstances is the Seller responsible for any loss of profits, loss of use, or other dam-
ages.
This shall be the exclusive written Warranty of the original purchaser expressed in lieu of all other
warranties expressed or implied. Under no circumstance shall it extend beyond the period of time
listed above.

INTRODUCTION OF THE OWNERS MANUAL
GENERAL PRECAUTIONS
1. PRECAUTIONS TO BE HEEDED FOR OPERATION
2. NAME OF PARTS
3. ACCESSORIES
4. ASSEMBLYAND INSTALLATION
5. PRECAUTIONS TO BE HEEDED WHEN MOVING MACHINE
6. CONTENTS OF GAME
7. EXPLANATION OF TESTAND DATA DISPLAY
7-1 POWER SUPPLY UNITAND COIN METER
7-2 TEST MODE
7-3 MEMORY TEST
7-4 VIDEO MEMORY TEST
7-5 BOUNDRY TEST
7-6 INPUT TEST
7-7 OUTPUT TEST
7-8 SOUND TEST
7-9 C.R.T. TEST
7-10 GAME ASSIGNMENTS
7-11 COIN ASSIGNMENTS
7-12 REAL TIME CLOCK TEST
7-13 VOLUME SETTING
7-14 NETWORK ASSIGNMENTS
7-15 BOOKKEEPING
7-16 BACKUP DATA CLEAR
8. HANDLEBAR
8-1 ADJUSTING/REPLACING THE FRONT BRAKE VOLUME
8-2 ADJUSTING/REPLACING THE ACCELERATOR VOLUME
8-3 ADJUSTING/REPLACING THE HANDLE BAR VOLUME
8-4 GREASING
9. FOOT BRAKE MECHA
9-1 ADJUSTING AND REPLACING THE VOLUME
9-2 GREASING
10. COIN SELECTOR
11. MONITOR
12. REPLACEMENT OF FLUORESCENT LAMPAND LAMPS
12-1 REPLACEMENT OF FLUORESCENT LAMP
12-2 REPLACEMENT OF LAMPS
13. PERIODIC INSPECTION TABLE
14. TROUBLESHOOTING
14-1 REPLACEMENT OF FUSES
15. GAME BOARD
15-1 REMOVING THE IC BOARD
15-2 COMPOSITION OF THE GAME BOARD
16. COMMUNICATION PLAY
16-1 INSTALLATION PRECAUTIONS
16-2 CONNECTING THE COMMUNICATION CABLES
16-3 SETTING FOR COMMUNICATION PLAY
17. DESIGN RELATED PARTS
18. PARTS LIST
19. WIRING DIAGRAMS
1
2~3
4~5
6
7~8
9~14
15
16~18
19~30
20
21
21
22
22
23
23
24
24
25
26~28
29
29
29
30
30
31
31
32
33~36
37
38
38~39
40
41~43
44~46
47~48
47
48
49
50
51
52
52~53
54
55~65
55
55~63
64~65
66
67~94
XXX
TABLE OF CONTENTS

1
SPECIFICATIONS
Installation space: 65 in.(L) x 31 in.(W)
Height: 78 in.
Weight: Approx. 397 lbs.
Power maximum current: 5 Amp AC 120V 60 Hz
MONITOR: 29” INCH COLR MONITOR
SEGA ENTERPRISES, LTD., has for more than 30 years been supplying various innovative and
popular amusement products to the world market. This Owners Manual is intended to provide
detailed descriptions together with all the necessary installation, game settings and parts ordering
information related to the HARLEY DAVIDSON U/R, a new SEGA product.
This manual is intended for those who have knowledge of electricity and technical expertise, espe-
cially in ICs, CRTs, microprocessors, and circuit boards. Read this manual carefully to acquire
sufficient knowledge before working on the machine. Should there be a malfunction, non-technical
personnel should under no circumstances touch the interior system. Should the need arise, contact
our main office, or the closest branch office listed below.
SEGA ENTERPRISES, INC. (USA)
Customer Service
45133 Industrial Drive
Fremont, CA 94538
Phone [phone]
Fax [phone]
7:30 am - 4:00 pm, Pacific Standard Time
Monday thru Friday
INTRODUCTION OF THE OWNERS MANUAL

2
General Precautions
Follow Instructions: All operating and use instructions should be followed.
Attachments: Do not use attachments not recommended by the product manufacturer as they may cause hazards.
Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or
table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use only mounting accessories recommended by the manufacturer.
Moving the Product: This product should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the product to overturn.
Ventilation: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product
and to protect it from overheating; these openings must not be blocked or covered. The openings should never be blocked
by placing the product in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
Power Sources: This product should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of power supply to your location, consult your local power company. For products intended
to operate from battery power or other sources, refer to the operating instructions.
Grounding or Polarization: This product is equipped with a three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
Power Cord Protection: Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point
where they exit from the product.
Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in
a risk of fire or electric shock.
Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the
product.
Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service person-
nel under the following conditions:
a) If the power cord or plug is damaged;
b) If liquid has been spilled, or objects have fallen into the product;
c) If the product has been exposed to rain or water;
d) If the product does not operate normally when following the operating instructions.Adjust only those controls that
are explained in the operating instructions.An improper adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore the product to its normal operation;
e) If the product has been dropped or damaged in any way;
f) When the product exhibits a distinct change in performance; this indicates a need for service.
Replacement Parts: When replacement parts are required, be sure the service technician has used replacements parts
specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.

3
Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other prod-
ucts (including amplifiers) that produce heat.
Lithium Battery- Dispose of batteries only in accordance with the battery manufacturer’s recommen-
dations. Do not dispose in an open flame condition, since the battery may explode.
Cleaning: When cleaning the monitor glass, use water or glass cleaner and a soft cloth. Do not apply chemicals such
as benzine, thinner, etc.
Location: This an indoor game machine, DO NOT install it outside.To ensure proper usage, avoid installing indoors
in the places mentioned below:
• Places subject to rain/water leakage, or condensation due to humidity;
• In close proximity to a potential wet area;
• Locations receiving direct sunlight;
• Places close to heating units or hot air;
•In the vicinity of highly inflammable/volatile chemicals or hazardous matter;
• On sloped surfaces;
• In the vicinity of emergency response facilities such as fire exits and fire extinguishers;
• Places subject to any type of violent impact;
• Dusty places.
INSTALLATION PRECAUTIONS
• Verify the amperage of the branch circuit outlet before plugging in the power plug. Do not over-
load the circuit.
• Avoid using an extension cord. If one is required, use an extension cord of type SJT, 16/3 AWG
rated min. 120 VAC, 7A.
• Moving this unit requires a minimum clearance (of doors, etc.) of 32” (W) by 77” (H).
• For the operation of this machine, secure a minimum area of 32” (W) by 42”(D).
REGULATORY APPROVALS
This game has been tested and found to comply with the Federal Communications Commission Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
This game has been tested and listed by Underwriters Laboratories, Inc., to ANSI/UL22.
LISTED
UL
®
5K92
AMUSEMENT MACHINE

4
In order to avoid accidents, check the following before starting the operation:
Check if all of the adjusters are in contact with the surface. If they are not,
the cabinet can move and cause an accident.
Do not climb on the product. Climbing on the product can cause falling
down accidents. To check the top portion of the product, use a step.
To avoid electric shock, check to see if door & cover parts are 508.5
To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product:
Flower vases, flower pots, cups, water tanks, cosmetics, and receptacles/
containers/vessels containing chemicals and water.
1 . PRECAUTIONS TO BE HEEDED FOR OPERATION
PRECAUTIONS TO BE HEEDED FOR OPERATION BEFORE STARTING THE OPERATION
In order to prevent accidents, be sure to comply with the following points before and during operation.
To avoid injury, be sure to provide sufficient space by considering the
potentially crowded situation at the installation location. Insufficient instal-
lation space can cause the player to come into contact with or hit others
and result in injury or trouble.

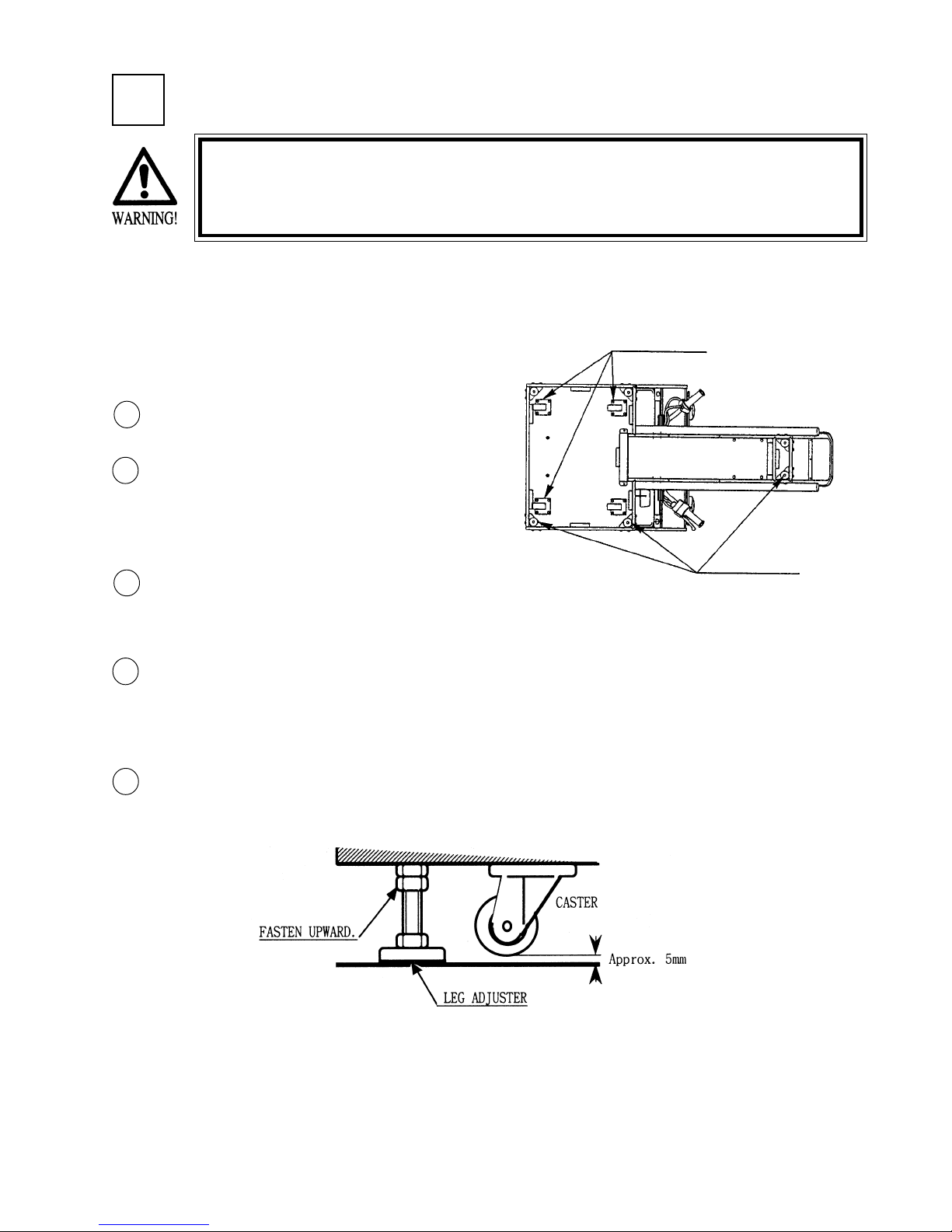

Ensure that all of the Adjusters
are in contact with the floor.

5
PRECAUTIONS TO BE HEEDED DURING OPERATION
To avoid injury and accidents, those who fall under the following catagories are not
allowed to play the game:
* Intoxidated persons
* Pregnant women or those in the likelyhood od pregnancy.
* Those who need assistasnce such as the use of an apparatus when walking.
* Those who have high blood pressure or heart problems.
* Those who have experienced muscle convulsion or loss of consciousness when playing
video games, etc.
* Persons susceptible to motion sickness.
* Persons whose acts runs counter to the products warning displays.
* Instruct those who wear high-heeled shoes to refrain from
playing the game by explaining that playing the game with high-
heeled showes is very dangerous and likely to cause a potentially
hazardous situation.
To avoid electric shock and short circuit, do not allow customers to put hands and
fingers or extraneous matter in openings of the product or small openings in or around
doors.
To avoid falling down and injury resulting from falling down, immediatly stop the
customer’s leaning against or climbing on the product, etc.
To avoid electric shock and short circuit, do not allow the customers to unplug the
power plug without a justifiable reason.

6
2 . NAME OF PARTS
GAME SPECIFICATIONS
SEAT CABI
WHEN ASSEMBLED
CABINET
WIDTH LENGTH HEIGHT WEIGHT
DURING SHIPPING
400 LBS.
49 LBS.
350 LBS.
475 LBS.
All measurements are in inches
31” X 38” X 78”
13.5” X 45.5” X 25”
31” X 65” X 78”
BILLBOARD
29 INCH MONITOR
CABINET
SEAT CABI
CASHBOX DOOR
COIN CHUTE DOOR
AC UNIT

7
3 . ACCESSORIES

8
“CHECK SIDE” Display
FILTER BOARD
CARTON BOX
601-8928 (1)
Used for transporting the GAME BOARD.
{SUPPLIED WITH YOUR GAME}
DO NOT SHIPGAME BOARD WITHOUT
THIS BOX AS IT MAY DAMAGE THE GAME
BOARD AND VOID YOUR WARRANTY.
!!NEVER SHIP MODEL 3 GAME BOARDS
!!NEVER SHIP MODEL 3 GAME BOARDS
OUTSIDE OF CAGE!!
OUTSIDE OF CAGE!!
THE SHIPMENT METHOD DESCRIBED BELOW ONLY
APPLIES TO ‘MODEL 3’BOARDS CONTAINED IN THE
FOLLOWING GAMES:
NO OTHER GAMES BOARDS ARE TO BE SHIPPED IN THE CAGE AS
THEY MAY BE DAMAGED BEYOND REPAIR. PLEASE SHIP THEM
WITHOUT CAGE PROPERLY PROTECTED DURING SHIPPING.
LOST WORLD, VIRTUA FIGHTER 3, SUPER GT, SEGA BASS FISHING, STRIKER 2
HARLEY DAVIDSON

9
4 . ASSEMBLING AND INSTALLATION
Note that the tools such as a phillips screwdriver and wrench for M16 hexagon bolt w/24 mm width
across flats are required for the assembly work.
When carrying out the assembly work, follow the procedure in the following 7-item sequence:
ASSY OFCABINET
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
POWER SUPPLY
ASSEMBLING CHECK
Assembling should be performed as per this manual. Since this is a
complex machine, erroneous assembling may cause damage to the
machine, or malfunctioning to occur.
When assembling, be sure to perform work by plural persons.
Depending on the assembly work, there are some cases in which
performing the work by a single person can cause personal injury or
parts damage.
1
2
3
4
Ensure that the connectors are accurately connected. Incomplete
connections can cause electrical shock or short circuit. Be careful
not to damage wirings. Damaged wiring can cause short circuit or
electrical shock.
To perform work safely and securely, be sure to prepare a step
which is in a secure and stable condition. Not using a step or using
an unstable step can cause a violent falling down accident.

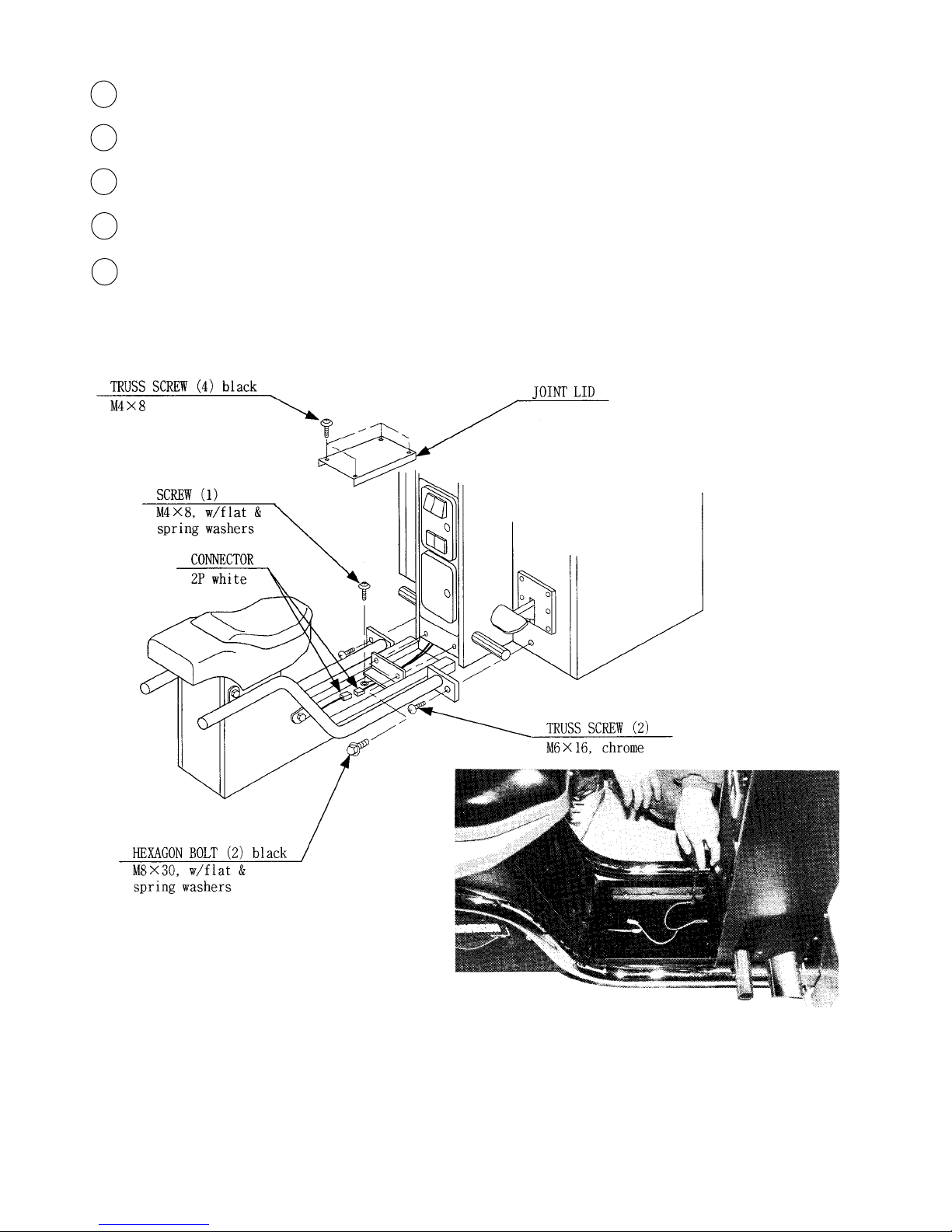

1ASSY OF CABINET

10
Tightly fit the seat cabi to the cabinet in a manner to insert it in.
Secure to the cabinet with 2 hexagon bolts and 2 truss screws.
Connect the connector. (2P white)
Install the joint lid.
Secure the Joint lid with 4 screws.
1
2
3
4
5

11
SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Move the machine to the installation position.
Cause all of the leg adjusters to make contact
with the floor. By using a wrench, make
adjustments in the height of the leg adjusters to
ensure that the machine's position is level.
After making adjustments, fasten the leg
adjuster nut upward and secure the height of the
leg adjuster.
This machine has 8 each of casters and adjusters (shown below). When the installation position is determined, cause
the adjusters to come into contact with the floor directly, make adjustments in a manner so that the casters will be
raised approximately 5mm. from the floor and make sure that the machine position is level.
Be sure to have all the Adjusters make contact with the surface. Un-
less the Adjusters come into contact with the surface, the Cabinet
can move of itself, causing an accident.
2
3
2
1
5
4Depending on the floor surface status of the installation location, the Rear Cabinet may move of itself. As
shown, the NON-SLIP SHEET is attached to the back side of the CAUTION MAT. Ensure that the Adjuster is
installed in the manner to match the position of NON-SLIP SHEET
After making adjustments, fasten the adjuster nut upwards and secure the height of the adjuster
BOTTOM VIEW
CASTERS
ADJUSTERS

12
POWER SUPPLY
Ensure that the Main SW is OFF.
3
1
The AC unit is mounted on the rear side of the cabinet . TheAC Unit incorporates the Main SW, Earth Terminal and
Inlet. Firmly insert the Power Plug into the Socket Outlet and the other side of the plug to the Inlet. Turn the Main SW
ON to turn power ON.
Ensure that the power cord is not exposed on the surface (passage,
etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord can cause an electric shock or short circuit.
Ensure that the wiring position is not in the customer's passage way
or the wiring has protective covering.
2Connect the Power cord to the Outlet
Socket. Ensure power cord is not in
customer’s passage way or wiring has
protective covering.
MAIN SW
FUSE
BINDING POST NOT USED
LINE STRAIN RELIEF
AC
BRACKET

13
Selecting the INPUT TEST on the menu screen in the test
mode to display the screen on which each SW and Volume is
tested. Press each switch. (To check the Coin SW, insert a
Coin from the inlet with the Coin Chute Door being opened.)
If the display beside each switch is ON, the switch and wiring
connection are satisfactory. Check the display of each Volume
value. The Volume could have an irregularity caused by
differences between machines and vibration during transporta-
tion. Set the Volume values by referring to Section ?
In the output test mode, carry out lamp test to ascertain that
each lamp lights up satisfactorily.
Selecting the MEMORY TEST on the test mode menu screen
causes the on-board memory to be tested automatically. The
game board is satisfactory if the display beside each IC No.
shows GOOD.
ASSEMBLING CHECK
4
The TEST MENU allows for each part of the cabinet to be checked, the Monitor to be adjusted, and the coin and
game related various functions to be performed.
CPU ROM TEST
GOOD (CROM03 MASK) IC.1 *****
GOOD (CROM02 MASK) IC.2 *****
GOOD (CROM01 MASK) IC.3 *****
GOOD (CROM00 MASK) IC.4 *****
GOOD (CROM13 MASK) IC.5 *****
GOOD (CROM12 MASK) IC.6 *****
GOOD (CROM11 MASK) IC.7 *****
GOOD (CROM10 MASK) IC.8 *****
GOOD (CROM33 EPROM) IC.9 *****
GOOD (CROM32 EPROM) IC.10 *****
GOOD (CROM31 EPROM) IC.11 *****
GOOD (CROM30 EPROM) IC.12 *****
GOOD (CROM3 EPROM) IC.13 *****
GOOD (CROM2 EPROM) IC.14 *****
GOOD (CROM1 EPROM) IC.15 *****
GOOD (CROM0 EPROM) IC.16 *****
PRESS TEST BUTTON TO EXIT
INPUT TEST
HANDLEBAR OFF
THROTTLE OFF
FRONT BRAKE OFF
REAR BRAKE OFF
VIEW CHANGE OFF
MUSIC SELECT OFF
SHIFT UP OFF
SHIFT DOWN OFF
START OFF
COIN #1 OFF
SERVICE-SW OFF
TEST-SW OFF
PRESS TEST BUTTON TO EXIT
OUTPUT TEST
START LAMP OFF
VIEW CHANGE LAMP OFF
MUSIC SELECT LAMP OFF
RACE READER LAMP OFF
>EXIT
SELECT WITH SERVICE BUTTON
PRESS TEST BUTTON TO EXIT

14
12345678901234567890123456789
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
1
234567890123456789012345678
9
12345678901234567890123456789
123456789012345678901234567890121234567
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
1
2345678901234567890123456789012123456
7
123456789012345678901234567890121234567
123456789012345678901234567890121234567890123
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
1
2345678901234567890123456789012123456789012
3
123456789012345678901234567890121234567890123
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
1234567890123456789012345678
C.R.T. TEST 1/2
RED
GREEN
BLUE
WHITE
PRESS TEST BUTTON TO CONTINUE
In the TEST mode menu, selecting C.R.T. TEST allows the
screen (on which the projector is tested) to be displayed.
Although the projector adjustments have been made at the
same time of shipment from the factory, color deviation,
etc., may occur due to the effect caused by geomagnitism,
the location building’s steel frames and other game ma-
chines in the periphery. By watching the test mode screen,
make judgement as to whether an adjustment is needed. If it
is neccessary, adjust the projector by refering to Section 9.
In the TEST mode, selecting SOUND TEST causes the
screen, on which sound related BD and wiring connec-
tions are tested, to be displayed. be sure to check if the
sound is satisfactorily emitted from each of speaker and
the sound volume is appropriate.
Perform the above inspections also at the time of monthly inspection.
C.R.T. TEST 2/2
PRESS TEST BUTTON TO CONTINUE
SOUND TEST
NO : ( 0 )
>EXIT
SELECT WITH SERVICE BUTTON
PRESS TEST BUTTON TO EXIT

15
When moving the machine, be sure to pull out the plug from
the power supply. Moving the machine with the plug as is
inserted can damage the power cord and cause a fire or elec-
tric shock.
When moving the machine on the floor, retract the Adjusters
and ensure that Casters make contact with the floor. During
transportation, pay careful attention so that Casters do not
tread power cords. Damaging the power cords can cause an
electric shock and/or short circuit.
When lifting the cabinet, be sure to hold the catch portions or
bottom part. Lifting the cabinet by holding other portions can
damage parts and installation portions, due to the empty
weight of the cabinet, and cause personal injury.
Use care when handling glass made parts. When the glass is dam-
aged, fragments of glass can cause injury
5 . PRECATIONS TO BE HEEDED WHEN MOVING THE MACHINE
Where there steps (or step-like differences
in grade), move the machine by seperating
into each unit.
GRIP
CASTER
On level surfaces, move the machine by causing the
casters to make contact with the surfaces.
Pushing the glass made or plastic parts
can damage the parts and cause injury.
Also, moving machine by holding the
handlebar can damage the handle bar.

16

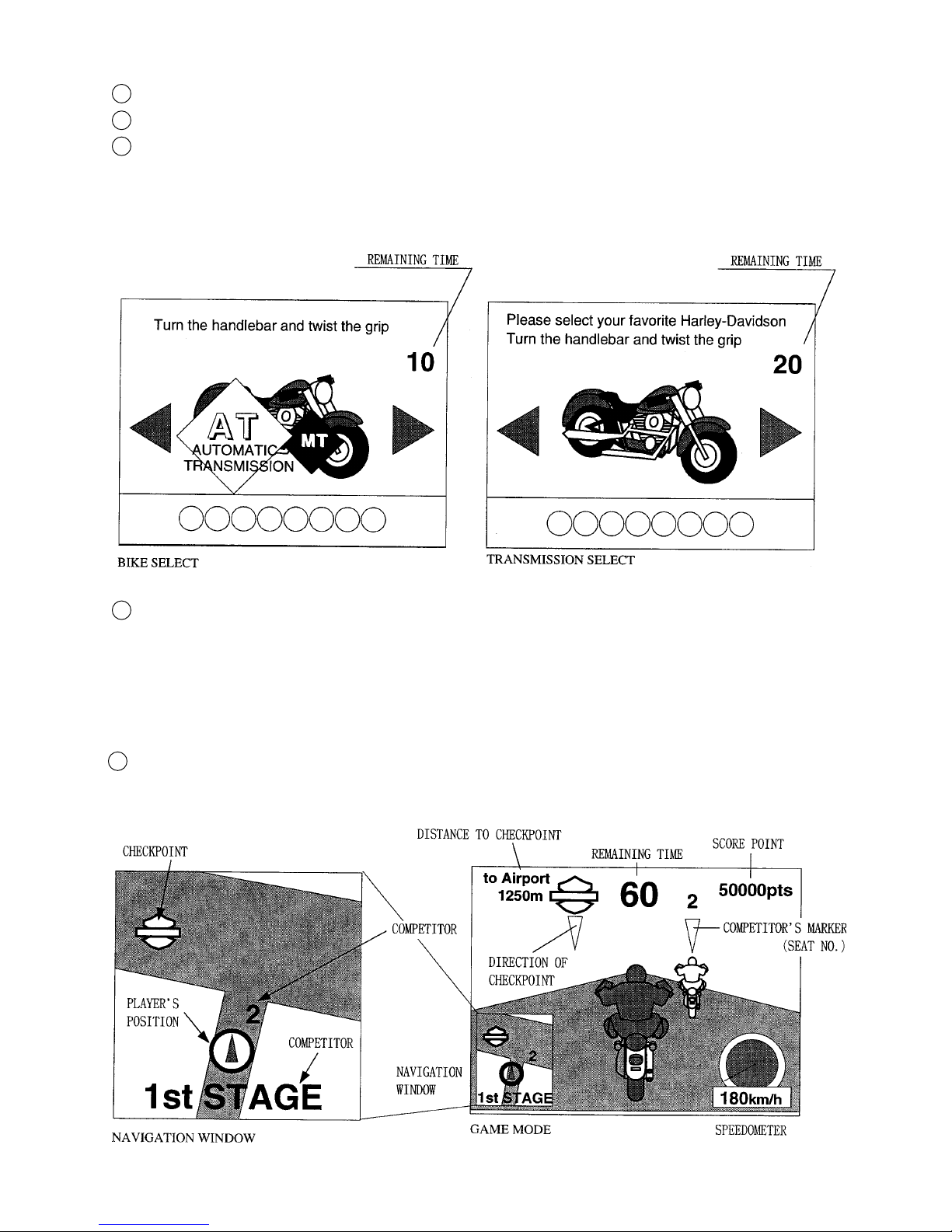

6 . CONTENTS OF GAME
The following are operations and responses obtained when the machine functions satisfactorily. Any functioning
different fromt he following may have been caused by a certain fault. Immediately investigate and eliminate the cause
of the malfunctioning to ensure satisfacory operation. The explanation herein mainly refer to the case where the game
machine is used independently. In communications play, some points may differ fromthe following explanations.
When energized, the Billboard’s fluorescent lamp is always lit.
During ADVERTISE (in the status a coin(s) is not inserted), the contents of game and HOW TO PLAY, etc., are audio-
visually explained.
The status of the on-tank 3 buttons will change to and from lighting up/flashing/lights out.
Although the Start button is unlit during ADVERTISE, it blinks if even one coin is inserted, and is always lit duriong
game play.
The View Change button and Music Select button are unlit during ADVERTISE and lit when the Select Mode is
displayed. During Game, the flash alternately.
The two lamps of the Billboard flash during ADVERTISE and Select Mode display, light up during game and flash for
approximately 3 seconds at the time of passing the checkpoint.
In case of communication play, the lamps light up during game, flash for approximately 3 seconds when passing the
chackpoint (in top posistion), and light out for 3 seconds when passing the checkpoint (in the second position or lower).
LAMP
BILLBOARD
SHIFT UP button
SHIFT DOWN button
START button
COIN INLET
FRONT BRAKE LEVER
ACCELERATOR
MUSIC SELECT button
REAR BRAKE PEDAL
VIEW CHANGE button

17
Be seated.
Insert coin(s). When one play worth of coin(s) is inserted, the Select mode appears.
Select in order of BIKE and TRANSMISSION. Turn the handlebar to select and turn the ACCELORATOR GRIP
to decide.
When the Select Mode is displayed, countdown starts. At count 0, BIKE TRANSMISSION being selected are
automatically decided.
When TRANSMISSION is decided, the race starts. The checkpoint (desination) is displayed on the screen, and
Time Limit countdown starts.
At the same time the race starts, the View Change button and Music Select button alternately light up/light out.
Pressing the View Change button changes the View point in the game mode.
Pressing the Music Select button changes the BGM (background music).
The distance to the checkpoint is displayed onthe upper left section of the screen. the remaining time is indicated
on the upper center, score points on the upper right, navigation window(map) on the lower left, and speedometer
on the lower right.
1
2
3
4
5
