Sega Mushiking User manual

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
1/27
“MUSHIKING” (Owner’s Manual - 1/3) = 2004/05/14
(Front Cover)
(ロゴ)
OWNER’S MANUAL
（筐体切抜き、 画面はめ込み）
(US/ASIA 向け)
(STOP) IMPORTANT
●Before using this product, read this manual carefully to understand the
contents herein stated.
●After reading this manual, be sure to keep it available nearby the product or
elsewhere convenient for referring to it anytime when necessary.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
2/27
(Back Cover)
SEGA CORPORATION
12-14, Higashikohjiya 2-Chome, Ohta-ku, Tokyo 144-8532, Japan
Phone: [phone] Facsimile: [phone]
1ST
PRINTING © SEGA CORPORATION, 2003, 2004
MANUAL NO. 420-6812-01
(P. i)
TABLE OF CONTENTS
【本文に合わせる】
E0-0405 420-6812-01

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
3/27
(P. ii)
INTRODUCTION
This manual is intended to provide detailed descriptions together with all the necessary information
covering the general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts,
etc. for the product, "MUSHIKING – The King of Beetle".
This manual is intended for the owners, personnel and managers in charge of operation of the product.
Operate the product after carefully reading and sufficiently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a
technician to touch the internal system. Turn off the power to the machine, making sure to unplug the
electrical cord from the outlet, and contact the office listed below or the point-of-purchase for this product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that
require special attention are indicated by thick underlining, the word "IMPORTANT" and the symbol below.
(STOP) IMPORTANT
Indicates important information that, if ignored, may result in the mishandling of
the product and cause faulty operation or damage to the product.
SEGAENTERPRISES, INC. (U.S.A.)/CUSTOMER SERVICE
45133 Industrial Drive, Fremont, California 94538, U.S.A.
Phone: [phone]
Facsimile: [phone]
SPECIFICATIONS
Installation space: 452 mm (17.8 in.) [Width] x 610 mm (24.0 in.) [Depth]
Height [POP assembled]: 1,280 mm (50.4 in.); [1,590 mm (62.6 in.)]
Weight: 75 kg (165.3 lbs.)
Power, maximum current: 102 W, 1.4 A (AC 120 V, 60 Hz Area)
103 W, 0.8 A (AC 220 V, 50 Hz Area)
??? W, 0.0 A (AC 220 V, 60 Hz Area)
??? W, 0.0 A (AC 240 V, 50 Hz Area)
Power, current: ??? W, 0.0 A, (Max.) (AC 110 V, 60 Hz) <TAIWAN>
??? W, 0.0 A, (Min.) (AC 110 V, 60 Hz) <TAIWAN>
Card capacity: 600 (Max.)
Monitor: 14 Type Color Monitor

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
4/27
(P. iii)
Definition of 'Site Maintenance Personnel or Other Qualified Individuals'
[!] WARNING
Procedures not described in this manual or marked as 'to be carried out by site
maintenance personnel or other qualified professionals' should not be carried
out by personnel without the necessary skill or technology. Work carried out by
unqualified persons may cause serious accidents, including electrocution.
Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance
personnel or other qualified professionals. This manual includes directions that potentially dangerous
procedures should only be carried out by professionals with the appropriate specialized knowledge.
The 'site maintenance personnel or other qualified professionals' mentioned in this manual are defined as
follows:
Site maintenance personnel:
Individuals with experience in maintaining amusement equipment, vending machines, etc., working under
the supervision of the owner/operator of this product to maintain machines within amusement facilities or
similar premises by carrying out everyday procedures such as assembly, maintenance inspections, and
replacement of units/expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of
units/expendable parts.
Other qualified professionals:
Persons employed by amusement equipment manufacturers, or involved in design, production, testing or
maintenance of amusement equipment. The individual should have either graduated from technical school
or hold similar qualifications in electrician/electronics/mechanical engineering.
Activities to be carried out by other qualified professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical
parts.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
5/27
(P. 1)
1. HANDLING PRECAUTIONS
When installing or inspecting the machine, be very careful of the following points and pay attention to
ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to the cautionary
matters herein stated can cause personal injury or damage to the machine.
[!] WARNING
●Before performing work, be sure to turn power off. Performing the work without
turning the power off can cause electric shocks or short circuits. In the case that
work should be performed with the power ON, this will be clearly stated in the
manual.
●To avoid electric shocks and short circuits, do not plug in or unplug the
machine too quickly.
●To avoid electric shocks, do not plug in or unplug the machine with wet hands.
●Do not leave power cords and earth wires exposed on the surface (floor,
passage, etc.). If exposed, the power cords and earth wires are susceptible to
damage. Damaged cords and wires can cause electric shocks or short circuits.
●To avoid causing a fire or electric shock, do not put things on or damage
power cords.
●During or after installation of the product, do not unnecessarily pull the power
cord. If damaged, the power cord can cause a fire or electric shock.
●In case the power cord is damaged, ask for replacement from the point-of-
purchase or the office herein stated. Using a damaged cord can cause fire,
electric shock or leakage.
●Be sure to perform grounding appropriately. Inappropriate grounding can
cause electric shocks.
●Be sure to use fuses meeting the specified rating. Using fuses exceeding the
specified rating can cause a fire or electric shock.
●Ensure that connectors for IC BD and others are properly inserted. Insufficient
insertion can cause an electric shock.
●Specification changes, removal of equipment, conversion and/or additions
not designated by SEGA are not permitted.
- Failure to observe this may cause a fire or an electric shock. Non-
compliance with this instruction can have a bad influence upon the physical
condition of the players or the onlookers, or result in injury during play.
- SEGA shall not be held responsible for damage, or compensation for
damage to a third party, caused by specification changes not designated by
SEGA.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
6/27
●Be sure to perform the periodic maintenance inspections herein stated.
(STOP) IMPORTANT
●For the IC board circuit inspections, only the logic tester is allowed. The use of
a multiple-purpose tester is not permitted, so be careful in this regard.
●When cleaning the CRT surfaces, use a soft and dry cloth. Do not apply
chemicals such as thinner, benzine, etc.
●Static electricity from your body may damage some electronics devices on
the IC board. Before handling the IC board, touch a grounded metallic surface
so that the static electricity can be discharged.
●Do not turn the power on and off continuously. Repeatedly turning the power
on and off may cause product malfunction or parts damage.
●Some parts are not specifically designed and manufactured for this game
machine. The manufacturers may discontinue, or change the specifications of,
such general-purpose parts. If this is the case, SEGA cannot repair or replace the
damaged game machine, whether or not the warranty period has expired.
(P.3)
CONCERNING THE STICKER DISPLAY
This SEGA product has stickers attached describing the product manufacture No. (Serial No.) and
Electrical Specifications. It also has a Sticker describing where to contact for repair and for purchasing
parts.
When inquiring about or asking for repairs, mention the Serial No. and Name of Machine indicated on the
Sticker. The Serial Number indicates the product register. Identical machines could have different parts
depending on the date of production. Also, improvements and modifications might have been made after
the publication of this manual. In order to ensure you order the correct parts, mention the Serial No. when
contacting the applicable places.
CONCERNING WARNING DISPLAYS
This SEGA product has warning displays on stickers, labels and/or printed instructions adhered/attached to
or incorporated in the places where a potentially hazardous situation could arise. The warning displays are
intended for accident prevention for customers and for avoiding hazardous situations relating to
maintenance and servicing work. Some portions of the cabinet contain high voltage and may cause
accidents if touched. When performing maintenance, be very careful of the warning displays. It is
especially important that any complex repair and replacement work not mentioned herein should be
performed by those technical personnel who have knowledge of electricity and technical expertise.
In order to prevent accidents, caution any customer ignoring the warnings to cease and desist immediately.
FIG. 1
1) Serial No. Display

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
7/27
2) Electrical Specifications Display
(P. 4)
2. PRECAUTIONS REGARDING INSTALLATION
LOCATION
[!] WARNING
This product is an indoor game machine. Do not install it outside. Even indoors,
avoid installing in places mentioned below so as not to cause a fire, electric
shock, injury and/or malfunction.
- Places subject to rain or water leakage, or places subject to high humidity in
the proximity of an indoor swimming pool and or shower, etc.
- Places subject to direct sunlight, or places subject to high temperatures in the
proximity of heating units, etc.
- Places filled with inflammable gas or vicinity of highly inflammable/volatile
chemicals or hazardous matter.
- Dusty places.
- Sloped surfaces.
- Places subject to any type of violent impact.
- Vicinity of anti-disaster facilities such as fire exits and fire extinguishers.
- The operating (ambient) temperature range is from 5℃to 30℃.
2-1 LIMITATIONS OF USAGE
[!] WARNING
●Be sure to check the Electrical Specifications. Ensure that this product is
compatible with the location's power supply, voltage and frequency
requirements. A plate describing Electrical Specifications is attached to the
product. Non-compliance with the Electrical Specifications can cause a fire and
electric shock.
●This product requires a breaker and earth mechanism as part of the location
facilities. Using the product without these can cause a fire and electric shock.
●Ensure that the indoor wiring for the power supply is rated at 7A or higher (AC
single phase 100V ~ 120V area), and 4A or higher (AC 220V ~ 240V area). Non-
compliance with the Electrical Specifications can cause a fire and electric shock.
●Be sure to use an independent power supply equipped with a surge-
suppressor. Using a power supply without a surge-suppressor can cause an

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
8/27
outbreak of fire if a power surge occurs.
●Putting many loads on one electrical outlet can cause generation of heat and
a fire resulting from overload.
●When using an extension cord, ensure that the cord is rated at 7A or higher
(AC 100V ~ 120V area) and 4A or higher (AC 220V ~ 240V area). Using a cord
rated lower than the specified rating can cause a fire and electric shock.
(P. 5)
2-2 OPERATION AREA
[!] WARNING
●For the operation of this machine, secure a minimum area of 0.75 m (W) x 1.2
m (D). In order to prevent injury resulting from falls/accidents during game play,
be sure to secure the minimum area for operation.
●Be sure to provide sufficient space (150 mm minimum) so as to allow this
product's ventilation fan to function efficiently. To avoid machine malfunctions or
fires, do not place any obstacles near the ventilation opening.
●Do not allow objects to block the ventilation ports. It can cause generation of
heat and a fire.
●SEGA shall not be held responsible for damage or compensation for damage
to a third party, resulting from the failure to observe this instruction.
1) 0.75 m (29.5 in.) 1.2 m (47.2 in.) 0.46 m (18.1 in.) 1.8 m (70.9 in.)
2) Ventilation Space: 150 mm (5.9 in.) minimum
(STOP) IMPORTANT
In order to transport the machine into a building, the minimum necessary
dimensions of the opening (of doors, etc.) are 0.5 m (19.7 in.) [W] and 1.3 m (51.2
in.) [H].
Electricity Consumption:
MAX. 0.0 A (AC 120 V, 60 Hz)
MAX. 0.0 A (AC 220 V, 50 Hz)
MAX. 0.0 A (AC 220 V, 60 Hz)
MAX. 0.0 A (AC 240 V, 50 Hz)
MAX. 0.0 A (AC 110 V, 60 Hz) <TAIWAN>
(P. 7)

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
9/27
3. PRECAUTIONS REGARDING PRODUCT
OPERATION
3-1 BEFORE OPERATION
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.
[!] WARNING
In order to avoid accidents, check the following before starting the operation:
●To ensure maximum safety for the players and the customers, ensure that
where the product is operated has sufficient lighting to allow any warnings to be
read. Operation under insufficient lighting can cause players to bump into each
other, causing trouble between customers.
●Be sure to perform appropriate adjustment of the monitor (projector). Do not
leave the machine operating with monitor flickering or malfunctioning. Failure to
observe this can have a bad influence upon the players' or the customers'
physical condition.
●It is suggested to ensure a space for players who feel sick while playing the
game to take a rest.
●Check if all of the adjusters are in contact with the surface. If they are not, the
cabinet can move and cause an accident.
●Do not put any heavy items on this product. Placing heavy items on the
product can cause accidents or parts damage.
●Do not climb on the product. Climbing on the product can cause accidents.
To check the top portion of the product, use a step.
●To avoid electric shock, check that no door & cover parts are damaged or
missing.
●To avoid electric shock, short circuit and or parts damage, do not put the
following items on or in the periphery of the product. Flower vases, flowerpots,
cups, water tanks, cosmetics, and receptacles/containers/vessels containing
chemicals or water.
1) Ensure that all the cabinet hold brackets are in contact with the floor.
2) Ensure that all the adjusters are in contact with the floor.
[!] CAUTION
To avoid injury, be sure to provide sufficient space by considering the crowd
situation at the installation location. Insufficient installation space can cause
customers to bump into each other, causing trouble.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
10/27
(P. 8)
3-2 DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.
[!] WARNING
●To avoid injury and accidents, those who fall under the following categories
are not allowed to play the game.
- Those who need assistance such as the use of an apparatus when walking.
- Those who have high blood pressure or a heart problem.
- Those who have experienced muscle convulsion or loss of consciousness when
playing video games, etc.
- Those who have neck or spinal cord problems.
* Intoxicated persons.
* Pregnant women or those who could be pregnant.
* Persons susceptible to motion sickness.
* Persons who disregard the product's warning displays.
●Even players who have never been adversely affected by light stimulus might
experience dizziness or headache depending on their physical condition when
playing the game. Small children are especially likely to experience these
symptoms. Caution guardians of small children to keep watch on their children
during play.
●It is suggested to provide a space for players who feel sick while playing the
game to take a rest.
●Instruct those who feel sick during play to have a medical examination.
●To avoid injury from falls and electric shocks due to spilled drinks, instruct the
player not to place heavy items or drinks on the product.
●To avoid electric shocks and short circuits, do not allow customers to put
hands and fingers or extraneous matter in the openings of the product or small
openings in or around the doors.
●To avoid falls and resulting injury, immediately stop the customer from leaning
against or climbing on the product, etc.
●To avoid electric shocks and short circuits, do not allow customers to unplug
the power plug without a justifiable reason.
[!] CAUTION

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
11/27
Immediately stop such violent acts as hitting and kicking the product. Such
violent acts can cause parts damage or cause the cabinet to fall over, resulting
in injury.
(STOP) IMPORTANT
Please take care not to offend or disturb customers when moving/removing the
machine from its current location.
(P. 9)
4. PART DESCRIPTIONS
FIG. 4
1) POP
2) 14 TYPE COLOR MONITOR
3) MONITOR COVER PLATE
4) CARD READER
5) CONTROL PANEL
6) SKILL BUTTON
7) SPEAKER
8) COIN SELECTOR
9) SERVICE DOOR
10) CARD EXIT
11) CASHBOX
12) HANDLE
13) BACK DOOR
14) AC UNIT
(P. 10)
5. ACCESSORIES
Confirm that the accessories listed in the table below are present when setting up the product.
Accessories marked "Spare" in the "Intended Use" column are consumable items but included as spares.
TABLE 5a ACCESSORIES
DESCRIPTION: OWNER’S MANUAL
Part No. (Qty.): 420-6812-01（1）
Note: This manual
Figures: Parts not labeled with part numbers are as yet unregistered or cannot be registered. Be

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
12/27
sure to handle all parts with care, as some parts are not available for purchase separately.
KEY MASTER
220-5785 (2)
For operating/closing the door
KEY (2)
For the cashbox door
The keys are inside the service door (near the cashbox side) at the time of shipment from the factory.
The following Table 5b lists the parts that had been separately packed when the product was shipped from
the factory but are necessary when you use the product. These parts will be mounted on the product when
installing and assembling it.
TABLE 5b ACCESSORIES
CABINET HOLD BRACKET MKC
MKC-0004-01 (2)
Used for installation, see Section 6, [1].
AC CABLE (POWER CORD)
600-7228 or 600-6729 (1) <TAIWAN>
600-6619-01 (1) <HONG KONG>
600-6618 (1) <AC 220V ~ 240VAREA>
Used for installation, see Section 6, [2].
WIRE HARN EARTH W/LUG M6
660-6664-02 (1) <TAIWAN>
Used for installation, see Section 6, [2].
CORD CLAMP
280-5009-01 (1)
Used for installation, see Section 6, [2].
TAMPERPROOF WRENCH
M4 540-0006-01 (1)
Tool
NAOMI SERVICE MANUAL
420-6455-01 (1)
Instruction Manual for the Game Board
CLEANING CARD
MKG-0011-01 (1)
TRUSS SCREW (CHROME)
000-T00414-0C (3)
Used for securing POP, see Section 6, [3].
CARTON BOX
601-10532 (1)
Used for transporting NAOMI Board Case (see next page).

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
13/27
POP MUSHI ENG
MKG-0009-01 (1)
(P. 12)
HOW TO USE THE CARTON BOX
(STOP) IMPORTANT
When requesting for the replacement/repair of this product's Game Board
(NAOMI BOARD), follow the instructions below. Transporting the Game Board in
an undesignated status is unacceptable. Improper handling can cause damage
to the parts.
- Put the Game Board in the Carton Box together with the Shield Case. Do not
unnecessarily disassemble nor remove parts.
- By paying careful attention to the following Figure and the directions shown on
the Carton Box printing, put the Shield Case in the Carton Box.
- When putting the Shield Case in the Carton Box, do not remove Leg Brackets.
- The projected portion of the packing material is intended for cushioning.
Therefore, do not bend the projected portion.
FIG. 5
1) “CHECK SIDE” Display
2) Serial Number Display
3) Filter Board
4) Projected portions of the packing material
Fold the packing material in the sequential order of the numbers as shown in the figure, enfold the Shield
Case and put it in the Carton Box. If it is placed upside down, or is not packed upright as illustrated, the
Game Board and other parts will be damaged.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
14/27
(P. 13)
6. ASSEMBLY AND INSTALLATION
[!] WARNING
●Perform assembly work by following the procedure herein stated. Failure to
comply with the instructions can cause electric shock.
●Perform assembling as per this manual. Since this is a complex machine,
incorrect assembling can cause an electric shock, machine damage and/or
improper functioning as per specified performance.
●Ensure that connectors are accurately connected. Incomplete connections
can cause electric shock.
●Be careful not to damage the wires. Damaged wires may cause electric
shock or short circuit or present a risk of fire.
●This work should be performed by the site maintenance individual or other
skilled professional. Performing work by non-technical personnel can cause a
severe accident such as electric shock. Failing to comply with this instruction
can cause a severe accident such as electric shock to the player during
operation.
●Provide sufficient space so that assembling can be performed. Performing
work in places with narrow space or low ceiling may cause an accident and
assembly work to be difficult.
●To perform work safely and avoid serious accidents such as the cabinet falling
down, do not perform work in places where step-like grade differences, a ditch,
or slope exist.
[!] CAUTION
Handle molded parts with care. Excessive weight or pressure may cause them to
break and the broken pieces may cause injury.
When carrying out the assembling and installation, follow the following 6-item sequence.
[1] SECURING IN PLACE (ADJUSTER ADJUSTMENT)
[2] POWER SUPPLYAND EARTH CONNECTION
[3] ASSEMBLING THE POP
[4] INSERTING THE MANAGEMENT CHIPAND MUSHIKING CARDS (See Section 7)
[5] POWERING ON
[6] ASSEMBLY CHECK

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
15/27
Tools and Implements Required for the Work
1) Phillips screwdriver (for M4 screws)
2) Master key
3) Spanner with a jaw width of 24 mm (for M16 hexagon bolts)
(P. 14)
[1] SECURING IN PLACE (ADJUSTER ADJUSTMENT)
[!] WARNING
●Make sure that all the adjusters are resting on the floor. The cabinet may move
and cause an accident if the adjusters are not laid out properly.
●When aligning the adjusters, be sure to also secure the cabinet hold brackets
to prevent tipping. Failure to do so could result in injury or other hazards.
(STOP) IMPORTANT
The adjusters are made of metal and therefore present a risk of damaging the
floor. Please keep this in mind when positioning the cabinet.
The cabinet is equipped with 4 casters and 2 adjusters.
After deciding on a location, bring the adjusters into direct contact with the ground and adjust the cabinet
so that it is completely level.
1. Move the cabinet to the desired location. Make sure there is space in the back for air to flow.
2. Insert the cabinet hold brackets into the adjuster bolts. (FIG. 6.1b) The cabinet hold brackets are the
same for the left and right.
3. Bring the adjusters into direct contact with the floor. Use a wrench to align the height of the adjusters
until the cabinet is perfectly level. If the floor is level, the machine should be level with the casters
about 5 millimeters from the floor. (FIG. 6.1c)
4. After making the final adjustments, fix the adjuster height by tightening up the adjuster nuts.
Tightening up the nuts will fix the cabinet hold brackets in place.
FIG. 6.1a Bottom View
1) CABINET HOLD BRACKET (2)
2) ADJUSTER (2)
3) ADJUSTABLE CASTER (2)
4) FIXED CASTER (2)

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
16/27
FIG. 6.1b
1) CABINET HOLD BRACKET
2) ADJUSTER
FIG. 6.1c Aligning the Adjusters
1) CABINET HOLD BRACKET
2) ADJUSTER
3) CASTER
4) Approx. 5 mm
5) Fasten the nuts in an upward direction.
PHOTO 6.1a Attaching the Cabinet Hold Bracket – Diagram 1
PHOTO 6.1bAttaching the Cabinet Hold Bracket – Diagram 2
FIG. 6.1d
(Scale: 1/100) See the layout for the positioning location.
FIG. 6.1e Ensuring Ventilation Space
1) Ventilation space (15 cm minimum)
(P. 15)
[2] POWER SUPPLY AND EARTH CONNECTION
[!] WARNING
●Be sure to independently use the power supply socket outlet equipped with an
Surge Suppressor. Using a power supply without a Surge Suppressor can cause a
fire when electric leakage occurs.
●Ensure that the "accurately grounded indoor earth terminal" and the earth wire
cable are available (except in the case where a power cord plug with earth is
used). This product is equipped with an earth terminal. Connect the earth
terminal and the indoor earth terminal with the designated cable. If the
grounding work is not performed appropriately, customers can be subjected to
an electric shock, and the product may not function properly.
●Ensure that the power cord and earth wire are not exposed on the surface
(passage, etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord and wire can cause electric shock and short circuit
accidents. Ensure that the wire is not in the customer's way and that the wiring
has protective insulation.
●After wiring the power cord on the floor, be sure to protect the power cord. An
exposed power cord is susceptible to damage and may cause an electric shock.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
17/27
The AC unit is located at the back of the cabinet.
The AC unit features a main switch, a circuit protector, and an inlet for connecting the power cord.
FIG. 6.2a AC Unit
1) Main SW off.
2) MAIN SWITCH
3) CIRCUIT PROTECTOR
4) INLET
5) AC CABLE (POWER CORD)
6) To the AC outlet
7) EARTH TERMINAL <TAIWAN> / Connect with the indoor earth terminal.
1. Ensure that the main switch is OFF.
2. Connect one end of the earth wire to the AC Unit earth terminal, and the other end to the indoor earth
terminal. The AC Unit earth terminal has a Bolt and Nut combination. Take off the Nut, pass the earth wire
through the Bolt, and fasten the nut. <For Taiwan>
*Note that the earth wire is incorporated in the power cord for theAreas of AC 120V (USA) and AC 220 ~
240V, and therefore, this procedure is not necessary.
FIG. 6.2b *Earth Wire Connection
1) Connect the earth wire to the earth terminal.
3. Firmly insert the power plug into the socket outlet. Insert the opposite side of the power cord plug to the
AC Unit's connector ("INLET").
FIG. 6.2c Connecting the Power Cord and Earth Wire
1) WIRING COVER
4. Perform wiring for the power cord and earth wire. Install protective insulation for the power cord and
earth wire.
FIG. 6.2d
1) If the power plug tends to come out of place, secure it to the periphery of the AC Unit with a cord
clamp (an accessory).
(P. 17)
[3] ASSEMBLING THE POP
Remove the 3 truss screws (M4 ×12) from the cabinet, replacing them with the 3 supplied truss screws
(M4×14), and fasten the POP as shown in the figure on the right.
The POP support board for this machine is packed in air-wrap and secured to the front of the monitor cover.

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
18/27
FIG. 6.3a
1) POP SUPPORT BOARD
2) TRUSS SCREW (3), chrome / M4 X 14
(P. 15)
[4] INSERTING THE MANAGEMENT CHIP AND MUSHIKING CARDS
While consulting section 7, “MANAGEMENT CHIPAND MUSHIKING CARDS”, insert the
Management Chip into the Management Chip reader/writer, and load the cards into the card dispenser.

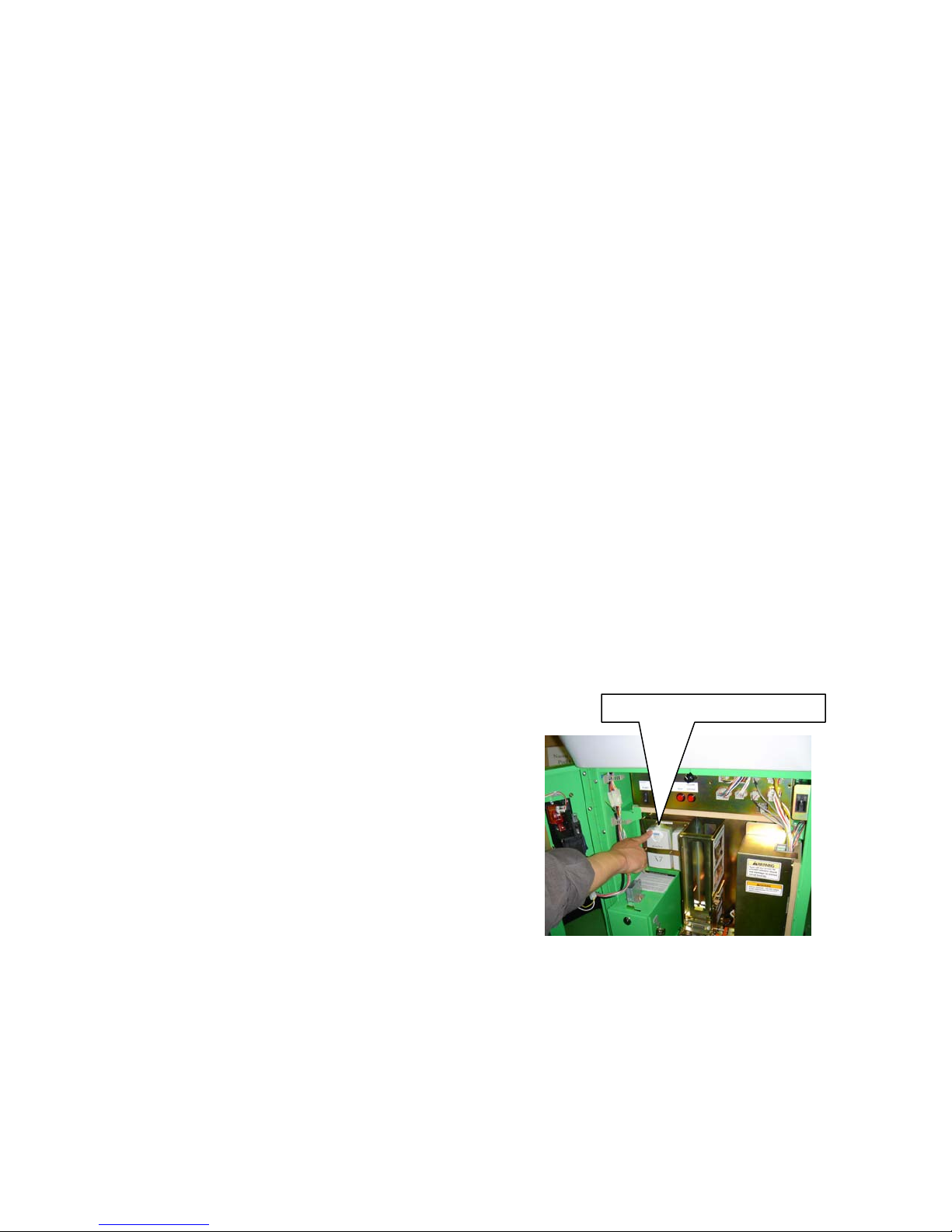

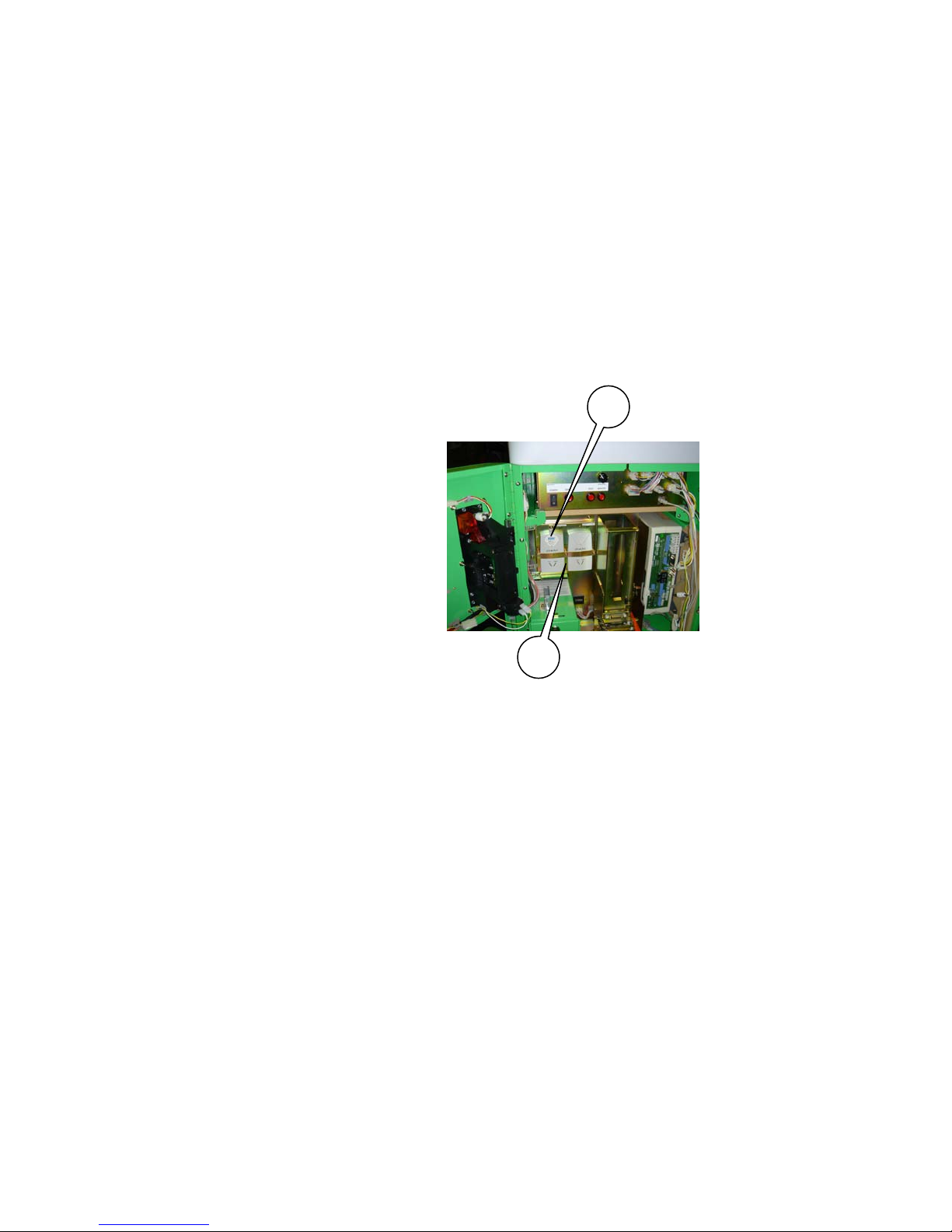

PHOTO 6.4
1) MANAGEMENT CHIP
2) MANAGEMENT CHIP READER/WRITER
(P. 18)
[5] POWERING ON
(STOP) IMPORTANT
This machine cannot be powered on unless both the AC unit on the back of the
cabinet and the power switch in the maintenance switch section on the inside of
the service door are both turned on.
Turning on the AC unit main switch and the maintenance switch will power on the machine. When
powering on the machine, the system start-up screen will be displayed, and an advertisement screen will be
shown afterwards. On this machine, the number of credits will be saved even after shutting off the power.
If credits allowing further play remain in the machine when powered off, a card will be dispensed and a
game will begin when the machine is restarted.
・In the event that there are no cards loaded into the card dispenser, a “CARD ERROR” message screen
will be displayed. In such a case, turn off the machine, load cards, and turn it on again.
・In the maintenance switch section of the service door, use the audio volume adjuster to regulate the
volume. Also, the choice of whether or not to play sound during the advertisement screen can be selected in
the TEST MODE settings.
2
1

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
19/27

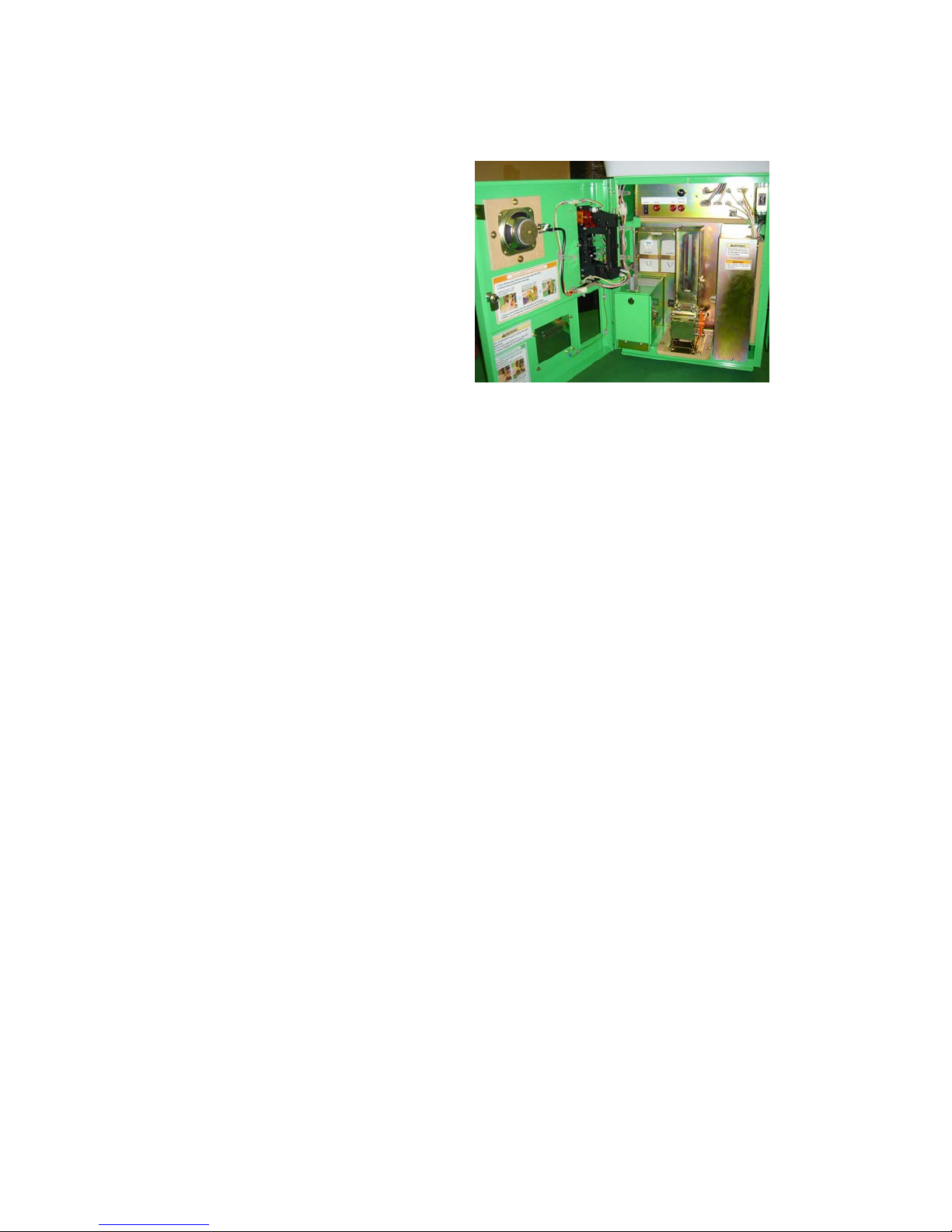

PHOTO 6.5 Inside the Service Door
1) MAINTENANCE SWITCH SECTION
2) SPEAKER VOLUME ADJUSTER
3) POWER SWITCH
4) CARD DISPENSER
(P. 17)
[6] ASSEMBLY CHECK
After powering on, press the SERVICE Button in the maintenance switch section to make sure that the
machine is working properly.
Selecting “Play against a friend” will allow a quick, general check of the working order of the machine.
Use the 1P Button and 2P Button where one of the two will advance in a rock-scissors -paper game. Be sure
to use all the input buttons when checking at this time.
Confirm the following items during operation:
□Are the cards dispensed properly?
□Does the game proceed properly on the screen?
□Do the input buttons work properly?
□Is the card scan carried out properly?
For more detailed, specific confirmation, refer to the TEST MODE. (See Table 10 of Section 10.)

「Mushiking#1-eng.doc」最終印刷日時：2010/01/14 14:16:00
20/27
(P. 19)
7. MANAGEMENT CHIP AND MUSHIKING CARDS
[!] WARNING
●Turn off the power prior to using the card dispenser.
●Do not load used cards as they may jam or cause damage to the equipment.
(STOP) IMPORTANT
Do not perform any of the following actions to avoid damaging the machine.
●Removing the Management Chip or turning the power on/off when the red
Management Chip reader/writer ”BUSY” lamp is flashing.
●Removing/inserting Management Chips while a game is in progress.
●Inserting Management Chips/Cards designed for other machines or game
versions.
●Loading more than the maximum number of cards (600). Doing so can result in
card jamming or faulty dispensing.
7-1 INSTALLING MANAGEMENT CHIP
The Management Chip is supplied with the card set for use with this machine.
1. Turn off the power switch inside the door.
2. Loosen the screw locking the Management Chip holder.
3. Insert the Management Chip firmly into the Management
Chip reader/writer slot.
4. Turn on the power switch inside the door.
5. If the “EMPTY LAMP” lights up, there may be a
malfunction. Check that the chip is correctly inserted.
MANAGEMENT CHIP HOLDER
